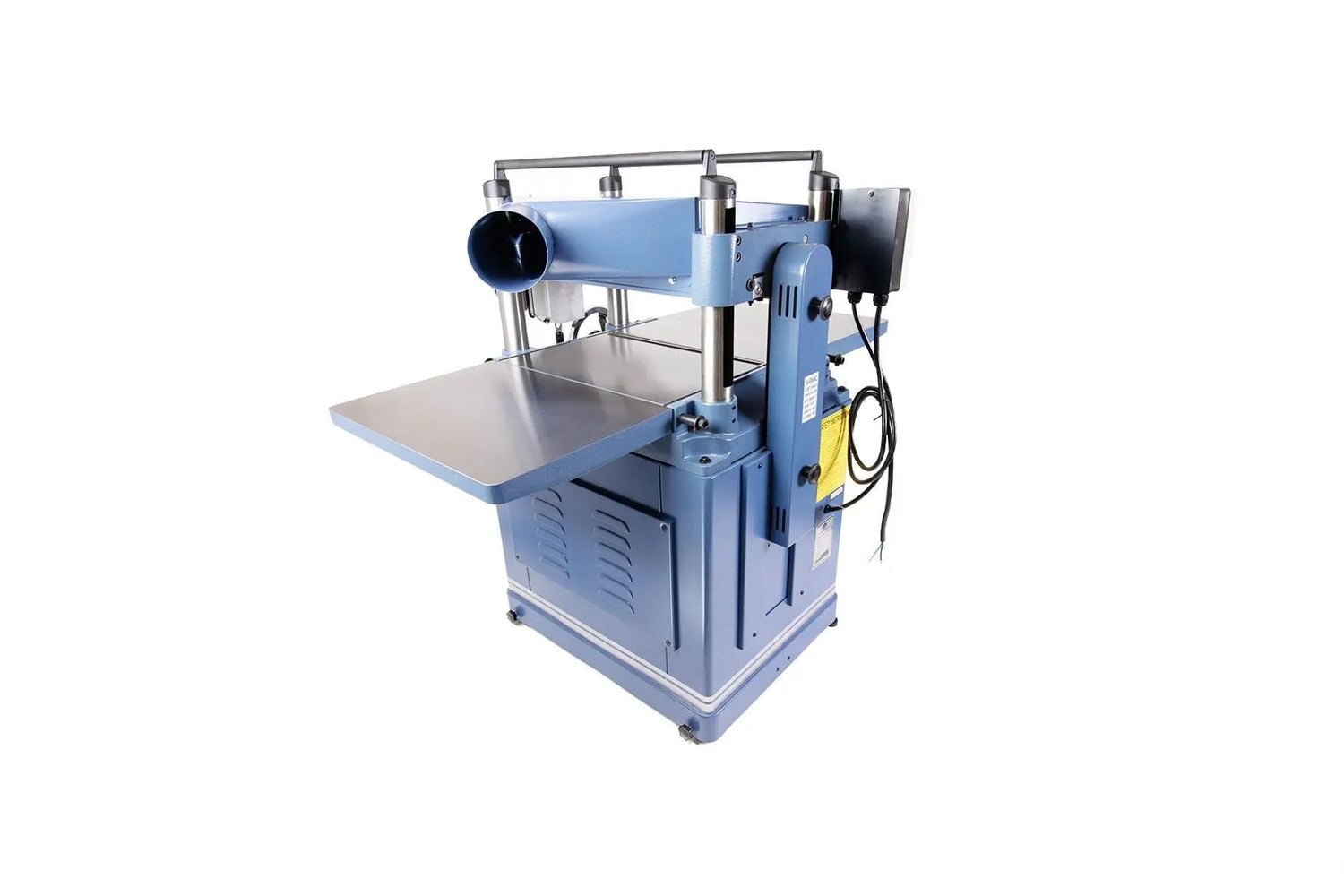

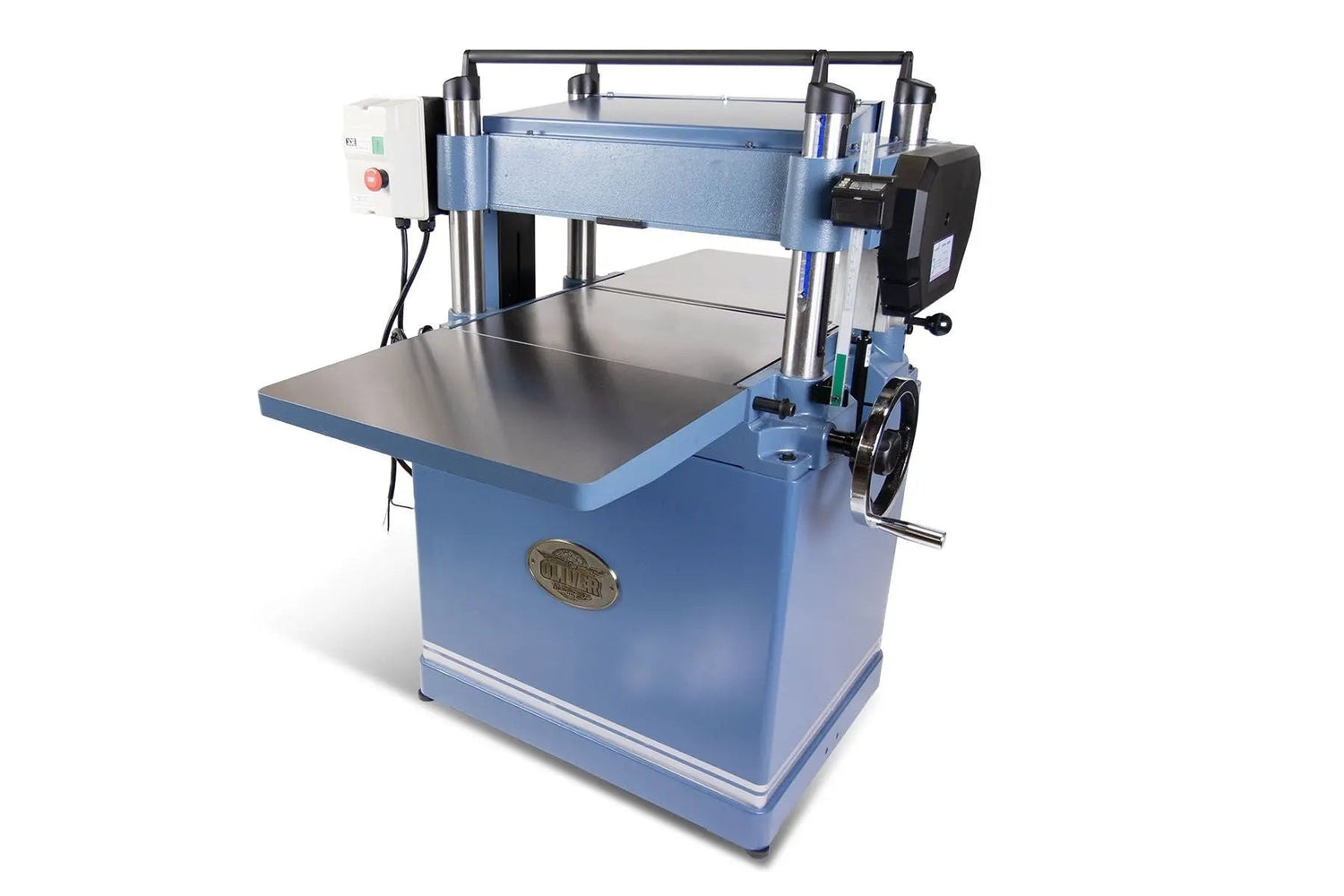

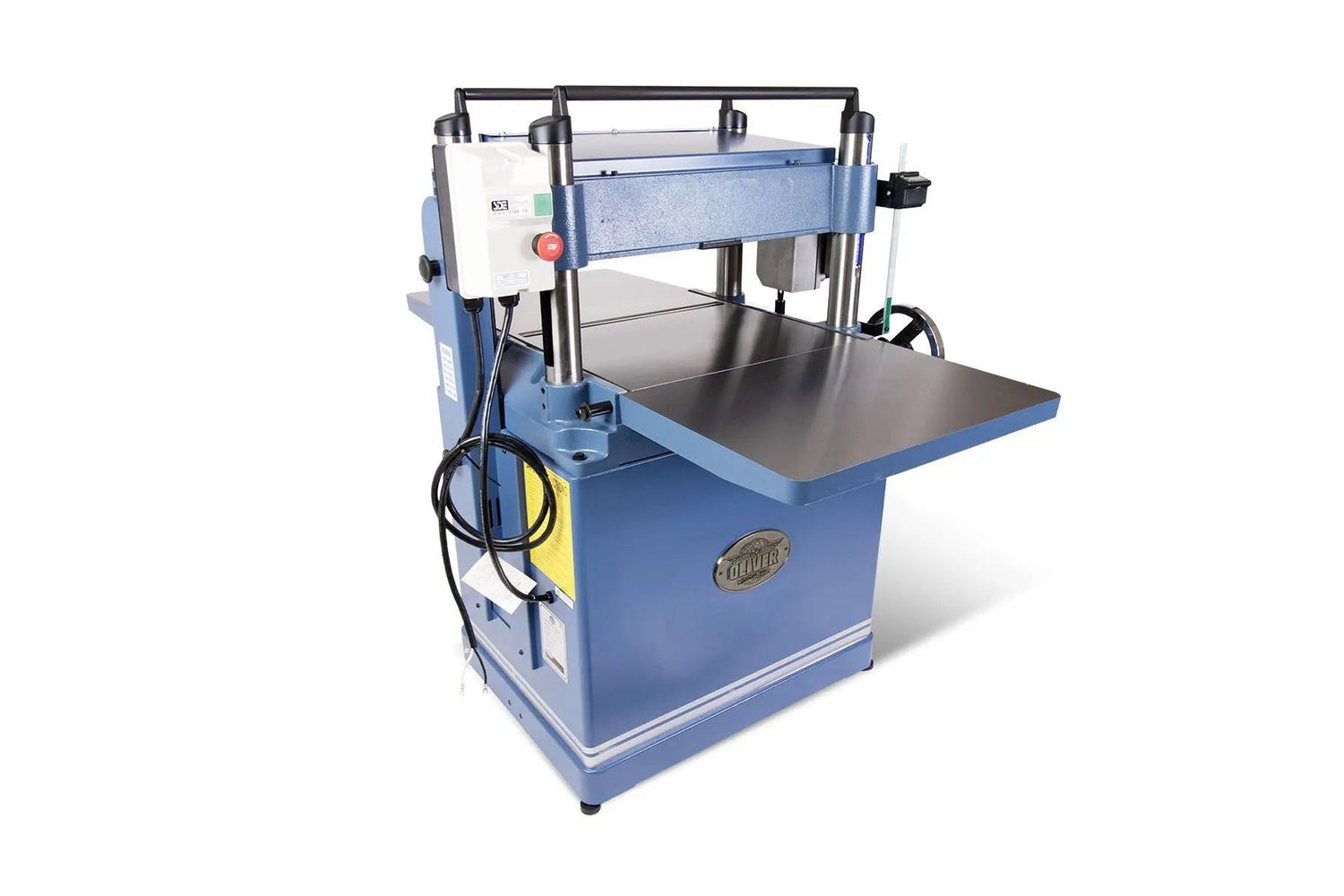

20" Planer with Oliver HCX Helical Cutterhead
20" Planer with Oliver HCX Helical Cutterhead is backordered and will ship as soon as it is back in stock.
New Customer Discount
Tap the code below to copy, then paste at checkout
20" Planer with Oliver HCX Helical Cutterhead
Questions Before Buying?
Description
Description
The Oliver 20" Planer with HCX Helical Cutterhead is a true workhorse. This industrial-grade powerhouse caters to professional woodworkers and ambitious hobbyists, offering unmatched power, unwavering precision, and unparalleled durability for tackling even the most demanding projects.
Features

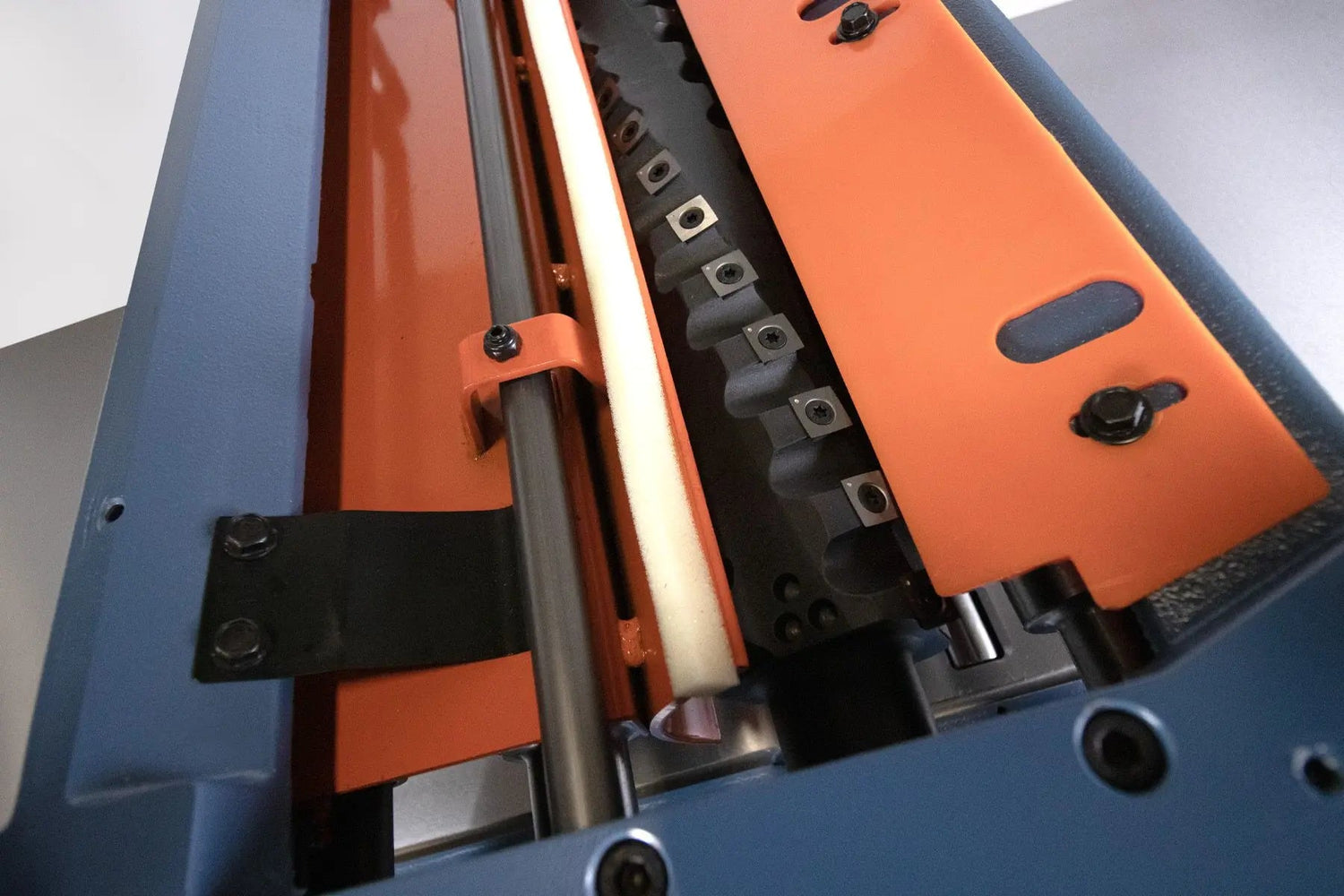

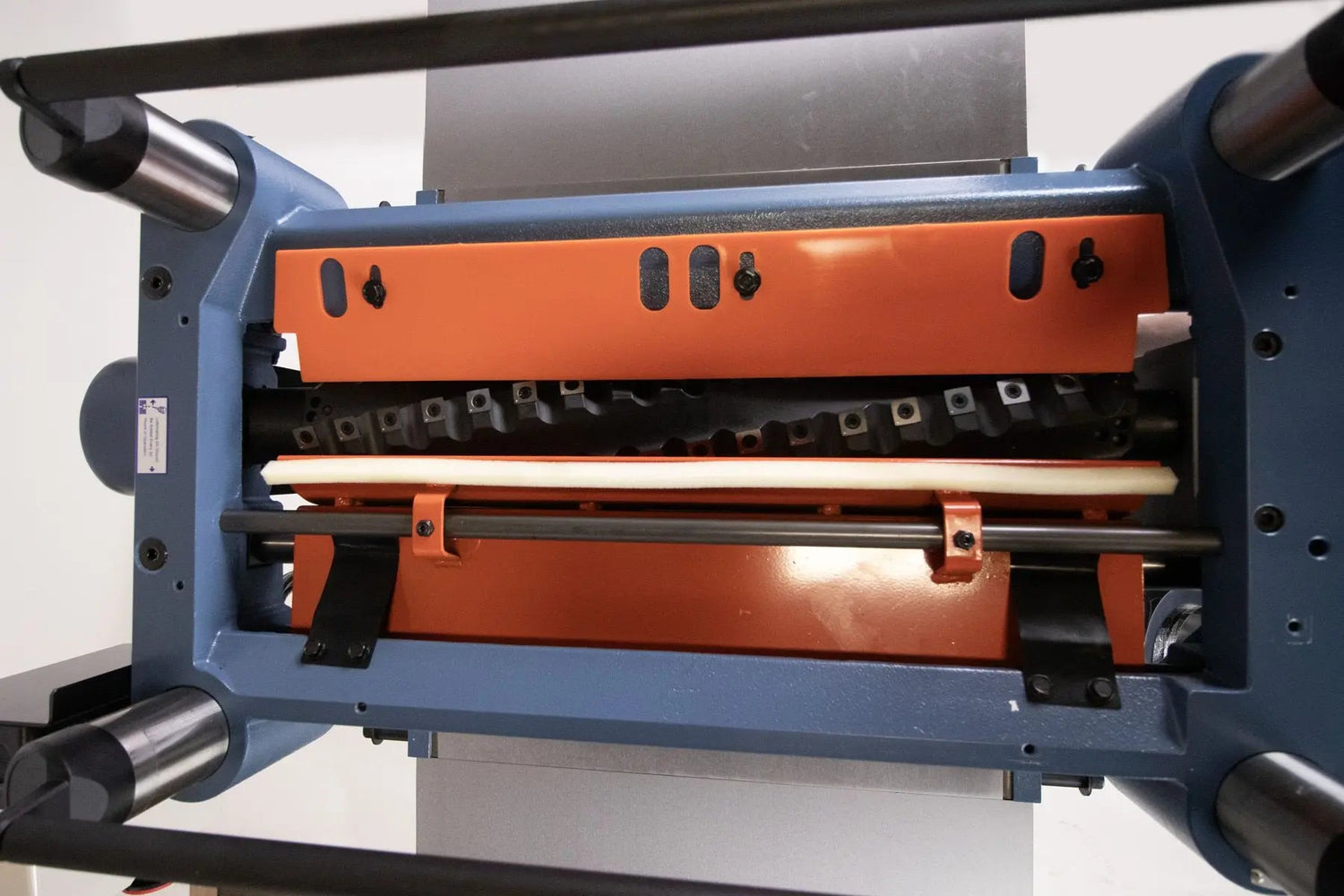

- Includes an Oliver HCX Helical Cutterhead which provides a smooth finish

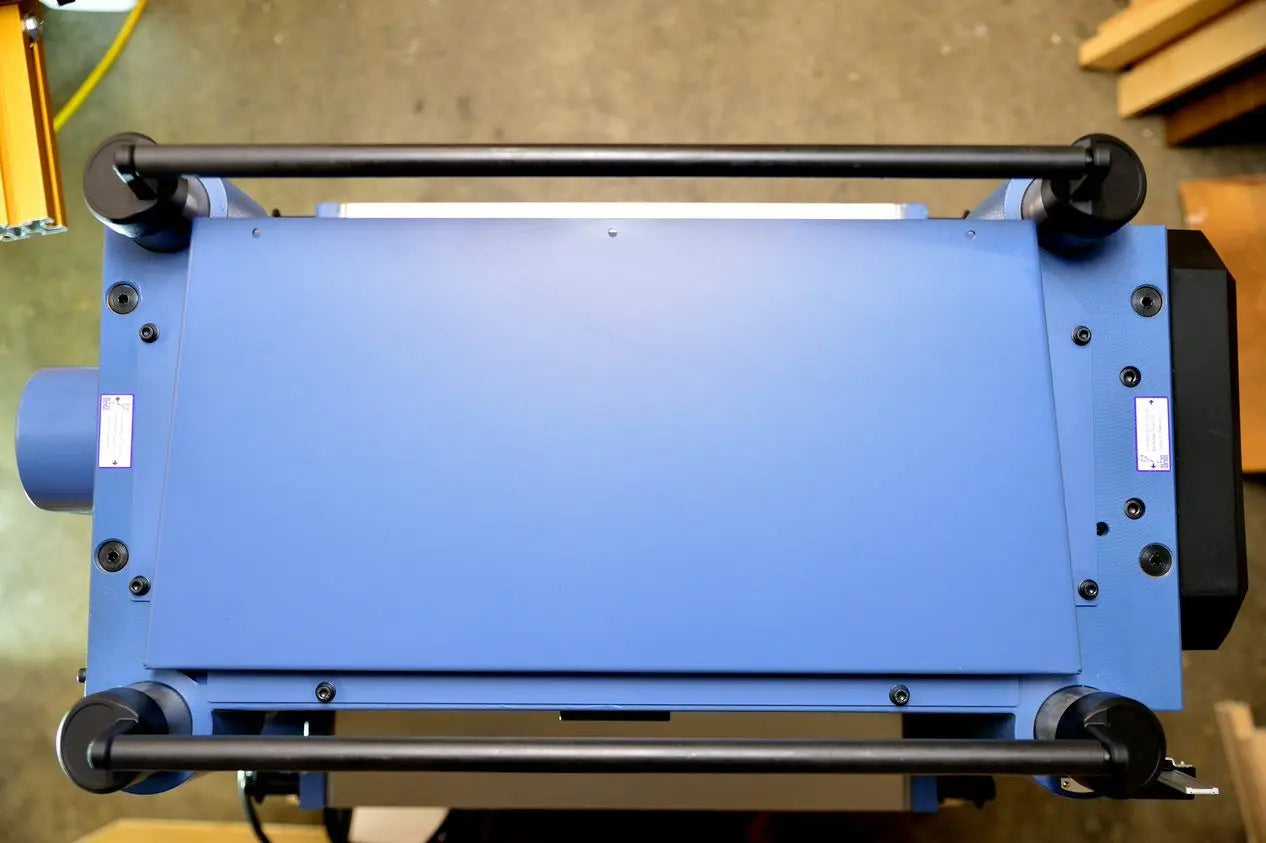

- Also comes with casters to move around the shop easily
- Wixey Digital Read Out (DRO) included for precise repetitive thicknesses

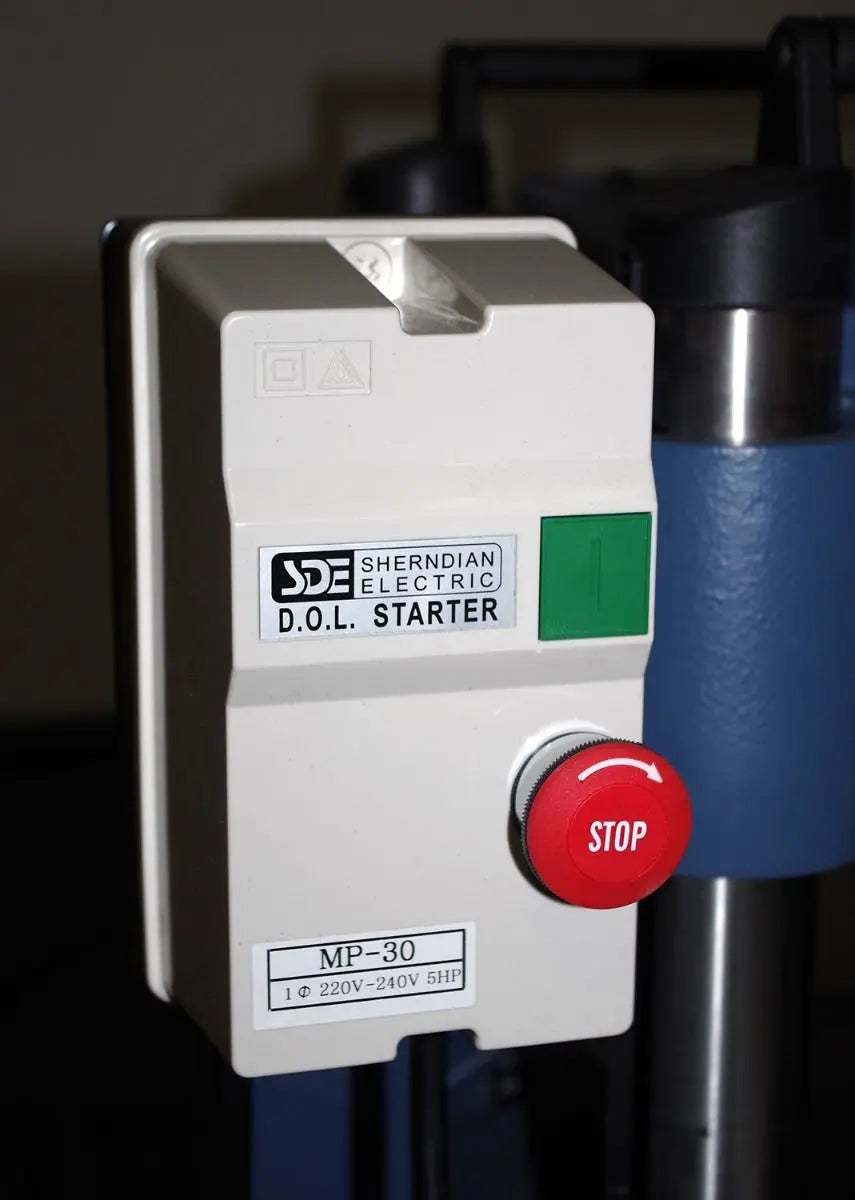

- 5HP 1Ph 220V motor

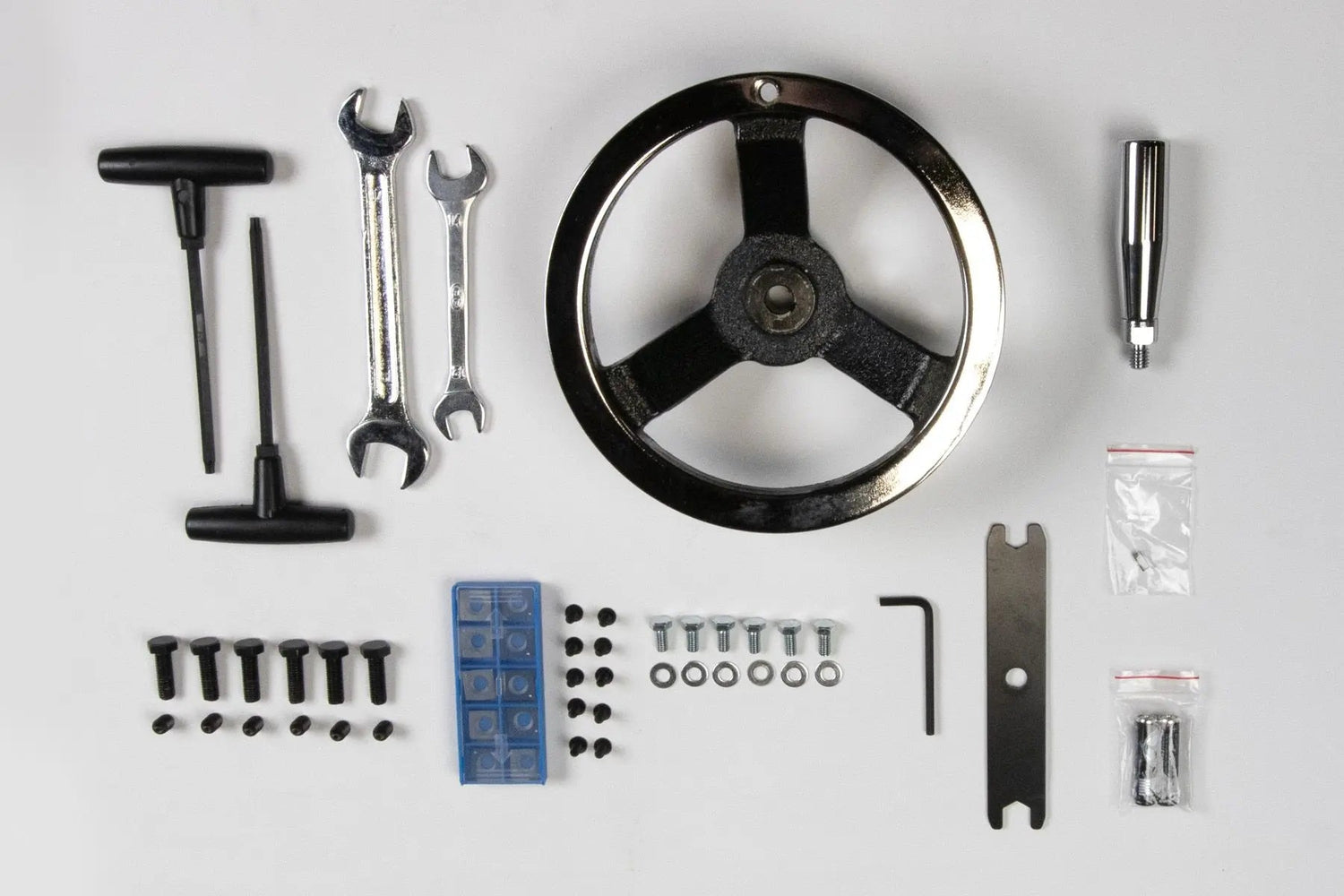

Included
- extra inserts & screws
- T-wrench
- push blocks. Does not include plug
Specifications
| Overall Dimension | 51”(L) x 40”(W) x 46-1/2”(H) |
|---|---|
| Maximum Stock Width | 20" |
| Maximum Depth of Cut | 1/4" (Stock less than 8” wide) 1/8”(Full Width) |
| Maximum Stock Thickness | 8" |
| Minimum Stock Thickness | 1/4" |
| Minimum Stock Length | 7" |
| Dust Port Diameter | 5" |
| Minimum CFM Required | 650 CFM |

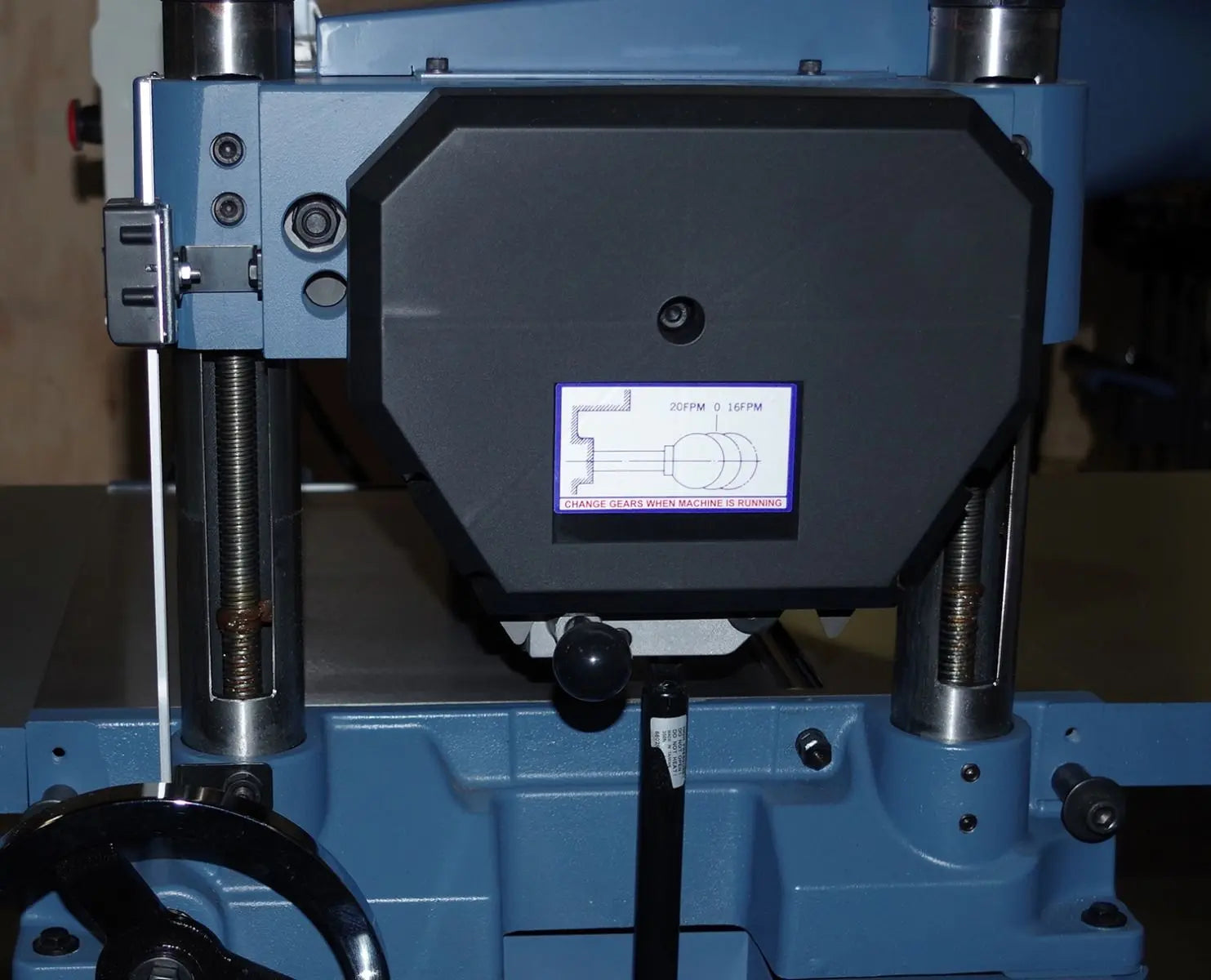

| Feed Speeds | 16/20 |
| Bed Rollers | 1, Adjustable |
| Table Size | 21” x 20” |
| Table Size w/Extension Wings | 51” x 20” |
| Table Height | 29-3/4” |
| Cutterhead Diameter | 3-1/4" |
| Cutterhead Speed | 3450 RPM |
| Number of Knives | 68 |
| Number of Knives (helical) | 68 |
| Footprint | 22-1/2” (L) x 28-3/4”(W) |
| Footprint - with Table | 51”(L) x 40”(W) x 46-1/2”(H) |
| Motor 1Ph | 5HP 1Ph 230V (1Ph, 18 Amp) |
| Overall Dimensions | 38-1/4” (L) x 32”(W) x 51-3/4”(H) |
| Net Weight | 546 lbs. |
| Gross Weight | 625 lbs. |
