Edge Sander 9" x 138.5" (Oscillating)
Edge Sander 9" x 138.5" (Oscillating) is backordered and will ship as soon as it is back in stock.
New Customer Discount
Tap the code below to copy, then paste at checkout
Edge Sander 9" x 138.5" (Oscillating)
Questions Before Buying?
Description
Description

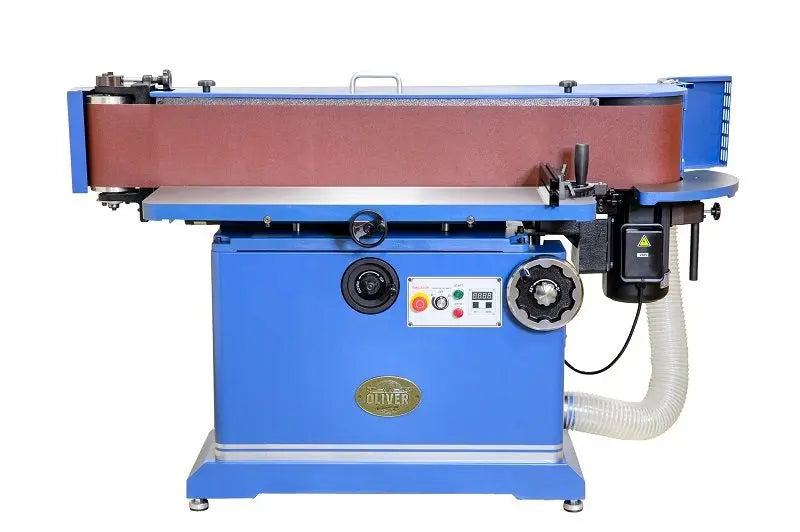

The Oliver 6320 is the ultimate edge sanding workhorse with a large 9" x 138.5" belt with adjustable oscillation action. The heart of this edge sanding marvel lies in its precision-balanced drums and a robust 3HP 3Ph TEFC motor. This dynamic duo ensures your woodworking experience is characterized by smooth, reliable operation, resulting in projects completed with impeccable quality efficiently.
Features
- Large 9” x 138.5” belt features adjustable oscillation action for a superior finish
- Tables are heavy cast iron and precision ground
- Both tables adjust up and down for complete use of belt
- Main table features spring assisted raising and lowering
- End table allows contoured sanding applications
- Drums are precision balanced for smooth operation

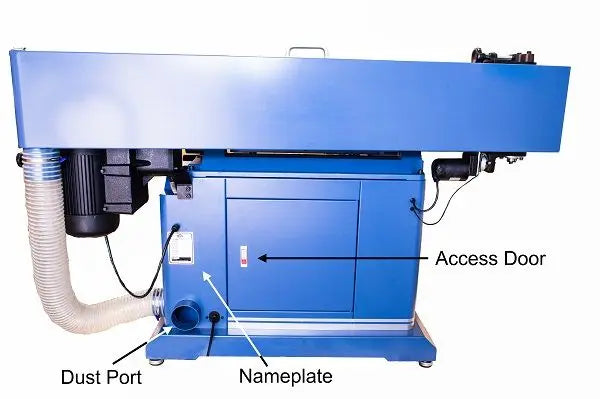

- Built-in 4” port for efficient dust management

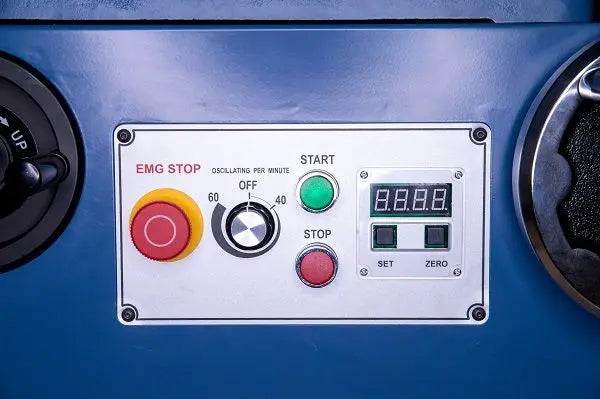

- Magnetic Controls for added safety and motor protection
- Powerful 3HP 3Ph TEFC motor
Included
- Sanding Belt
- Main Cast-Iron Main & Contour Table
- Dust Port Diameter 4"

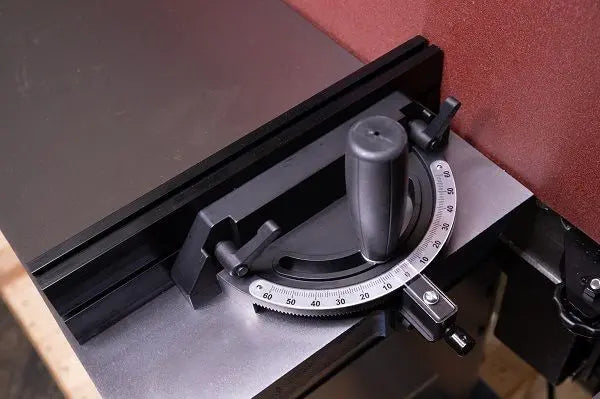

- Miter Gauge
- Stop Bracket
Specifications
| Table Material | Cast Iron |
|---|---|
| Main Table Size | 13” x 46” |
| End Table Size | 13” x 18” Radius Both Table Working Height 34-1/2” to 42-1/2” |
| Main Table Tilt | 5° in 45° out |
| End Table Tilt | Fixed |
| Belt Size | 9” x 138.5” |
| Belt Speed | Approx. 4,100 FPM |
| Oscillation | 0, 40-60 per minute |
| Table Height | 33"-40.5" |
| Oscillation Stroke | 13/64" - 25/64" |
| Dust Port Diameter | 1 x 4" |
| Minimum CFM Required | 650 CFM |
| Motor | 3HP, 3Ph 230V Only (16.5 Amp) |

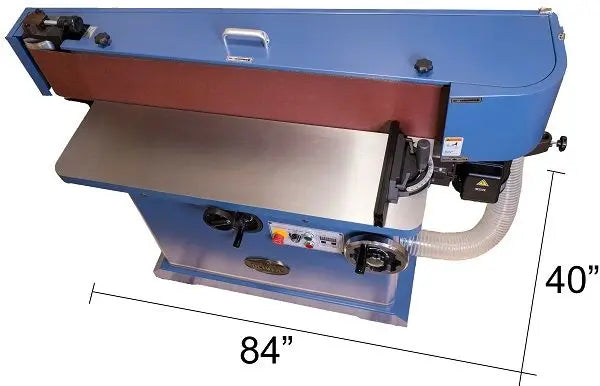

| Overall Dimensions | 84“(L) x 40”(W) x 44”(H) |
| Net Weight | 623 lbs. |
