Oliver Machinery 10” 3 Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails - 4016.004-A001 - Backorder to July
Oliver Machinery 10” 3 Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails - 4016.004-A001 - Backorder to July - Standard is backordered and will ship as soon as it is back in stock.
New Customer Discount
Tap the code below to copy, then paste at checkout
Oliver Machinery 10” 3 Phase 5 HP Professional Heavy-Duty Table Saw...
Questions Before Buying?
Description
Description

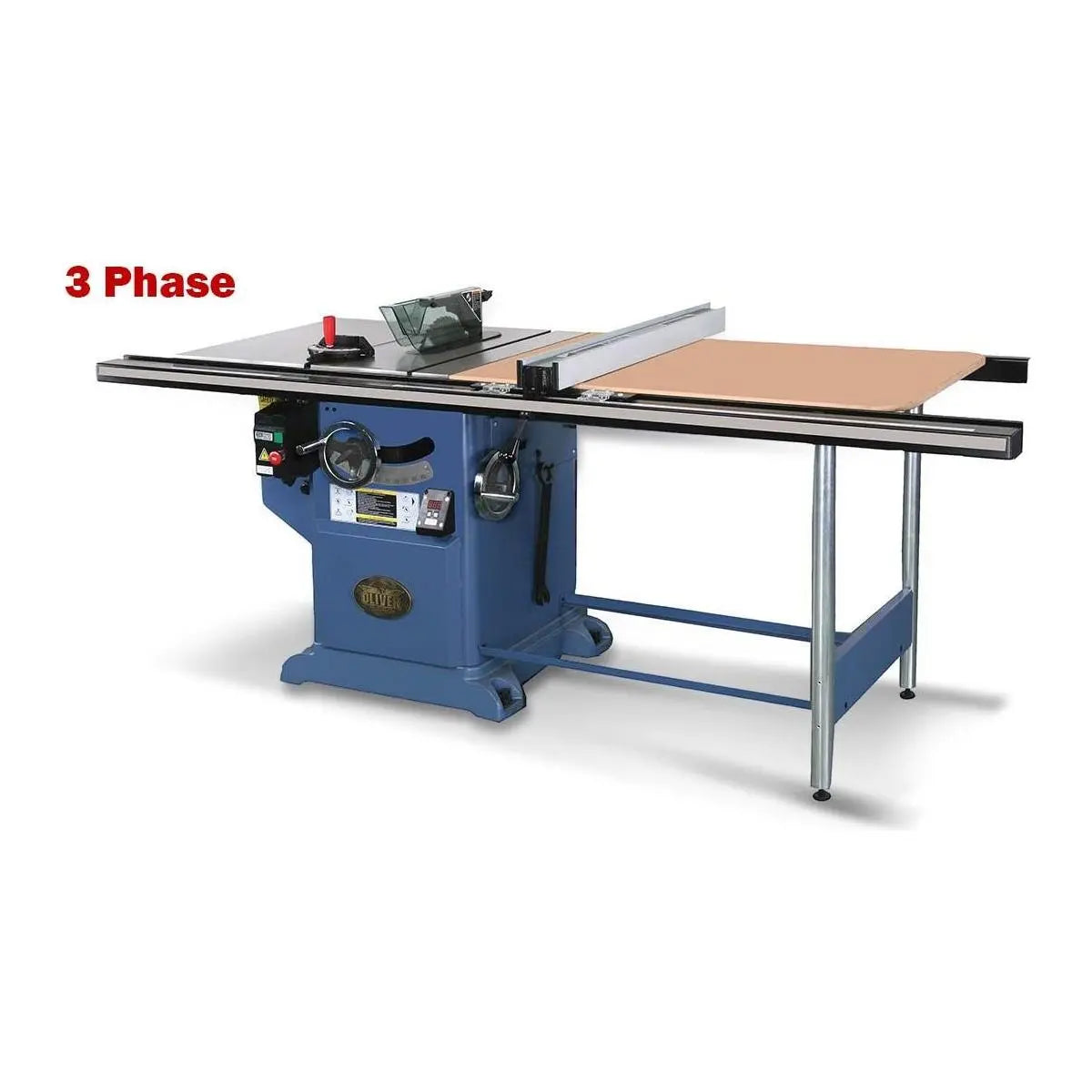

Oliver Machinery 10” 3 Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - 4016.004-A001
Product Description - Backorder to July
- Large precision ground table provides a stable work surface.
- Cast iron base offers a steady platform.

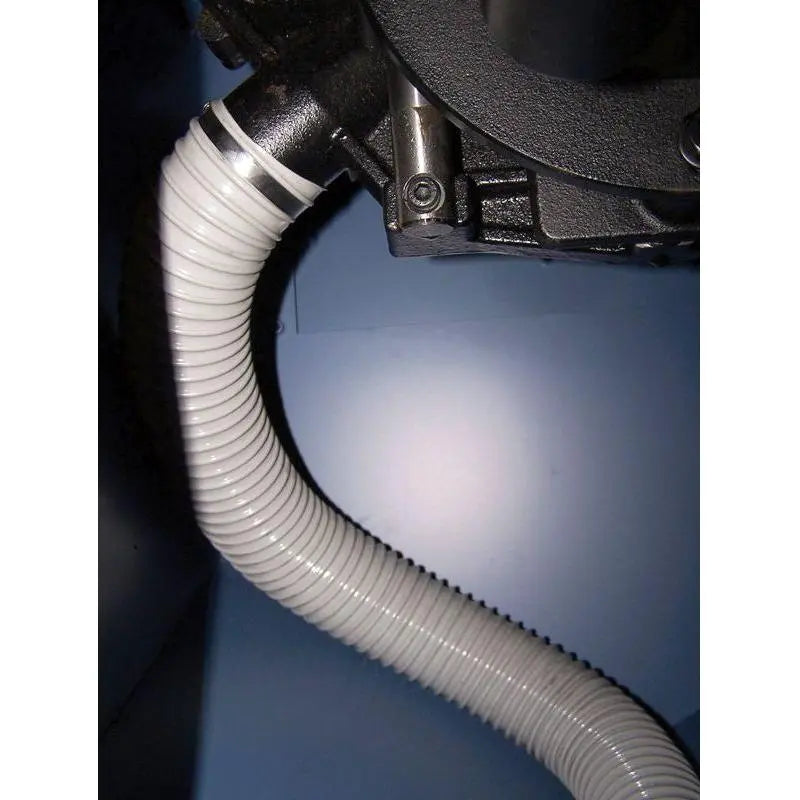

- Fully enclosed cabinet and blade dust shroud for better dust management.
- Precision ground 5/8” arbor.
- Wide stance trunnion features a left tilt blade.
- Poly V-belt drive smoothly transfers power to the blade.
- Hydraulic assisted blade lift mechanism for easy movement.
- Large chrome hand wheels allow easy adjustments.

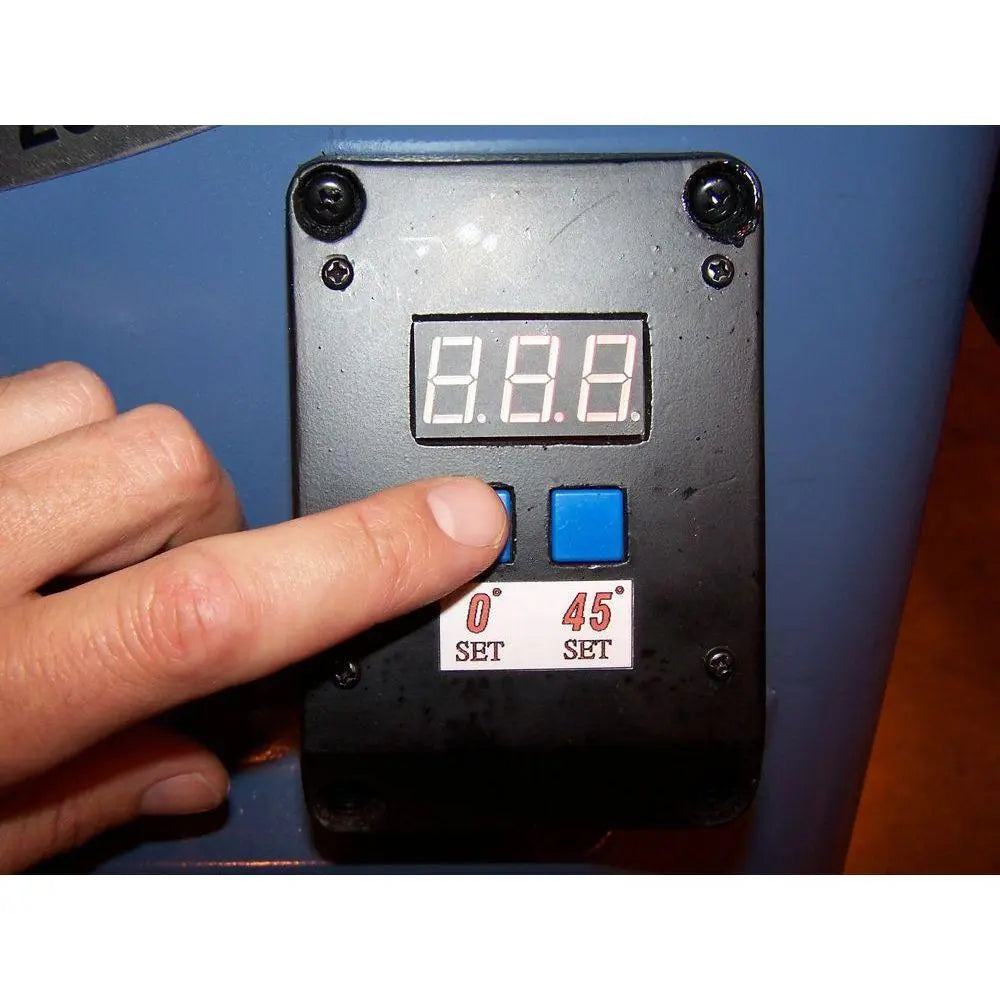

- Includes digital readout of blade tilt.

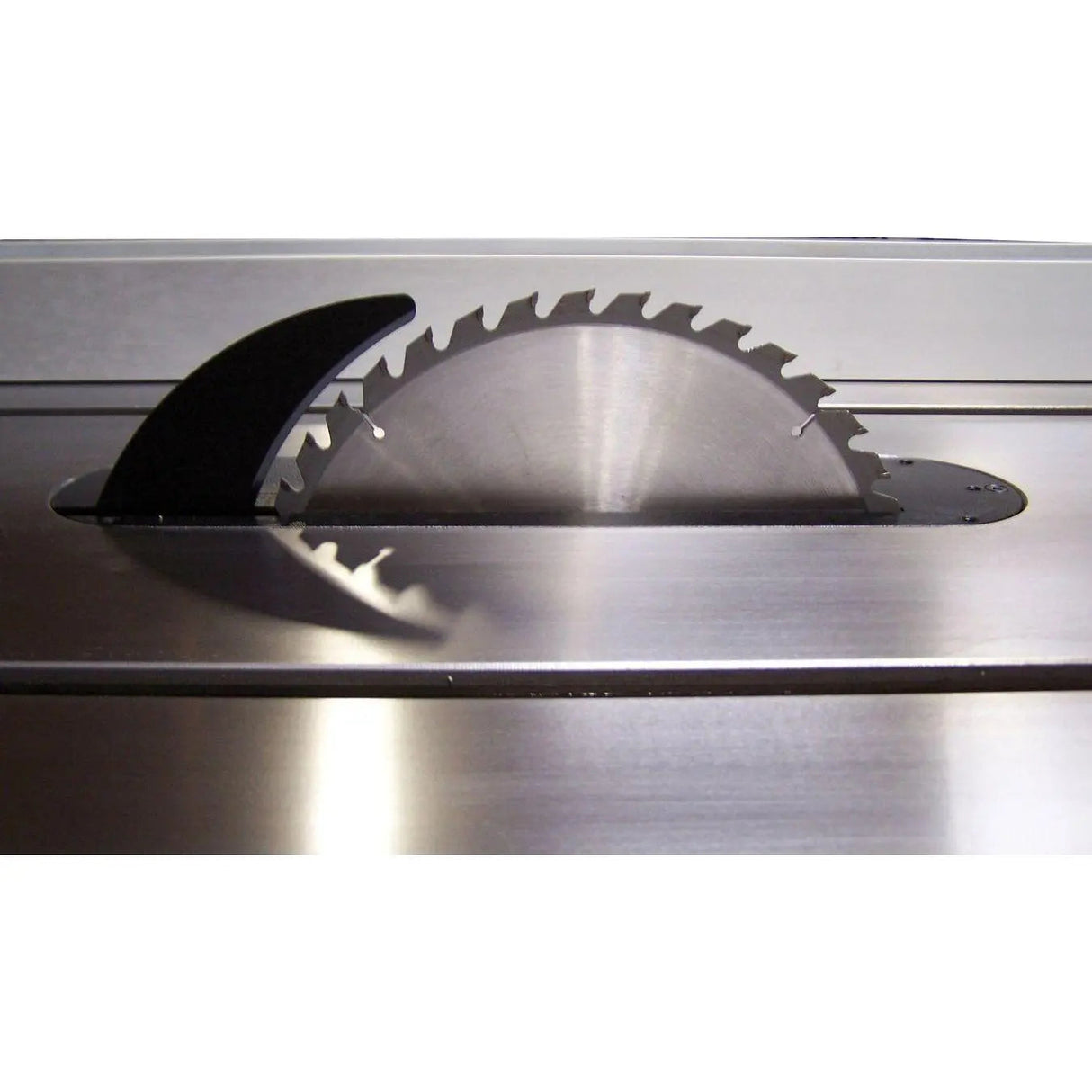

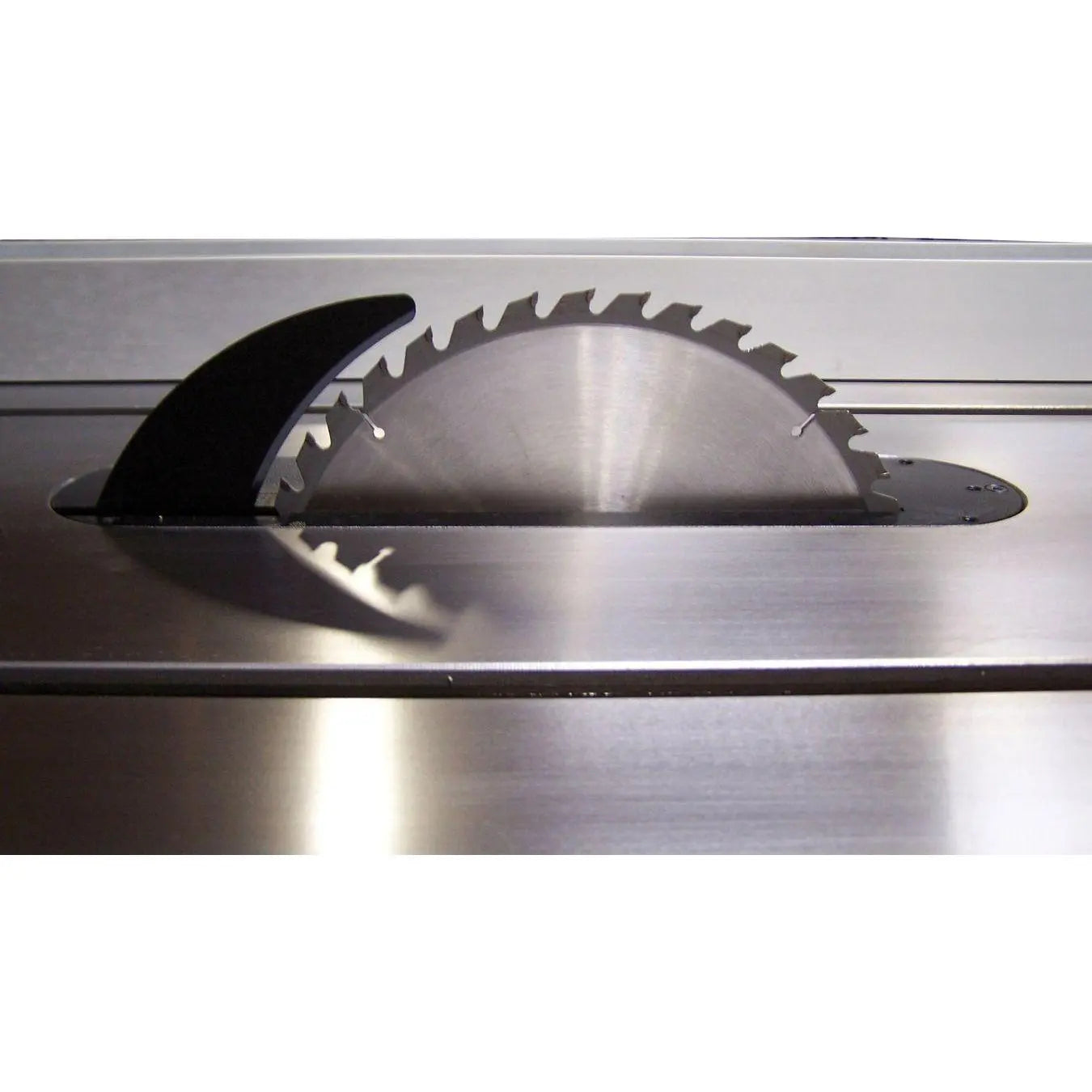

- Riving knife splitter for added safety against kick-back.
- Optimus T-square fence available in 52” rip capacity.
- 52” rail includes wood side table and (1) cast iron extension wing.

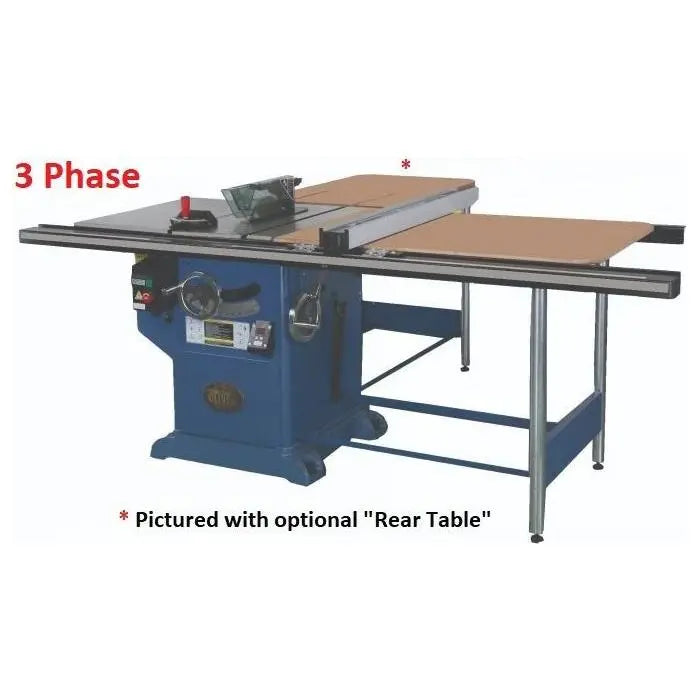

- Optional rear support table available (pictured)
- Magnetic controls with emergency off switch.

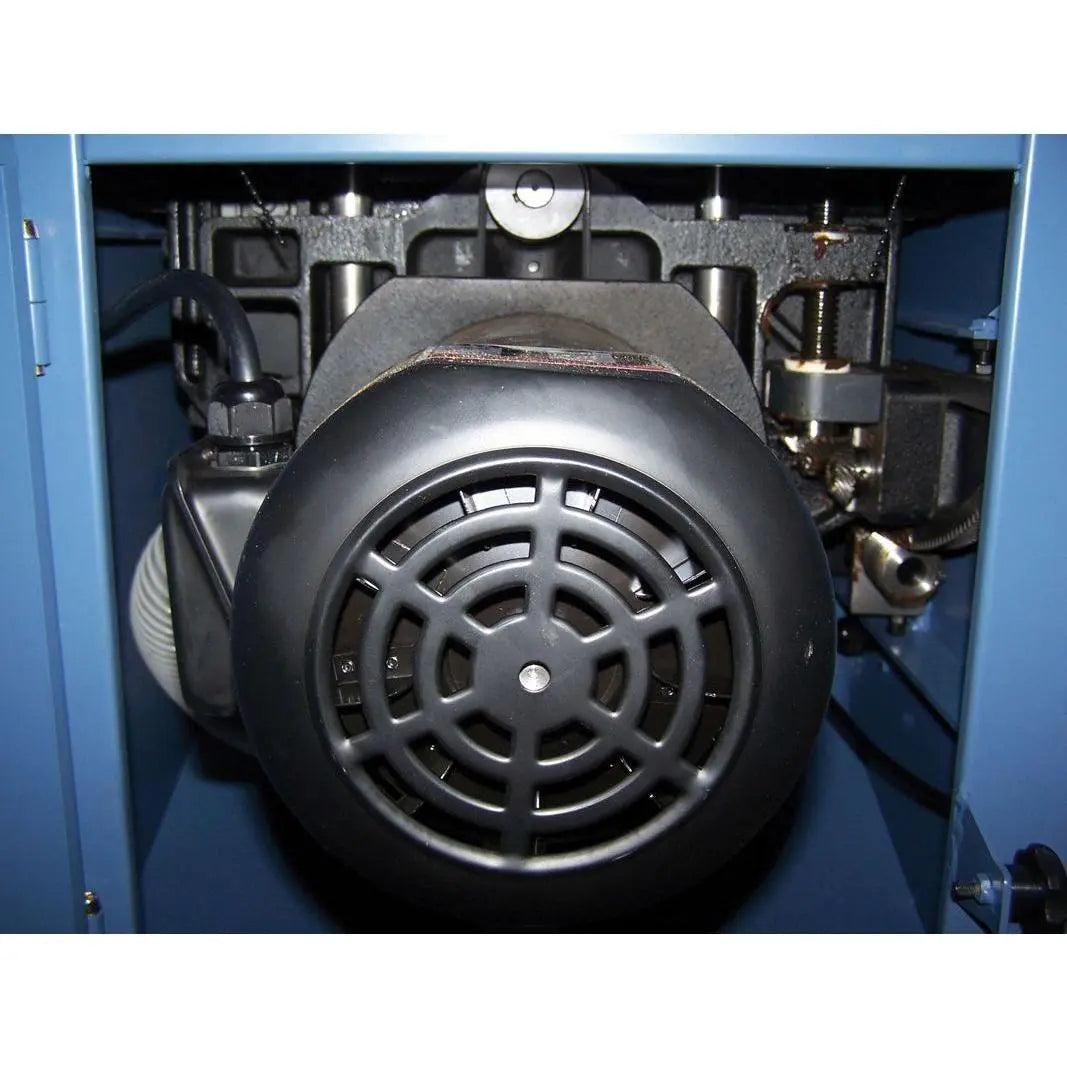

- Powerful TEFC motor available in three phase.

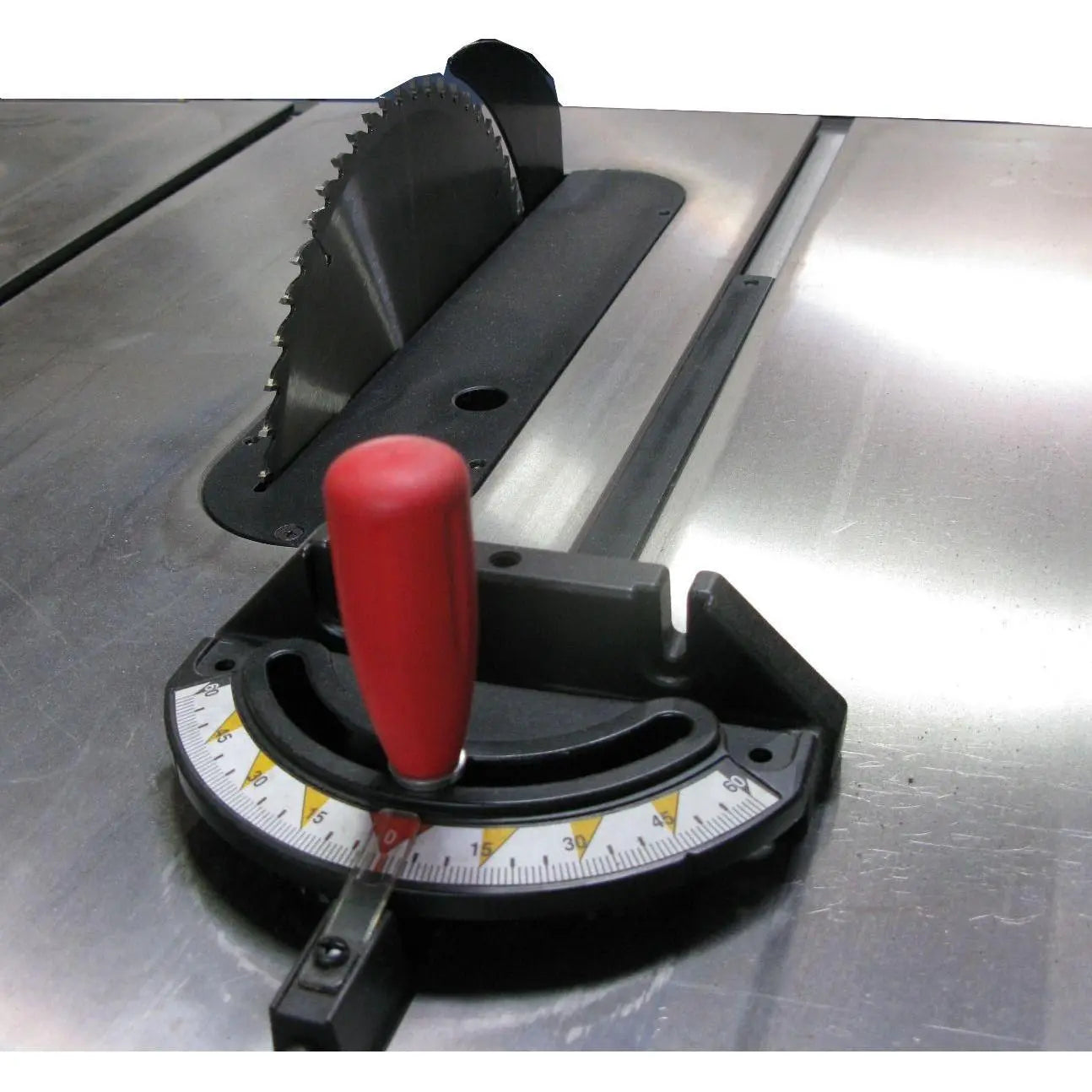

- Miter gauge included.
- Blade not included.
Specifications
| Model Number | 4016.004.A001 |
|---|---|
| Ph | 3Ph |
| Rail Length | w/Side Table w/52" Rail |
| Stock Number | 4016 |
| Stock No. (5HP, 3Ph) | 4016.004.A001 |
| Blade Diameter | 10" |
| Arbor Diameter | 5/8" |
| Blade Tilt | Left |
| Arbor Speed | 3,450 RPM |
| Maximum Depth of Cut at 90° | 3" |
| Maximum Depth of Cut at 45° | 2-1/4" |
| Maximum Width of Dado | 13/16" |
| Maximum Cut to Right of Blade | 52” with side table |
| Maximum Cut to Left of Blade | 12" |
| Dust Port Diameter | 4" |
| Table Dimensions w/o Extensions | 27”D x 21-1/4”W |
| Wing Size | 27” x 12” |
| Table Height | 36" |
| Motor 3Ph | 5HP, 3Ph, 220V/440V* Prewired 220V (15/7.5 Amp) |
| Overall Dimensions | 74”L x 32-½”W x 40”H |
| Net Weight | 480 lbs. |
| Gross Weight | 720 lbs. |
