Oliver Machinery 16" Parallelogram Jointer w/4 Sided Helical Cutterhead
Oliver Machinery 16" Parallelogram Jointer w/4 Sided Helical Cutterhead - 5HP 1Ph is backordered and will ship as soon as it is back in stock.
New Customer Discount
Tap the code below to copy, then paste at checkout
Oliver Machinery 16" Parallelogram Jointer w/4 Sided Helical C...
Questions Before Buying?
Description
Description

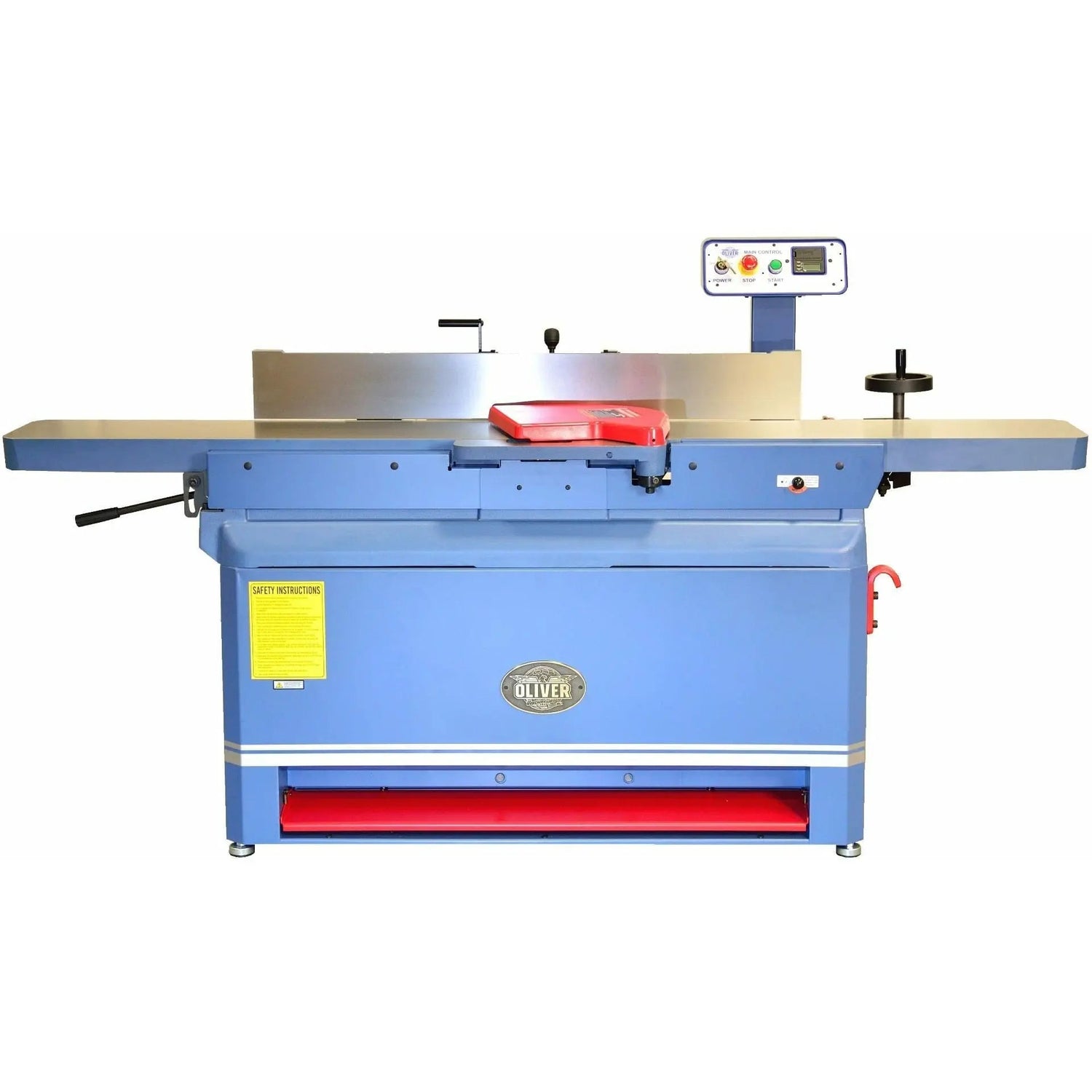

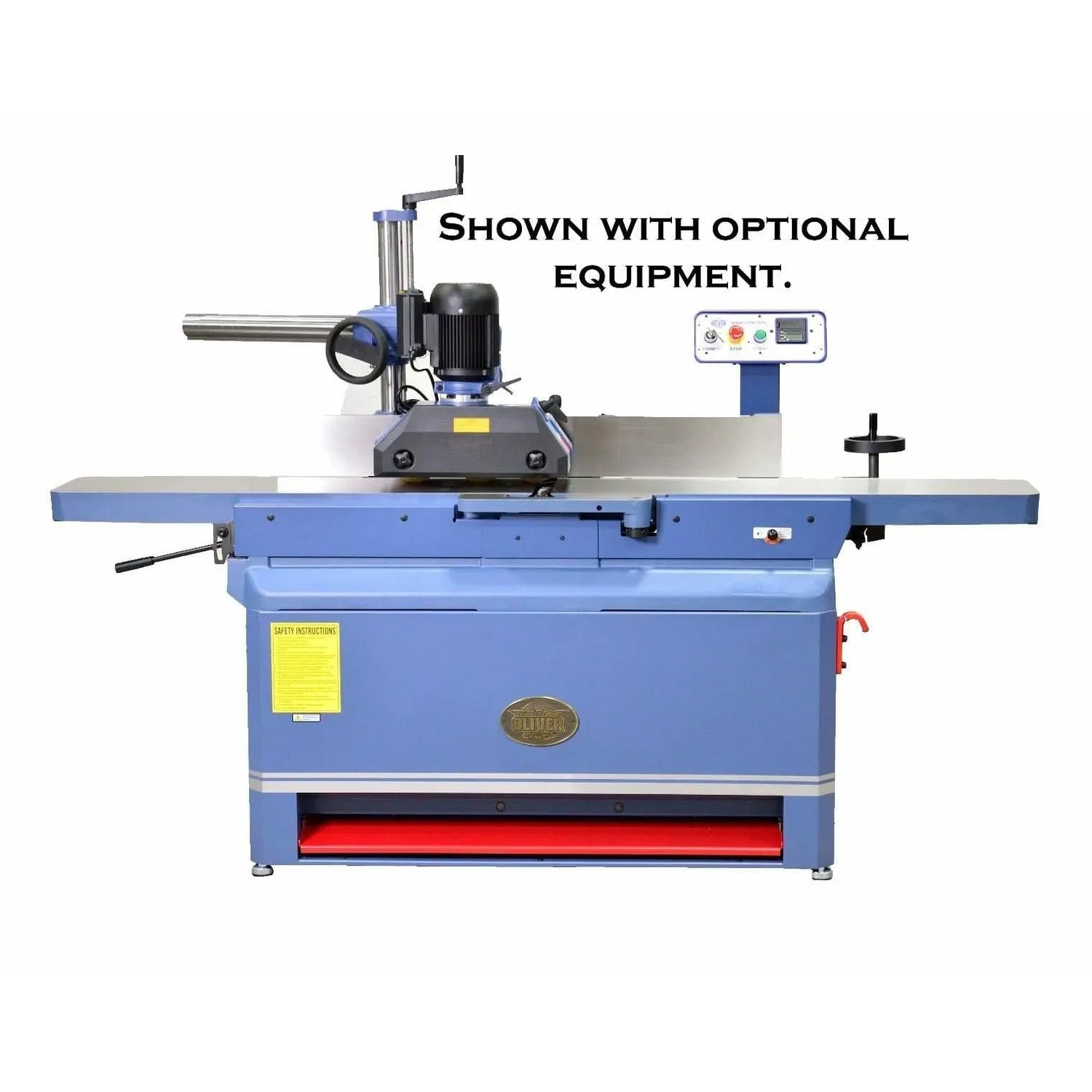

Oliver Machinery 16" Parallelogram Jointer w/4 Sided Helical Cutterhead
Elevate your woodworking game with the Oliver Machinery 16" Parallelogram Jointer w/ 4-Sided Helical Cutterhead. This industrial workhorse delivers exceptional power, unwavering precision, and unparalleled capacity, catering to professional woodworkers, demanding hobbyists, and high-volume production shops.
Engineered for Demanding Tasks:
- Dominate Hardwood Giants: The robust 5HP or 7.5HP motor (single-phase or three-phase) effortlessly conquers even the densest hardwoods and thickest materials, ensuring smooth, efficient cuts for large-scale projects.
- Helical Mastery: The innovative 4-sided helical cutterhead with premium carbide inserts boasts quieter operation, reduced tear-out, and extended blade life, significantly enhancing your cutting experience.
- Unwavering Accuracy: The precision-engineered parallelogram design guarantees smooth, accurate cuts with minimal snipe, while the extra-long, precision-ground tables (100" x 16") offer an unshakeable platform for handling even the largest boards with confidence.
- Effortless Control & Versatility: Lever-controlled infeed and outfeed tables enable swift and easy adjustments, while positive stops at 90° and 45° on the long, cast-iron fence simplify angled cuts for added versatility.
- Clean Work Environment: The fully enclosed cabinet equipped with a 6" dust port effectively captures dust and debris, maintaining a clean and healthy workspace.
- Built to Endure: Oliver Machinery's dedication to quality shines through. This jointer is constructed from heavy-duty cast iron, ensuring unwavering stability and years of dependable operation, even in demanding production environments.
Ideal for:
- Professional Woodworkers: Elevate your craft to new heights with professional-grade jointing capabilities that guarantee flawless results on even the largest projects.
- Cabinetmakers and Furniture Builders: Achieve perfect jointing for seamless furniture construction of any size, ensuring impeccable final products.
- High-Volume Production Shops: Increase efficiency and capacity without sacrificing accuracy, perfect for high-output woodworking operations.
- Serious Hobbyists: Take your woodworking skills to the next level with the power and precision demanded by professionals, tackling ambitious projects with confidence.

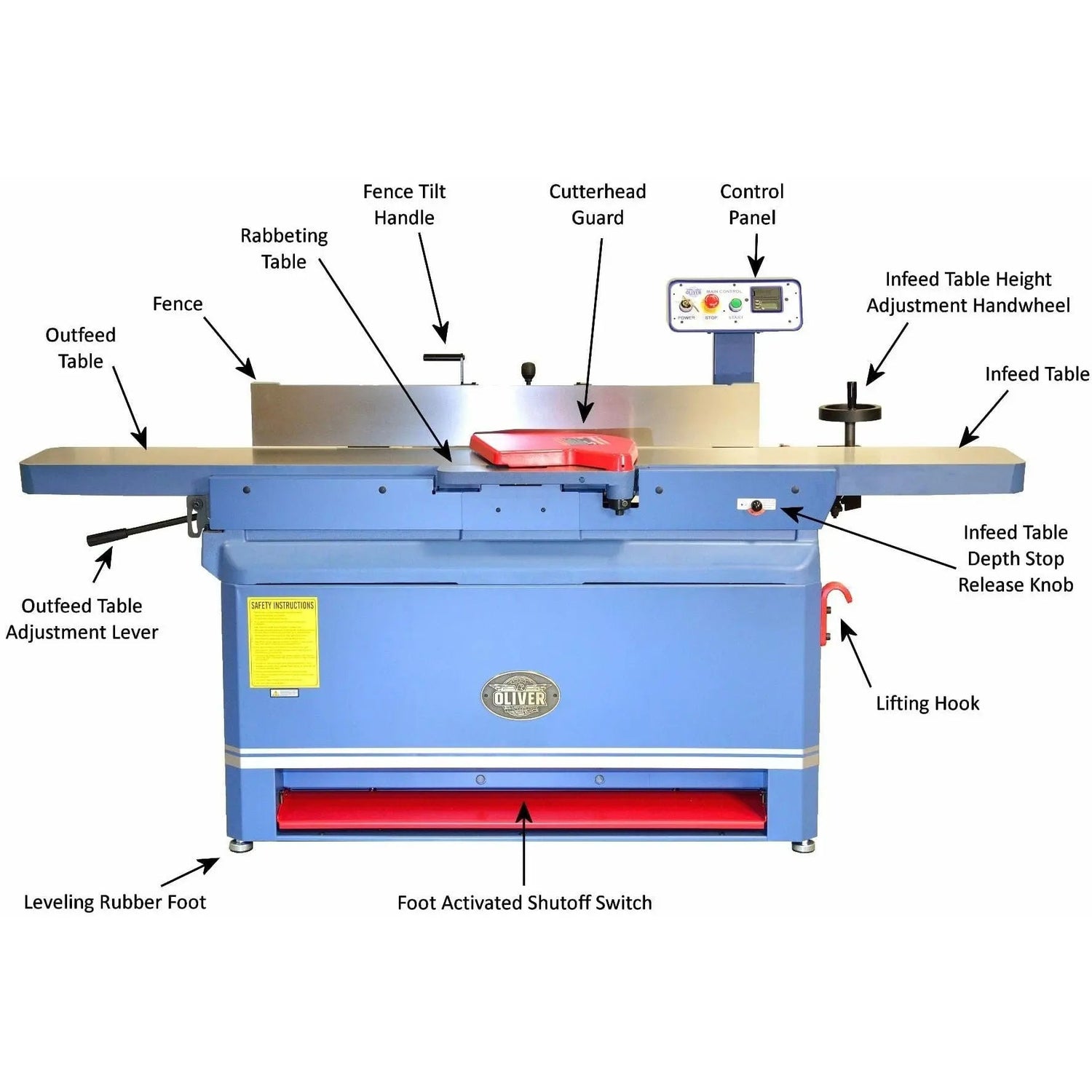

Features
- Extra-long precision ground tables provide a stable work surface
- Parallelogram design provides smooth accurate cuts

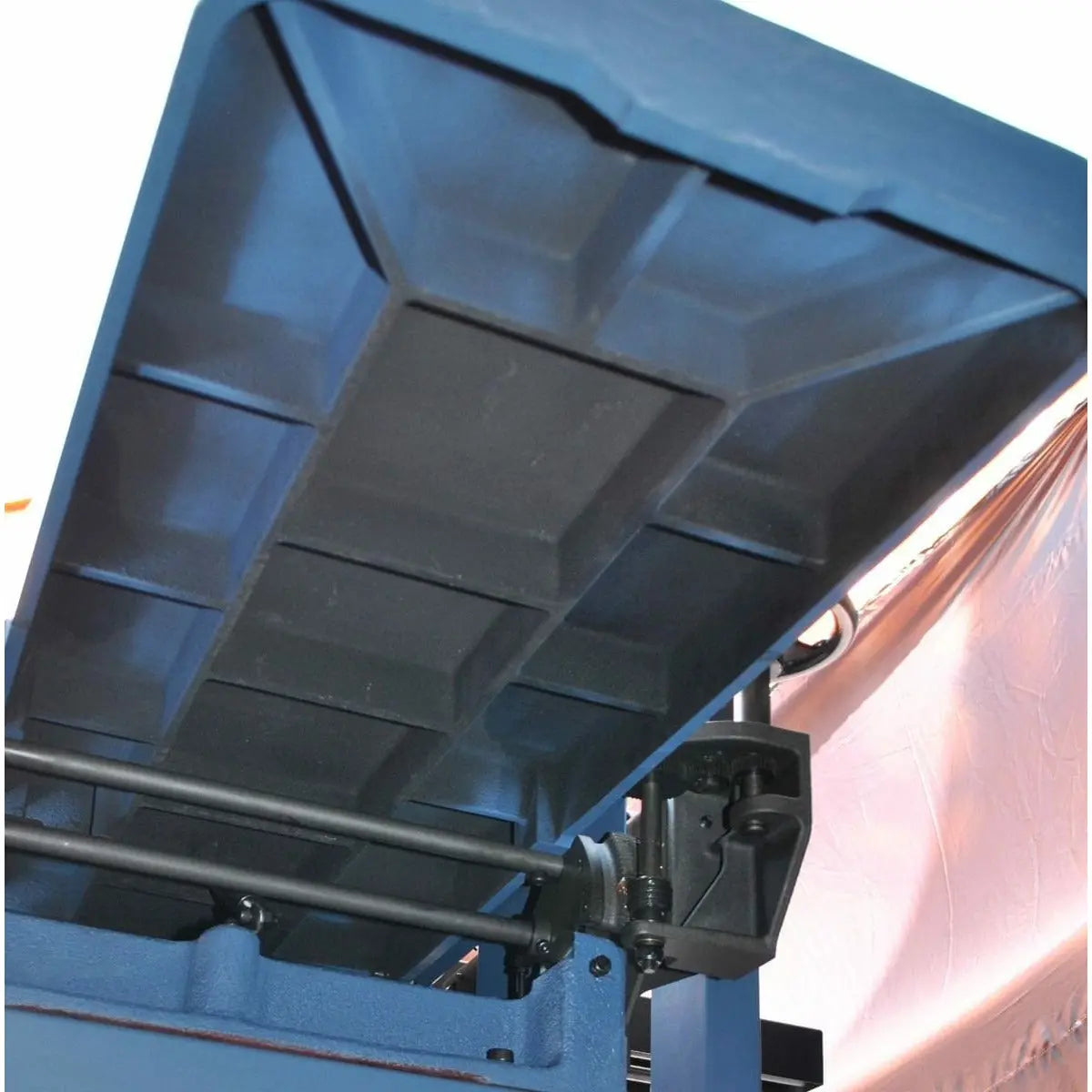

- Massive cast iron frame offers stable table support

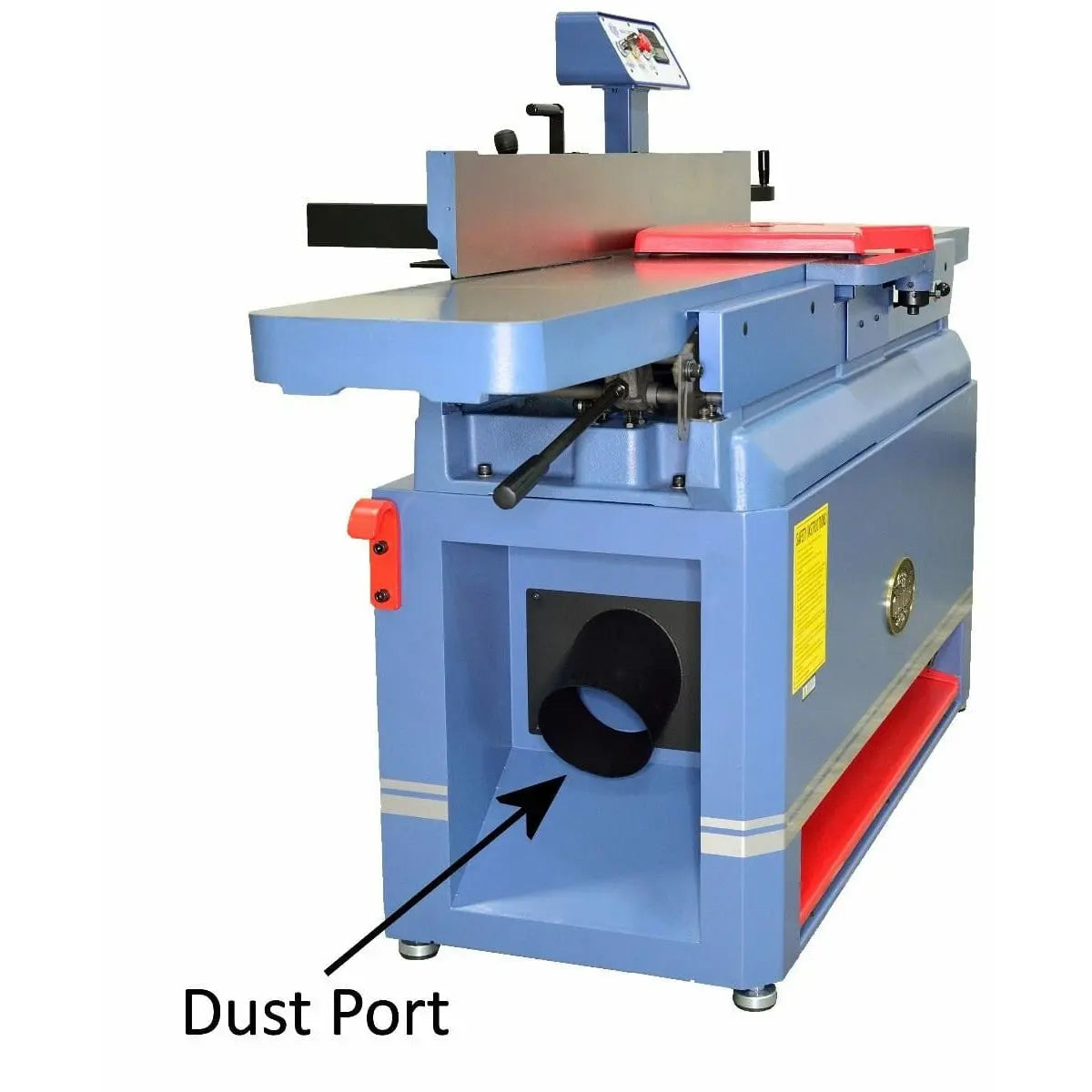

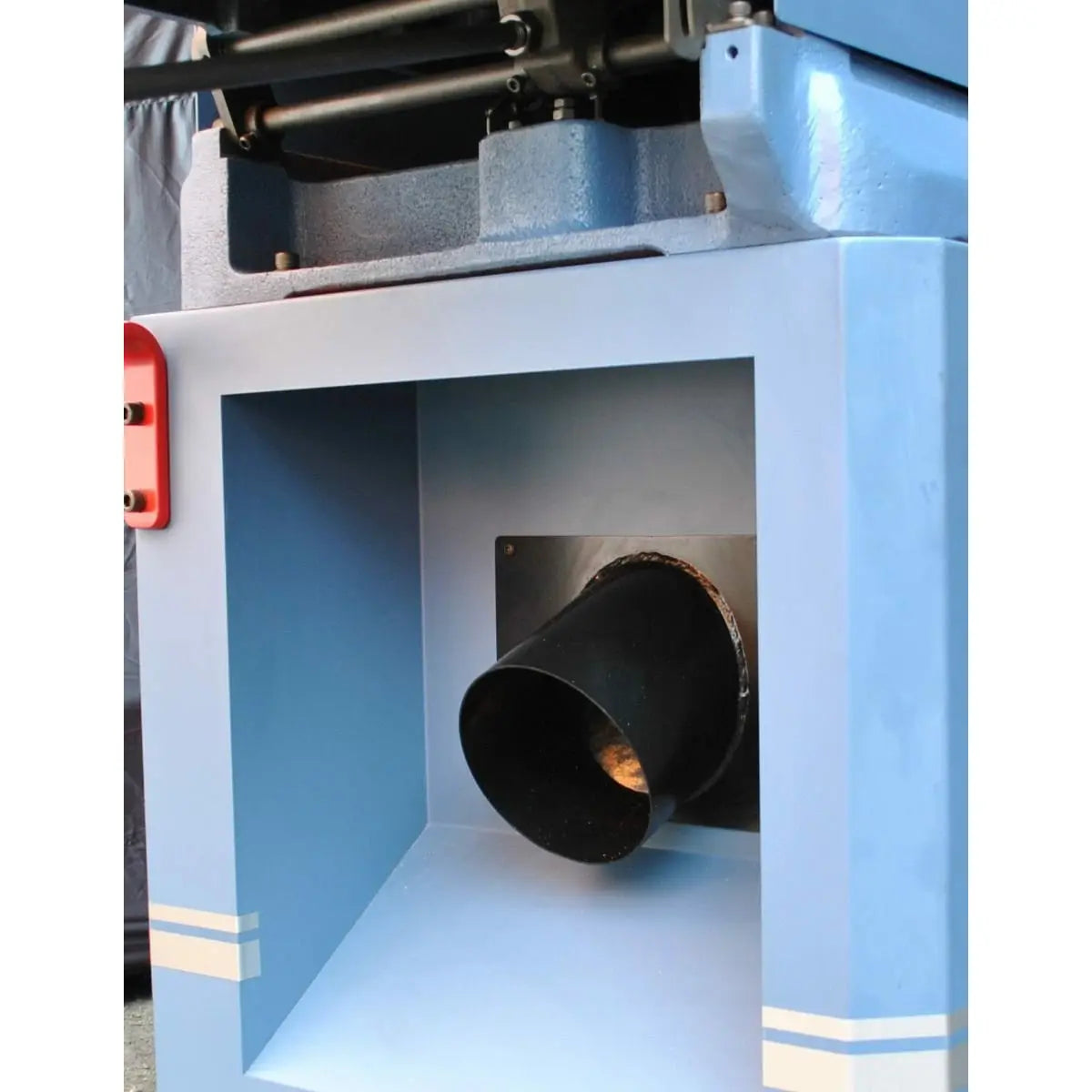

- Fully enclosed cabinet with 6” port for superior dust management
- Helical cutter head includes premium carbide inserts
- 4-sided cutting inserts are indexed and easy to replace
- Elevated control panel with key lock and emergency off switch
- Wixey DRO shows table infeed table movement for precision cuts

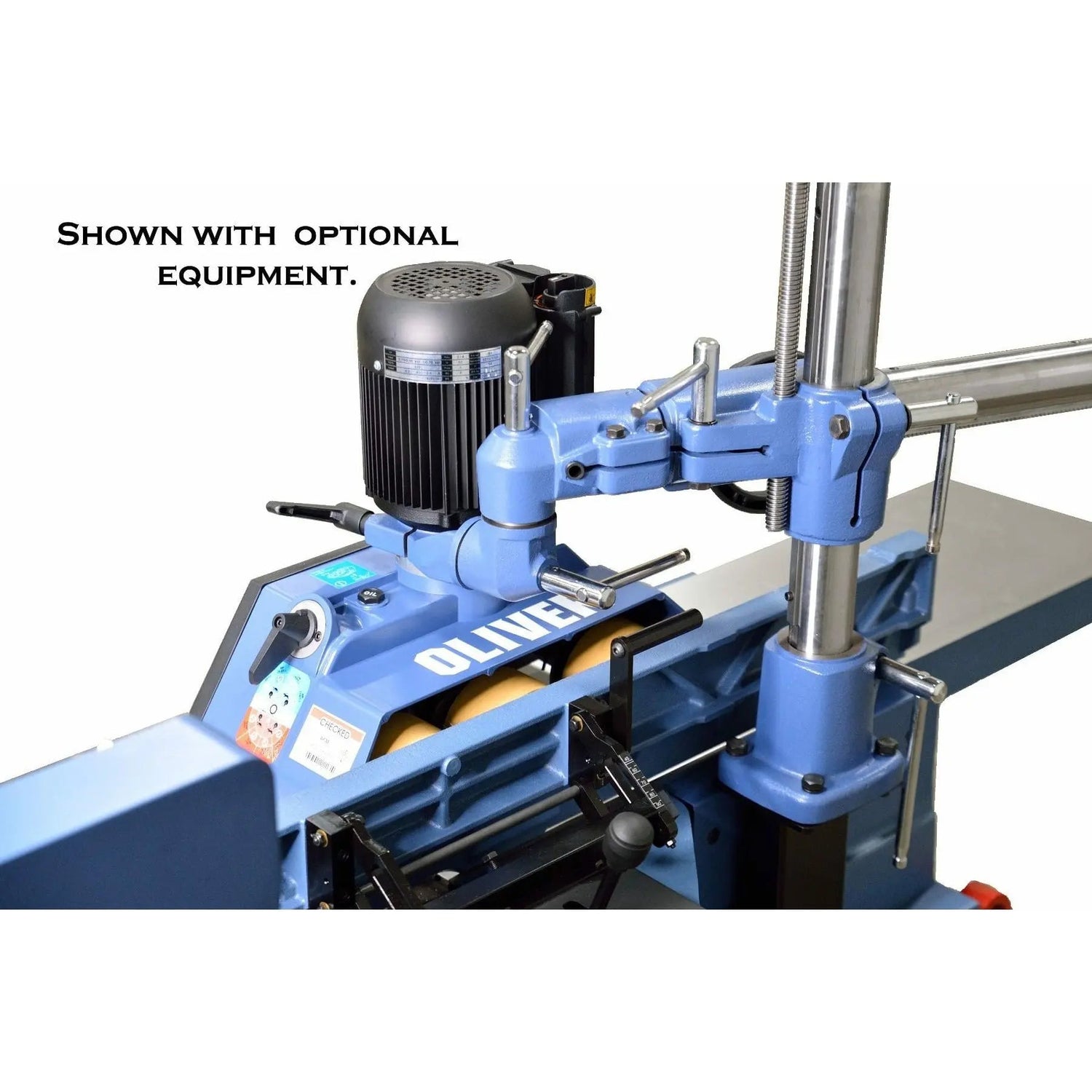

- Pre-drilled bracket for easy (optional) powerfeed mounting
- Foot activated emergency power shutoff.

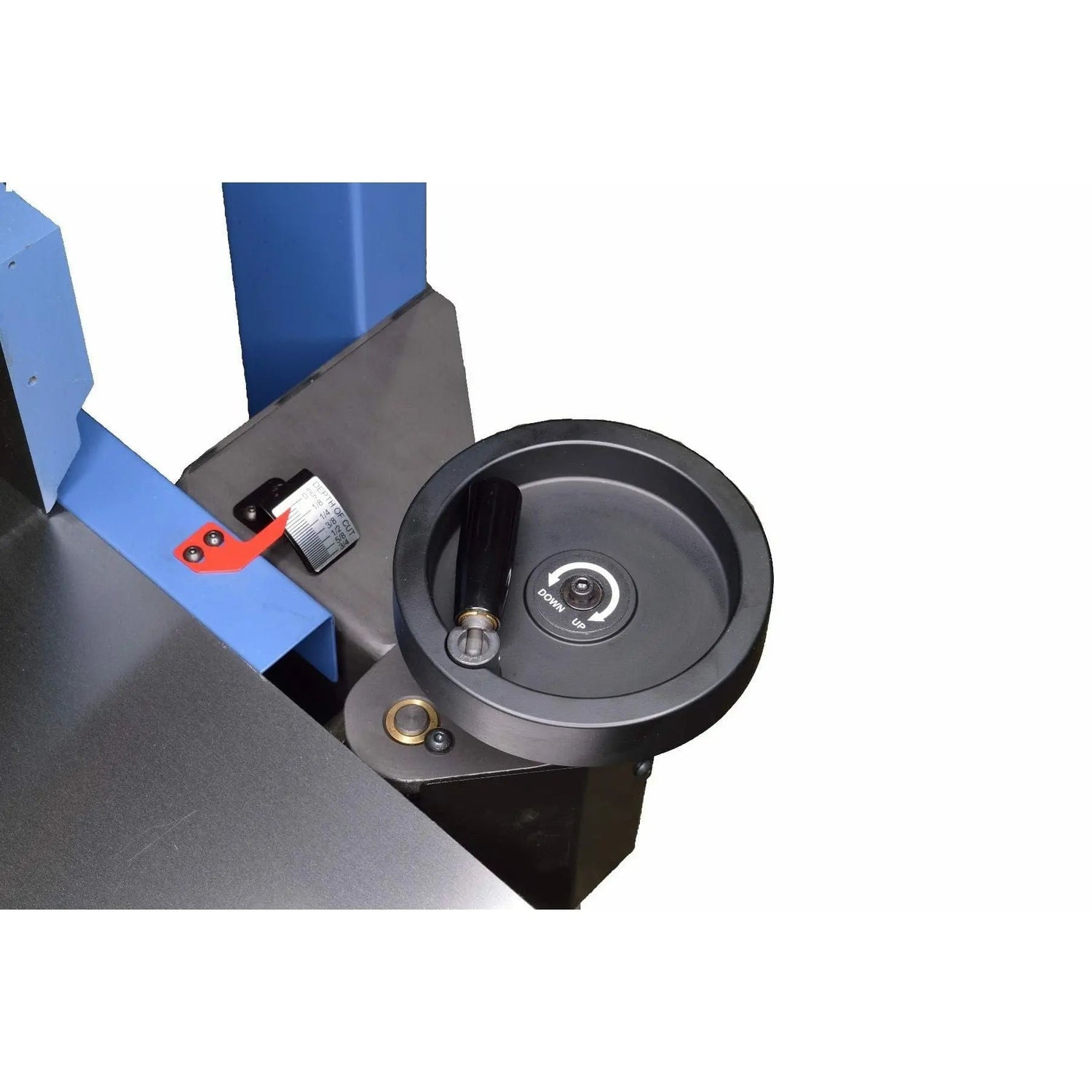

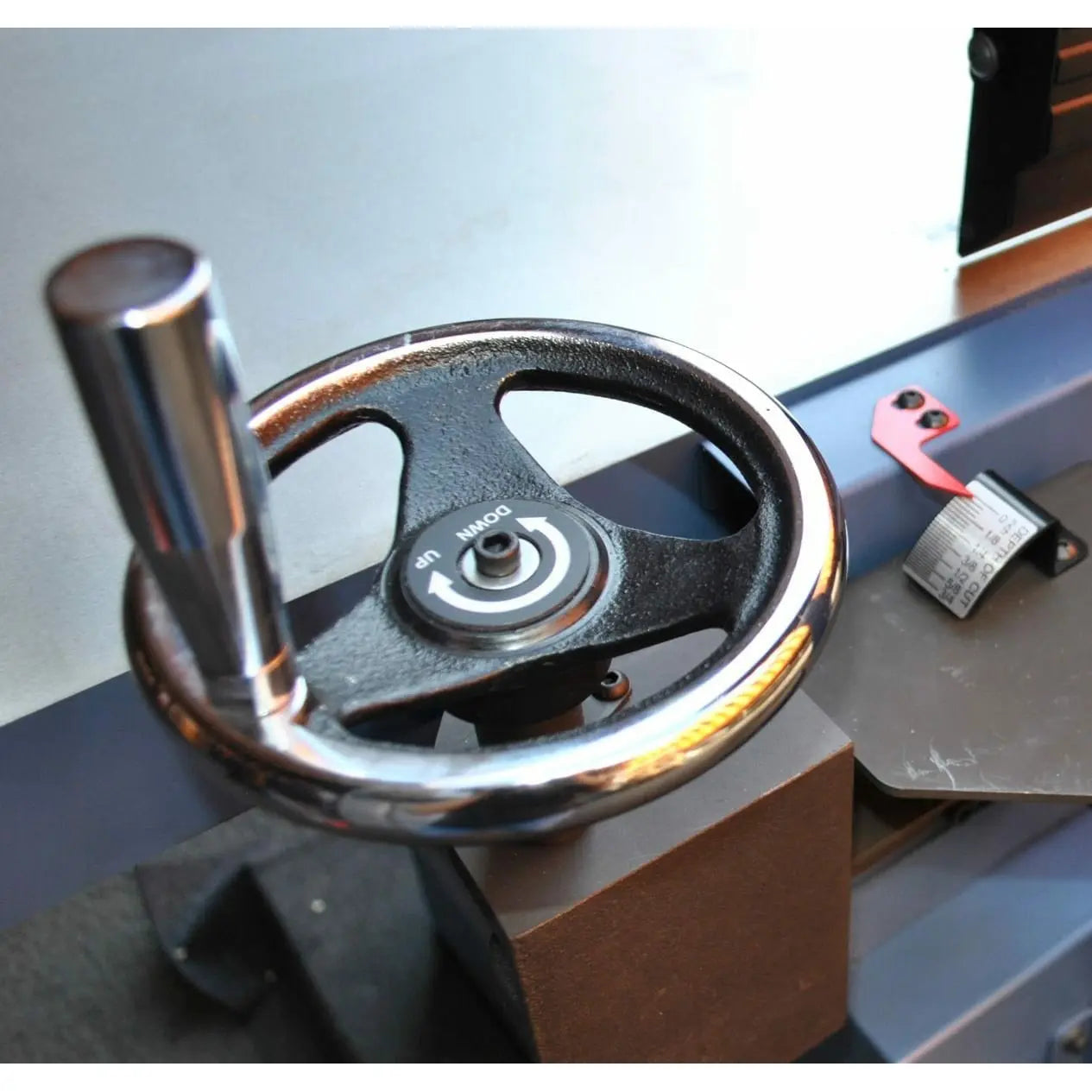

- Handwheel controlled infeed table allows for quick adjustment and auto-lock during operation
- Lever controlled outfeed table allows easy adjustment

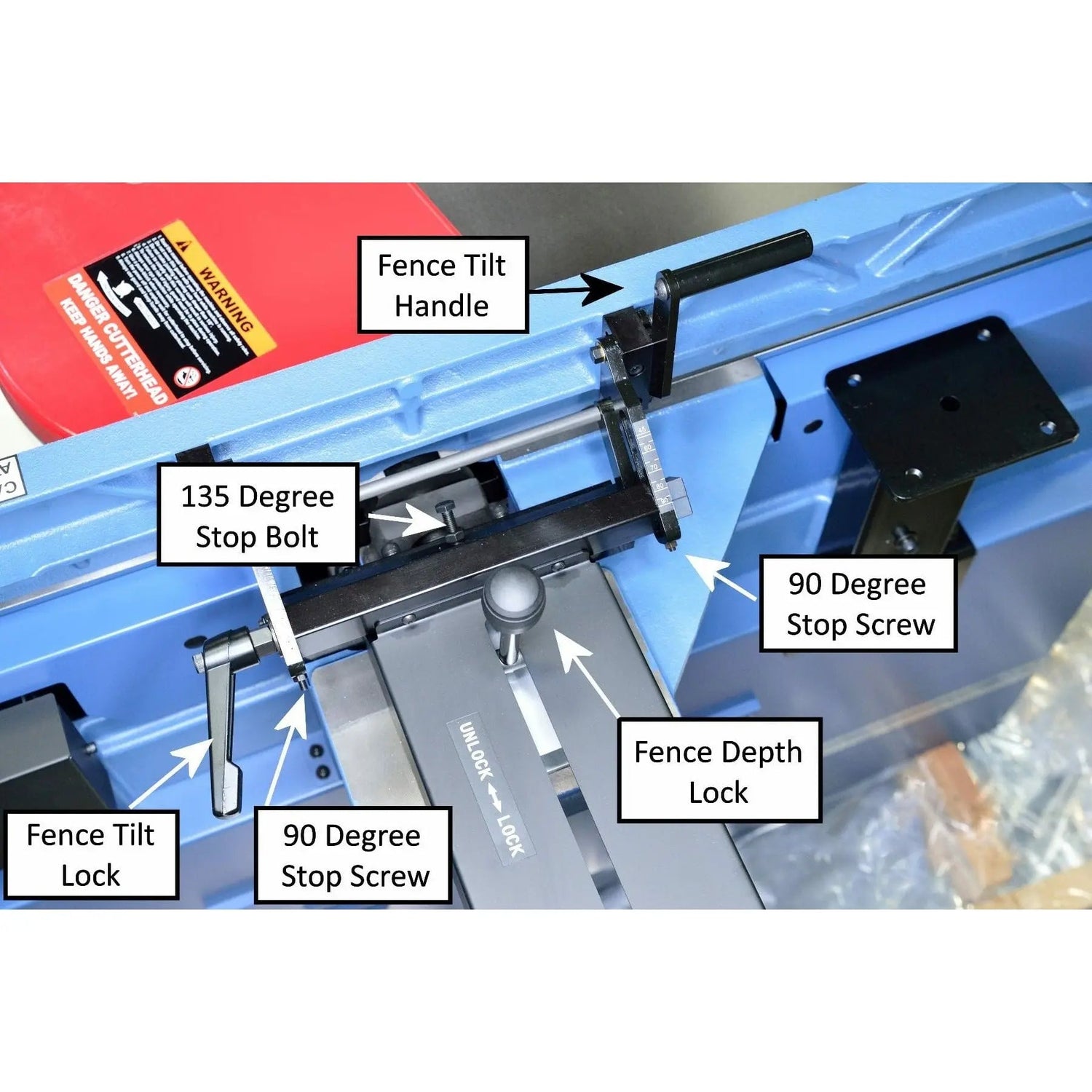

- Long solid cast iron fence features positive stops at 45° and 90°
- Fence features flip down L-shaped attachment for use with thin stock
- Quick slide and lock fence adjustment
- Easy to read depth of cut gauge
- Powerful TEFC motor available in single or three phase
- Ploy V-belt drive efficiently delivers power to the cutter head
- CSA Listed
Specifications
| Model Number | 4275 |
|---|---|
| Stock Number | 4275C.051T (5HP, 1Ph) |
| Stock No | 4275C.753T (7.5HP, 3Ph) |
| Infeed Table Travel | 3/4" |
| Cutterhead Speed | 5,500 RPM |
| Number of Knives (helical) | 76 Inserts |
| Maximum Depth of Cut | 1/8" |
| Rabbeting Capacity | 3/4" |
| Dust Port Diameter | 6" |
| Table Dimensions | 16" x 100" |
| Table Height | 34-3/4” |
| Fence Dimensions | 47”L x 6”W |
| Fence Tilts | 45° |
| Positive Stops | 90° and 45° |
| Motor 1Ph | 5HP, 230V (1Ph, 19.5 Amp) |
| Motor 3Ph | 7.5HP, 230V/460V* Prewired 230V (3Ph 16.8/8.4 Amp) |
| Overall Dimension | 100”L x 40”W x 41”H |
| Net Weight | 1,020 |
| Gross Weight | 1,320 lbs |
