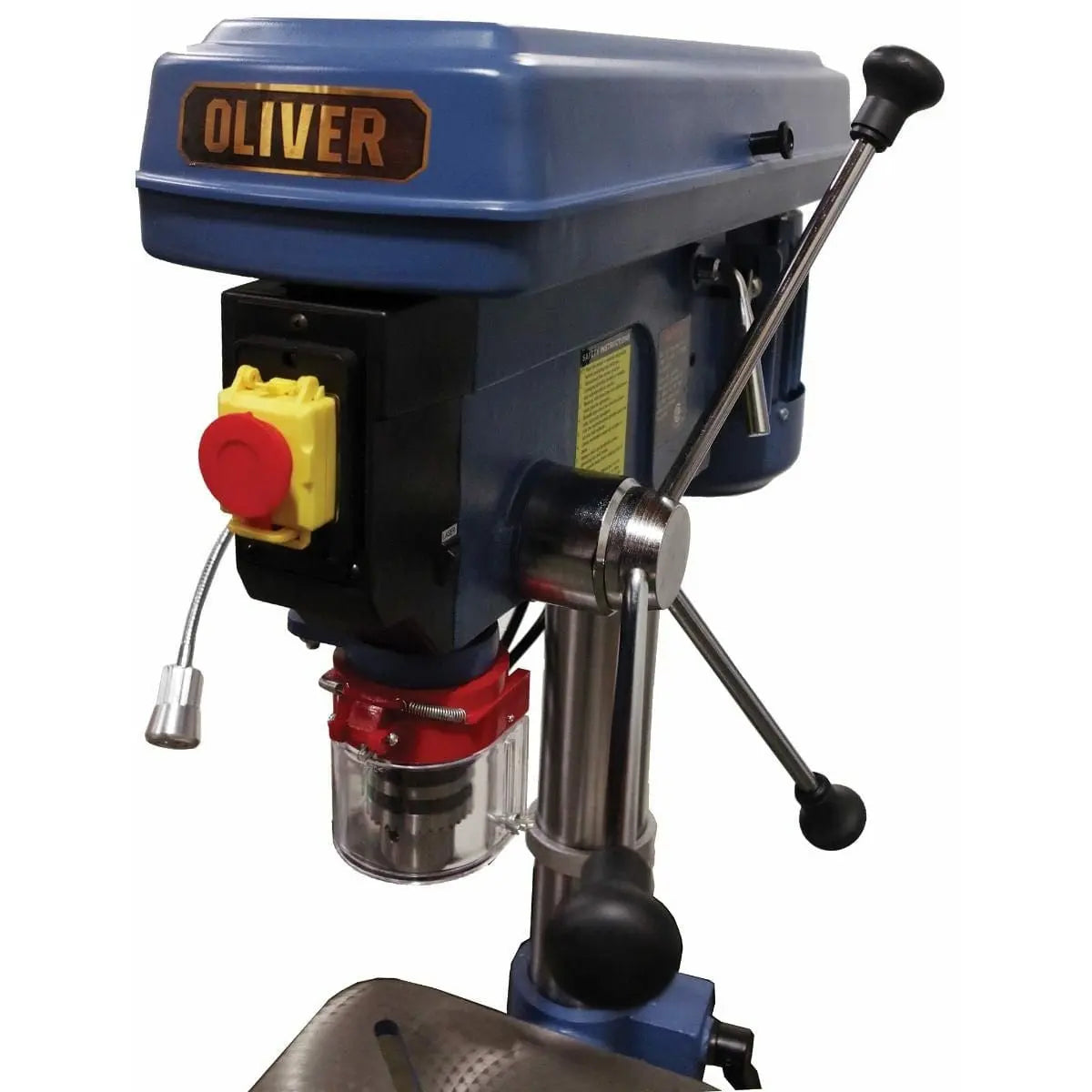

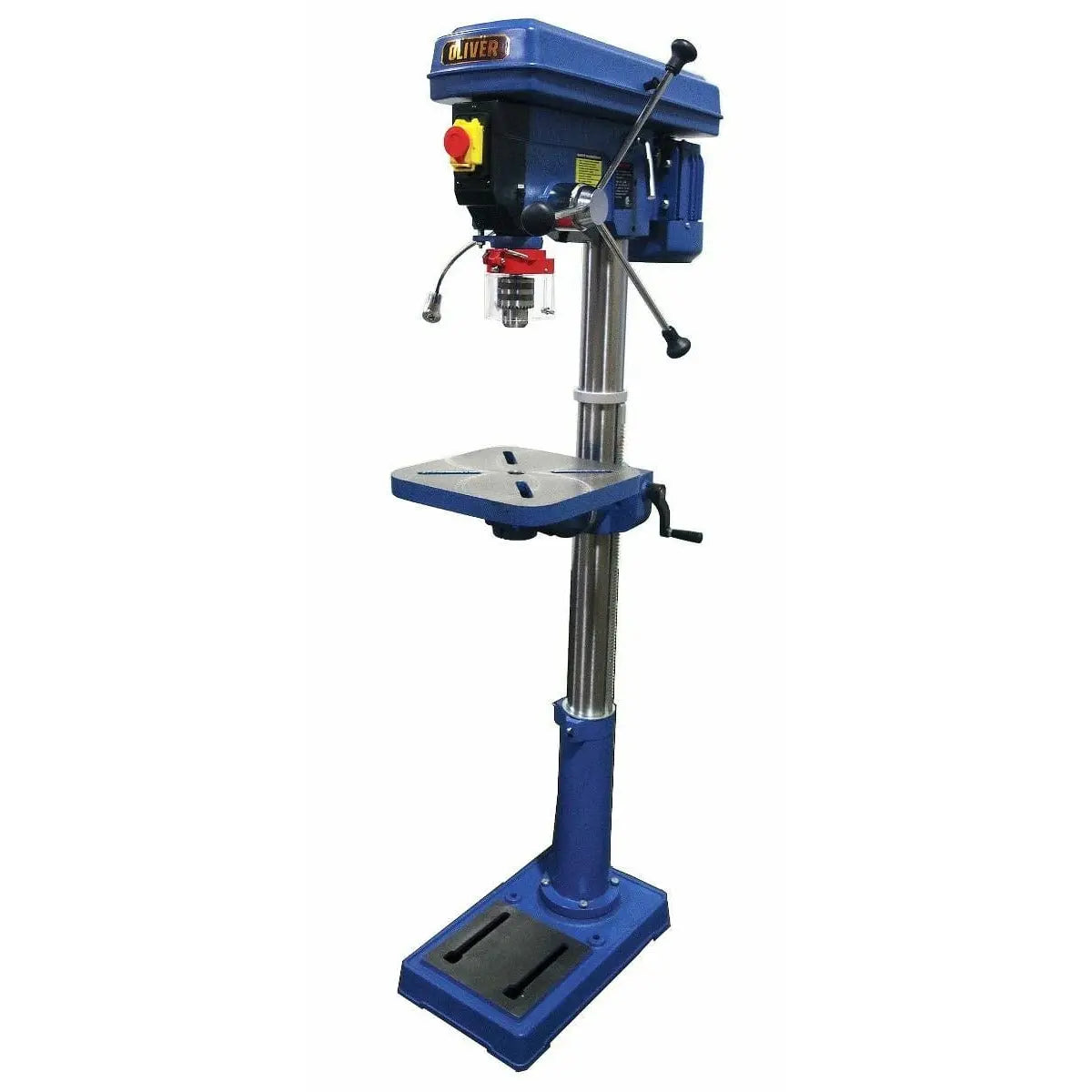

Oliver Machinery 17" Swing Floor Model Drill Press - 10062
Oliver Machinery 17" Swing Floor Model Drill Press - 10062 is backordered and will ship as soon as it is back in stock.
New Customer Discount
Tap the code below to copy, then paste at checkout
Oliver Machinery 17" Swing Floor Model Drill Press - 10062
Questions Before Buying?
Description
Description
Oliver Machinery 17" Swing Floor Model Drill Press - 10062
The Oliver Machinery 17" Swing Floor Model Drill Press (model 10062) is a versatile and powerful drill press that is perfect for a wide range of drilling applications. It features a 3/4 horsepower motor that can deliver up to 3,450 RPM, and a 17" swing capacity that allows you to drill holes in large workpieces. The drill press also has a variable speed control, so you can adjust the speed to match the material you are drilling.
Features

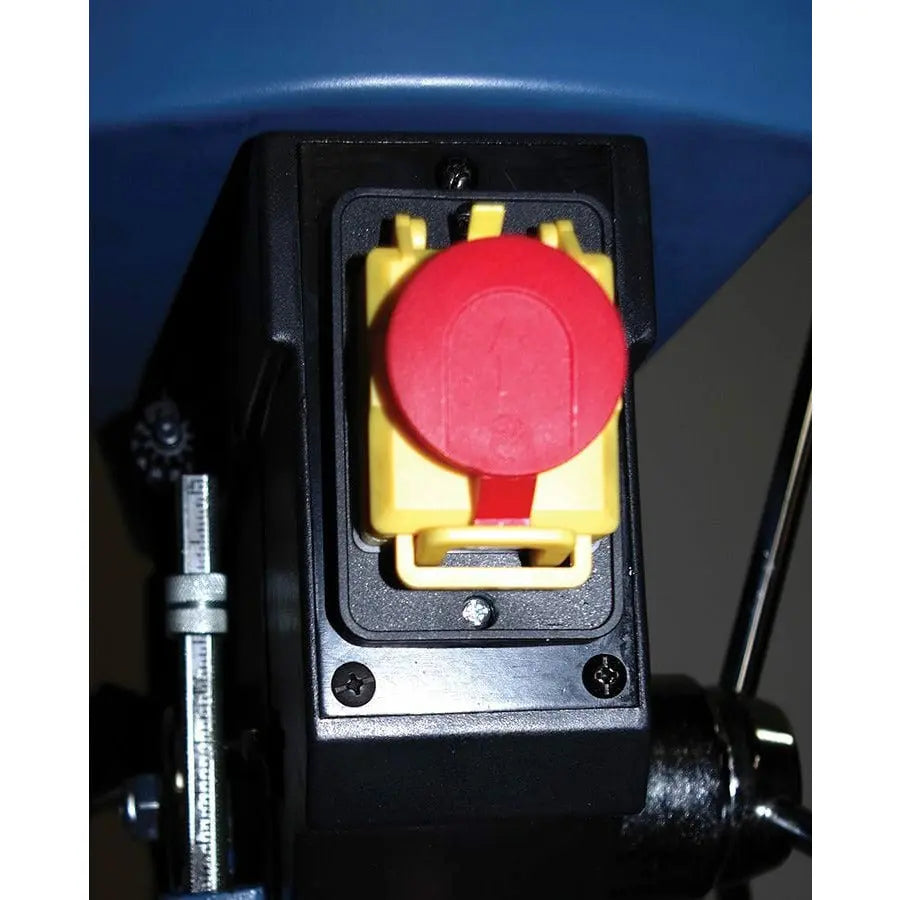

- Line interrupt switch requires manual start in the event of a power loss.
- Spindle is supported by high quality sealed ball bearings.
- LED lamp provides a well lit work area.
- Table rotates 360° and tilts 45°.
- Crank operation moves table up and down with locking clamp.

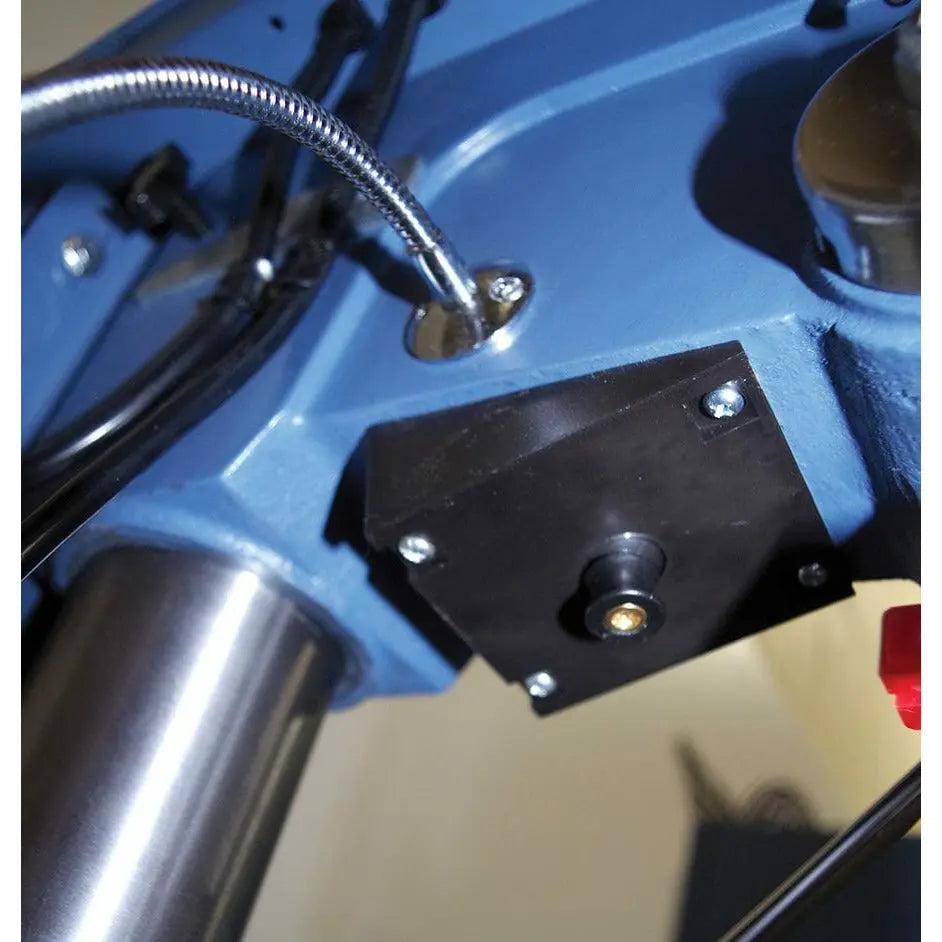

- Laser pointer is built-in for precise repeat drilling.
- Drill chuck guard included.
- 5/8”chuck and key holder included.

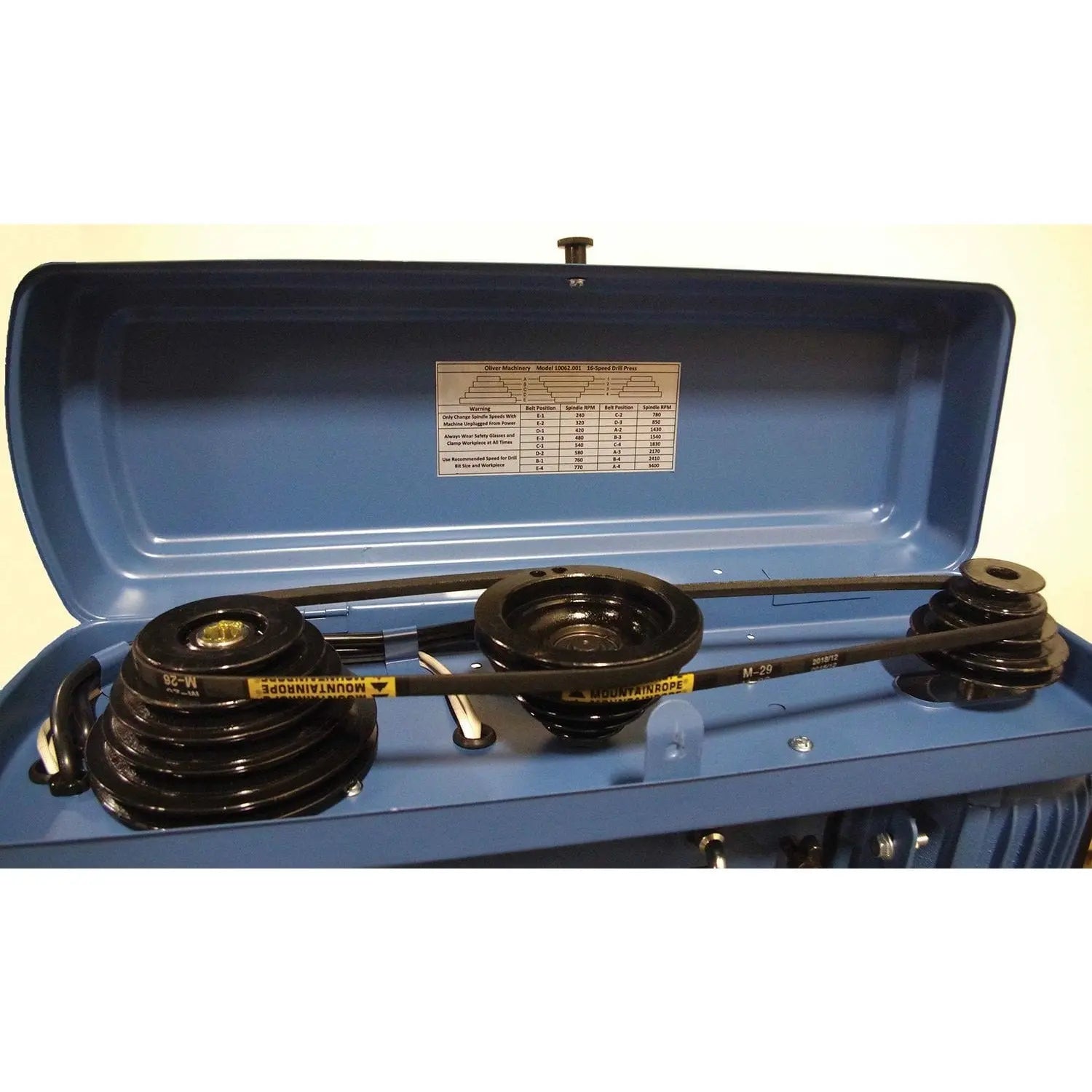

- Cast iron pulleys reduce vibration.
- Positive depth stop allows repeated operations with ease.
- Powerful 3/4 HP Motor.
Specifications
| Model Number | 10062 |
|---|---|
| Stock Number | 10062.001 |
| Type | 17” Floor |
| Swing | 17” |
| Drilling Capacity | 3/4” |
| Chuck Capacity | 5/8” |
| Chuck Taper | JT-3 |
| Table Size | 12” x 12” |
| Table Tilt | +/- 45° |
| Spindle Taper | MT-2 |
| Spindle Travel | 3-1/8” |
| Spindle Speeds | 16 |
| Speed Range RPM | 240 to 3,400 |
| Spindle to Table | 28” |
| Spindle to Base | 48-1/2” |
| Column Diameter | 3-1/8” |
| Base Size | 11-3/4” x 19-5/8” |
| Overall Height | 64-1/2” |
| Motor | 3/4HP 1Ph 115V (12 Amps) |
| Net Weight | 200 lbs. |
| Gross Weight | 215 lbs. |
