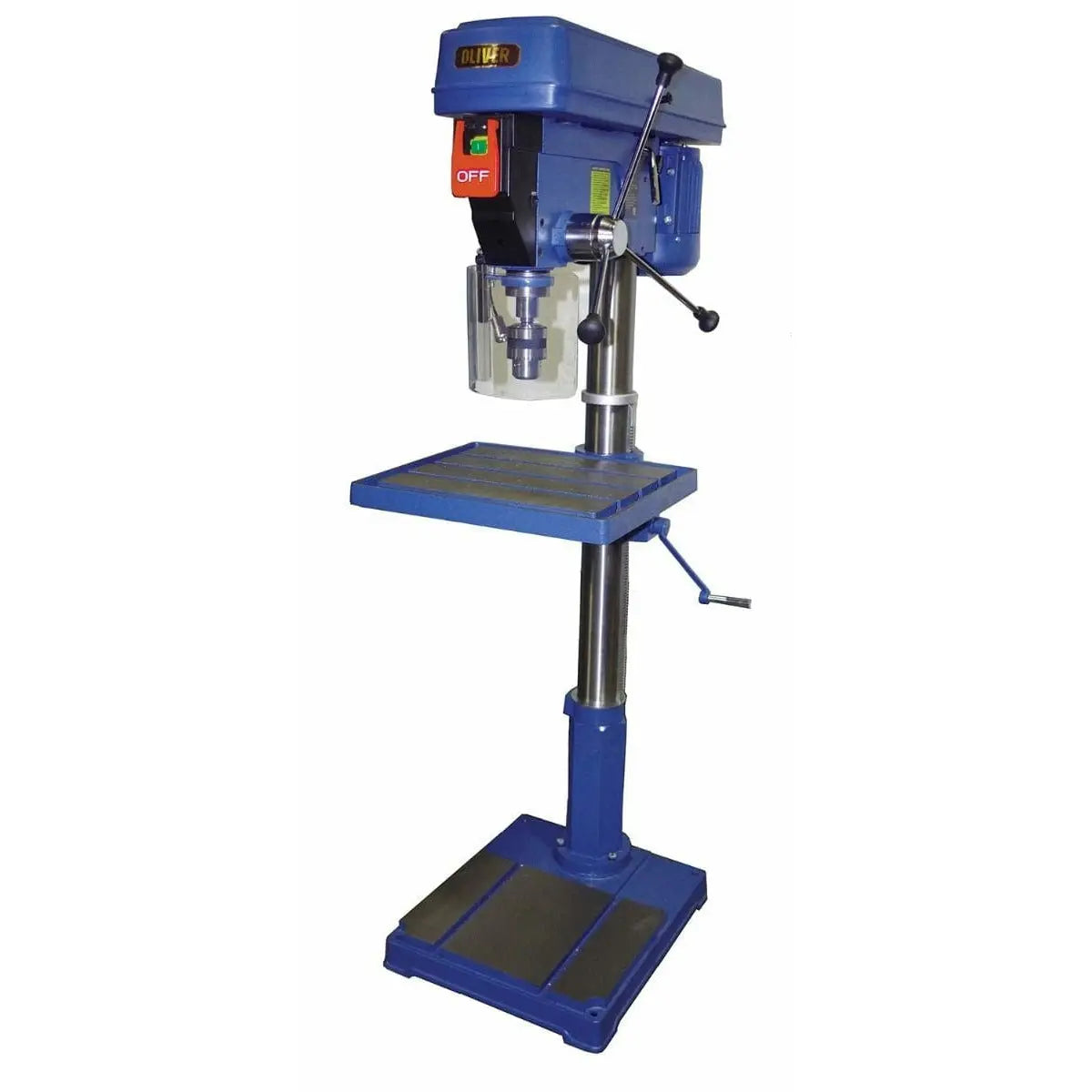

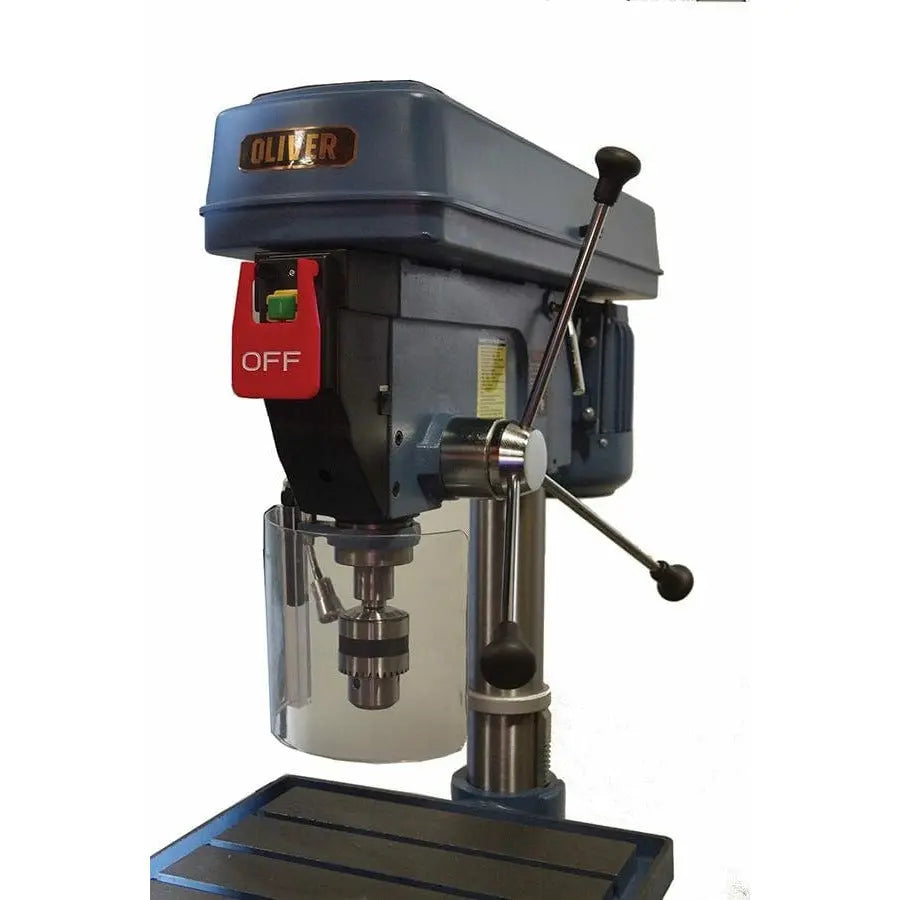

Oliver Machinery 22" Swing Floor Model Drill Press - 10063
Conquer even the most demanding drilling tasks with the powerhouse Oliver Machinery 22" Swing Floor Model Drill Press (10063). This industrial-grade workhorse boasts superior power, unmatched versatility, and user-friendly features, making it the ultimate choice for professional woodworkers, serious hobbyists, and high-volume production environments.
Engineered for Efficiency and Precision:
- Unleash Raw Power: The robust 1-1/2 HP motor effortlessly tackles hardwoods and thick materials, ensuring smooth drilling performance regardless of project size.
- Generous Swing Capacity: Handle large workpieces with ease thanks to the impressive 22" swing capacity, perfect for oversized lumber, panels, and complex assemblies.
- Variable Speed Control: Adapt to various materials and drilling applications with the convenient variable speed control, ranging from 280 to 3,450 RPM for optimal results.
- Unwavering Accuracy: Achieve consistent hole depths with the precise depth stop and reliable quill travel of 4 inches.
- Enhanced Visibility: Illuminate your work area and ensure accurate drilling with the integrated LED light and laser pointer.
- Sturdy Cast Iron Construction: The heavy-duty cast iron base minimizes vibration and deflection, guaranteeing clean, chip-free holes even in demanding applications.
- Quick Chuck Changes: Effortlessly swap drill bits with the included 3/4" chuck and keyless chuck adapter, maximizing efficiency and minimizing downtime.
- Versatility Defined: Expand your drilling capabilities with the Morse taper 1 MT spindle, allowing you to use a wide range of drill bits and attachments.
- Clean Work Environment: Maintain a cleaner workspace with the integrated dust collection port, compatible with standard dust collection systems.
Ideal for:
- Professional Woodworkers: Tackle any drilling project with confidence, from delicate joinery to heavy-duty construction.
- Cabinetmakers and Furniture Builders: Achieve precise and flawless drilling for seamless furniture components.
- Serious Hobbyists: Elevate your woodworking skills and projects with the power and precision of a professional drill press.
- Production Shops: Increase efficiency and output without sacrificing accuracy, perfect for high-volume drilling tasks.
Features

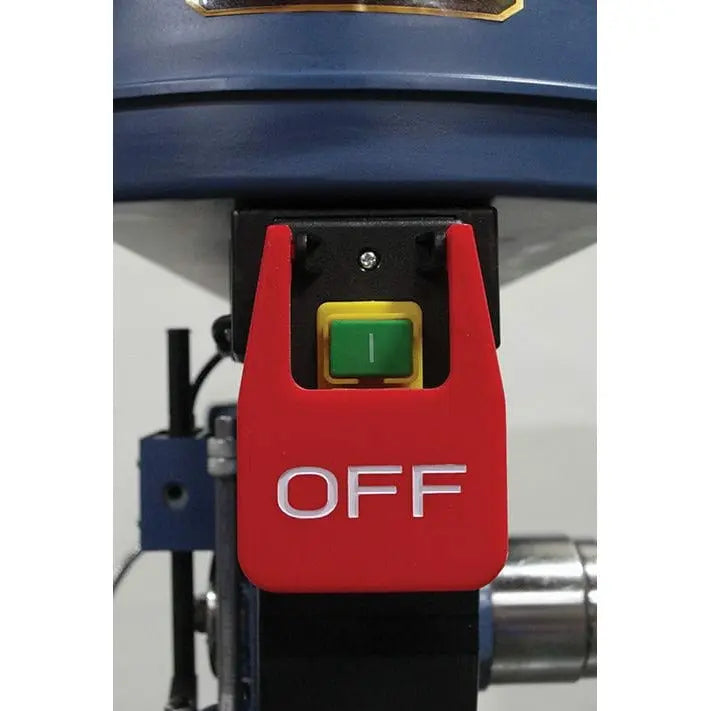

- Line interrupt switch requires manual start in the event of a power loss.
- Spindle is supported by high quality sealed ball bearings.
- LED lamp provides a well lit work area.
- Table rotates 360° and tilts 45°.
- Crank operation moves table up and down with locking clamp.
- Precision ground table features T-Slots.

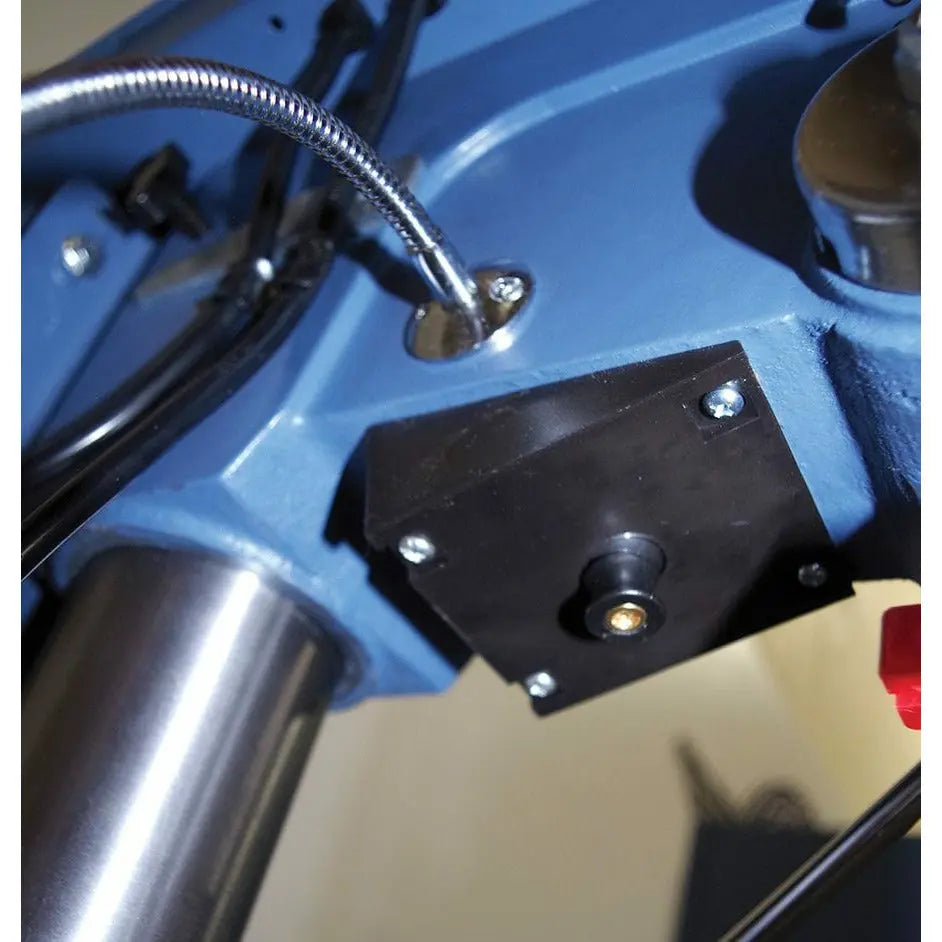

- Laser pointer is built-in for precise repeat drilling.

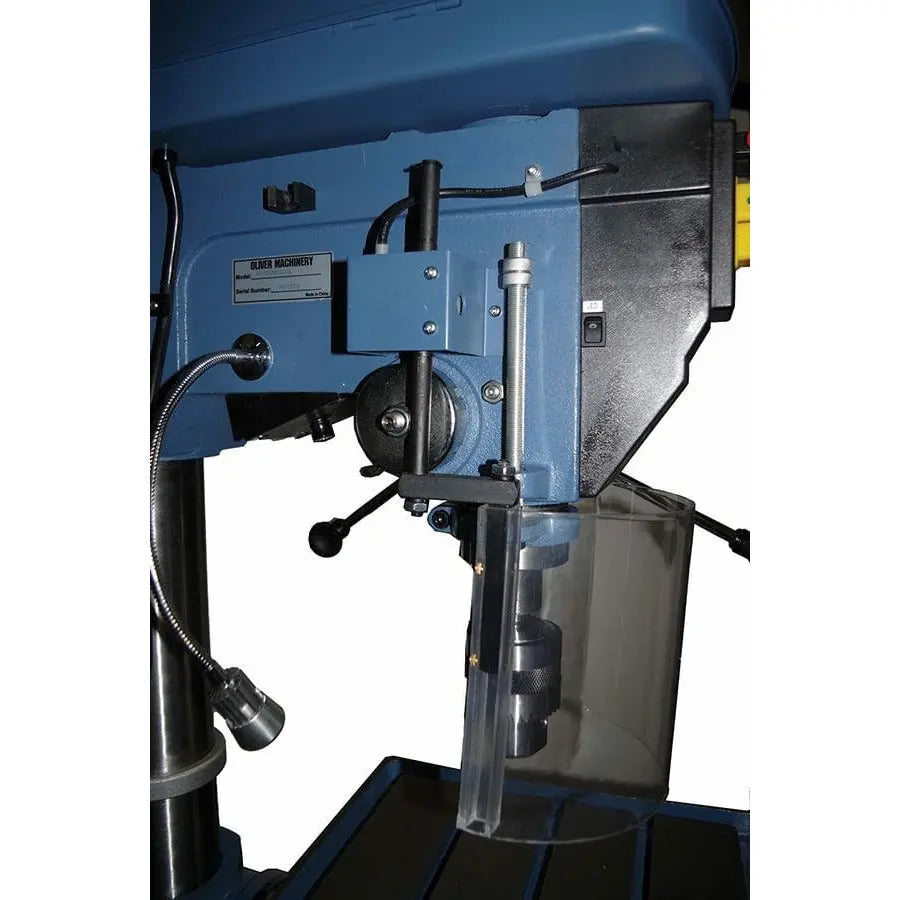

- Drill chuck guard included with safety interlock.
- 3/4” chuck and key holder included.

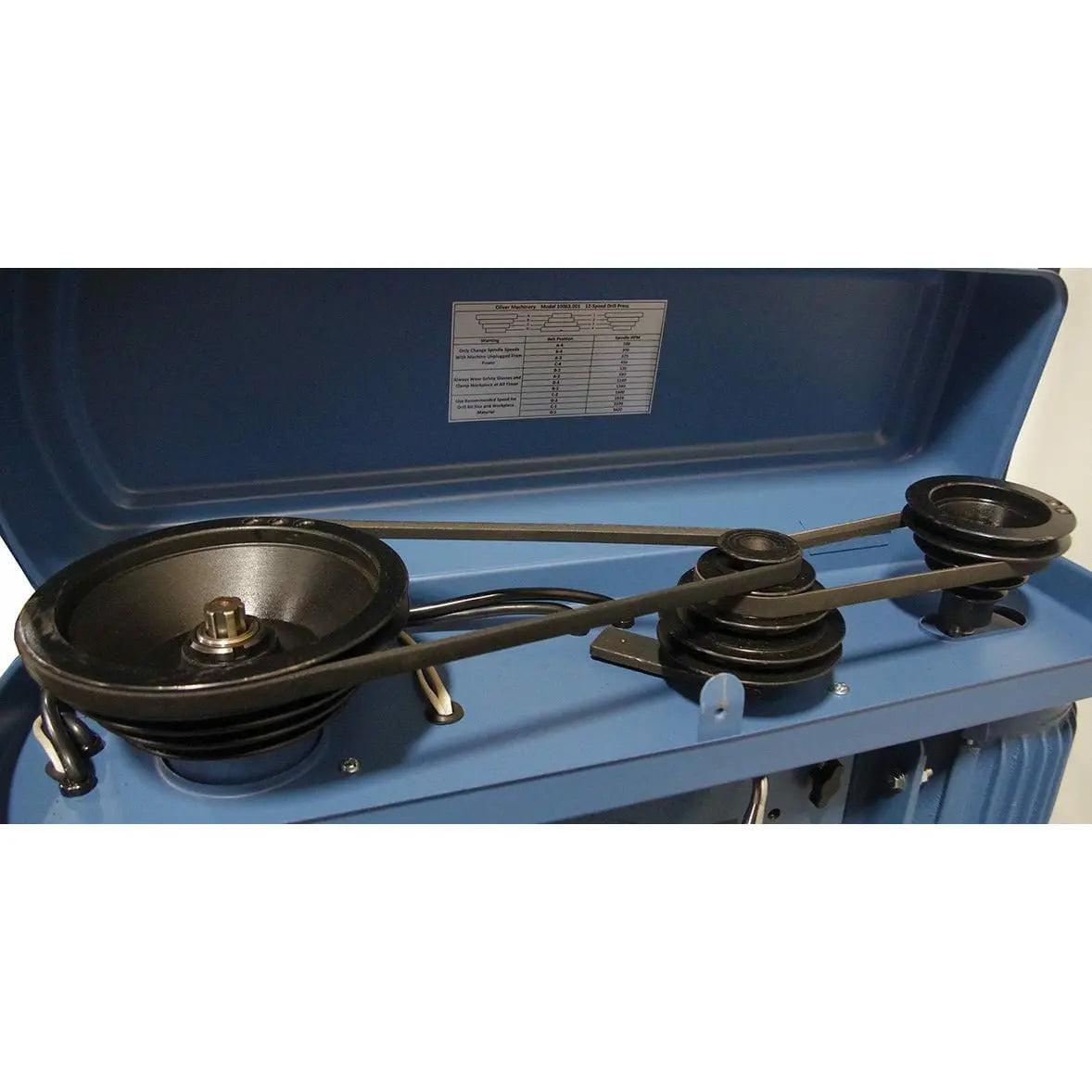

- Cast iron pulleys reduce vibration.
- Positive depth stop allows repeated operations with ease.
- Powerful 1-1/2 HP Motor.
Specifications
| Model Number | 10063 |
|---|---|
| Stock Number | 10063.001 |
| Type | 22” Floor |
| Swing | 22” |
| Drilling Capacity | 1-1/4” |
| Chuck Capacity | 3/4” |
| Chuck Taper | JT-3 |
| Table Size | 16” x 18-1/2” |
| Table Tilt | +/- 45° |
| Spindle Taper | MT-3 |
| Spindle Travel | 4-1/2” |
| Spindle Speeds | 12 |
| Speed Range RPM | 180 to 3,420 |
| Spindle to Table | 26-3/4” |
| Spindle to Base | 48” |
| Column Diameter | 3-7/8” |
| Base Size | 19-5/8” x 22-3/4” |
| Overall Height | 68-3/4” |
| Motor | 1.5HP, 1Ph, 115V (21 Amps) |
| Net Weight | 380 lbs. |
| Gross Weight | 395 lbs. |
