25” Planer with HCX Cutterhead - 4470.101T - 10HP, 1Ph
Conquer demanding planing tasks with the Oliver Machinery 25" Planer with HCX Cutterhead - 4470.101T - 10HP, 1Ph This industrial-grade workhorse delivers exceptional power, robust construction, and user-friendly operation, making it ideal for professional woodworkers, serious hobbyists, and high-volume production shops.
Engineered for Efficiency and Capacity:
- Dominate Hardwood Giants: The robust 10HP single-phase motor effortlessly tackles even the densest hardwoods and thickest materials, ensuring smooth, efficient passes and effortless material removal, regardless of project size.
- HSS Straight Cutterhead: The proven 4-knife HSS straight cutterhead provides efficient material removal and easy blade maintenance.
- Uncompromising Stability: The heavy-duty cast iron construction minimizes vibration and deflection, guaranteeing smooth, chip-free results even with demanding cuts.
- Versatility Defined: Handle large-scale projects with confidence with a generous maximum planing width of 25" and a depth of cut up to 1/4". From dimensional lumber to wide slabs, this planer conquers all.
- User-Friendly Design: Intuitive controls, onboard wrench storage, and easy-to-read depth gauges simplify operation and minimize setup time.
Features
- Massive cast iron construction throughout allows up to a 1/4” cut.
- Polished built-in table roller assists movement of rough stock.

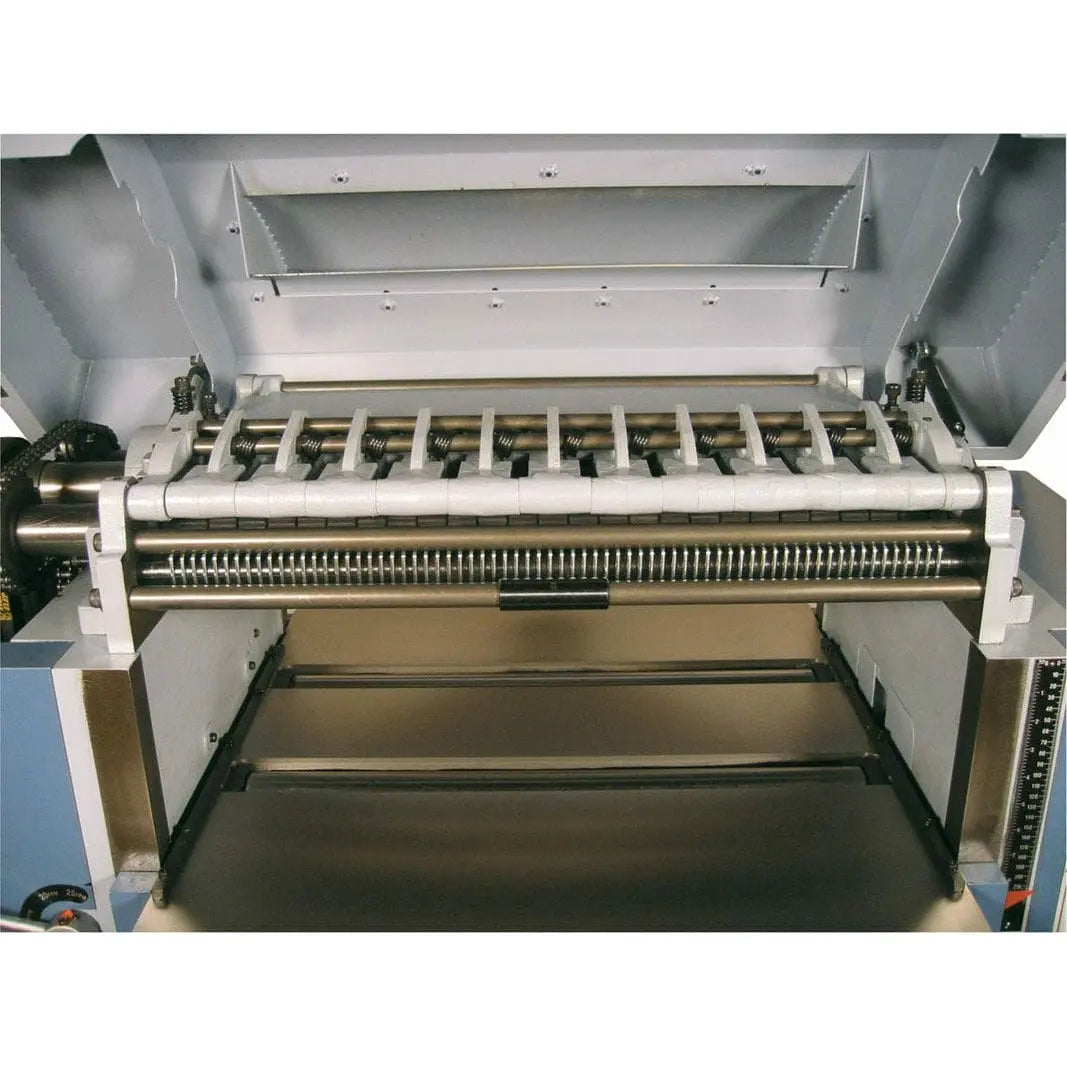

- Segmented infeed roller and sectional chip breaker easily handle rough stock.
- Dual outfeed rollers assist with heavy stock.
- 3-speed gear box provides the perfect feed rate.
- Magnetic controls with emergency off switch for safer operation.

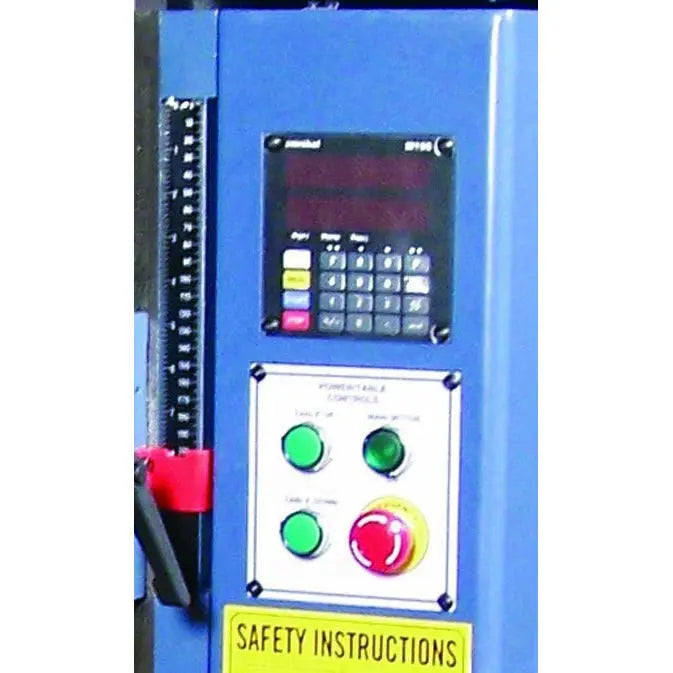

- Control panel with digital readout allows precise thickness settings.
- Power assisted table makes for quick, accurate, adjustments.
- Hinged access to cutter head and feed rollers for quick set-up.
- 5” dust chute easily handles chip removal.

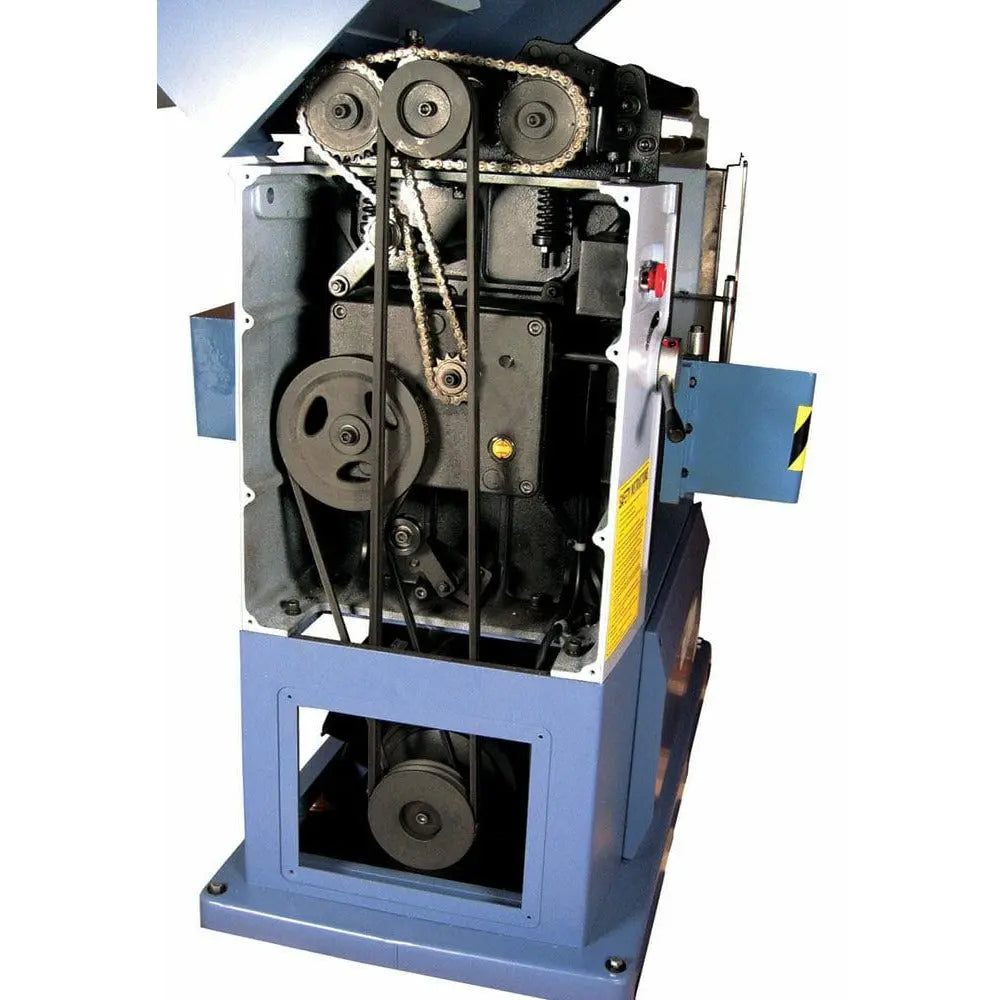

- Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.
- Powerful TEFC motor available in single or three-phase.
Specifications
| Model Number | 4470 |
|---|---|
| Stock No. (10HP, 1Ph, Straight) | 4470.001 |
| Stock No. (15HP, 3Ph, Straight) | 4470.002 |
| Stock Number | 0 |
| Maximum Stock Width | 25" |
| Maximum Depth of Cut | 1/4” for 0” – 11-3/4” and 1/8” for 11-3/4” – 25" |
| Maximum Stock Thickness | 9-1/4” |
| Minimum Stock Thickness | 1/8” Manual, 15/64” Automatic |
| Minimum Stock Length | 10" |
| Dust Port Diameter | 5" |
| Minimum CFM Required | 900 CFM |
| Infeed Roller Diameter | 3" |
| Steel Outfeed Roller Diameter | 3" (x2) |
| Feed Speeds | 20, 25 and 30 FPM |
| Bed Rollers | 2, Adjustable |
| Table Size | 26” x 32” |
| Cutterhead Diameter | 3-3/8” |
| Cutterhead Speed | 4,800 RPM |
| Number of Knives (straight) | 4 |
| Footprint | 47-1/2” L x 21” W |
| Table Support | 2-Column |
| Motor 1Ph | 10HP, 240V Only (43 Amp) |
| Motor 3Ph | 15HP, 240V/440V* Prewired 220V (37 Amps) |
| Overall Dimensions | 46”L x 23”W x 56”H |
| Net Weight | 1,732 lbs. |
| Gross Weight | 1,850 lbs. |
