Oliver Machinery Shaper 5HP 1Ph - 10047.002
Oliver Machinery Shaper 5HP 1Ph - 10047.002 - Standard is backordered and will ship as soon as it is back in stock.
New Customer Discount
Tap the code below to copy, then paste at checkout
Oliver Machinery Shaper 5HP 1Ph - 10047.002
Questions Before Buying?
Description
Description
Oliver Machinery Shaper - 10047.002
Product Description
- Large cast iron table is precision ground table to provide a solid work surface.
- Table features pre-drilled and threaded holes for optional power feeder.
- Full cabinet stand includes wheels and locks.

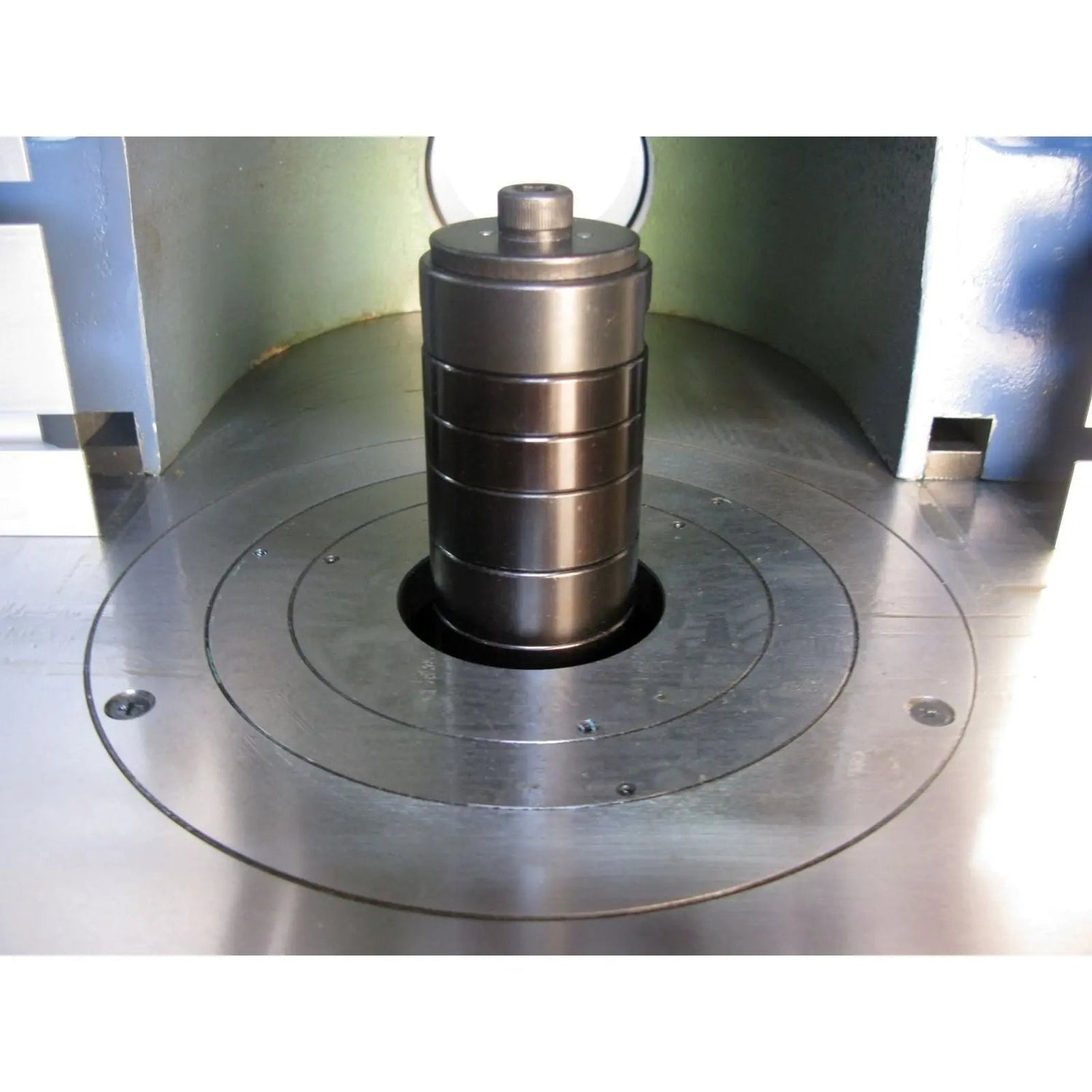

- 1-1/4” interchangeable spindle included, other optional sizes available.
- Optional router bit collets available.
- Four spindle speeds for versatility

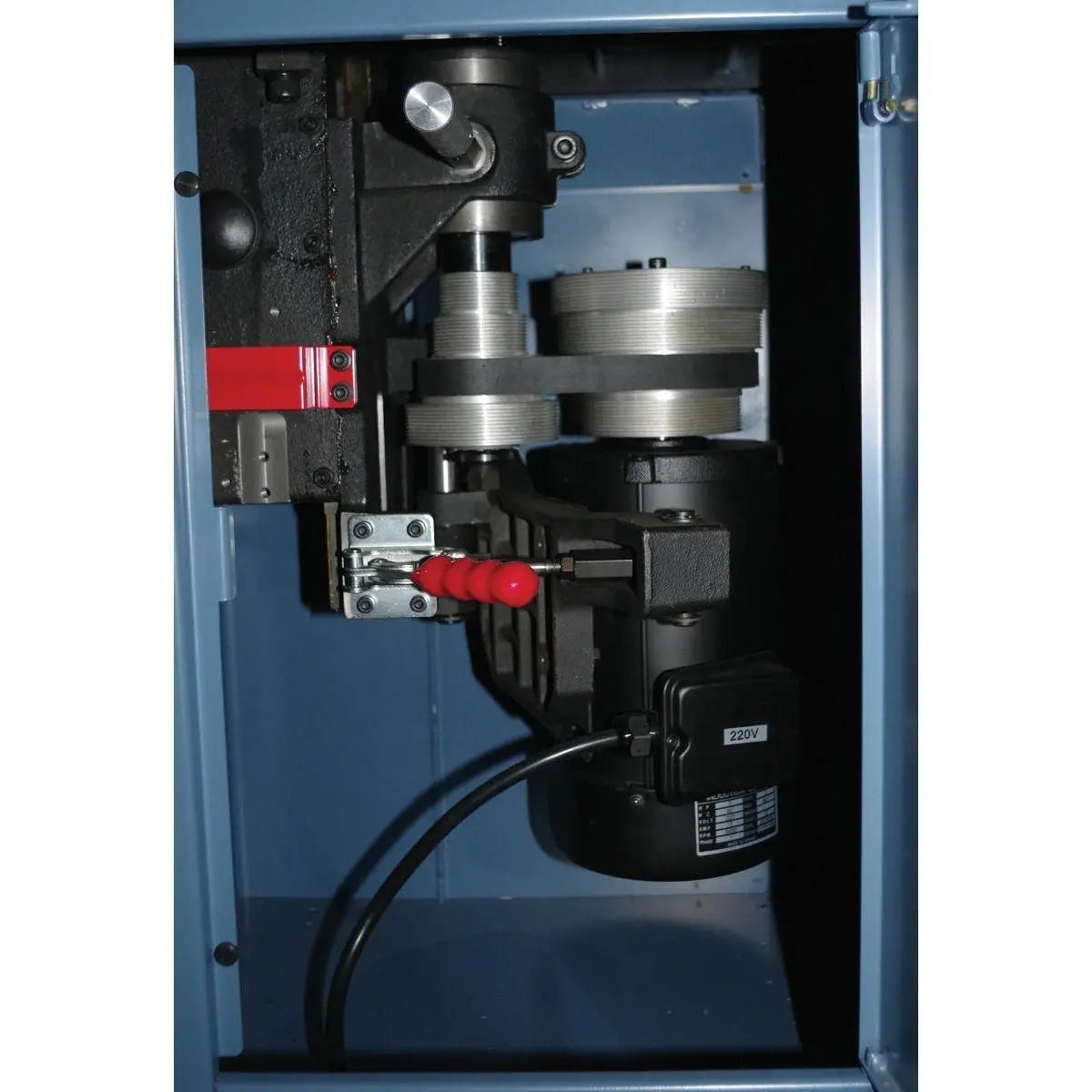

- Belt changes are quick and convenient with unique tensioner.
- Poly V-belt drive for smoother operation.
- Spindle reverses for more options with each set-up.
- Four inches of spindle travel allows more set-up options.
- Starting pin for irregular shapes included.

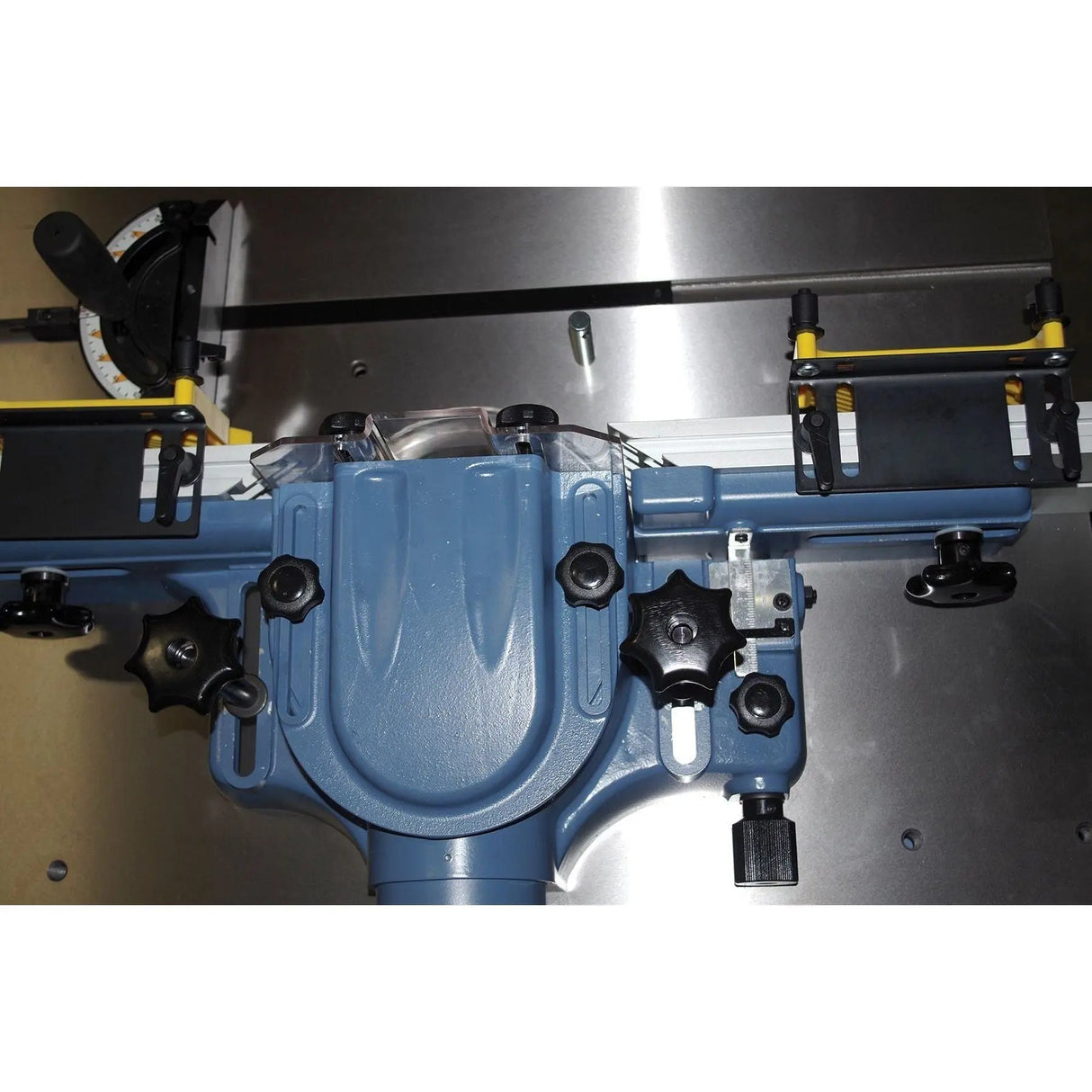

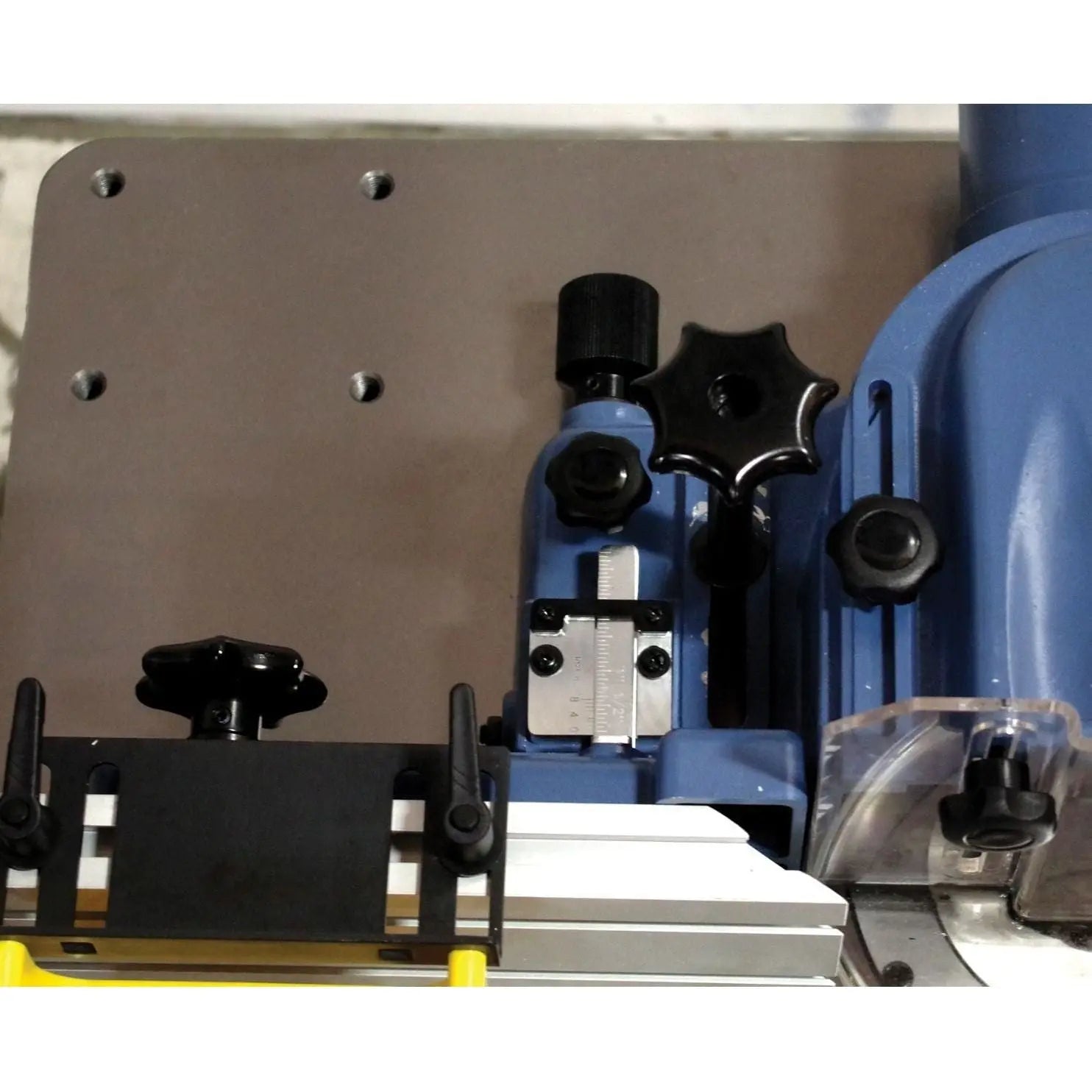

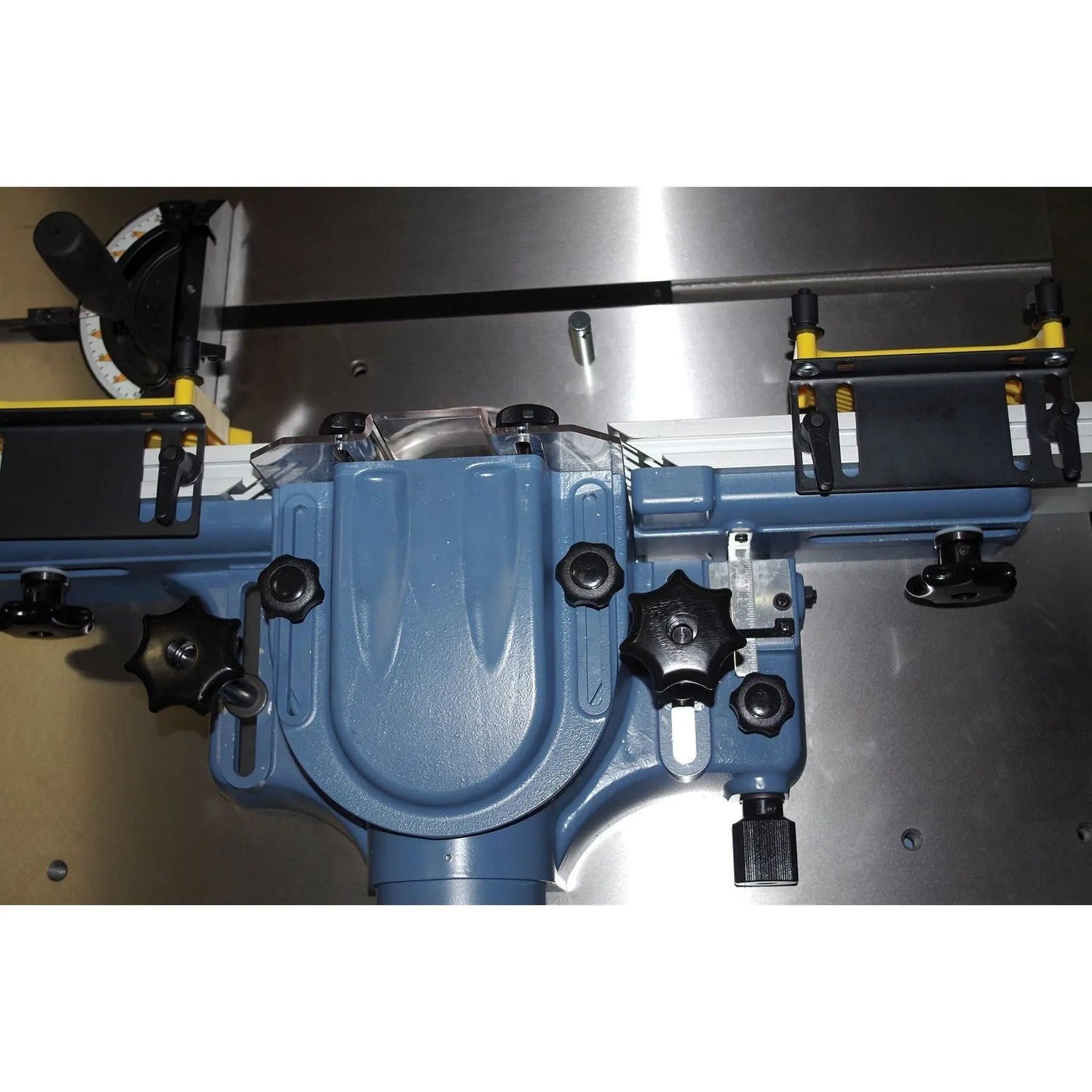

- Fence is independent and includes micro adjustments.
- Adjustable hold downs add to a safer operation.

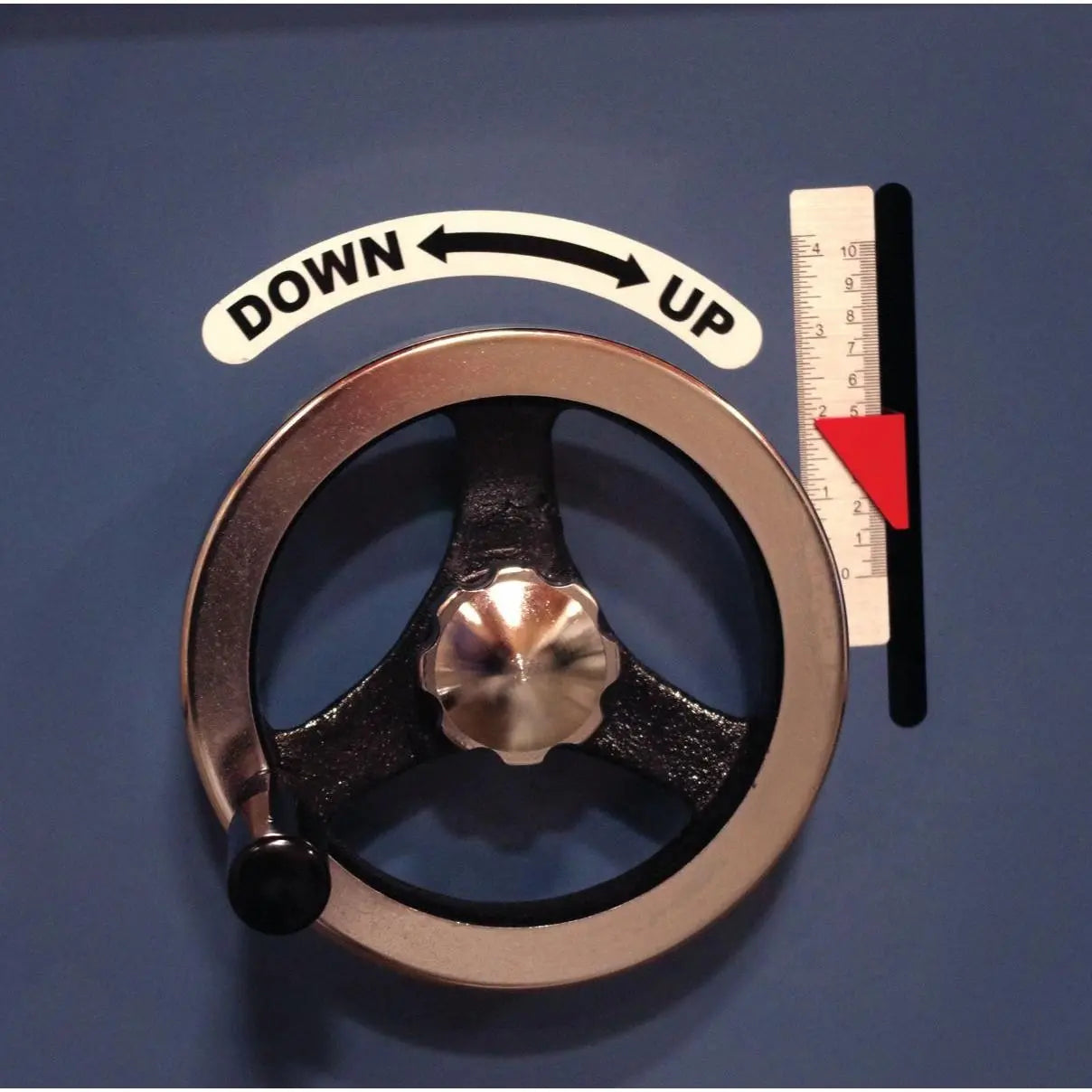

- Extra large handwheel for easy and quick height adjustment.
- Miter gauge included.
- Magnetic controls for added safety.
- Powerful TEFC motor in 5HP to meet your needs. (1Ph Only)
Specifications:
| Model Number | 10047.002 |
|---|---|
| Ph | 1Ph |
| Stock No. (5HP, 1Ph) | 10047.002 |
| Spindle Speeds | 4,000, 6,000, 8,000, 10,000 RPM |
| Spindle Diameter: | 1-1/4” |
| Verticle Spindle Travel: | 4" |
| Spindle Direction: | Reversible |
| Under Nut Capacity: | 4” with 1-1/4” Spindle |
| Table Opening: | 6-1/4" |
| Large Insert Opening: | 4-5/16” |
| Small Insert Opening: | 2-1/2” |
| Table Height | 34-3/8” |
| Table Size | 32” x 26” |
| T-Slot: | 3/4” x 3/8” |
| Fence Size (2): | 4-13/16” x 16” |
| Dust Port Diameter | 4" |
| Minimum CFM: | 800 |
| Motor 1Ph | 5HP, 220V only (18 Amp) 1Ph Only |
| Net Weight | 473 lbs. |
| Gross Weight | 550 lbs. |
