Oliver Machinery - Shaper 7.5HP 3Ph - 4705.002
Oliver Machinery - Shaper 7.5HP 3Ph - 4705.002 - Standard is backordered and will ship as soon as it is back in stock.
New Customer Discount
Tap the code below to copy, then paste at checkout
Oliver Machinery - Shaper 7.5HP 3Ph - 4705.002
Questions Before Buying?
Description
Description

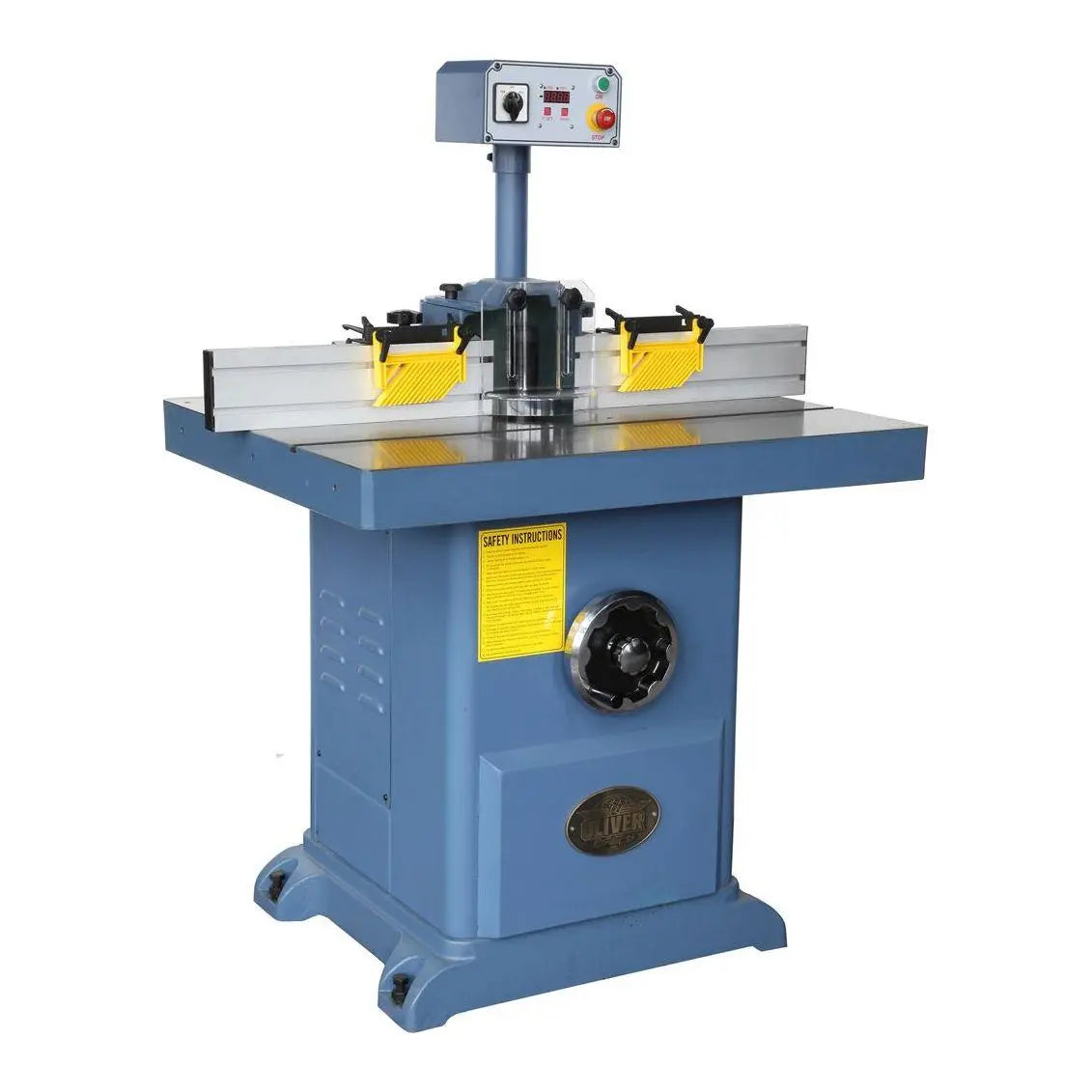

Oliver Machinery - Shaper 7.5HP 3Ph - 4705.002
Product Description
- Massive cast iron precision ground table provides a solid work surface.
- Table features pre-drilled and threaded holes for power feeder.
- Cast iron base provides a steady platform.
- Table features pre-drilled and threaded holes for optional power feeder.

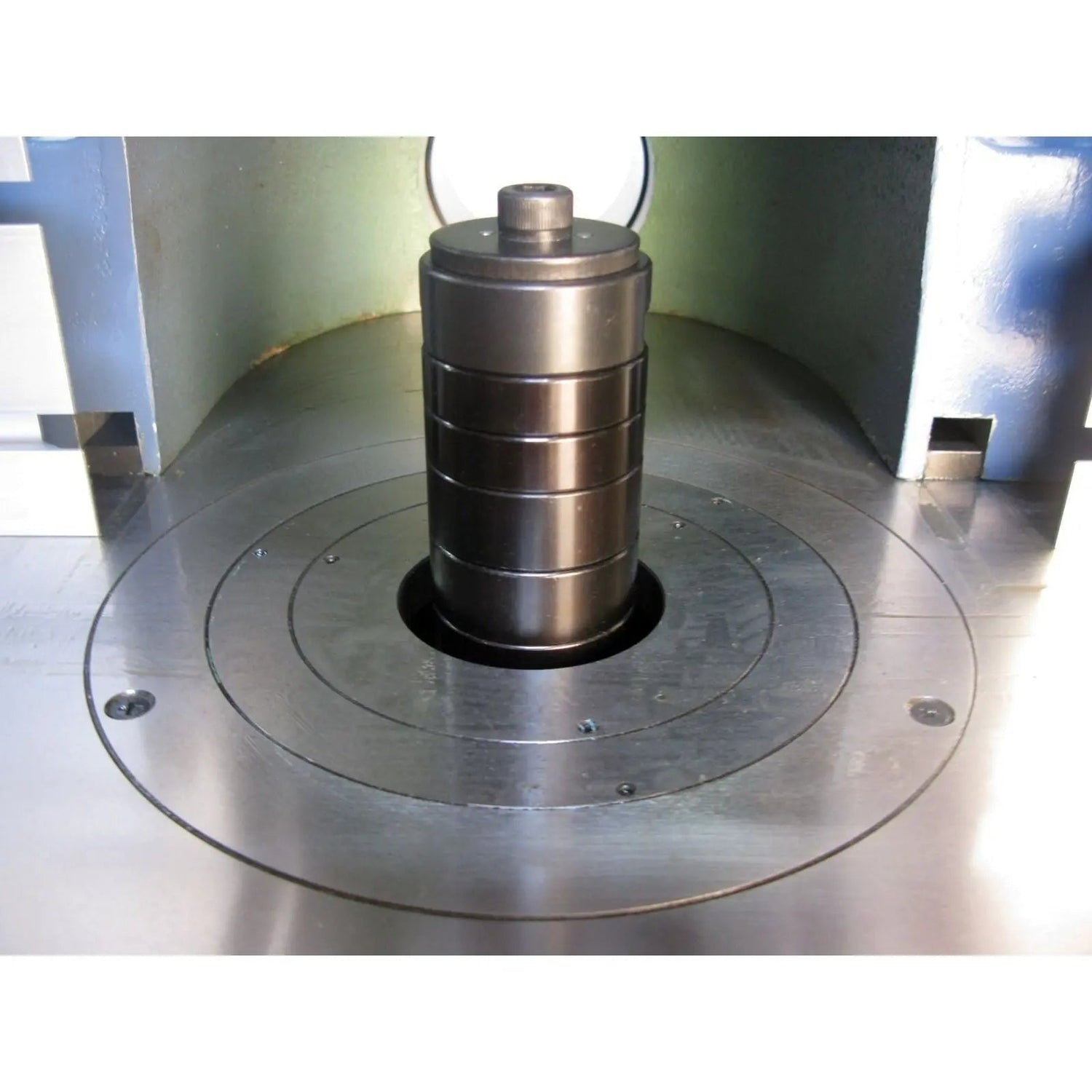

- 3/4” and 1-1/4” interchangeable spindles are included for added versatility.
- Three spindle speeds allow more choices to produce a better finish.
- Reversing spindle gives more options for each set-up.
- Innovative dovetail design accurately raises and lowers the spindle.

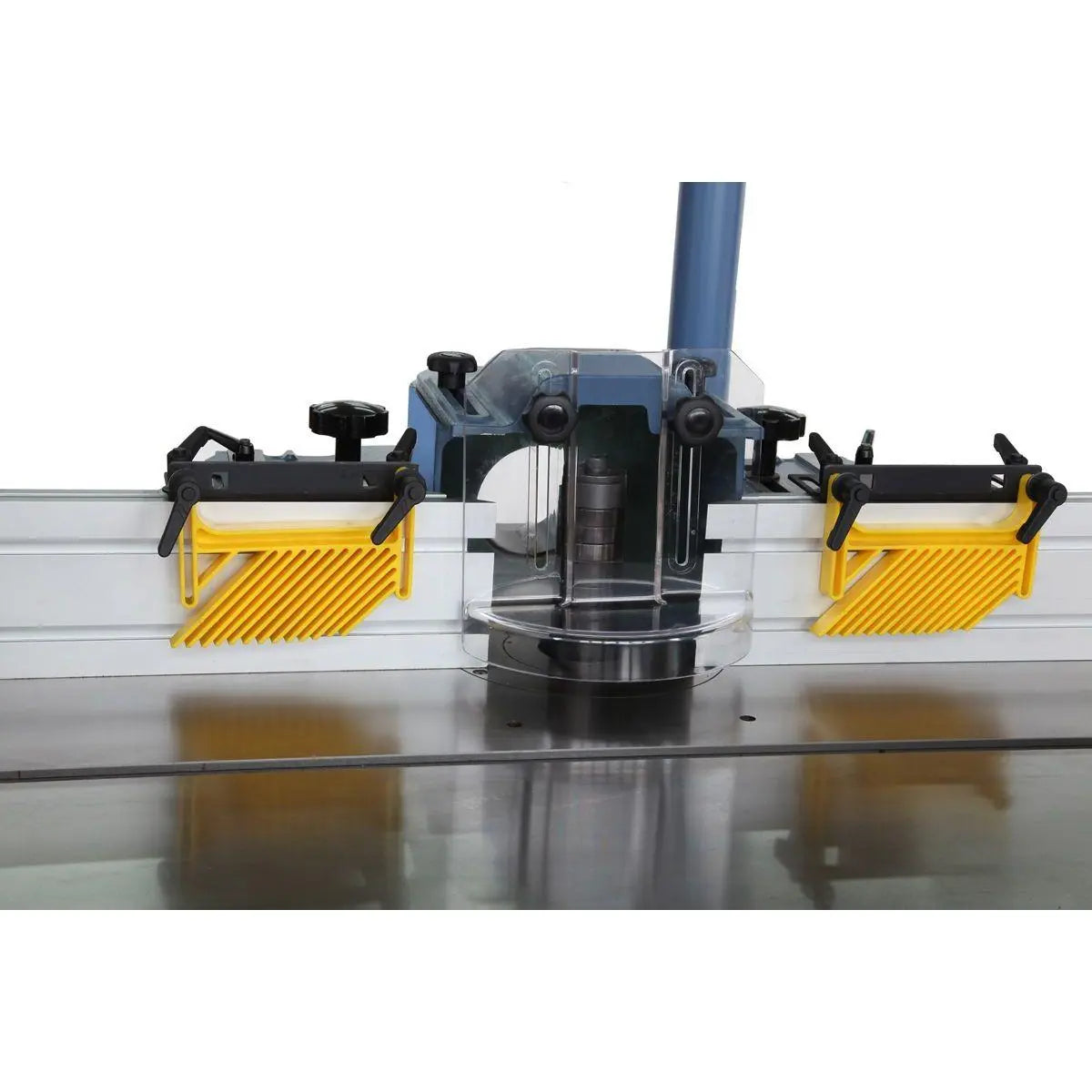

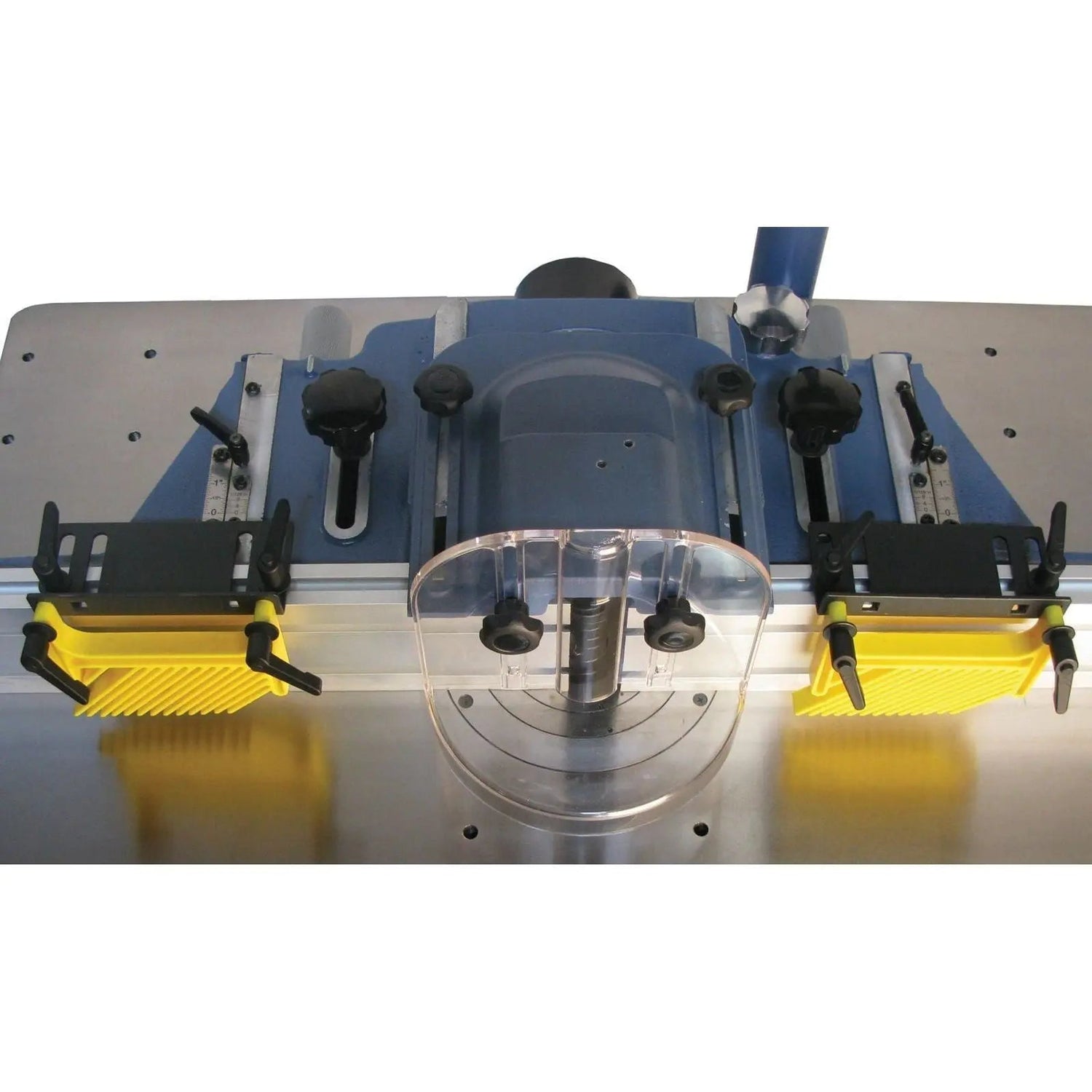

- Fence is independent and features micro adjustments for quick set-up.

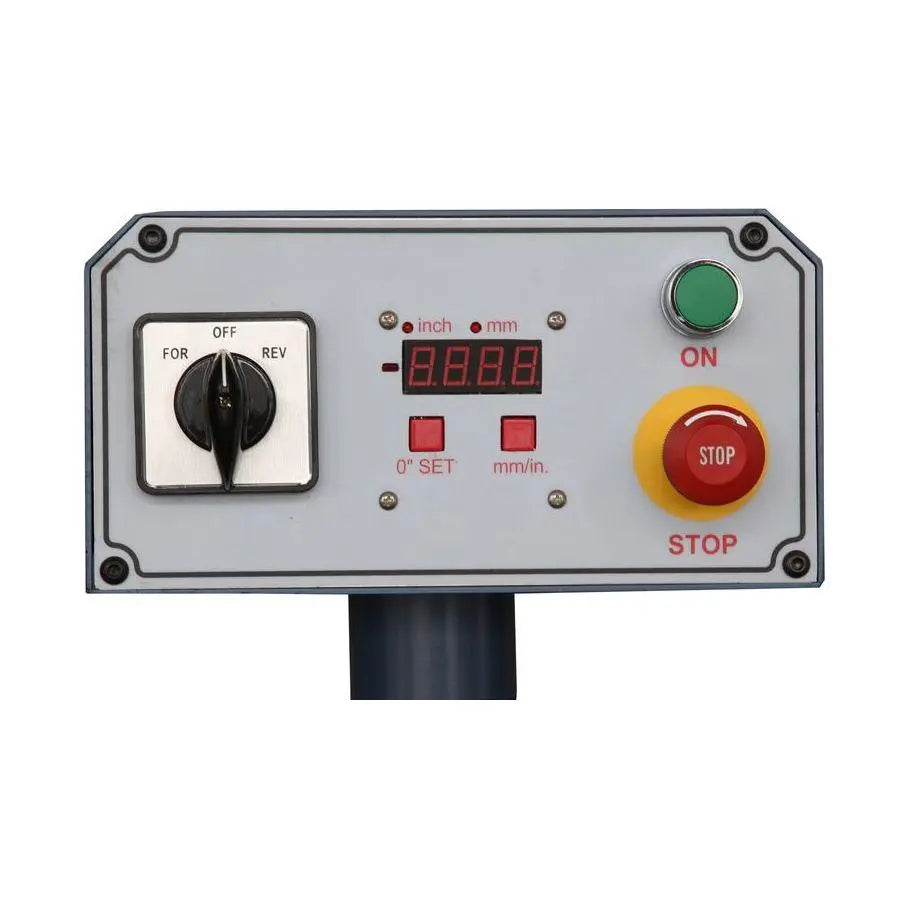

- Top mounted control panel includes a digital readout for spindle height.
- Large hand wheel for quick spindle height adjustment.
- Miter gauge included.
- Magnetic controls with emergency off switch for safer operation.

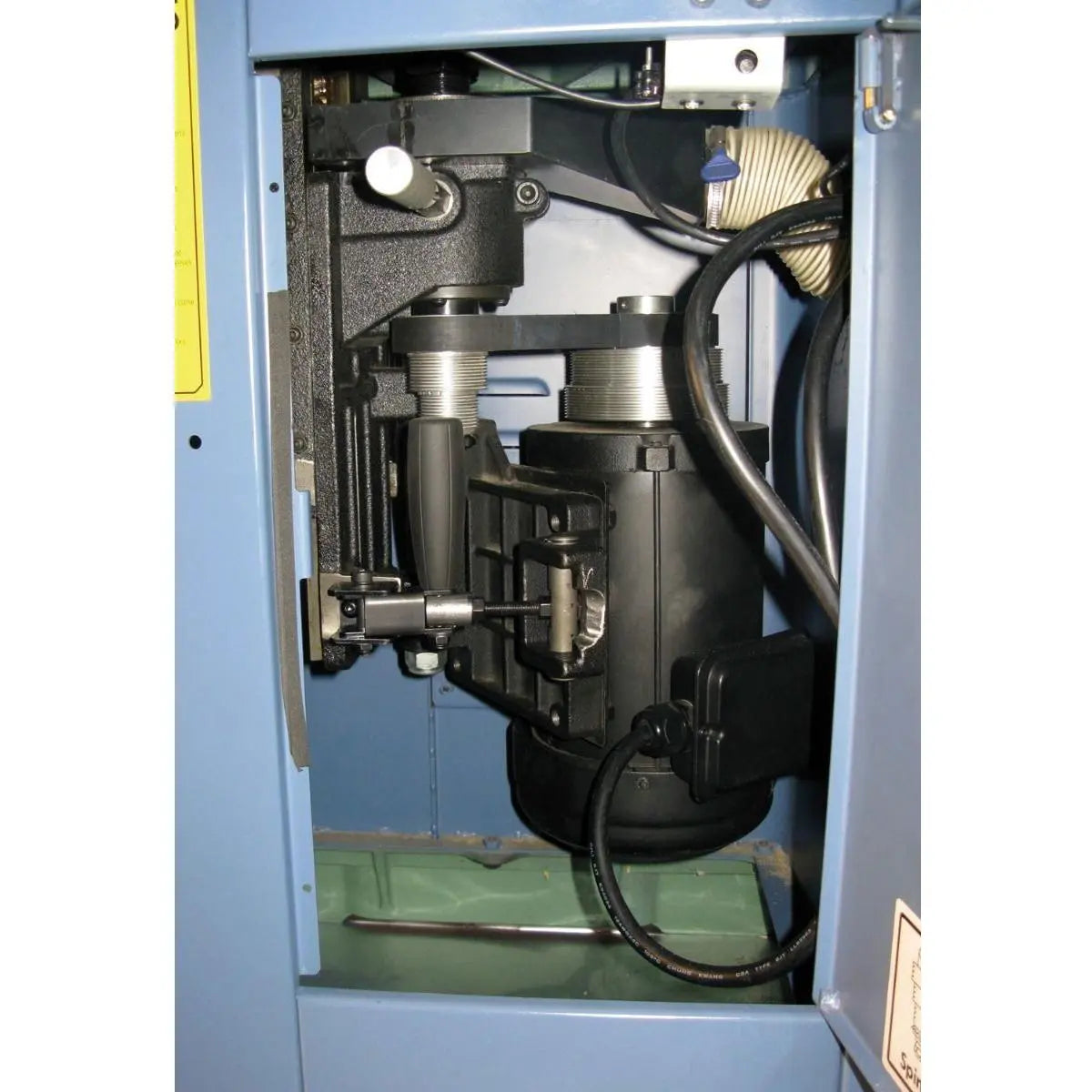

- Powerful TEFC motor available in single phase.
Specifications:
| Model Number | 4705 |
|---|---|
| Ph | 3Ph |
| Stock No. (7.5HP, 3Ph) | 4705.002 |
| Spindle Speeds | 5,000, 7,000, 10,000 RPM |
| Maximum Tool Diameter | 7” Below Table, 8” Above Table |
| Spindle Diameter: | 1-1/4” and 3/4” Interchangeable |
| Verticle Spindle Travel: | 4" |
| Spindle Direction: | Reversible |
| Table Height | 36-1/2” |
| T-Slot: | 3/4” x 3/8” |
| Dust Port Diameter | 4” |
| Minimum CFM: | 800 |
| Footprint | 28-1/2”L x 24-3/4”W |
| Table Dimensions | 39”L x 31-1/2”W |
| Motor 3Ph | 7.5HP, 220/440V*, Prewired 220V (16.8/8.4 Amp) |
| Net Weight | 660 lbs. |
| Gross Weight | 800 lbs. |
