Alignments are one of the best margin plays in the automotive service business. Demand is steady, every vehicle needs it eventually, and once the equipment is paid off the labor is nearly pure profit. If you're already turning tires or doing suspension work, adding alignments is often the single highest-ROI upgrade you can make to a bay. This guide breaks down exactly what you need to get started — the equipment stack, the space and power, the realistic payback, and the mistakes that trip up first-timers.
The alignment equipment stack
Offering alignments isn't one purchase — it's a small stack of equipment that has to work together. Here's what actually goes into an alignment bay.

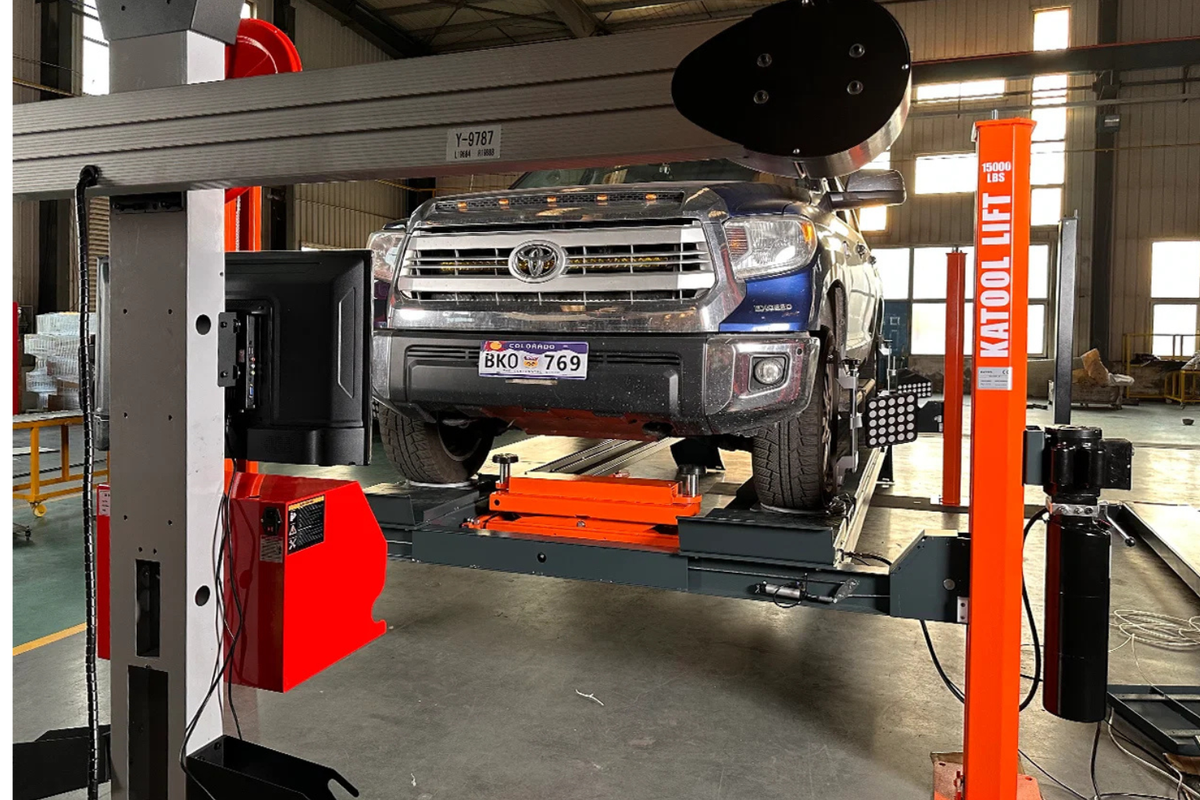

1. An alignment-capable lift
This is the foundation, and it's where most shops either get it right or box themselves in. You need a lift that can hold a vehicle level and rigid while presenting all four wheels for adjustment. Two common paths:
- A four-post alignment rack with built-in slip plates and rear turn plates — the traditional, drive-on choice, very fast to load, ideal for high volume.
- A full-rise scissor (alignment) lift with the same turn-plate and slip-plate provisions — a great fit when floor space is tight, since it tucks away when it's not in use.
A standard two-post lift generally isn't the tool for volume alignment work. If you're weighing lift styles, our guide on scissor lifts vs. post lifts walks through the trade-offs. The important thing: buy the alignment-rated lift up front rather than trying to retrofit later.
2. The alignment measurement system
This is the "machine" people picture — the system that measures camber, caster, toe, and thrust angle and tells the tech what to adjust. Modern systems are typically camera/imaging-based, reading targets clamped to each wheel. What you're paying for as you step up in price is speed, accuracy, and an up-to-date vehicle spec database, which matters a lot in a busy bay where a slow measurement cycle is lost revenue.
3. Turn plates and slip plates
Front turn plates let the wheels pivot so the system can read caster; rear slip plates let the axle settle without binding. On a dedicated alignment lift these are often integrated; on some setups they're separate. Either way, they're not optional for a proper four-wheel alignment.
4. A quality tire and wheel foundation
Alignments live next door to tire work — most alignment customers are there because of a tire, a pull, or uneven wear. A shop adding alignments almost always wants a solid wheel balancer (and often a tire changer) in the same area so you can sell the complete "tires + balance + alignment" ticket instead of sending that work elsewhere. Our wheel balancer buying guide covers what accuracy actually buys you.
Space, power, and air requirements
Before you buy anything, measure. An alignment bay asks for more than a standard service bay:
- Bay length and width: you need room to drive a vehicle fully onto the rack plus working clearance at all four corners and both doors. Plan for a longer, wider footprint than a typical two-post bay.
- Ceiling height: confirm your clearance against the lift's full rise — the same math we cover in our clearance guide.
- Concrete: an alignment lift carries real weight and needs a proper slab. Check the manufacturer's concrete spec before install.
- Power: most alignment lifts and systems run on 220V single-phase (some three-phase); verify what your building supplies.
- Air: many turn-plate and locking systems use shop air, so factor in compressor capacity.
- Lighting and floor space for the imaging system, which needs a clear line of sight to the wheel targets.
What the ROI really looks like
Here's the honest math. An alignment ticket is largely labor, so once your equipment is paid off, each alignment is high-margin revenue. The equipment stack is a real up-front investment, but shops doing steady volume frequently recover it inside the first year or two — and every alignment after that is mostly profit.
The bigger win is often the attach revenue. Alignments pull suspension work, tire sales, and repeat visits into your bay that would otherwise go to a competitor. When a customer can get tires, balancing, and an alignment in one stop, you capture the whole ticket. That bundling effect is usually worth more than the alignment labor by itself. (If you're building the tire side too, see how to set up a tire and wheel service bay.)
Common starter mistakes to avoid
- Buying a lift that can't do alignments. The most expensive mistake is realizing after install that your lift wasn't alignment-rated. Buy the right rack up front.
- Undersizing the bay. A rack that technically fits but leaves no working room around the vehicle kills your cycle time. Measure for the vehicle and the tech.
- Skimping on the measurement system. A cheap, slow, or out-of-date system bottlenecks a busy bay and frustrates techs. This is the tool you use on every job — spend where it counts.
- Ignoring the vehicle spec database. Your system is only as good as its up-to-date specs. Confirm how updates are handled before you buy.
- Forgetting the tire-side equipment. Alignments and tire/balance work feed each other. Planning them together captures far more revenue than adding alignments in isolation.
Frequently asked questions
Do I need a special lift for alignments? Yes. You need an alignment-rated four-post rack or a full-rise alignment scissor lift with turn plates and slip plates. A standard two-post lift isn't built for volume alignment work.
How much space does an alignment bay need? More than a standard bay — enough length to fully load the vehicle plus working clearance at all four wheels and both doors. Always check the specific lift's footprint and your ceiling height.
How fast does an alignment bay pay for itself? It varies with volume and pricing, but because alignment revenue is mostly labor, shops with steady demand often recover the equipment cost within the first year or two, then run at high margin — before counting the extra tire and suspension work it pulls in.
Can I add alignments if I already do tires? That's the ideal time. You already have the customers and the tire/balance equipment; adding an alignment lift and system lets you sell the complete ticket instead of referring it out.
