Triumph NTC-950-1 Tire Changer & NTB-550 Computer Wheel Balancer Combo
Triumph NTC-950-1 Tire Changer & NTB-550 Computer Wheel Balancer Combo - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Select Your Pickup Location
Choose the warehouse you will pick up from. Enter your ZIP to find the closest one.
Select a pickup location above to continue.
Subject to availability. Call or text 331-272-5655 to confirm your item is ready before pickup.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Triumph NTC-950-1 Tire Changer & NTB-550 Computer Wheel Balance...
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

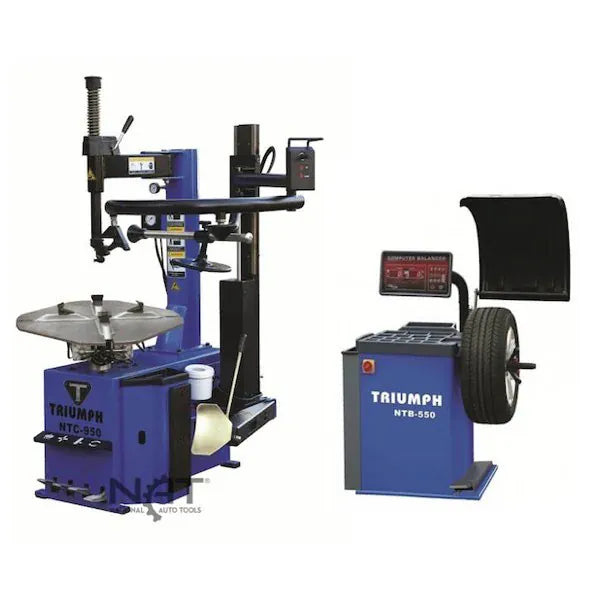

The Triumph NTC-950-1 commercial-style tire changer and NTB-550 computer wheel balancer ship together as a single shop package, covering both halves of a tire service in one purchase. The changer mounts and dismounts everything from standard passenger tires to harder jobs, and the balancer spins each wheel back to a true reading before it goes back on the vehicle.
On the NTC-950-1, the assist arm holds the upper bead and sidewall in place so you can work run-flat and low-profile tires without fighting the tire by hand. A 5,500-lb bead breaker opens stubborn beads, and the Jet Blast inflator system delivers an air burst to seat the bead on the rim. A 1.5 HP motor turns the table, clamping wheels from 16" to 28" on the inside and 14" to 26" on the outside.
The NTB-550 holds the wheel with a foot-pedal brake while you place weights, reads to ±1 gram accuracy, and completes a balancing cycle in 6 to 9 seconds. It handles wheels from 10" to 28" with rim widths from 1.5" to 20". Both machines run on 110V single-phase power, so they drop into a standard shop or garage circuit without dedicated three-phase wiring.
Features
NTC-950-1 Tire Changer
- Assist arm for handling run-flat and low-profile tires
- 5,500-lb bead breaker for stubborn beads
- Jet Blast inflator system to seat beads on the rim
- Clamping range of 16"-28" inside and 14"-26" outside
- Handles wheel widths up to 15" and tire diameters up to 43"
- 1.5 HP motor
- 110V single-phase power
NTB-550 Computer Wheel Balancer
- Foot-pedal wheel brake to hold the wheel steady during weight placement
- ±1 gram balancing accuracy
- 6-9 second cycle time
- Balances wheels from 10" to 28" with rim widths of 1.5"-20"
- Standard or metric display
- 36 mm shaft
- 110V single-phase power
Compatibility
Per Triumph's tire equipment fitment guide, the NTC-950-1 and NTB-550 combo is rated for:
- Passenger cars and 1/2-ton, 3/4-ton, and 1-ton light trucks
- Load Range C, D, and E tires
- Wheels from 14" to 24", plus 16.5" wheels
- Motorcycle wheels with an additional adapter1

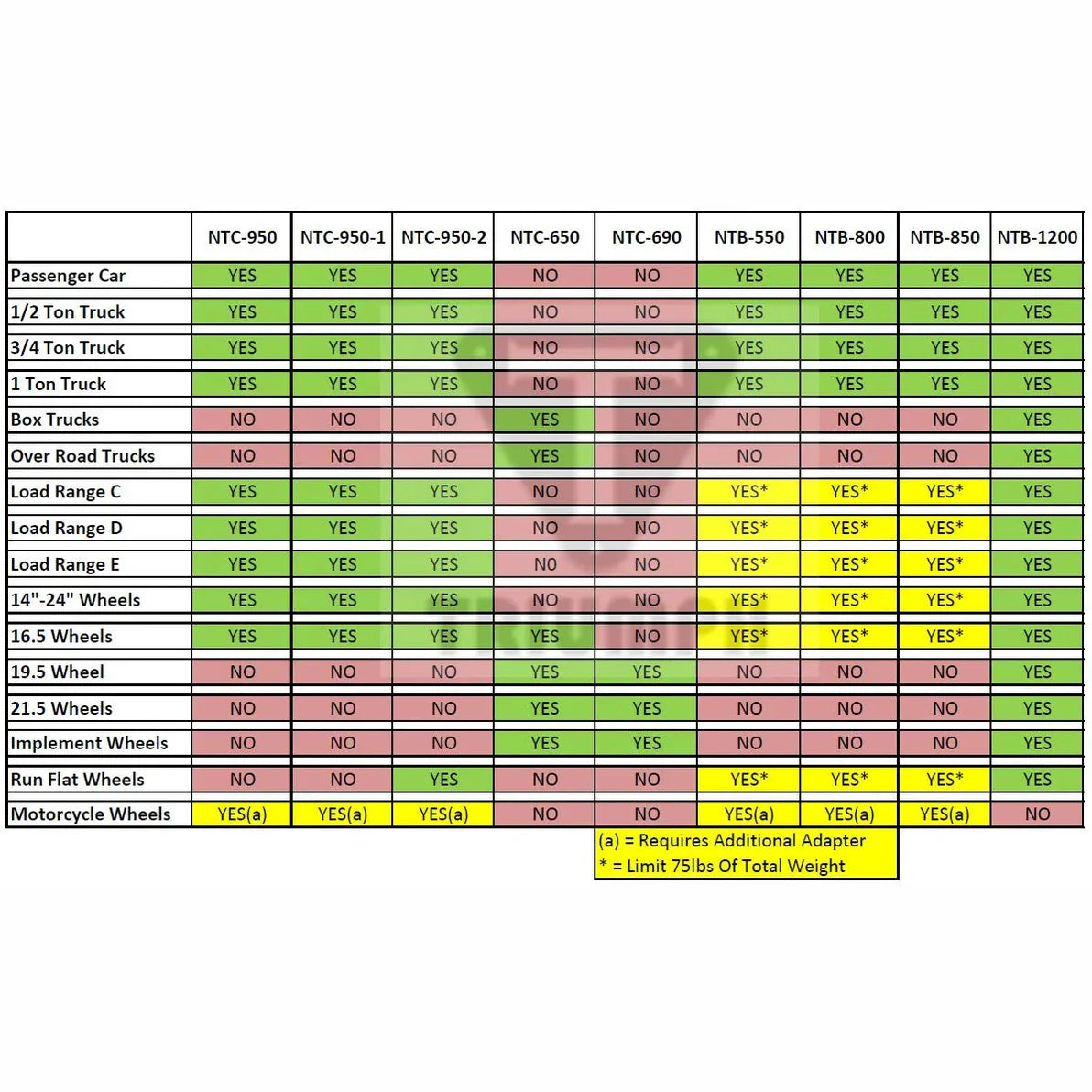

It is not rated for box trucks, over-the-road trucks, 19.5" or 21.5" wheels, or implement (agricultural) wheels. The full model-by-model fitment chart is shown in the product gallery.
1 Balancing larger or heavier assemblies on the NTB-550 is subject to a 75-lb total-weight limit.
What's Included
NTC-950-1 Tire Changer
- Metal and plastic demount head
- Plastic wheel clamp covers
- Tire iron
- Lube bucket and brush
NTB-550 Computer Wheel Balancer
- Plastic safety hood
- Quick-release wing nut
- Cone adapters
- Wheel weight hammer
- Rim caliper
Specifications
| Triumph NTC-950-1 Tire Changer | |
|---|---|
| Inside Clamping | 16"-28" |
| Outside Clamping | 14"-26" |
| Max Wheel Width | 15" |
| Max Tire Diameter | 43" |
| Bead Breaker Force | 5,500 lbs |
| Jet Blast Inflator | Yes |
| Motor | 1.5 HP |
| Max Air Pressure | 120 PSI |
| Voltage | 110V |
| Shipping Size | 51" x 38" x 51" |
| Shipping Weight | 820 lbs |
| Triumph NTB-550 Computer Wheel Balancer | |
|---|---|
| Wheel Size Range | 10"-28" |
| Max Tire Diameter | 44" |
| Rim Width | 1.5"-20" |
| Max Wheel Weight | 150 lbs |
| Shaft Size | 36 mm |
| Balancing Accuracy | ±1 gram |
| Cycle Time | 6-9 sec |
| Display | Standard or Metric |
| Automatic Data Entry | No |
| Motor | 1/4 HP |
| Voltage | 110V |
| Assembled Size | 28" x 47" x 56" |
| Shipping Size | 36" x 28" x 46" |
| Shipping Weight | 325 lbs |
Warranty
Triumph tire equipment carries a 1-year parts warranty (parts only, no labor). If a covered part fails, call Triumph, troubleshoot the problem over the phone, and the replacement part ships to you free of charge by ground service. Labor to install the replacement part is not covered, so you install it yourself or arrange your own installer.
Consumable and wear items are not covered. On the tire changer, that means the plastic protective pads and tooling on the clamps, heads, bead breakers, and assist arms, the single tire inflation hose, and the lube brush and bucket. On the wheel balancer, it means the quick-release wing nut, wheel hood cover, top tray cover, and wheel weight hammer.
FAQ
What power supply does this combo need?
Both the NTC-950-1 and the NTB-550 run on 110V single-phase power, so they work on a standard shop or garage circuit without dedicated three-phase wiring.
Can it service run-flat and low-profile tires?
Yes. The NTC-950-1's assist arm supports the bead and sidewall so you can mount and dismount run-flat and low-profile tires, and the Jet Blast inflator helps seat stubborn beads.
What wheels and vehicles does it cover?
Passenger cars and 1/2- to 1-ton light trucks, Load Range C through E tires, wheels from 14" to 24" plus 16.5" wheels, and motorcycle wheels with an additional adapter. It is not rated for box trucks, over-the-road trucks, 19.5"/21.5" wheels, or implement wheels.
How does it ship, and is anything assembled?
The combo ships on an LTL freight carrier with lift-gate service, so the driver lowers it to the ground at the back of the truck. The driver does not move the equipment inside your shop or assemble it. You call the freight company to schedule the delivery appointment; terminal pickup is also available if you would rather collect it with a trailer or moving van.
Documents
Manual and technical documents available on request, contact support@projectfoundry.co or call 331-272-5655.
