Triumph NSS-8 8,000 lb Service Storage Four Post Lift
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description
The Triumph NSS-8 is an 8,000-lb. capacity 4-post auto lift built for vehicle storage and light service work in residential garages and small shops. Standard Grey units ship with a caster kit, three plastic drip trays, a steel jack tray, and aluminum approach ramps included at no extra charge. The NSS-8 is CE Certified, manufactured in ISO 9001 facilities, and carries a 1-year parts warranty.
The lift handles cars, full-size SUVs, and most light trucks. A 72" lift height on top of the runway and 69" of clearance under the runway give the lower vehicle real walking space when stacking two cars in a single bay, and the 93" drive-thru between posts accepts crew cabs and full-size pickups. The 175" overall length without ramps (195" with ramps deployed) and 106" base width fit a standard two-car garage with adequate ceiling clearance for the 84" overall height.
Ten automatic locking positions at 4.5" intervals engage as the runway rises, and a single-point lock release retracts all four columns from one control. The 3 HP power unit runs on a standard 110V circuit with a 30 amp breaker and completes a full lift cycle in 40 seconds. Triumph specs the NSS-8 with 5/16" lock rods rather than the 1/4" rods common at this price point, a steel oil tank rather than plastic, and a UL-listed power unit plug (UL Registration E232289).
The NSS-8 ships LTL freight on a 48-foot semi truck. The driver does not unload, a forklift, Bobcat, tractor, tow truck, or backhoe rated to handle the 1,600-lb. shipping weight is required at the delivery address. Liftgate service is not available for auto lifts. If you cannot unload at your address, the carrier can hold the shipment at the nearest freight terminal for trailer or moving-van pickup. The freight company schedules the appointment directly, so the order phone number must be one you'll answer.
Features
- 8,000 lb. capacity 4-post storage and service lift
- CE Certified, manufactured in ISO 9001 facilities
- 1-year parts warranty
- Ten automatic locking positions at 4.5" intervals
- Single-point lock release retracts all four columns at once
- 72" maximum lift height; 69" clearance under runway
- 93" drive-thru between posts
- 175" overall length without ramps; 195" with ramps deployed
- 5" lowered height for low-clearance entry
- 40-second full lift cycle
- 3 HP motor on 110V (30 amp breaker required)
- 5/16" lock rods rather than 1/4" rods
- Steel oil tank power unit (not plastic)
- UL-listed power unit plug, UL Registration E232289
- Lightweight aluminum approach ramps

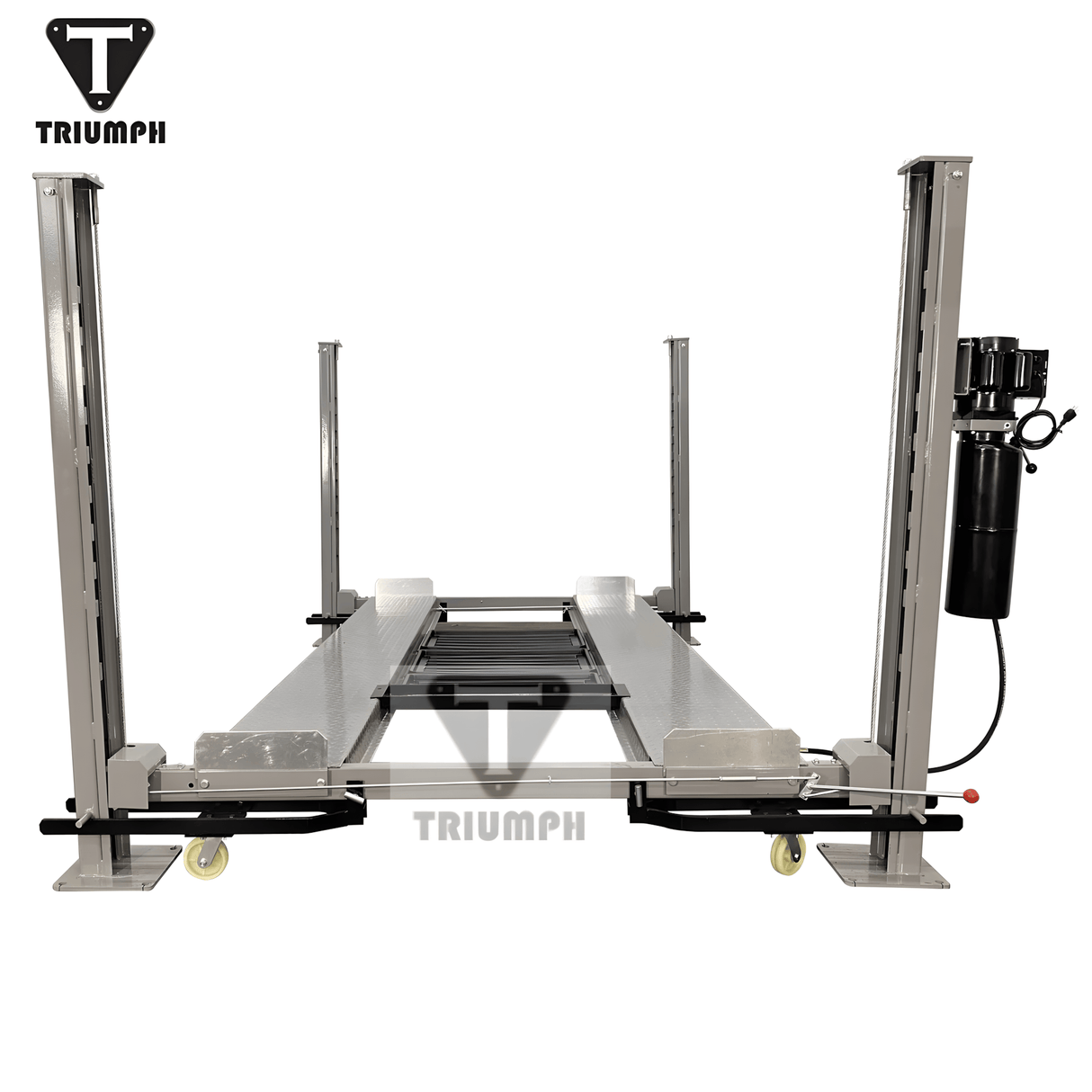

- Caster kit included for repositioning the lift when unloaded1
- Steel jack tray included (accepts floor or bottle jack)
- Three plastic drip trays included
- Compatible with optional Triumph SJ-35 Bridge Jack (sold separately)
- Extended-length NSS-8XLT version available for longer or taller vehicles
Specifications
| Triumph NSS-8 Specifications | |
|---|---|
| Capacity | 8,000 lbs. |
| Lifting Height (top of runway) | 72" |
| Height Under Runway | 69" |
| Lowered Height | 5" |
| Overall Height | 84" |
| Overall Length (without ramps) | 175" |
| Overall Length (with ramps) | 195" |
| Overall Width (base to base) | 106" |
| Overall Width (including motor) | 117" |
| Drive-Thru Width | 93" |
| Runway Length | 165" |
| Runway Width | 18" |
| Between Runways | 37" |
| Locking Positions | 10 (every 4.5") |
| Lowest Lock Position | 26" |
| Highest Lock Position | 69.5" |
| Base Plate Size | 12" × 12" |
| Lock Release | Single-point |
| Lift Time | 40 seconds |
| Voltage | 110V (30 amp breaker) |
| Motor | 3 HP |
| Shipping Weight | 1,600 lbs. |
| Shipping Dimensions | 169" L × 21" W × 29" H |
| Certifications | CE Certified; ISO 9001 manufactured |
| Warranty | 1-year parts only |
| 1The caster kit cannot be used while a vehicle is on the lift. | |
