Triumph NSS9000 9,000 lb Double-Wide 4-Post Storage & Service Lift
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

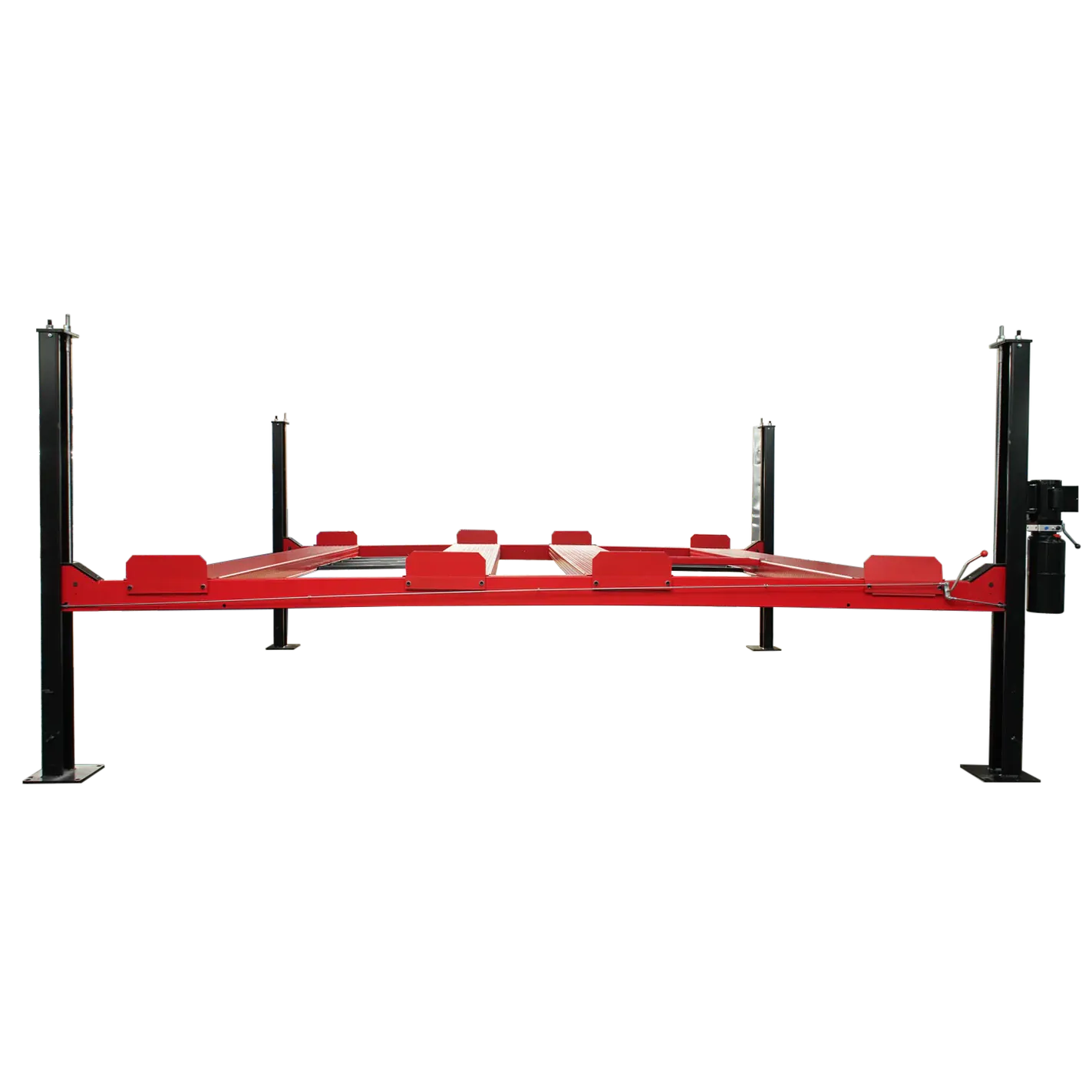

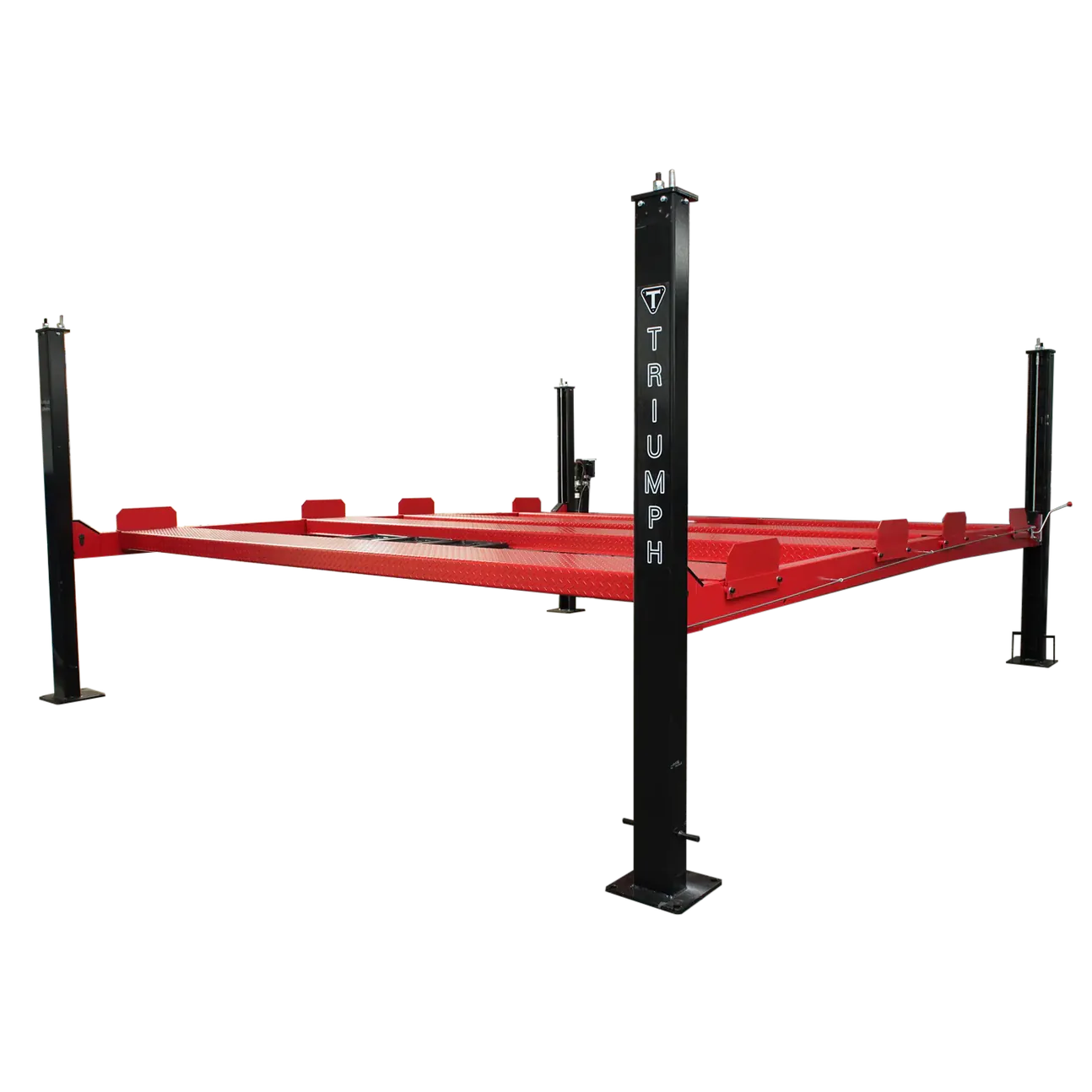

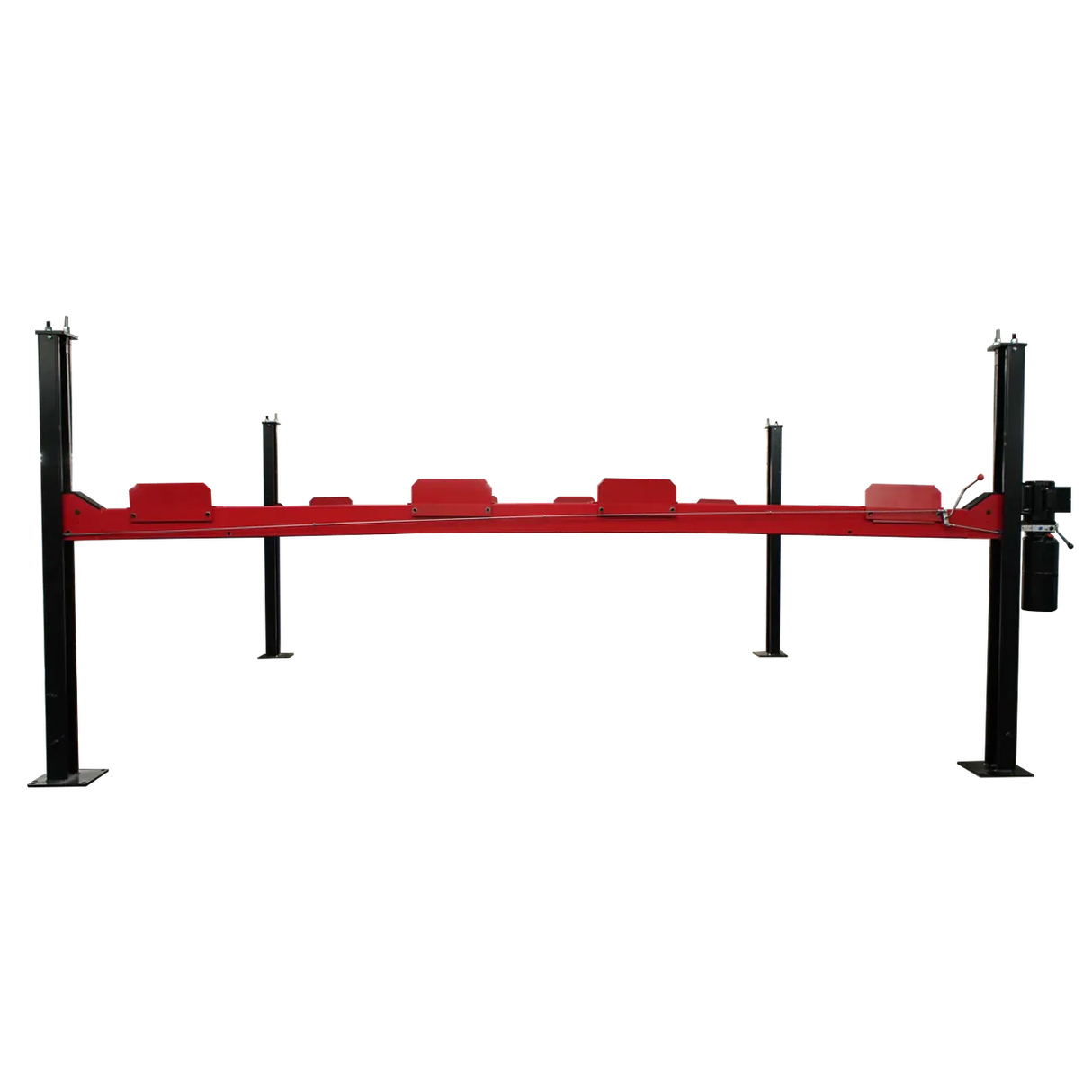

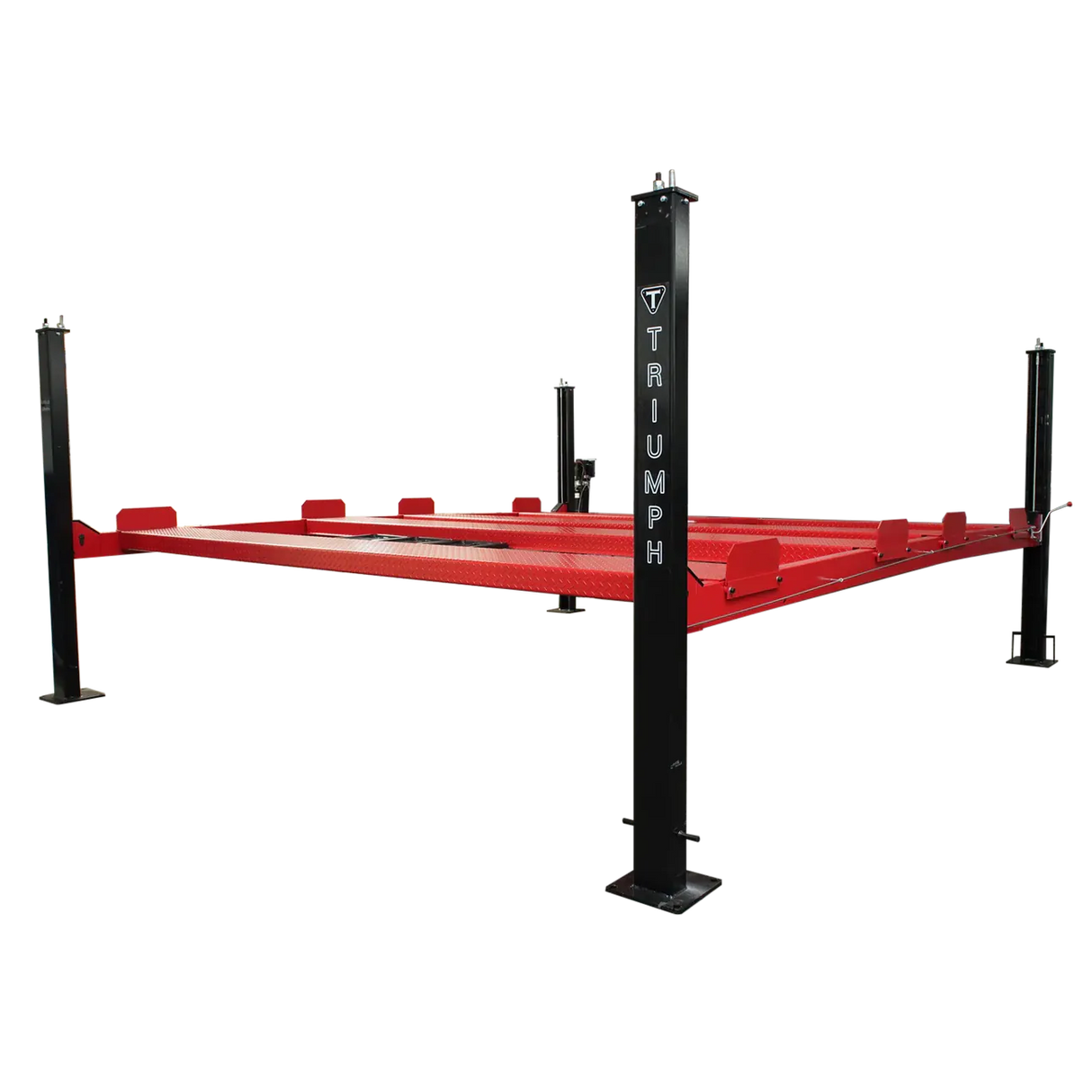

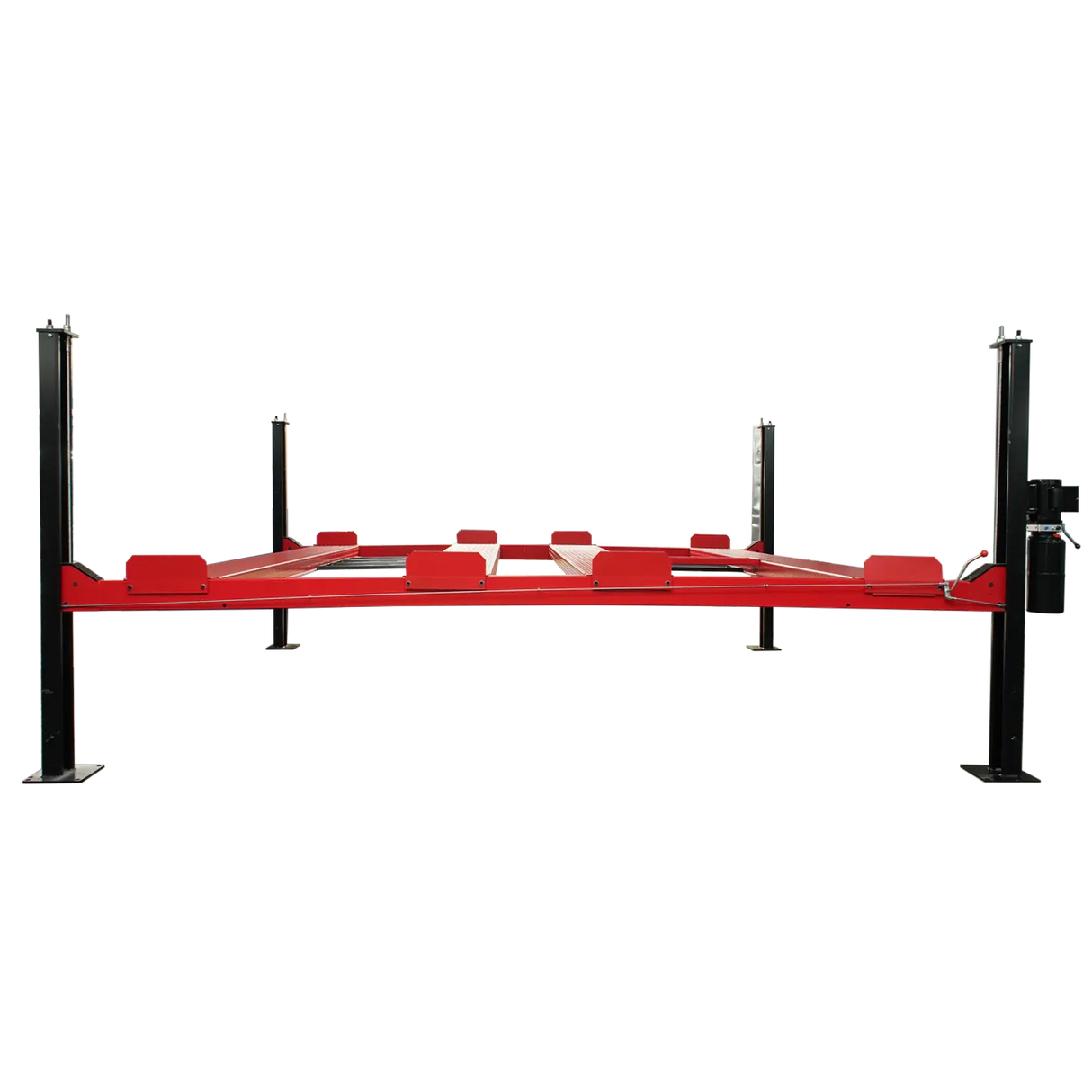

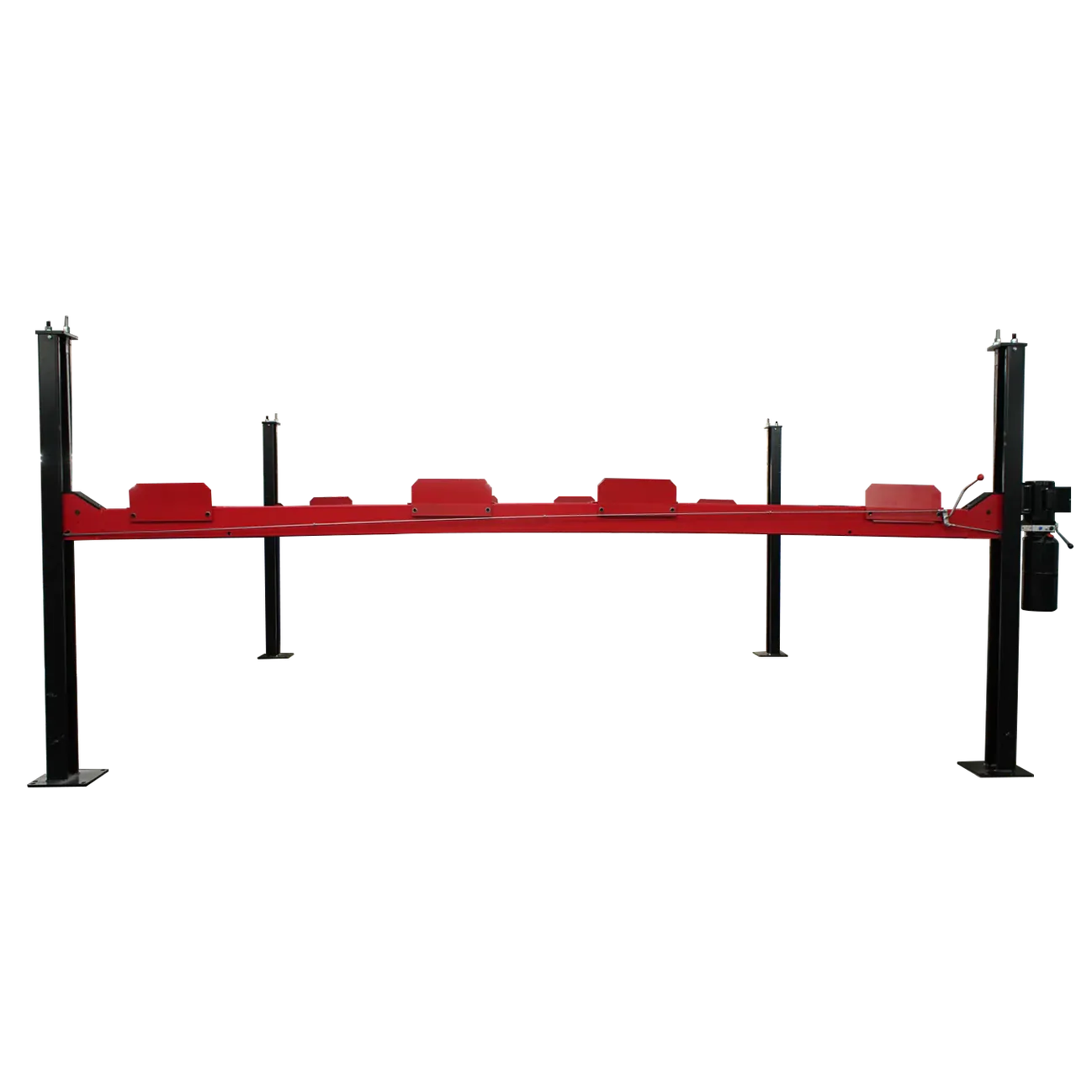

The Triumph NSS9000 is a 9,000-lb double-wide four-post lift built to do two jobs at once: store vehicles overhead and keep the floor below open for parking or service. Raise a vehicle onto the deck and the space underneath stays clear, so a second vehicle can park or be worked on in the same footprint. The double-wide deck gives you two side-by-side drive-on lanes, and three drip trays catch oil, coolant, or brake fluid from the stored vehicle so nothing reaches whatever sits below.
For service work, the included jack tray accepts a bottle jack or floor jack so you can lift one end of a vehicle right on the deck, useful for wheel, brake, or underbody jobs without a second lift. Vehicles drive on over approach ramps, and the deck sits just 6 inches off the ground when fully lowered, so even low-clearance cars load without scraping.
Safety comes from an automatic locking system that engages at 12 positions as the lift rises, with a single-point lock release that disengages all four corners together when you are ready to lower. The NSS9000 runs on standard 110V single-phase power, stays completely portable for repositioning in your shop, and is quick to set up. It is built to order. The standard finish is black and red, and custom colors are available when you specify a color name or code with your order. It is a design that has been in service for more than 20 years.
Features
- 9,000-lb lifting capacity for cars, trucks, and SUVs within the rated weight
- Double-wide deck with two side-by-side drive-on lanes
- Automatic safety locks that engage at 12 positions through the lift travel
- Single-point lock release lowers all four corners together
- Jack tray that accepts a bottle jack or floor jack to raise one end of a vehicle for service
- Three drip trays that keep fluid from the stored vehicle off whatever is parked below

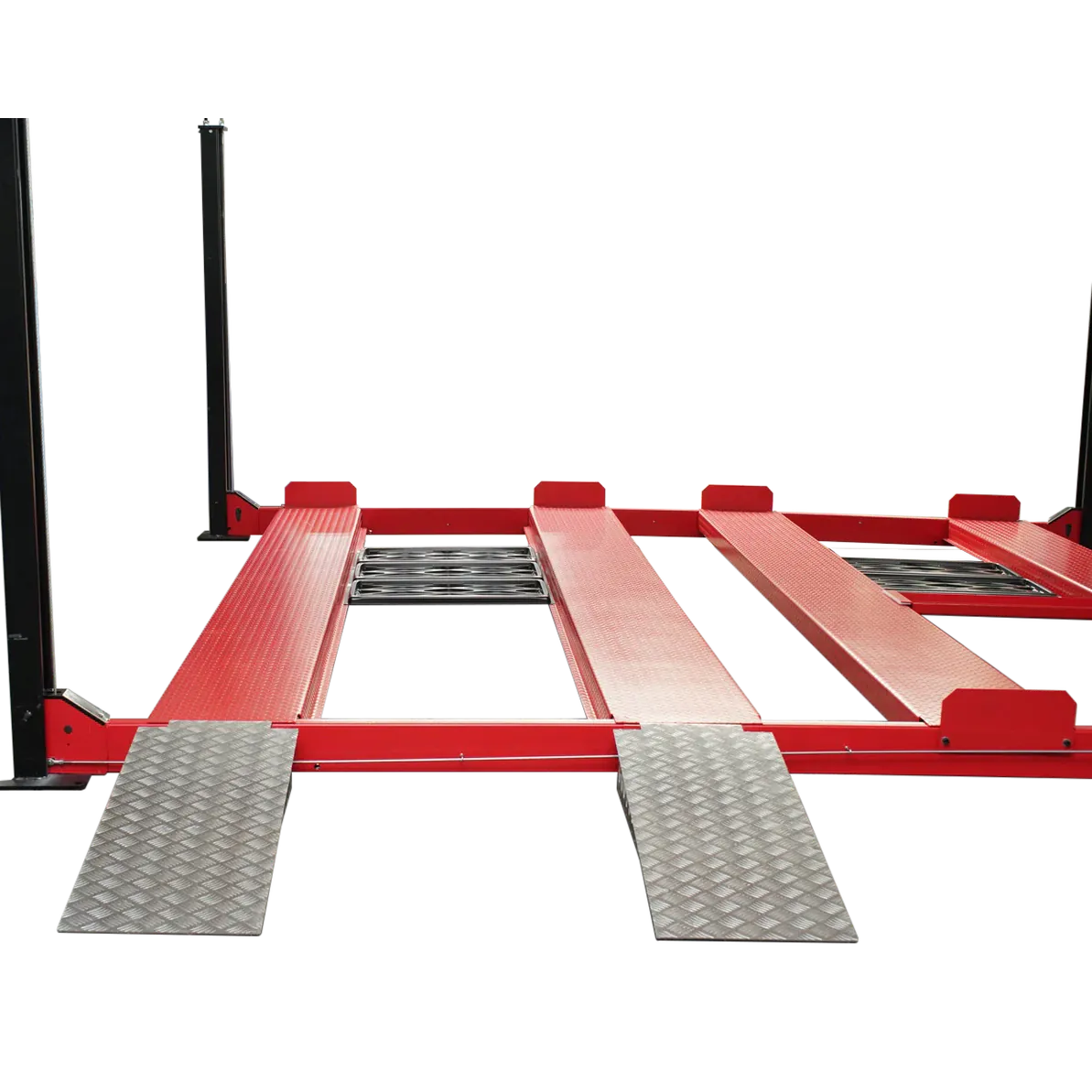

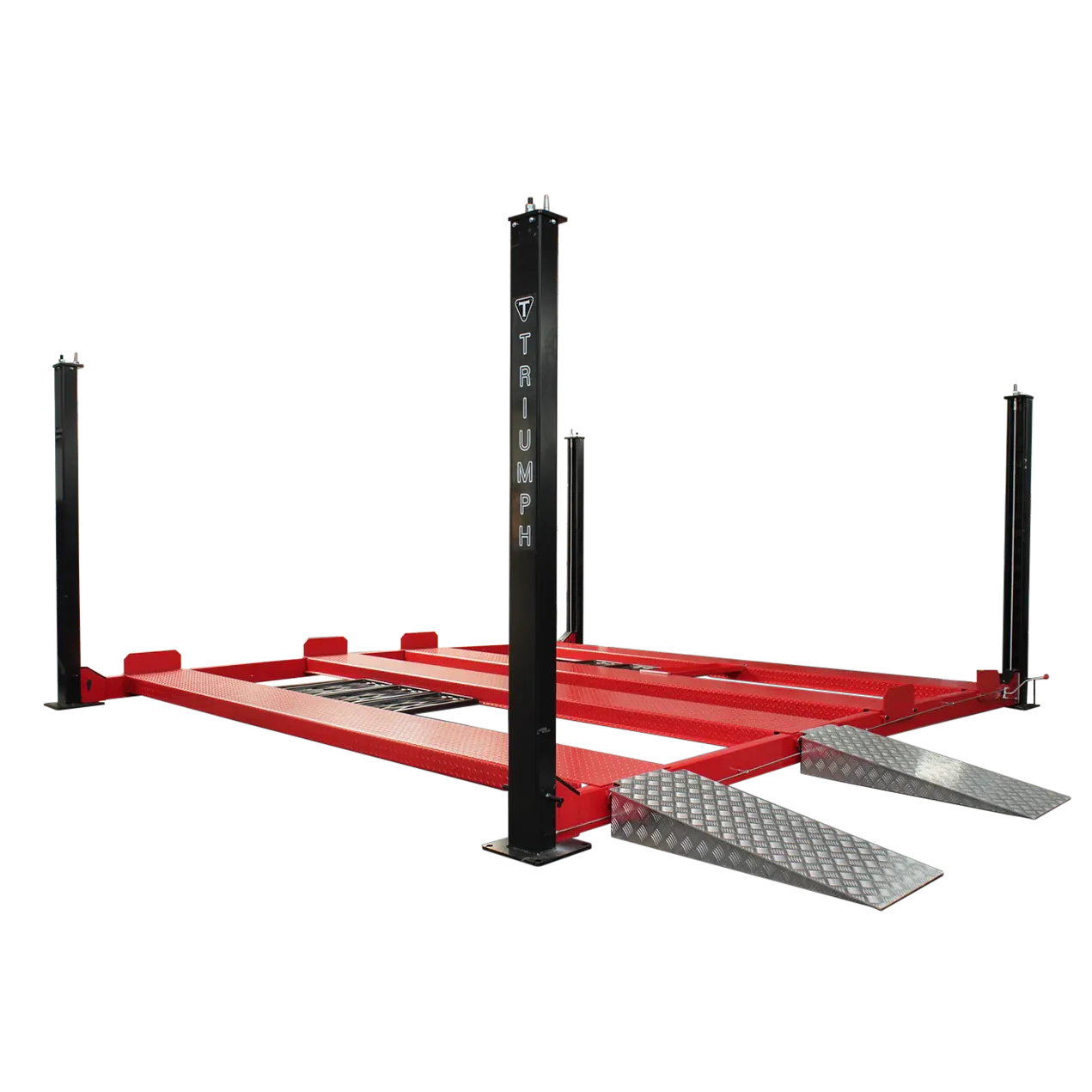

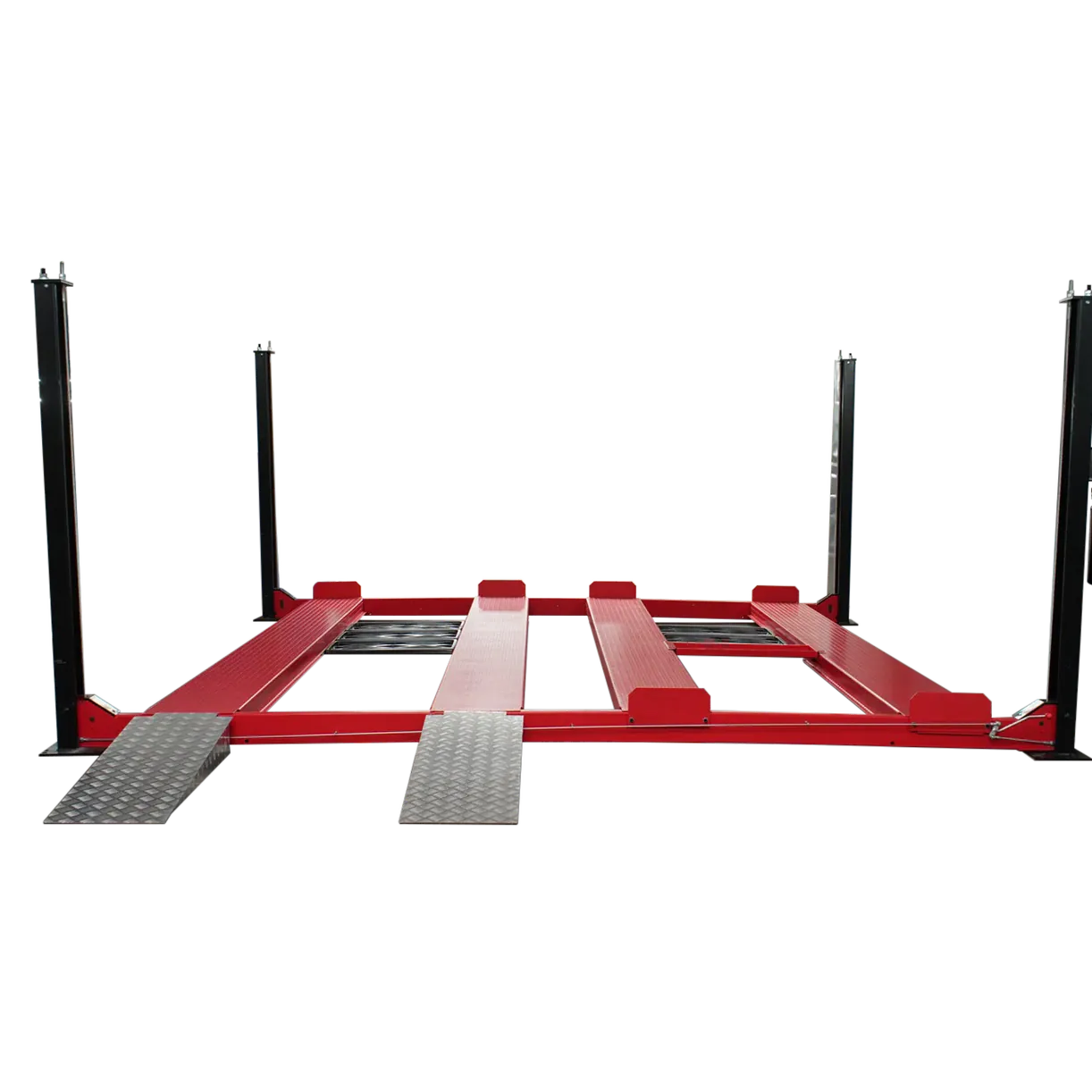

- Drive-on approach ramps and a low 6-inch lowered height for easy loading
- Completely portable and quick to set up; standard black-and-red finish with custom colors available
What's Included
- Jack tray (accepts a bottle jack or floor jack)
- Three drip trays for fluid containment
- Two drive-on approach ramps
Specifications
| Triumph NSS9000 Specifications | |
|---|---|
| Capacity | 9,000 lbs |
| Overall Height | 91.5" |
| Overall Length | 190" |
| Overall Width | 208" |
| Lifting Height | 77" |
| Height Under Runway | 72" |
| Runway Length | 180" |
| Drive-Through Width (Overall) | 192" |
| Runway Width | 18.5" |
| Lowered Height | 6" |
| Locking Positions | 12 |
| Base Plate Size | 12" x 12" |
| Lock Release | Single Point |
| Lift Time | 60 seconds |
| Voltage | 110 Volts |
| Shipping Weight | 3,800 lbs |
Custom Colors
The NSS9000 double-wide lift is available in custom paint colors at no extra charge. On this model, all painted parts can be custom colored. The drip trays remain black plastic, the power unit remains black, and the aluminum ramps cannot be painted.
- Custom color orders are non-cancelable once placed.
- Production time is approximately 10 weeks plus freight transit.
- Custom colors can be requested by color name or color code.
Warranty
Triumph lifts carry a 1-year parts warranty (no labor). If something fails, you call us, we troubleshoot over the phone, and we ship the needed part free of charge with free ground shipping. Labor to install the replacement part is not covered. Most repairs are straightforward for a mechanic to handle. Rubber lifting pads are not covered. Cylinders carry a 30-day full warranty; after 30 days, a seal kit is provided.
Shipping & Delivery
The NSS9000 ships on an LTL common-carrier freight truck (a 48-foot semi). A few things to plan for before you order:
- You are responsible for unloading the lift from the truck. The driver does not unload it.
- Lift-gate delivery is not available for auto lifts, and the lift cannot be unloaded by hand. You will need equipment that can handle the full crated weight (forklift, skid steer, tractor, tow truck, or backhoe).
- If you cannot unload from a truck, we can route the shipment to the carrier's nearest freight terminal for you to pick up with a trailer or moving van.
- You schedule the delivery appointment directly with the freight company.
Because freight cost depends on your location, a shipping quote is required. Contact us at support@projectfoundry.co or 331-272-5655 with your city, state, and ZIP code for a freight quote and to confirm the current build-to-order lead time.
FAQ
Can I park one vehicle below while another is stored on top?
Yes. That is the core purpose of the lift. Raise a vehicle onto the deck for storage and keep the floor below open to park or service another vehicle. The three drip trays catch any fluid from the upper vehicle so it does not reach the one below.
What power does it need?
The NSS9000 runs on standard 110V single-phase power.
What kind of floor does it require?
It installs on a solid, level concrete floor. Review the included manual for the manufacturer's concrete thickness and strength requirements before installation.
Is it built to order?
Yes. The NSS9000 is made to order rather than stocked. Plan on roughly 10 weeks to build plus freight transit. Because made-to-order timelines can shift, confirm the current lead time when you place your order. Custom paint colors are available. Just provide a color name or code.
Is installation included?
No. The NSS9000 is customer-installed and is designed to be straightforward to set up; the included manual covers assembly and operation. Installation labor is not included.
