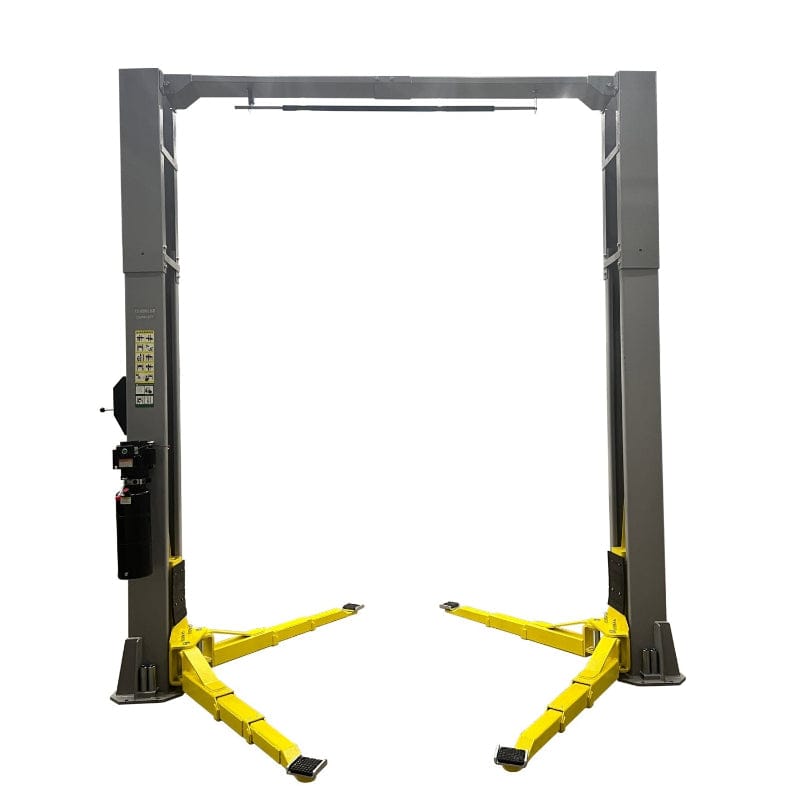

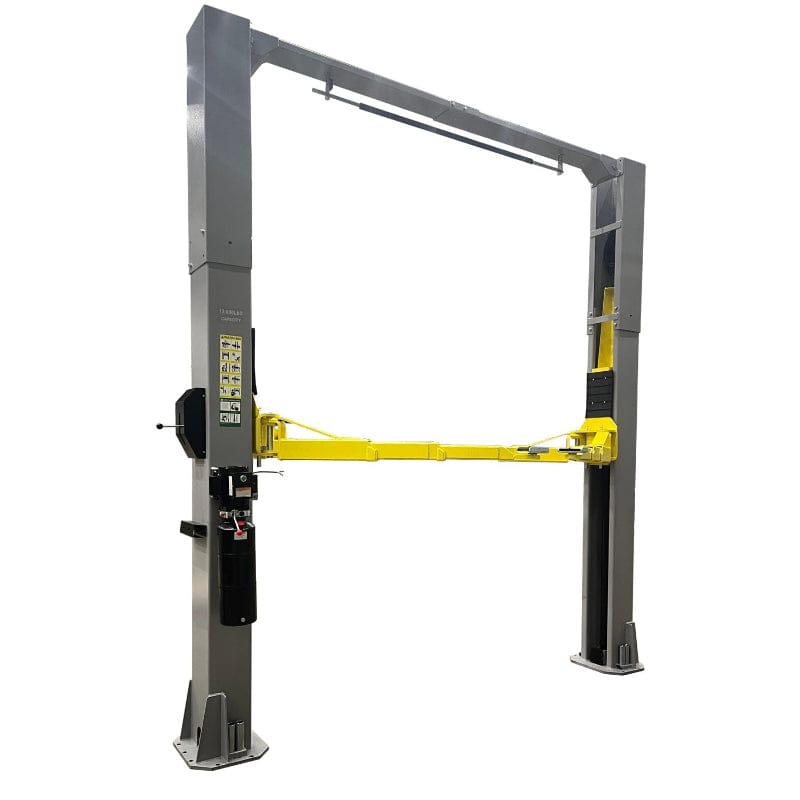

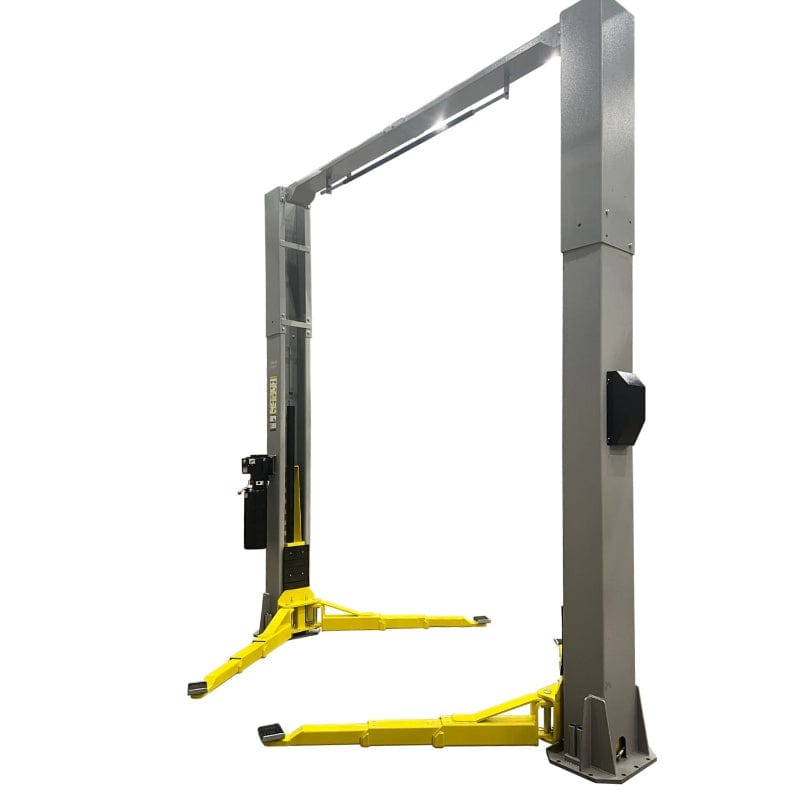

Triumph NTO-13A 13,000 lb Two Post Overhead Lift
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
13,000 lb capacity | Overhead two-post | 220V / 3HP |
The Triumph NTO-13A is built for the jobs that separate “good enough” from done right. With a true 13,000 lb lifting capacity, rugged above-ground overhead design, and smooth direct-drive cylinders, this lift is ready for heavier trucks, long-wheelbase vehicles, and busy-shop repetition, day after day, raise after raise.
It’s engineered to feel confident at every height. The lift climbs to a full 74" lifting height, reaches lock-up fast (about 55 seconds), and protects your workflow with an electrical override automatic safety shut-off. Add the single-point lock release, included truck adapters, and free mounting hardware, and you’ve got a serious, no-nonsense solution that’s ready to earn its place in your bay.
ISO 9001 and CE Certified/Compliant. Includes a 1-year parts warranty (no labor).
Key Highlights
- Heavy-Duty 13,000 lb Capacity: Ideal for trucks, SUVs, and heavier vehicles that push lighter lifts to the limit.
- Overhead Two-Post Design: Keeps the floor clear and your drive-through path open for easy positioning.
- Direct Drive Cylinders: Smooth, consistent lifting performance with fewer moving parts to fuss with.
- Fast Lift Cycle: Approximately 55 seconds to full lift, get the vehicle up and get to work.
- Single-Point Lock Release: Simple, efficient lock release from one location, no running side to side.
- Electric Safety Cutoff: Electrical override automatic safety shut-off helps protect the lift and your workspace.
- Truck-Ready Out of the Box: Includes truck adapters for added reach and flexibility.
- Shop Power Friendly: Runs on 220V with a 3HP power unit for confident lifting.
What’s Included
- Triumph NTO-13A 13,000 lb Overhead Two-Post Lift
- Free mounting hardware
- Truck adapters
- Single-point lock release system
- Electrical override automatic safety shut-off
- Standard 1-year parts warranty (no labor)
Installation Requirements
- Concrete Requirement: Must be installed on a 6" slab with a minimum 4,000 PSI rating.
- Lowered Height: 5", low profile to make loading and arm placement easier.
- Overhead Clearance: Overall height is 162", verify ceiling height and top clearance before purchase.
How You’ll Use It (Everyday Workflow)
- Drive in and center the vehicle between the posts using the generous 109" drive-thru width.
- Position the arms, add the included truck adapters when needed, and confirm contact points.
- Raise the vehicle to working height, lock in with confidence using the lift’s safety system.
- Release locks easily with the single-point lock release when you’re ready to bring it down.

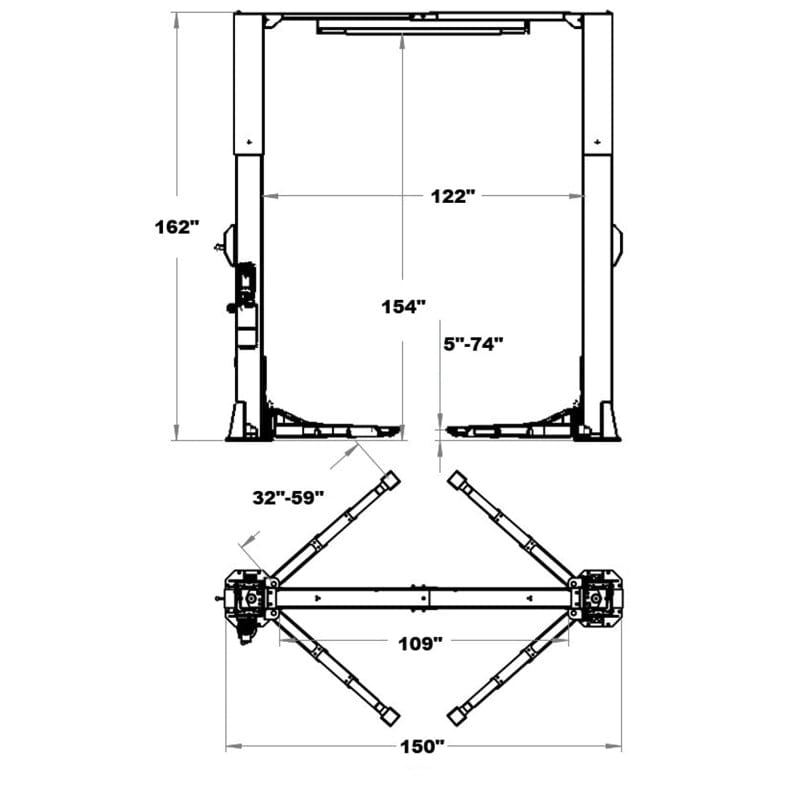

Specifications
| Capacity | 13,000 lbs |
| Style | Overhead |
| Overall Height | 162" |
| Overall Width | 150" |
| Distance Between Posts | 122" |
| Drive Thru Width | 109" |
| Lifting Height | 74" |
| Lowered Height | 5" |
| Base Plate Size | 20" x 20" |
| Truck Adapters | Yes |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 55 seconds |
| Voltage | 220V |
| Horsepower | 3 HP |
| Concrete Requirement | 6" slab, 4,000 PSI |
Shipping & Delivery Notes (Please Read)
Your auto lift ships via LTL freight on a common carrier and arrives on a 48-foot semi truck. Please plan ahead, freight is different than small-package delivery.
- You are responsible for unloading the lift. The driver does not unload it.
- Lift gate service is not available for auto lifts.
- You cannot unload by hand. You must have equipment capable of lifting the full weight of the shipment (forklift, bobcat, tractor, tow truck, backhoe, etc.).
- If unloading is an issue, we can ship to the carrier’s nearest freight terminal for pickup with a trailer or moving van.
- You are responsible for calling the freight company to schedule a delivery appointment.
- Freight transit can take 3-14 days depending on location.
- When your lift ships, we will email carrier details and a tracking number.
Warranty
Triumph Lifts include a 1-year parts warranty (no labor). If an issue arises, call us and we’ll troubleshoot with you over the phone. If a part is needed, we ship the replacement part free of charge, including free ground shipping.
- Labor is not covered: Replacement part installation is performed by you or a mechanic of your choice.
- Exclusions: Rubber lifting pads are not covered.
- Cylinder coverage: Cylinders include a 30-day full warranty. After 30 days, a seal kit is provided.
Bring real lifting muscle to your shop. The Triumph NTO-13A is the overhead two-post that’s ready for heavier vehicles, tighter schedules, and work you’ll be proud to stand behind.
