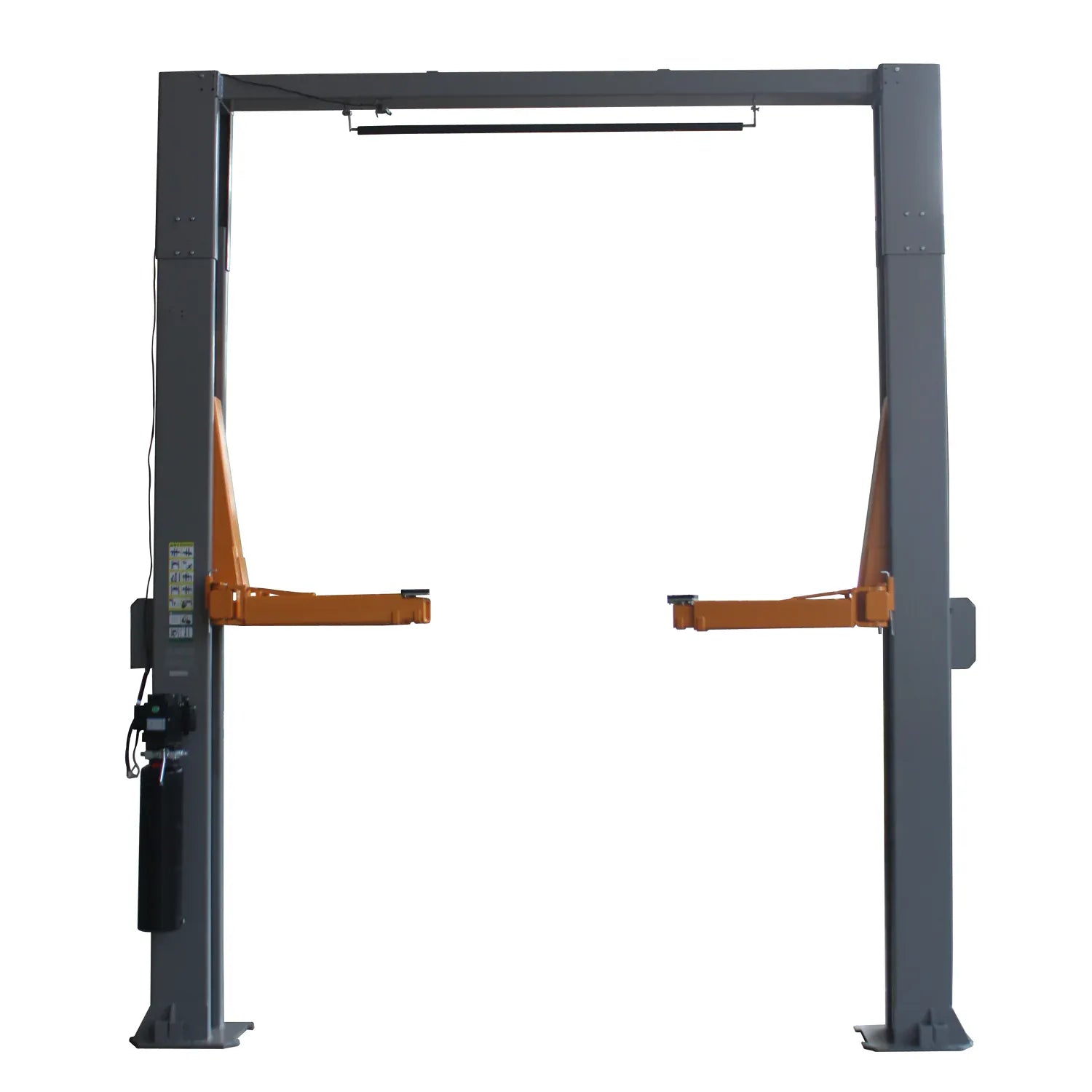

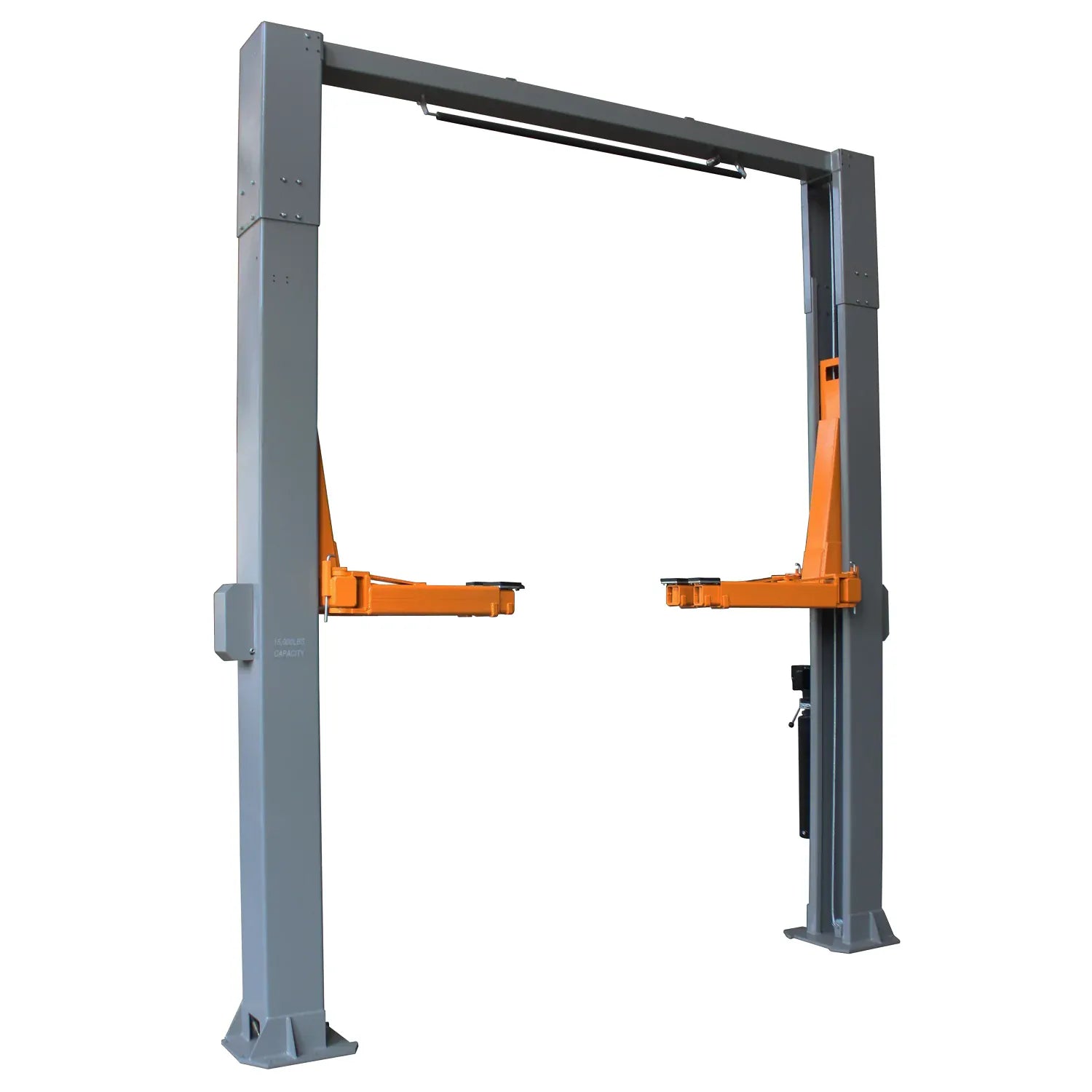

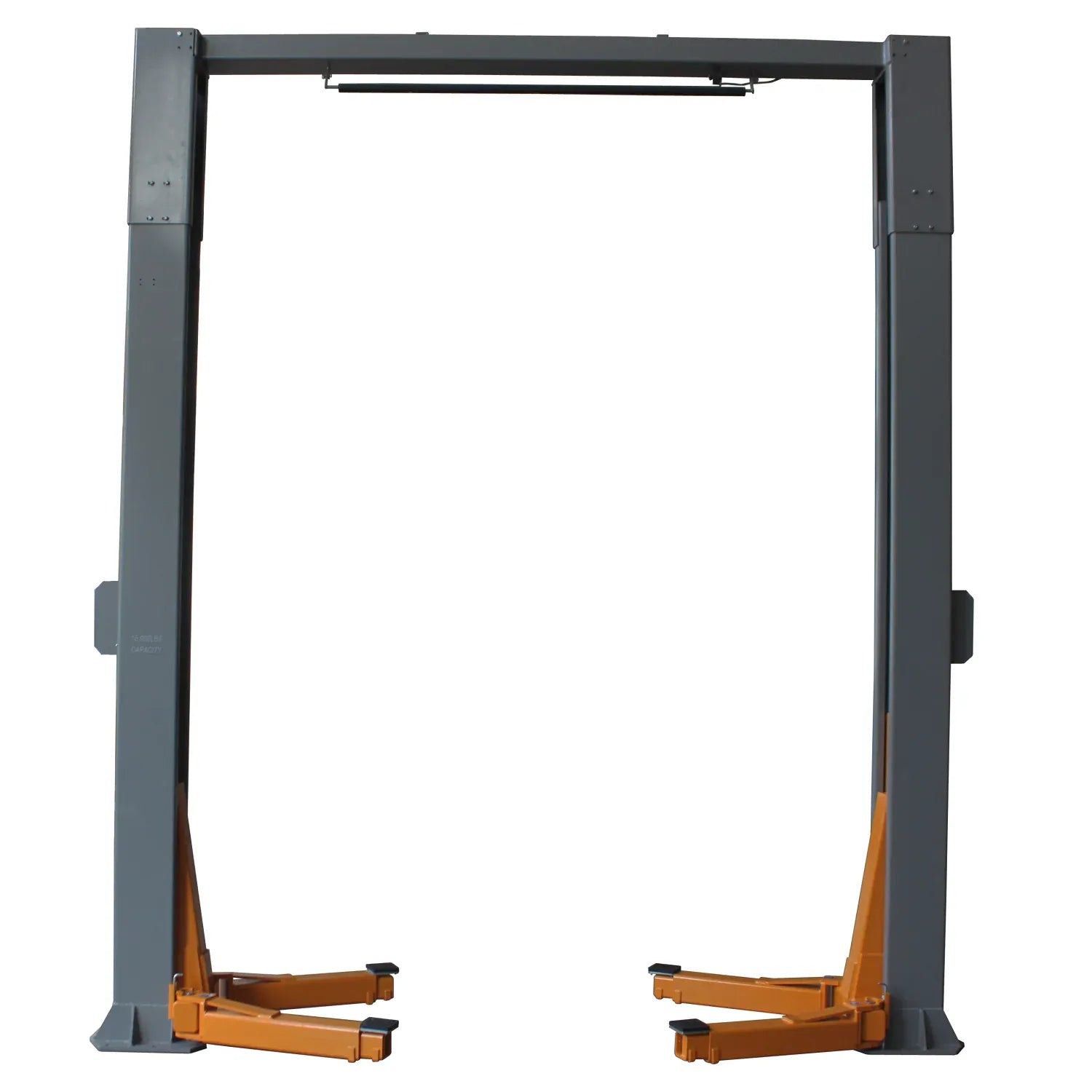

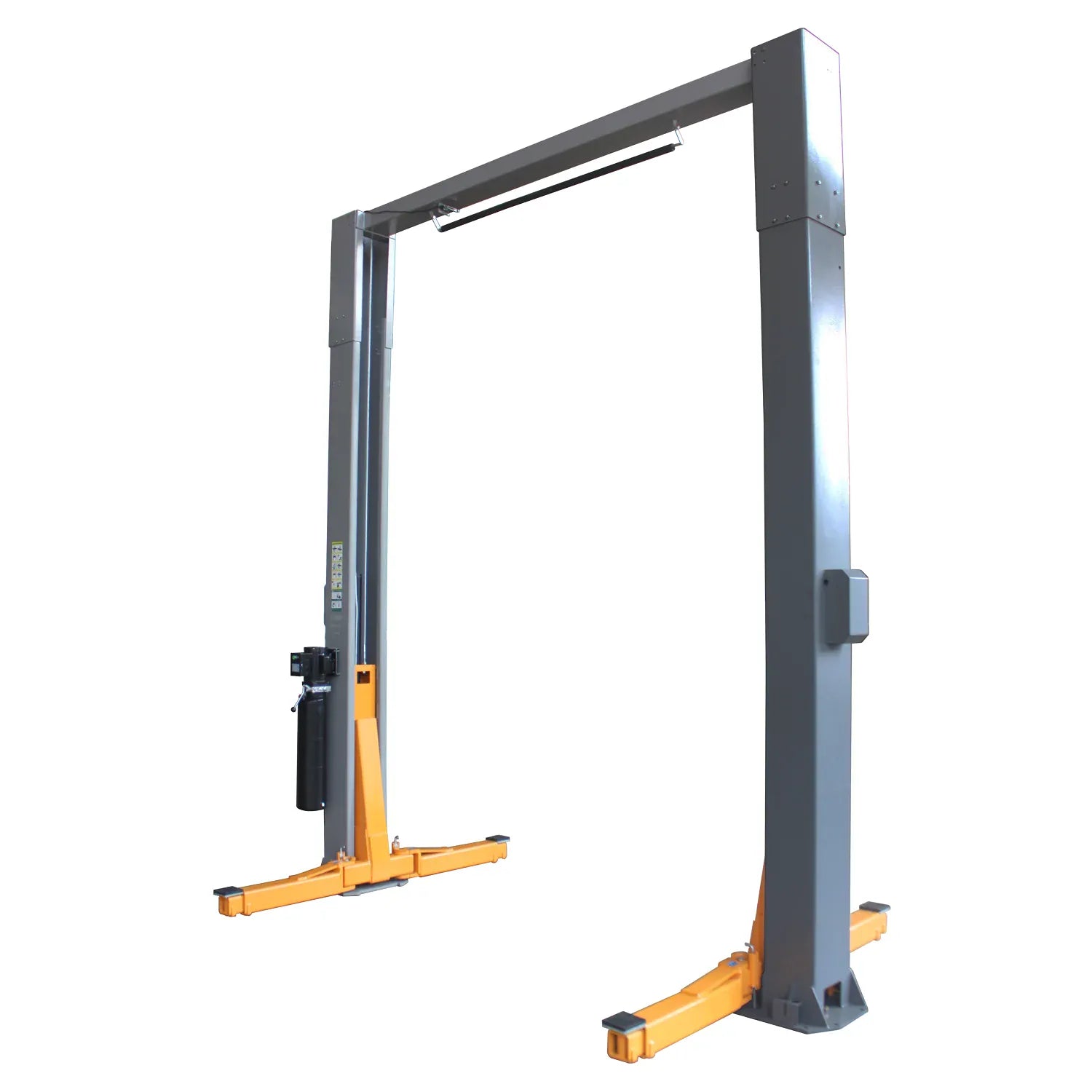

Triumph NTO-16 16,000 lb Two Post Overhead Auto Lift, ISO 9001 / CE Certified
Triumph NTO-16 16,000 lb Two Post Overhead Auto Lift, ISO 9001 / CE Certified - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Select Your Pickup Location
Choose the warehouse you will pick up from. Enter your ZIP to find the closest one.
Select a pickup location above to continue.
Subject to availability. Call or text 331-272-5655 to confirm your item is ready before pickup.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Triumph NTO-16 16,000 lb Two Post Overhead Auto Lift, ISO 9001 / CE...
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description
The Triumph NTO-16 is a 16,000-lb capacity two-post overhead lift built for shops servicing heavy trucks, dual-rear-wheel vans, and large diesel pickups that put smaller lifts at the edge of their rating. Engineered and manufactured to ISO 9001 and CE Certified / Compliant standards, the NTO-16 pairs direct-drive cylinders with single-point lock release and an electrical override automatic safety shut-off so the operator stays in control through every cycle.
At 16,000 lb capacity, a 72" maximum lifting height, and a 102" drive-thru width, the NTO-16 covers the geometry most heavy-duty shops need to put a full-size truck, dual-rear-wheel van, or service vehicle in the air. Truck adapters and mounting hardware are included at no extra cost in the standard kit shipped from Triumph.
Site requirements are straightforward but firm: a 6" concrete slab rated to 3,000 PSI minimum, 165" overall height clearance, and a 220V circuit for the 3 HP motor. Verify all three against your shop before ordering. The section below covers the geometry every buyer asks about.
Features
- 16,000 lb lifting capacity for heavy-duty service vehicles, dual-rear-wheel trucks, and full-size diesel pickups
- Direct-drive cylinders for smooth, reliable lifting without chain or screw-drive complexity
- Single-point lock release: one control disengages both columns in sync
- Electrical override with automatic safety shut-off protects against over-travel
- 40-second lift time from lowered to full height
- Overhead style with shut-off bar across the top crossbar, leaving the floor between the columns clear
- ISO 9001 and CE Certified / Compliant: quality and conformity standards verified by the manufacturer
- Free truck adapters and mounting hardware included in the standard ship kit
What's Included
- Triumph NTO-16 two-post lift assembly (two columns, overhead crossbar with safety shut-off bar, four swing arms with adapters)
- Truck adapters
- Mounting hardware
- Installation instruction manual (see Documents)
Specifications
| Triumph NTO-16 16,000 lb Two Post Overhead Lift Specifications | |
|---|---|
| Lifting capacity | 16,000 lbs |
| Style | Overhead |
| Overall height | 165" |
| Overall width | 142" |
| Maximum lifting height | 72" |
| Lowered arm height | 7" |
| Distance between posts | 116" |
| Drive-thru width | 102" |
| Base plate size | 20" × 20" |
| Lock release | Single point |
| Electric safety cutoff | Yes |
| Lift time | 40 seconds |
| Voltage | 220V |
| Motor | 3 HP |
| Concrete requirement | 6" slab, 3,000 PSI minimum |
| Truck adapters | Included |
| Mounting hardware | Included |
| Certifications | ISO 9001, CE Certified / Compliant |
Warranty
The Triumph NTO-16 ships with a 1-year parts warranty covering structural and mechanical components, with no labor coverage. The process is direct: call Triumph, troubleshoot the issue over the phone, and a replacement part is shipped at no cost with free ground shipping. Labor for installing the replacement is the owner's responsibility, and most replacements are within reach of a working mechanic.
Specific exclusions and shorter terms apply to two consumable components:
- Rubber lifting pads are not covered under the parts warranty.
- Cylinders carry a 30-day full warranty; after 30 days Triumph provides a seal kit rather than a full cylinder replacement.
FAQ
Will the NTO-16 fit my shop?
Check three numbers against your space: 165" overall height (13.75 ft ceiling minimum), 142" overall width at the base, and 6" of 3,000 PSI concrete. The drive-thru between the columns is 102" wide, which clears most dual-rear-wheel trucks.
Does it ship with truck adapters?
Yes. Truck adapters and the mounting hardware needed to anchor the columns to your slab are included in the standard kit. No separate accessory order is required to start lifting.
What electrical does it need?
A 220V service for the 3 HP motor. Confirm the circuit is in place before installation day; running a new run after the lift is anchored adds cost. For service-type clarification (single-phase vs three-phase) on your specific shipment, contact support@projectfoundry.co or call 331-272-5655.
How low do the swing arms go?
The arms drop to a 7" lowered height, which lets you position them under most sedans and crossover SUVs without first lifting the vehicle off the ground. Pair this with the 32"-50" arm reach shown in the dimensions diagram to confirm the lift will pick up the vehicles you service most often.
How does the lift ship?
The NTO-16 ships LTL freight on a 48-ft semi truck. You will need a forklift, Bobcat, tractor, tow truck, or backhoe to unload, the driver does not unload it for you and lift gate delivery is not available for auto lifts. You schedule the delivery appointment directly with the freight company. If you cannot unload at your location, the carrier can hold the lift at the nearest freight terminal for trailer pickup. For questions on delivery options, contact support@projectfoundry.co or call 331-272-5655.
