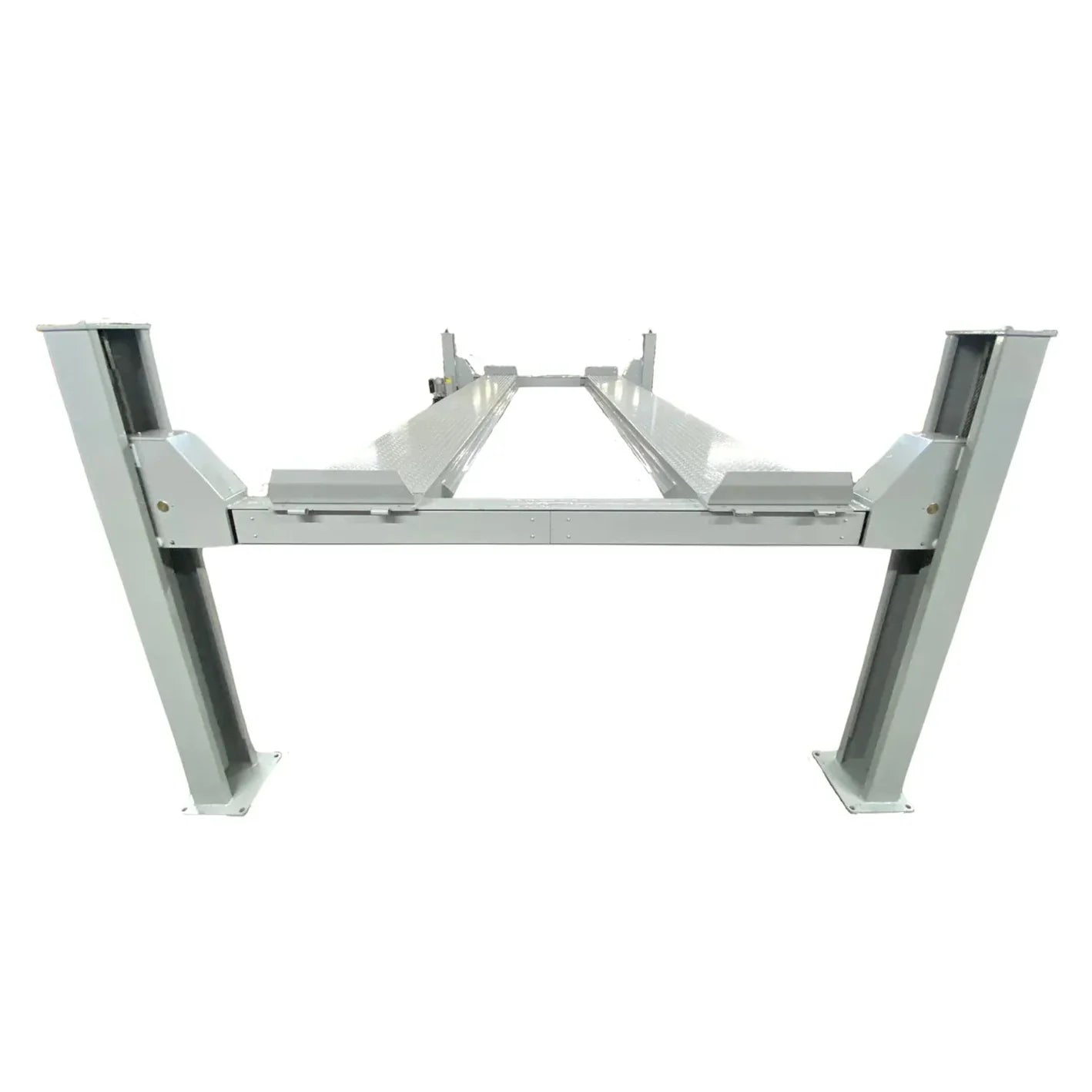

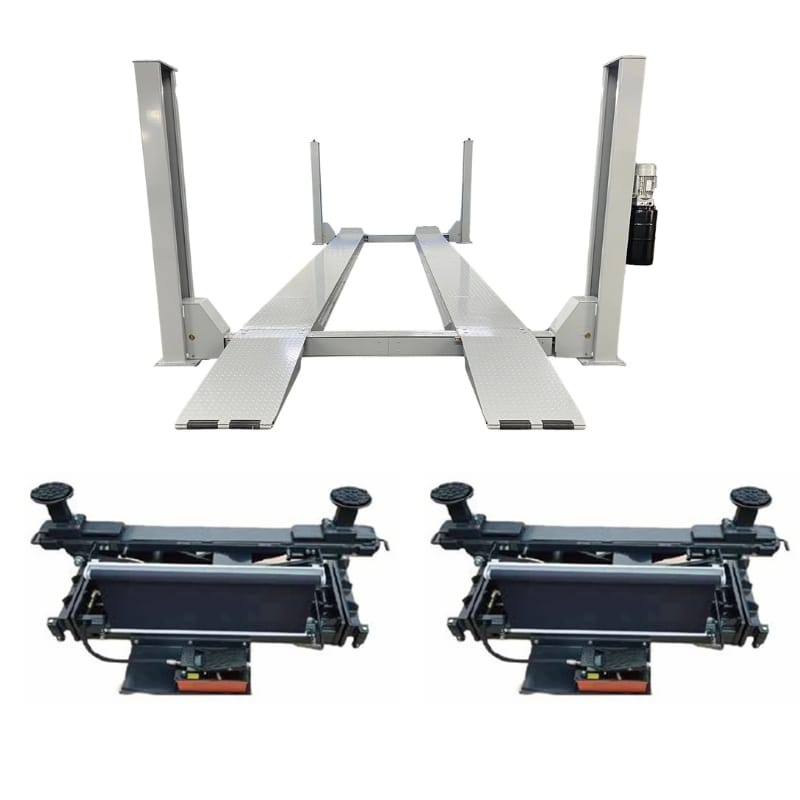

The Triumph NTR-24 is a 24,000-lb four-post auto lift sized for commercial trucks, fleet vans, ambulances, and box trucks, the work-mix that demands more capacity than a passenger-car lift can give. This combo pairs the NTR-24 with two RJ-15 rolling bridge jacks (15,000-lb each), letting a single technician lift a wheel-end for brake, tire, suspension, or driveline work without dismounting the vehicle from the runways.

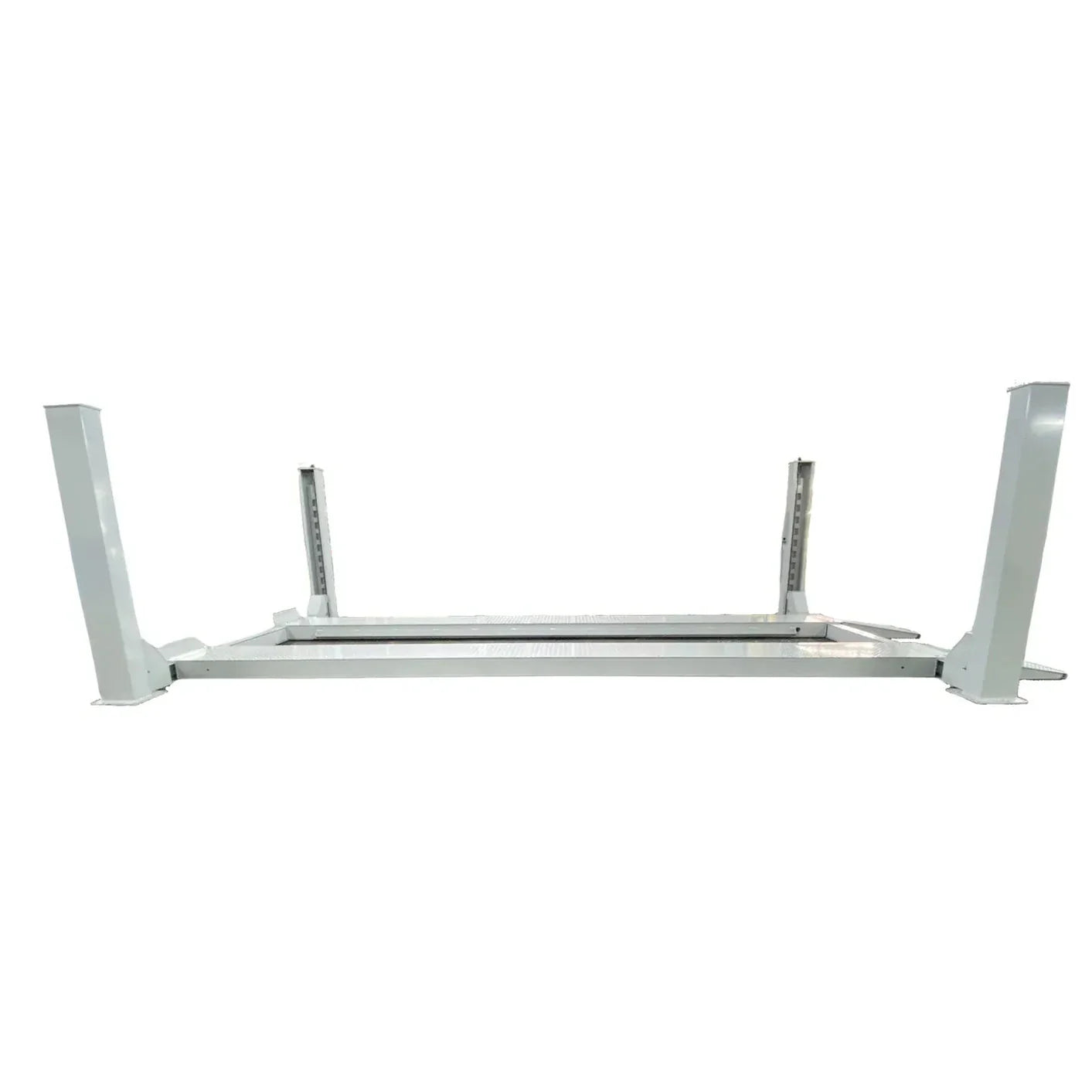

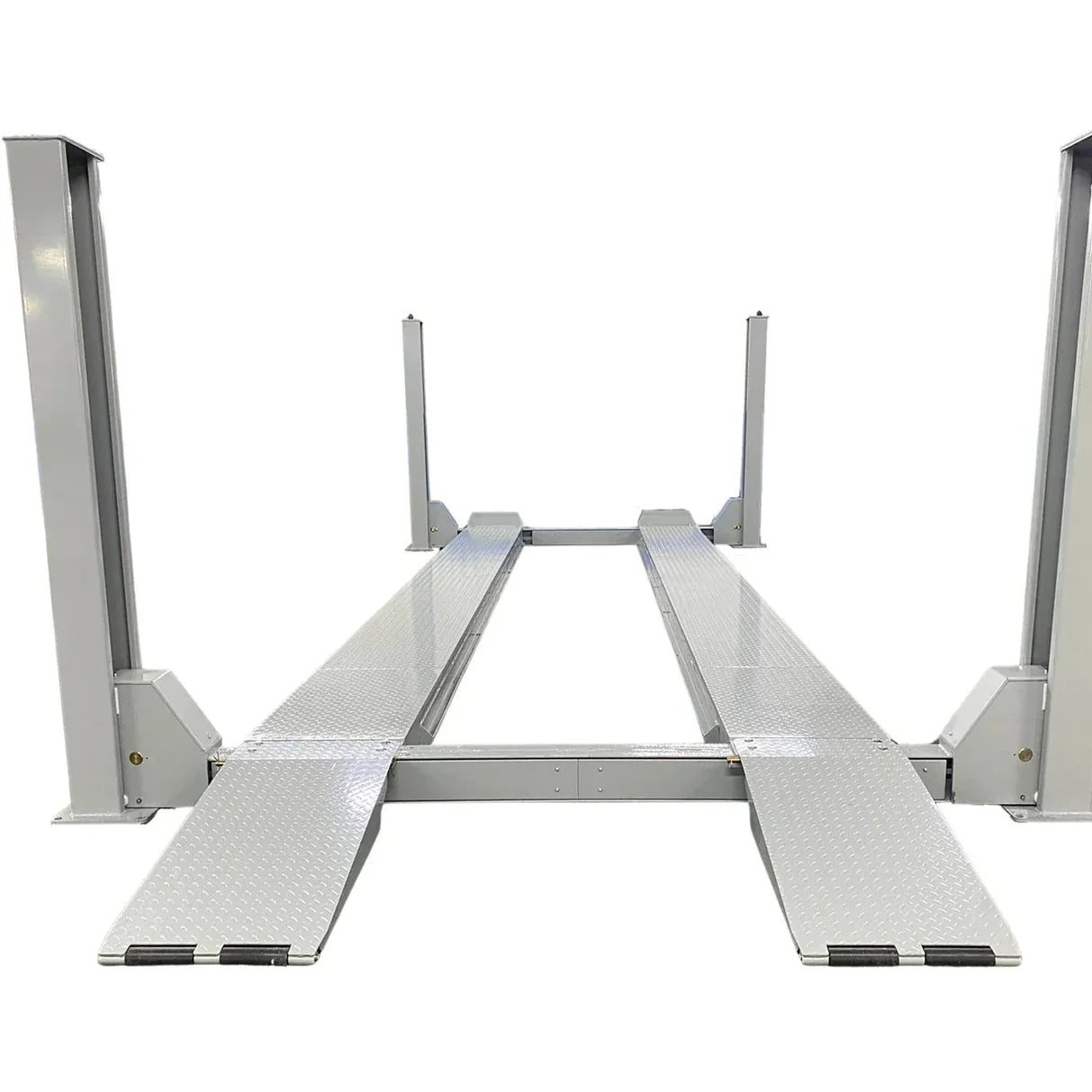

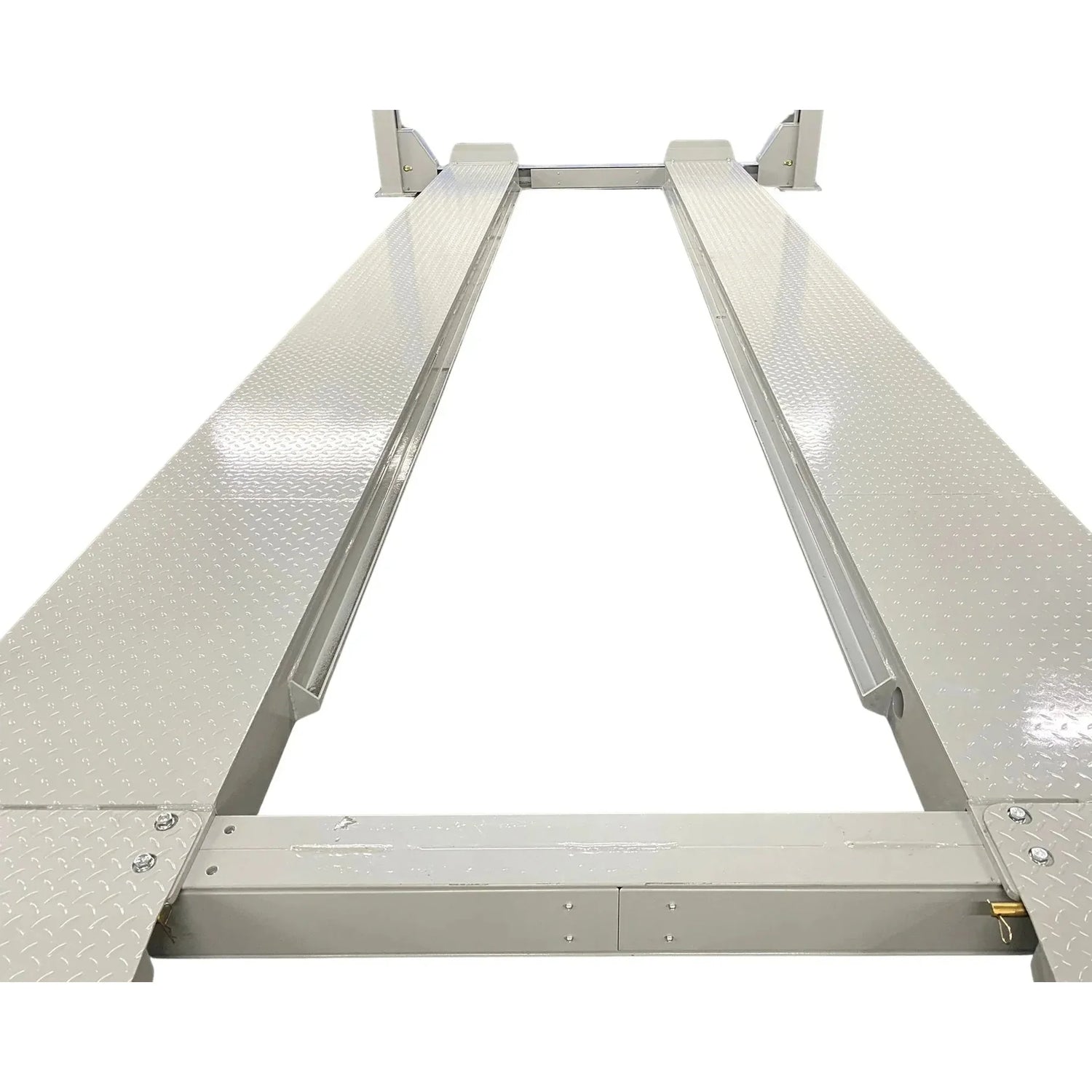

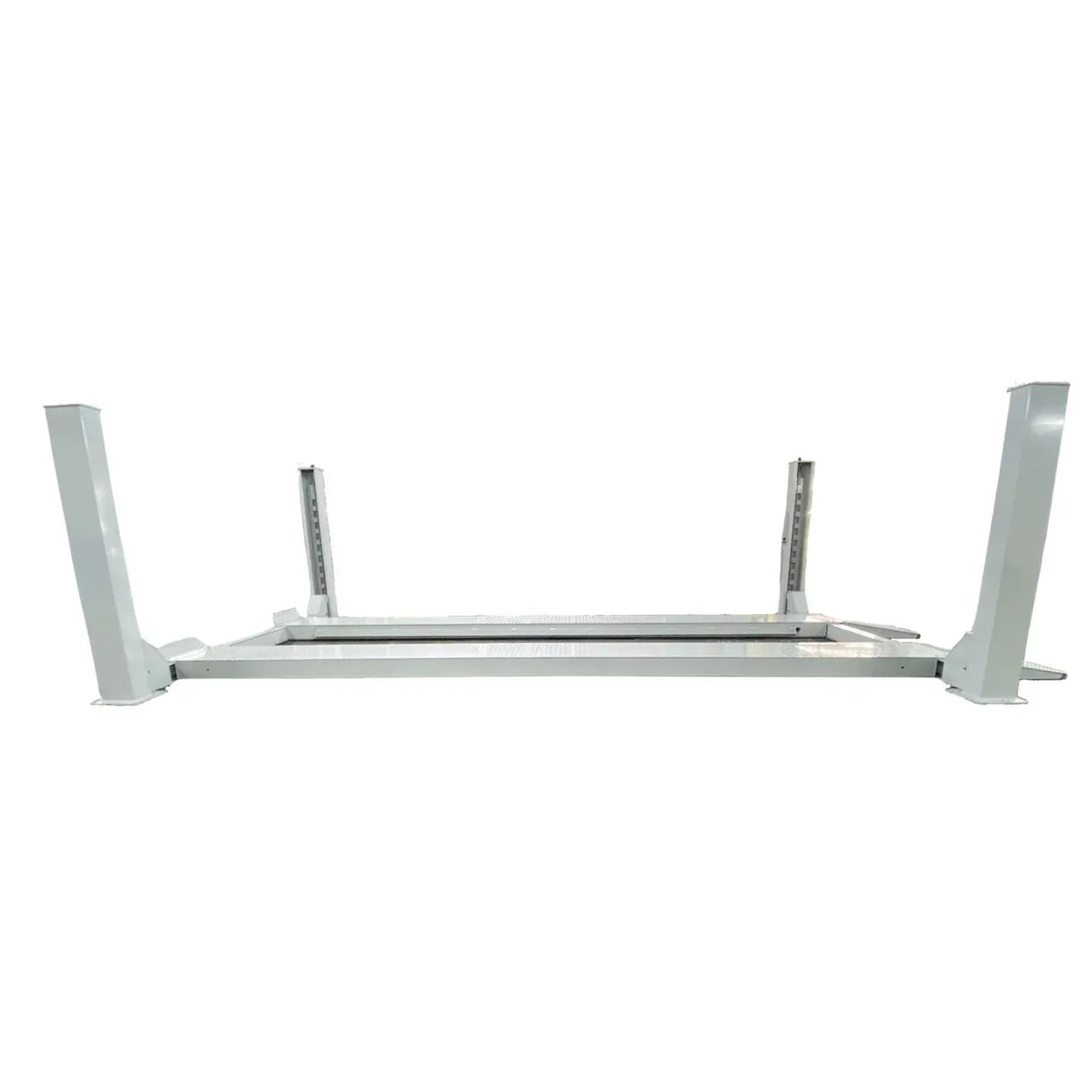

The NTR-24 runs on 220V single-phase service (no three-phase install), reaches a maximum lifting height of 70.8 inches, and locks into nine mechanical positions across that range. A 9-inch minimum runway height keeps the lowered profile short enough to drive over without ramps catching on low-hanging exhaust or air dam. The runways are 24 inches wide and 289.9 inches long, with adjustable between-runway spacing from 45.3" to 49.2", wide enough for full-size duallys and dual-rear-wheel work trucks, narrow enough to land a Sprinter or box-truck wheelbase squarely.

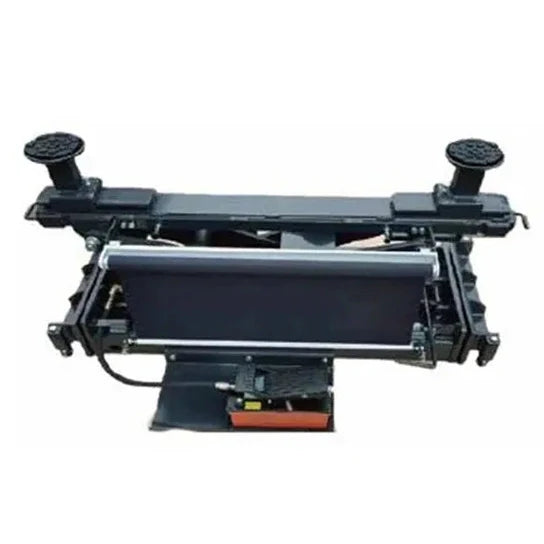

The combo's two RJ-15 rolling bridge jacks each ship with two height adapters (5-inch and 6.75-inch) and lift to 28.3 inches with a 15.3-inch lowered height. Each jack rides the channel between the lift's runways and accommodates between-runway widths from 48.7" to 55". With both jacks aboard, a tech can pick up either axle independently, useful for axle-out service or front-end work where the wheels need to come off the runways.
The lift ships on a 48-foot LTL semi. Delivery requires equipment on your end to remove the lift from the truck. A fork lift, Bobcat, tractor, tow truck, or back hoe will all handle the 6,614-lb shipping weight. Liftgate service is not available on this freight class. See the Freight & Delivery section below for the full receiving checklist.
Features
NTR-24 four-post lift
- 24,000-lb lifting capacity, sized for commercial trucks, vans, and fleet vehicles
- 9 mechanical lock positions across a 70.8-inch lifting range
- 9-inch minimum runway height for low-clearance drive-on
- 24-inch runway width with adjustable 45.3"-49.2" between-runway spacing
- 131.8 inches between columns, clears full-size truck doors with room to work

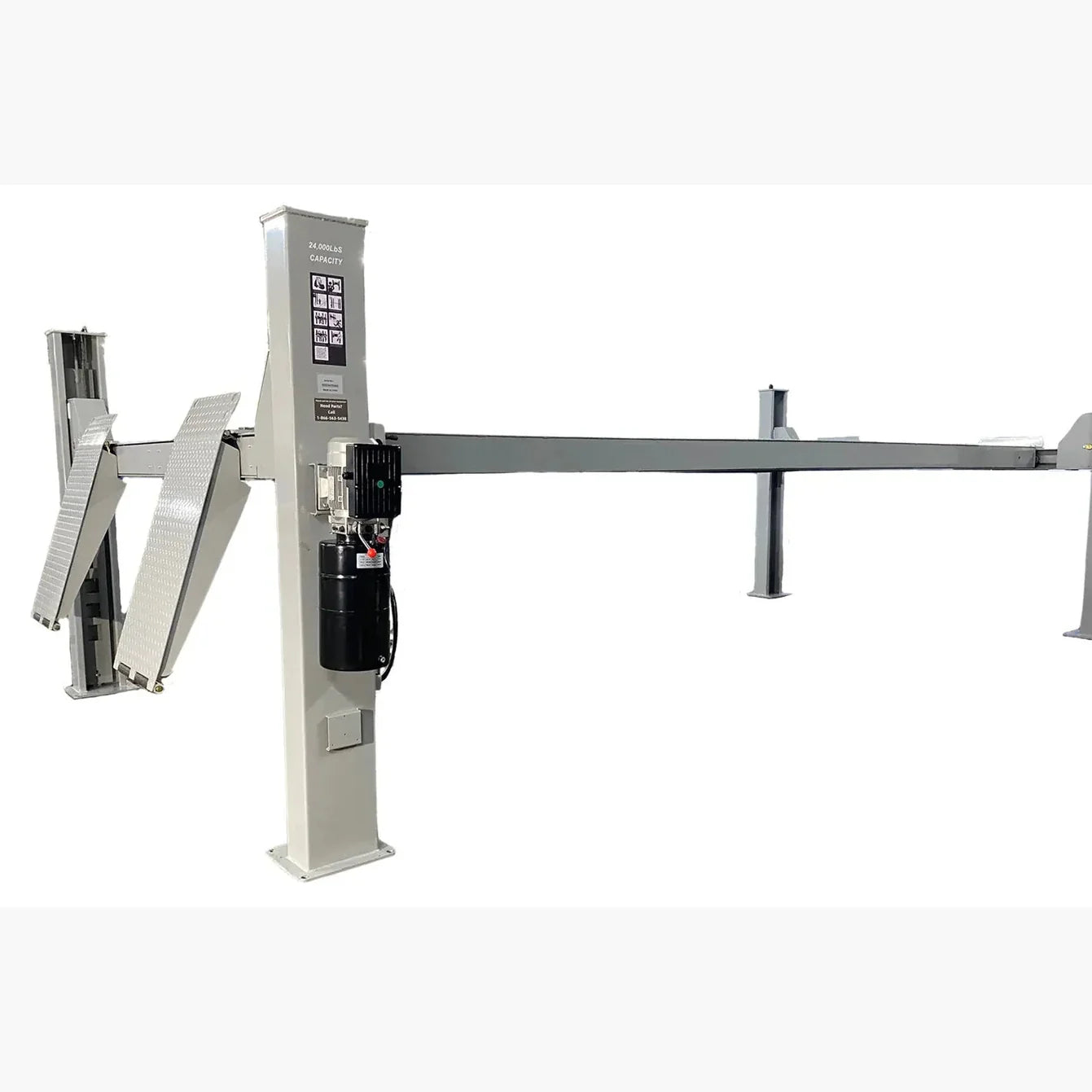

- 220V single-phase electrical; no three-phase service required
- Heavy-duty steel column and beam construction
RJ-15 rolling bridge jack (two included)
- 15,000-lb lifting capacity per jack
- Two height adapters per jack (5-inch and 6.75-inch) for varying vehicle profiles
- 15.3-inch lowered height, 28.3-inch maximum lifting height
- Pad spread adjusts from 42.6" to 68.7" to fit common axle and frame-rail widths
- Rides the NTR-24's between-runway channels, slides front-to-back along the lift
What's Included
- One Triumph NTR-24 24,000-lb four-post auto lift
- Two Triumph RJ-15 15,000-lb rolling bridge jacks
- Two height adapters per jack (5-inch and 6.75-inch)

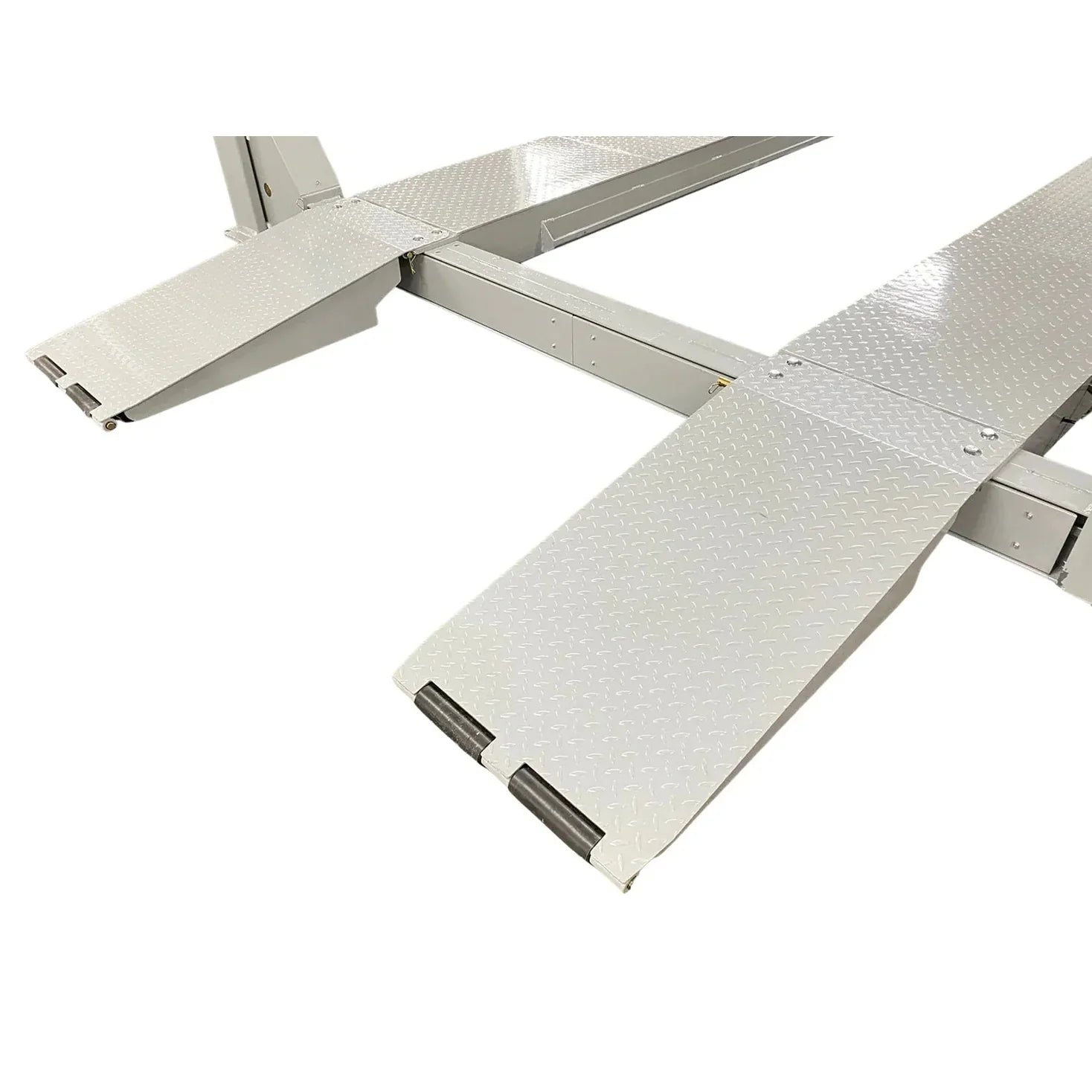

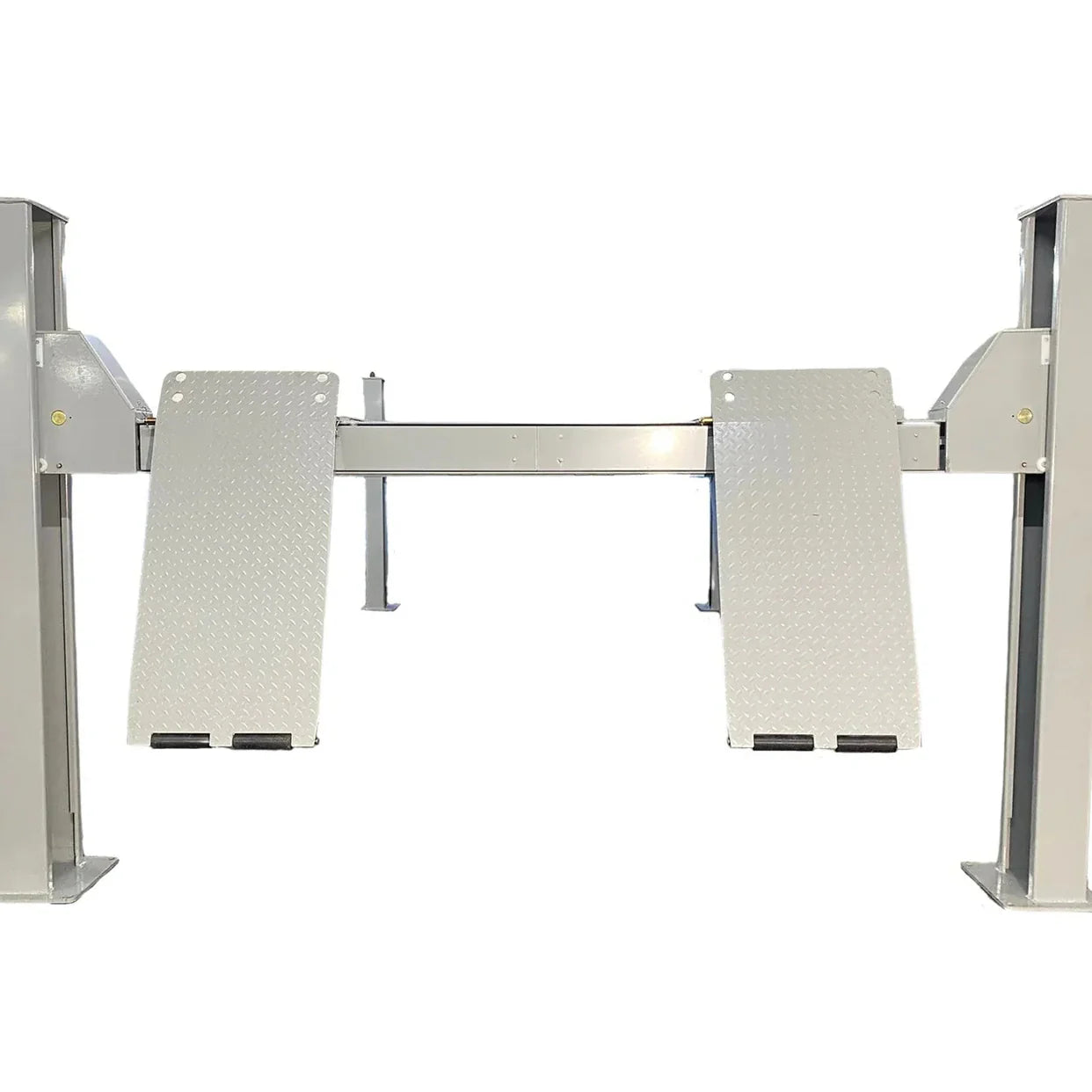

- Approach ramps (NTR-24)
Specifications
| Triumph NTR-24 24,000 lb 4 Post Auto Lift | |
|---|---|
| Capacity | 24,000 lbs |
| Maximum lifting height | 70.8" |
| Minimum runway height | 9" |
| Overall height | 93.1" |
| Overall length (without approach ramps) | 300" |
| Overall length (with approach ramps) | 338.9" |
| Overall width | 150.1" |
| Runway length | 289.9" |
| Runway width | 24" |
| Width between runways | 45.3"-49.2" |
| Width between columns | 131.8" |
| Lock positions | 9 |
| Electrical requirement | 220V single phase |
| Shipping weight | 6,614 lbs |
| Shipping dimensions | 295 × 30 × 43 in |
| Triumph RJ-15 15,000 lb Rolling Bridge Jack (qty 2) | |
|---|---|
| Capacity (per jack) | 15,000 lbs |
| Lowered height | 15.3" |
| Maximum lifting height | 28.3" |
| Minimum width between pads | 42.6" |
| Maximum width between pads | 68.7" |
| Minimum width between runways | 48.7" |
| Maximum width between runways | 55" |
| Height adapters included | 5" and 6.75" (per jack) |
| Shipping weight (per jack) | 661 lbs |
| Shipping dimensions (per jack) | 51 × 33 × 17 in |
Compatibility
The RJ-15 jack requires a between-runway width of at least 48.7" and accommodates up to 55". The NTR-24's between-runway adjustment range is 45.3"-49.2". Set the NTR-24 to 48.7" or wider any time the rolling bridge jacks are mounted. Use the narrower 45.3"-48.6" range only when the rolling jacks are off the lift.
Each RJ-15 lifts up to 15,000 lb, well within the per-axle weight of vehicles the NTR-24 is sized for. The two-jack combo lets a single technician service both ends of a heavy work truck without dismounting from the runways.
Warranty
Triumph covers the NTR-24 with a 1-year parts warranty. Diagnosis happens over the phone. Call us, we troubleshoot the symptom with you, and we ship the failed part to your address. The part is free and ground shipping is free.
Hydraulic cylinders carry a 30-day full warranty. After 30 days, cylinder coverage is a free seal kit. Labor is not covered; a local mechanic can install the replacement part, or you can do it yourself. Most Triumph parts swaps are mechanic-friendly.
Rubber lifting pads are wear items and are not covered under warranty.
Freight & Delivery
The NTR-24 ships on an LTL common-carrier freight company on a 48-foot semi. Before ordering, plan for the following on your end:
- You unload the lift from the truck. The driver does not unload it for you.
- Liftgate service is not available on this freight class.
- You need machinery rated for the full shipping weight (6,614 lb). A fork lift, Bobcat, tractor, tow truck, or back hoe will all do the job.
- If you don't have unloading equipment at your address, we can ship to the carrier's nearest freight terminal for pickup with a trailer or moving van.
- You schedule the delivery appointment with the freight company once the shipment is in your area. We don't have your schedule, so we can't make that call for you.
FAQ
What vehicles is the NTR-24 sized for?
The 24,000-lb capacity targets commercial trucks, full-size vans, ambulances, fleet pickups, and box trucks. Use the runway width, between-runway adjustment, and column spacing in the Specifications table to confirm the wheelbase and overall width fit before ordering.
Will the RJ-15 jacks fit when I set the NTR-24's runways narrower?
The RJ-15 requires a minimum 48.7" between runways. The NTR-24's narrowest setting (45.3") is below that. Set the lift to 48.7" or wider any time the rolling bridge jacks are mounted. See the Compatibility section above.
Does the NTR-24 need three-phase power?
No. The lift runs on 220V single-phase service.
Is installation included?
Installation is not included with the combo. The lift ships freight; install is the buyer's responsibility or a separate arrangement with a local installer.
Does the warranty cover labor?
No. The warranty covers parts and ground shipping only. Triumph diagnoses the failure over the phone and ships the replacement part free. Labor for installing the part is the buyer's responsibility.
Can both rolling jacks be on the lift at the same time?
Yes. The combo includes two RJ-15 jacks, and the NTR-24's between-runway channels accommodate both jacks. Slide each jack to the axle being serviced.
Documents
Manual and technical documents available on request. Contact support@projectfoundry.co or call 331-272-5655.
