MechMaxx  |  SKU: 500103
18% off

MechMaxx 1 HP 16''x16'' Multi-Function Metal Lathe Milling Machine Head for Metalworking Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Combination Metalworking Projects without Stand CLM1620

Sale price $2,299.00 Regular price $2,799.00
+ Free Shipping
Fast US Shipping & Free Warehouse Pickups
Authorized Dealer
American Based Customer Support
30-Day Returns

Ships fast. Enter your ZIP for a delivery date.

Save $150 Today

Up To15% Off

Up to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.

PF150
Hurry, this deal ends in
--Days
--Hrs
--Min
--Sec

- Need items in bulk? Contact us for a custom quote or invoice.
- Save additional 3% paying with an ACH/Wire transfer.

Have Questions?

Talk to an Expert

Our U.S.-based team can help you spec the right equipment or put together a custom quote.

Call (331) 272-5655

Description

Product Overview

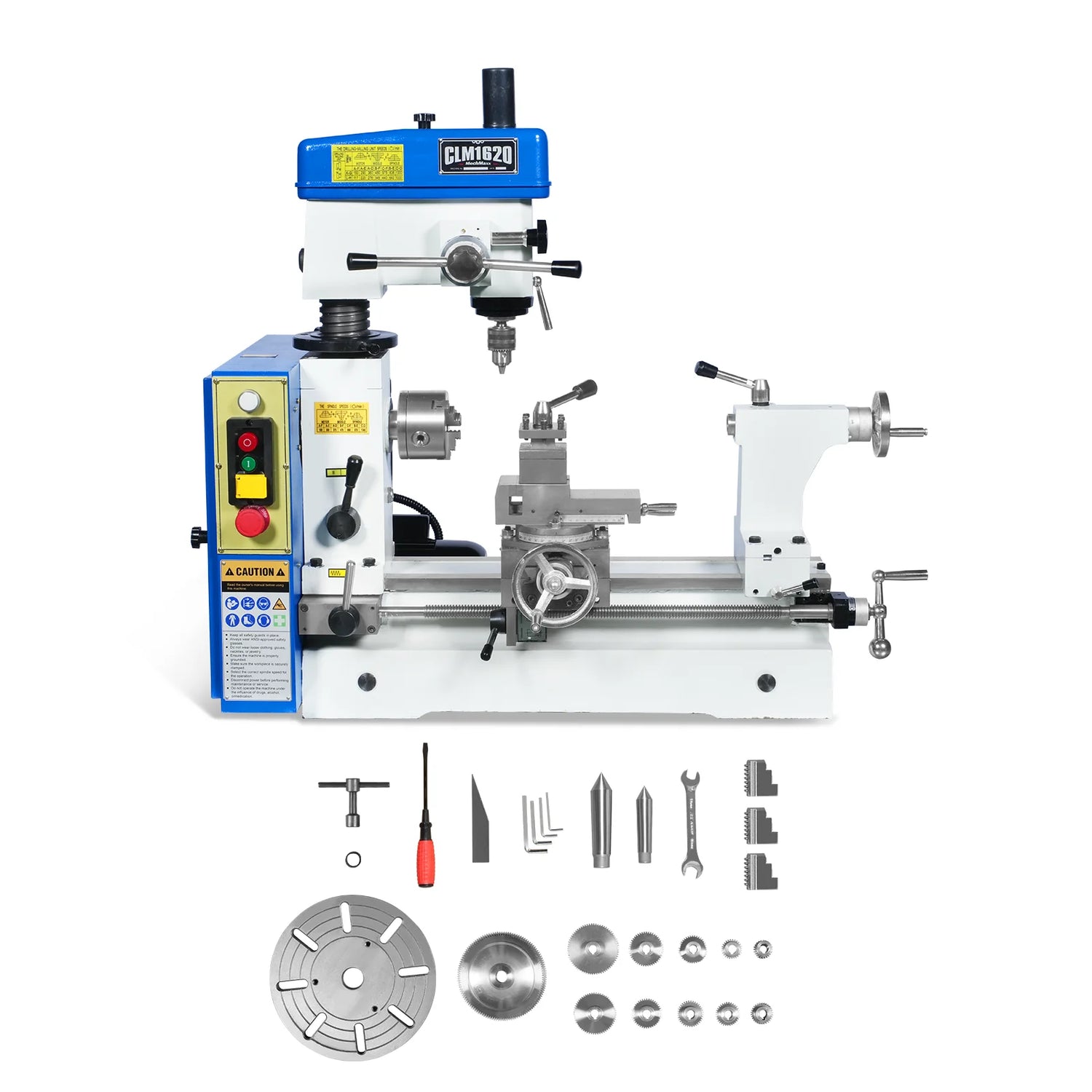

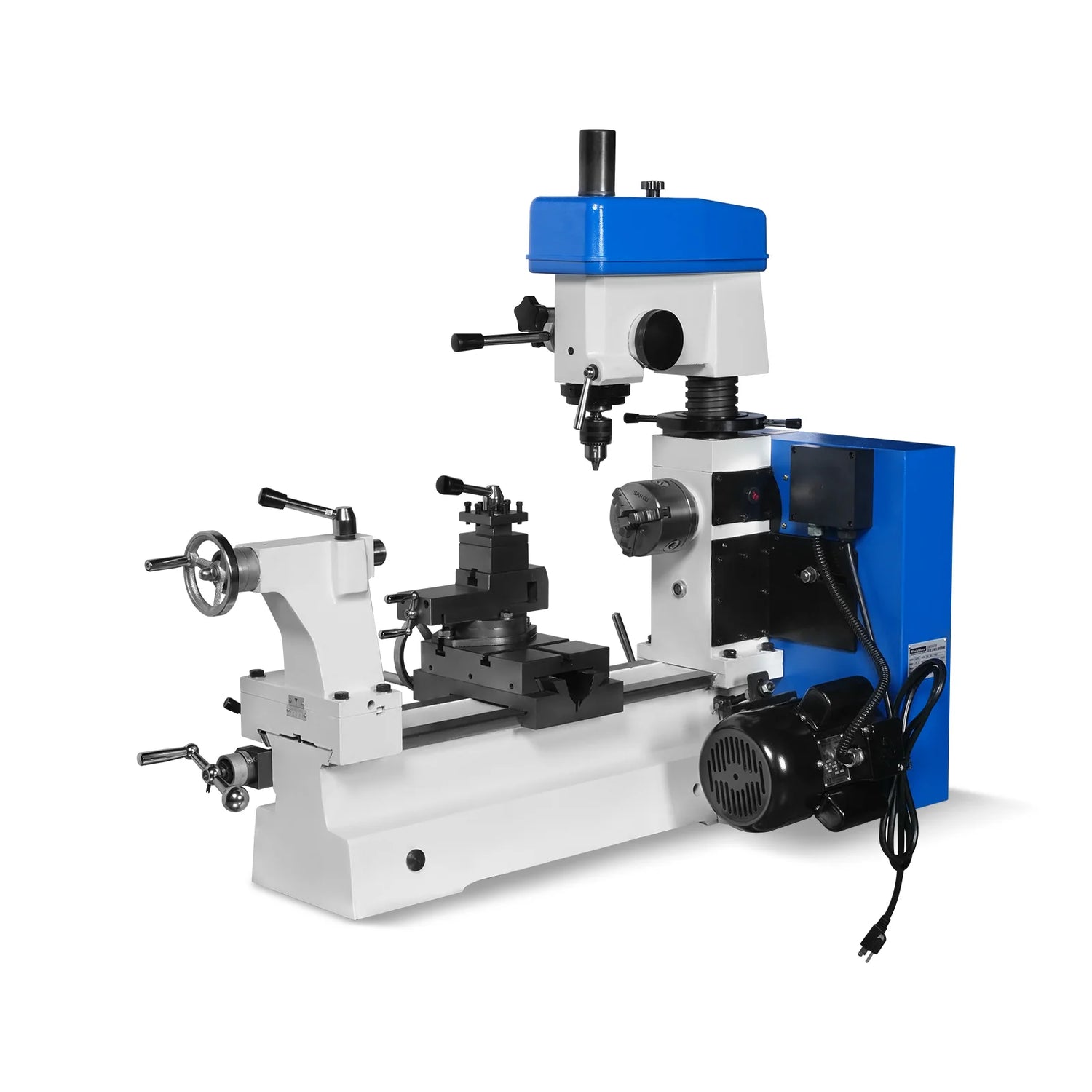

The MechMaxx CLM1620 combines a metal lathe and milling head powered by a 750W (1 HP) single-phase 110V motor. It swings 16-8/15" over the bed with 15-3/4" between centers, and the mill head runs an MT3 taper across 14 speed steps. Supplied without a stand.

Lathe

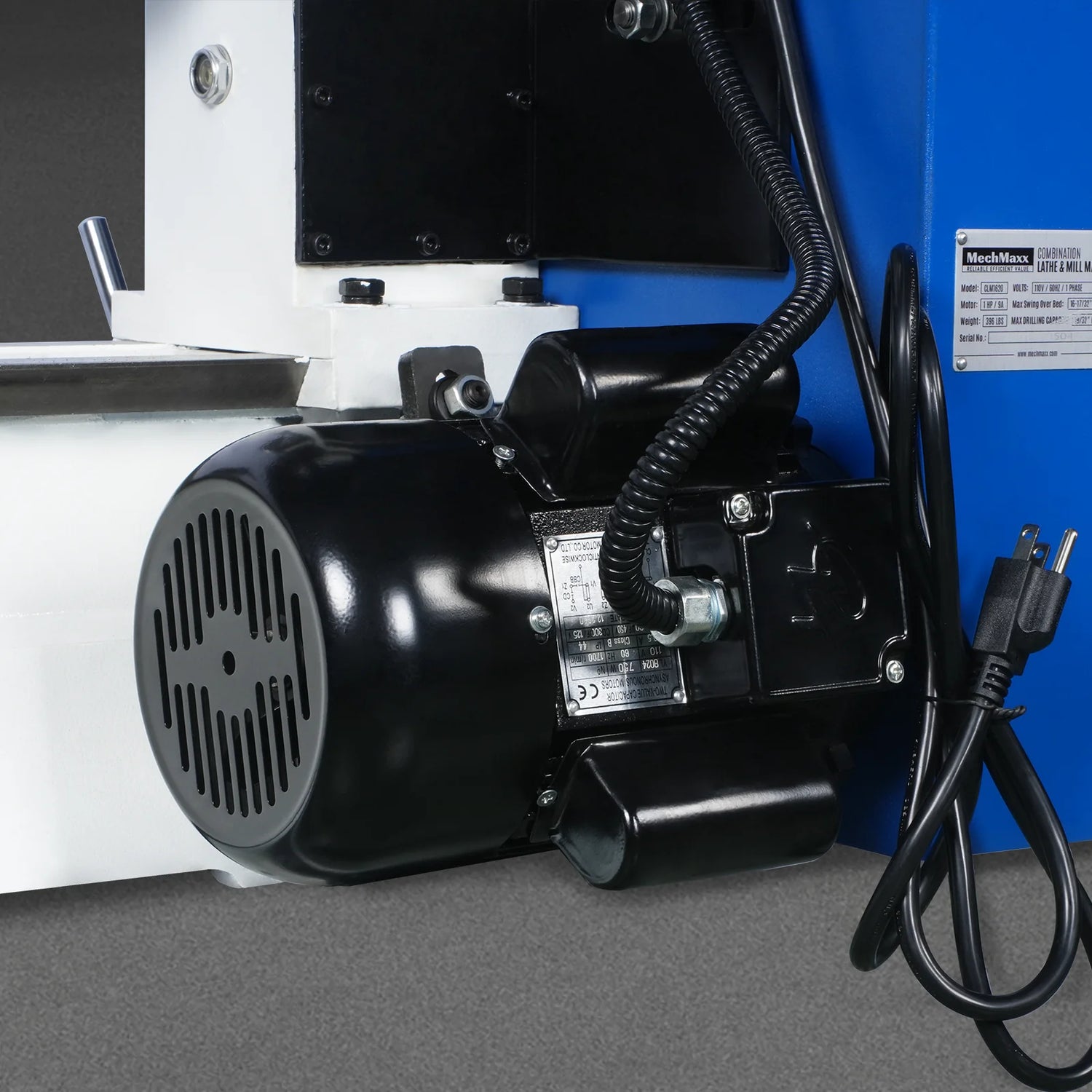

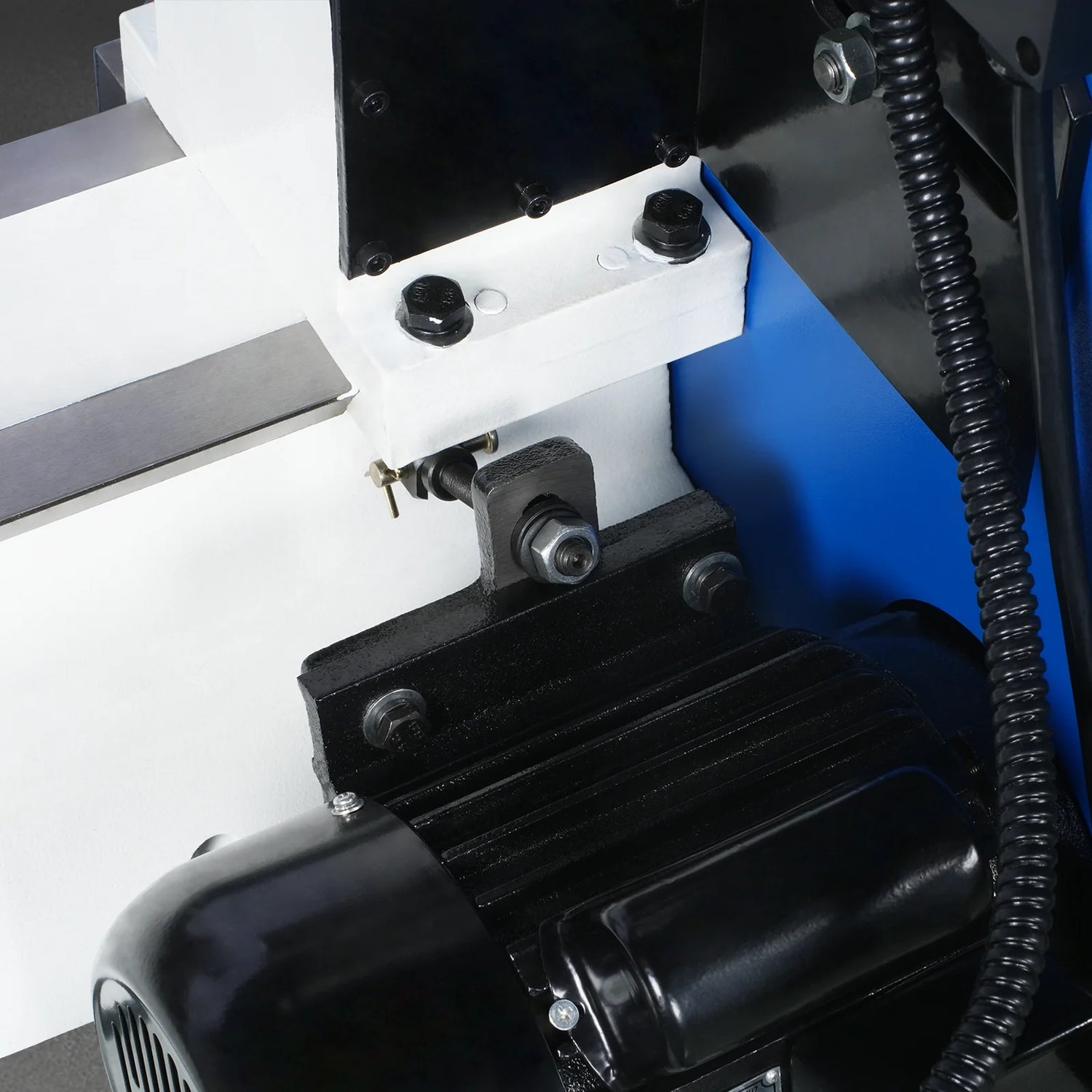

Motor Power (Lathe) 1HP(750W), Single-Phase, 110V, 60HZ
Swing Over Bed 16-8/15''(420mm)
Swing Over Cross Slide 11-1/2"(120mm)
Distance Between Centers 15-3/4''(400mm)
Bed Width 5-5/16''(135mm)
Spindle Bore 11/14''(20mm)
Spindle Mount Flange mount
Spindle Type Integrated Spindle

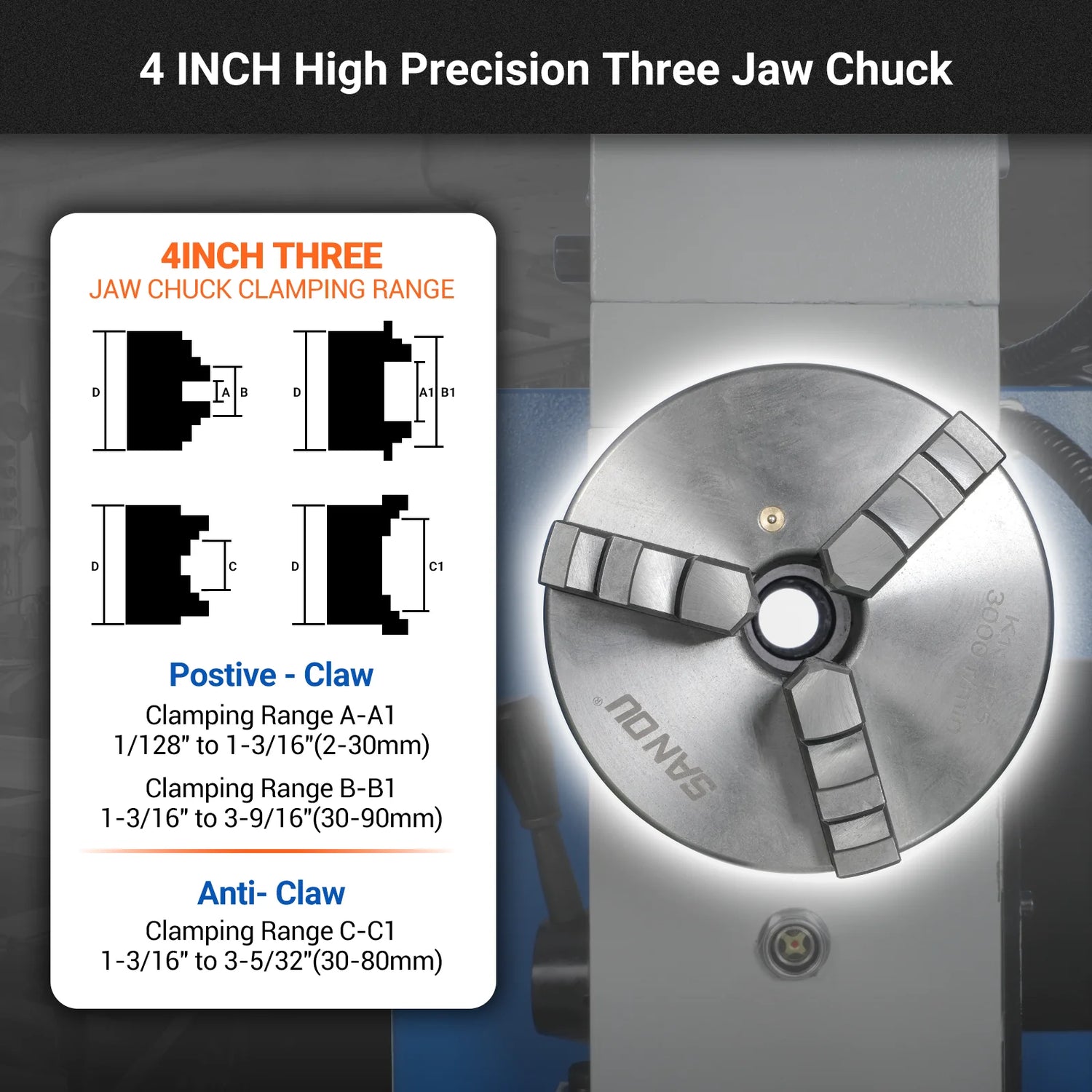

DIA of the chuck 4''(100mm)
Spindle Taper MT3

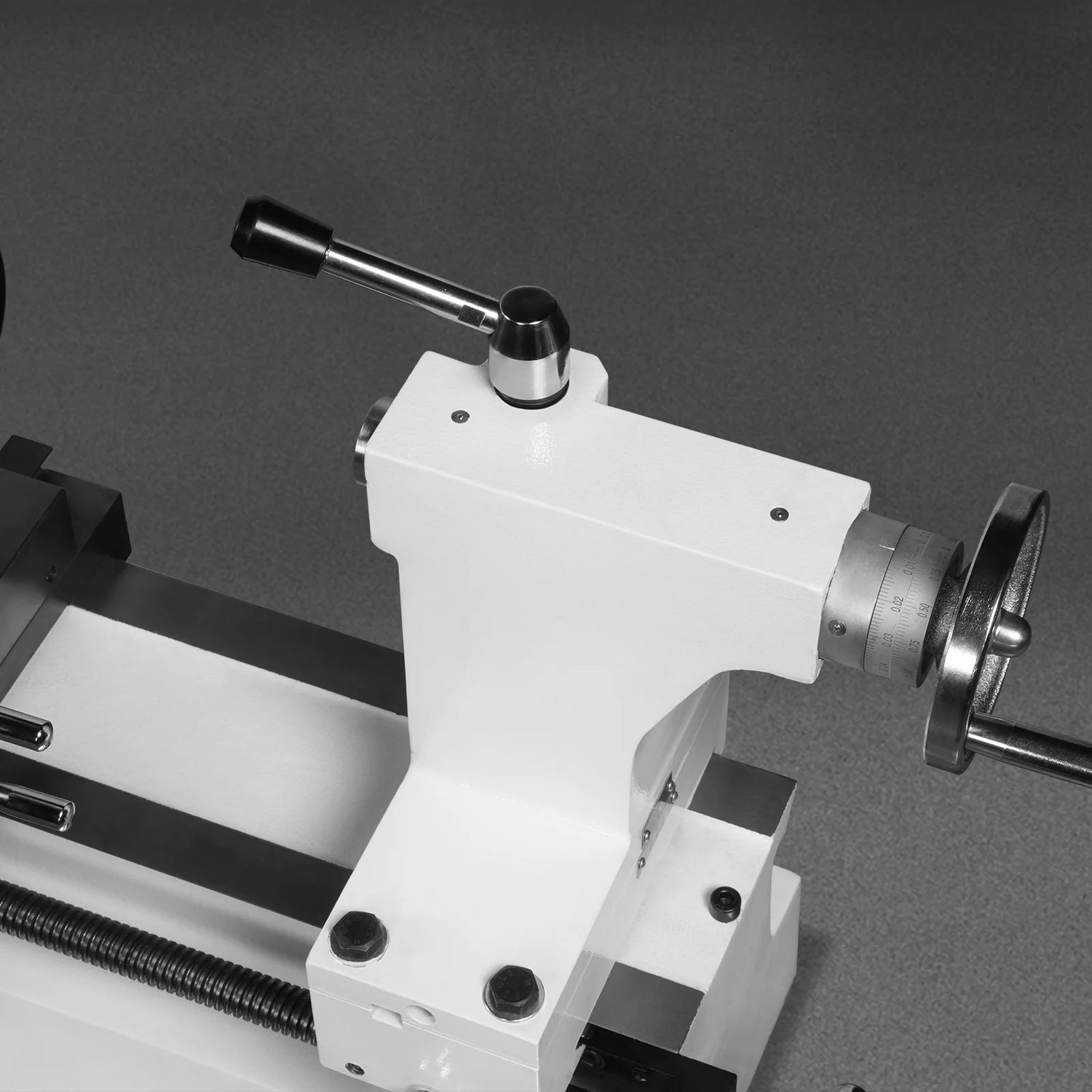

Tailstock Taper MT3
Tailstock Quill Travel 2-3/4''(70mm)
Carriage Travel 15''(380mm)
Carriage Leadscrew Diameter 25/32"(20mm)

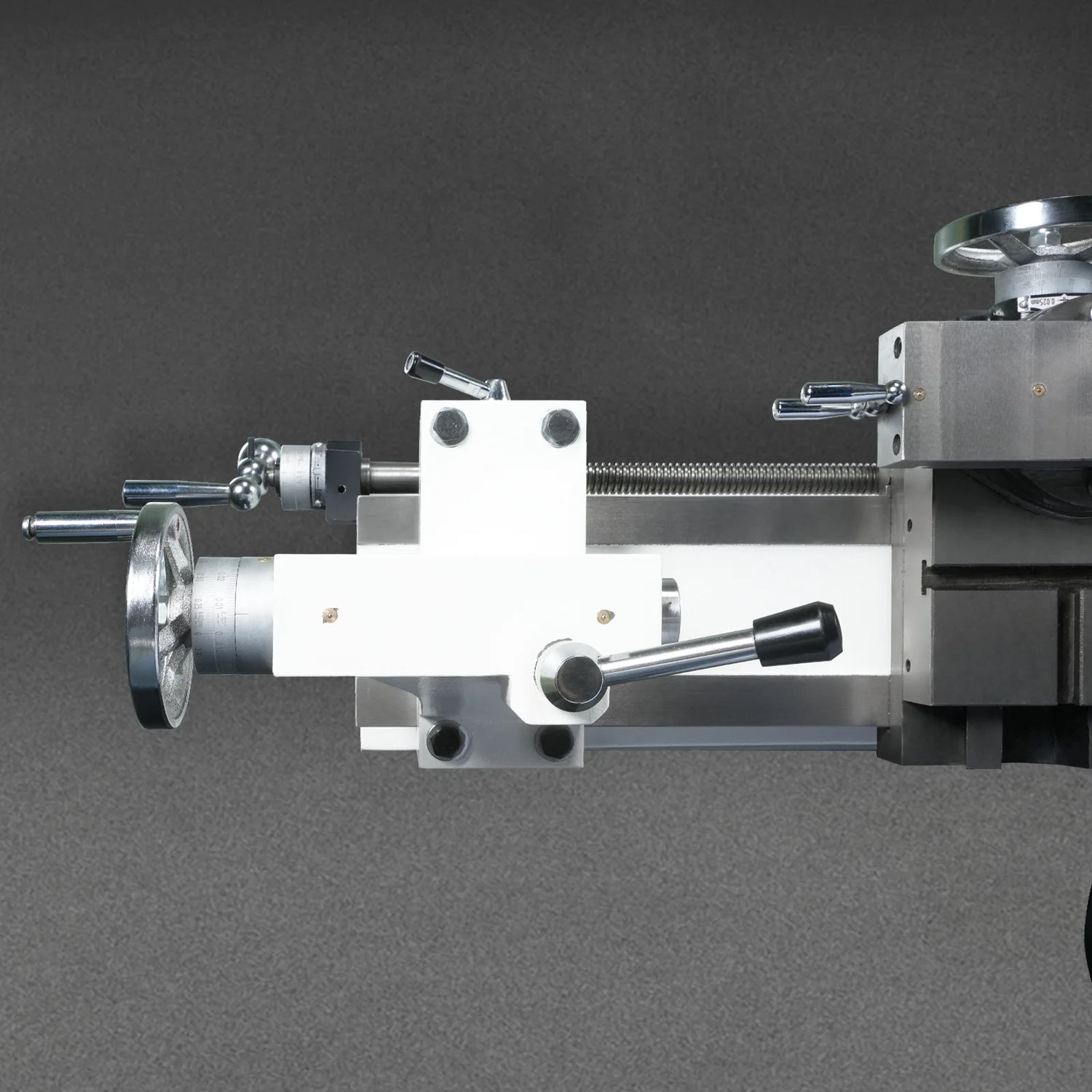

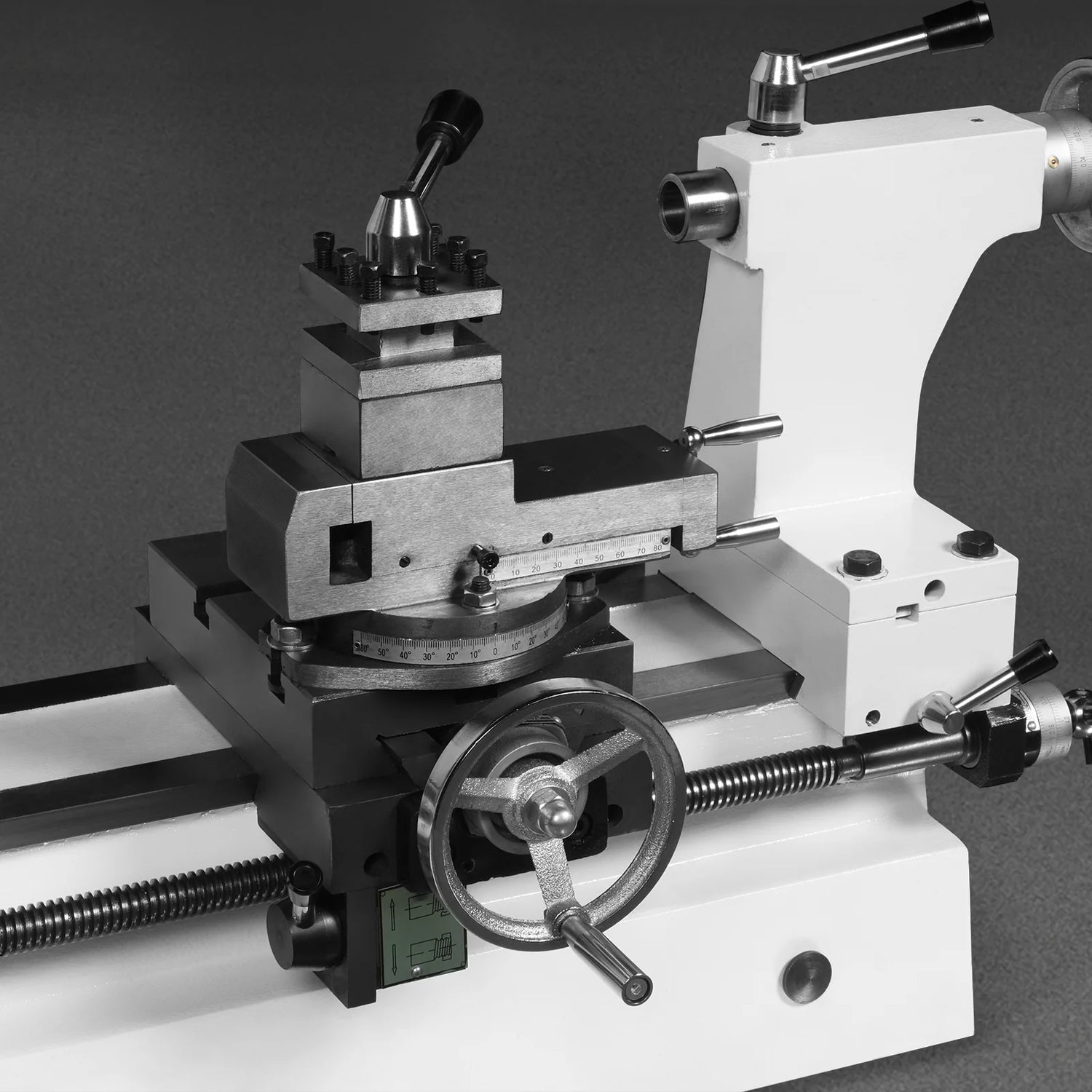

Cross Slide Travel 4-8/11''(120mm)
Compound Slide Travel 3''(76.2mm)
Spindle Speed Range 160-1360RPM
Number of Speed Ranges 7
Longitudinal Feed Rate 0.002''-0.007'' in/r
Transverse Feed Rate NO
Leadscrew Size & Pitch 20mm 6TPI
Threading Capacity – Inch 8-120TPI
Threading Capacity – Metric 0.2-3mm
Thread Dial Indicator NO
Maximum Tool Bit Size 1/2''x1/2''(12x12mm)

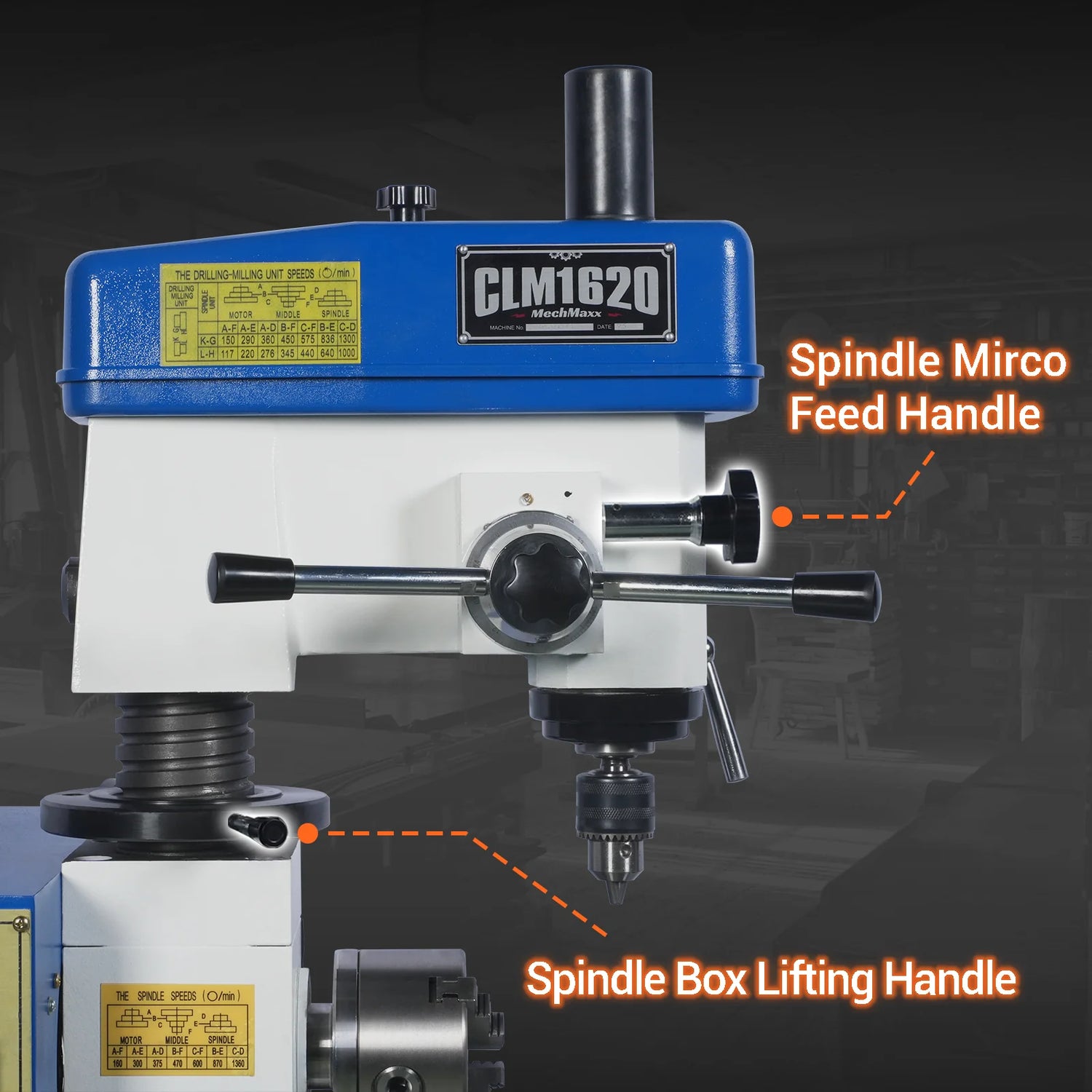

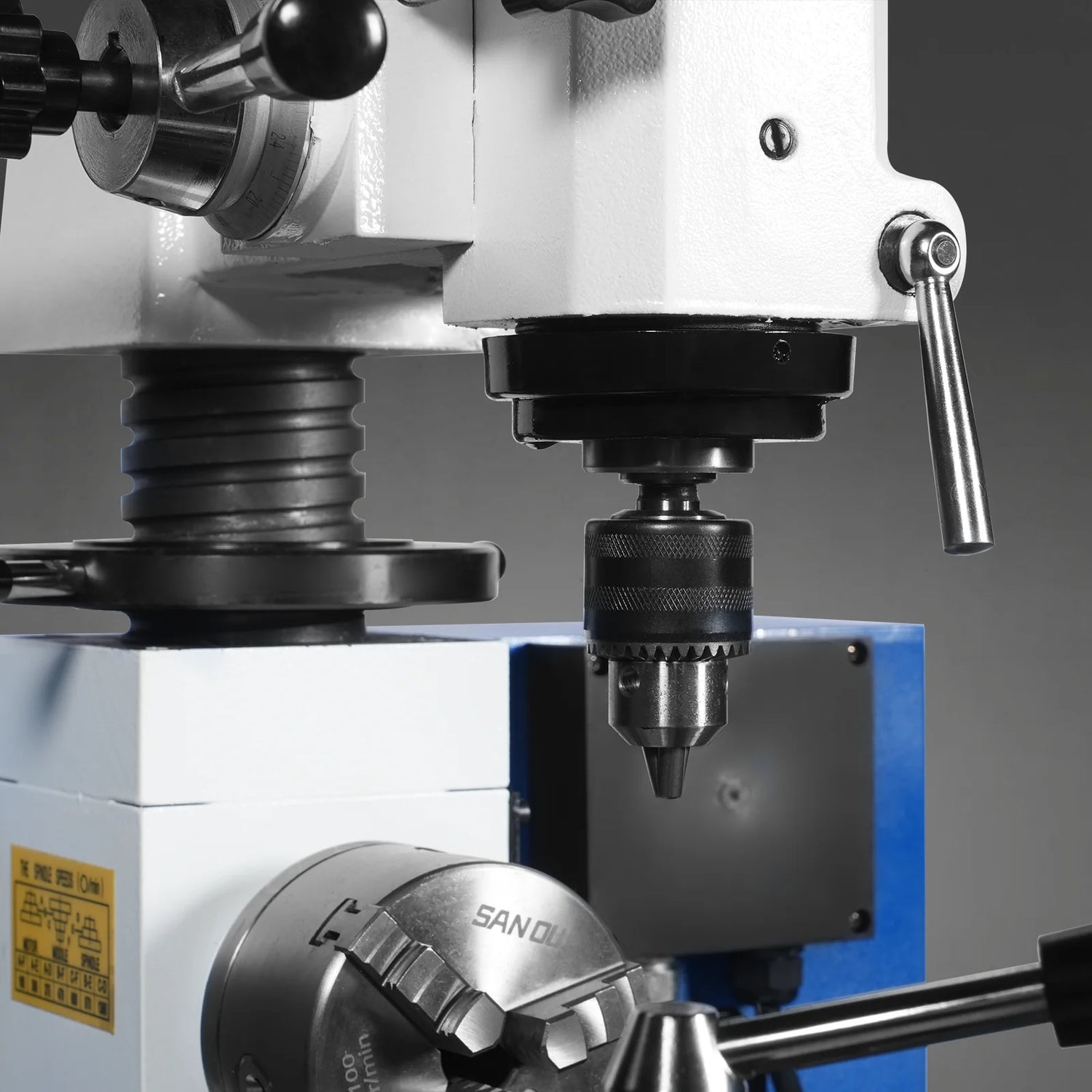

Drill/Mill
Motor Power (Mill Head) Powered by the lathe's motor
Mill Taper MT3

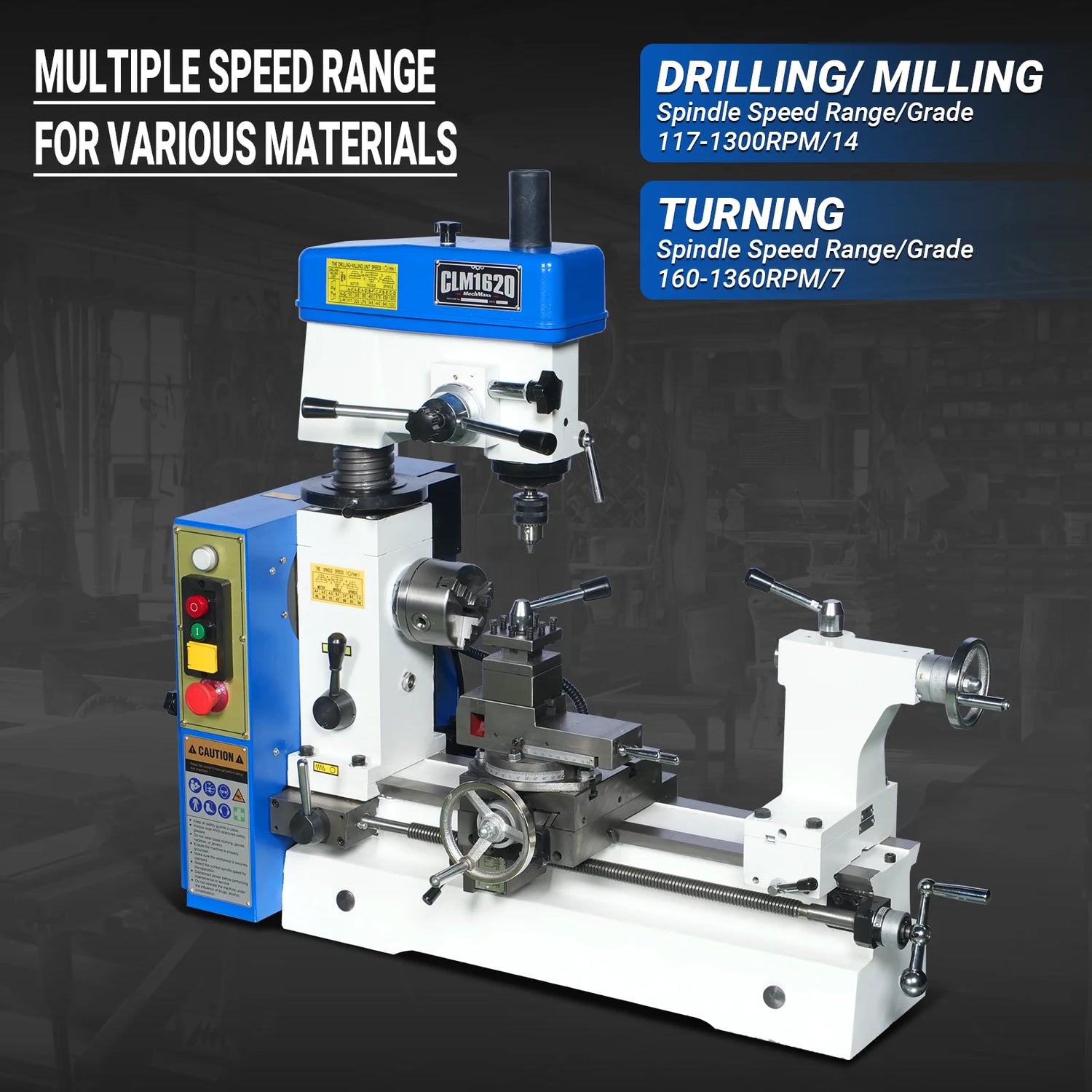

Spindle Speed Range 117, 150, 220, 276, 290, 345, 360, 440, 450, 575, 640, 836, 1000, 1300
Number of Speed Steps 14

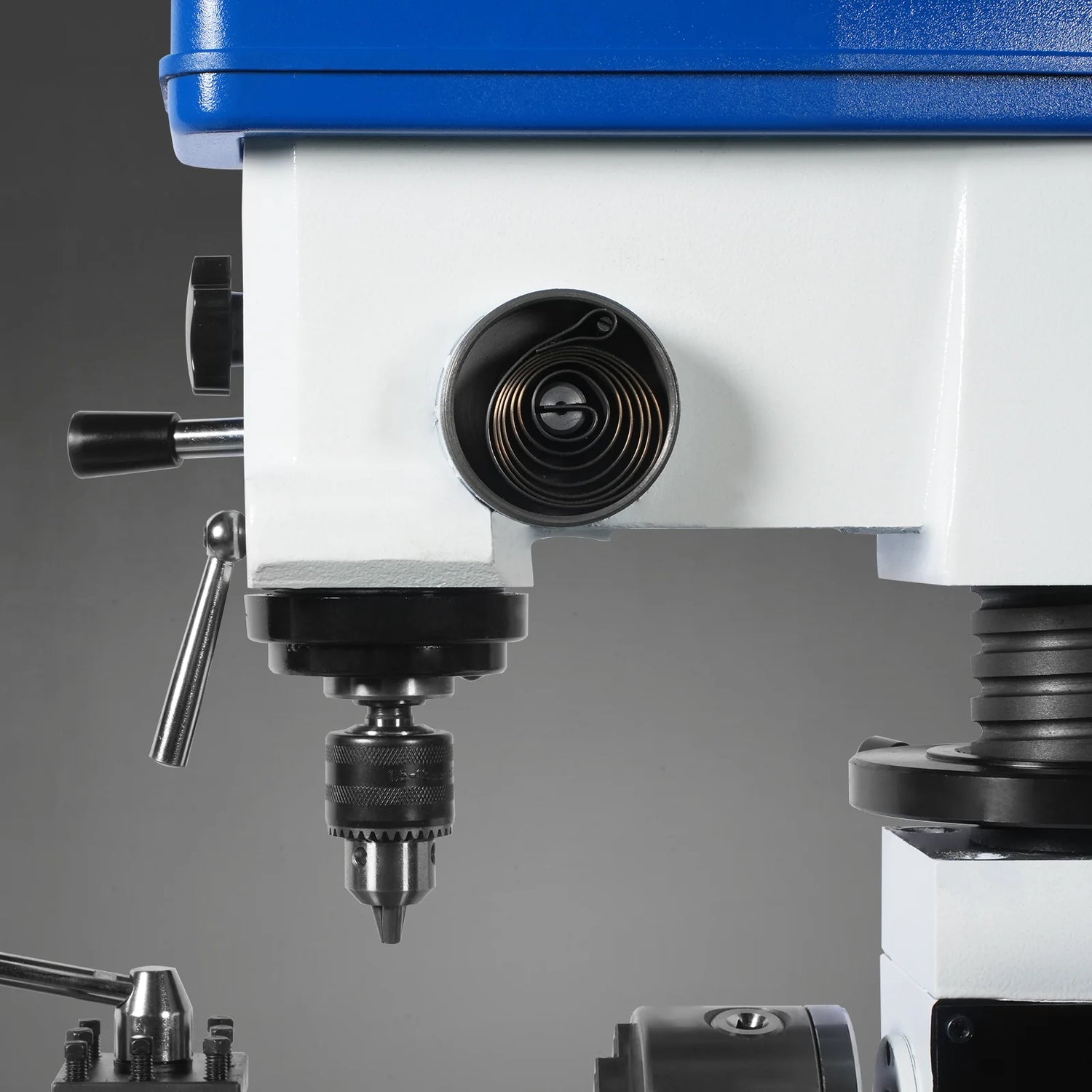

Spindle Travel 3-11/32"(85mm)
Drawbar Thread Size 3/8''(9.52mm)
Drawbar Length 10-3/4''(273mm)
Drawbar Thread Pitch 16TPI
Drill Capacity 19/32''(15mm)
End Milling Capacity 25/32"(20mm)
Face Milling Capacity 2-1/2"(63mm)
Vertical Travel (Z-Axis) 3-5/32''(80mm)
Distance: Spindle to Table 15-3/4''(400mm)
Distance: Spindle to Center Line 9-3/4''(248mm)
Headstock Height 3''(76.2mm)
Head Tilt Angle
Swivel angle of the headstock 360°

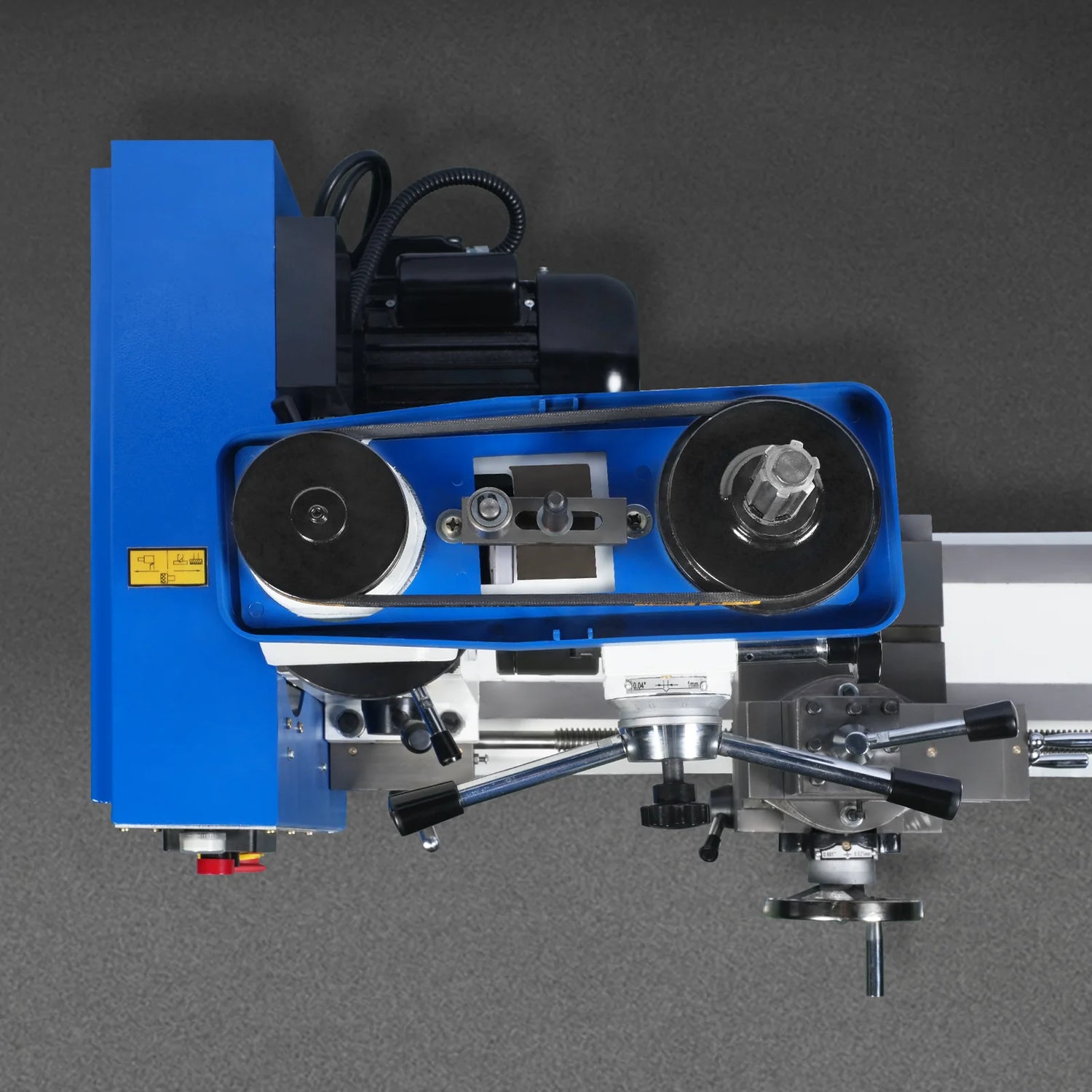

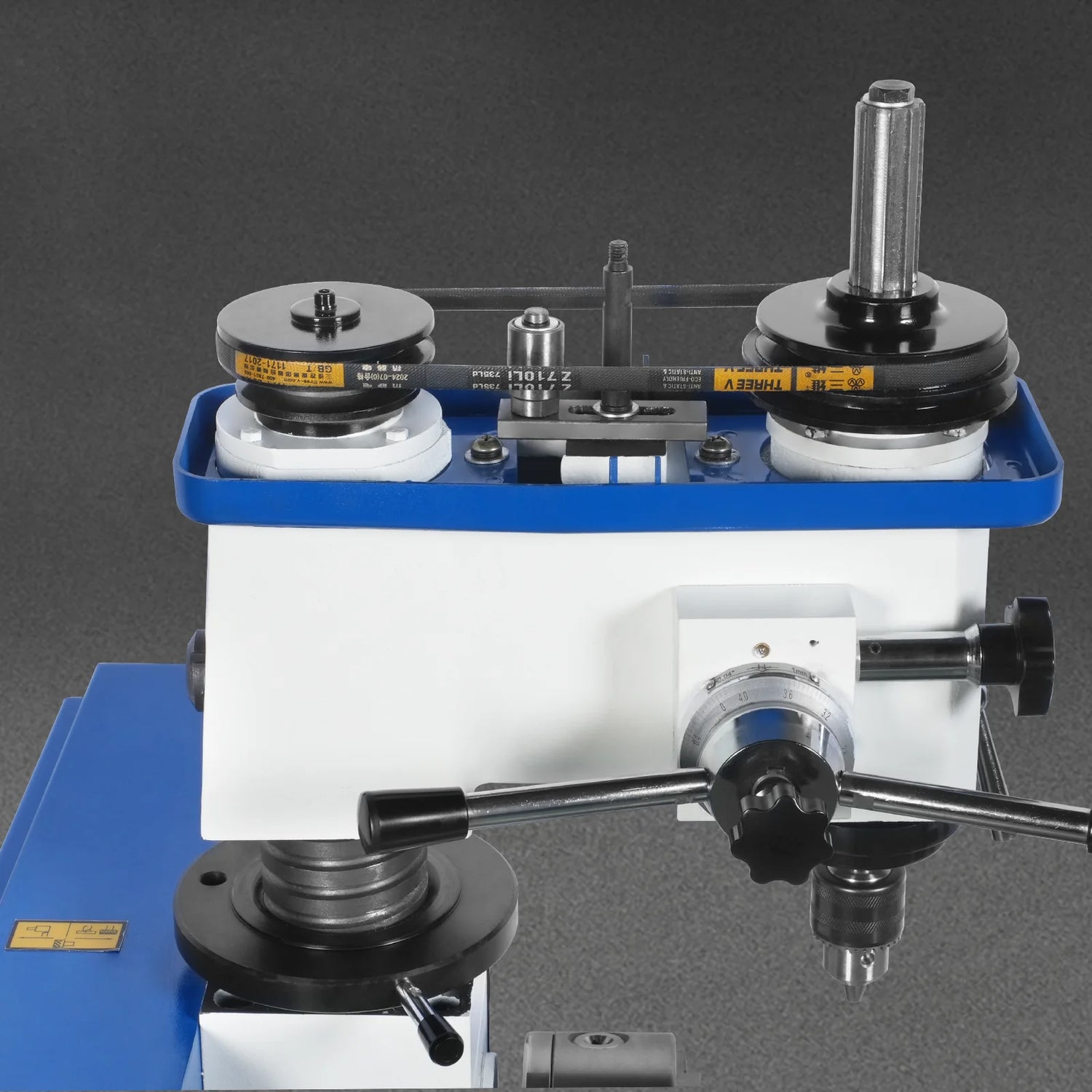

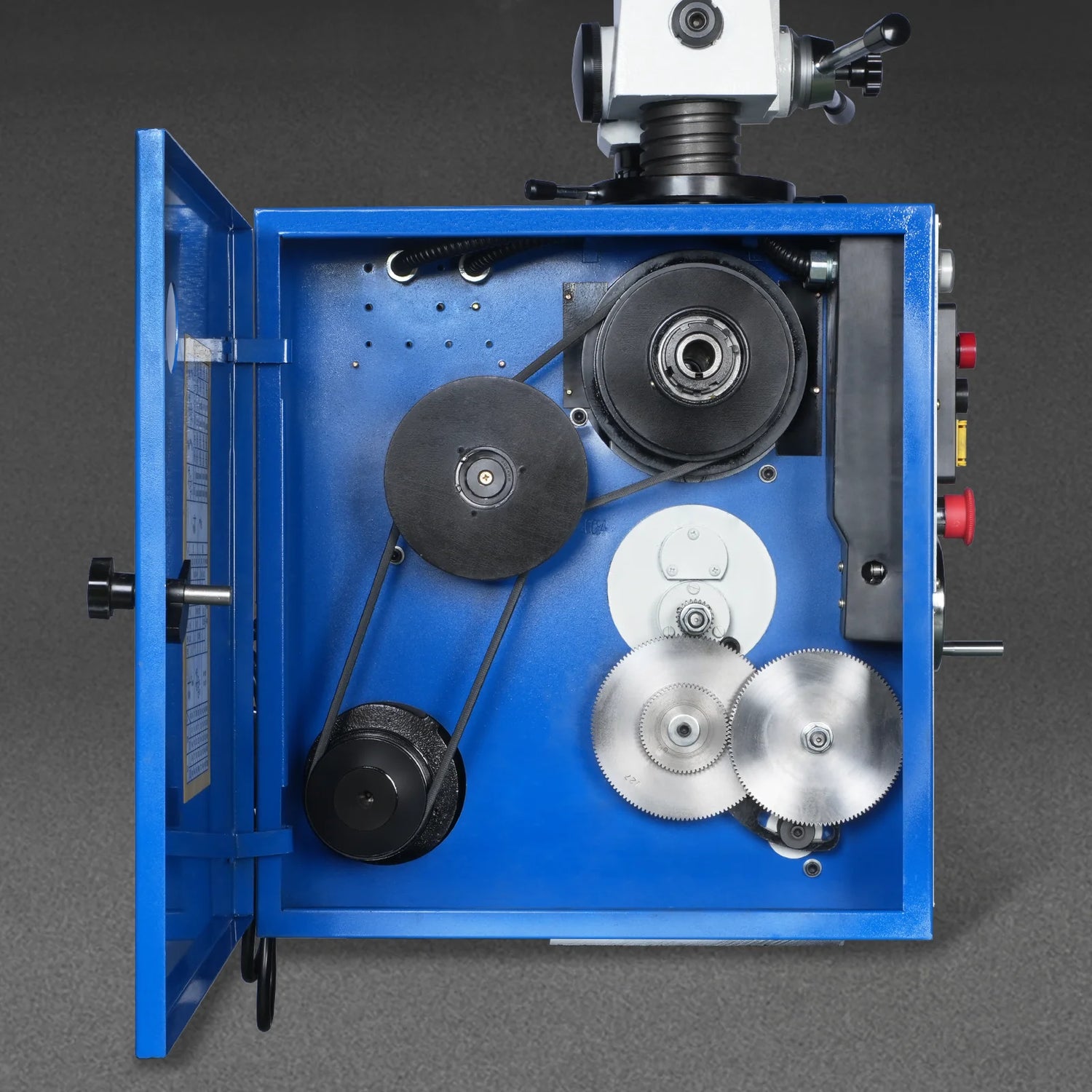

Drive Type Belt-driven AC Motor
Overall Dimensions 41''x23''x43''(1050x580x1090mm)
N.W/G.W 408/463lbs(180/210kg)

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
