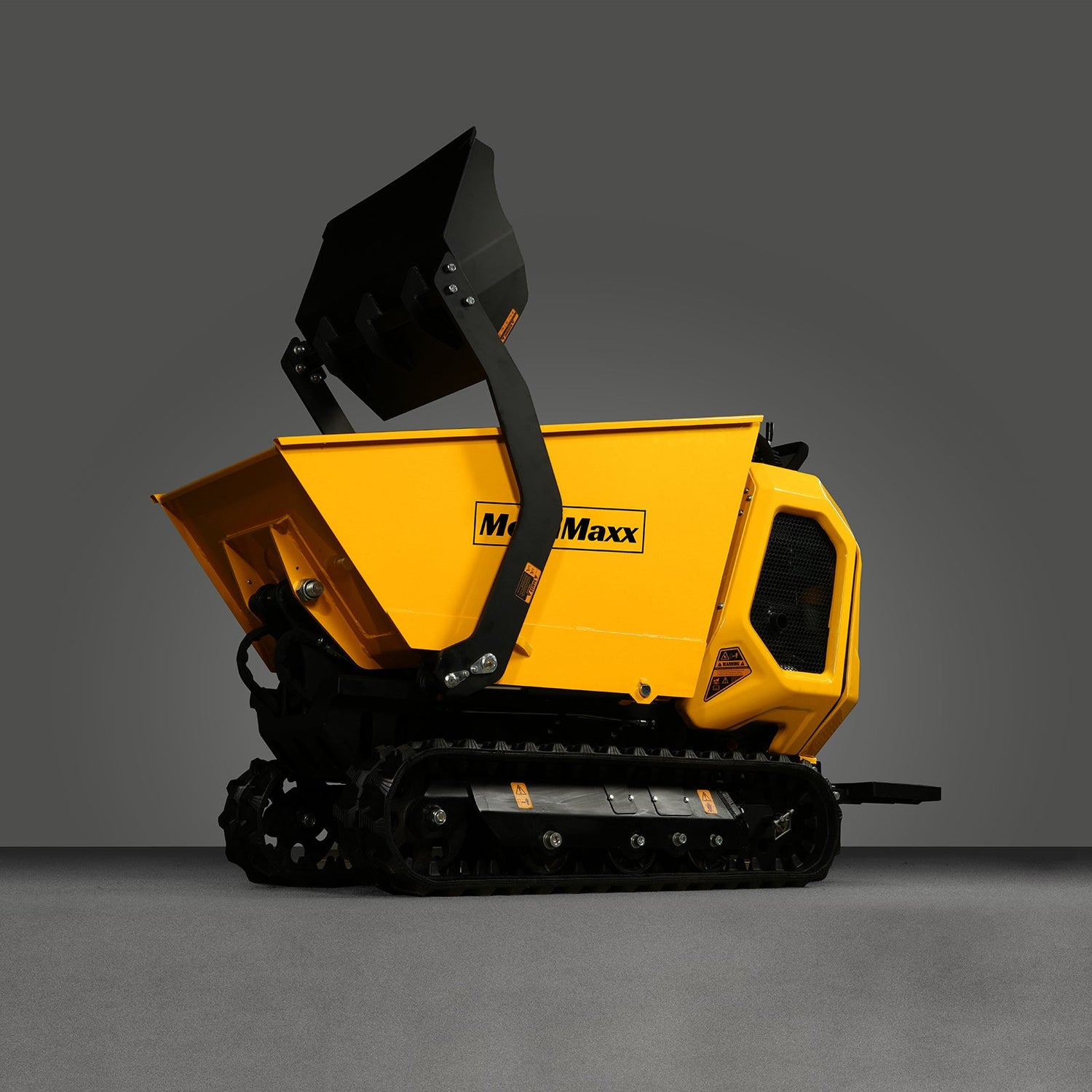

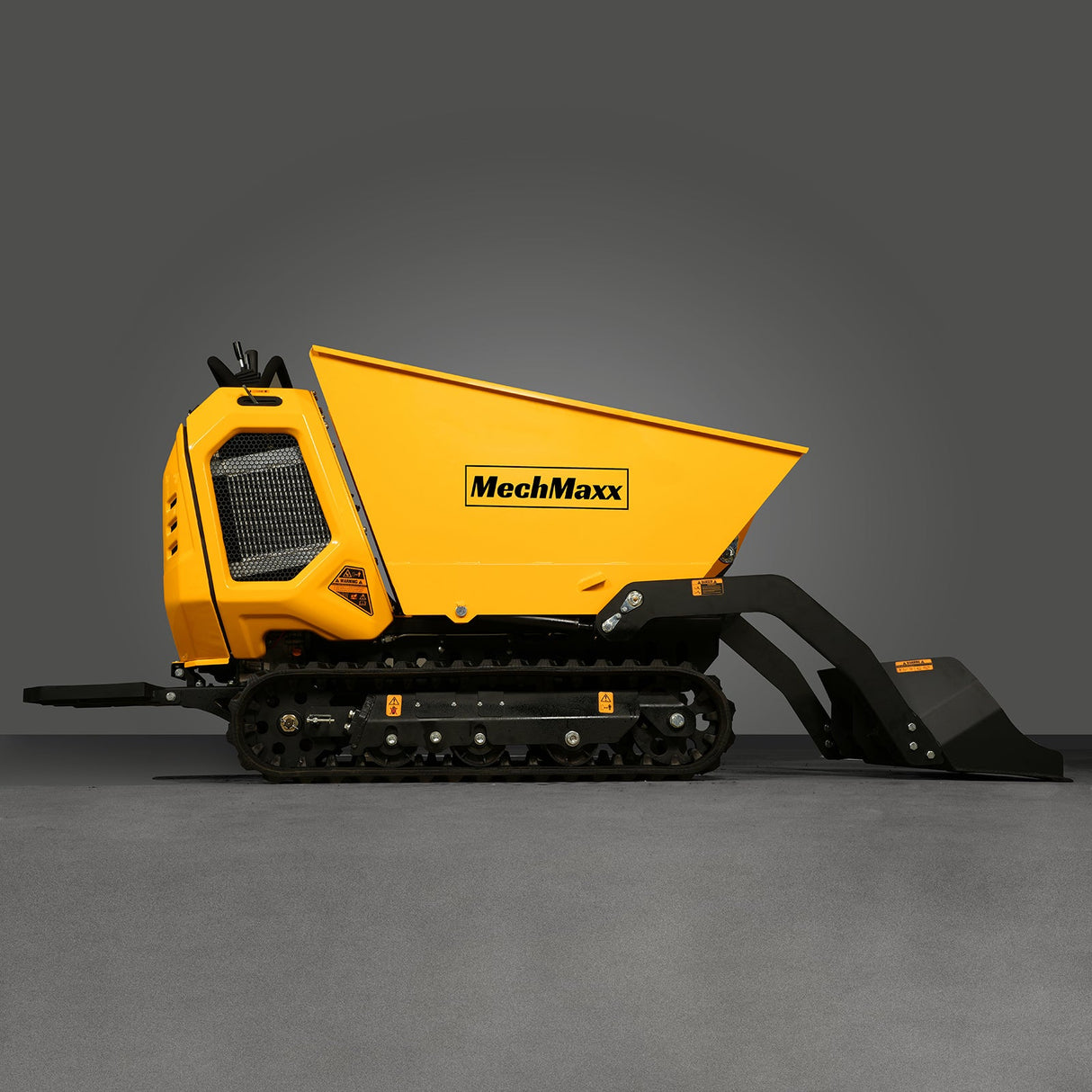

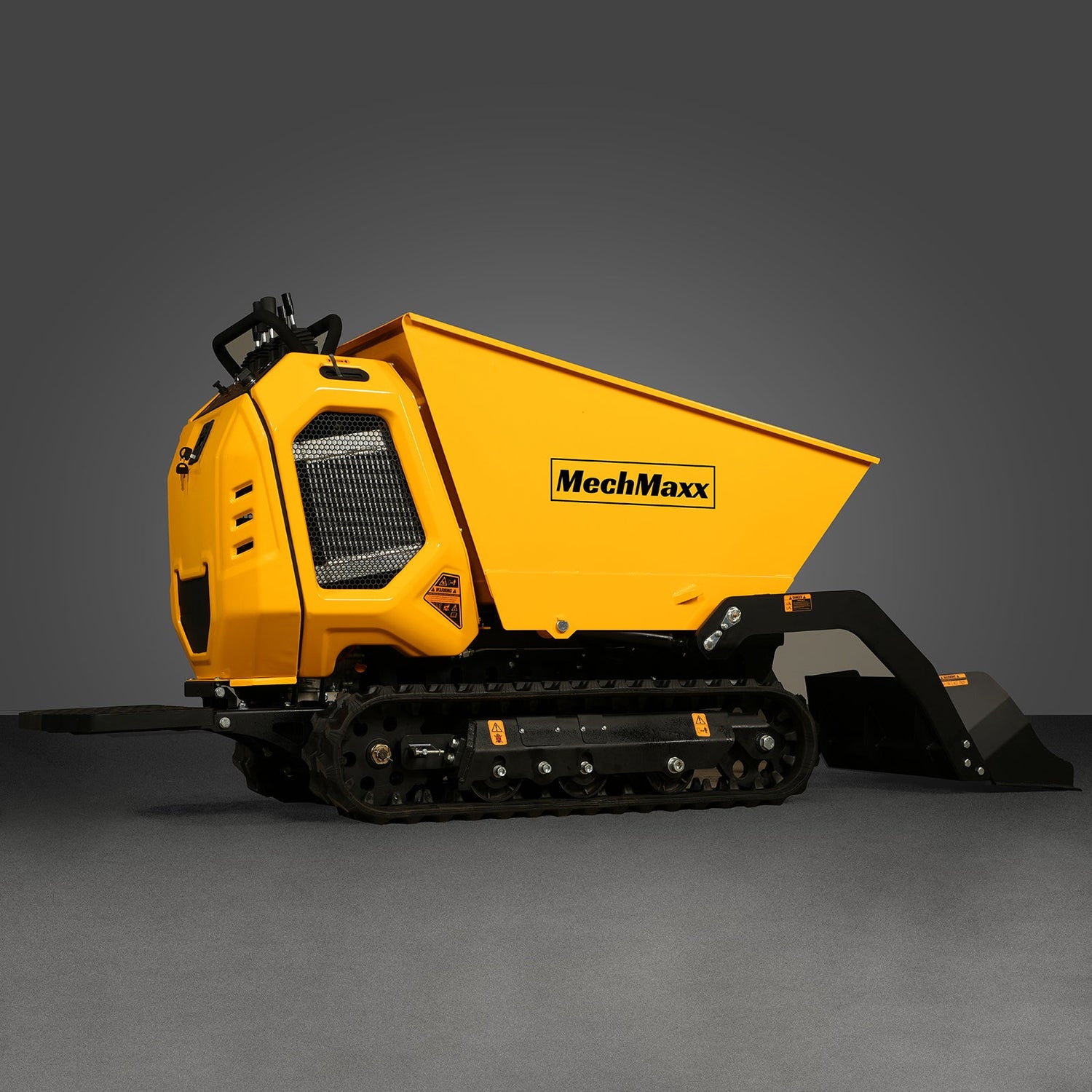

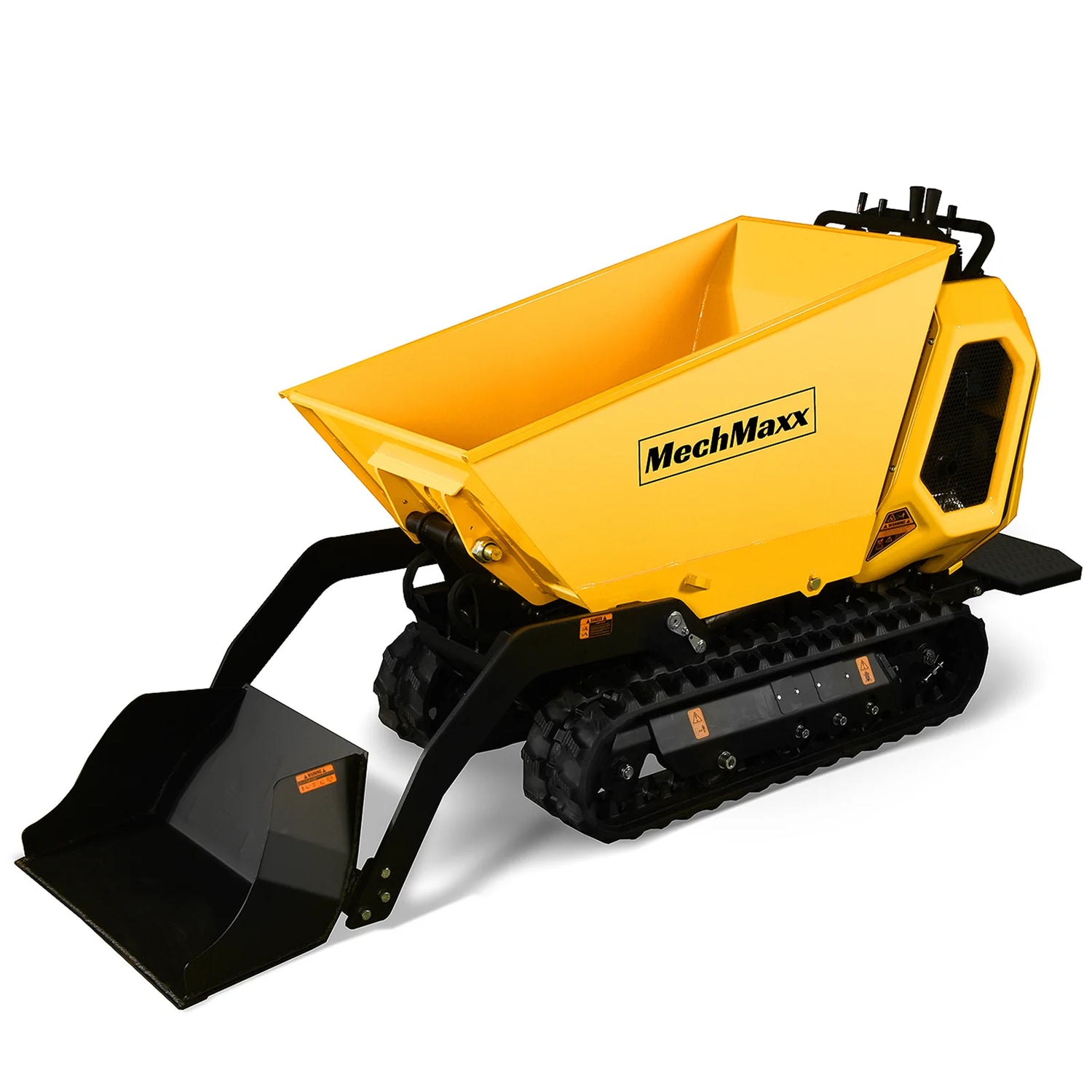

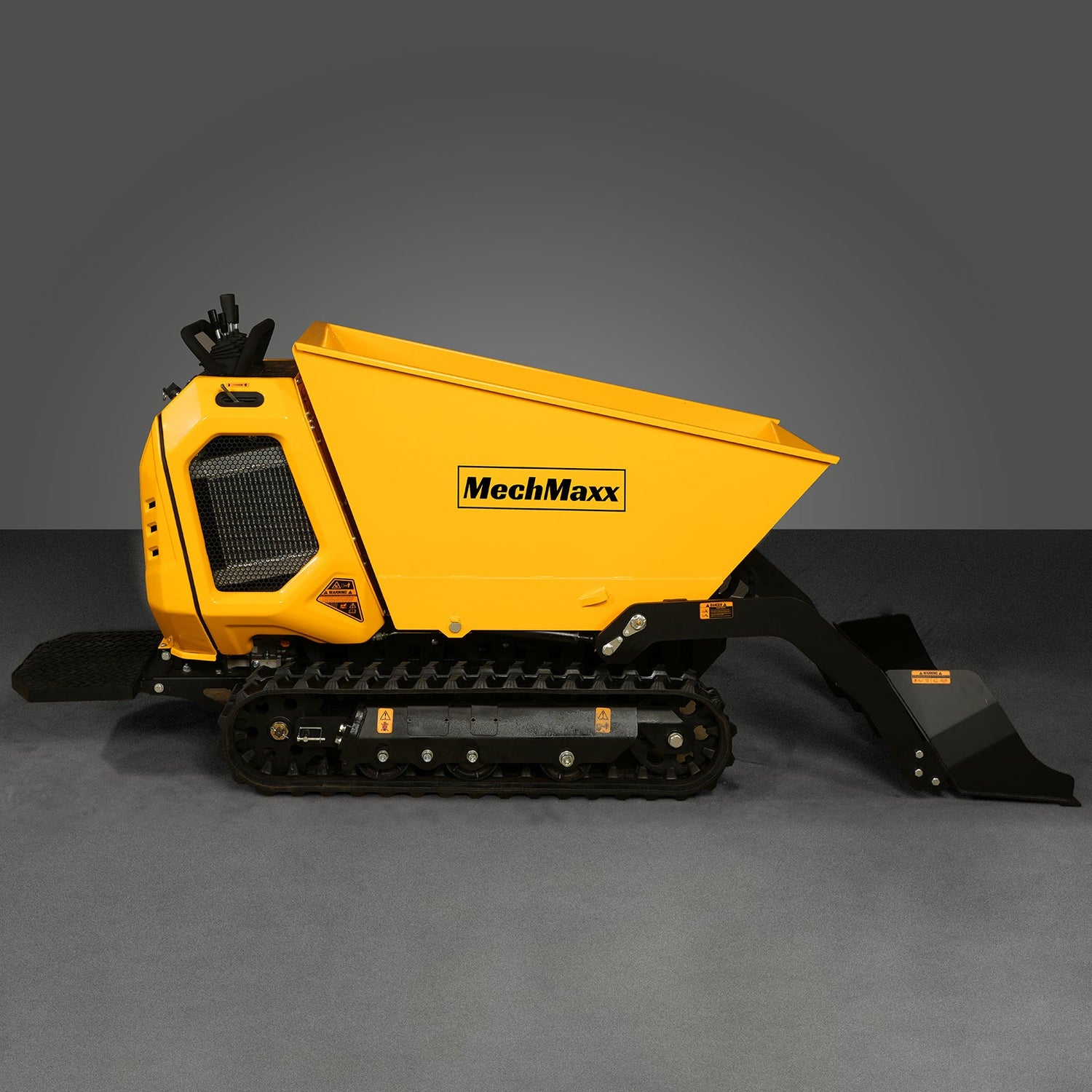

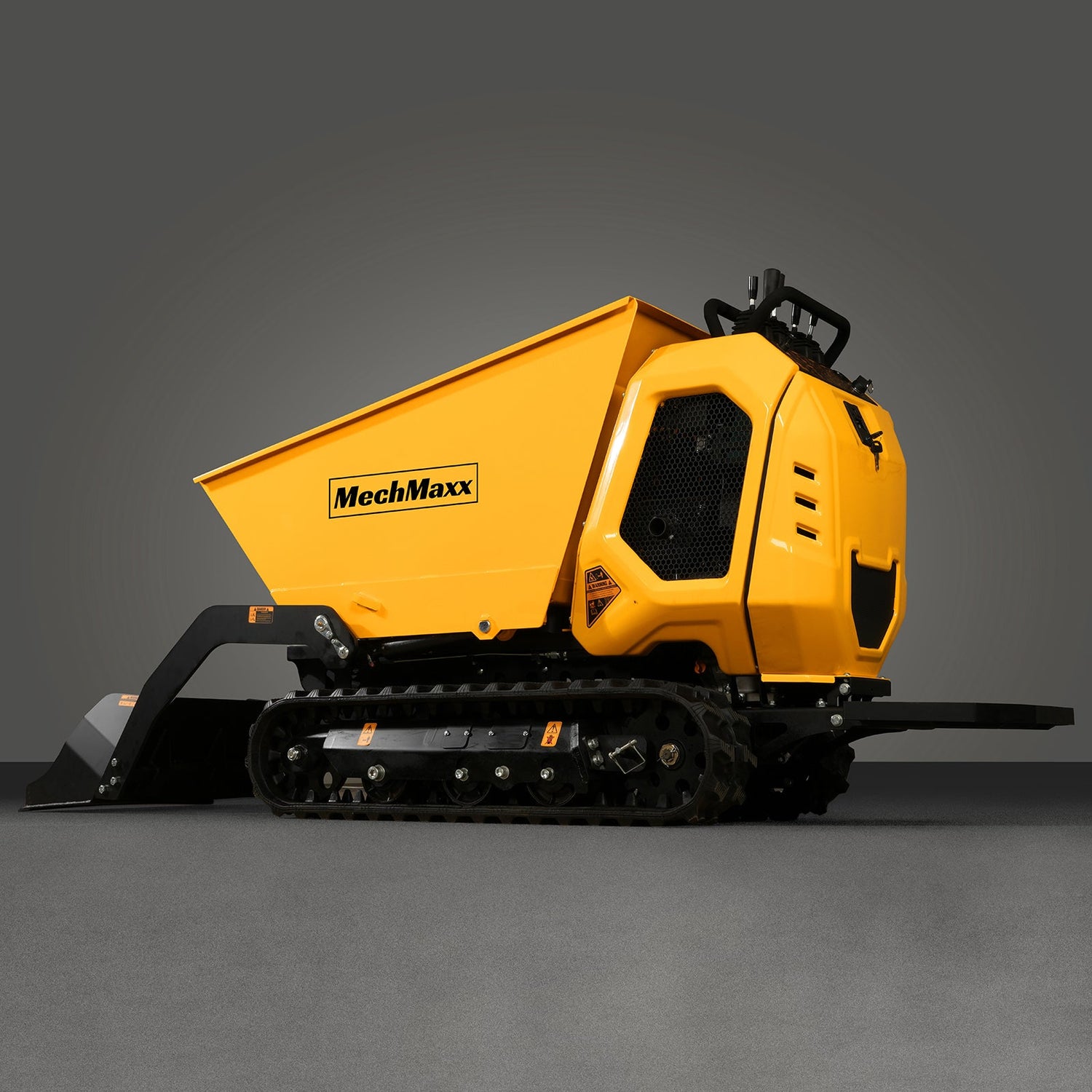

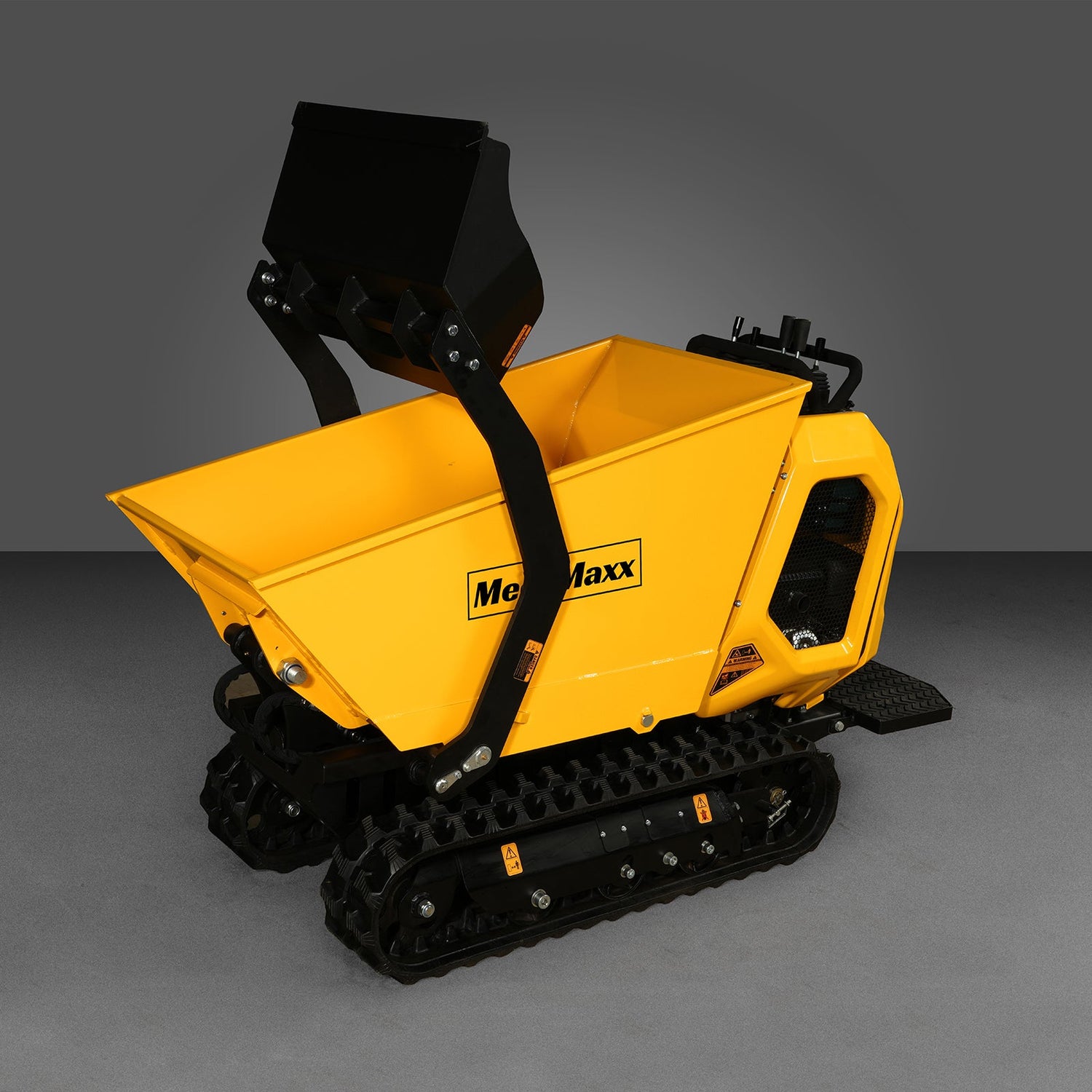

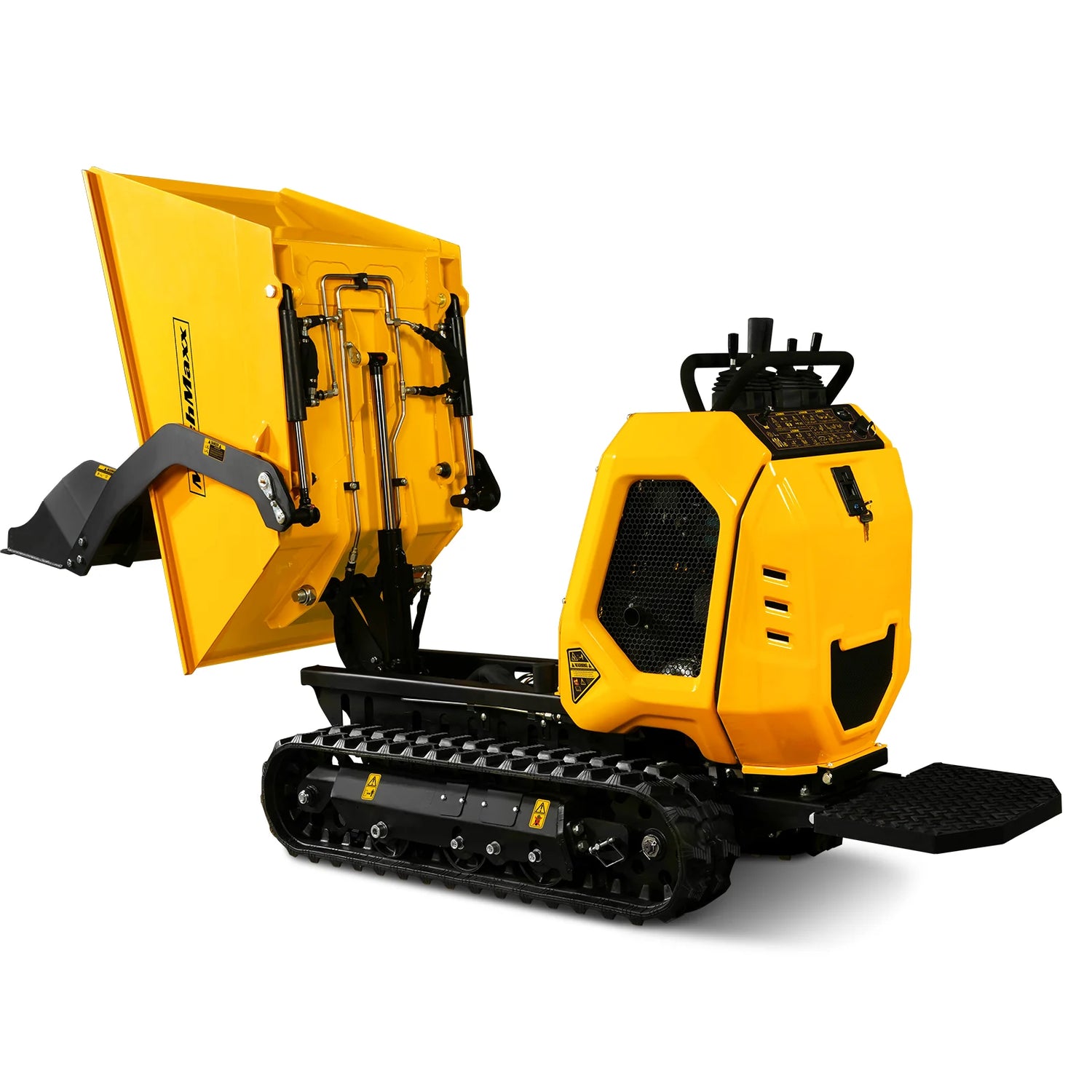

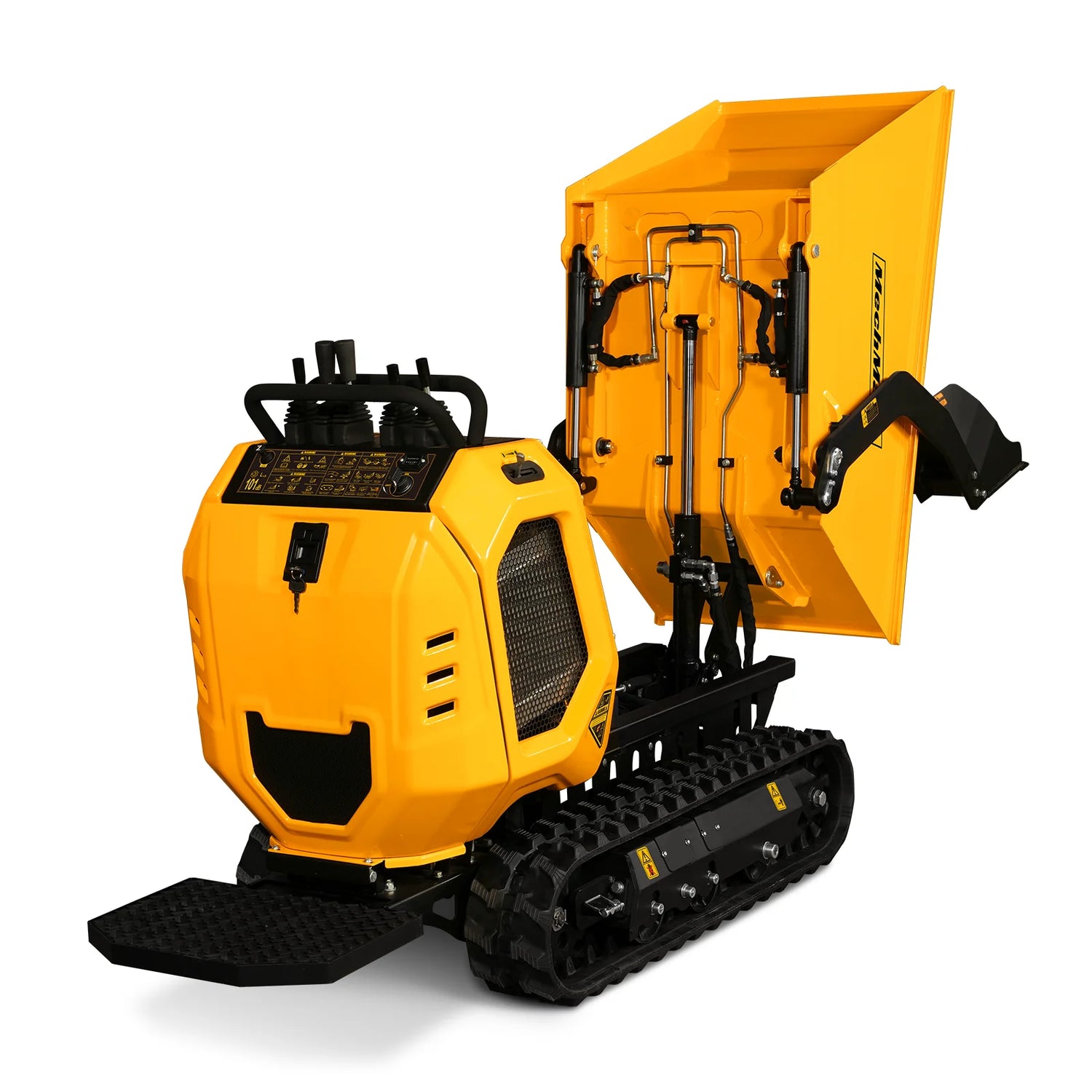

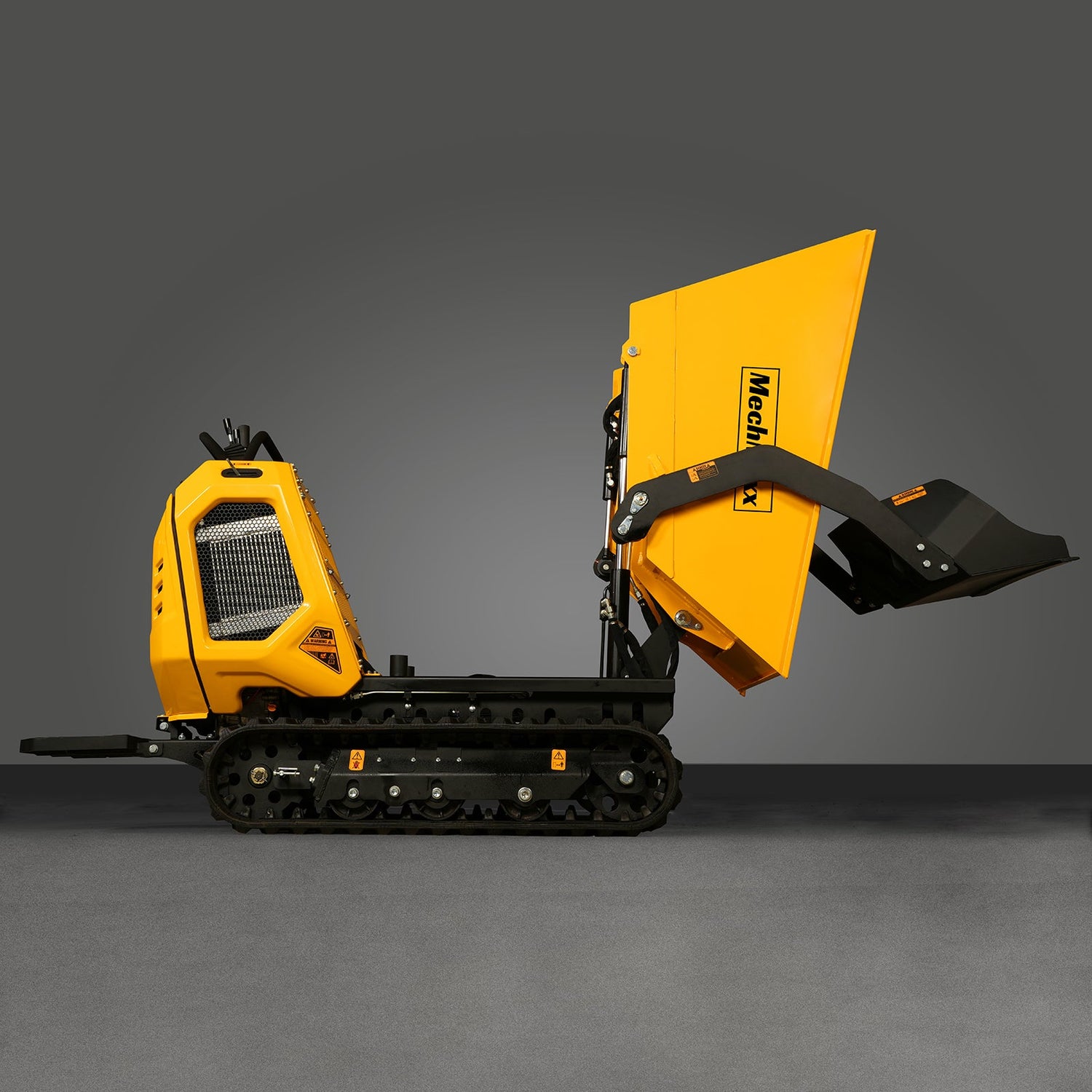

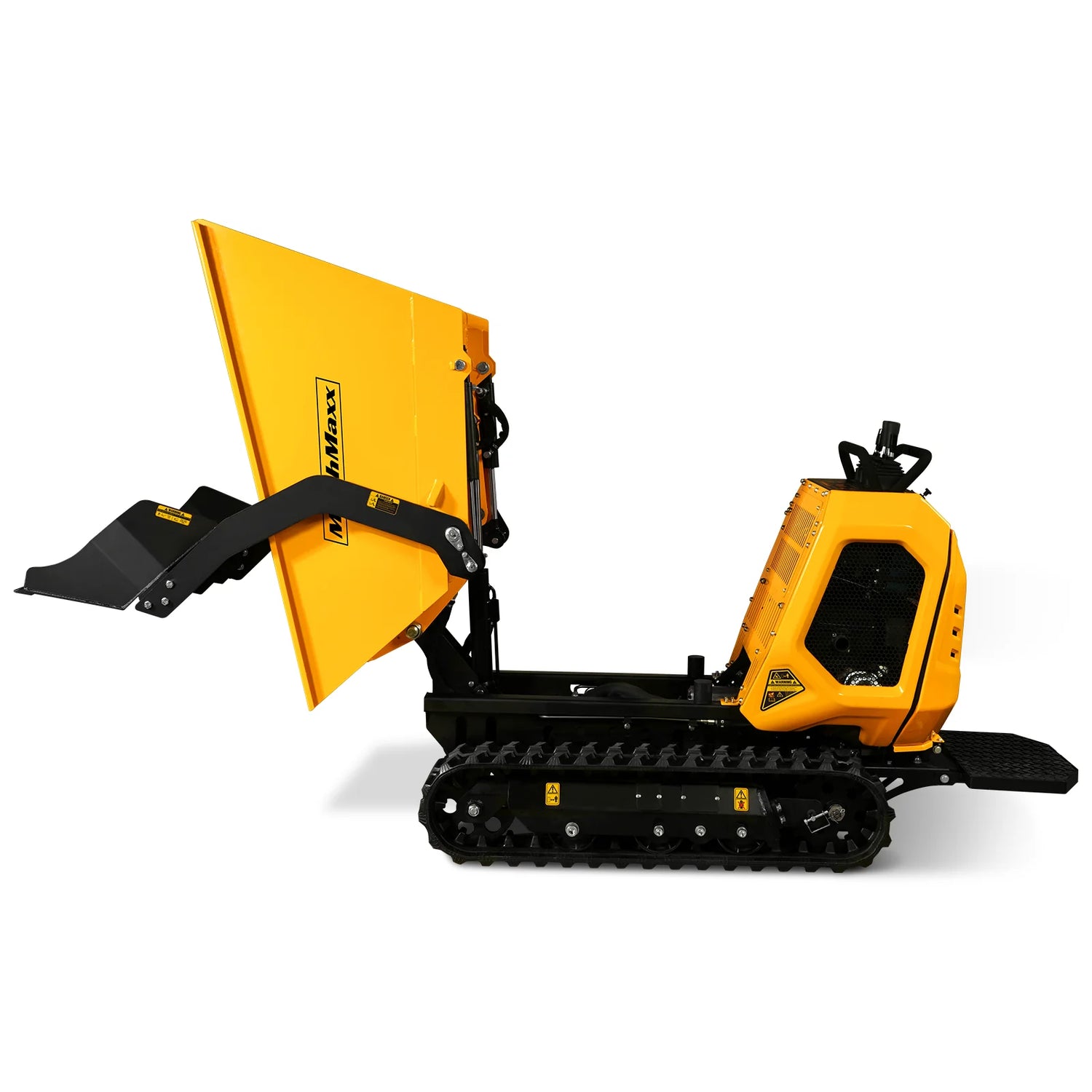

MechMaxx 1800lb 420cc E-start Gas Engine Stand-ON Hydraulic Track Dumper with Self-Loading , T80
MechMaxx 1800lb 420cc E-start Gas Engine Stand-ON Hydraulic Track Dumper with Self-Loading , T80 is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Product Overview
Two speed travelling speed: low speed to make sure the precision in operation and high speed at 4.4km/h allows for quicker travel around site.

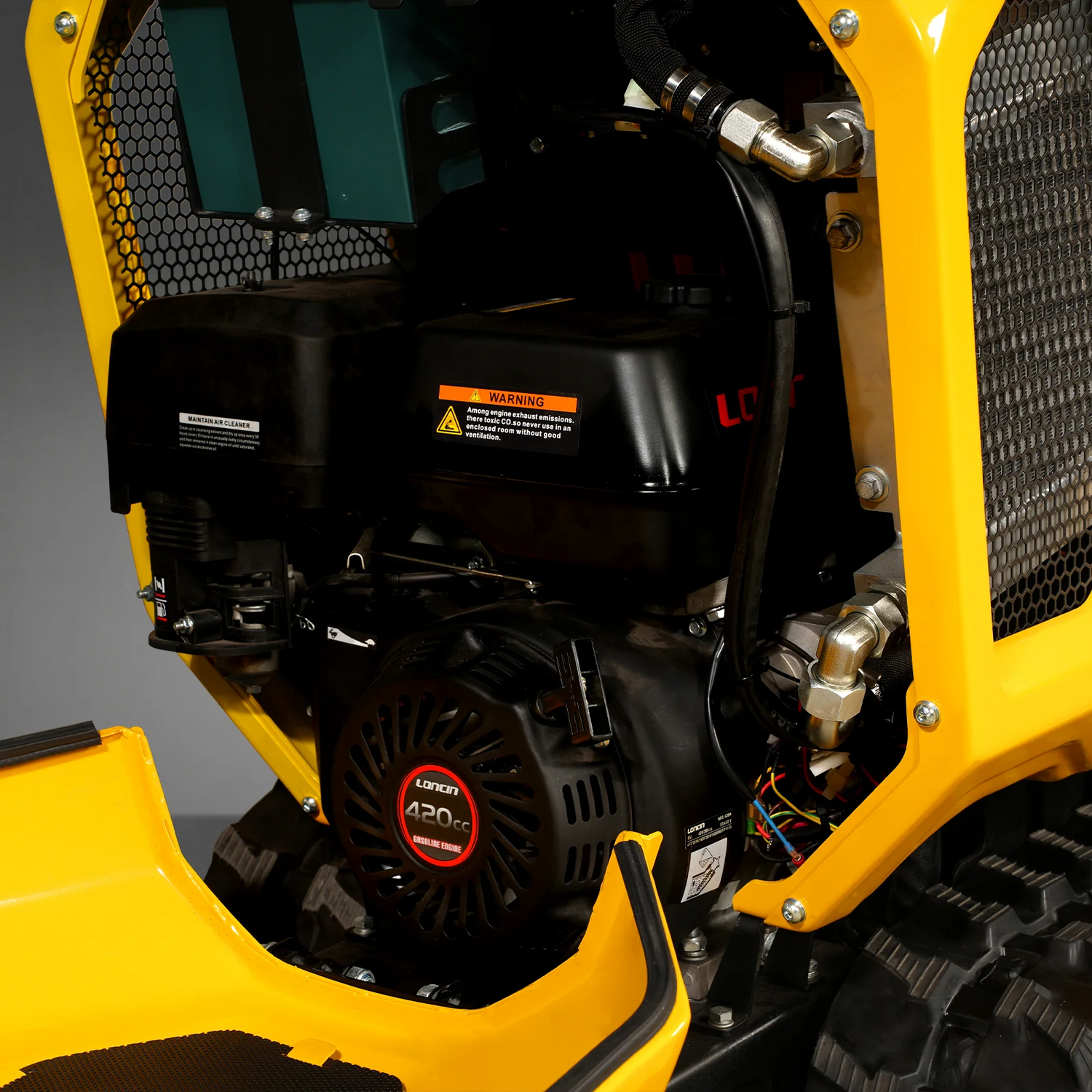

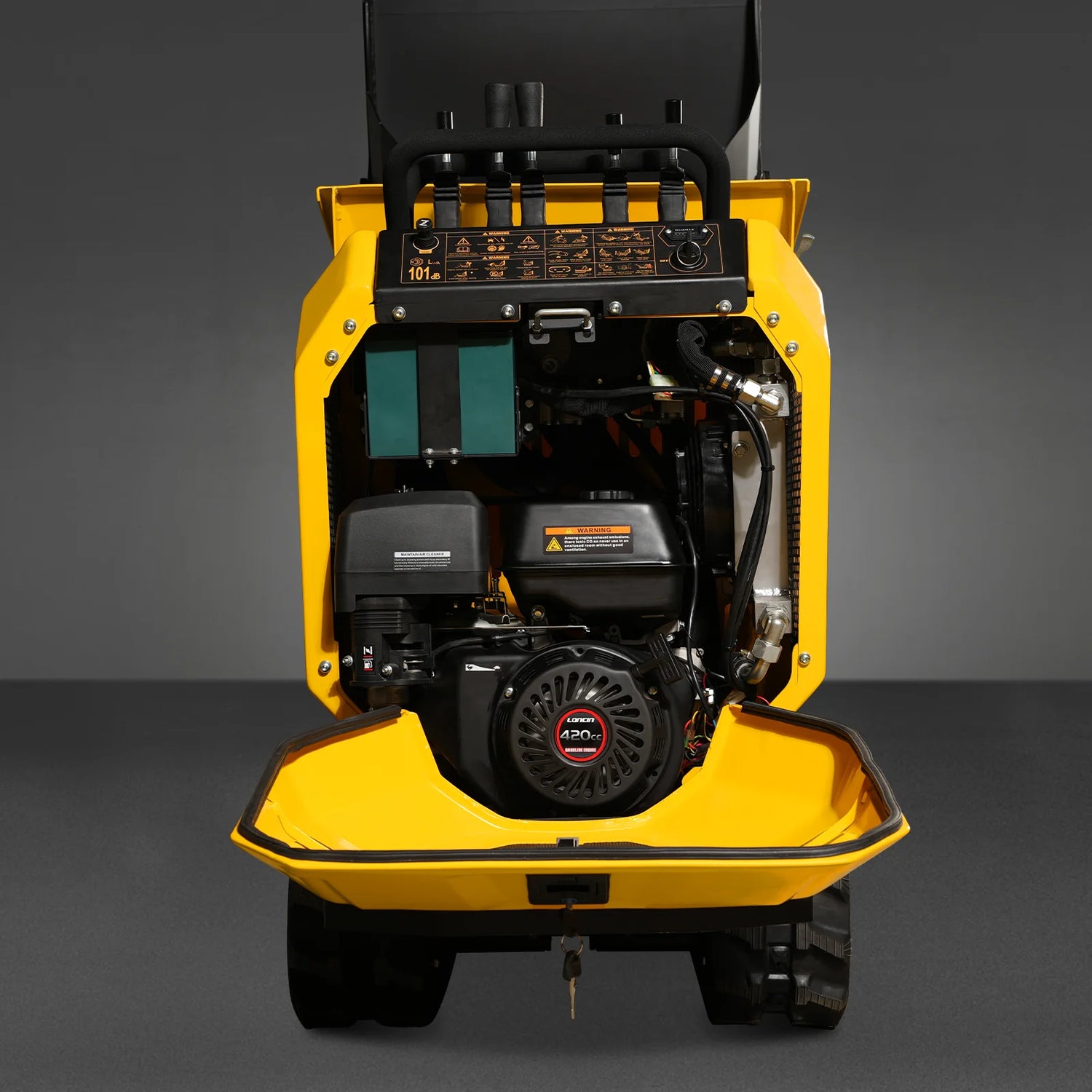

15hp gasoline engine provides more power for the machine and enhance the work performance in dumping and tracking.
Machine width at 29in allows you to fit through any standard doorway or gate.

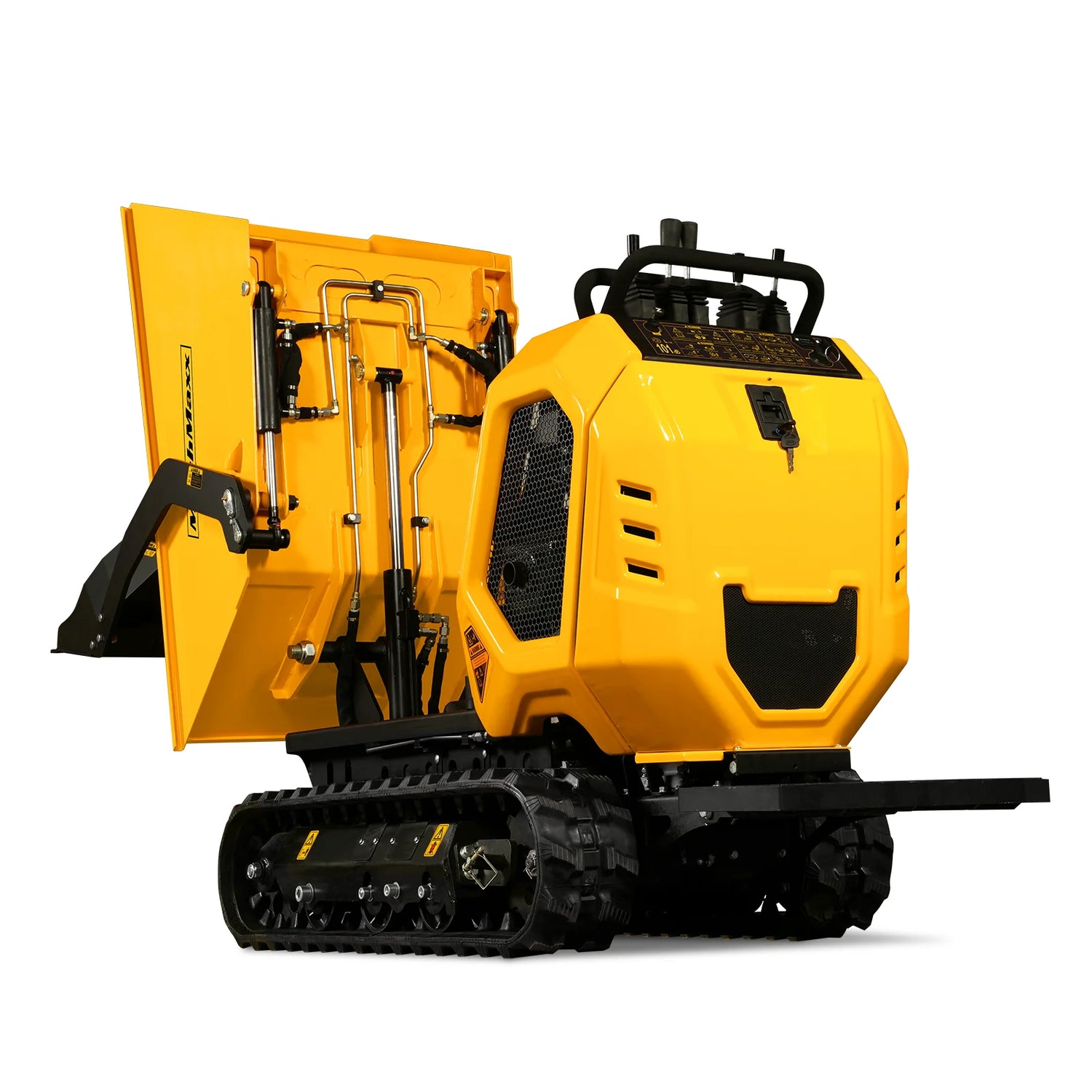

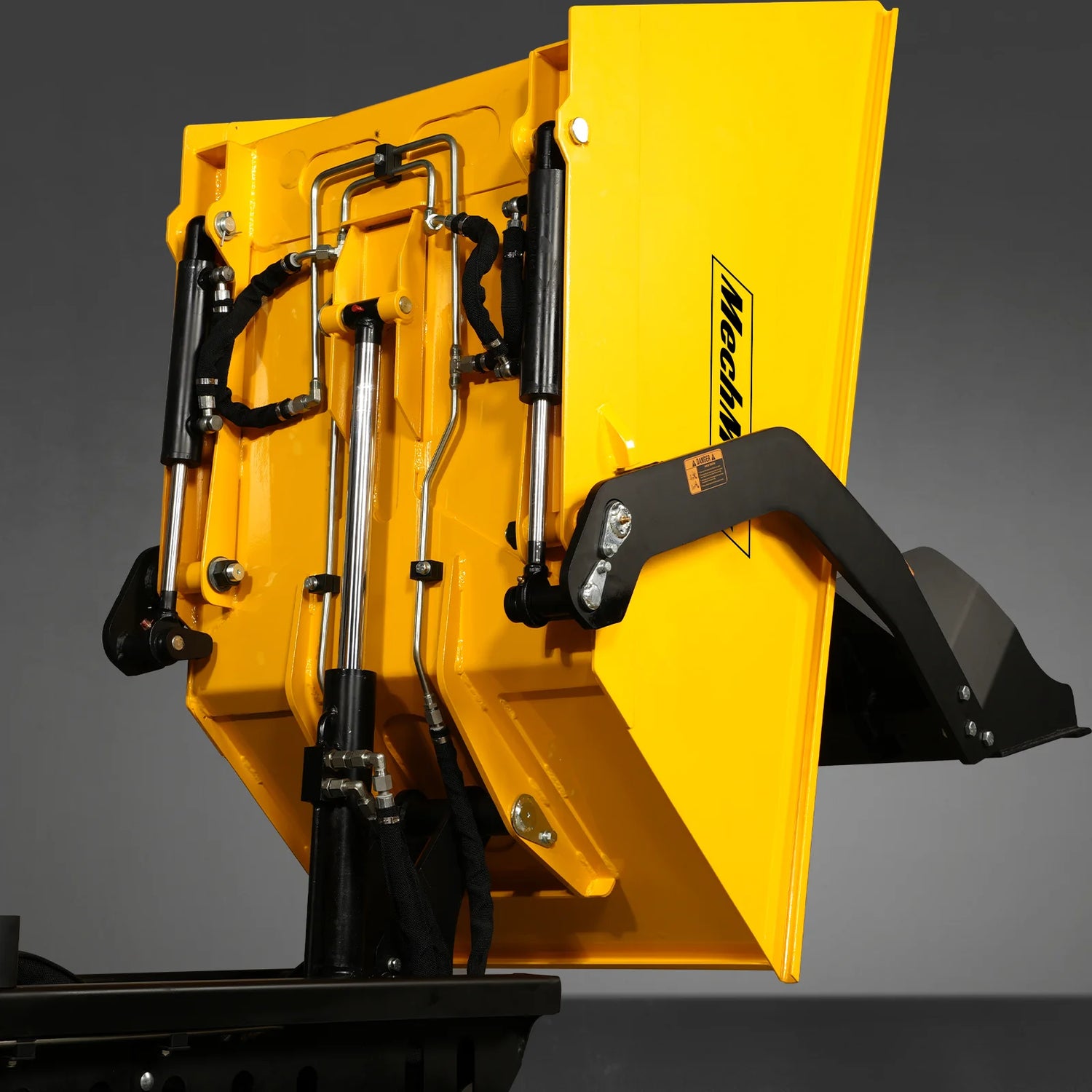

1800lbs loading capacity, fully Hydraulic system, Exclusive BONDIOLI&PAVESI hydraulic control valve for T80.
Triple gear pump, 30% max gradeability, 26.5Nm/2500rpm max torque
Product Features









Specifications

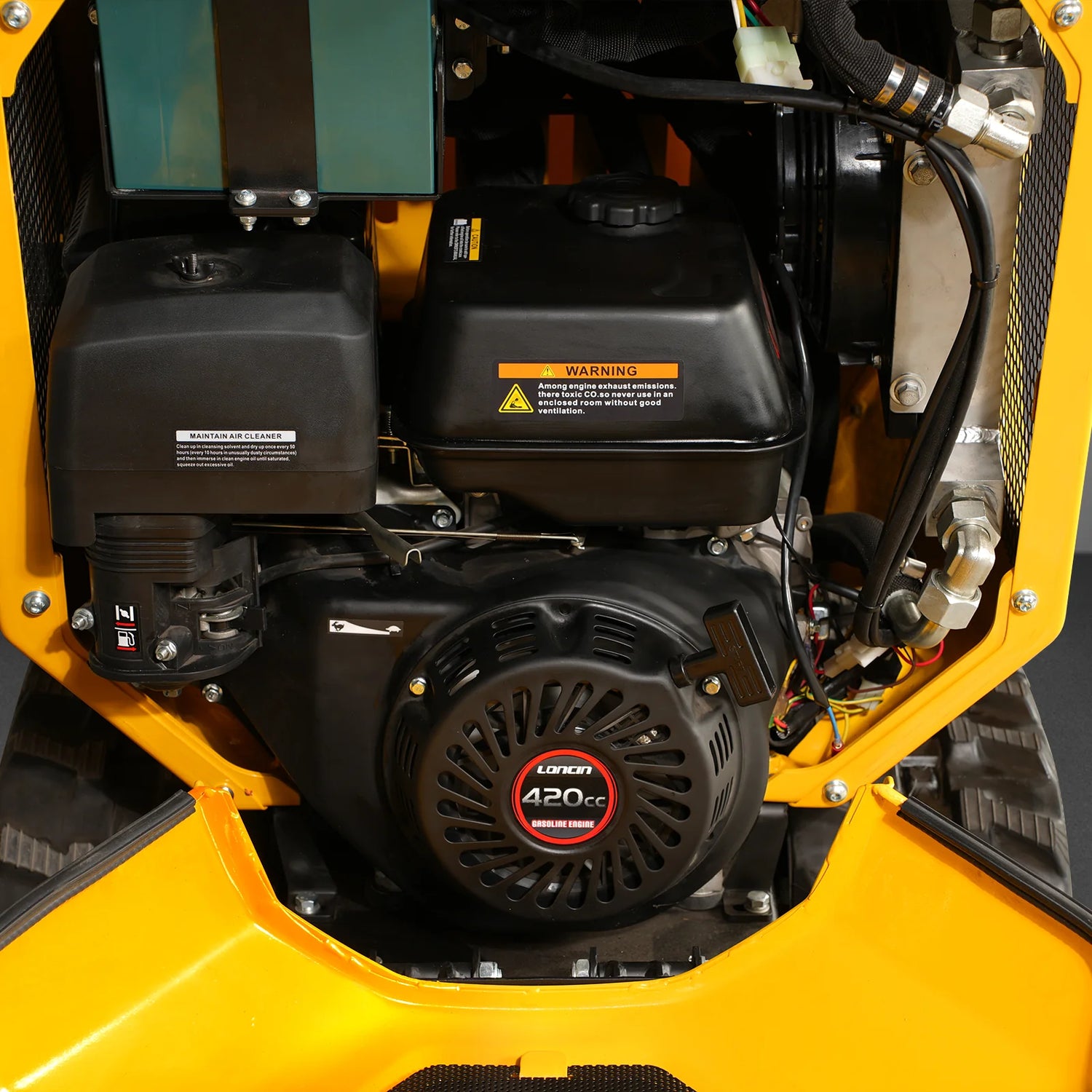

| Engine | LONCIN G420F(D) |
| Working Type | Self Loading and Unloading |
| Engine Type | Single Cylinder, 4 Stroke, Air Cooled, OHV |
| Transmission | Hydrostatic Track Drive System |
| Engine Displacement | 420 cc |
| Parking Brake | Yes |
| Horsepower | 15 HP |
| Operator Platform | Stand-On |
| Engine Power | 9.0 kw / 3600 RPM |
| Max.Travel Speed | 0-2.73 mph |
| Start | E-Start |
| Min. Travel Speed | 0-1.37 mph |
| Maximum Torque | 26.5 N·m / 2500 RPM |
| Max. Gradeability | 0.3 |
| Loading Capacity | 1800 lbs |
| Ground Pressure (with Operator) | 2.9 Psi (20 Kpa) |
| Wheelbase | 39 in |
| Hydraulic Pressure | 2900 Psi (20 Mpa) |
| Bucket Capacity | 10.6 cu.ft. |
| Hydraulic Tank Capacity | 6 gal |
| Track Width | 7.09 in |
| Fuel Tank Capacity | 1.72 gal |
| Track Length | 51.2 in |
| Battery Capacity | 12 V 20 Ah |
| Track Height | 11.8 in |
| Pump Type | Triple Gear Pump |
| Shovel Height | 63.8 in |
| Overall Length (W/O Shovel) | 80 in |
| Dump Front End Height | 33.3 in |
| Overall Length with Shovel | 108 in |
| Dump Back End Height | 43.3 in |
| Overall Height | 48 in |
| Dump Width | 24.3 in |
| Overall Width | 29 in |
| Console Height | 40.2 in |
| Weight (N.W / G.W) | 1253 / 1385 lbs |
| Platform Ground Clearance | 10.4 in |
