Description
Description

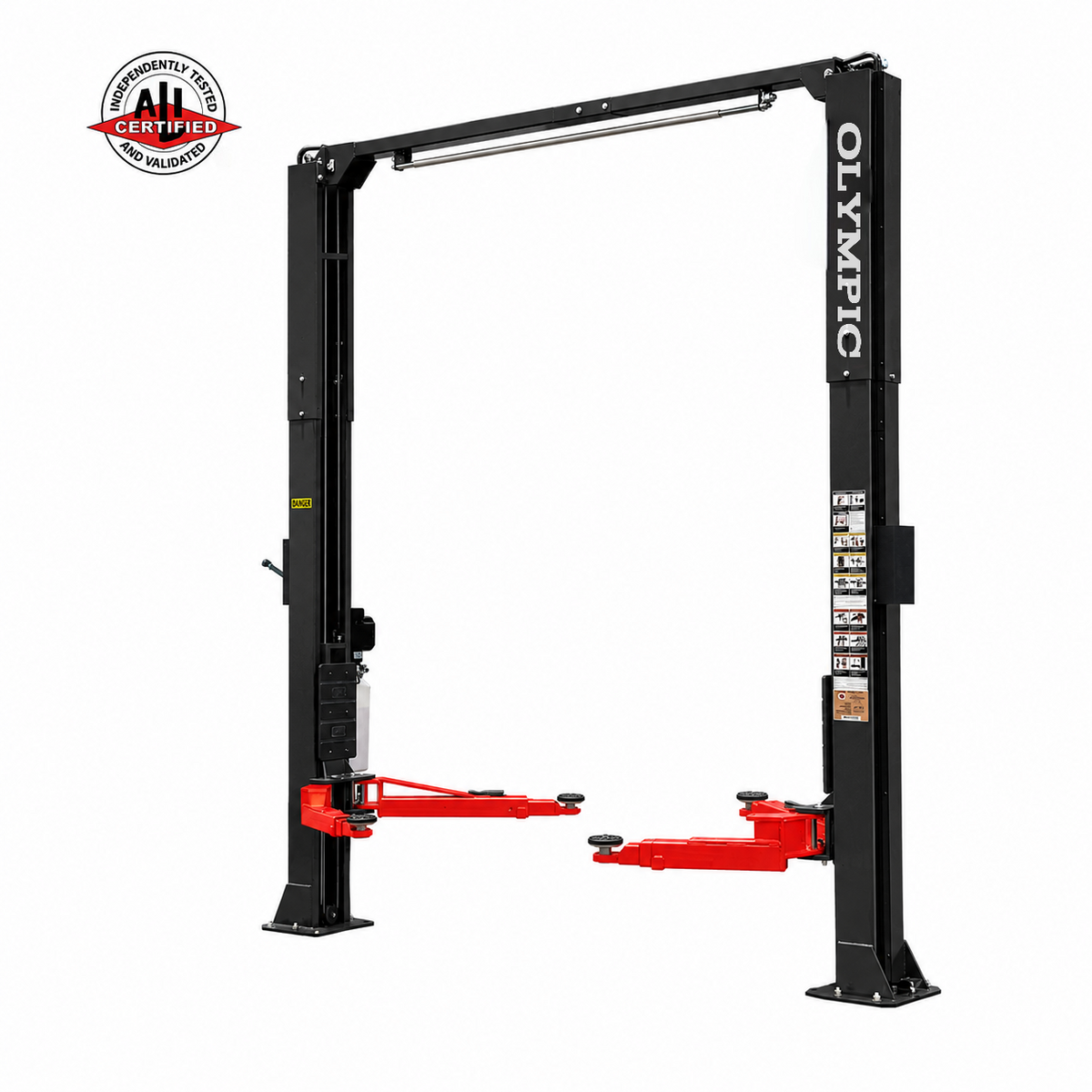

The Olympic 2PAS-10 is a professional 10,000 lb 2-post car lift designed for automotive repair shops, commercial garages, and professional service environments.
This ALI-certified 2-post lift features a clear-floor configuration and super asymmetric lifting arms that allow flexible vehicle positioning. Vehicles can be positioned in either asymmetric or symmetric configurations, providing versatility when servicing cars, SUVs, vans, and light-duty trucks.
The dual direct-drive hydraulic cylinders, aircraft-quality synchronization cable, automatic arm restraints, and single-point safety release provide dependable lifting performance for daily automotive service work.
With a 10,000 lb. lifting capacity, adjustable height settings, stackable lifting pads, and a professional clear-floor design, the Olympic 2PAS-10 is built to support productive vehicle maintenance and repair operations.
KEY FEATURES
- 10,000 lb. rated lifting capacity
- ALI-certified two-post lift; verify the current ALI directory entry and gold label on the delivered unit
- CE-certified
- Clear-floor lift configuration

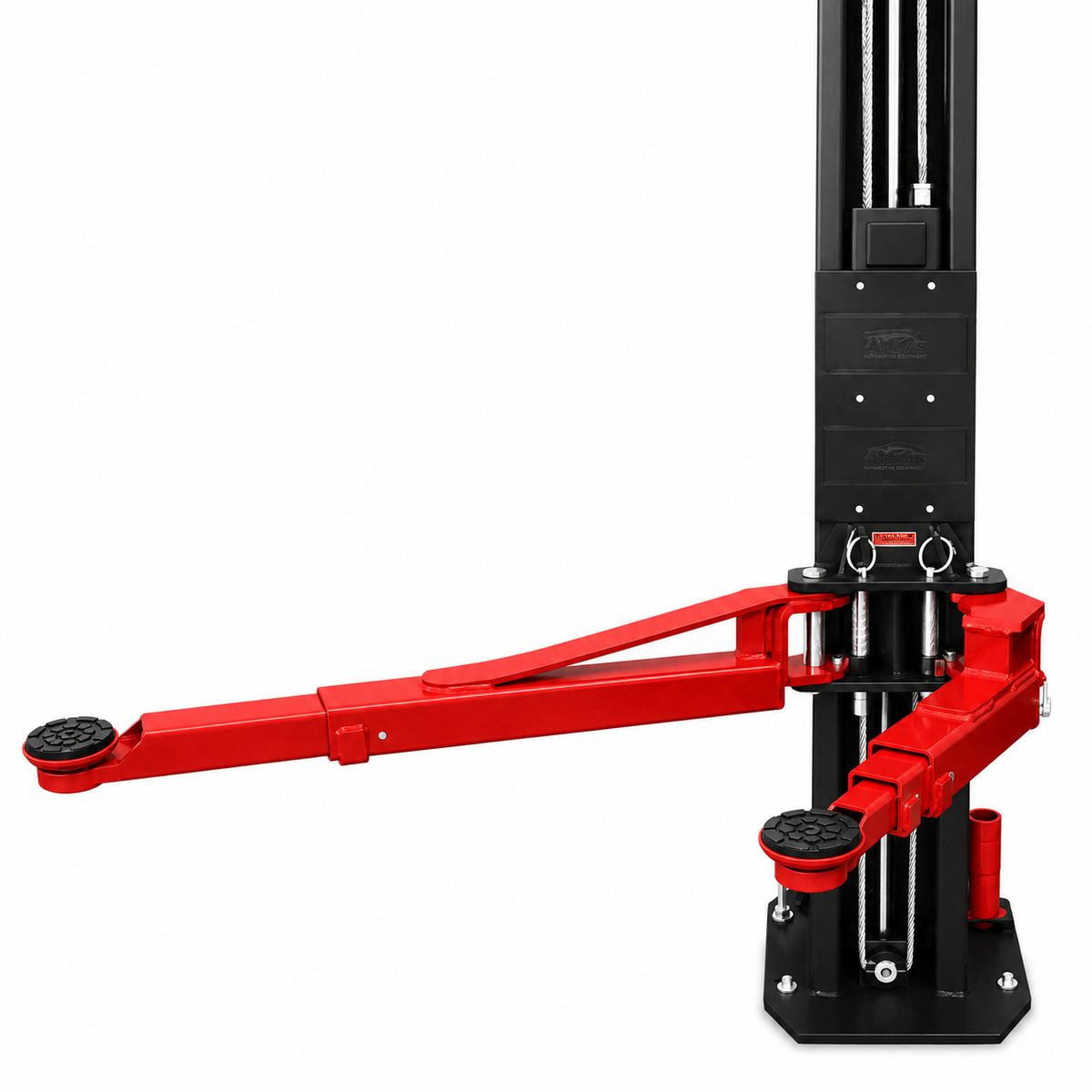

- Super asymmetric lifting arms
- Supports asymmetric or symmetric vehicle positioning
- Dual direct-drive hydraulic cylinders
- Aircraft-quality synchronization cable
- Single-point safety lock release
- Automatic arm restraints
- Self-lubricating UHMW polyethylene carriage sliders
- Overhead safety shutoff device
- Two adjustable installation height settings
- Standard vehicle door guards
- Toe guards on lifting arms
- Stackable rubber lifting pads
- Includes 1.5", 2.5", and 5" extension adapters
- Optional width-extension kit available
- 10-year limited structural warranty; see the written warranty for component periods, terms and exclusions
SPECIFICATIONS
| Model | Olympic 2PAS-10 |
|---|---|
| Lift Style | Clear-Floor Two-Post Lift |
| Lifting Capacity | 10,000 lbs. |
| Lifting Time | 57 seconds |
| Maximum Lift Height Without Adapters | 71.5" |
| Maximum Lift Height With Adapters | 80.5" |
| Maximum Lock Height Without Adapters | 69.5" |
| Maximum Lock Height With Adapters | 78.5" |
| Overall Height — Low Setting | 142.5" |
| Overall Height — High Setting | 150.5" |
| Overall Width | 135" |
| Drive-Through Clearance | 99.5" |
| Width Between Columns | 112.2" |
| Minimum Pad Height | 3.94" |
| Motor | 3 HP |
| Gross Weight | Approximately 1,600 lbs. |
| Extended Column Width | 118.1" with optional width-extension kit |
BENEFITS
The Olympic 2PAS-10 gives automotive professionals the flexibility to service multiple vehicle types using one dependable lifting system.
Its super asymmetric arm configuration allows technicians to choose between asymmetric and symmetric vehicle positioning based on the vehicle being serviced. The clear-floor layout helps keep the area between the columns free from floor obstructions, improving access throughout the service bay.
Dual direct-drive hydraulic cylinders provide smooth lifting performance, while the automatic arm restraints help maintain proper arm positioning as the lift rises.
The included stackable rubber pads and extension adapters provide additional flexibility for vehicles with different lifting points and heights.
IDEAL FOR
The Olympic 2PAS-10 is suitable for:
- Automotive repair shops
- Commercial garages
- Professional mechanics
- Vehicle service centers
- Dealership service departments
- Fleet maintenance facilities
- Automotive workshops
- Car repair businesses
Compatible vehicle applications include:
- Passenger cars
- SUVs
- Vans
- Light-duty trucks
WHY CHOOSE THIS PRODUCT
The Olympic 2PAS-10 combines professional lifting capacity, flexible vehicle positioning, and a clear-floor design for automotive service operations.
Its super asymmetric arms provide versatile vehicle placement, while the dual direct-drive hydraulic cylinders support dependable lifting performance. The automatic arm restraints, overhead safety shutoff device, and single-point safety release add practical safety and operating features for professional workshops.
The included lifting pads and extension adapters provide flexibility for different vehicle lifting points, while two adjustable height settings help accommodate different shop and ceiling configurations.
Backed by Olympic's published 10-year limited structural warranty, the 2PAS-10 is designed for professional automotive environments that require a dependable 10,000 lb vehicle lift.
CERTIFICATION & OFFICIAL RESOURCES
The Olympic 2PAS-10 is CE-certified and is Olympic's ALI-certified lift model. Verify the current listing in the ALI Directory of Certified Lifts and confirm the gold certification label on the delivered unit.
Use the current drawing, manual and identification plate for dimensions, capacity, installation, operation, inspection and maintenance.
SHIPPING INFORMATION
The lift structure and hydraulic power unit may be packaged separately.
Commercial delivery locations must have suitable unloading equipment available.
- A forklift or similar unloading equipment is required at delivery.
- Inspect all packages for freight damage before signing the delivery receipt.
