Olympic Equipment Four Stacker 4-Level Car Storage Parking Lift 4032-4
Olympic Equipment Four Stacker 4-Level Car Storage Parking Lift 4032-4 is backordered and will ship as soon as it is back in stock.
Product Features
- 9 Drip Trays Included
- Push-Button Controls
- Auto Locks Every Level
- Anti-Fall Safety Rods
- 10-Year Warranty
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Olympic Equipment Four Stacker 4-Level Car Storage Parking Lift 4032-4
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
"THE FOUR-STACKER" 4-Level Car Parking Lift
High-density parking solution designed for long-term vehicle storage.
Model: 4032-4. "The Four-Stacker Car Storage Lift is designed for multi-vehicle storage. Features Olympics' exclusive heavy-duty single-channel ladder locking system and electric button controls. The unique anti-failure locking system ensures safety. The overall load capacity is 14,300 Lbs. (L2-5,500, L3-4,400, L4-4,400).
Quadruple your parking space with the 4032-4 Car Stacking lift!
The Four-Stacker is designed to stack and store four vehicles in one parking space. Maximizes vertical space by stacking vehicles across one ground level and three elevated platforms. Ideal for residential, commercial, and fleet applications where space efficiency is critical. Features reliable mechanical operation, automatic locking at every level, and simple push-button or key-switch control.
*Special Order Only. See Company Policies for more details.

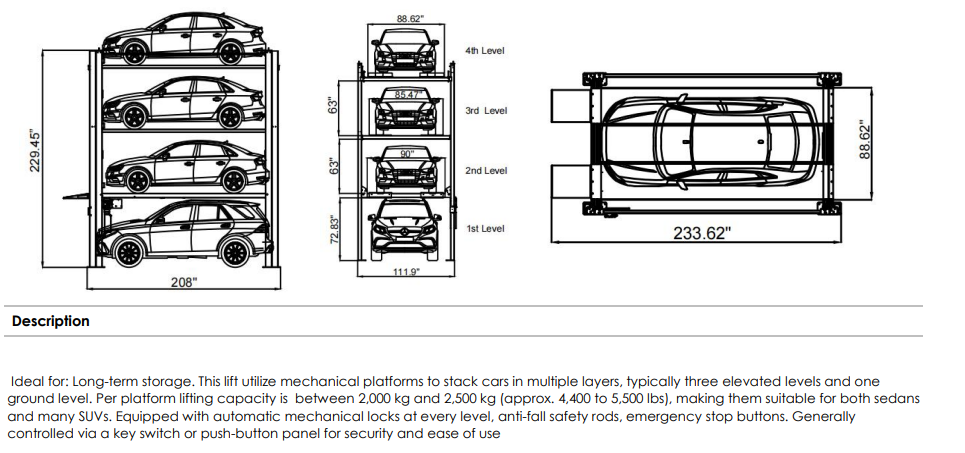

Key Dimensions: Overall Height 229.45" | Overall Width 119" | Overall Length 233.62" | Platform Width 88.62" | Platform Length 196.85"
Key Features
- 4 parking levels (1 ground + 3 elevated platforms)
- Per-platform capacity: 5,500 & 4,400 lbs X2.
- High-quality Q235 spec structural steel
- Designed for long-term parking and vehicle storage
- Mechanical platform lifting system
- Automatic mechanical locks at every level
- Compact footprint with maximum vertical efficiency
- Anti-fall safety rod system
- Limiting switch for automatic stop
- Includes emergency stop function
- Includes nine drip trays

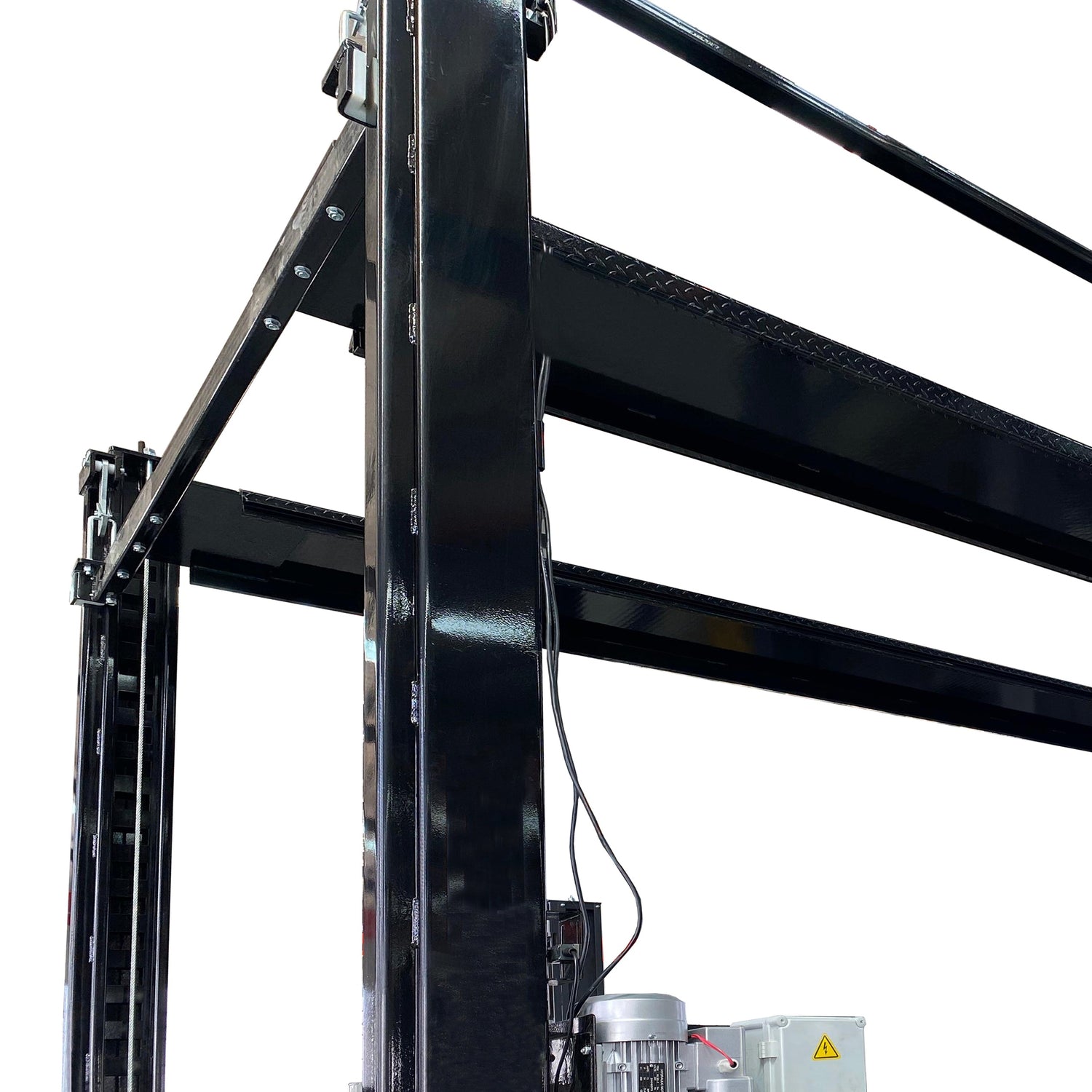

- Includes Aluminum 220V 3KW 4-horsepower 60Hz power unit
-
Includes electric push-button controls
- Compact footprint with maximum vertical efficiency
Specifications
| Product Type | 4-Level Mechanical Parking Lift |
|---|---|
| Total Levels | 4 (1 Ground + 3 Elevated) |
| Vehicle Compatibility | Sedans and many SUVs |
| Overall Height | 229.45" |
| Overall Width | 111.9" |
| Overall Length | 208" |
| Platform Width | 88.62" |
| Drive-Thru Width – 1st Level | 111.9" |
| Drive-Thru Width – 2nd Level | 90" |
| Drive-Thru Width – 3rd Level | 85.47" |
| Drive-Thru Width – 4th Level | 88.62" |
| Vehicle Clearance – 1st Level | 72.83" |
| Vehicle Clearance – 2nd Level | 63" |
| Vehicle Clearance – 3rd Level | 63" |
| Vehicle Clearance – 4th Level | Top level (no overhead obstruction) |
| 2nd level Capacity |
5500 lbs. |
| 3rd level capacity |
4400 lbs. |
| 4th level capacity |
4400 lbs. |
| Locking System | Automatic mechanical locks at every level |
| Safety Features | Anti-fall safety rods, emergency stop system |
| Control System | Key switch or push-button operation |

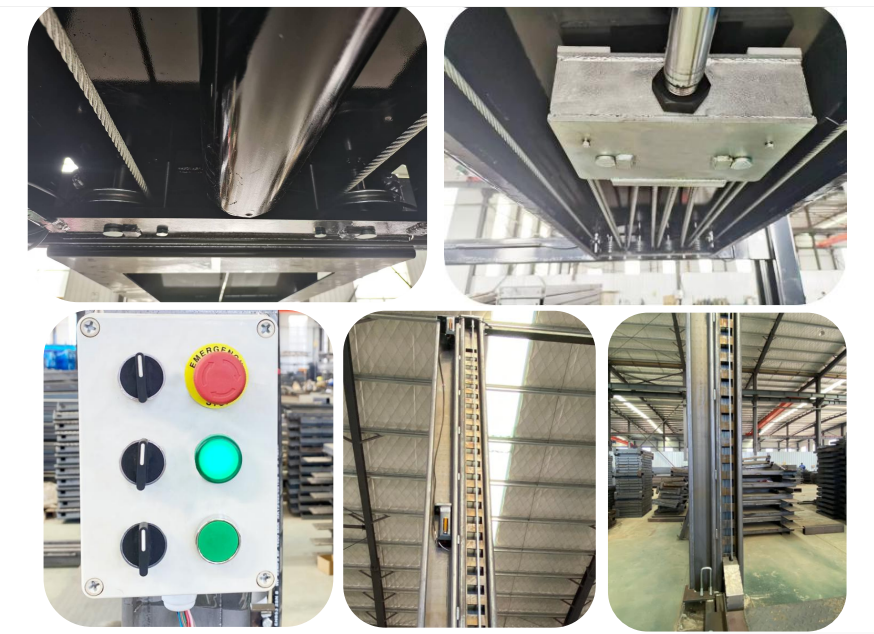

Safety & Operation

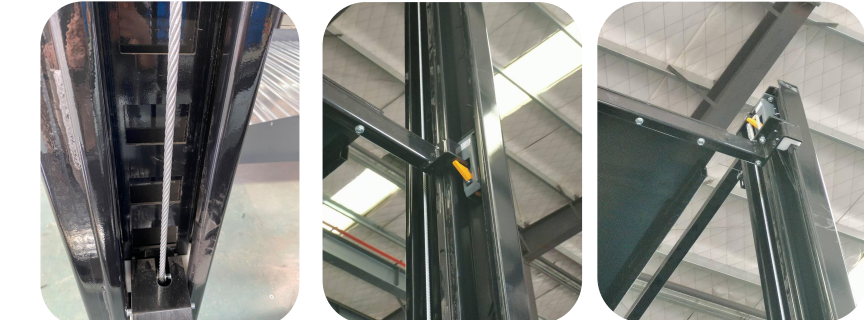

- Mechanical locking system secures platforms at every level
- Anti-fall safety rods enhance vehicle protection
- Emergency stop controls for safe operation
- User-friendly controls for smooth daily use
Why Choose This Parking Lift?
Built for durability and efficiency, this 4-level parking system delivers reliable performance while maximizing available space. It is an ideal solution for high-density parking environments requiring safe, organized, and long-term storage.
