Olympic Equipment 14,000 lb 4-Post Alignment Lift 4PHDXLA-14
Olympic Equipment 14,000 lb 4-Post Alignment Lift 4PHDXLA-14 is backordered and will ship as soon as it is back in stock.
Product Features
- Turntables + Slip Plates
- Air Lock Release
- 16,000 lb Aircraft Cables
- Italian Oil Seals
- 10-Year Warranty
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Olympic Equipment 14,000 lb 4-Post Alignment Lift 4PHDXLA-14
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description

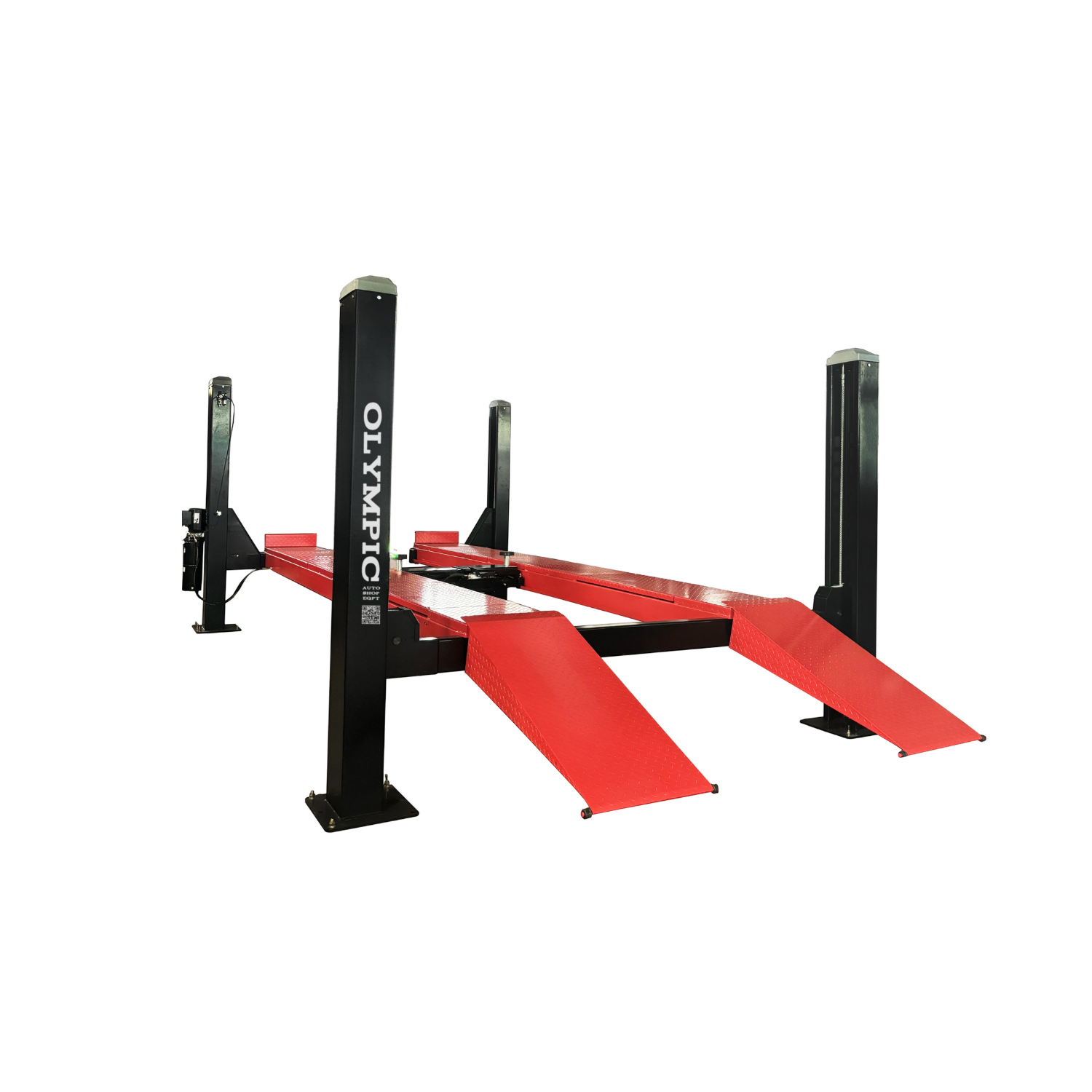

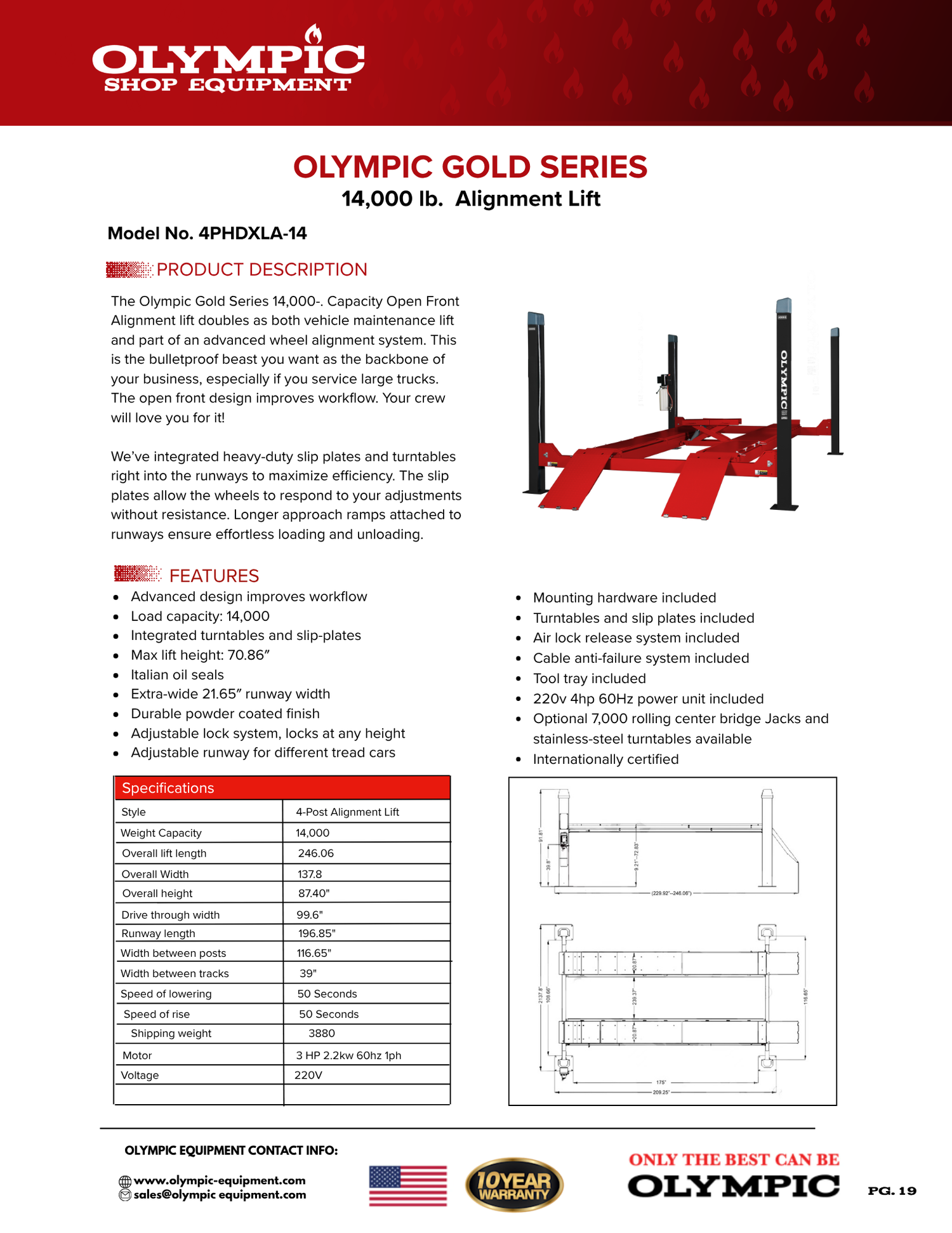

Olympic 4PHDXLA-14 / 14,000 lb. Alignment Lift
The ultimate alignment and maintenance lift for professional shops.
The Olympic 14,000-lb. capacity Alignment Lift doubles as both a car maintenance lift and a high-precision alignment system. Built for durability and heavy-duty use, it’s the bulletproof beast your business deserves, perfect for large vans, trucks, and service centers. Integrated heavy-duty slip plates and turntables make alignment operations effortless and precise.
Capacity: 14,000 lbs. | Max. Lift Height: 70.9″ | Runway Width: 21.65″
Key Features
- Industry Best 10-Year Olympic Warranty!
- Load capacity: 14,000 lbs.
- High-quality Q235 spec structural steel
- Includes turntables and slide-plates
- Max lift height: 70.9″
- Air lock release system
- 21.6″ runway width
- Cable-driven lifting system
- Adjustable lock system — locks at any height
- Cable anti-failure system for enhanced safety
- Italian oil seals
- Durable powder-coated finish
- Standard 220V power — 4HP, 3KW, 60Hz, 1PH
- Optional 7,000 lb. Bridge Jack (Part No. HLCJ-14)
Operating & Power Requirements
- Power requirement: 220V 60Hz 2.2KW or 3KW 1-phase
- Operating temperature: 5°C to 40°C
- Ambient humidity: 30% to 95% (at 40°C)
- Installation altitude: 5,500 feet/1675m above sea level
- Storage/transport temperature: -25°C to 55°C
Safety Features
- Heavy-duty cable sheaves for enhanced protection
- Spring-loaded ladder locks ensure safe, level operation
- Aircraft-grade cables rated at 16,000 lbs. (500% over load rating)
- 220V 3KW four-horsepower electric-hydraulic power unit
- Virtually maintenance-free operation
- Internationally certified, tested to 150% of rated capacity
Additional Notes
Optional Bridge Jack: 7,000 lbs. (Model HLCJ-14). A pair of jacks allows full vehicle to lift for wheel and brake service. Each jack includes telescoping arms, stackable adapters, and built-in safety locks for superior versatility.
Installation: Forklift required during setup.

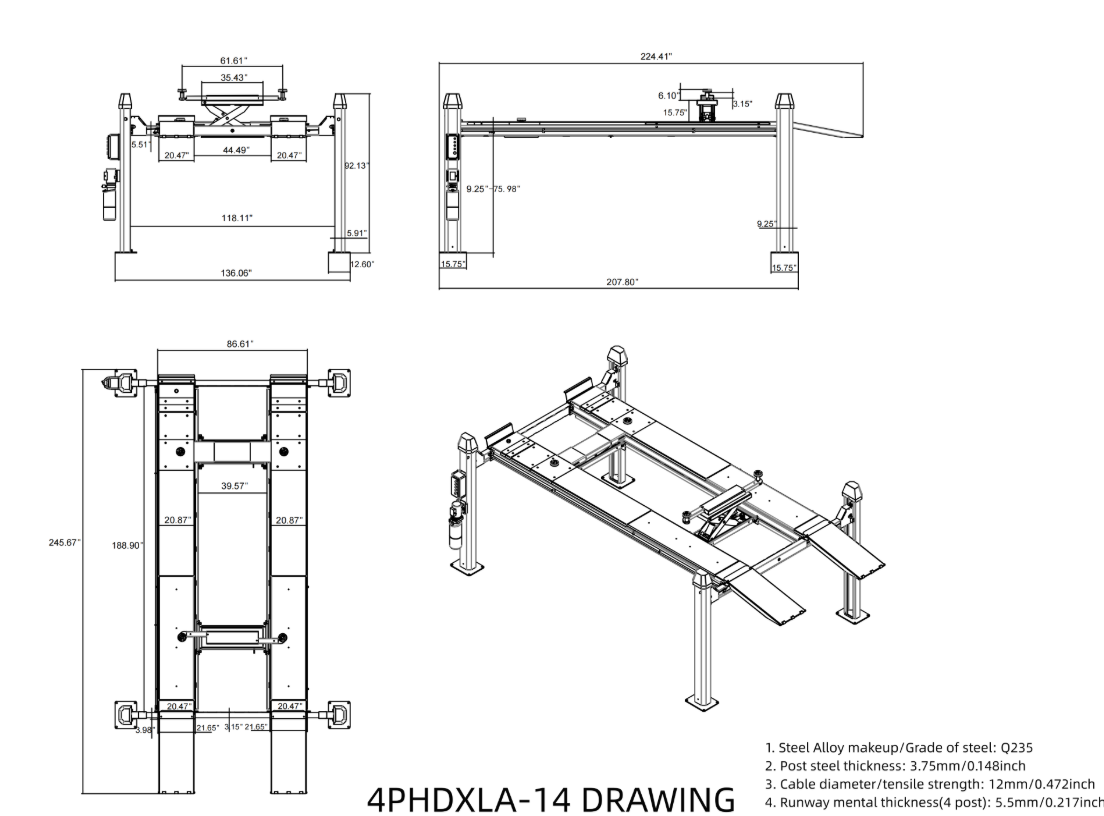

Specifications
| Overall Width | 137.8″ |
|---|---|
| Drive Through Width | 99.60″ |
| Overall Height | 87.40″ |
| Width Between Posts | 116.65″ |
| Runway Width | 21.65″ |
| Width Between Tracks | 39″ |
| Lifting Height | 70.86″ |
| Overall Length | 246.06″ |
| Runway Length | 196.85″ |
| Shipping Weight | 3,880 lbs. |
| Load Capacity | 14,000 lbs. |
Why Choose an Olympic Lift?
When performance and reliability matter, Olympic delivers. Our lifts are designed, built, and tested to exceed industry standards, ensuring your investment stands the test of time. Internationally certified and tested at 150% of rated capacity, because your shop deserves the best.
