AMGO 071109 110V/60HZ Single Phase Manual Power Unit
AMGO 071109 110V/60HZ Single Phase Manual Power Unit - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
4th of July Sale
Up to15% OffPrices are already marked down sitewide. Add code JULY4 at checkout for an extra 4% off.
AMGO 071109 110V/60HZ Single Phase Manual Power Unit
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
AMGO 071109 110V/60HZ Single Phase Manual Power Unit
The AMGO 071109 Single Phase Manual Power Unit is built for demanding lift applications where dependable hydraulic performance and everyday usability both matter. Designed for 110V/60Hz single-phase operation, this unit delivers the power needed to run larger four-post parking lifts and boat storage lifts while still offering the convenience of standard 110V service.

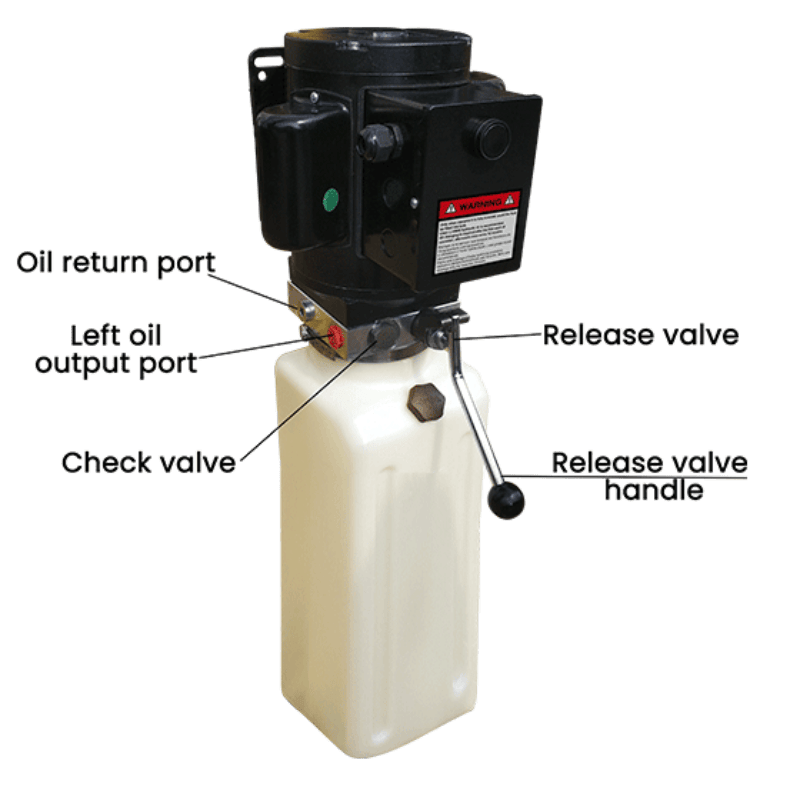

With an 11L high-density polyethylene oil tank, a manual Detrol release valve, and a high-pressure gear pump, the 071109 is made to provide stable lifting performance, controlled lowering, and long-term reliability. It is a practical, hardworking solution for users who need strong hydraulic support without stepping up to more complex electrical requirements.
Compatible AMGO Lift Models
This power unit is compatible with the following AMGO lift models:
- 409-HP
- 409-DP
- 409-DPX
- 408HLX
Key Highlights
- Built for Demanding Applications: Designed to power larger four-post parking lifts and boat storage lifts with confidence.
- 110V Single-Phase Operation: Delivers reliable hydraulic performance while working with standard 110V power.
- ETL Certified: Meets recognized safety and performance standards for added peace of mind.

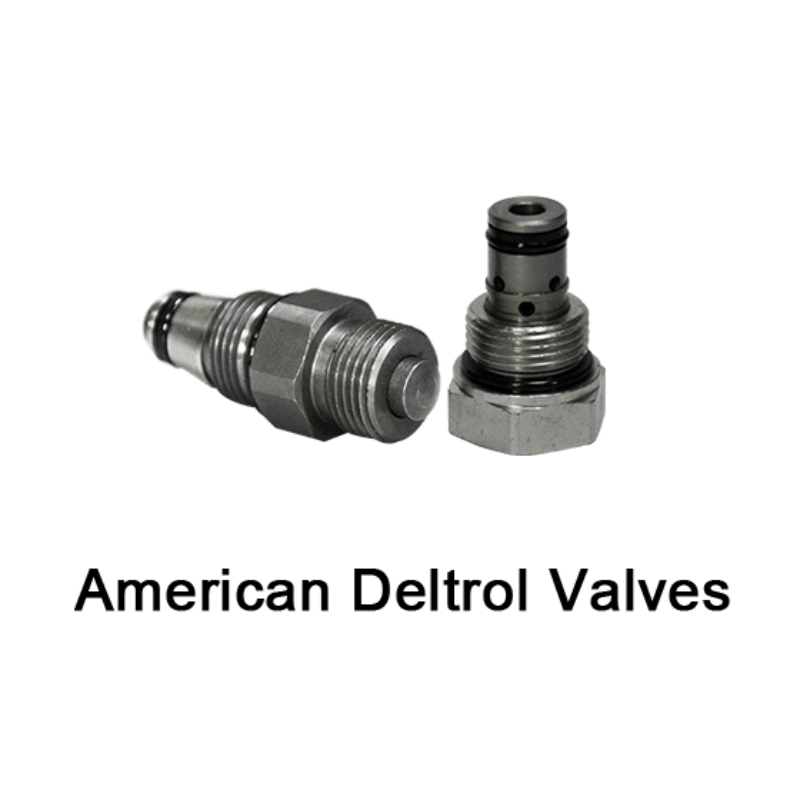

- Manual Detrol Release Valve: Provides dependable, straightforward lowering control.
- 11L Oil Tank: High-density polyethylene reservoir supports stable hydraulic performance for larger lift systems.
- High-Pressure Gear Pump: Features 0.8cc/r displacement with maximum pressure up to 25MPa.

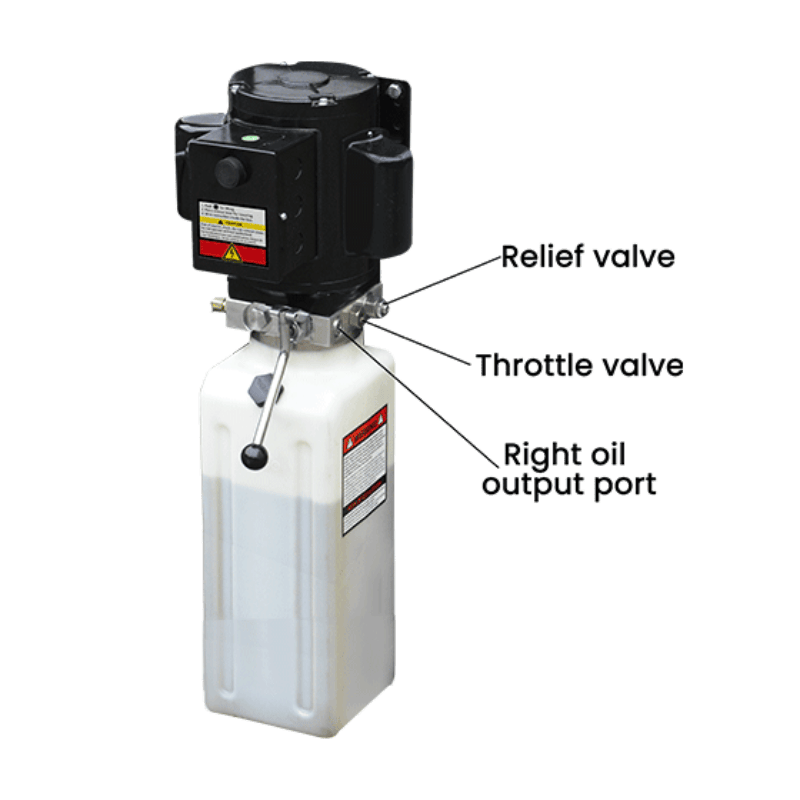

- 21MPa Relief Pressure Setting: Plug-in high-pressure relief valve helps protect the system during operation.
- Adjustable Reflux Speed: Throttle valve allows smoother and more controlled return flow.
- Dual-Side Oil Outlet: Oil outlet ports on both sides simplify installation and hose routing.
- Long Service Life: Built for longevity with easy maintenance in mind.
Performance & Control
The AMGO 071109 is designed to give larger lift systems the hydraulic support they need without sacrificing simplicity. Its high-pressure gear pump provides dependable output, while the manual Detrol release valve gives operators direct and predictable control during descent. That combination makes everyday use feel smooth, stable, and easy to manage.
For parking lifts and boat storage lifts, that kind of consistency matters. You want a unit that raises with confidence, lowers with control, and keeps doing its job over the long haul. This one is built for exactly that.
Designed for Larger 110V Lift Applications
Finding a 110V power unit capable of supporting larger lift systems can be a challenge. The 071109 fills that need by pairing standard-voltage convenience with a larger 11L reservoir and a durable hydraulic design. It is especially well-suited for users who need more lifting support than a compact light-duty unit can offer, but still want the accessibility of 110V power.
The larger tank helps support consistent hydraulic operation, while the dual-side oil outlet design adds flexibility during installation. In practical terms, that means easier setup, reliable performance, and less hassle over time.
Why Choose the 071109
- Built to power larger four-post parking lifts and boat storage lifts
- 110V single-phase setup offers convenient installation options
- Larger 11L tank supports dependable hydraulic performance
- Manual release valve provides simple, reliable descent control
- Durable construction designed for long-term use
- Flexible plumbing with oil outlets on both sides
Ideal Applications
The AMGO 071109 is ideal for homeowners, storage facility operators, marina users, and lift owners who need reliable hydraulic power for larger four-post parking lifts or boat storage lifts. It is a strong fit for installations where 110V power is preferred, but dependable performance for larger equipment is still essential.
Specifications
| Model | 071109 |
| Part No. | 071109 |
| Voltage | 110V Single Phase |
| Frequency | 60Hz |
| Power | 1.0HP |
| Pressure | 21MPa |
| Maximum Pressure | Up to 25MPa |
| Displacement | 0.8cc/r |
| Tank Capacity | 11L |
| Oil Outlet | 3/8SAE |
| L | 31 7/16" |
| L1 | 9 5/16" |
| L2 | 22 3/16" |
Final Word
The AMGO 071109 is a dependable 110V manual power unit built for lift owners who need more than basic performance. With its larger 11L tank, reliable manual control, strong hydraulic capability, and installation-friendly design, it is well equipped to power larger parking and boat storage lifts with confidence. For demanding 110V applications, this is a durable, practical solution that is ready to work.
