AMGO 409-HPX 9,000 lbs Boat storage lift
AMGO 409-HPX 9,000 lbs Boat storage lift - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
4th of July Sale
Up to15% OffPrices are already marked down sitewide. Add code JULY4 at checkout for an extra 4% off.
AMGO 409-HPX 9,000 lbs Boat storage lift
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Overview
Bigger boats demand bigger capability. The AMGO 409-HPX Boat Storage Lift steps up with a commanding 9,000 lb lifting capacity and an extended frame designed specifically for longer, heavier vessels. Whether you’re freeing up dock space, maximizing indoor storage, or protecting your investment during the off-season, the 409-HPX delivers confident elevation with engineered precision.
With 16 inches more length than the 408-HPX, enhanced structural support, and AMGO’s proprietary concealed lock-control system, this lift isn’t just larger—it’s smarter, safer, and purpose-built for serious marine storage.
Key Highlights
- True 9,000 lb Capacity: Designed to handle heavier boats and trailers with stability.
- Extended-Length Design: 16" longer than the 408-HPX—ideal for longer hulls and trailer setups.

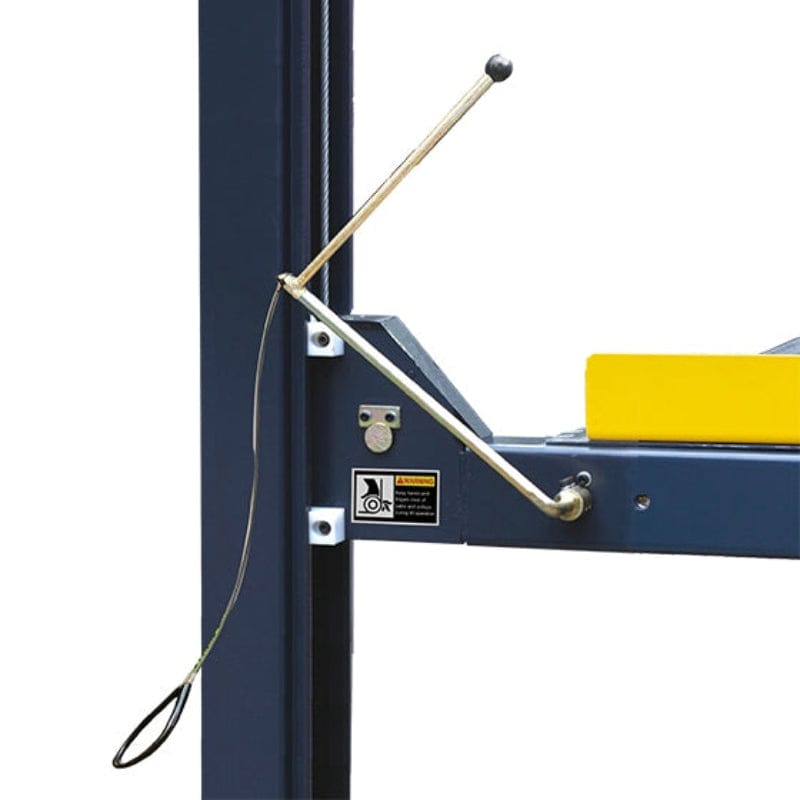

- Proprietary Concealed Lock System: Manual single-point release—no air source required.

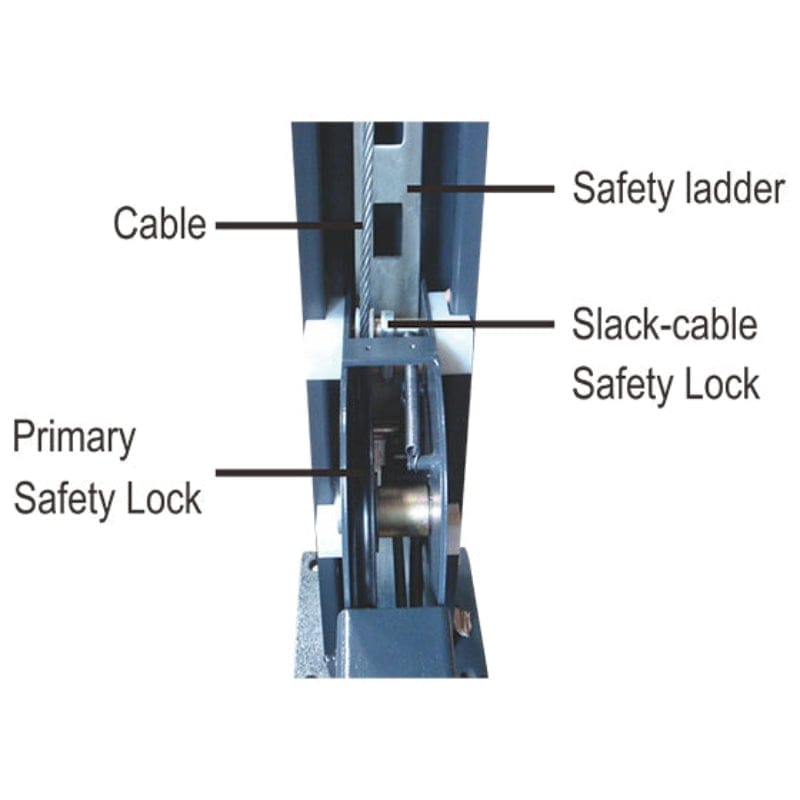

- Dual Safety Mechanisms: Primary safety locks plus cable-slack protection for added security.

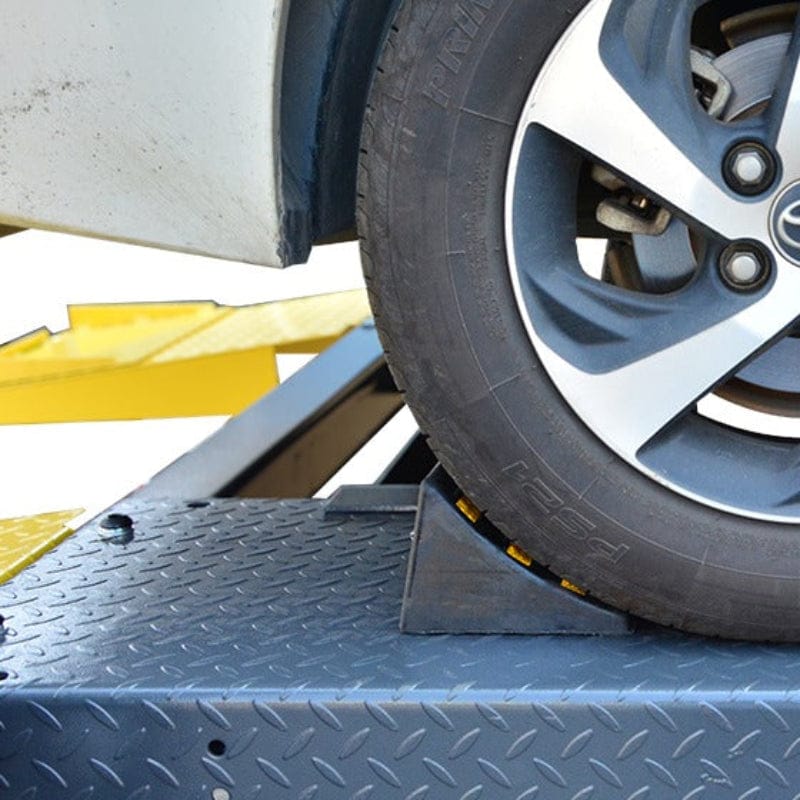

- Integrated Diamond Platforms: Non-skid surface for confident footing and trailer grip.

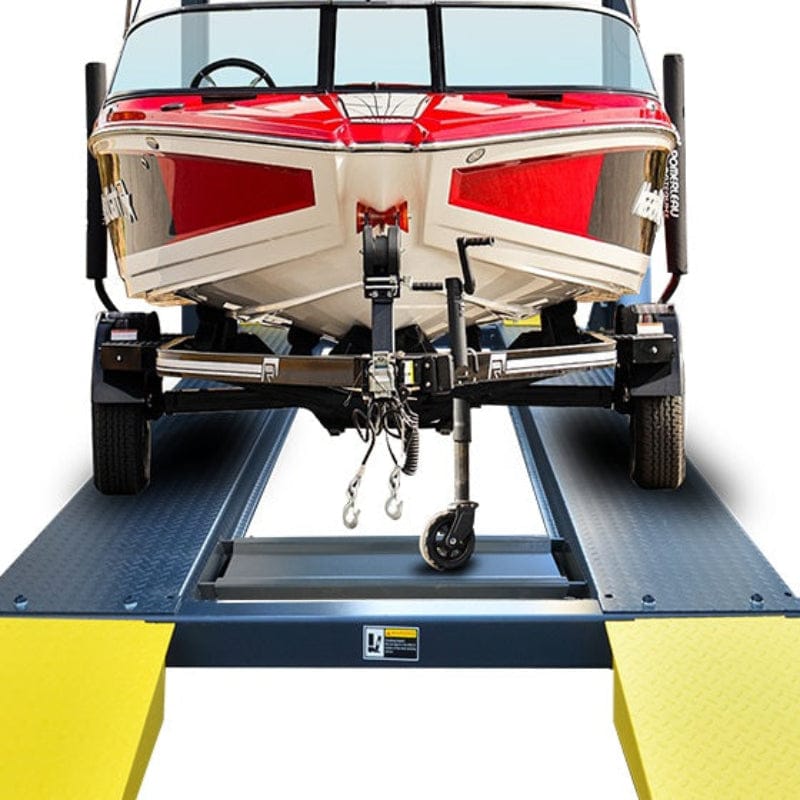

- Adjustable Runway Width: Two-width settings to accommodate various trailer configurations.

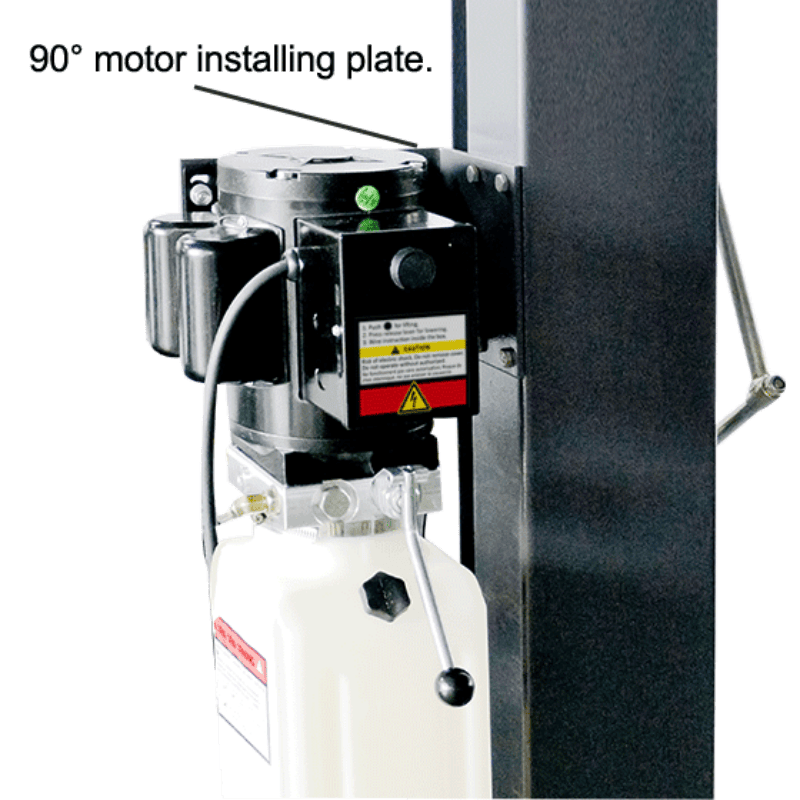

- Flexible Power Unit Mounting: Install the power unit at any corner to suit your layout.

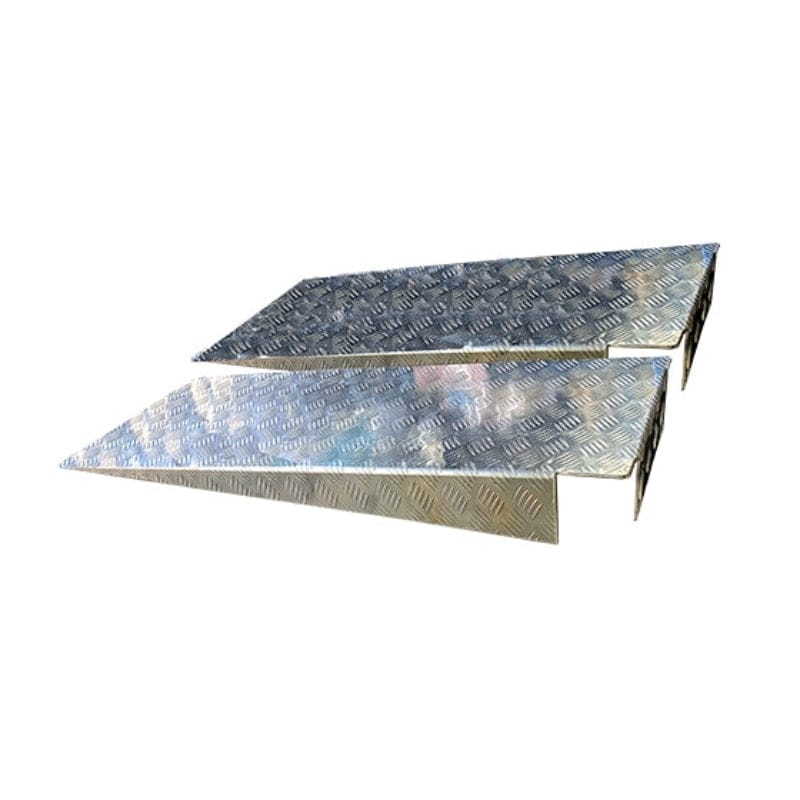

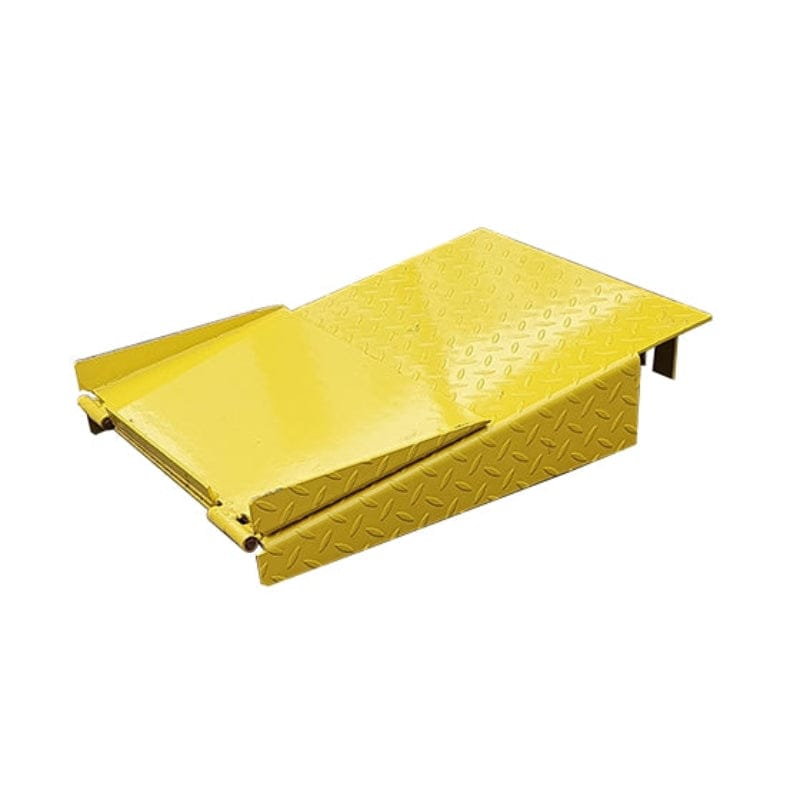

- Foldable Drive-In Ramps: Standard ramps simplify loading and conserve space when not in use.

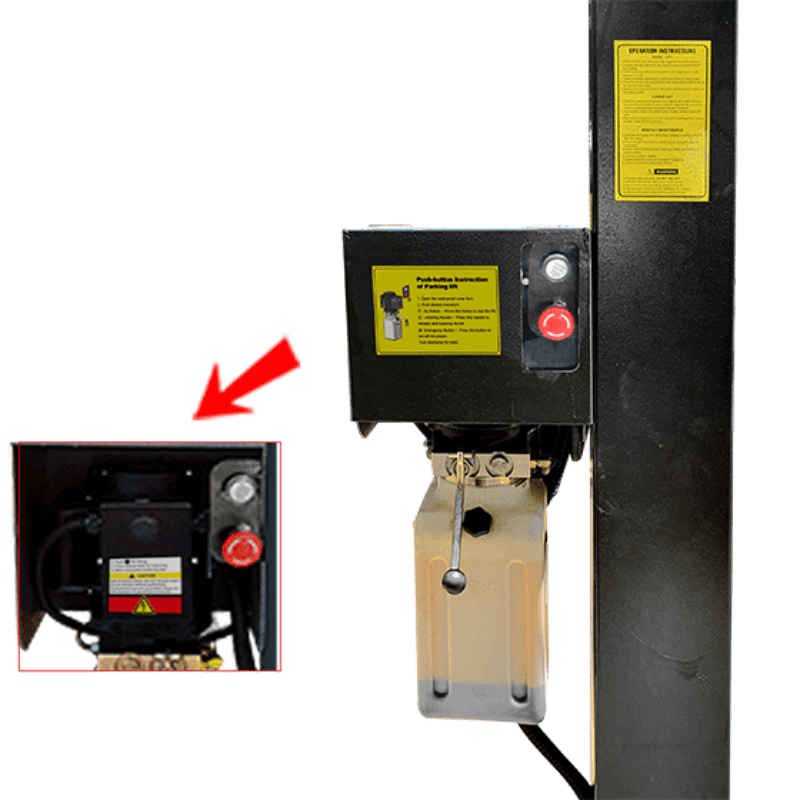

- ETL Certified Power Unit: 2.0HP motor, 220V/60Hz for dependable lifting performance.
Built for Secure Marine Storage
Storage isn’t just about lifting—it’s about trust. The 409-HPX combines structural rigidity with precision locking to create a secure elevated platform for your boat. The concealed lock-control device keeps mechanisms protected and streamlined, while the manual single-point release ensures smooth, straightforward operation.

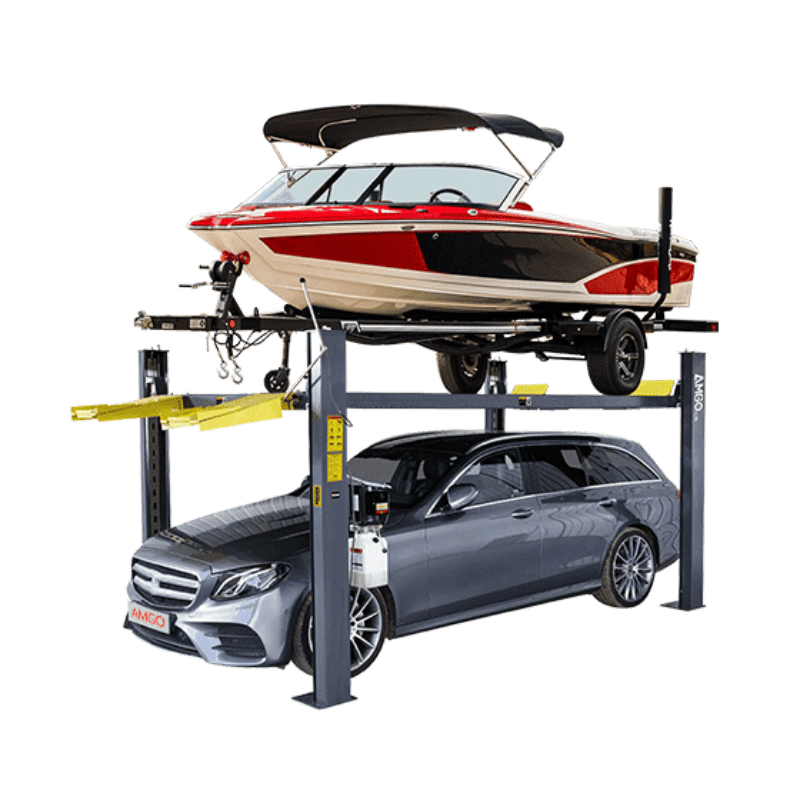

With up to 88 1/16" of lifting height and over 82" of clearance underneath, this lift transforms vertical space into usable storage—freeing the ground below for equipment, trailers, or additional vehicles.
How You’ll Use It (Everyday Workflow)

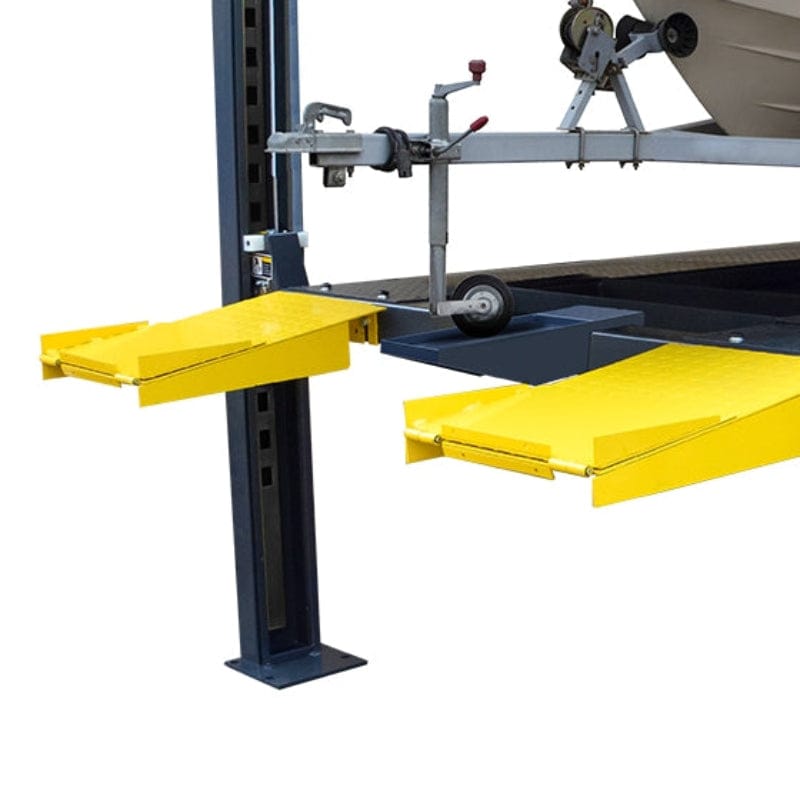

- Drive onto the diamond platforms using the foldable approach ramps.
- Adjust runway width to match your trailer setup.
- Activate the 2.0HP power unit—lifting to your desired height in approximately 57 seconds.
- Set the lift onto the mechanical locks for secure long-term storage.
- Utilize the open space below for additional storage or workspace.
Specifications
| Model | 409-HPX |
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 57 seconds |
| Overall Length (Incl. Ramps) | 238 1/8" |
| Overall Length (Without Ramps) | 204 11/16" |
| Overall Width | 131 7/8" |
| Width Between Posts | 122 3/16" |
| Max Lifting Height | 88 1/16" |
| Max Locking Height | 85 5/16" |
| Overall Height | 96 5/8" |
| Minimum Height | 6 1/8" |
| Max Underneath Height | 82 9/16" |
| Drive-Thru Clearance | 111" |
| Width Between Runways | 46 1/2" – 64 15/16" |
| Outside Edge of Runways | 86 1/2" – 104 15/16" |
| Motor | 2.0HP, 220V / 60Hz (ETL Certified) |
| Gross Weight | 2,061 lbs |
Installation & Configuration
Designed with flexibility in mind, the 409-HPX allows the power unit to be mounted at any corner—adapting to your garage, marina, or warehouse layout. Adjustable runway widths and foldable ramps make it compatible with a wide range of boat trailers, from narrower frames to extended tandem-axle setups.
Warranty
The AMGO 409-HPX is backed by the manufacturer’s warranty for confidence and long-term reliability. For full warranty terms, coverage details, and support information, please contact us directly.
Shipping & Notes
Gross weight: 2,061 lbs. Ships securely packaged for freight delivery. Container quantity: 12 units per 20' GP container.
Lift it high. Lock it in. Store smarter with the strength and extended reach of the AMGO 409-HPX 9,000 lb Boat Storage Lift.
