AMGO 4097X 9,000 lbs Triple Parking lifts
AMGO 4097X 9,000 lbs Triple Parking lifts - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
4th of July Sale
Up to15% OffPrices are already marked down sitewide. Add code JULY4 at checkout for an extra 4% off.
AMGO 4097X 9,000 lbs Triple Parking lifts
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

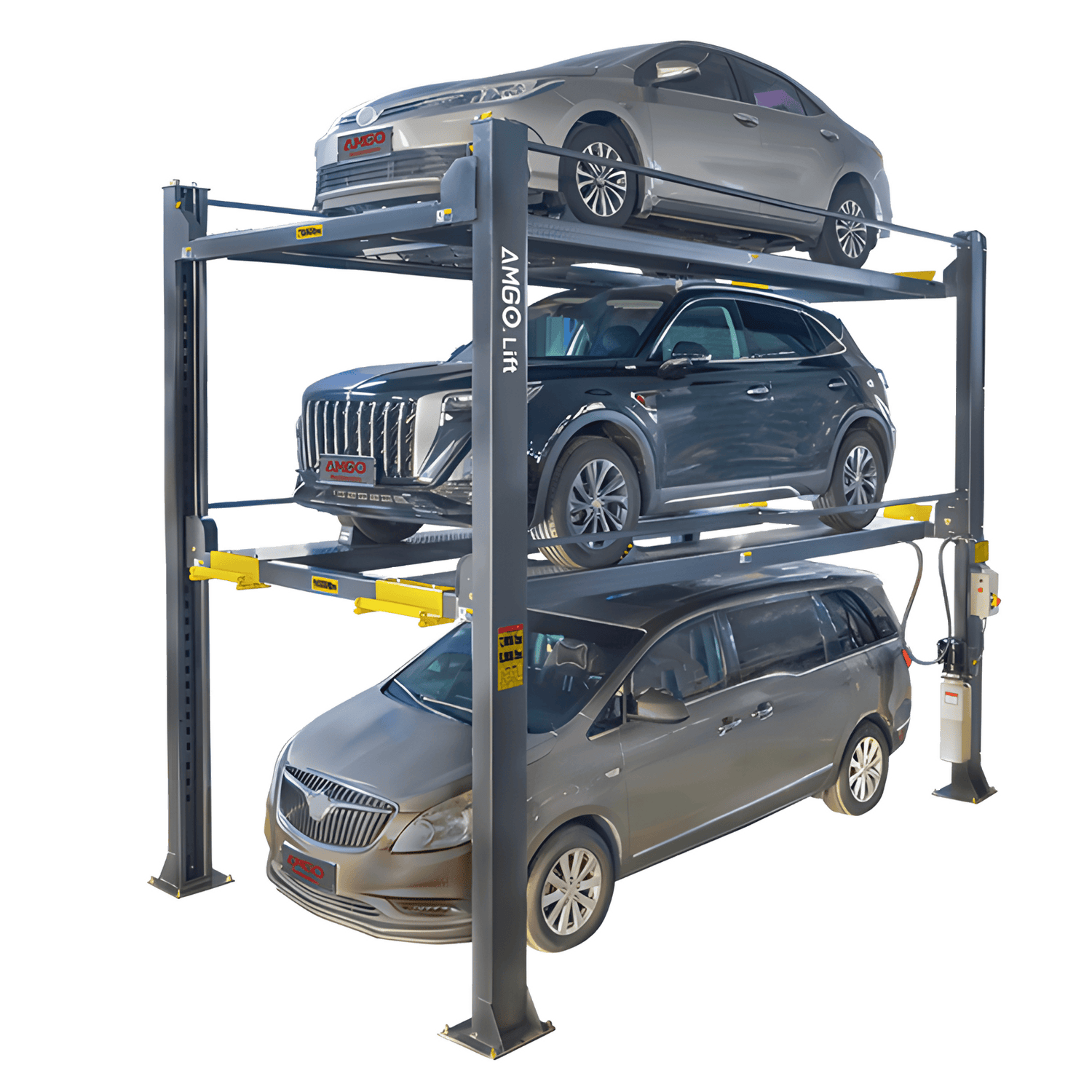

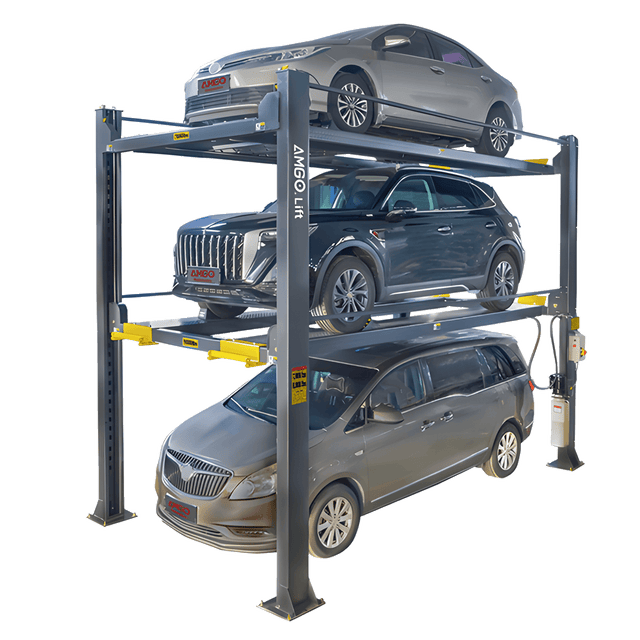

The AMGO 4097X is a four-post triple parking lift that stores three vehicles in the footprint of a single bay — one on the upper platform, one on the lower platform, and a third driven in at floor level once both platforms are raised. The lower platform is rated at 9,000 lb and the upper at 7,000 lb. AMGO Hydraulics has built car lifts for over 30 years and backs the 4097X with the 5-3-2 warranty: five years on the steel structure, three years on hydraulic parts, and two years on the power unit and other electrical components.
The platforms sit just 7 1/16" off the floor at minimum height, thanks to an embedded-platform design that lets one set of drive-in ramps serve both lower and upper levels. The ramps are proprietary multi-functional units that double as tire stops once the vehicle is parked, and they detach without tools when ground-level access is needed underneath. Drive-through clearance under the lifted upper platform measures 82 1/16".
Double safety locks engage on both upper and lower platforms during operation. Built-in safety devices protect the parked vehicle from collision while the lower platform is in motion and prevent the upper and lower platforms from separating during descent. Operation runs from a side-mounted control box with fingertip push-button lock release — no manual lever at the column. The 2.0 HP power unit is ETL Certified and runs on 220V single-phase 60 Hz service.
Each 4097X ships as a single packaged unit, or as a three-unit bundle for multi-bay installations. The system arrives via standard freight.
Features
- Patented design with double safety locks on both upper and lower platforms
- Independent platform ratings: 7,000 lb upper, 9,000 lb lower
- Embedded-platform design — one set of drive-in ramps serves both platforms; minimum height 7 1/16"
- Anti-collision safety device protects vehicles during lower-platform travel
- Anti-separation safety device keeps upper and lower platforms paired during descent
- Fingertip push-button lock release operation
- 2.0 HP, 220V/60 Hz single-phase power unit, ETL Certified
- Proprietary drive-in ramps function as both tire stop and drive-on ramp; quick assembly and disassembly
Specifications
| AMGO 4097X Triple Parking Lift Specifications | |
|---|---|
| Lifting Capacity (Upper) | 7,000 lb |
| Lifting Capacity (Lower) | 9,000 lb |
| Lifting Time | 104 seconds |
| Overall Length, including ramps (A) | 247 9/16" |
| Outside Edge of Crossbeams — Upper (B) | 197 13/16" |
| Outside Edge of Crossbeams — Lower (B) | 204 1/16" |
| Overall Width (C) | 113 15/16" |
| Width Between Posts (D) | 96" |
| Drive-Through Clearance (E) | 82 1/16" |
| Overall Height (F) | 170 1/16" |
| Minimum Height (G) | 7 1/16" |
| Max. Lifting Height (H) | 158 3/8" |
| Max. Lock Height to Top of Runway | 155 3/8" |
| Max. Height Underneath Runway (I) | 152 15/16" |
| Max. Lock Height Underneath Runway | 150" |
| Width Between Runways — Upper (J) | 37" |
| Width Between Runways — Lower (J) | 38 3/16" |
| Overall Width of Single Parking Unit — Upper (K) | 78 3/4" |
| Overall Width of Single Parking Unit — Lower (K) | 75 9/16" |
| Gross Weight (per unit) | 4,246 lb |
| Motor | 2.0 HP |
| Power Supply | 220V / 60 Hz, single-phase |
| Certification | ETL (power unit) |
Detailed Images
Shipping Information
Documents

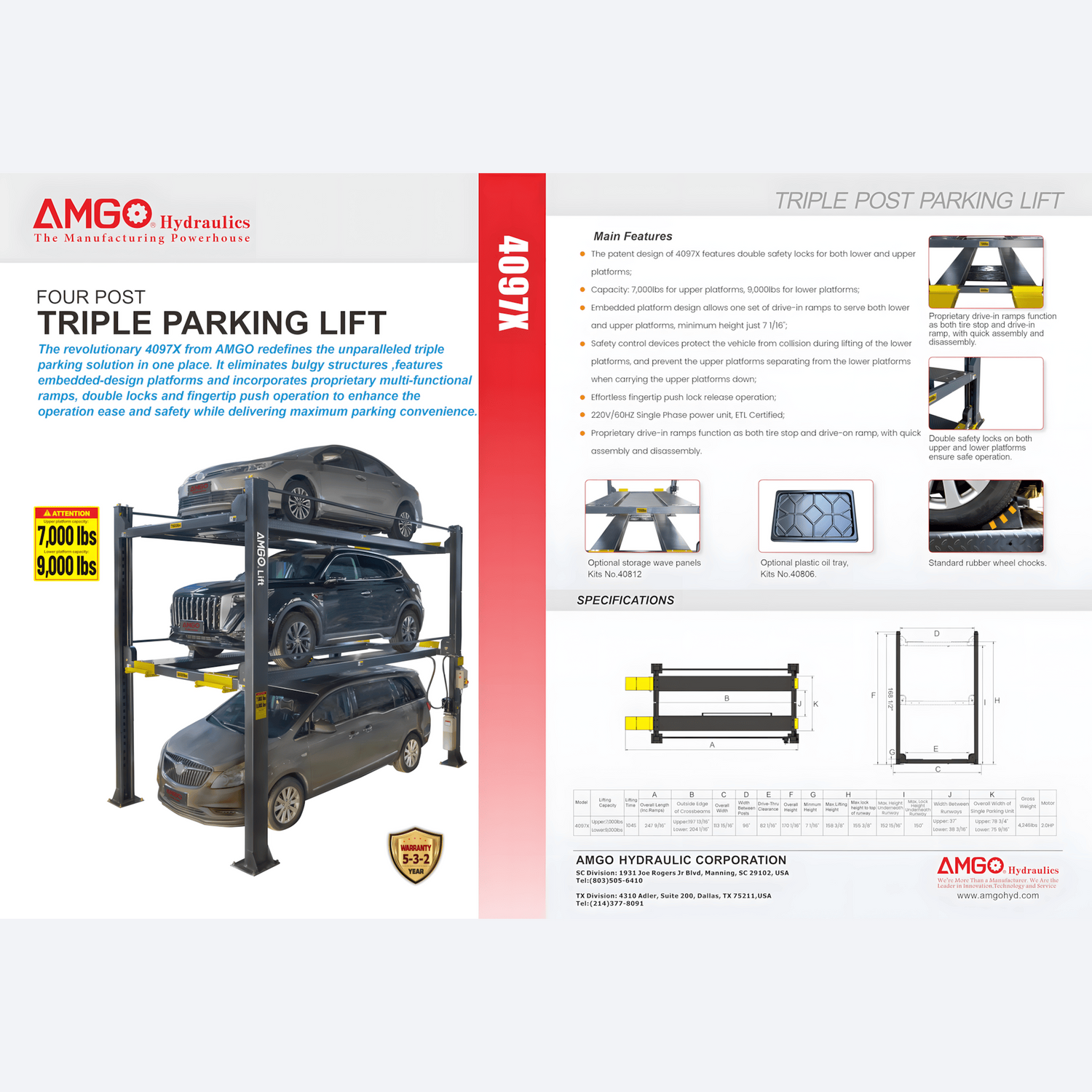

AMGO 4097X Brochure (image, opens in new tab)
AMGO 4097X Product Manual available on request — support@projectfoundry.co or call (331) 272-5655.
