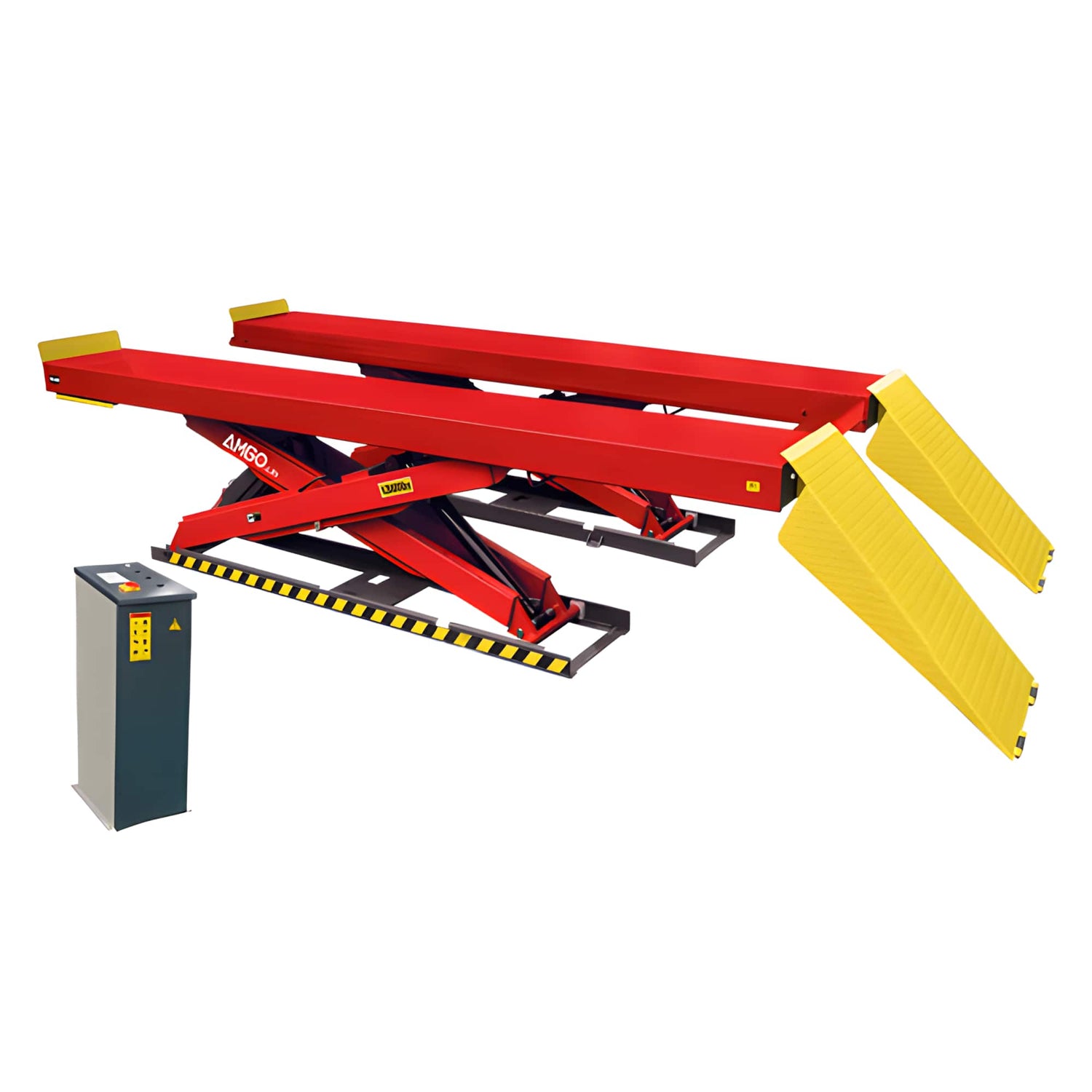

The AMGO AX-12 is a 12,000-lb full-rise scissor lift built for general service work on heavier vehicles — 3/4-ton and 1-ton trucks, vans, and SUVs in brake, exhaust, suspension, and underbody jobs. AMGO Hydraulics has manufactured automotive lifts for over 30 years, and the AX-12 carries the AMGO 5-3-2 warranty: five years on steel structure, three years on hydraulics, two years on electrical and power unit.

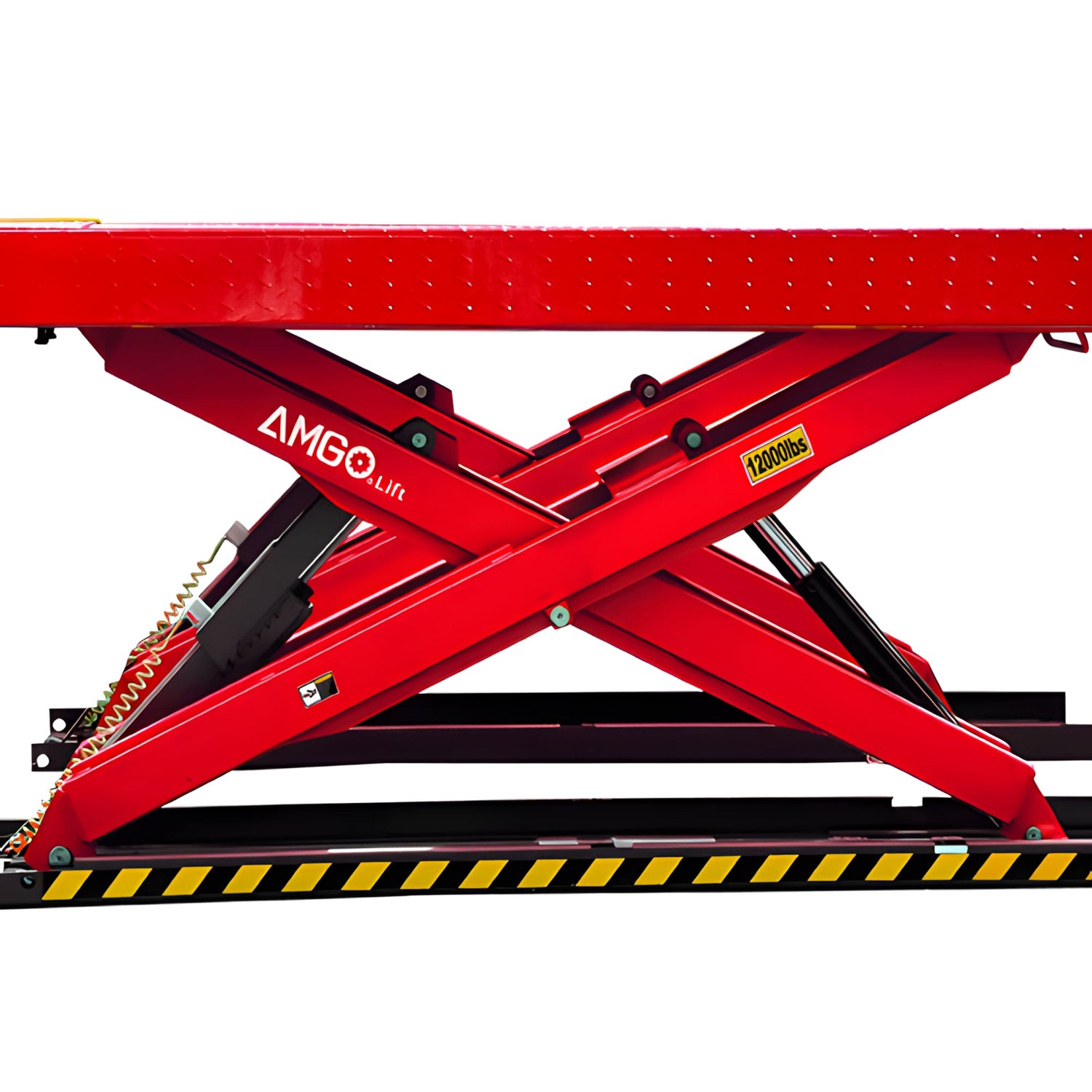

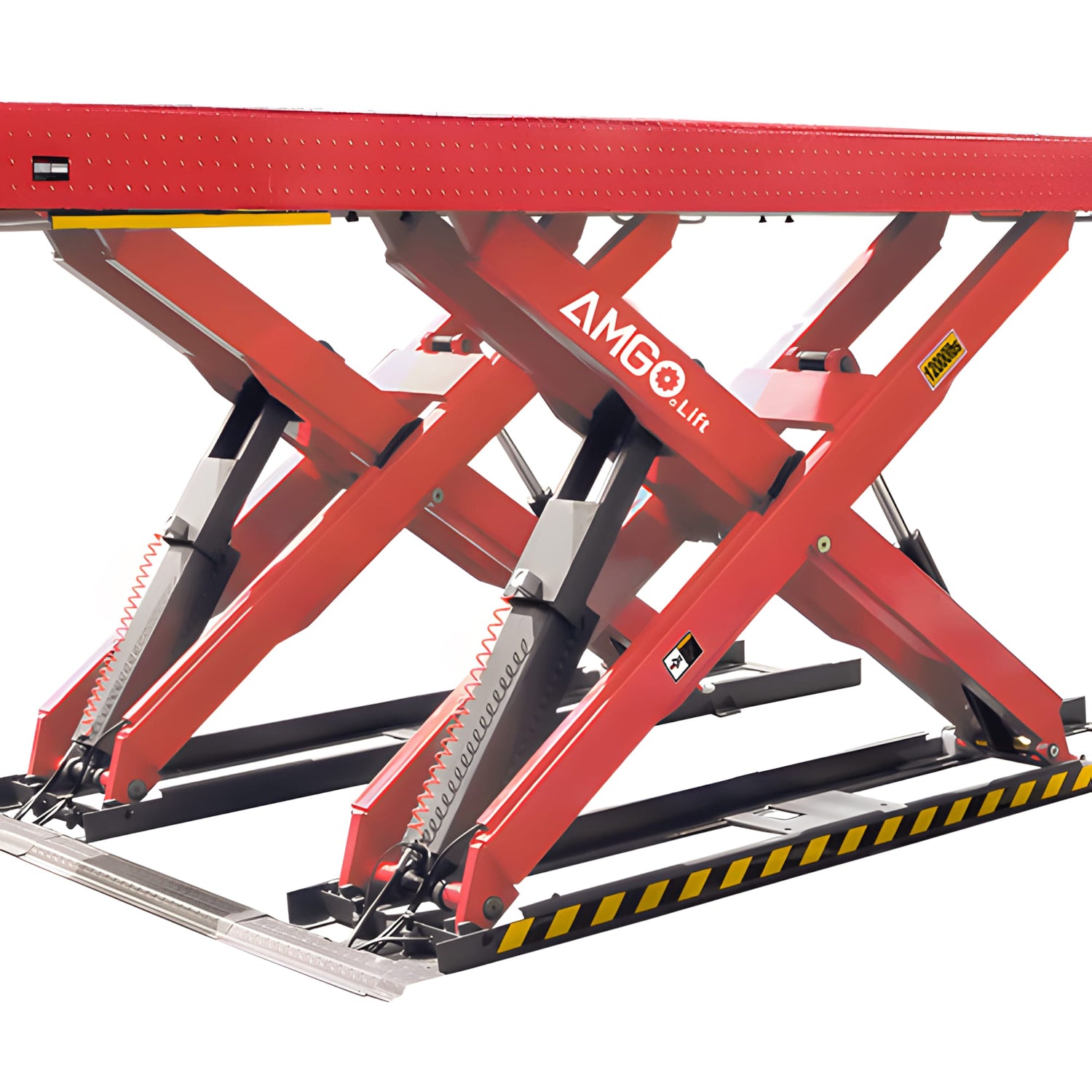

The AX-12 is built around a robust X-scissor structure of large-section steel tubes, paired with two groups of dual hydraulic cylinders in parallel. Dual cylinders equalize platform travel and prevent the rocking that single-cylinder scissor designs develop under off-center loads. The full-rise design clears 72 13/16" at maximum lift with a mechanical lock at 71 1/16", putting the vehicle at stand-up working height while the scissor geometry stays clear of the underbody.

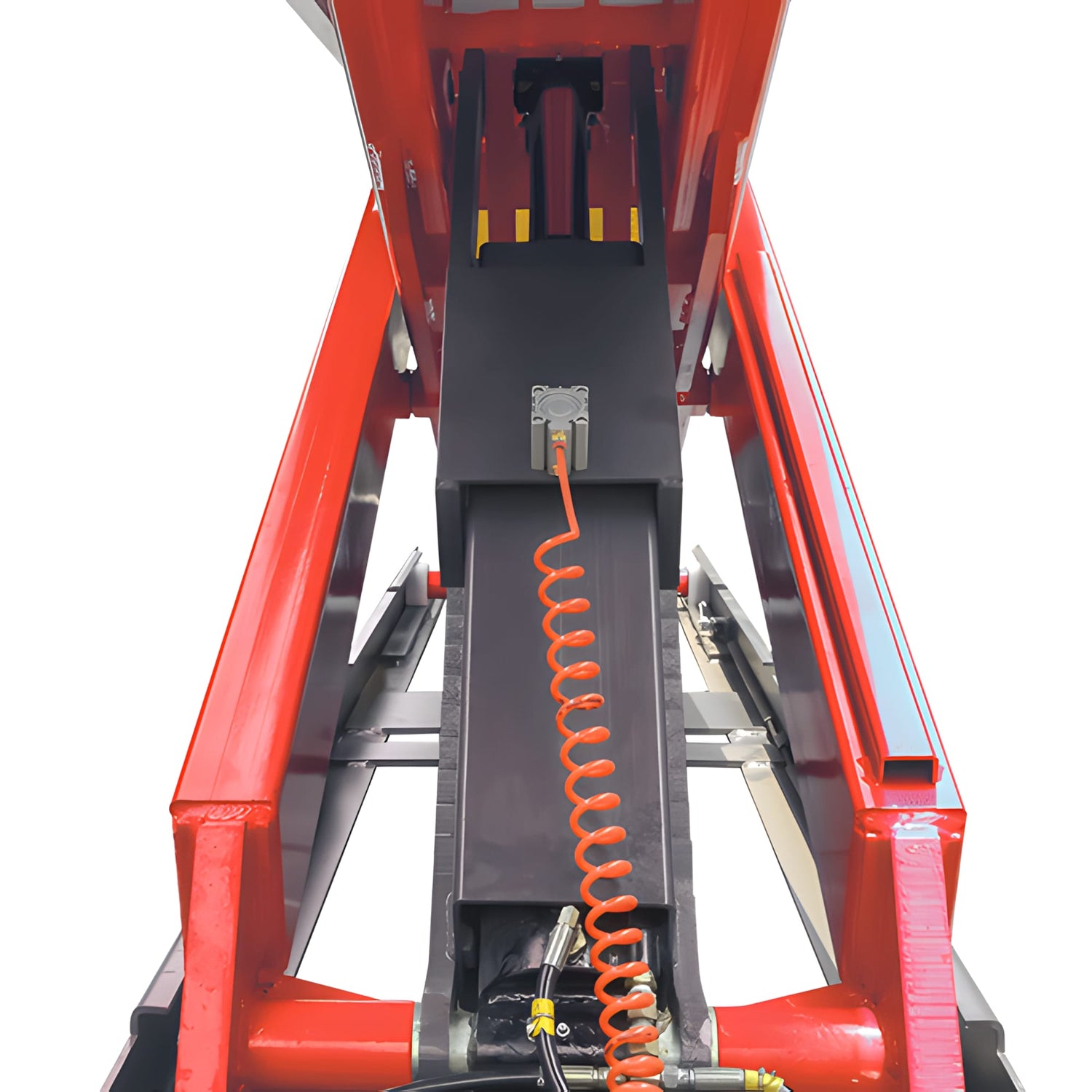

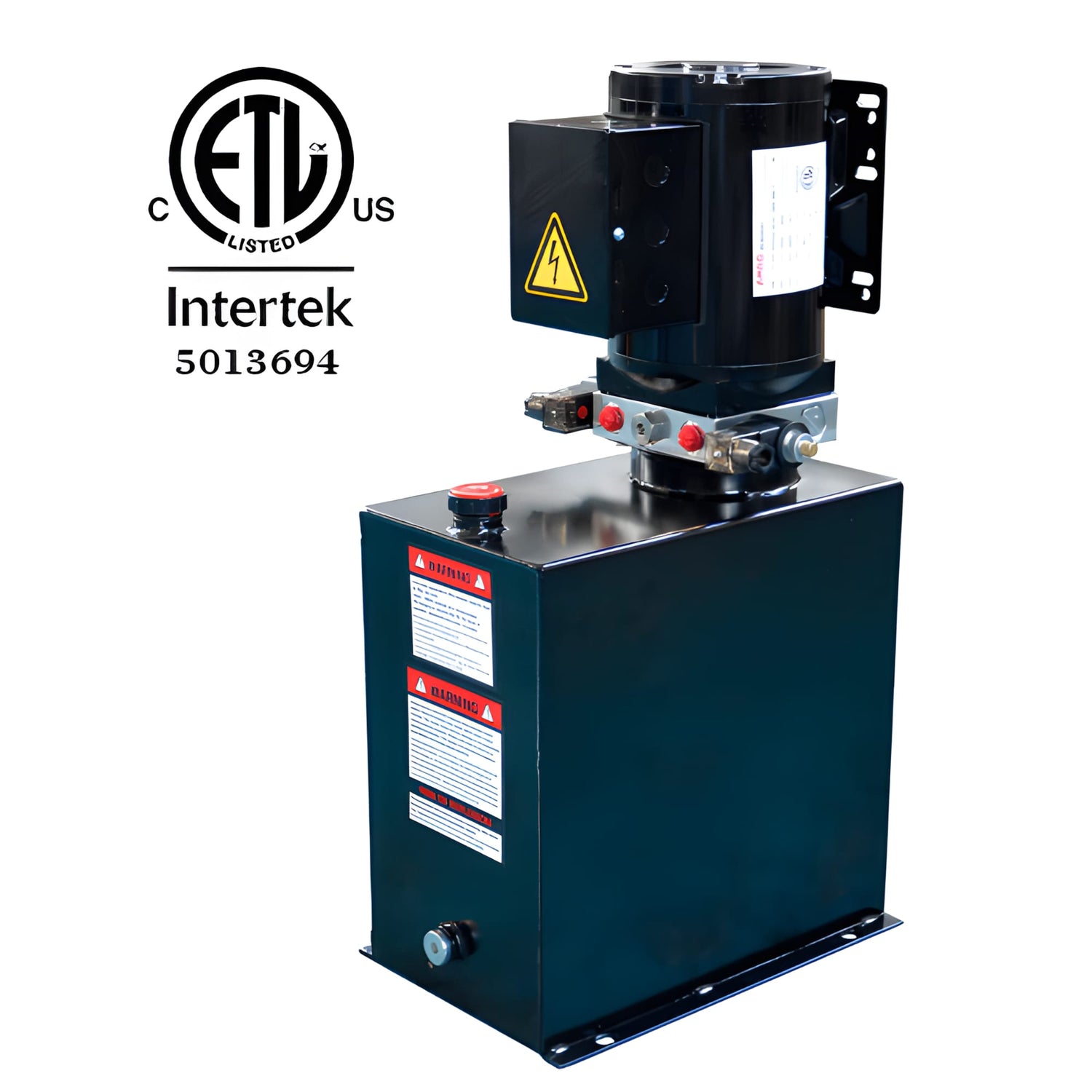

The AX-12 ships with an ETL-certified AMGO power unit (Intertek 5013694) on a 2.0 HP electric-hydraulic system. Hydraulic synchronization pairs with automatic mechanical safety locks across the lifting range; a pneumatic air release lowers the platforms with a single button. Drive-on ramps and a pull-out service tray are included.
The AX-12 ships at 4,872 lbs gross via standard freight in two lift units per crate plus a separate control cabinet carton — plan for a forklift at the delivery site. Hydraulic oil is sold separately. Optional accessories: PX001 platform extension, PX004A air line kit, and the RJ-6A 6,000-lb rolling jack.
Features
- 12,000-lb lifting capacity
- Full-rise scissor design with 72 13/16" maximum lift height
- Robust X-scissor structure fabricated from large-section steel tubes
- Two groups of dual hydraulic cylinders with synchronized platform movement
- Automatic mechanical safety locks across the lifting range
- Pneumatic air-release single-button lowering
- ETL-certified AMGO power unit (Intertek 5013694)
- 2.0 HP electric-hydraulic power system
- Non-slip extended platforms for a wide vehicle range

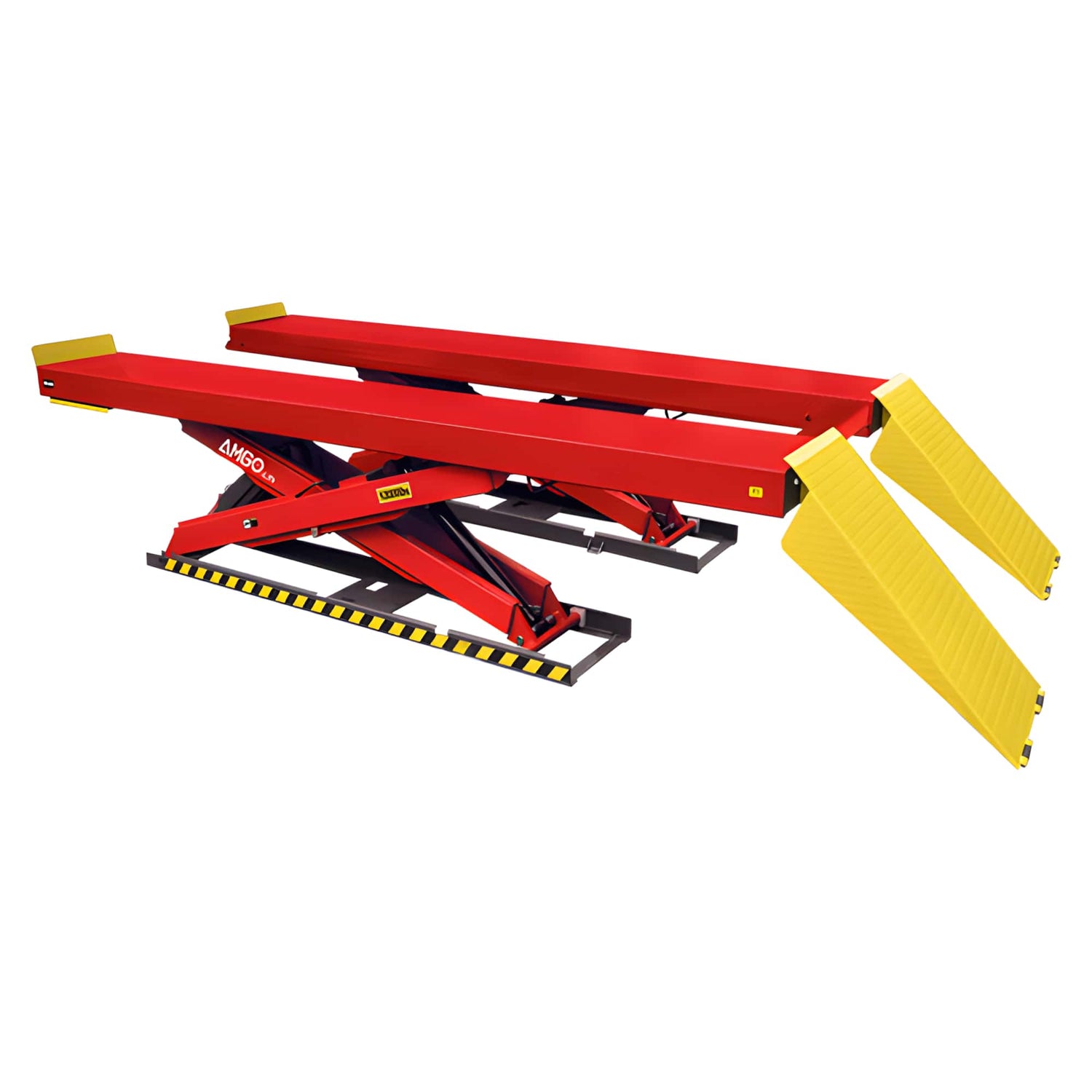

- Drive-on ramp assemblies included (P/N: 11530617)

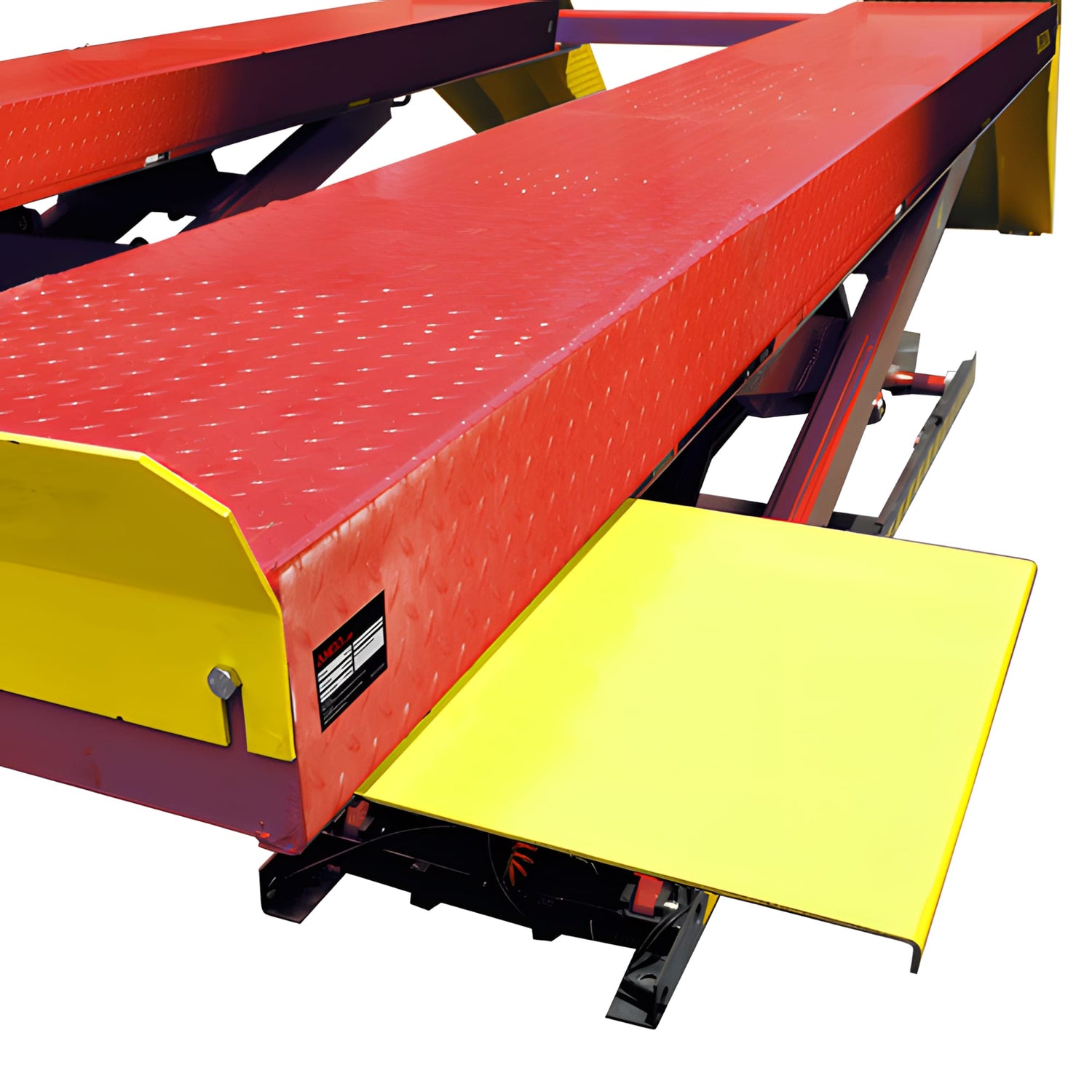

- Pull-out service tray included
- Lifting time: 75 seconds

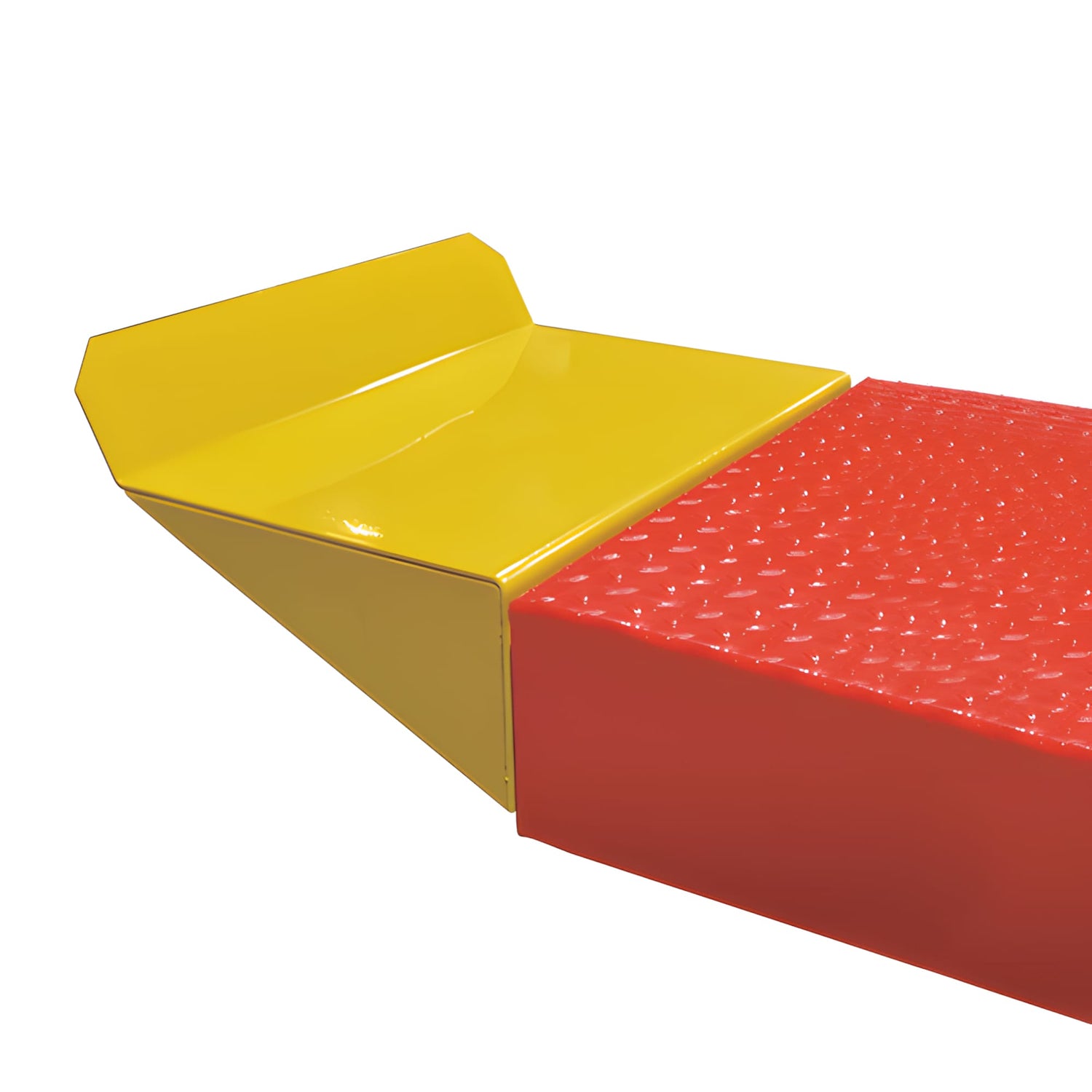

- Optional extension platform (P/N: PX001)

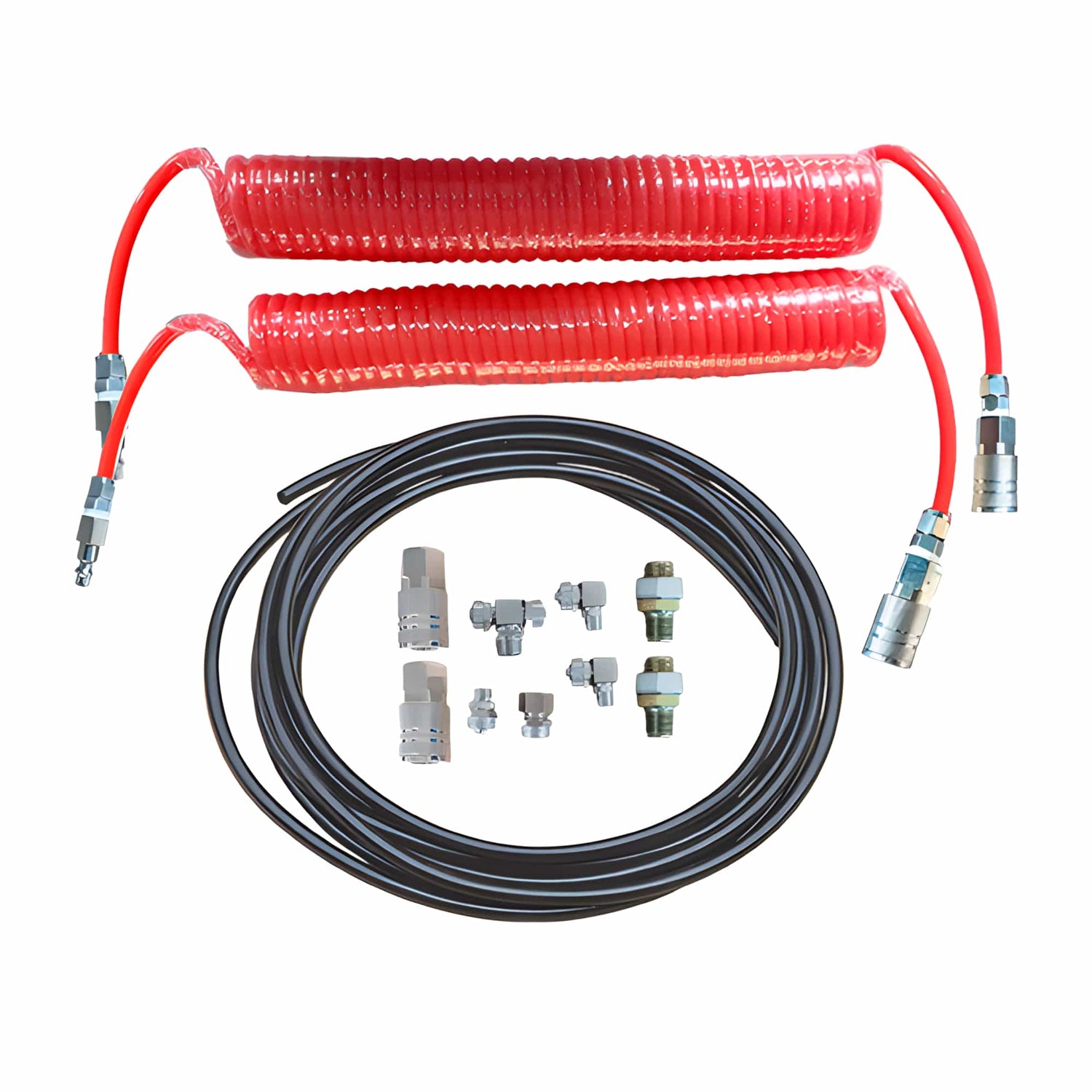

- Optional air line kit (P/N: PX004A)

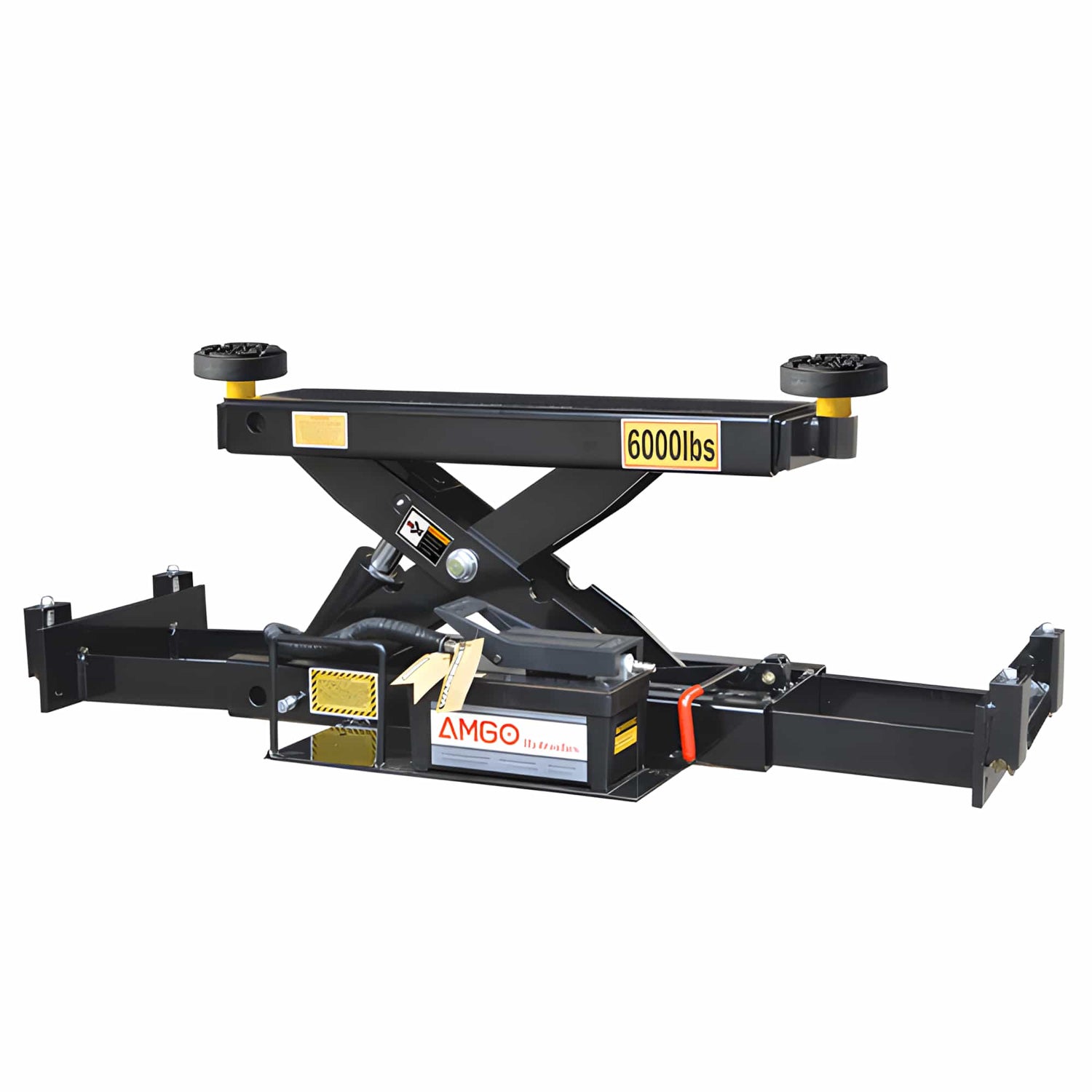

- Optional RJ-6A 6,000-lb sliding rolling jack with 2.5" extension adapters
- AMGO 5-3-2 Warranty: 5 yr Structural – 3 yr Hydraulic – 2 yr Electrical & Power Unit
Specifications
| AMGO AX-12 Specifications | |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 75 seconds |

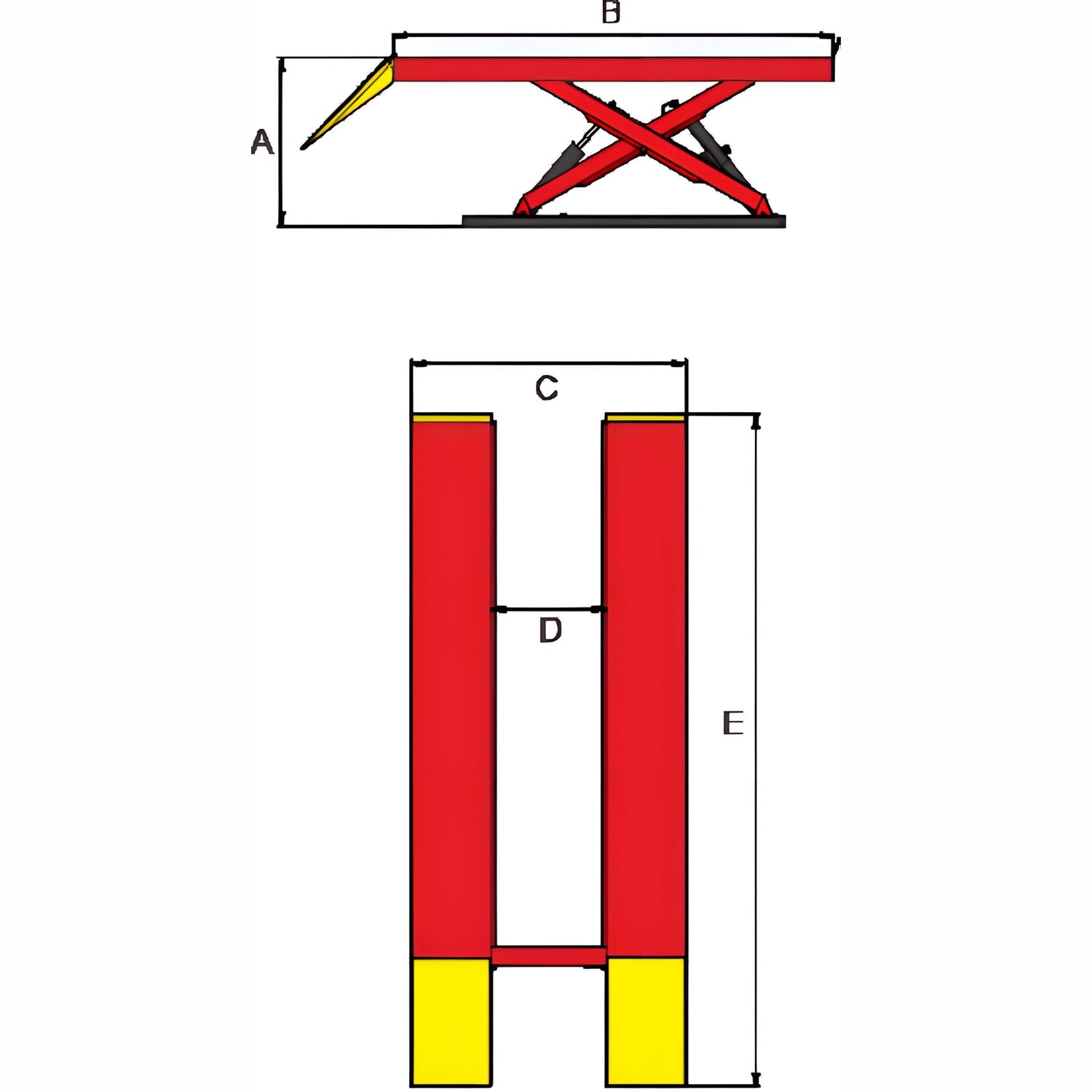

| (A) Maximum Lifting Height | 72 13/16" |
| (A) Maximum Lock Height | 71 1/16" |
| (A) Minimum Height | 12" |
| (B) Runway Length | 197 9/16" |
| (C) Overall Width | 90 3/16" |
| (D) Width Between Runways | 40 15/16" |
| (E) Overall Length (Including Ramps) | 267 1/16" |
| Gross Weight | 4,872 lbs |
| Motor | 2.0 HP electric-hydraulic |
| Power Unit Certification | ETL Listed (Intertek 5013694) |

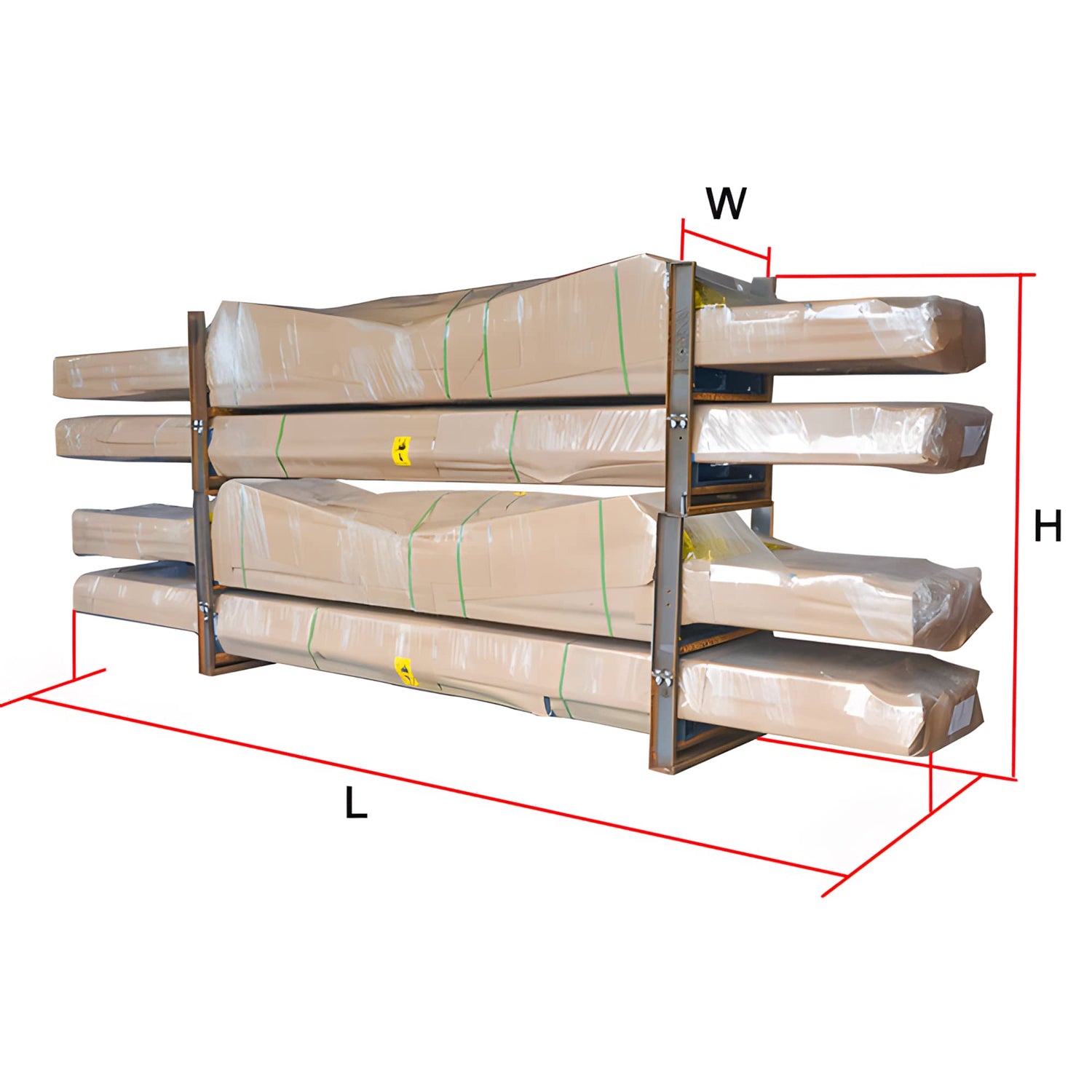

| Lift Packaging (2 per crate) | 203 9/16" × 29 15/16" × 80" |

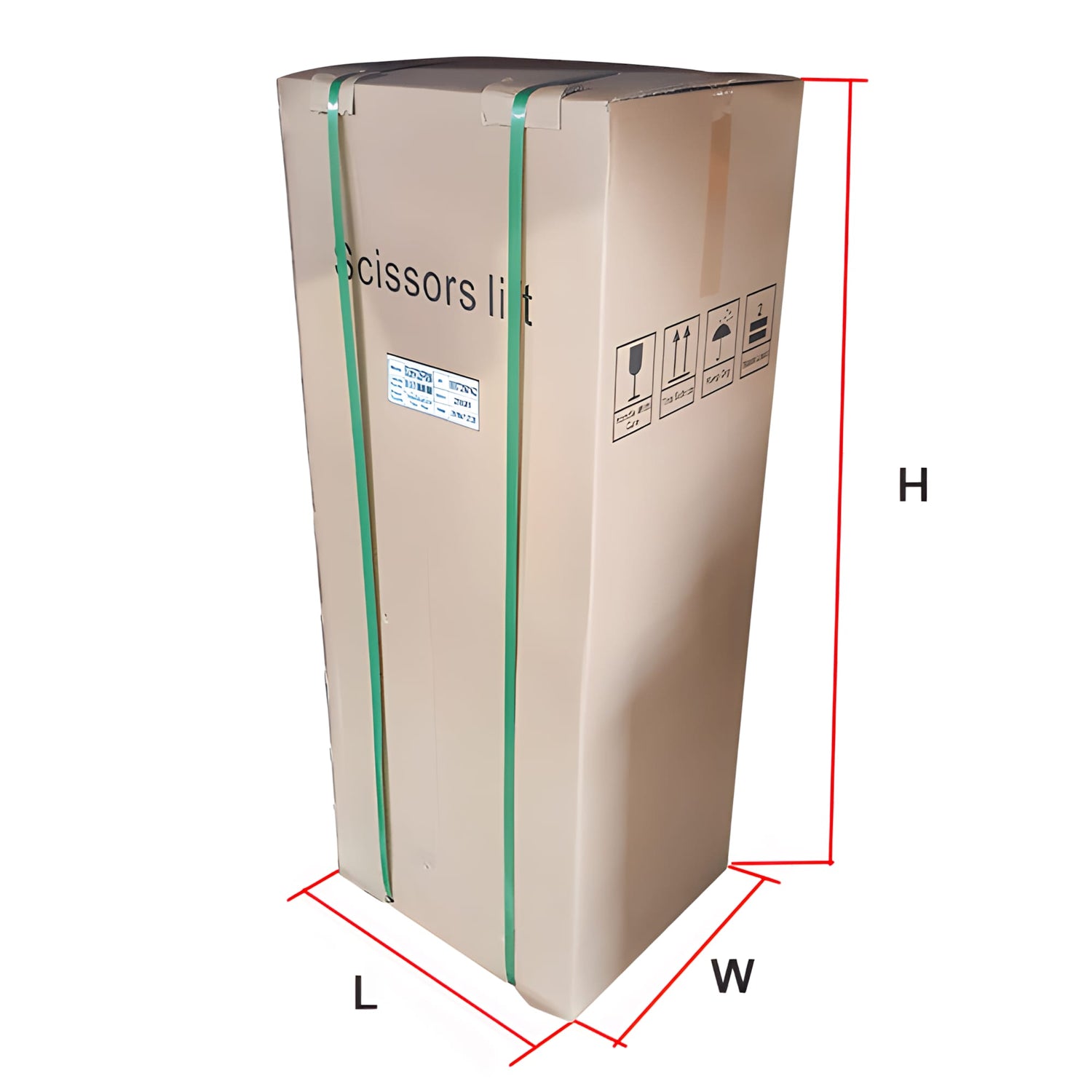

| Control Cabinet Packaging | 16 7/8" × 18 13/16" × 48 5/8" |
| Warranty | AMGO 5-3-2 (5 yr Structural / 3 yr Hydraulic / 2 yr Electrical) |
| Hydraulic oil sold separately. Call (331) 272-5655 to confirm electrical service requirements (volt/phase) before installation. | |
