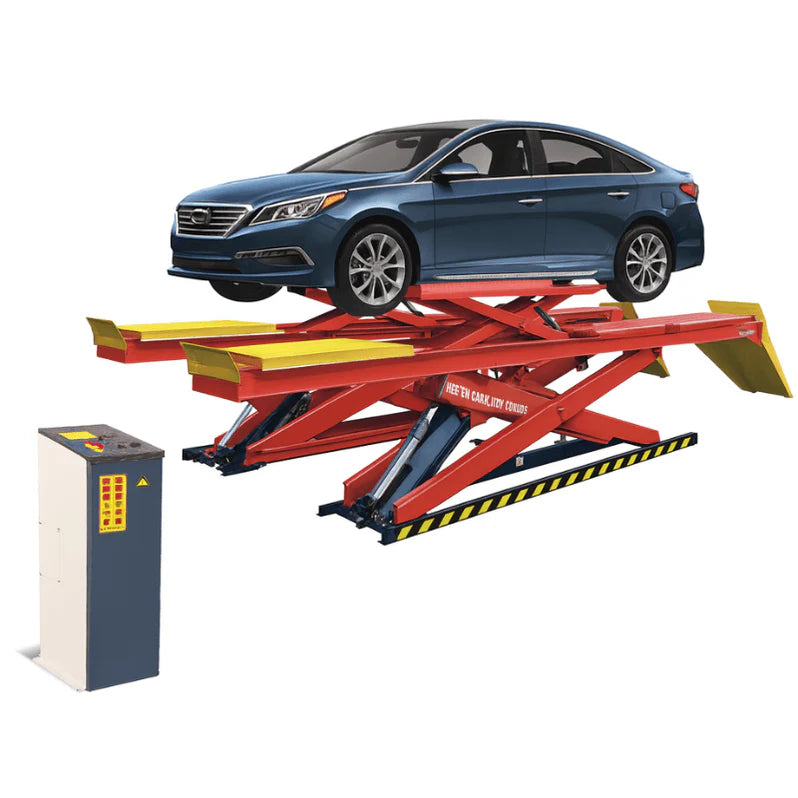

AMGO DX-12A 12,000 lbs Double Scissor Alignment Lift

DX-12A Double Scissor Alignment Lift by Amgo

Upgrade your shop with the AMGO DX-12A Double Scissor Alignment Lift, a versatile powerhouse designed for professionals who demand precision, strength, and efficiency. With a robust 12,000 lb lifting capacity, this lift handles everything from standard passenger vehicles to long-wheelbase trucks, making it perfect for alignment, brake, tire, and suspension work. Its heavy-duty construction, featuring large non-skid diamond platforms and auxiliary lifting platforms, allows all wheels to be lifted safely off the runways for comprehensive service.

Built for durability and high performance, the DX-12A comes equipped with AMGO’s tailor-designed large hydraulic cylinders, ensuring powerful operation day after day. The full-rise double scissor design provides easy under-vehicle access, while wide platforms and adjustable auxiliary scissors accommodate a variety of wheelbases. Safety is paramount, with hose-burst valves, self-locking mechanical locks, and a photocell system to guarantee precise platform equalization every time.

Experience reliable operation with the electric-hydraulic power system, complete with a centralized control unit. Whether you’re performing high-volume alignment tasks or detailed maintenance, the DX-12A delivers a smooth, secure, and efficient workflow—making it the ideal choice for professional service shops.

DX-12A Specifications:

• Model: DX-12A

• Lifting Capacity: 12,000 lbs

• Lifting Time: 64 seconds

• Max. Lifting Height (A): 72 13/16"

• Max. Lock Height: 71 1/16"

• Minimum Height: 12 5/8"

• Runway Length (B): 196 1/2"

• Overall Width (C): 86 1/4"

• Width Between Runways (D): 37"

• Overall Length (Including Ramps) (E): 256"

• Min. Four-Wheel Alignment (F): 85 13/16"

• Max. Four-Wheel Alignment (G): 166 9/16"

• Max. Two-Wheel Alignment (H): 172 7/8"

• Sub-Lift Capacity: 9,000 lbs

• Sub-Lift Height (I): 16 1/2"

• Sub-Lift Runway Length (J): 63"–74"

• Gross Weight: 5,745 lbs

• Motor: 2.0 HP, 220V/60Hz Single Phase

• Motor: 2.0 HP (220V) - Requires Double 30amp Breaker

• Concrete Requirements: Minimum of 4"-3000psi

• Pallet Dimension:
  • 201"L 30"W 40"H

  • 19"L 17"W 49"H

Amgo DX12A Special Features:

• 12,000 lb lifting capacity for a wide range of vehicles

• Alignment service design with auxiliary scissors for comprehensive work

• Robust X scissor construction made from large steel tubes for extreme durability

• Full-rise design for comfortable under-vehicle access

• Photocell system ensures precise platform equalization

• Hydraulic cylinders with hose-burst valves for maximum safety

• Self-locking mechanical locks released by air for controlled lowering

• Electric-hydraulic power unit with centralized control

• Non-skid, long, and wide platforms accommodate various vehicles

• Automatic safety stop device included as standard

• ETL-certified AMGO power unit

• Optional accessories: extension platforms, turnplates, and air line kits

• Amgo 5-3-2 Warranty (5 year for steel structure, 3 year for hydraulic parts, and 2 year for electrical components)

DX-12A Manual

  Amgo DX-12A Manual

  Amgo DX-12A Installation Instruction

DX-12A Double Scissor Alignment Lift Optional Items (sold separately):

• Turnplate Kit: No. 40101 (Alignment lifts requires 2 units)

• Airline Kit: No. PX004
• LED Light Kit: No. PX010
• Extension Kit: No. PX002 (Extends plate for 11-7/8")

Warehouse Pickup locations (No shipping charge):

• Dallas, TX 75211
• Manning, SC 29102


*Due to Extra Large Size, product cannot be delivered to a freight terminal.
