Atlas Apex 9 9,000 lb 4-Post Lift with Two RJ45A Rolling Bridge Jacks Combo
Atlas Apex 9 9,000 lb 4-Post Lift with Two RJ45A Rolling Bridge Jacks Combo - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Select Your Pickup Location
Choose the warehouse you will pick up from. Enter your ZIP to find the closest one.
Select a pickup location above to continue.
Subject to availability. Call or text 331-272-5655 to confirm your item is ready before pickup.
Product Features
- Two RJ45A Air/Hydraulic Jacks
- ALI Certified
- Single-Point Lock Release
- Diamond-Plated Runways
- Truck Adapters Incl.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Atlas Apex 9 9,000 lb 4-Post Lift with Two RJ45A Rolling Bridge Jac...
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

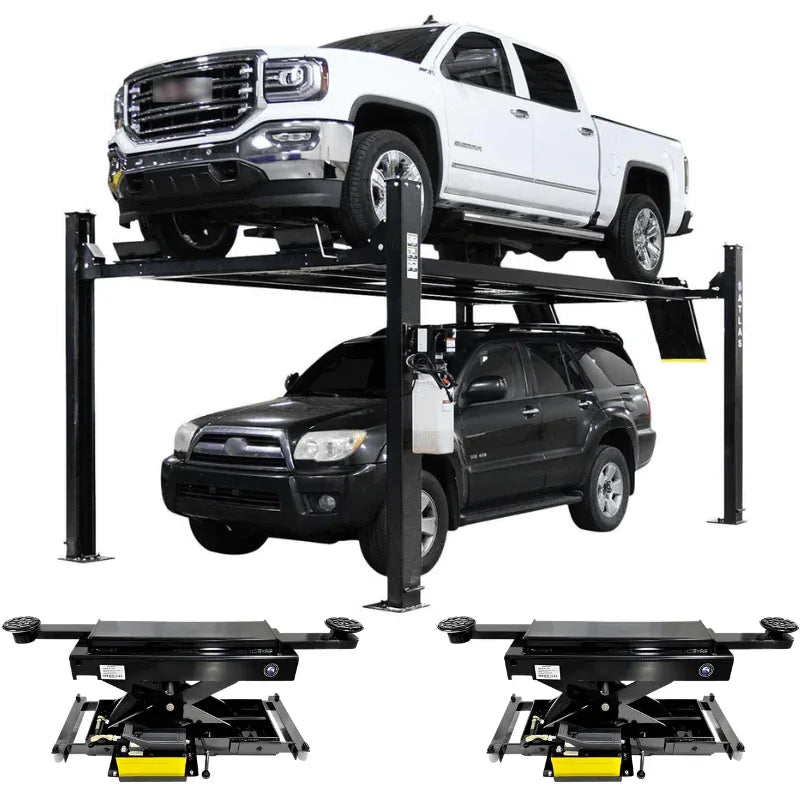

The Atlas Apex 9 4-post lift is a 9,000-lb capacity storage and service lift sized for full-size trucks, SUVs, and crew cabs. Bundled with two RJ45A 4,500-lb air/hydraulic rolling bridge jacks, this combo equips a home garage or commercial bay for both vehicle storage and full-service work, wheels-off, suspension, brakes, and tire rotations on the same lift.
The Apex 9 is ALI Certified, with diamond-plated steel runways, a single-point lock release, and a 16-position lock ladder backed by a double-lock safety system. The lift reaches 86" at the top of the runway with 81 1/4" of clearance underneath, leaving room to park a vehicle below while another is raised overhead.
Power runs from a 110V motor on a 30-amp dedicated circuit, so the lift operates on standard residential service without a panel upgrade. Hydraulic oil is filled separately, 3 to 5 gallons of AW32 or AW46 is required and is not included.
Construction

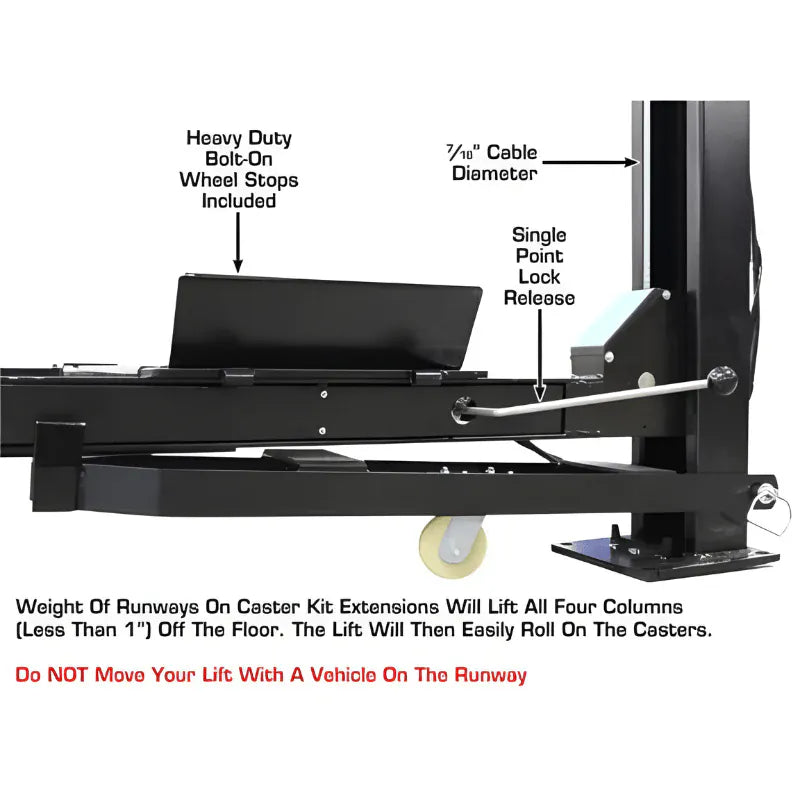

Underneath the runways, the Apex 9 uses a 7/16" cable system running over 6" steel pulleys, with a 3 1/2"-diameter hydraulic cylinder and an in-line cylinder overflow restrictor valve. The runways are diamond-plated for grip and finished in powder coat.
RJ45A Rolling Bridge Jacks

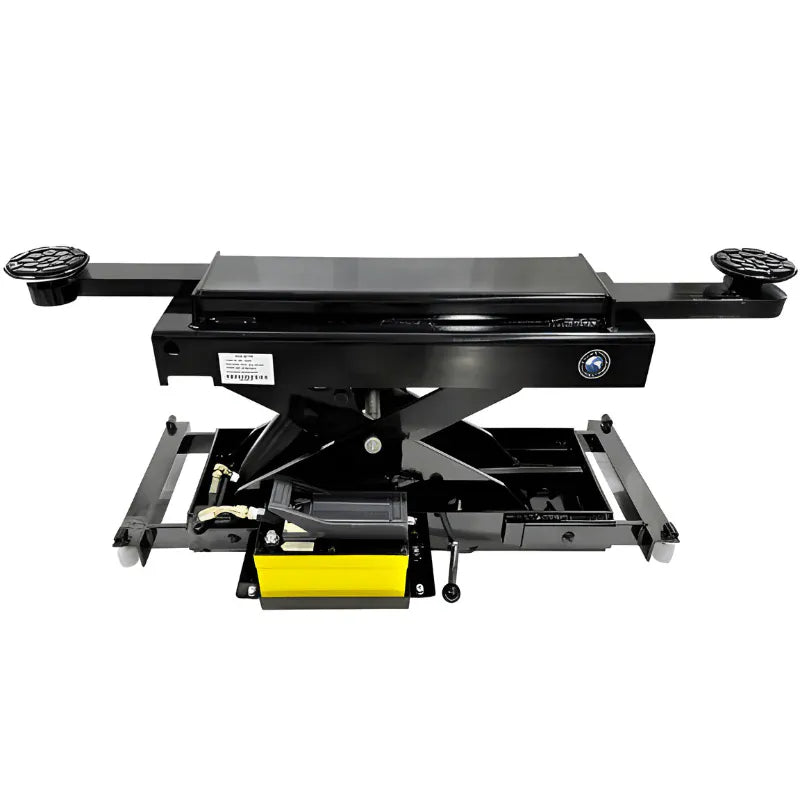

Each RJ45A is a 4,500-lb air/hydraulic rolling bridge jack that rides along the runways of the Apex 9 to lift wheels off the deck for service. Operation is air/hydraulic on 70-115 PSI shop air (external air supply not included), and the scissor mechanism delivers level lift with multiple safety lock positions.
Lift arms extend from 30" to 60 1/2" pad-to-pad and fit runway openings between 36" and 54". With the supplied chrome adapters, the jack reaches 18 1/2" of lifting height; without adapters, 11 3/4". Nylon rollers and a steel wheel underneath keep the jack moving smoothly down the runway. A 4-piece truck adapter set is included with each jack for raising larger vehicles that need additional pad height.
Features
Atlas Apex 9 4-Post Lift
- 9,000-lb lifting capacity

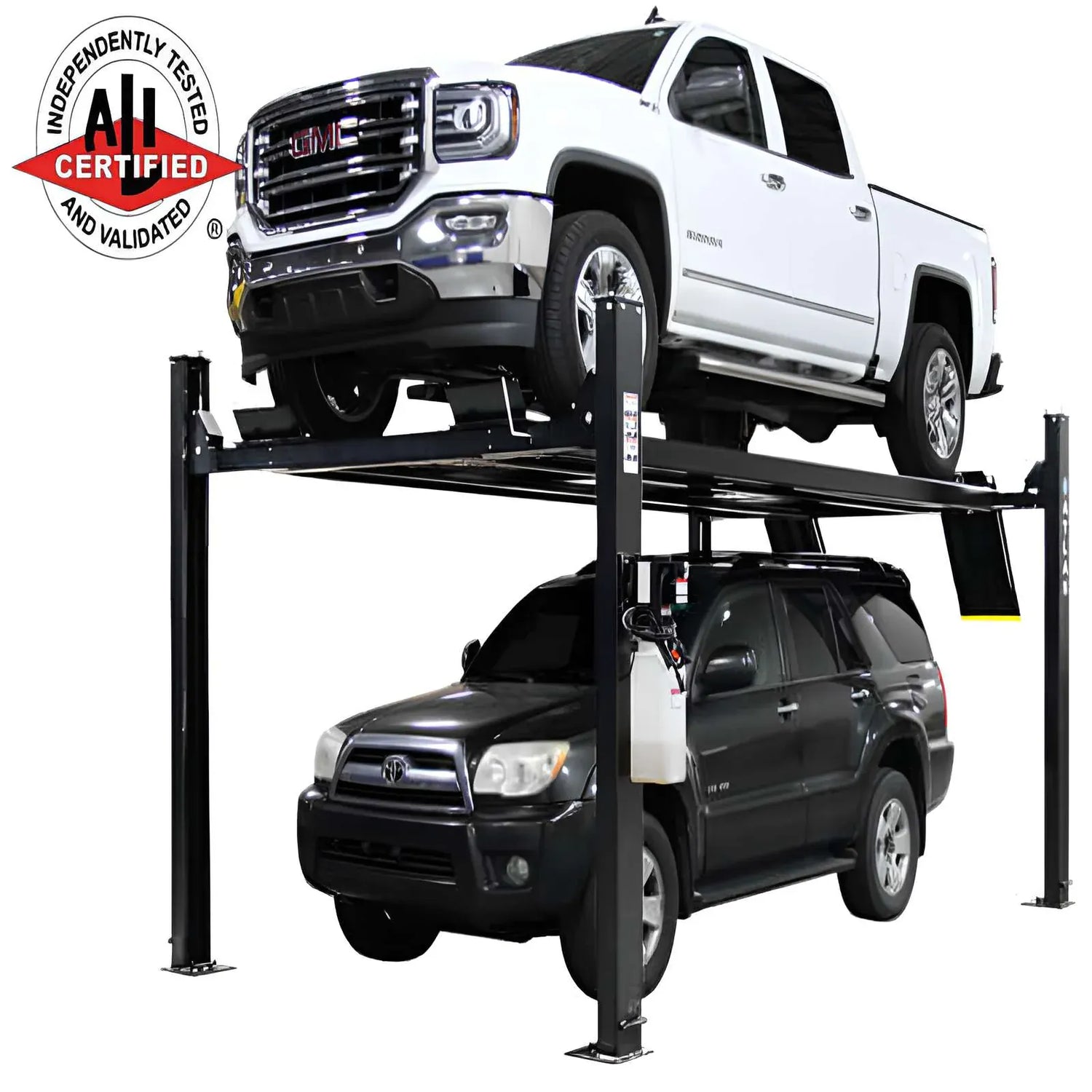

- ALI Certified, independently tested and validated
- 86" max lifting height at top of runway (7' 2")
- 81 1/4" clearance under runways (6' 9 1/4")
- Diamond-plated steel runways
- Single-point lock release
- Lock ladder with 16 locking positions and double lock safety system
- Powder-coat finish
- 110V operation on 30-amp breaker
- Free-standing portable design
- 5-year structural warranty / 2-year hydraulic warranty (parts only)
Two RJ45A Rolling Bridge Jacks (Included)
- 4,500-lb capacity per jack
- Air/hydraulic operation on 70-115 PSI shop air
- Scissor mechanism for level lift
- Multiple safety lock positions
- Compact low-profile body for runway clearance
- Adjustable lift arms (30" to 60 1/2" pad-to-pad)
- Fits runway openings 36" to 54"
- Nylon rollers and steel wheel for smooth movement
- 4-piece truck adapter set included with each jack
- 1-year parts warranty
What's Included
- Atlas Apex 9 4-post lift
- Two RJ45A 4,500-lb rolling bridge jacks
- Steel approach ramps
- Steel jack tray
- Four plastic drip trays
- Two rubber wheel chocks
- Two 4-piece truck adapter sets (one per rolling jack)
- Two 1 1/4" and two 5" chrome adapters per jack, with 1 3/8" lift pads

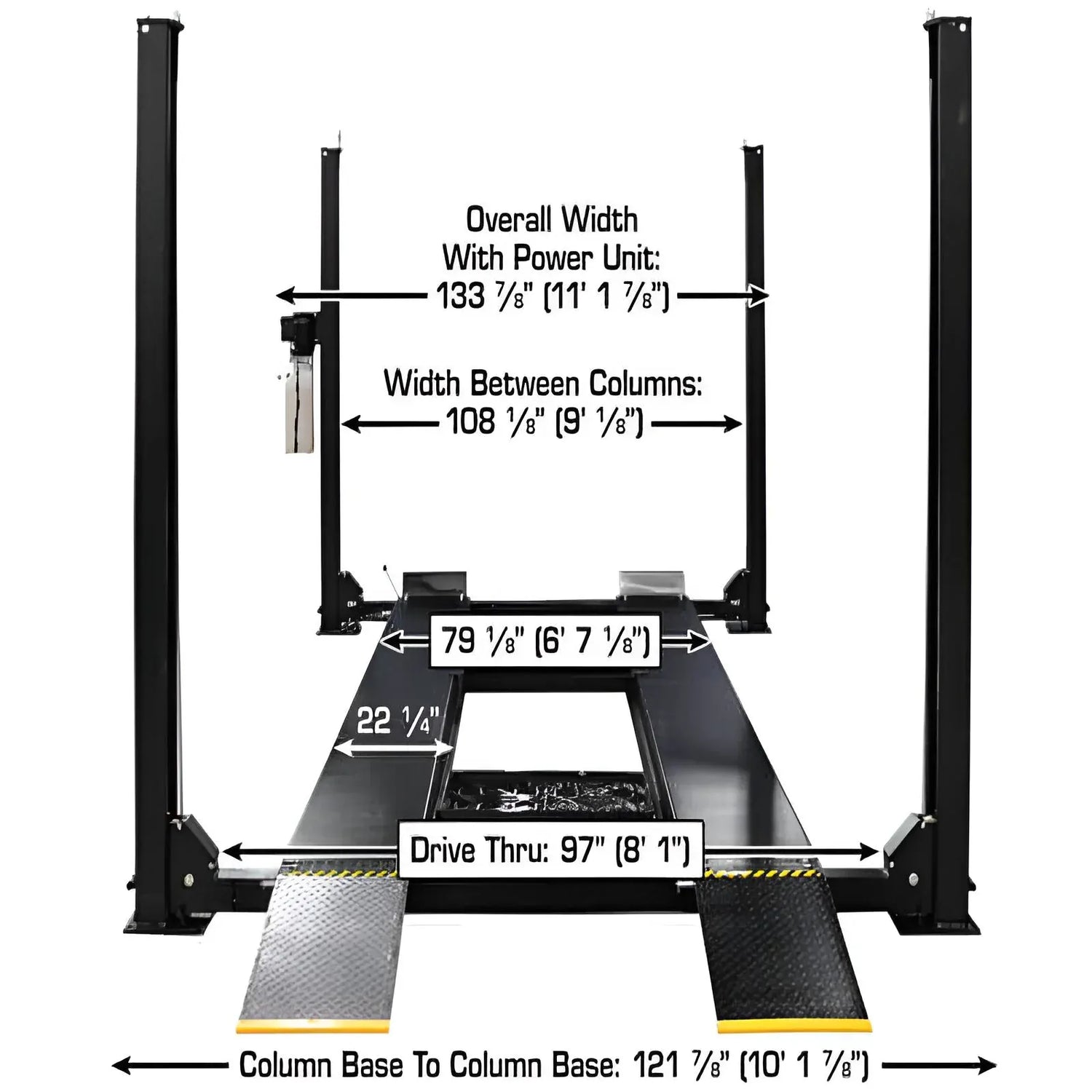

Specifications
| Atlas Apex 9 4-Post Lift Specifications | |
|---|---|
| Capacity | 9,000 lbs |
| Lifting Height (top of runway) | 86" (7' 2") |
| Clearance Under Runways | 81 1/4" (6' 9 1/4") |
| Height of Columns | 99" (8' 3") |
| Overall Width | 121 7/8" (10' 1 7/8"), 133 7/8" (11' 1 7/8") with motor |
| Overall Length with Ramps | 227 1/2" (18' 11 1/2") |
| Runway Length | 196 1/2" (16' 4 1/2") |
| Runway Width | 20 1/8" |
| Runway Thickness | 4 3/4" |
| Width Between Runways | 38 7/8", 34 3/4" with rail |
| Outside Runway to Outside Runway | 79" (6' 7") |
| Clearance Between Columns | 108 1/8" (9' 1/8") |
| Length Between Columns | 184 1/4" (15' 4 1/4") |
| Drive-Thru Width | 98 5/8" (8' 2 5/8") |
| Motor / Electrical | 110V, 30-amp breaker required |
| Hydraulic Oil | 3-5 gallons AW32 or AW46 (not included) |
| Shipping Weight | 2,975 lbs |
| Pallet Size | 204"L x 30 1/2"H x 25"W |
| Warranty | 5-year structural / 2-year hydraulic, parts only |
| 110V, 30-amp dedicated circuit required. Hydraulic oil sold separately. | |
| Atlas RJ45A Rolling Bridge Jack Specifications | |
|---|---|
| Capacity | 4,500 lbs |
| Minimum Width (Roller Arms) | 36" |
| Maximum Width (Roller Arms) | 54" |
| Lift Arm Width (center of pad) | 30" - 60 1/2" |
| Air Requirement | 70-115 PSI |
| Arm Hole / Adapter Peg Size | 1 1/2" |
| Adapter Heights | Two at 1 1/4" and two at 5" |
| Shipping Weight | 380 lbs |
| Warranty | 1-year parts only |
| External shop air supply required (not included). One 4-piece truck adapter set ships with each jack. | |
Shipping & Logistics
This combo ships via freight on multiple pallets, the Apex 9 lift in a 17-foot crate at 2,975 lbs, and each RJ45A in a 39 1/2" x 23 1/2" x 12 1/2" crate at 380 lbs. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Documents
Atlas Apex 9 Product Manual (PDF)
Additional technical documents available on request, contact support@projectfoundry.co or call 331-272-5655.
