Atlas ATEATTC-LHA Pneumatic Left-Hand Assist Arm for 200/700 Series Tire Changers

Description

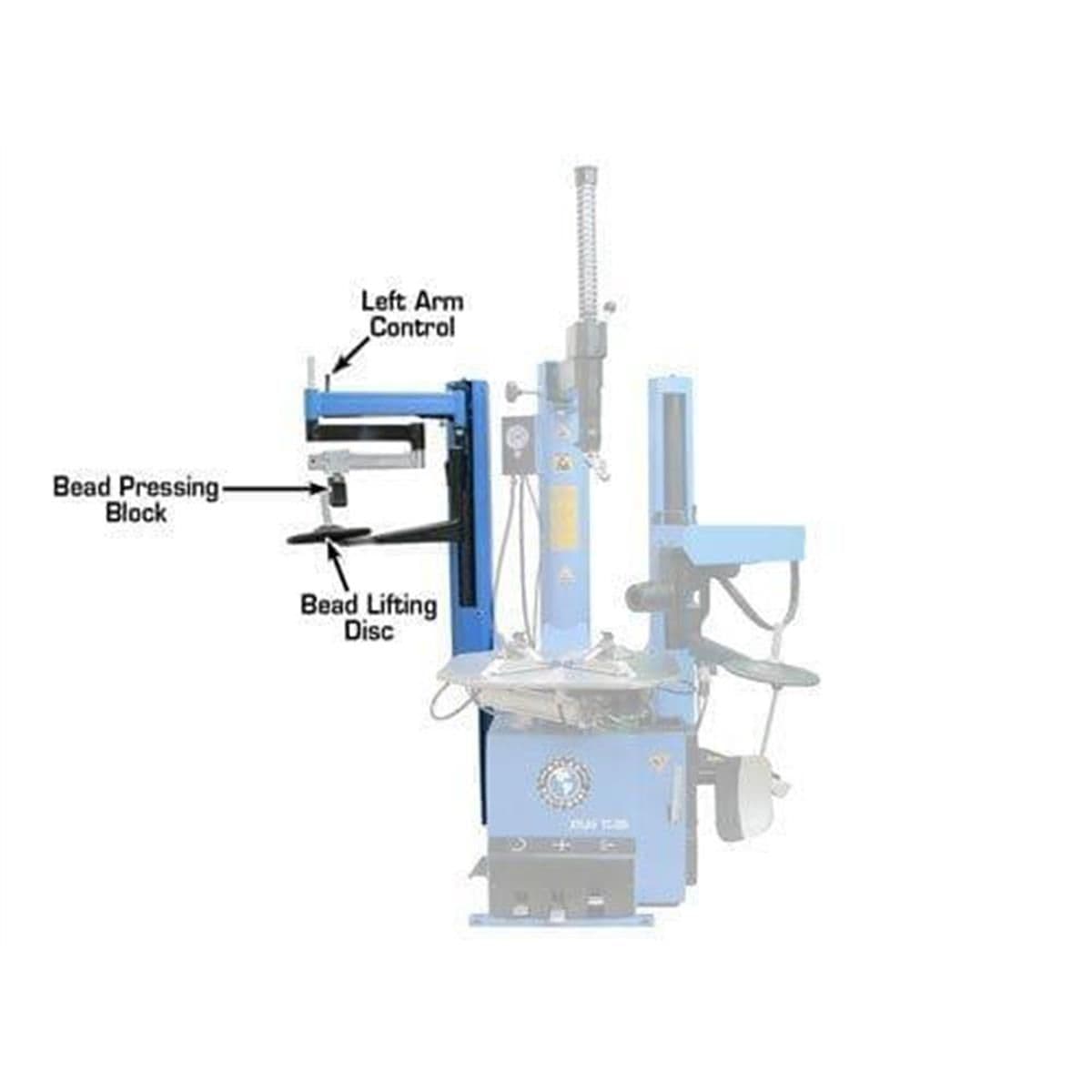

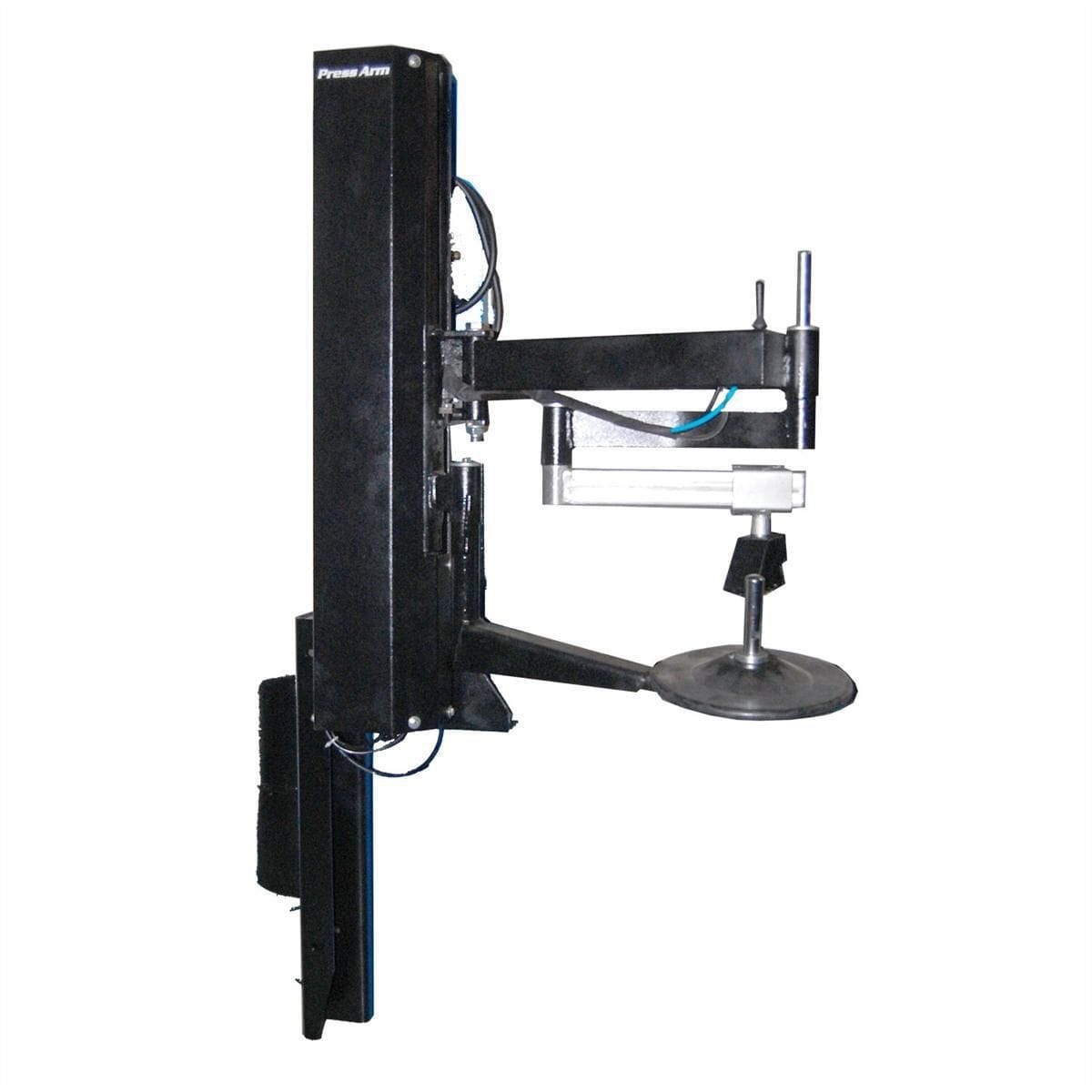

The Atlas ATEATTC-LHA is a pneumatic left-hand assist arm that bolts onto the column of an Atlas 200 Series or 700 Series tire changer. It adds two working heads to the technician's reach — a bead lifting disc that pushes the lower bead up into the wheel cavity, and a bead pressing block that holds the upper bead seated below the rim edge during the rotation pass.

The point of the assist arm is controlled force. On stiff sidewall, run-flat, and low-profile tires the bead resists going where leverage and a tire bar alone can no longer take it. The pneumatic arm applies that force consistently — spec'd to mount and demount today's tougher tires while reducing the rim damage and technician strain that come with brute-force technique.

Components

Bead Lifting Disc

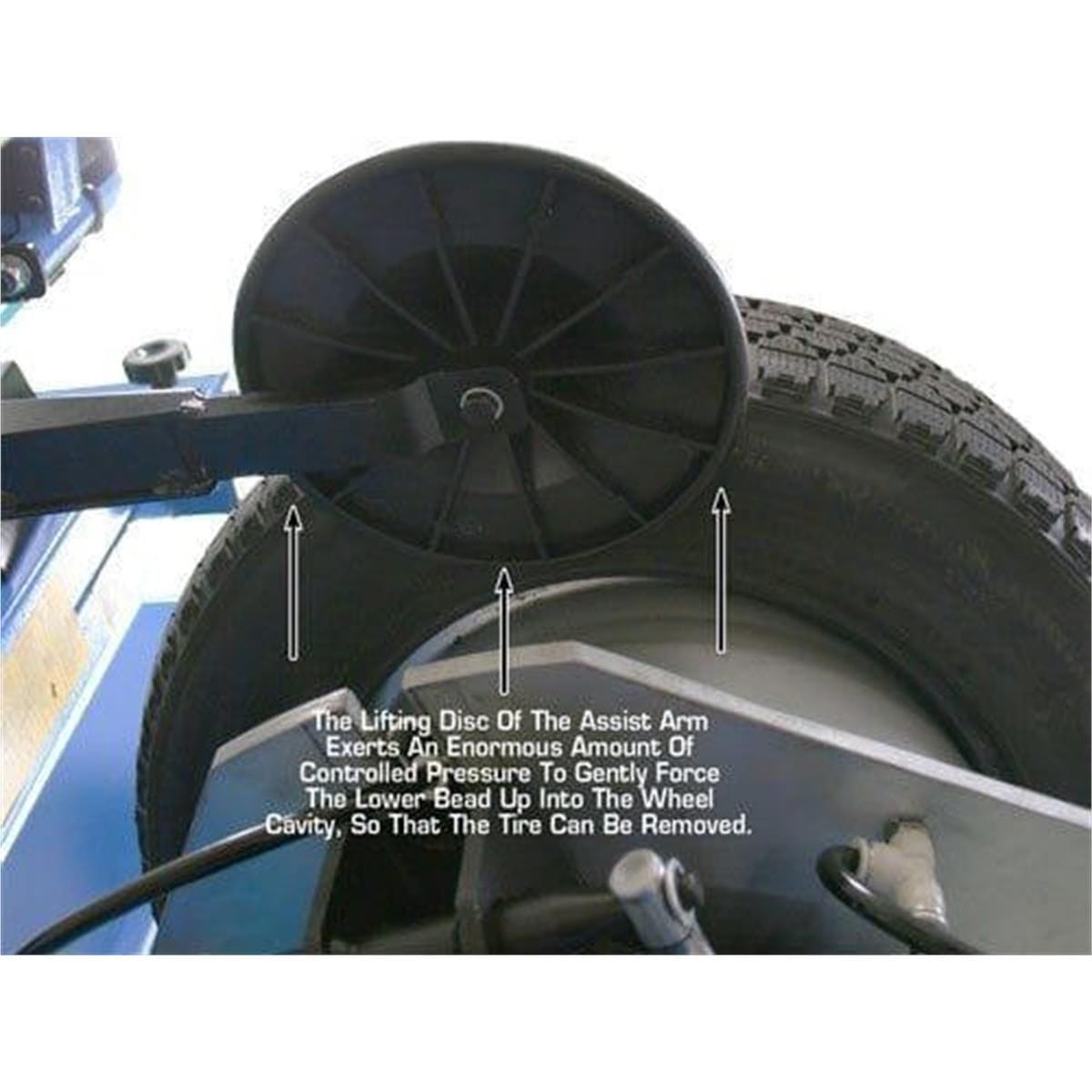

The lifting disc presses up against the lower sidewall, applying controlled pneumatic pressure that forces the lower bead up into the wheel cavity so the tire can release on a tough demount. Without it, a stiff-sidewall or low-profile tire often locks the bead against the drop center and refuses to walk off the rim.

Bead Pressing Block

The pressing block applies controlled downward pressure on the upper sidewall, keeping the bead seated below the rim edge as the wheel rotates against the mount/demount head. The block geometry is shaped to ride on the tire shoulder rather than the alloy.

Features

• Pneumatic left-hand assist arm
• Compatible with Atlas 200 Series and Atlas 700 Series tire changers
• Bead lifting disc included
• Bead pressing block included
• Built for run-flat and low-profile tires
• Reduces rim damage and technician strain on stiff sidewall tires
• Shipping weight 160 lbs

Compatibility

This assist arm is engineered specifically for Atlas tire changers and will not bolt onto changers from other brands. It fits both:

• Atlas 200 Series tire changers
• Atlas 700 Series tire changers

For compatibility with a specific Atlas tire changer model not named above, contact MGS at 307-381-1810 before ordering.

Specifications

What's Included

• Atlas ATEATTC-LHA left-hand assist arm
• Bead lifting disc
• Bead pressing block
• Owner's manual and assembly guide (linked below)

Shipping & Logistics

The assist arm ships via freight in a wood crate measuring 40" × 14 3/8" × 12" at 160 lbs.

Documents

• Atlas LHA Assist Arm Manual
• Atlas LHA Assist Arm Assembly Guide
