Atlas Maxima ATEML-6045BC 99,000 lb ALI-Certified Battery-Powered Mobile Column Lift System (Six 16,500 lb Columns)
Atlas Maxima ATEML-6045BC 99,000 lb ALI-Certified Battery-Powered Mobile Column Lift System (Six 16,500 lb Columns) - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Select Your Pickup Location
Choose the warehouse you will pick up from. Enter your ZIP to find the closest one.
Select a pickup location above to continue.
Subject to availability. Call or text 331-272-5655 to confirm your item is ready before pickup.
Product Features
- LCD Height Display
- Emergency Stop Per Column
- Dual-Safety Locks
- Built-In Pallet-Jack Mobility
- 32-Ft Cables Incl.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Atlas Maxima ATEML-6045BC 99,000 lb ALI-Certified Battery-Powered M...
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

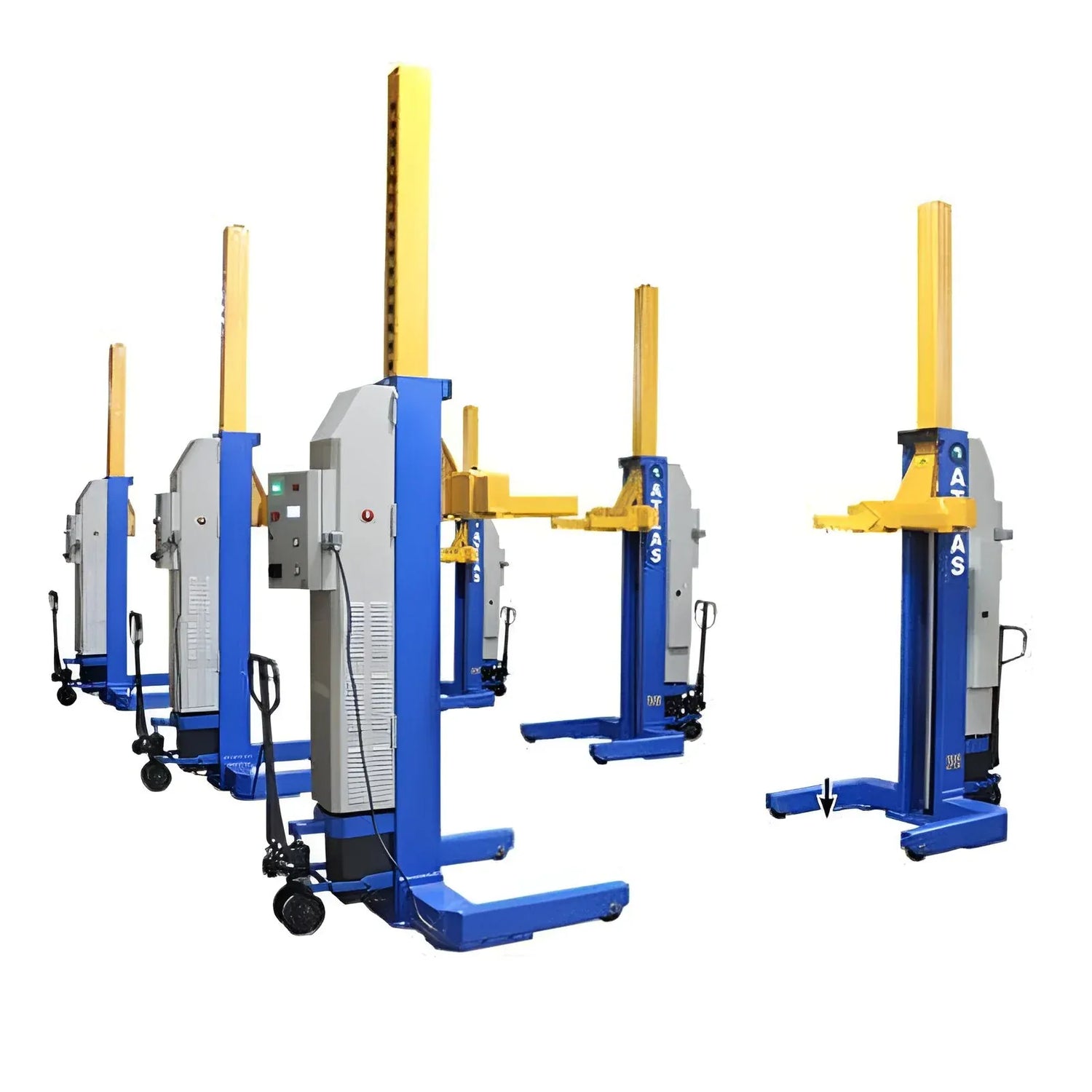

The Atlas Maxima ATEML-6045BC is a six-column battery-powered mobile lift system built for heavy-duty trucks, buses, and large commercial vehicles in shops where in-ground or fixed lifts won't fit. Each column is rated at 16,500 lbs, giving the six-column system a 99,000 lb total capacity. The system is ALI Certified.
Power on each column comes from a 2.2 kW 24V DC motor with two rechargeable batteries, supporting 10 to 20 lifts per charge depending on load. Recharging uses a standard 110V single-phase outlet, so the columns stay cordless during use and skip the cable-management problems of traditional electric column lifts.

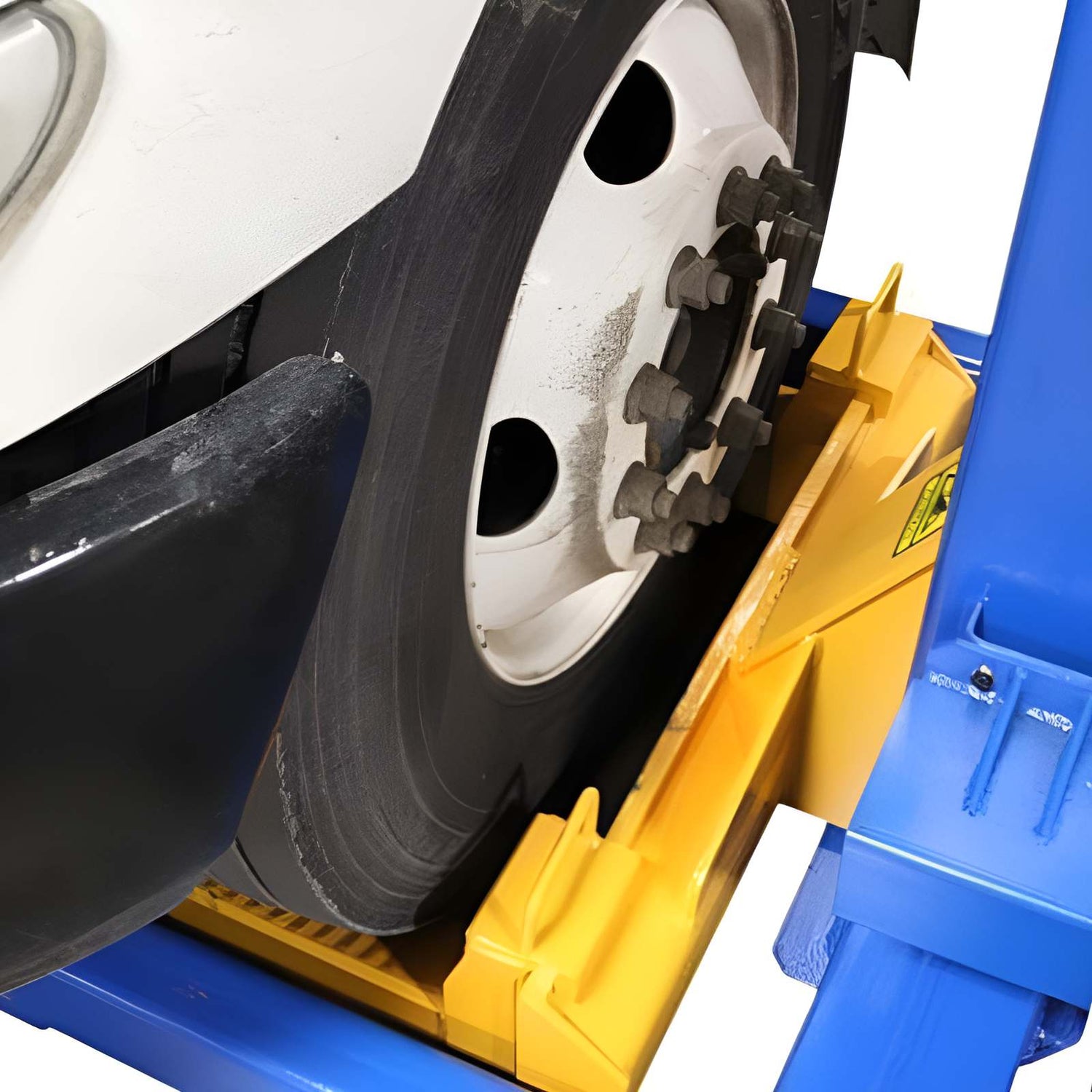

Adjustable forks fit tire diameters from 19" to 44", covering medium-duty pickups through Class 8 trucks and buses. Synchronized electronic controls run all six columns simultaneously, an LCD screen on each column shows exact lifting height, and an emergency stop button is mounted on every column.
Portable column design

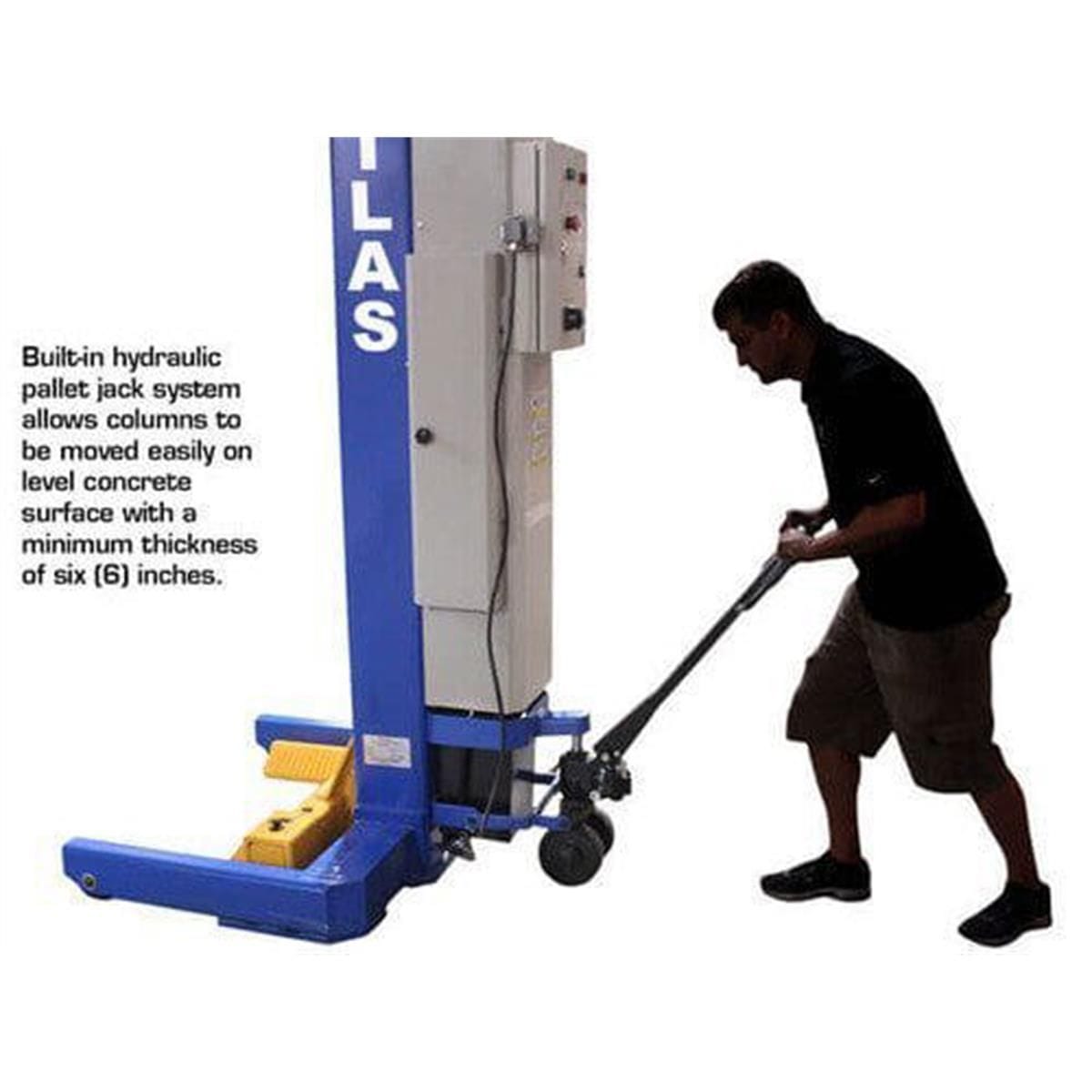

Each column has a built-in hydraulic pallet jack so a single technician can reposition it on level concrete. The minimum concrete requirement is 6 inches thick. The system can be used indoors or outdoors. Optional tripod support stands are available for wheel service applications.
Safety system
Two independent safety systems protect the load: hydraulic flow control on the cylinders and mechanical column locks. Each column has its own emergency stop, and the synchronized controller halts all columns if any one reports a fault.
What's included (six-column system)
- Six (6) ATEML-6045BC columns with adjustable forks
- Six 32-ft column connecting cables
- Built-in hydraulic pallet jack on every column
- Emergency stop button on every column
- Battery charging on standard 110V single-phase
Optional tripod support stands for wheel service applications are available, contact support@projectfoundry.co or call 331-272-5655.
Features
- ALI Certified automotive lift
- 16,500 lbs per column / 99,000 lbs total system capacity (six columns)
- 2.2 kW 24V DC motor with two rechargeable batteries per column
- 10 to 20 lifts per battery charge depending on load
- 110V single-phase recharging, no permanent power drops needed
- Synchronized electronic control across all six columns
- Per-column LCD screen displays exact lifting height
- Adjustable forks fit tire diameters from 19" to 44"
- Double safety: hydraulic flow control plus mechanical column locks
- Emergency stop button on every column
- Built-in hydraulic pallet jack on every column for repositioning
- Six 32-ft column connecting cables included
- Indoor or outdoor use on level concrete at least 6" thick
Dimensions
Specifications
| Atlas Maxima ATEML-6045BC Specifications | |
|---|---|
| Capacity per column | 16,500 lbs |
| Total system capacity (six columns) | 99,000 lbs |
| Number of columns | 6 |
| Motor | 2.2 kW 24V DC, two batteries per column |
| Battery charger power | 110V single-phase |
| Lifts per battery charge | 10-20 (load dependent) |
| Maximum lifting height | 67" (5' 7") |
| Overall height | 145" (12' 1") |
| Resting height | 88 1/2" (7' 4 1/2") |
| Width | 43 1/2" (3' 7 1/2") |
| Length | 55 1/2" (4' 7 1/2") |
| Column width | 13 1/4" |
| Maximum tire diameter | 44" |
| Minimum tire diameter | 19" |
| Weight per column | 1,600 lbs |
| Shipping weight (six-column system) | 9,600 lbs |
| Shipping dimensions per column | 49" L × 47" W × 89" H |
| Connecting cables | Six 32-ft cables (included) |
| Concrete requirement | Level concrete, 6" minimum thickness |
| Certification | ALI Certified |
| Warranty | 2-year limited |
Shipping & Logistics
The ATEML-6045BC ships as six individually crated columns at a total shipping weight of 9,600 lbs, with each column crate measuring 49" L × 47" W × 89" H. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck. Liftgate and limited-access service options can be arranged, contact Project Foundry before ordering.
Documents
ATEML-6045BC Product Manual (PDF)
For additional documentation, contact support@projectfoundry.co or call 331-272-5655.
