Atlas BP8000 8,000 lb Baseplate 2 Post Lift
Description
Description
Atlas Baseplate 8,000lb. Capacity 2-Post Lift

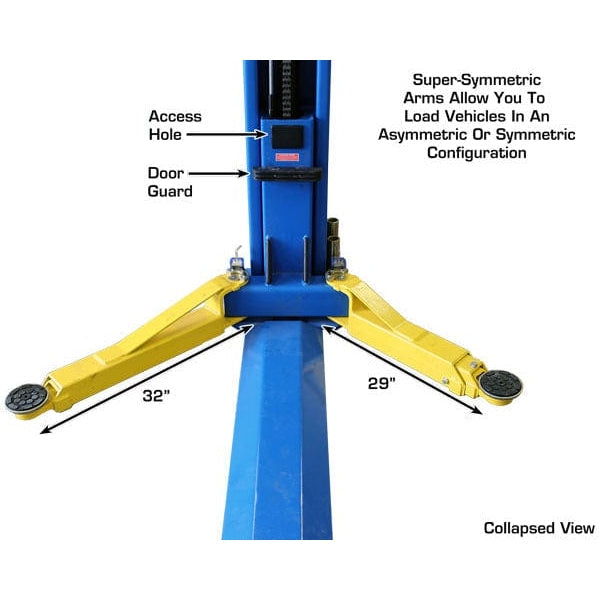

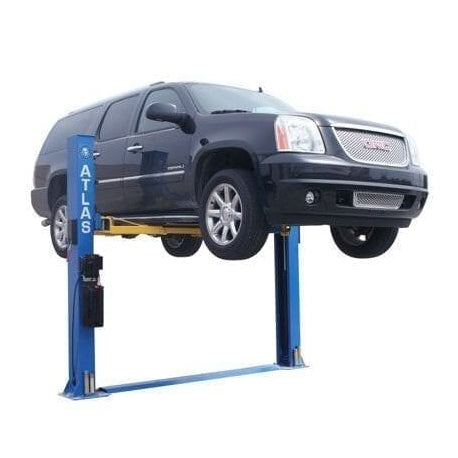

The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Features
- 8,000 lb. Capacity
- Hobbyist Grade Lift – Not intended for heavy commercial use
- Baseplate, Open-Top Style Lift

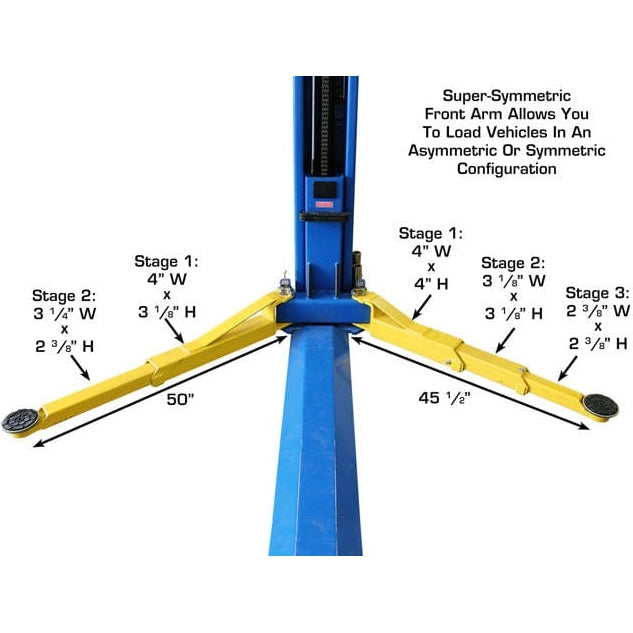

- 3-Stage front arms/2-Stage rear arms

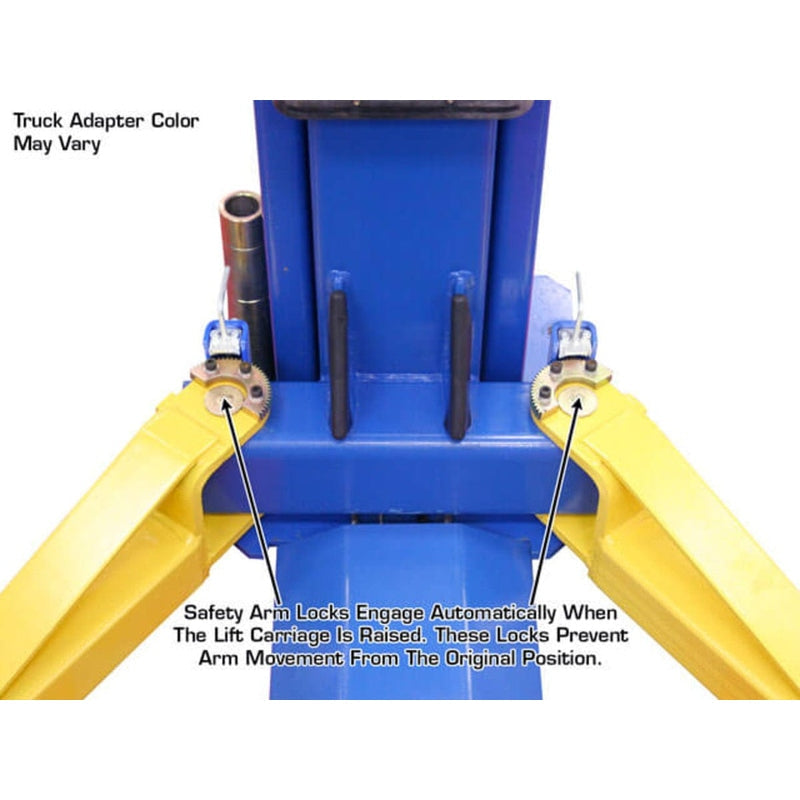

- Automatic Arm Restraints

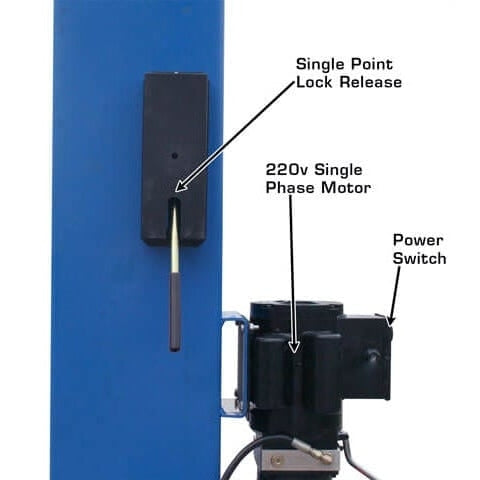

- Single-Point Lock Release
- Double Safety Lock System

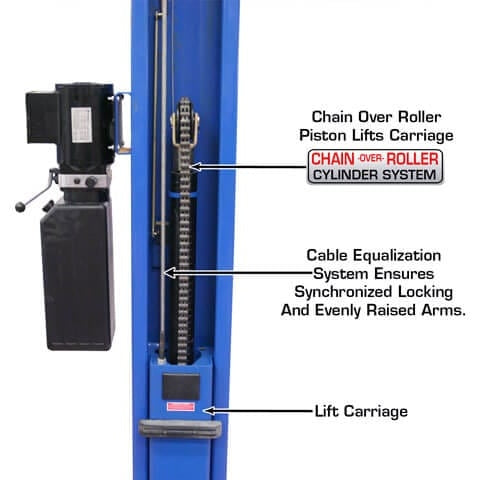

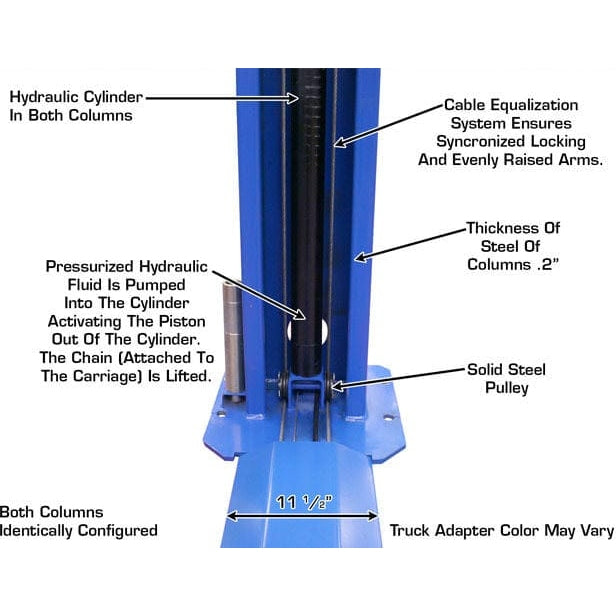

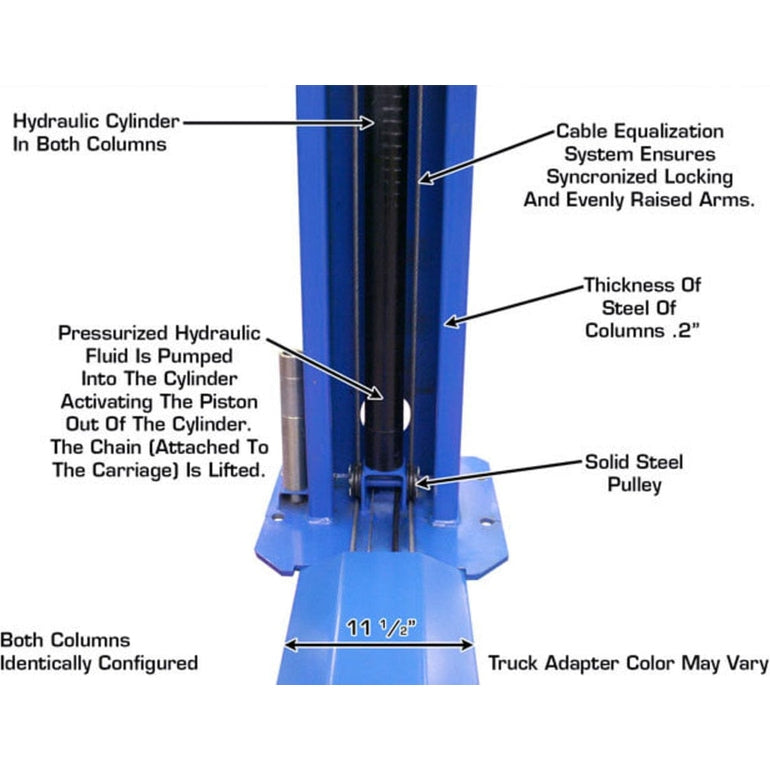

- Dual Hydraulic Chain-Drive Cylinders

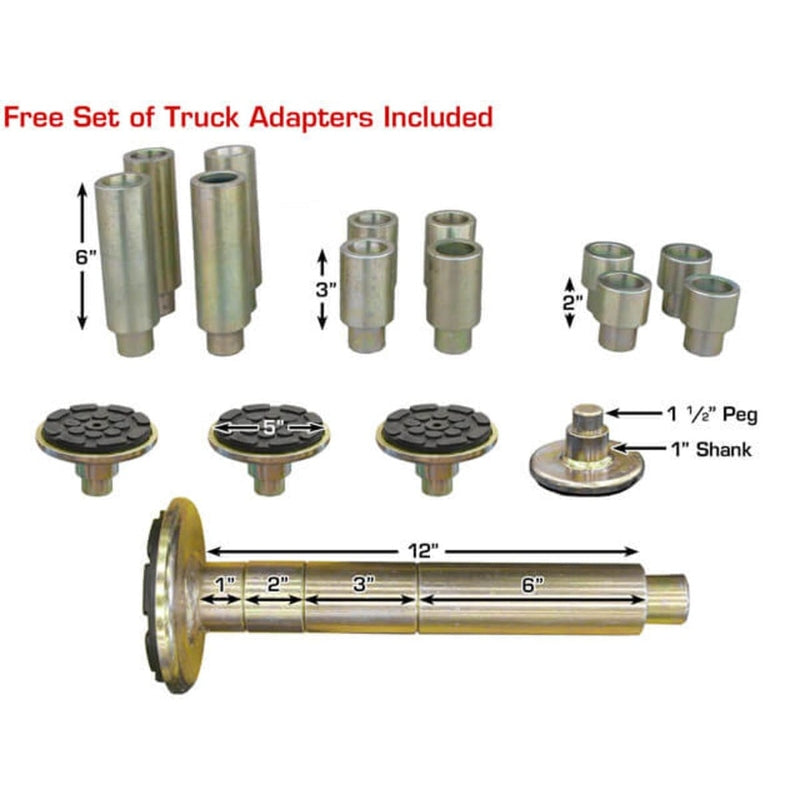

- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included

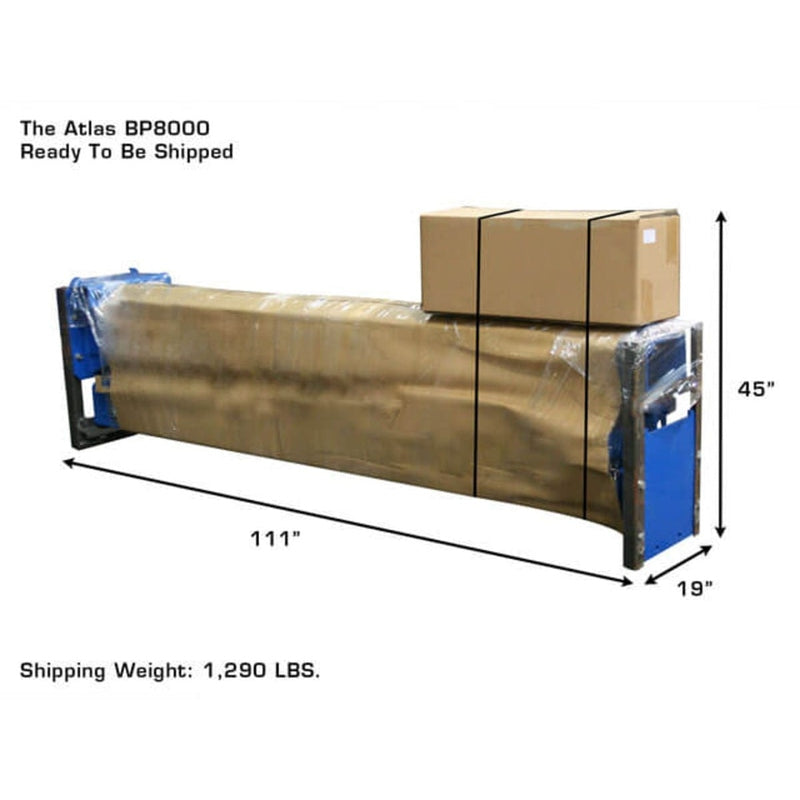

- Shipping Weight: 1,300 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Specifications
| Atlas® ATTD-BP8000 Specifications | ||
| Capacity | 8,000 LB. | |

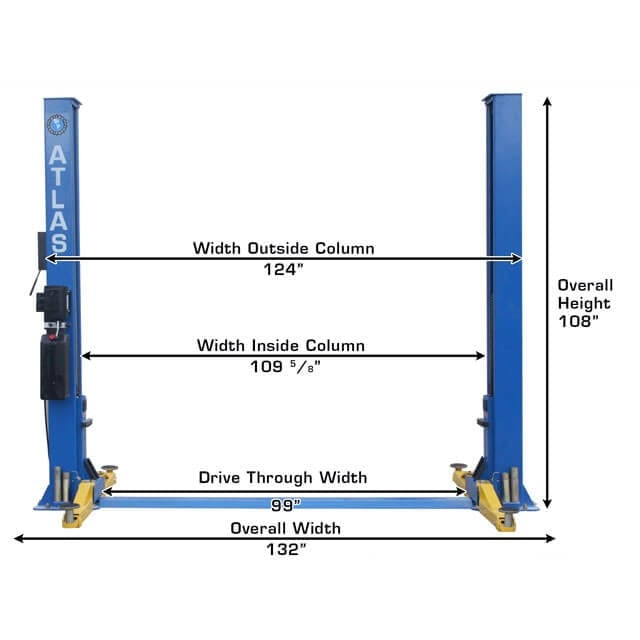

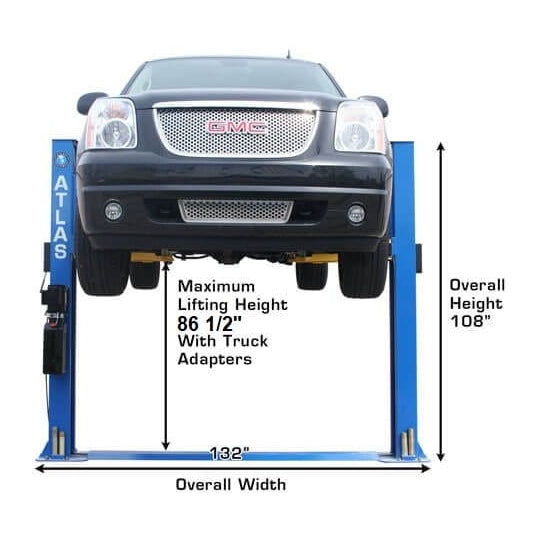

| Overall Height | 108" (9’) | |

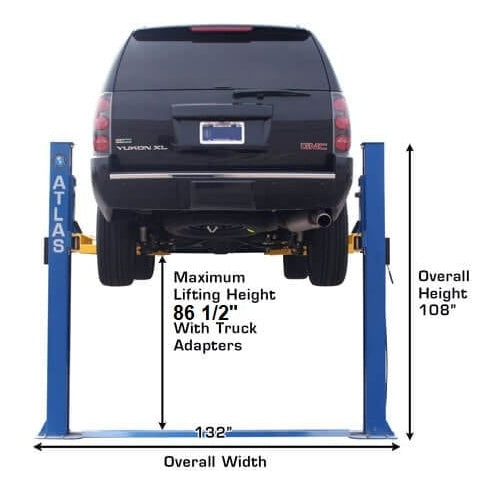

| Overall Floor Width | 132" (11’) | |
| Outside Column to Outside Column | 124" (10’ 4") | |

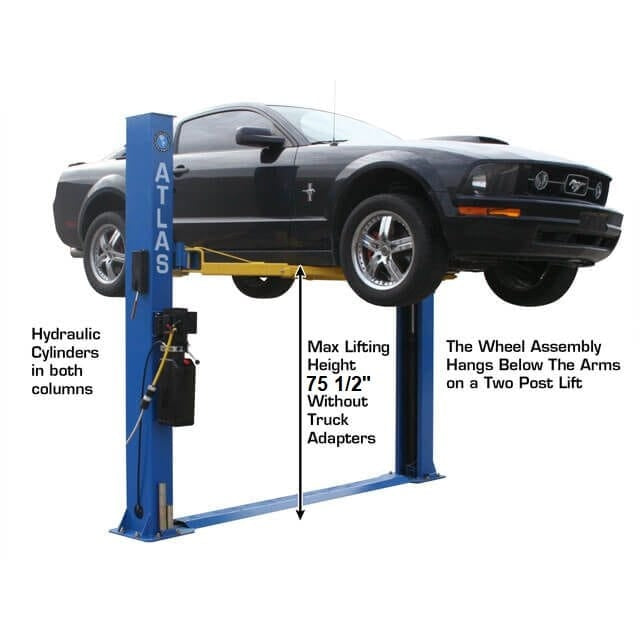

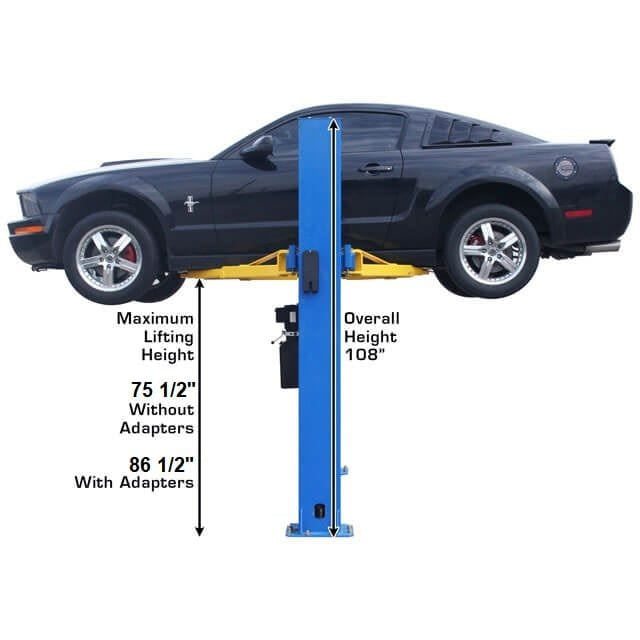

| Maximum Lift Height (Without Adapters) | 75 1/2" | |

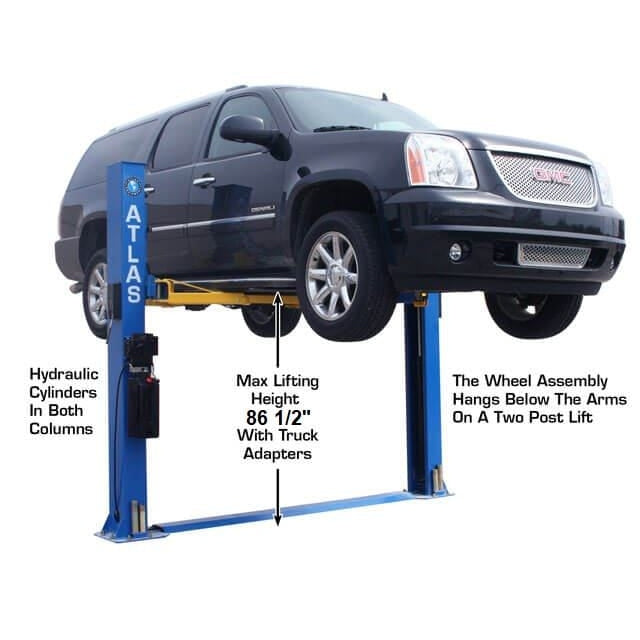

| Maximum Lift Height (With Adapters) | 86 1/2" | |
| Minimum Arm Height | 4" | |
| Inside Column | 109 1/8” (9’ 1 1/8”) | |

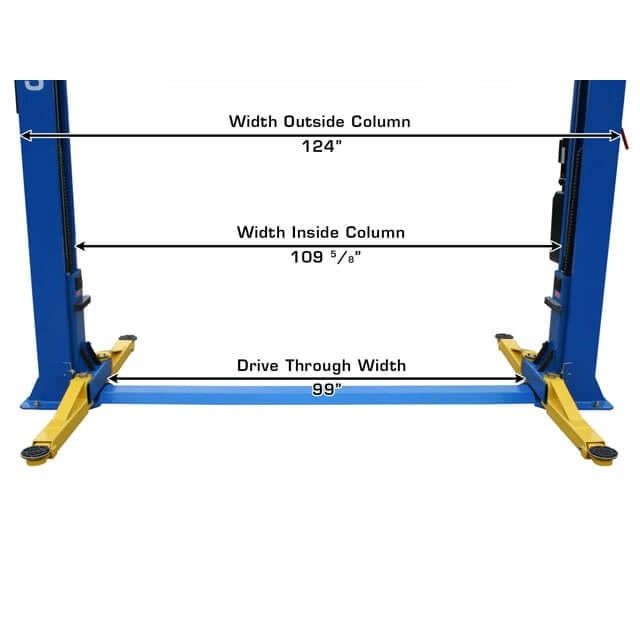

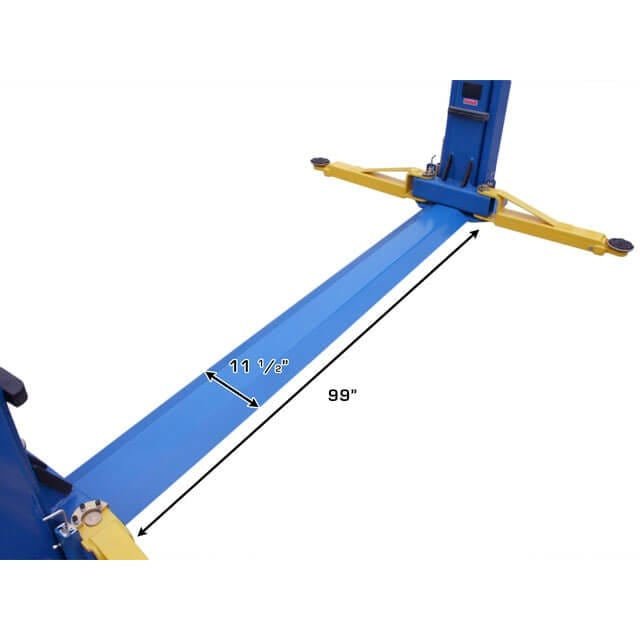

| Drive Thru | 99” (8’ 3”) | |

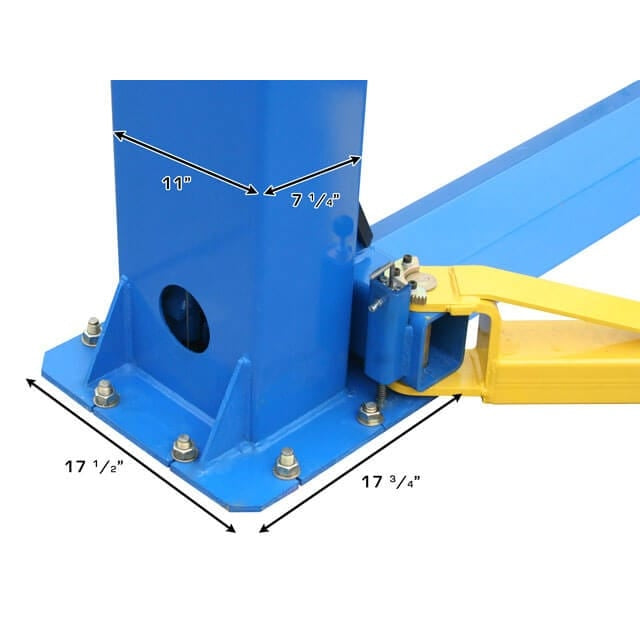

| Column Size | 7 1/4" x 11" | |
| Column Thickness of Steel | 6mm | |

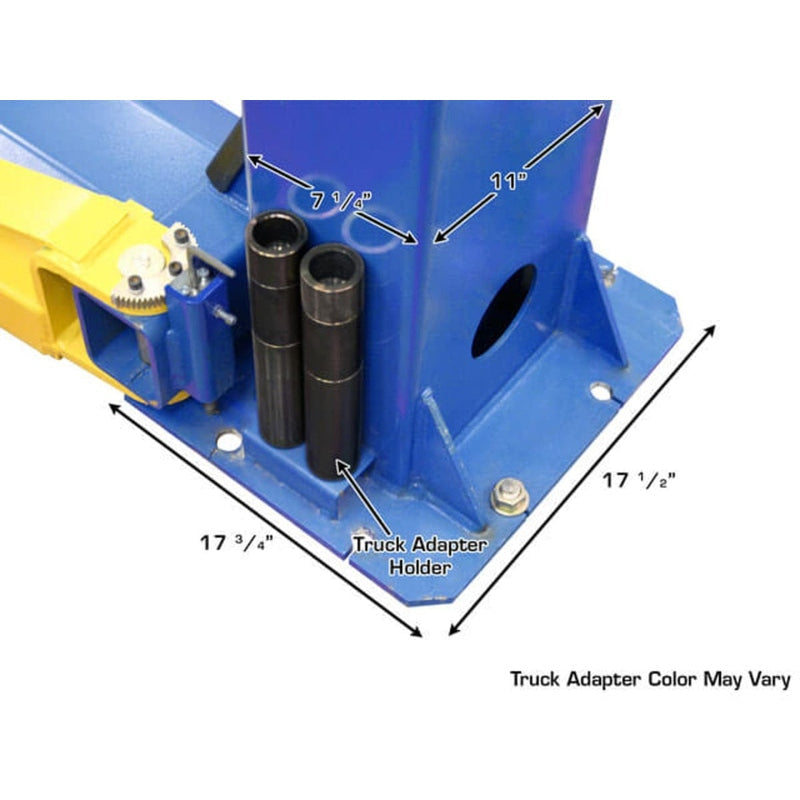

| Base Of Lift | 17 1/2" x 17 3/4" | |

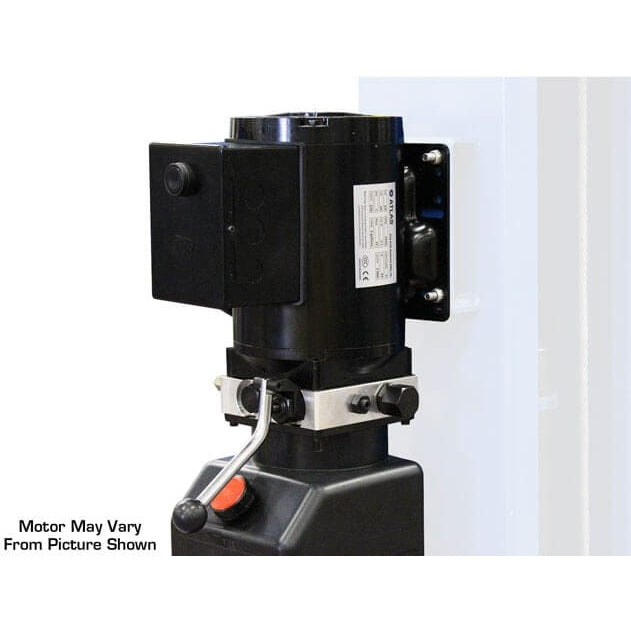

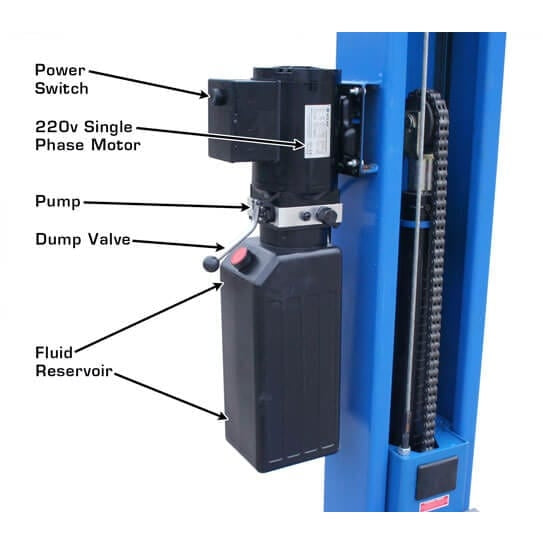

| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,300 LBS. | |

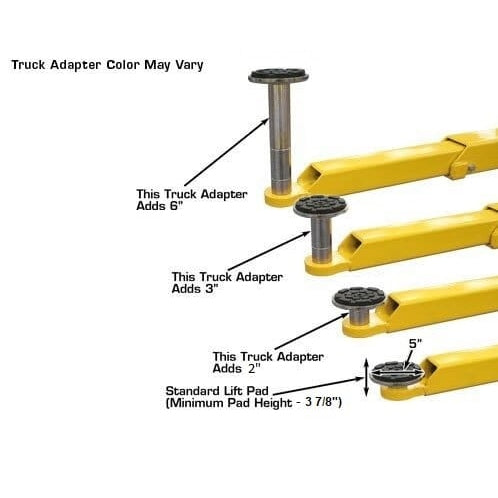

| Adapter Heights | 4 Each 2”, 3”, 6” | |
| Arm Hole/Adapter Peg Size | 1.5” | |
| Requires a minimum of 4" of concrete with a 3000 psi. rating | ||
Documents
Atlas® BP8000 Cylinder Bleeding Procedure (Do this immediately after installation)
