Atlas Edge TD6000CNAK2 Mobile 2 Heavy-Duty Truck & Trailer Alignment System

Description

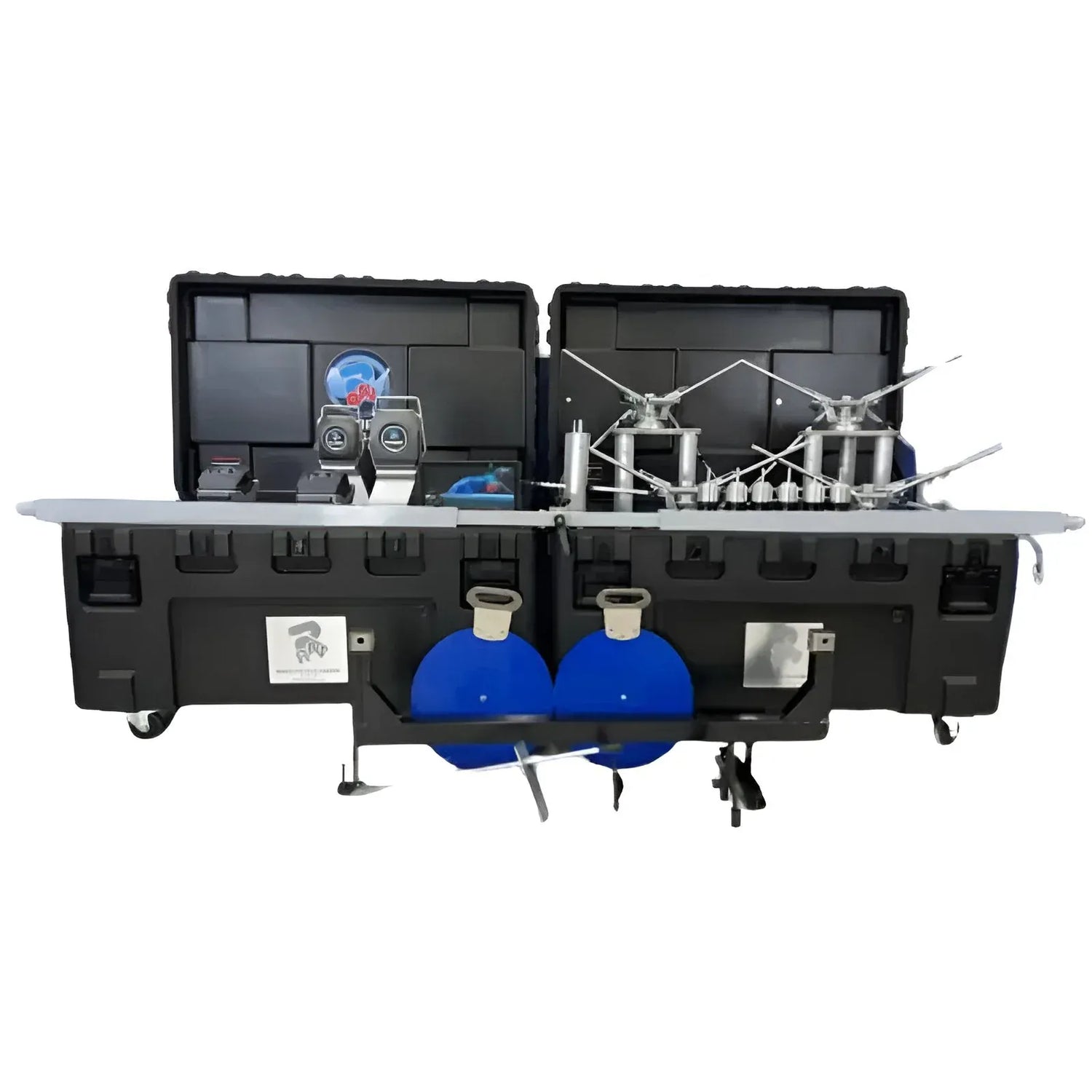

The Atlas Edge TD6000CNAK2 is a portable heavy-duty truck alignment system built around the Ravaglioli "Sprint" Mobile 2 platform. The full kit lives in two industrial-grade cases on casters with built-in calibration plates, so the same tools that align a fleet truck in your bay can be wheeled out to a customer site without breaking the kit down. It handles trucks, trailers, buses, and coaches across 2, 3, 4, and 5 axle configurations.

Measurement is wireless. The four FastClamp wheel heads send data to the included rugged Windows 10 tablet over Wi-Fi and Bluetooth, and the system supports no roll-back alignments — useful when you're working on a parked trailer or in a bay with limited rolling clearance. Two-Head Steer Axle Mode lets a single technician complete a steer-axle measurement without repositioning sensors mid-job, and the included TEQ-LINK app exports printouts and reports by email.

The Sprint Mobile 2 is made in Europe and ships with a 2-year limited parts warranty, free software updates, and remote technical support. Software updates do not include the vehicle specifications database.

Features

• Ravaglioli "Sprint" Mobile 2 heavy-duty truck alignment platform
• No roll-back alignment for trucks and trailers
• Handles 2, 3, 4, and 5 axle configurations

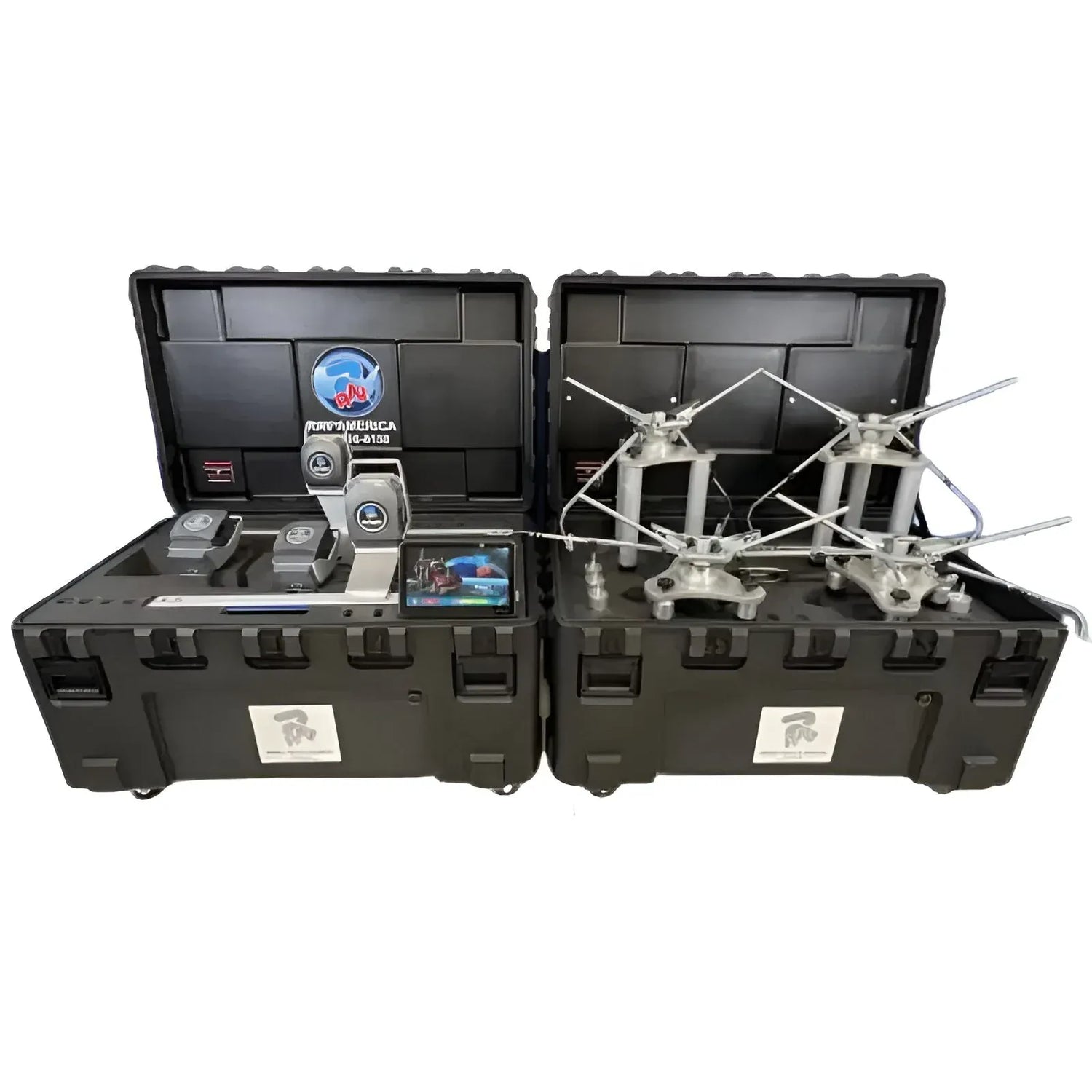

• Two custom heavy-duty cases on casters with built-in calibration plates
• Wi-Fi operation with Bluetooth data transmission
• TEQ-LINK app for exporting printouts and reports by email
• Two-Head Steer Axle Mode for single-technician steer-axle alignments
• Rugged Windows 10 tablet with hand strap, included
• Four non-runout FastClamp wheel clamps, included
• Twelve-piece standoff tube kit (six short, six long), included
• Pair of superlight alloy alignment turn tables, included
• Trailer alignment package and calibration package, included
• Brake pedal depressor and steering wheel lock, included
• Vast vehicle database with free software updates (vehicle specifications not included)
• Remote technical support
• Made in Europe
• 2-year limited parts warranty

Specifications

What's Included

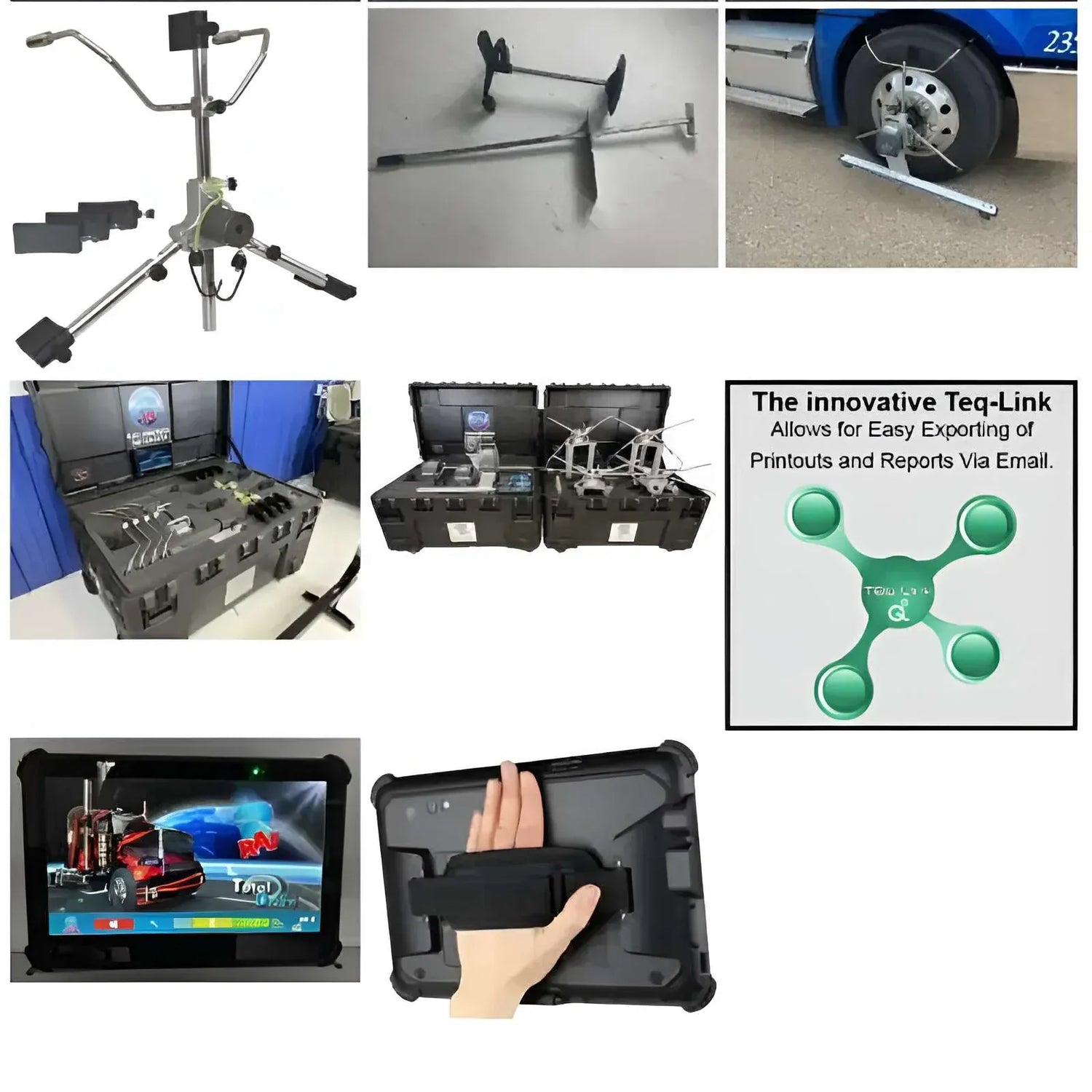

• Two custom industrial cases on casters with built-in calibration plates
• Rugged Windows 10 tablet
• 4 non-runout FastClamp wheel clamps
• 12-piece standoff tube set (6 short, 6 long)
• Pair of superlight alloy alignment turn tables
• Trailer alignment package
• Calibration package
• 1 brake pedal depressor
• 1 steering wheel lock
• TEQ-LINK app

Shipping & Logistics

The TD6000CNAK2 ships via freight at approximately 400 lbs total system weight. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
