Description
Description
Description

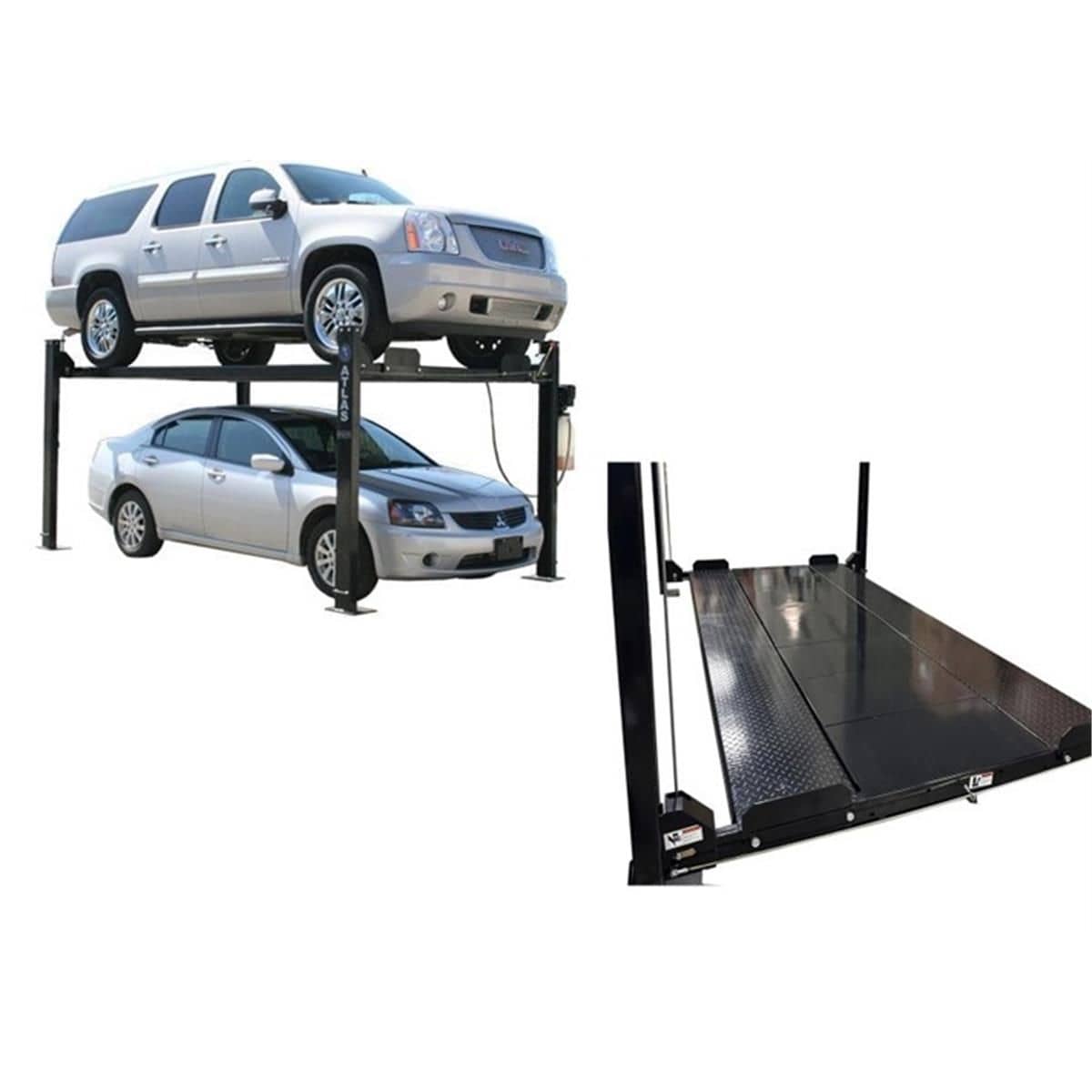

The Atlas Garage PRO8000 is the most popular four-post lift in the Atlas hobbyist line, an 8,000-lb capacity, free-standing storage lift built for homeowners and restoration shops who need to double their floor space by stacking most passenger vehicles. This combo pairs the PRO8000 with the Atlas Pro-Floor 8-piece panel set, which closes the gap between the runways so the entire upper deck becomes usable storage above the parked car below.
The PRO8000 is portable. The included caster kit with polyurethane wheels installs or removes in minutes, letting you roll the assembled lift between bays or out of the garage. Diamond-plated runways, a single-point lock release, and a lock-ladder-style double-lock safety system give the lift the working feel of a commercial storage rack while staying inside the requirements of a typical home garage. Operation is 110V, with a 30-amp dedicated breaker required.
The Pro-Floor panel set adds eight lightweight panels, six middle sections and two end pieces, each rated to 400 lbs per section. With the panels installed, the upper deck reads as one continuous platform. Tools, seasonal tires, totes, and storage bins live above; the daily driver lives below.
This is a hobbyist and restoration-shop lift, not a commercial service lift. Atlas designs the Garage PRO series for occasional cycling, raising and lowering once or twice a day, not dozens of times. Shops that cycle vehicles all day should look at a commercial four-post or two-post instead. Call Project Foundry at 331-272-5655 if you want a second opinion on fit before ordering.

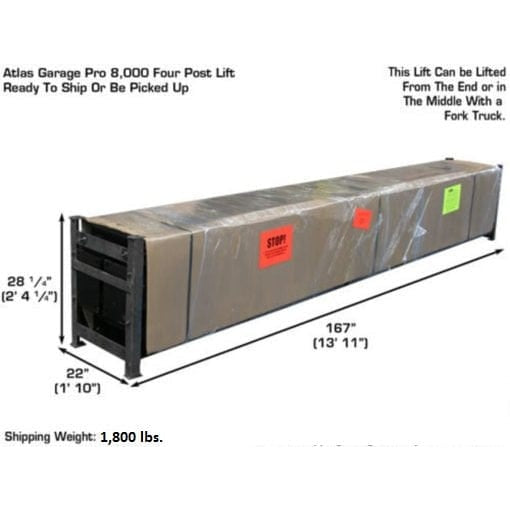

Logistics: the combo ships via freight at roughly 1,800 lbs shipping weight. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Features
Atlas Garage PRO8000 4-Post Lift
- 8,000-lb lifting capacity
- Free-standing, portable design
- Diamond-plated runways

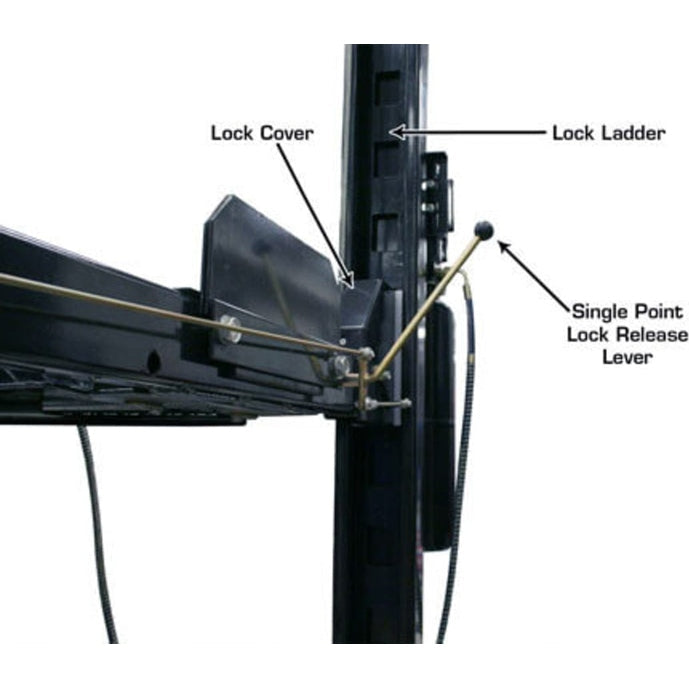

- Single-point lock release

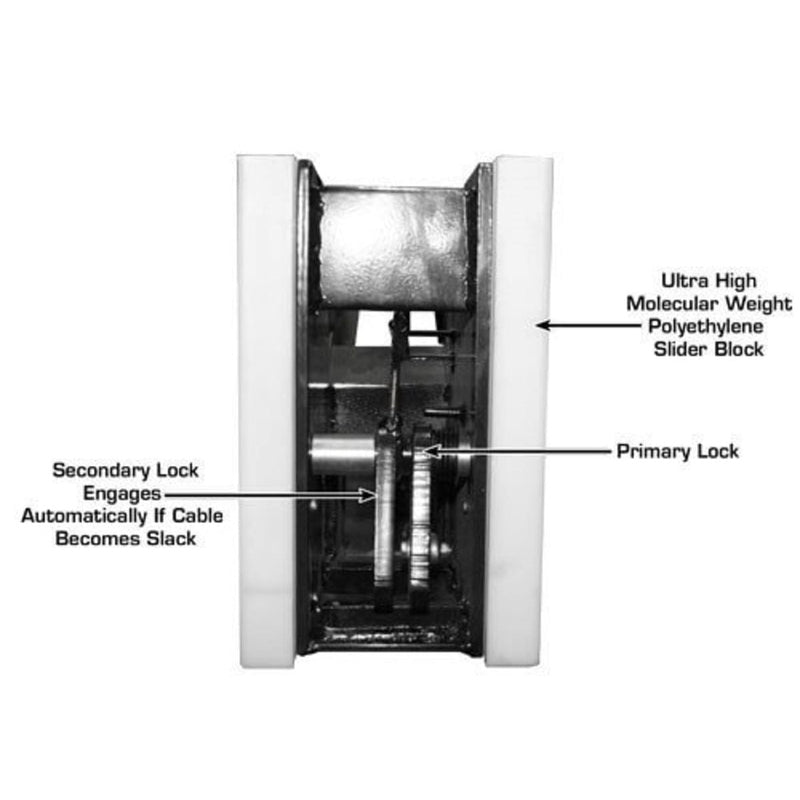

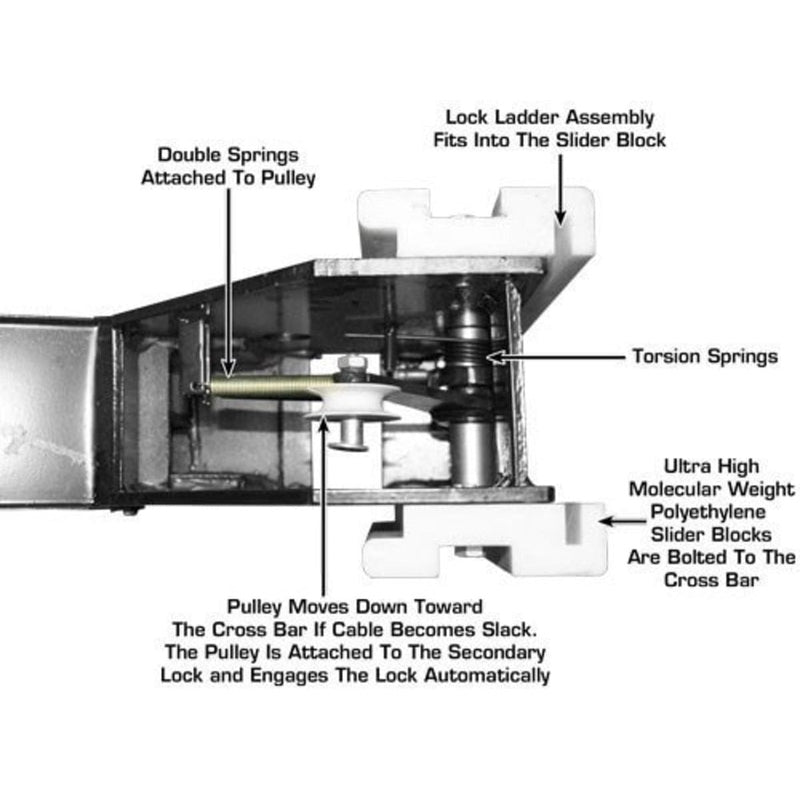

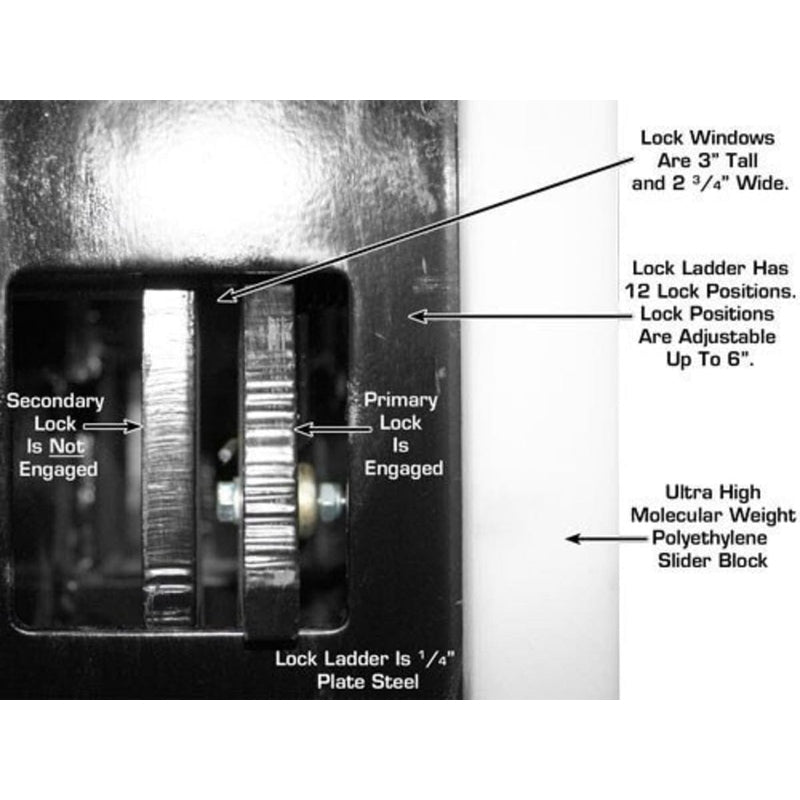

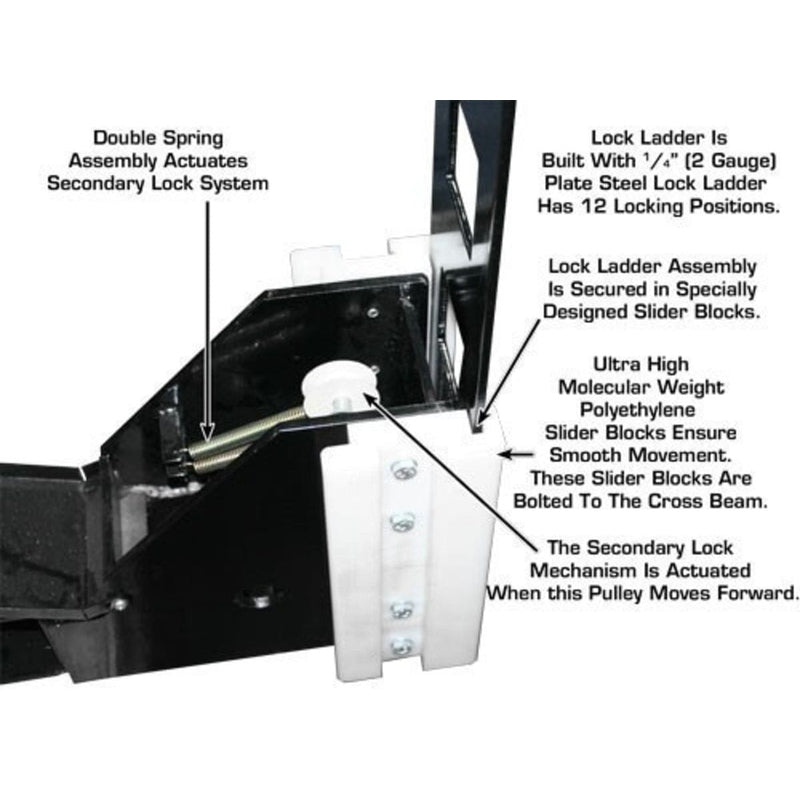

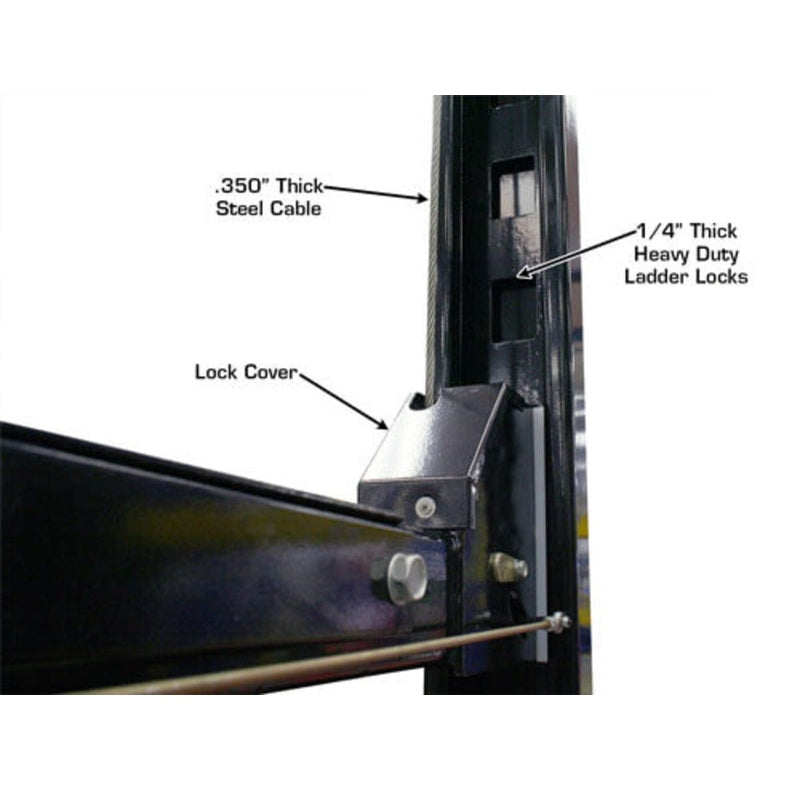

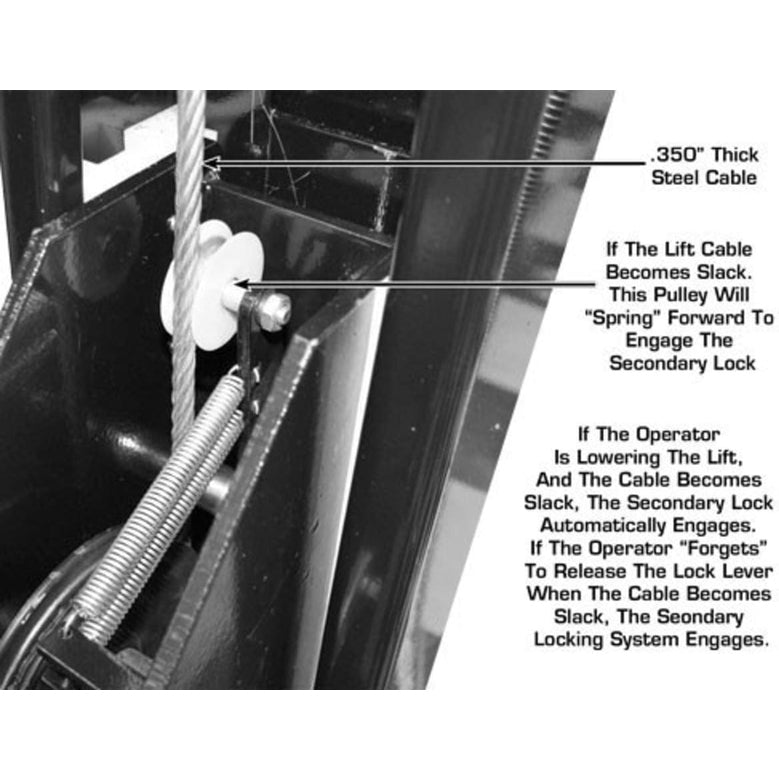

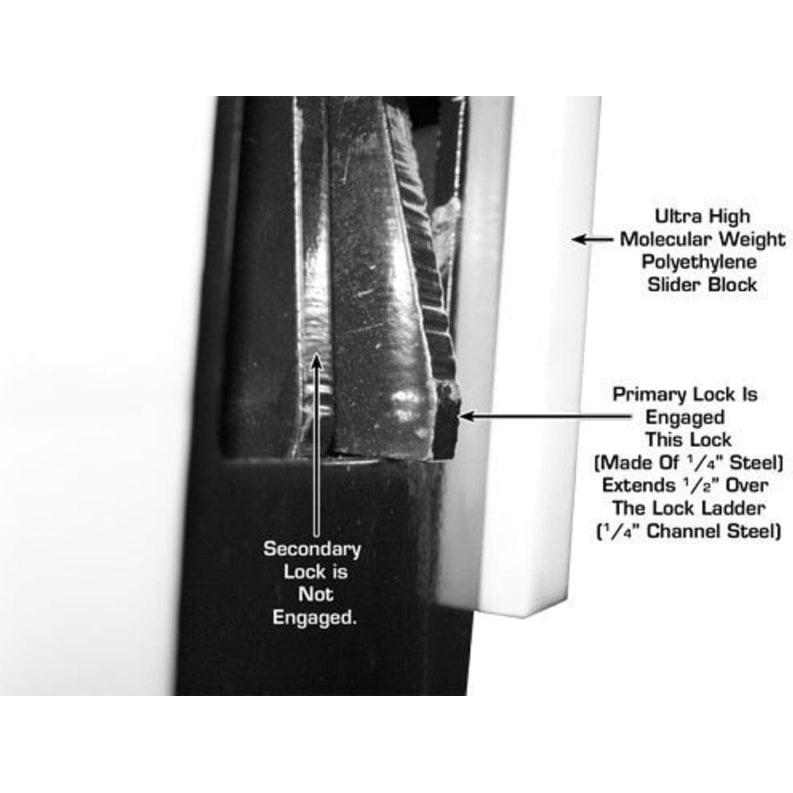

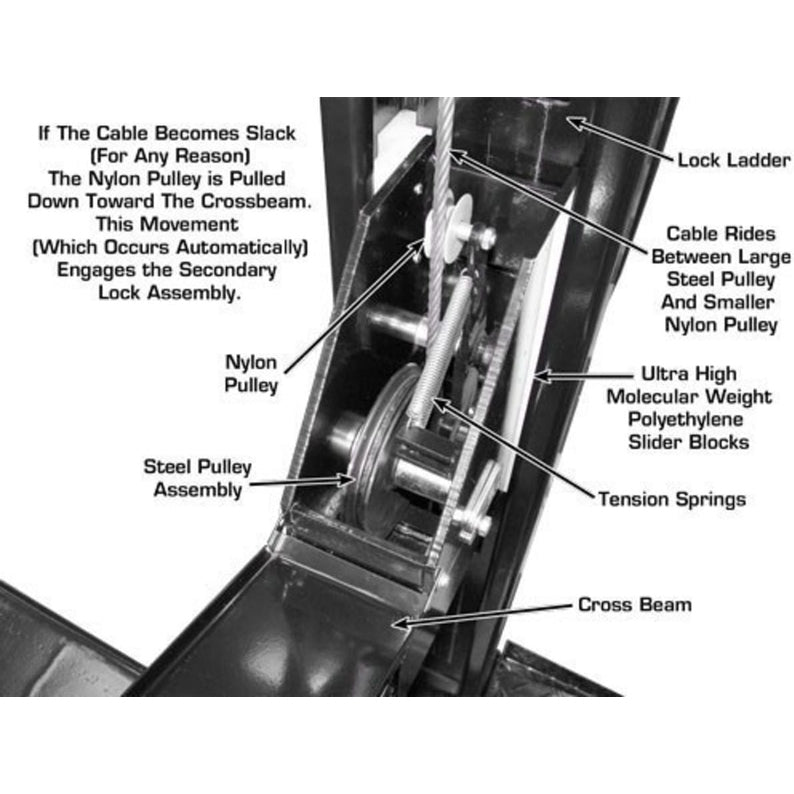

- Lock-ladder design with double-lock safety system

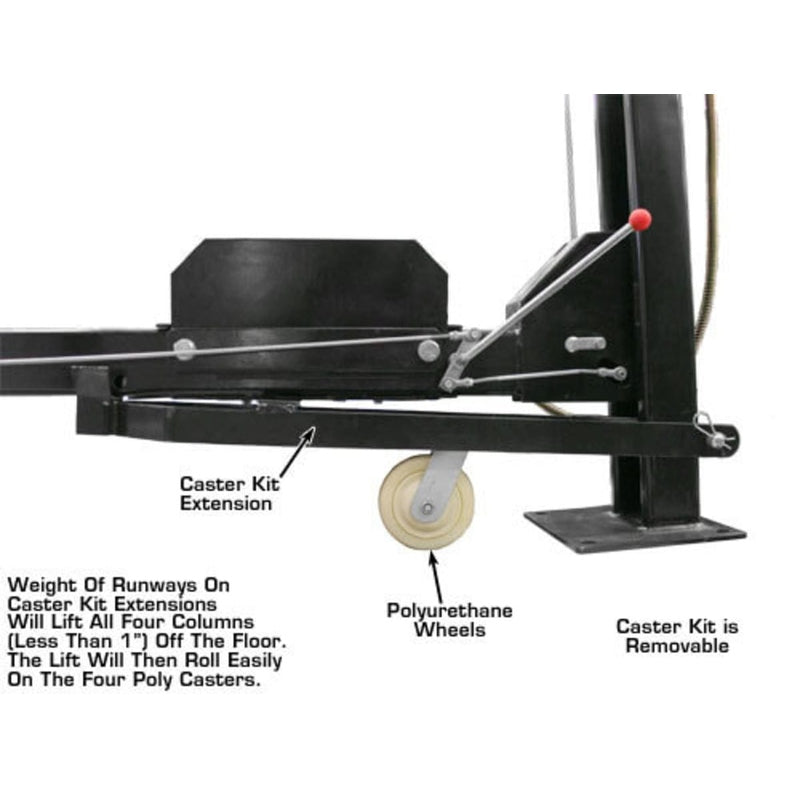

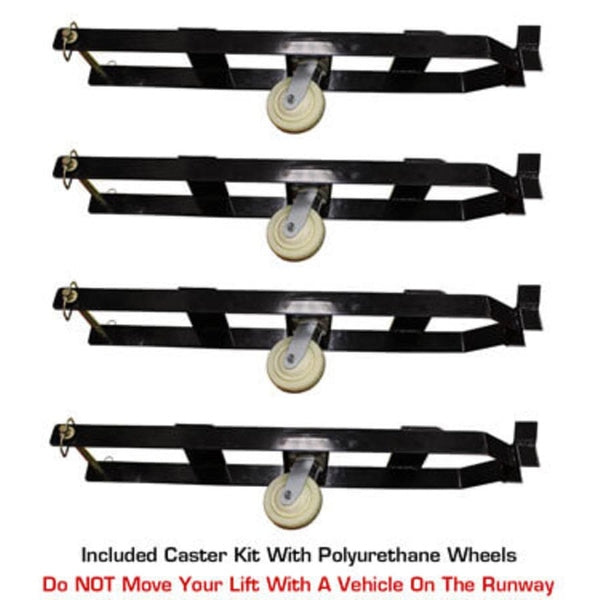

- Caster kit with polyurethane wheels included

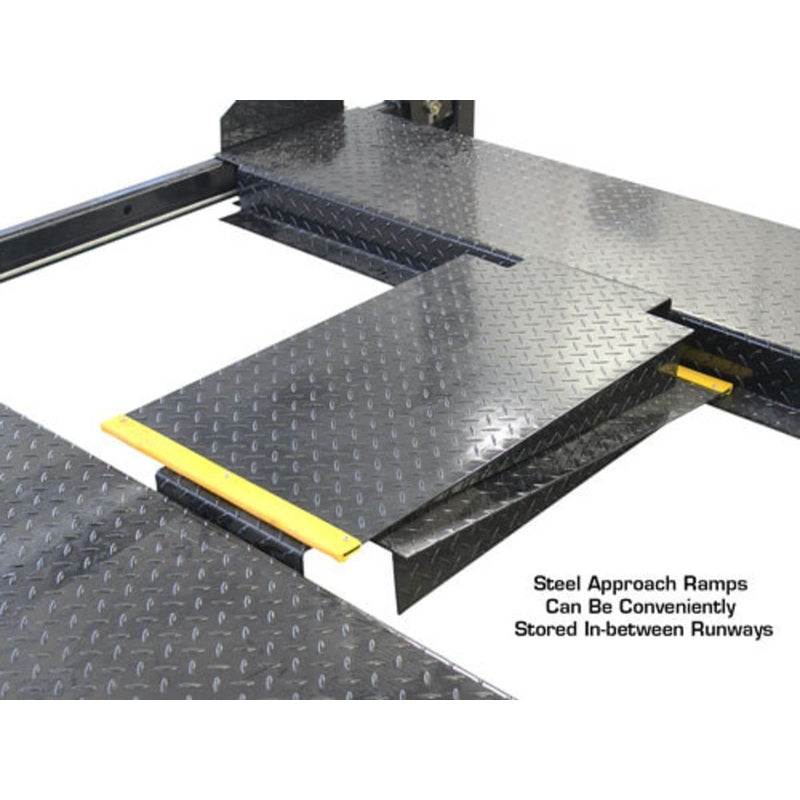

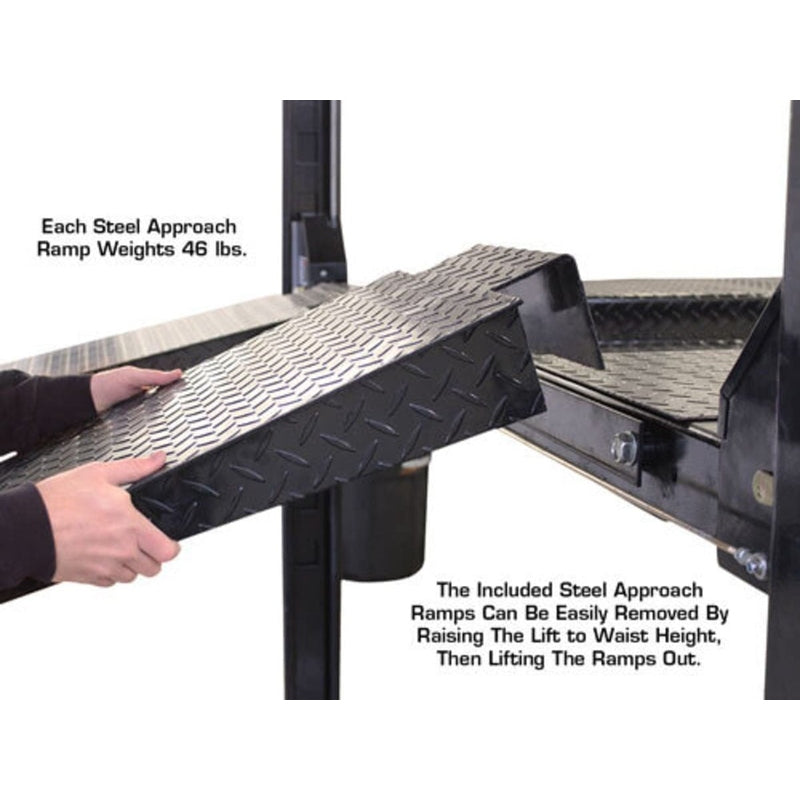

- Steel approach ramps included

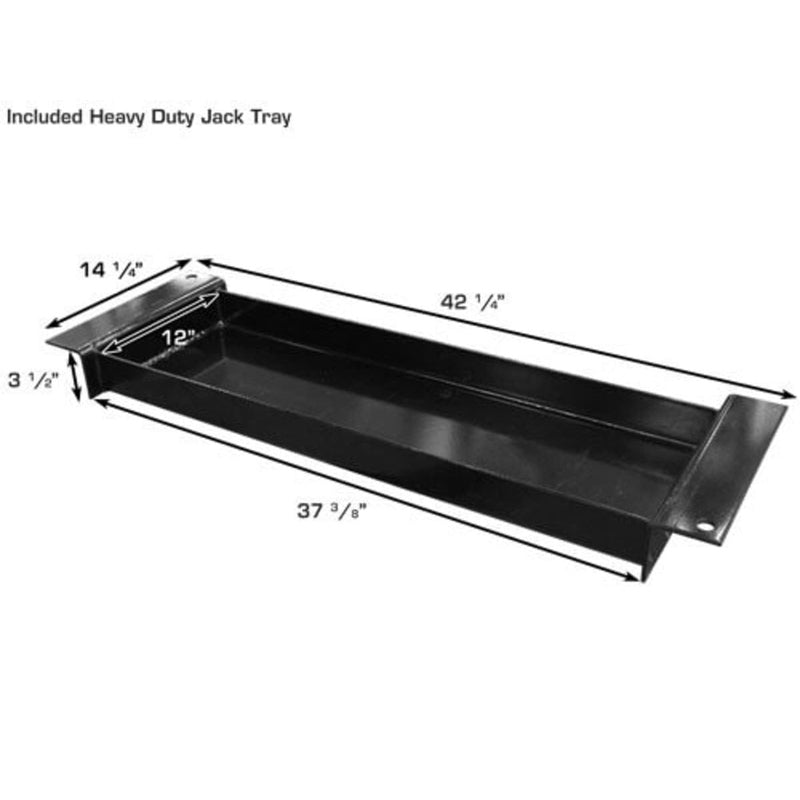

- Steel jack tray included

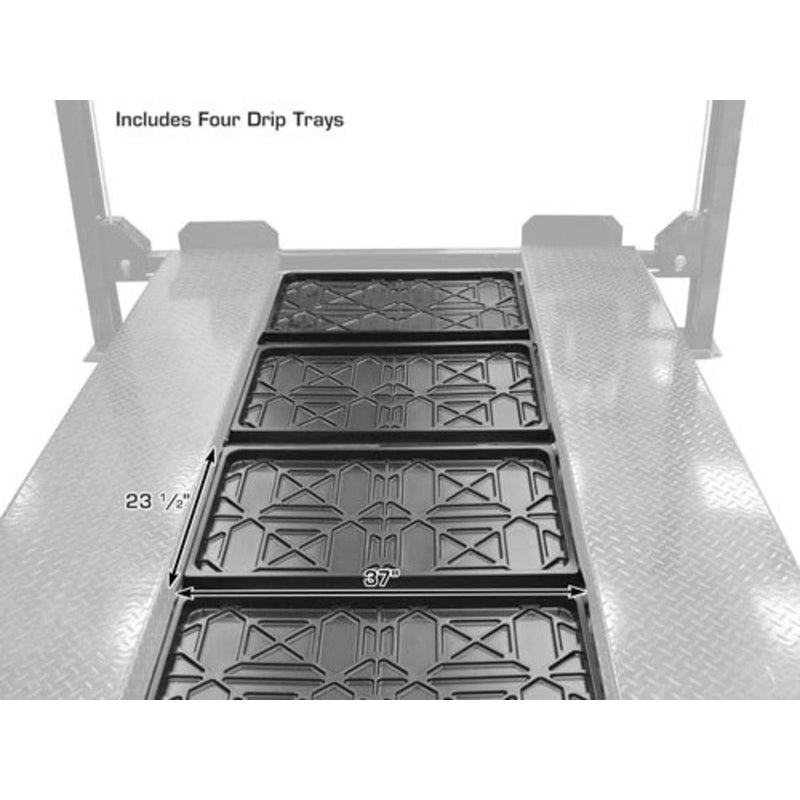

- 4 plastic drip trays included
- 4 wheel stops included

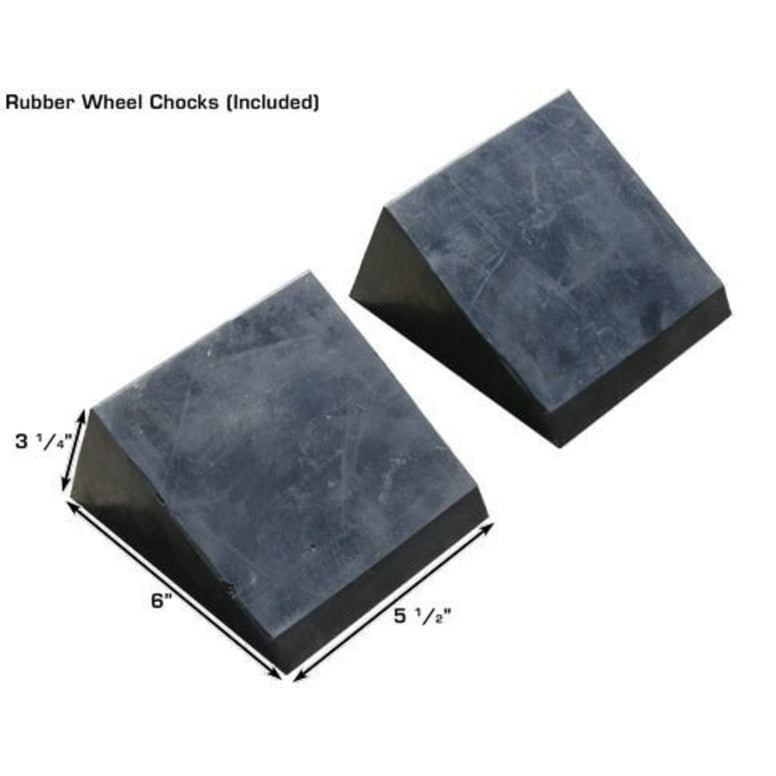

- 2 rubber wheel chocks included

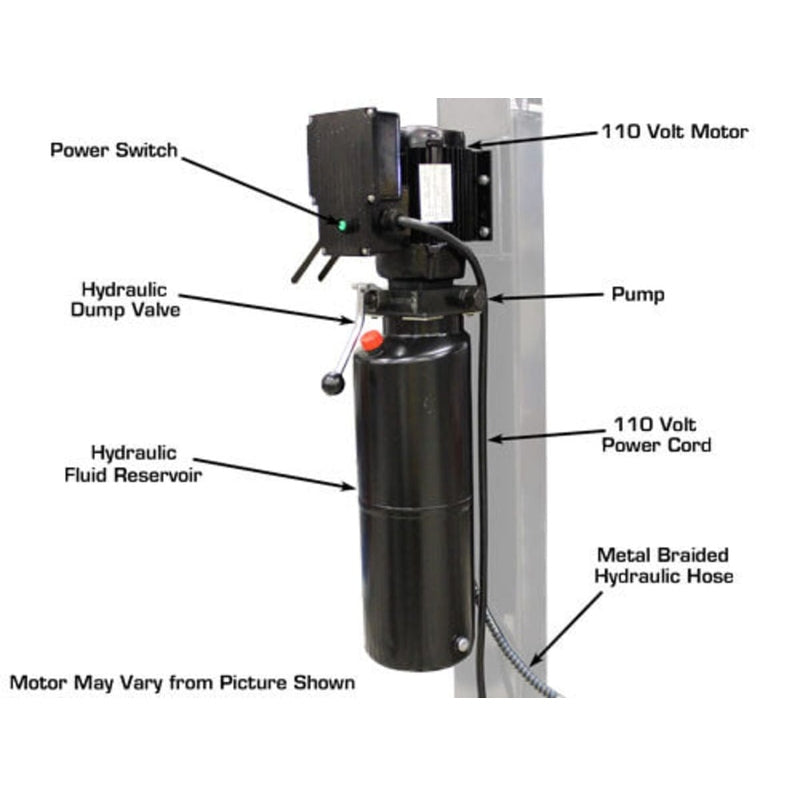

- 110V electric operation (30-amp breaker required)
- Shipping weight 1,800 lbs
- 2-year structural / 1-year hydraulic warranty (parts only)
Atlas Pro-Floor 8-Piece Panel Set
- Complete 8-piece floor panel set (6 middle + 2 end pieces)
- 400-lb capacity per section
- Lightweight design
- Closes the gap between PRO8000 runways for full upper-deck storage
- Panel dimensions: 37 1/4" wide x 19 1/2" deep x 4" tall
Specifications
| Atlas Garage PRO8000 Specifications | |
|---|---|
| Capacity | 8,000 lbs |

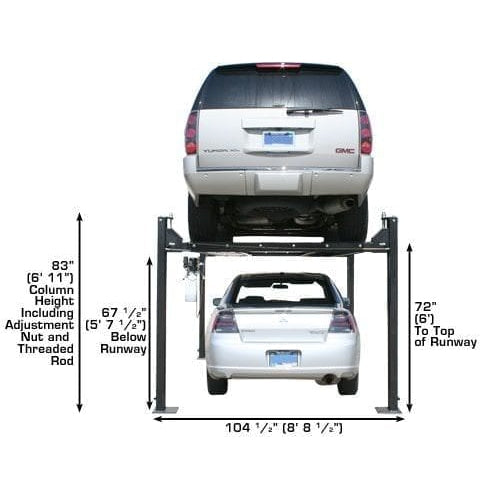

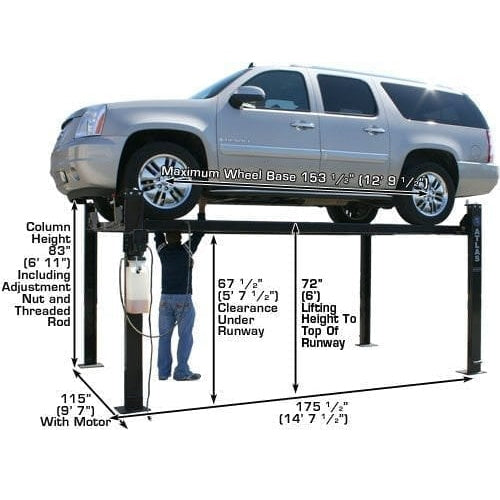

| Lifting height to top of runway | 72" (6') |
| Clearance under runways | 67" (5' 7") |

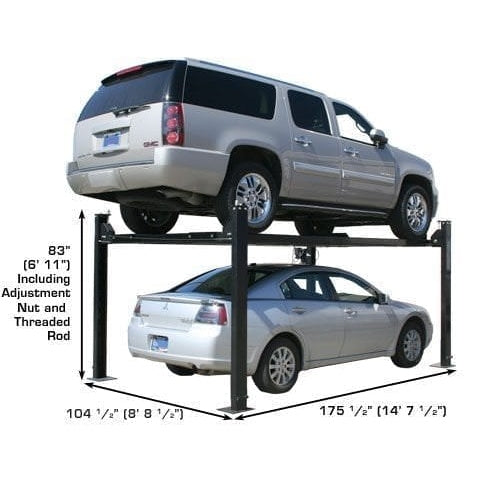

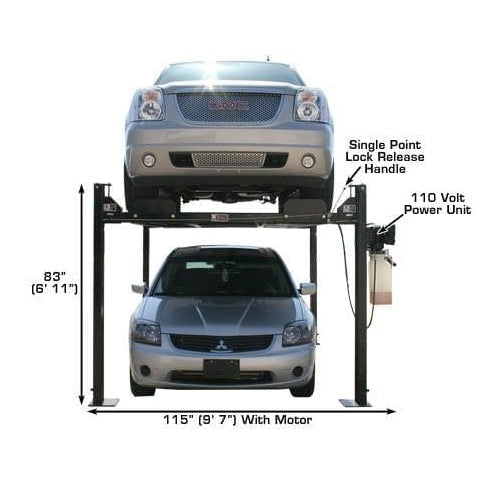

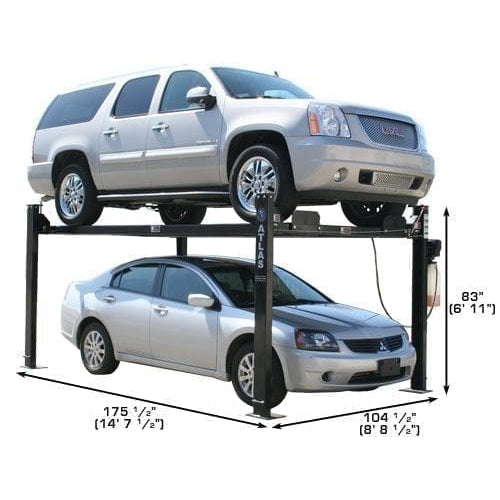

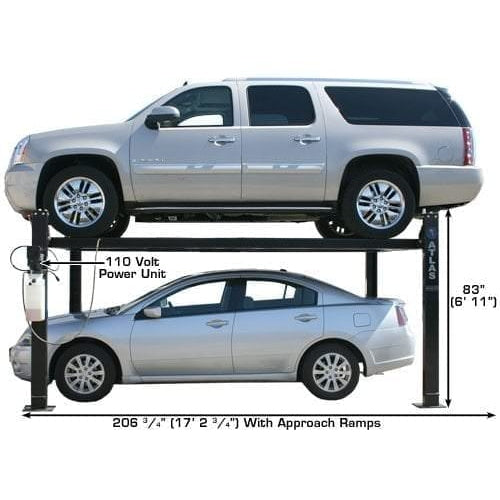

| Height of columns | 83" (6' 11") |
| Overall width (without motor) | 104 1/2" (8' 8 1/2") |

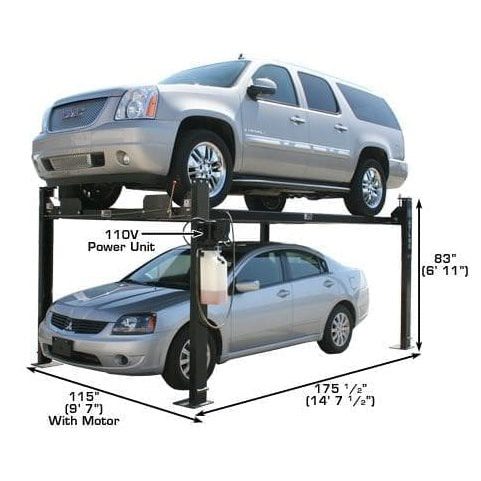

| Overall width (with motor) | 115" (9' 7") |

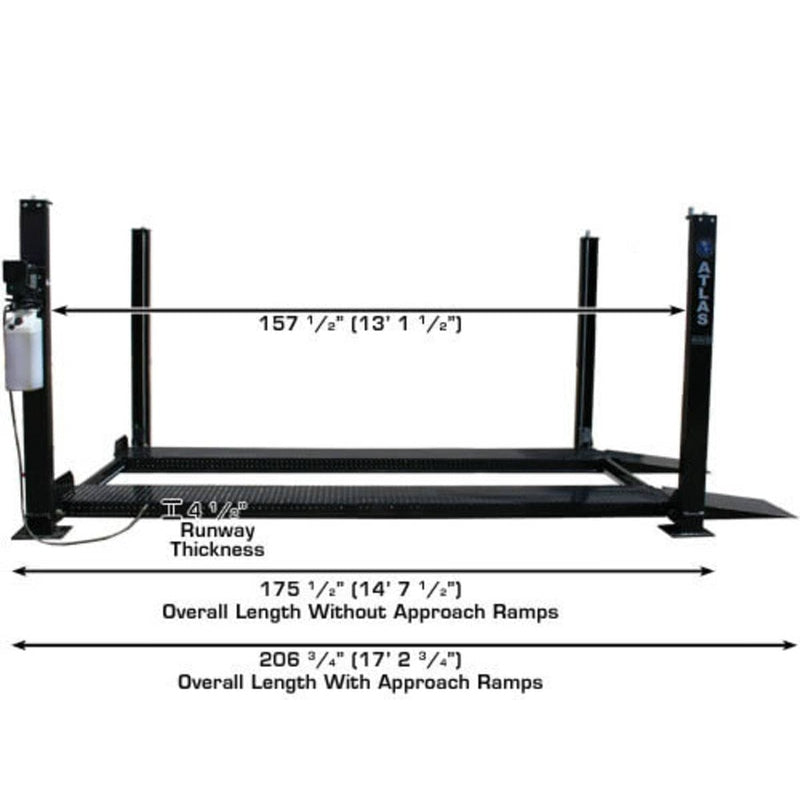

| Overall length with approach ramp | 206 3/4" (17' 2 3/4") |

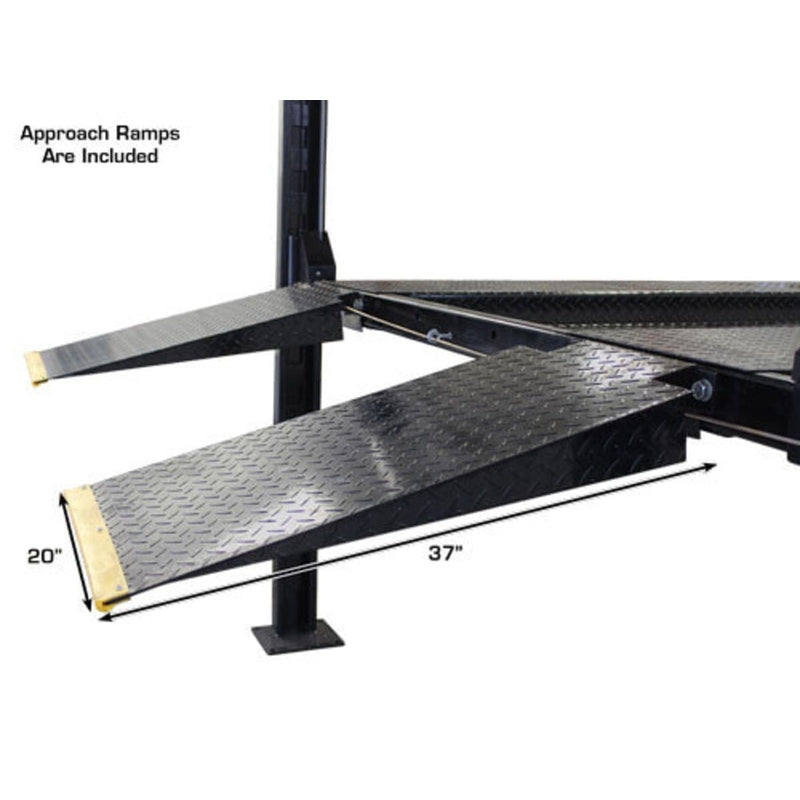

| Approach ramp | 37" (3' 1") |

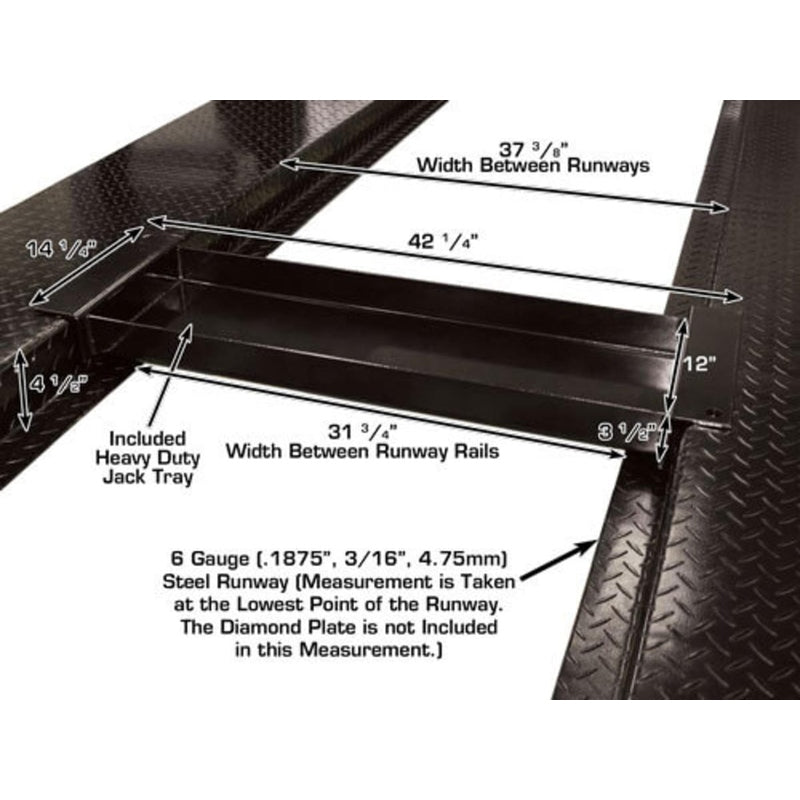

| Runway width | 21 1/2" (with rails) / 18 3/4" (driving surface) |
| Runway length | 165 3/4" (13' 9 3/4") |
| Runway thickness | 4 1/2" |

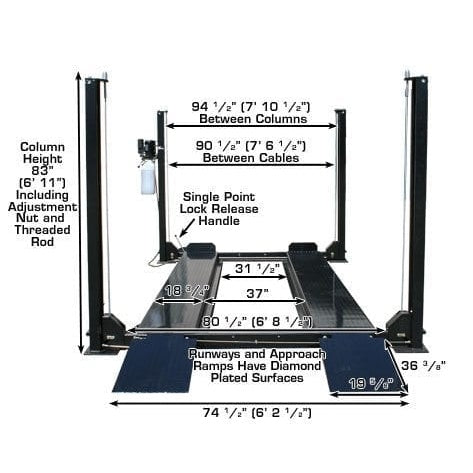

| Width between runways | 37" (3' 1") |
| Width between runway rails | 31 1/2" (2' 7 1/2") |
| Outside runway to outside runway | 74 5/8" (6' 2 5/8") |
| Clearance between columns | 94 1/2" (7' 10 1/2") |
| Length between columns | 157 1/2" (13' 1 1/2") |
| Maximum wheel base | 153 1/2" (12' 9 1/2") |
| Drive-through (outside of tire to outside of tire) | 80 1/2" (6' 8 1/2") |
| Motor / electrical requirement | 110V, 30-amp breaker required |
| Shipping weight | 1,800 lbs |
| Warranty | 2-year structural / 1-year hydraulic (parts only) |
| Atlas Pro-Floor 8-Piece Panel Set Specifications | |
|---|---|
| Panel count | 8 (6 middle + 2 end) |
| Capacity per section | 400 lbs |
| Panel dimensions (each) | 37 1/4" W x 19 1/2" D x 4" tall |
Documents
- Atlas Garage PRO8000 Owner's Manual
- Atlas Garage Cylinder Bleeding Procedure, perform immediately after installation
