Atlas Garage PRO8000EXT 8,000 lb Extra-Tall 4-Post Lift with Pro-Floor 8-Piece Panel Combo

Description

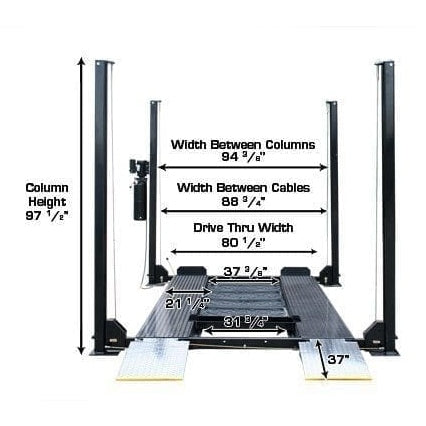

The Atlas Garage PRO8000EXT is an 8,000-lb capacity four-post storage lift built for homeowners and restoration shops that want a taller storage lift without giving up garage real estate. The PRO8000EXT delivers 79 inches of clearance under the raised runway, enough to park a full-size SUV or pickup beneath the platform while a second vehicle sits on top. Most "taller" competitor lifts add height by lengthening the runway; the PRO8000EXT goes taller without the extra footprint.

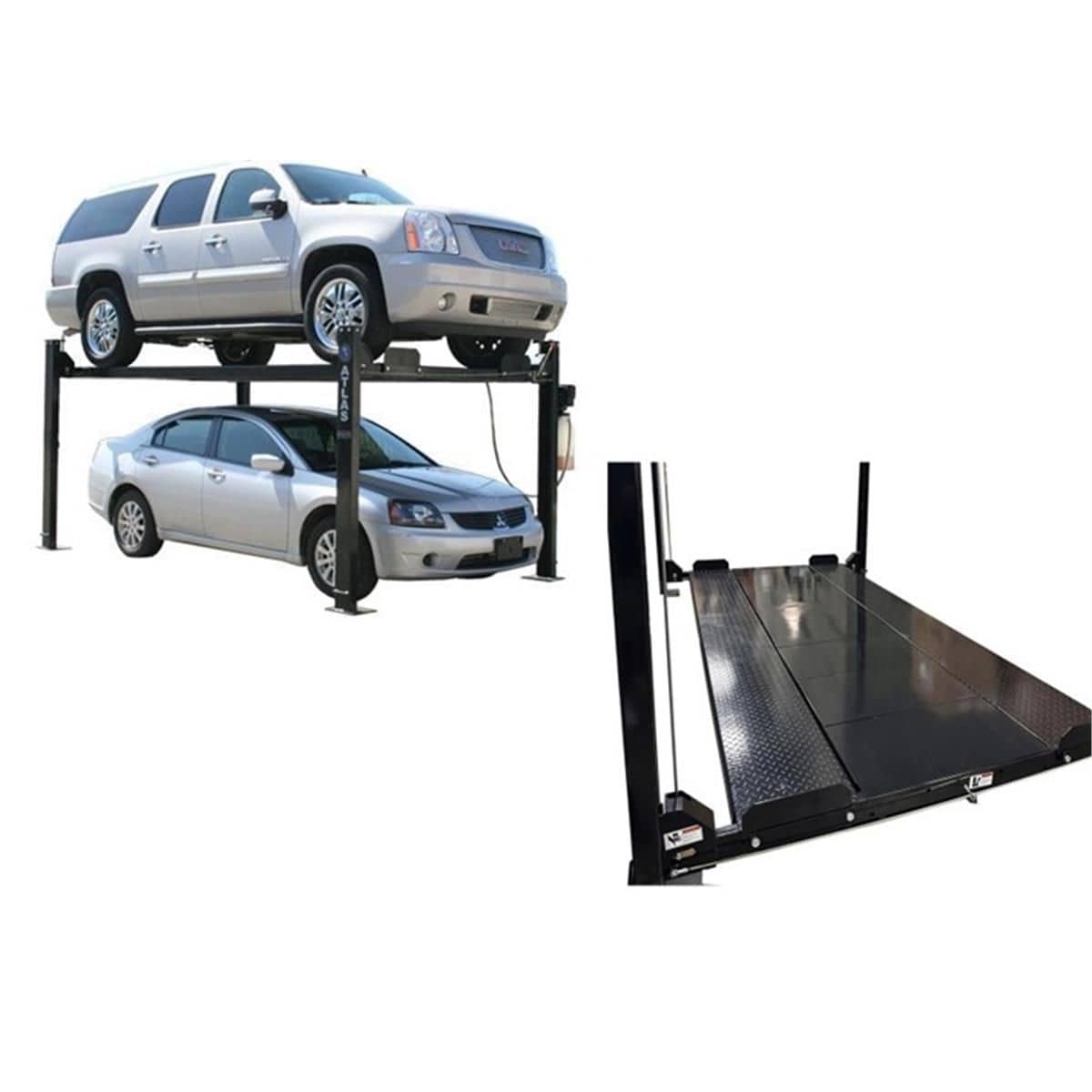

This combo bundles the PRO8000EXT with the Atlas Pro-Floor 8-Piece Panel Set — six middle panels and two end pieces that close the gap between the runways. With the panels installed, the upper deck becomes a continuous storage surface rated at 400 lbs per section, useful for parts, tires, seasonal items, or a workshop platform above the parked vehicle.

The PRO8000EXT runs on standard 110-volt single-phase power (30-amp breaker required) and ships with a caster kit, steel approach ramps, a steel jack tray, four plastic drip trays, four wheel stops, and two rubber wheel chocks. The polyurethane caster kit installs in minutes, making the lift portable between bays or out to the driveway when needed.

The Atlas Garage PRO series of four-post lifts is engineered for homeowner and restoration-shop duty cycles. These lifts are not designed for high-cycle commercial repair shops where a lift is raised and lowered several times per day. If you have questions about which lift fits your application, contact MGS at 307-381-1810.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck. Total shipping weight for the combo is 2,325 lbs (1,850 lbs for the lift plus the 8-piece Pro-Floor panel set).

Features

Atlas Garage PRO8000EXT Lift

• 8,000-lb total lifting capacity

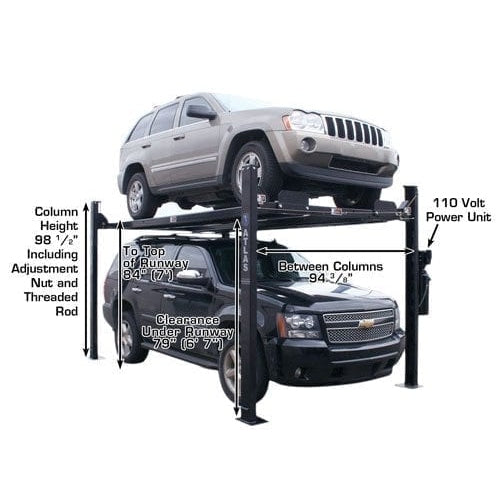

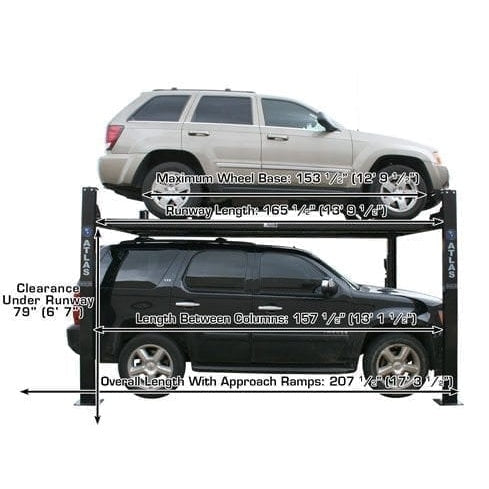

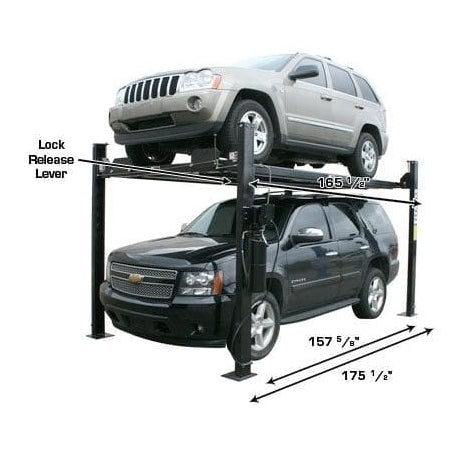

• 79 inches of clearance under the raised runway — clears full-size SUVs and pickups beneath
• Free-standing, portable design — no anchor bolts required

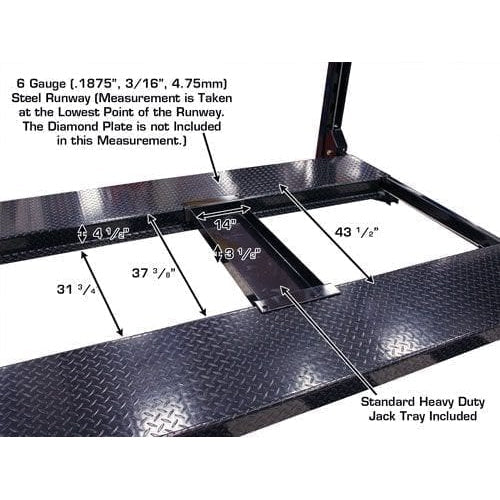

• Diamond-plated runways

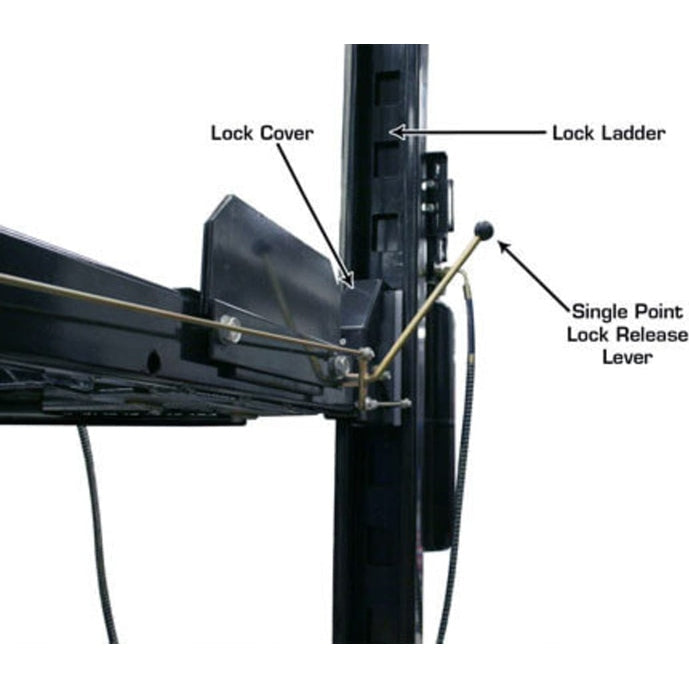

• Single-point lock release

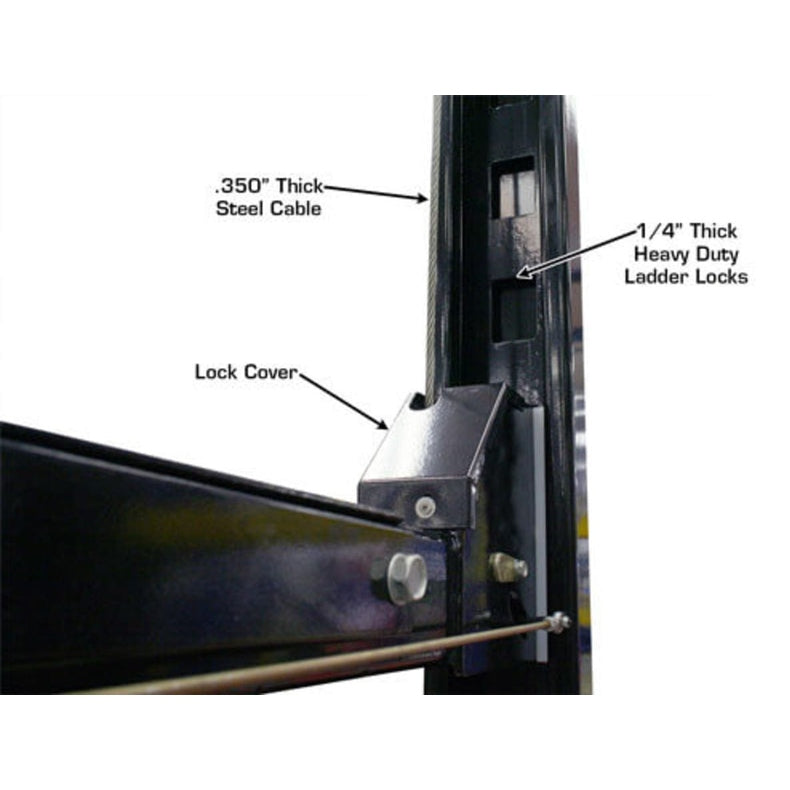

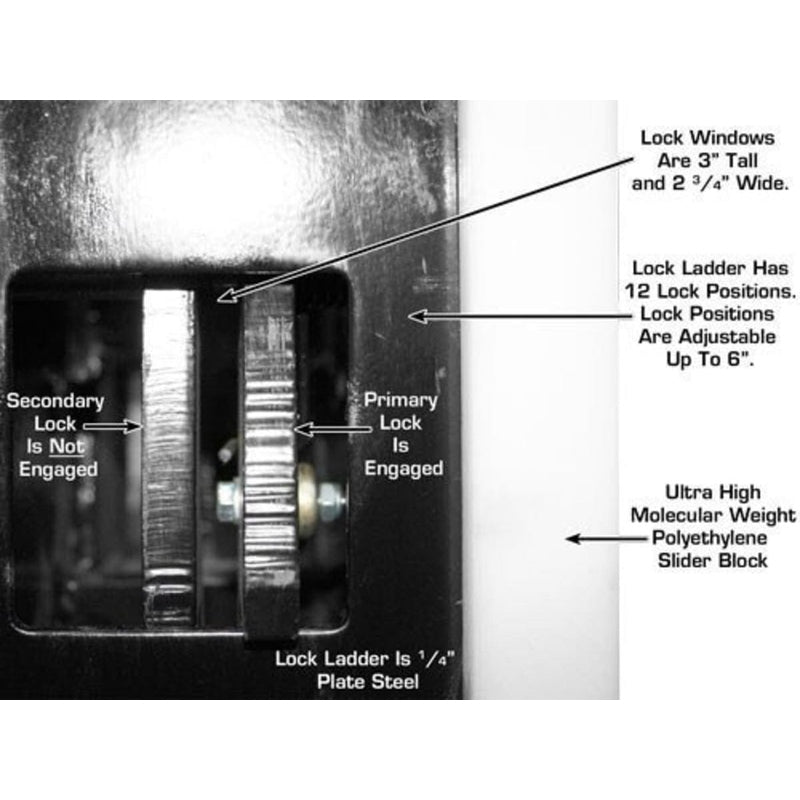

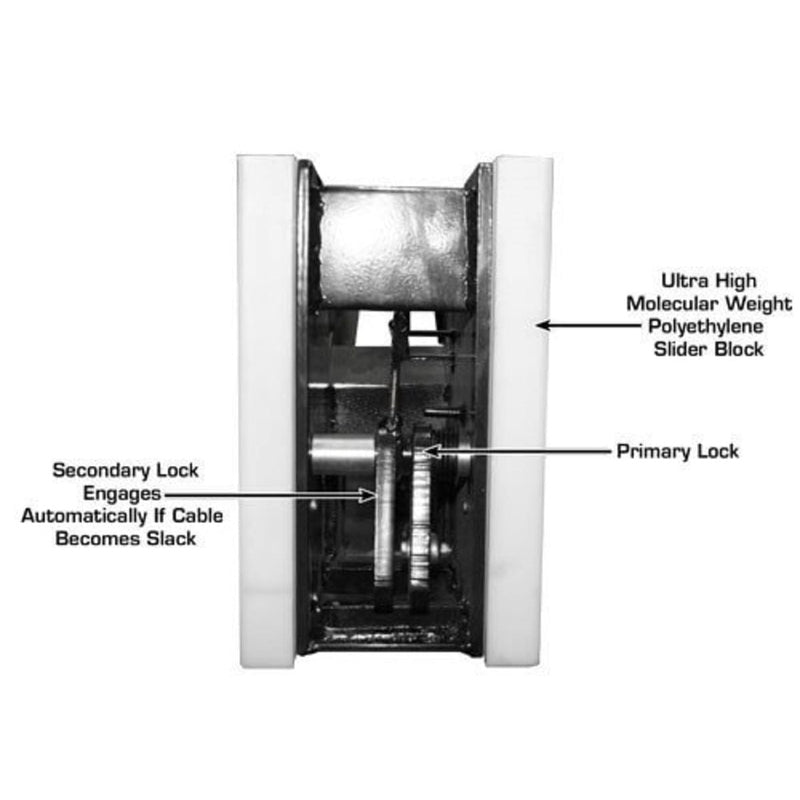

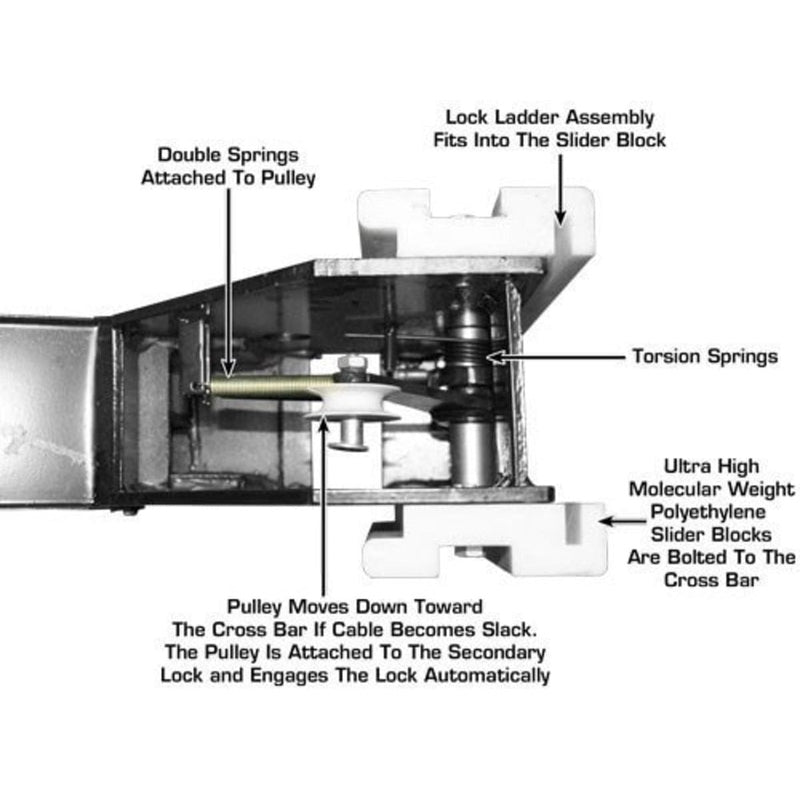

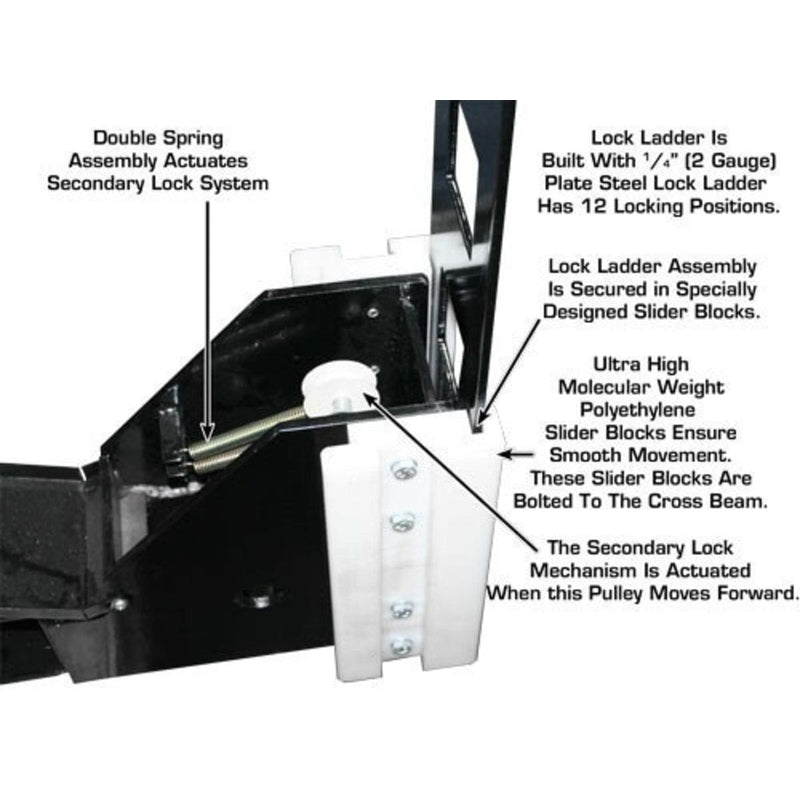

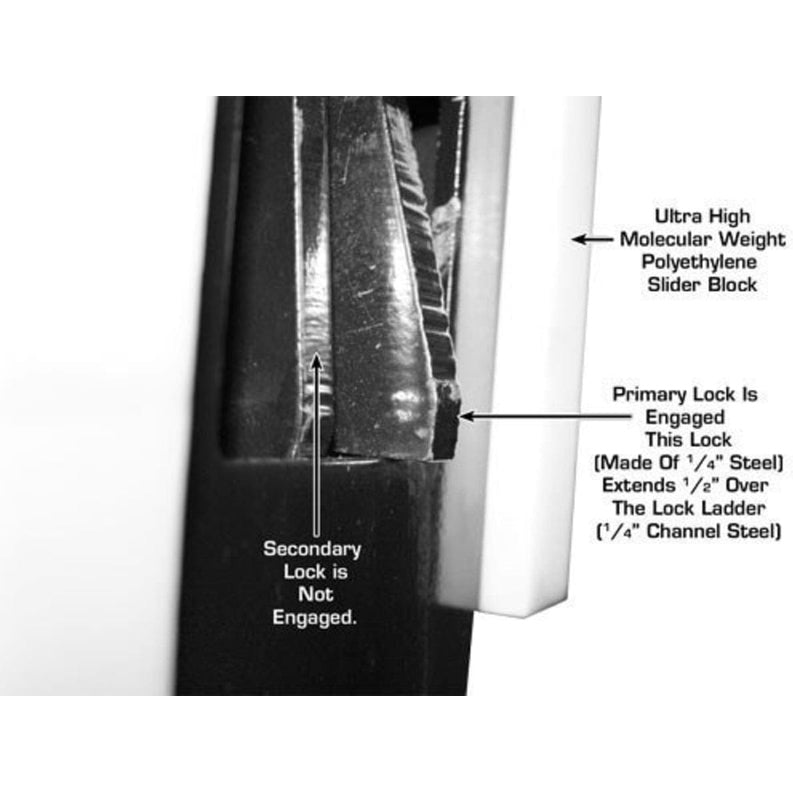

• Lock-ladder design with double-lock safety system
• Caster kit with polyurethane wheels included
• Steel approach ramps included
• Steel jack tray included
• Four plastic drip trays included
• Four wheel stops and two rubber wheel chocks included

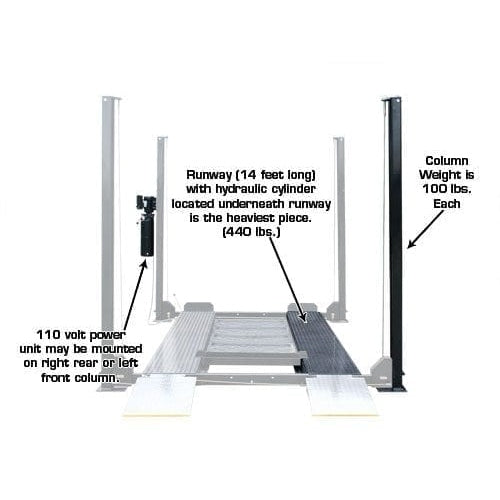

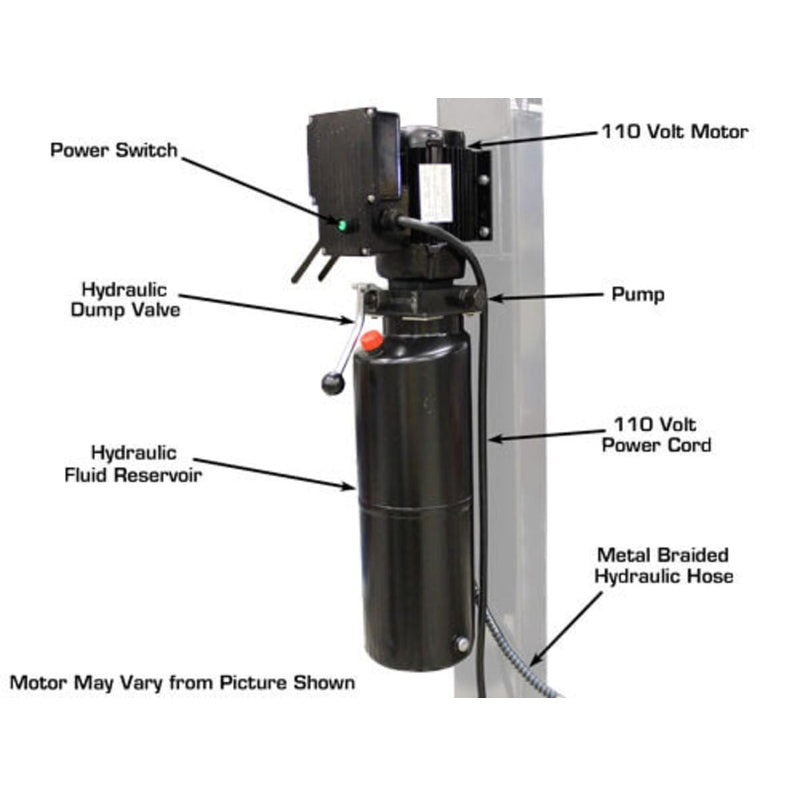

• 110-volt single-phase electric operation (30-amp breaker required)
• 2-year structural / 1-year hydraulic warranty — parts only

Atlas Pro-Floor 8-Piece Panel Set

• Six middle panels and two end pieces — closes the gap between PRO8000EXT runways
• 400-lb capacity per section
• Lightweight design for single-person installation and removal
• Each panel: 37.25" wide x 19.5" deep x 4" tall

Specifications

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
