Atlas Platinum PTC300 Tire Changer & PWB90XL Wheel Balancer Combo Package

Description

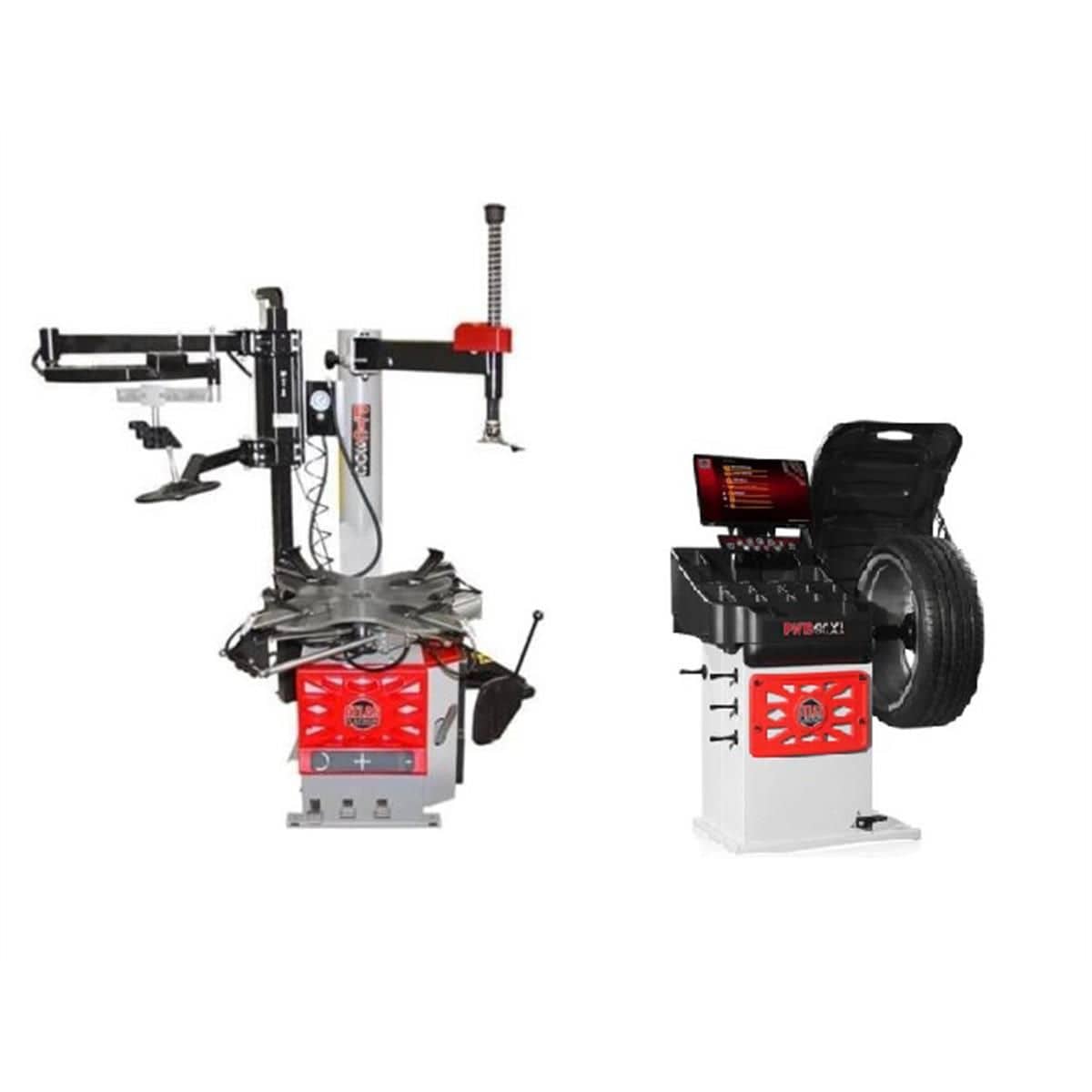

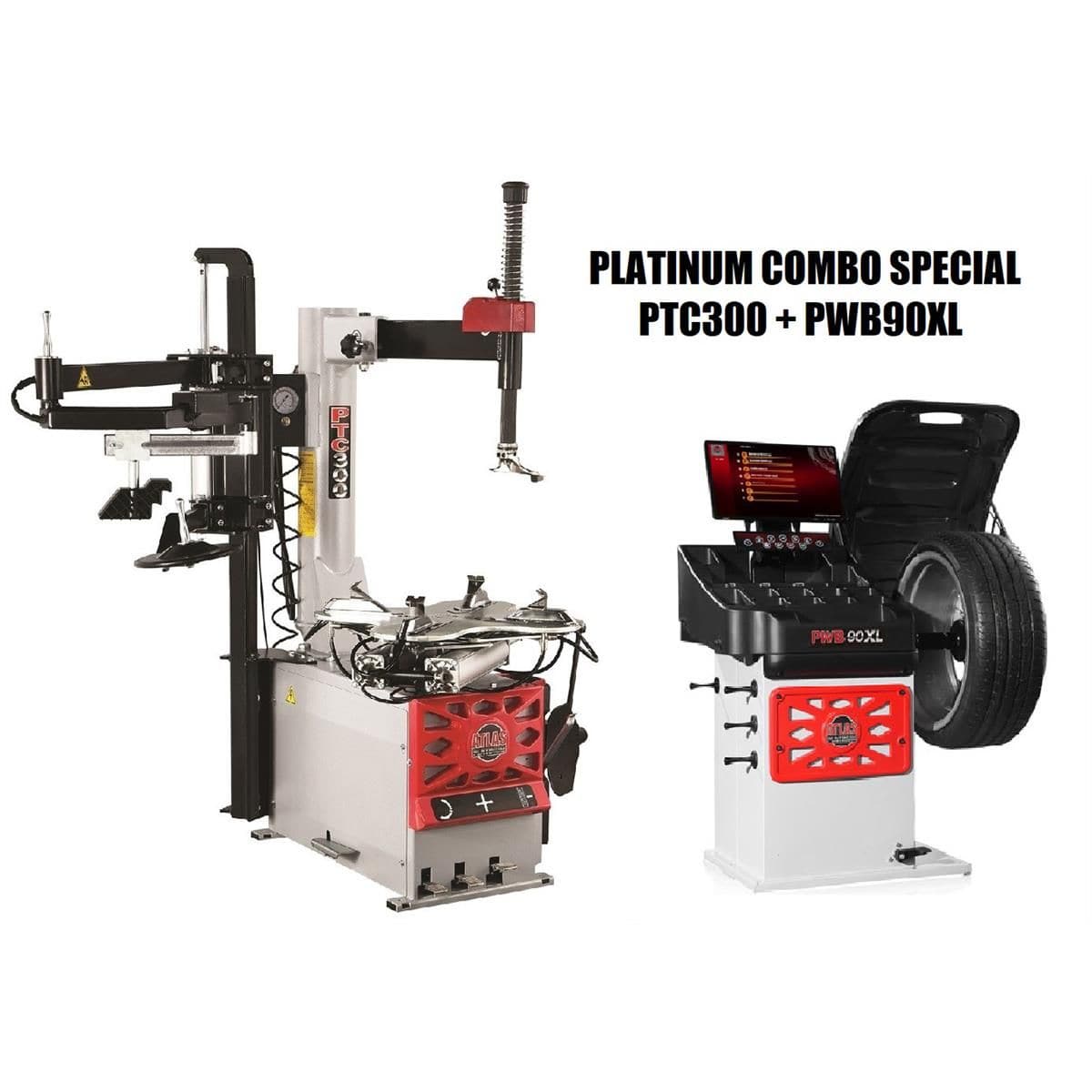

The Atlas Platinum PTC300 + PWB90XL combo package pairs a rim-clamp swing-arm tire changer with a 3D video motorized spin balancer in a single bundle aimed at commercial car repair shops and high-volume tire shops. Both machines run on 110V single-phase power, both are CE Approved, and both carry the Atlas Platinum 2-year parts warranty.

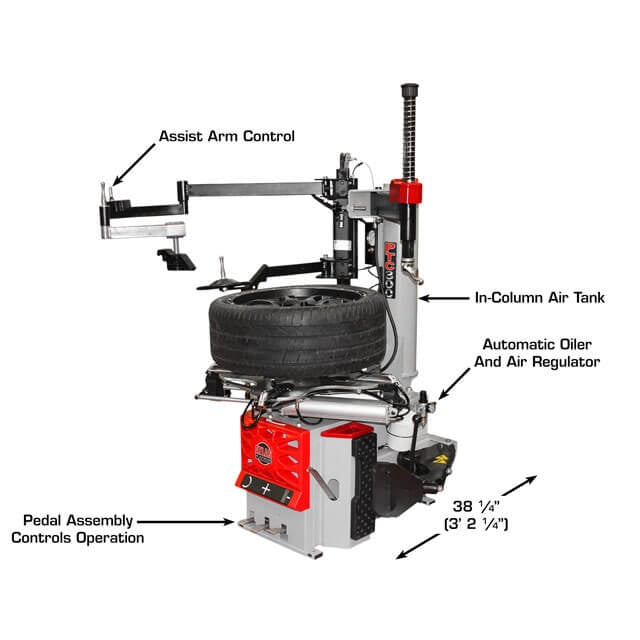

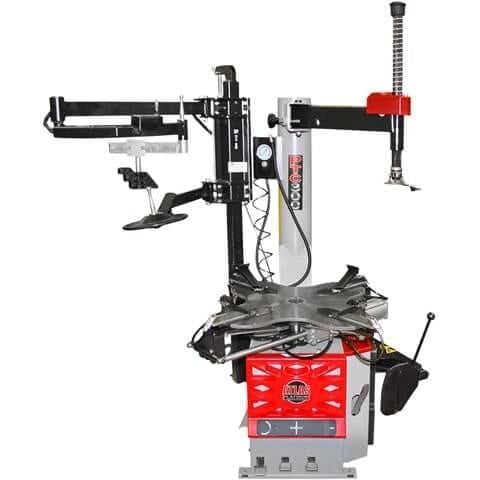

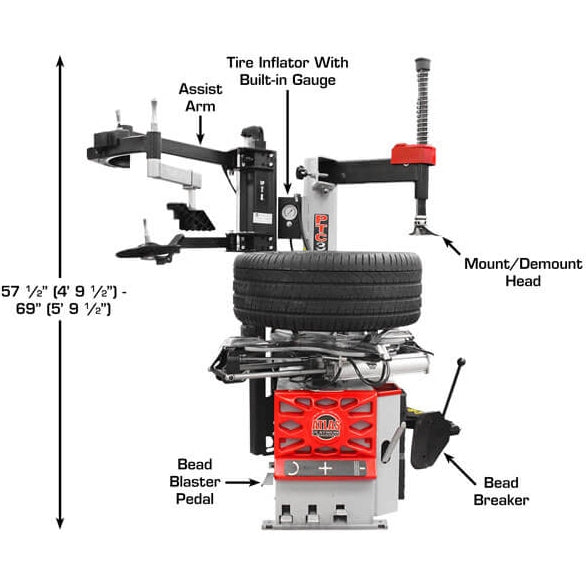

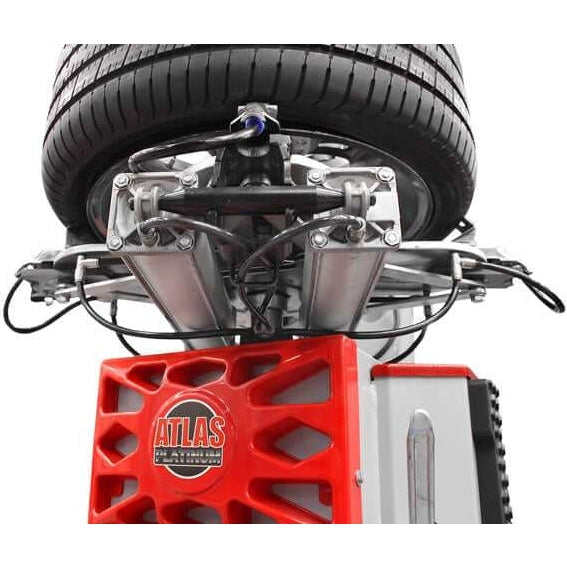

The PTC300 handles tires up to 43 inches in diameter and wheels up to 15 inches wide, with external rim clamping from 10" to 24" and internal locking from 12" to 26". The extra-large star-shaped turntable, built-in beadblaster, and left-hand assist arm with pressing and lifting disk are designed to keep mounting and demounting moving on cars and light trucks without manual leverage.

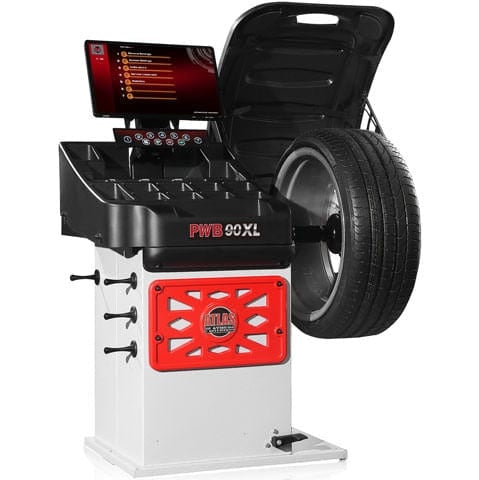

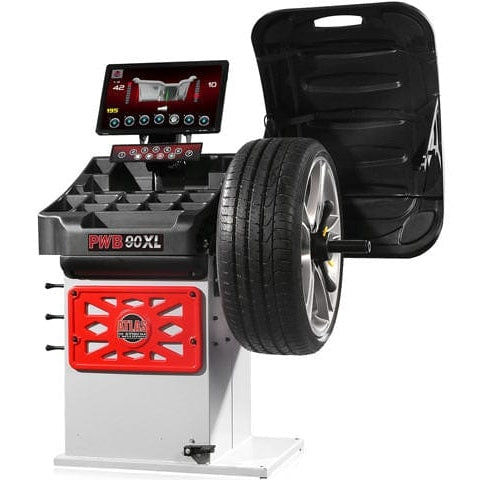

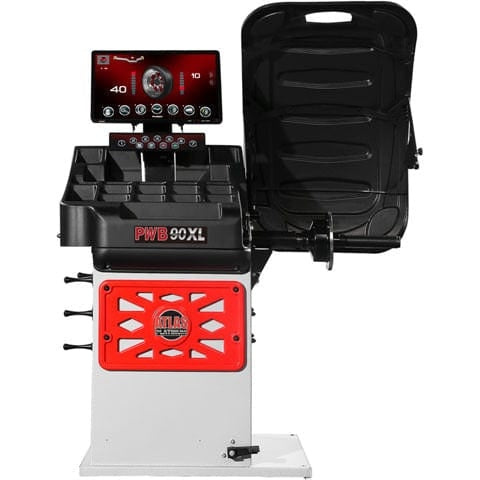

The PWB90XL is Italian-engineered and uses Super Automatic 3D data entry — a touchless sonar measures rim width while distance and diameter are read automatically. A laser line shows the operator exactly where to place the weight, an LED illuminates the wheel interior, and the high-resolution video monitor walks through static, dynamic, ALU-S, FES (Split), OPF (Opposite Position), and NWN (no wheel needed) modes. Cycle time is 7 seconds with 1-gram accuracy. The unit self-calibrates and self-diagnoses, and no anchor-down installation is required.

Features

PTC300 Tire Changer

• Rim-clamp swing-arm design with extra-large star-shaped turntable
• Built-in beadblaster for quick tire seating

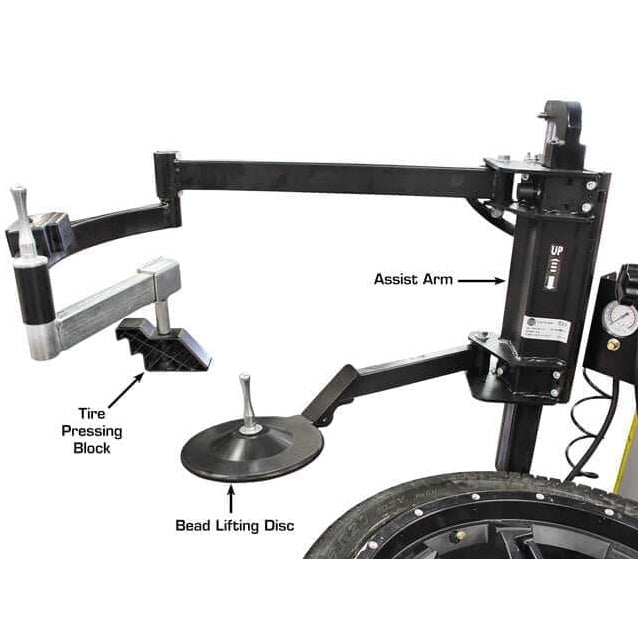

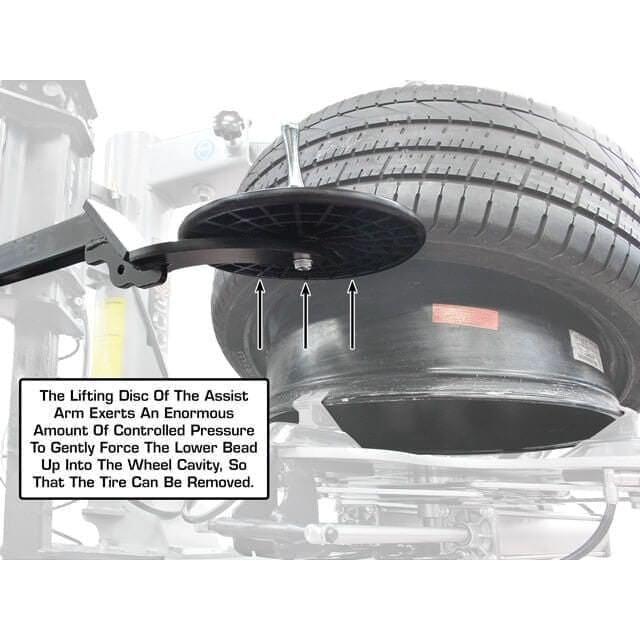

• Left-hand assist arm with pressing/lifting disk and pressing block

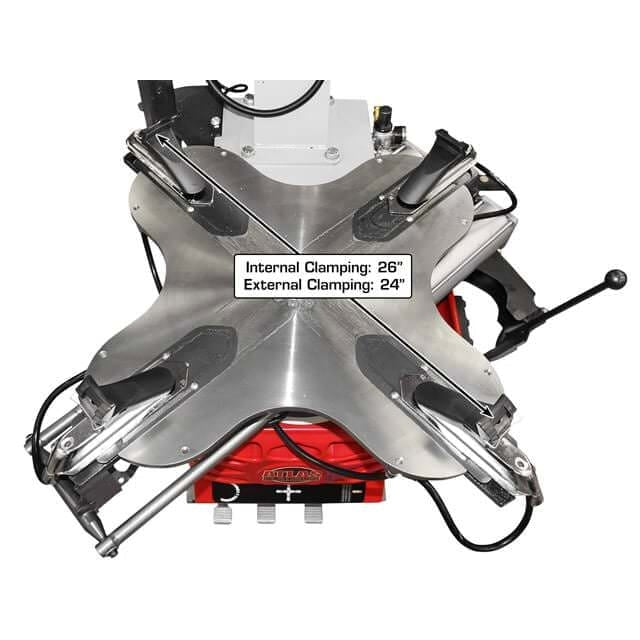

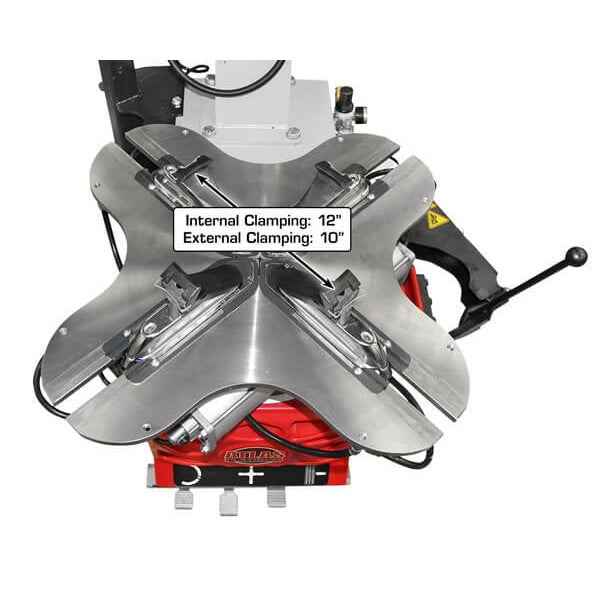

• External locking 10"–24", internal locking 12"–26", max tire diameter 43"

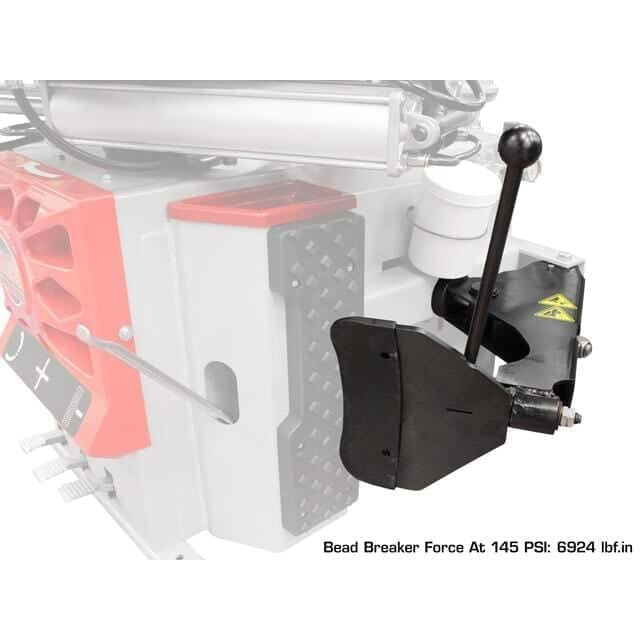

• 6,924 lb bead-breaker force at 145 PSI operating pressure
• Includes oiler, filter, regulator, plastic protectors, tire tool, lube bucket, lube brush, and inflation box with gauge
• External air supply required (not included)

PWB90XL Wheel Balancer

• Platinum 3D video motorized spin balancing system, Italian-engineered components

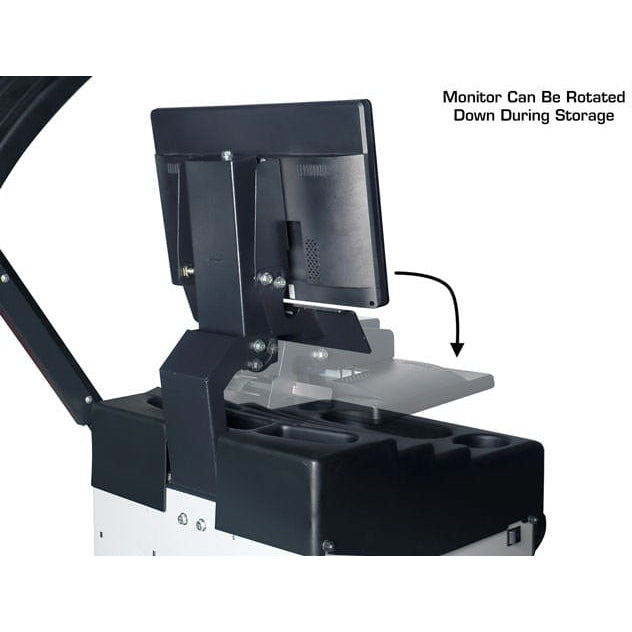

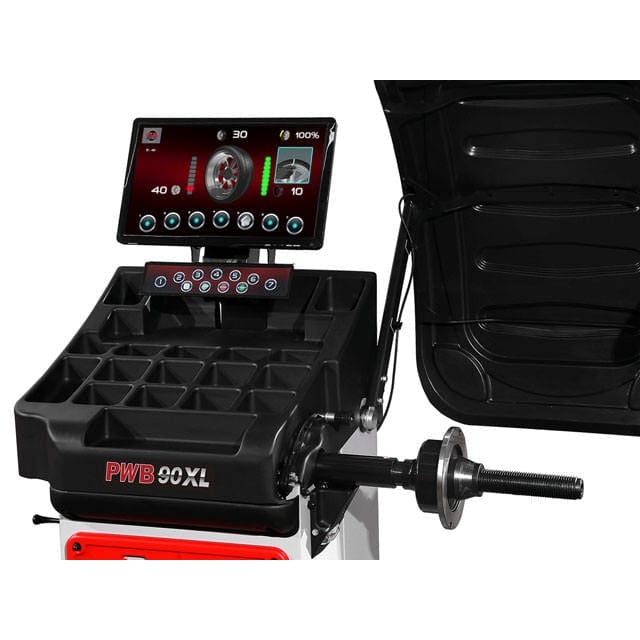

• High-resolution video monitor with on-screen guidance
• Super Automatic 3D data entry — touchless sonar measures rim width

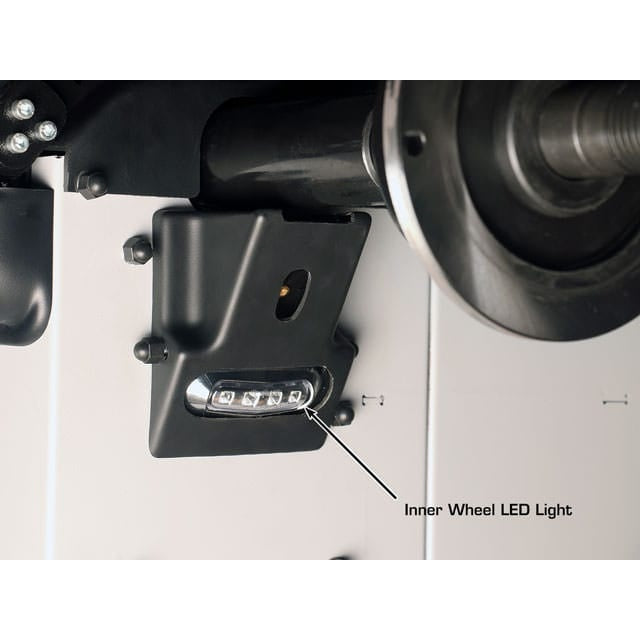

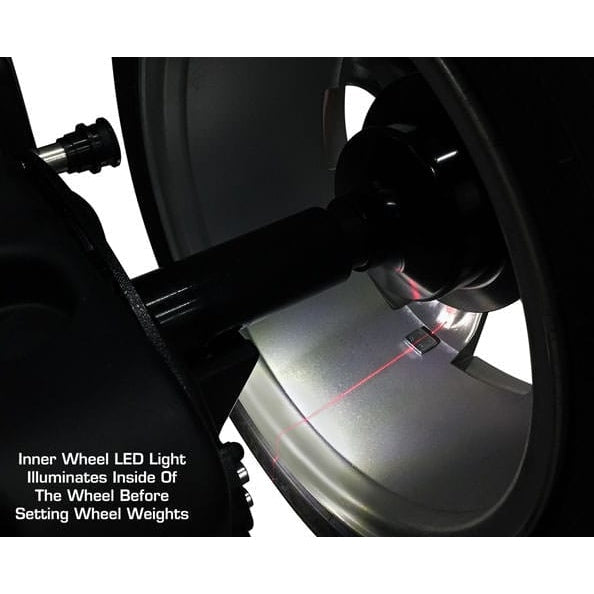

• Laser line guides weight placement; LED illuminates wheel interior
• Static, dynamic, ALU-S, FES (Split), OPF (Opposite Position), and NWN (no wheel needed) modes
• 7-second cycle time, 1-gram accuracy, 1.4° weight position resolution
• Self-diagnosing and self-calibrating
• Display in grams or ounces, mm or inches
• No anchor-down installation needed

Specifications

What's Included

With the PTC300 Tire Changer

• Left-hand assist arm with pressing/lifting disk and pressing block
• Oiler, filter, and regulator (external air supply required)

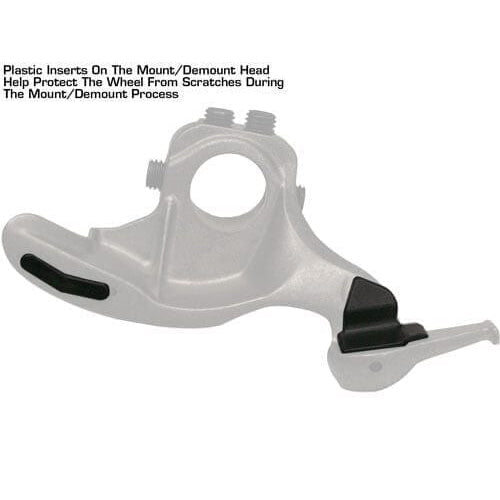

• Plastic rim protectors
• Tire tool, lube bucket, and lube brush
• Inflation box with gauge

With the PWB90XL Wheel Balancer

• Plastic quick-release nut

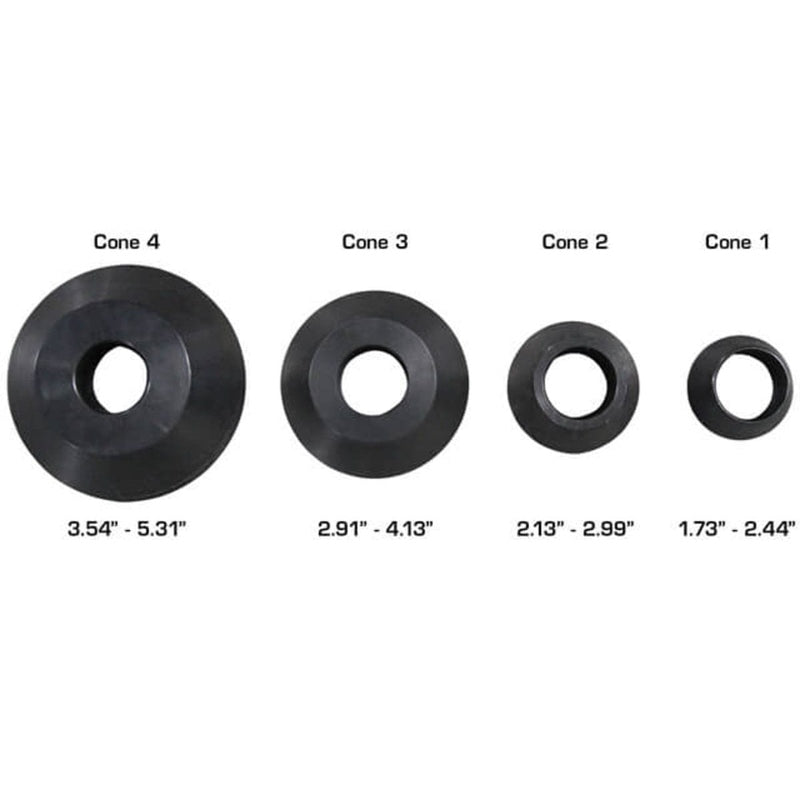

• Four centering cones
• Wheel weight pliers
• Measuring calipers

Optional Accessories (Sold Separately)

• Center post adapter
• Light truck adapter kit
• Universal lugcentric adapter
• Air-operated wheel lift
