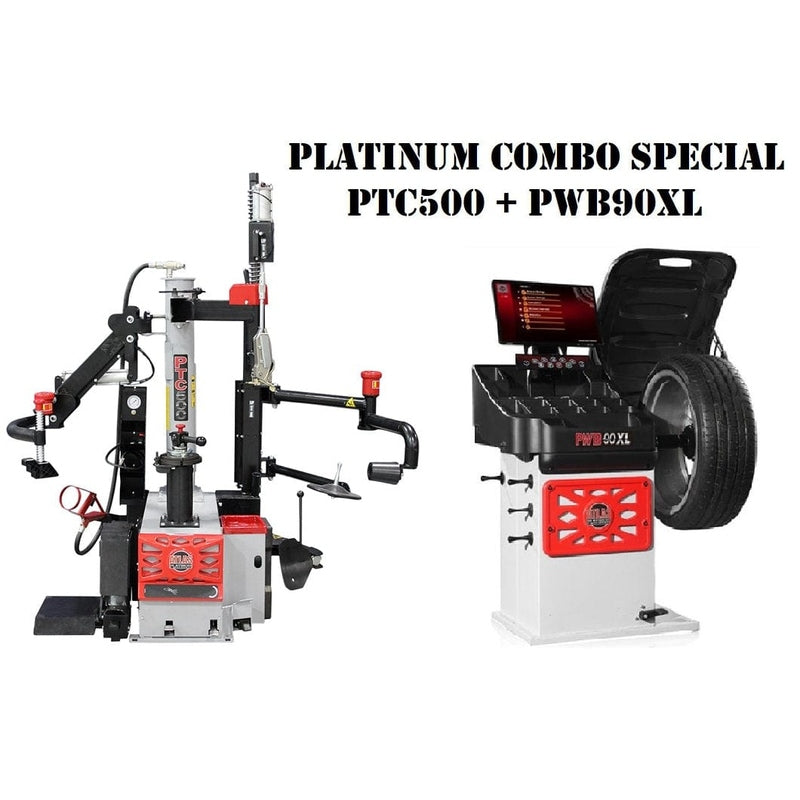

This combination package includes the Atlas® Platinum PTC500 Center Post tire changer & the Atlas® Platinum PWB90XL computerized spin balancer. This combination is perfect for high volume tire shops and for customers looking for the easiest way to handle high-end wheels. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® Platinum 2 year parts only warranty.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Features

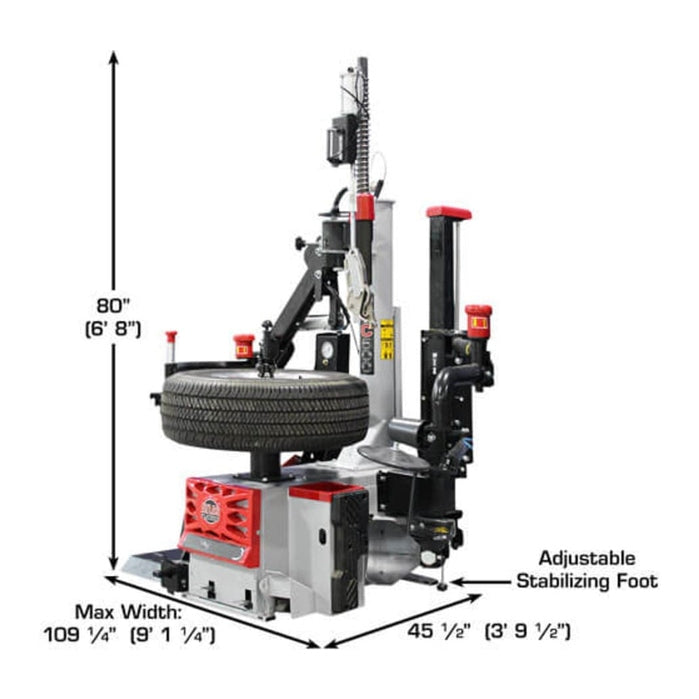

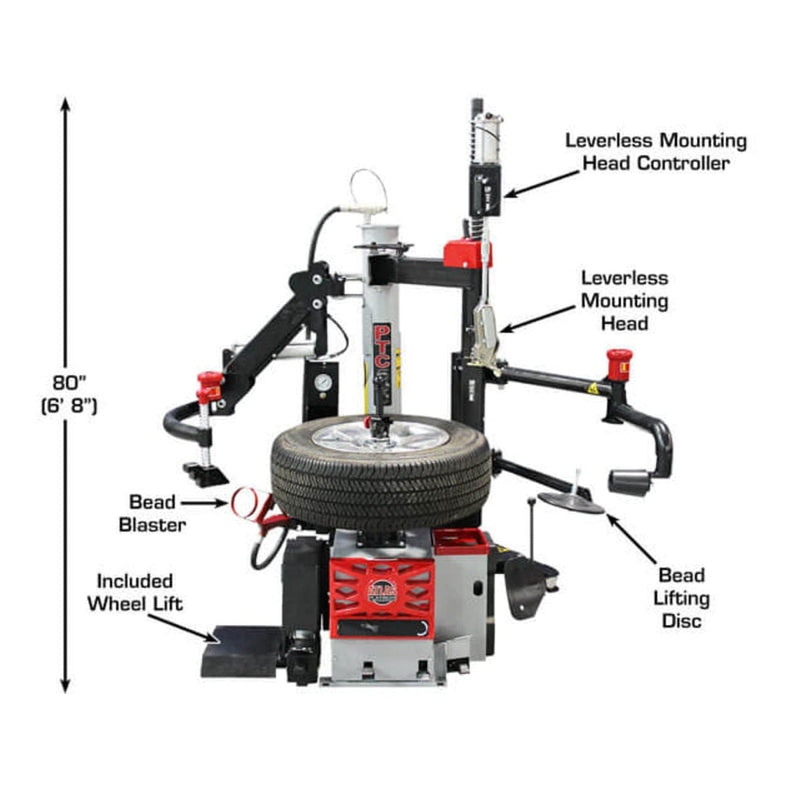

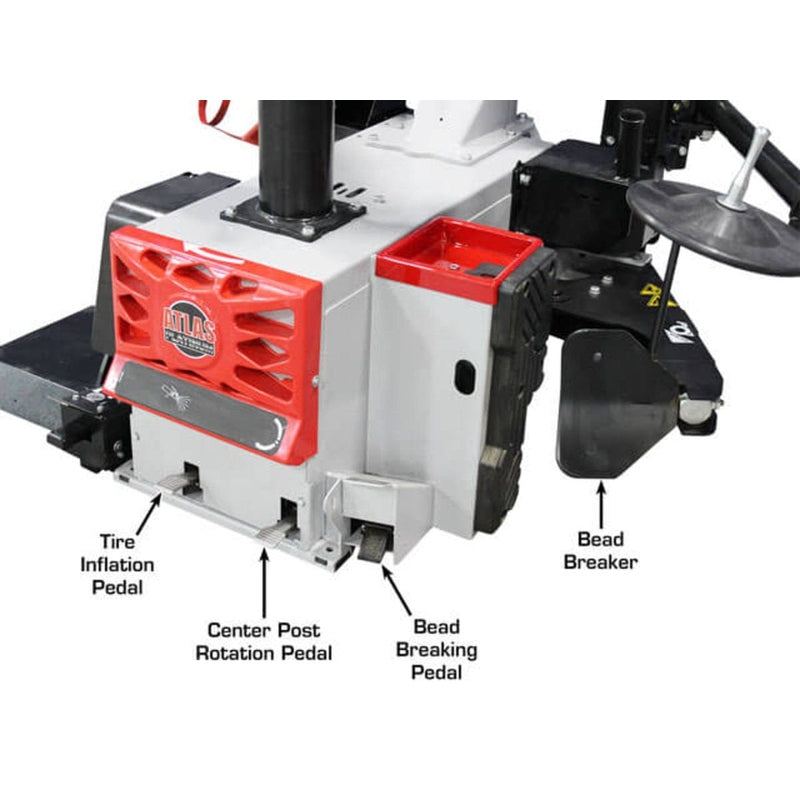

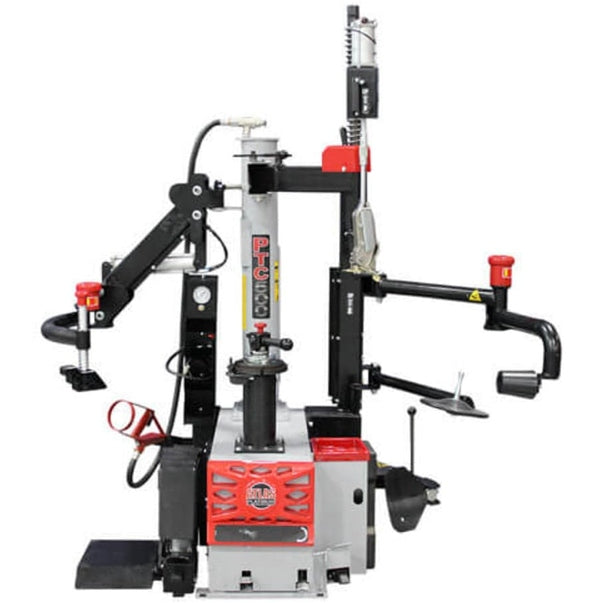

PTC500 Tire Changer
- Center Post Tire Changer

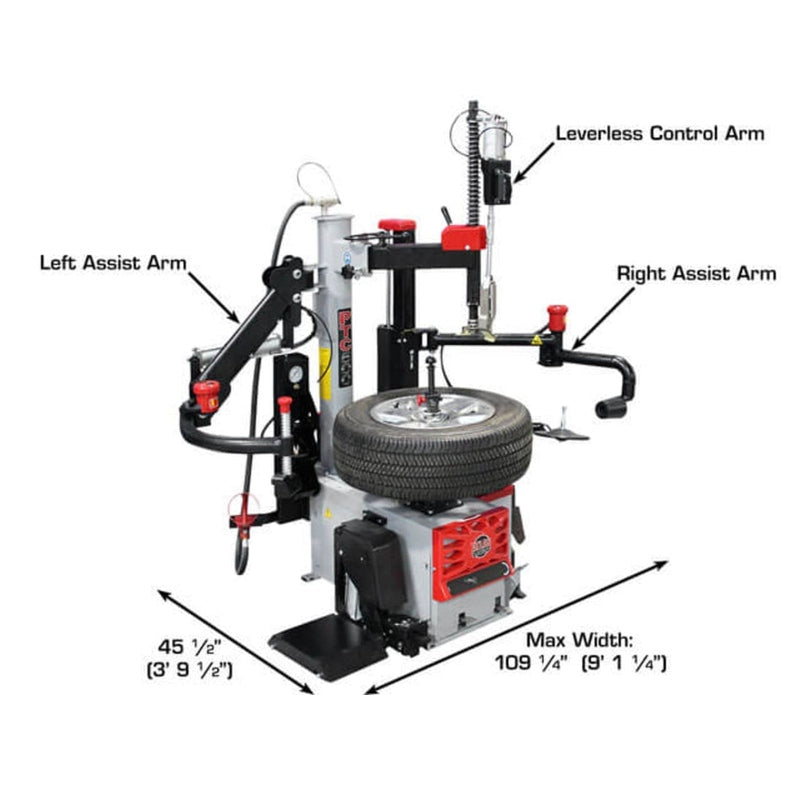

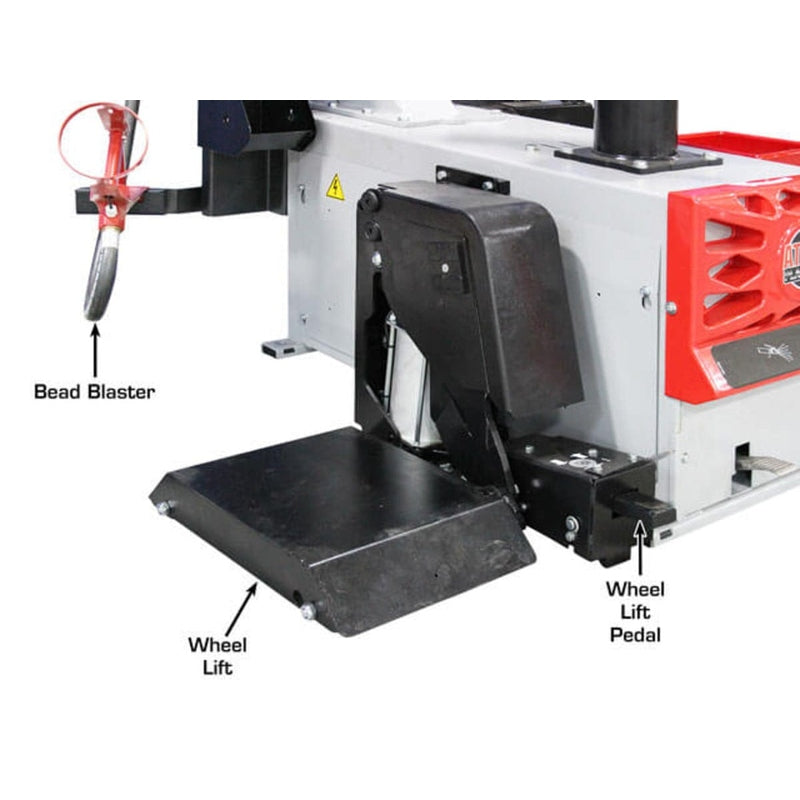

- Dual Assist Arms and Wheel Lift Included
- “Lever/No-Lever” Changing System
- “Smart Lock” Center-Post Mounting System
- Oiler, Filter, Regulator included (external air supply required)
- Plastic Protectors included
- Tire Tool, Lube Bucket, and Lube Brush Included
- Inflation Box w/ Gauge Included

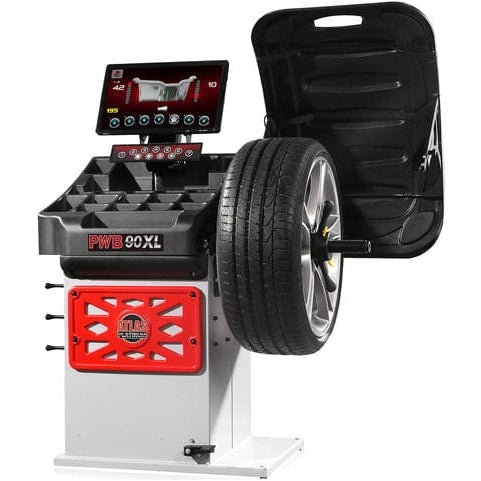

PWB90XL Wheel Balancer
- Computer Controlled Spin Balancer

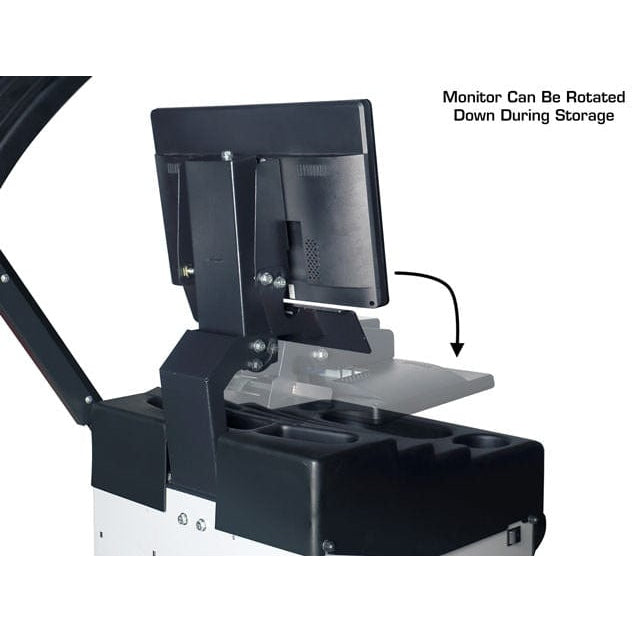

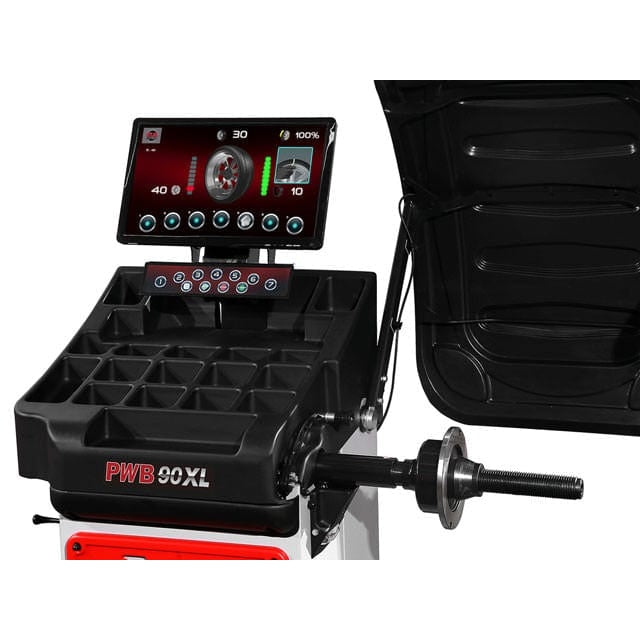

- High-Resolution Video Monitor Display
- Automatic 3D Data Entry

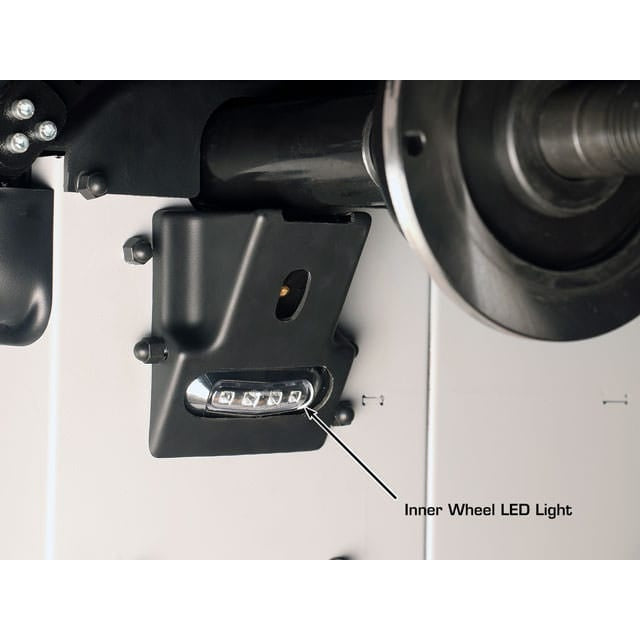

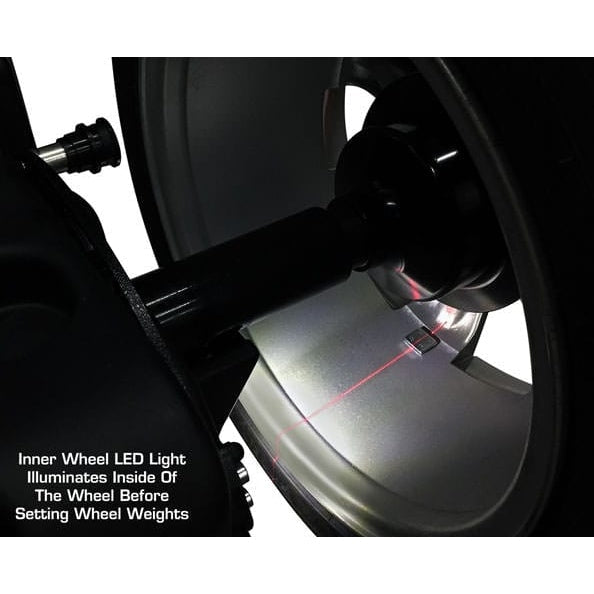

- LED Light to Illuminate Wheel, Laser Line to Guide Weight Placement
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Self Diagnosis/Self Calibration
- Display in grams or ounces, in mm or inches
- 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
Specifications
| Atlas® Platinum PTC500 Specifications | |
| Rims | Steel, Aluminum, Alloy |
| Clamping Range |
12" - 30" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width | 15" |
| Turntable Rotating Speed | 7 RPM |
| Bead Breaker | 6,924 LB. Force |
| Air Requirement | 120-145 PSI |
| Operating Voltage | 110volt |
| Shipping Weight | 885 lbs. |
| Atlas® Platinum PWB90XL Specifications | |
| Max Tire Diameter | 43" |
| Rim Sizes (Cars And Light Trucks) | 10"-30" |
| Rim Width | 1 1/2"-20" |
| Shaft Size | 40mm |
| Max. Wheel Weight | 165 lbs. |
| Balancing Speed | 130 rpm |
| Data Entry | Super Automatic 3D |
| Measurements | Standard Or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110volt |
| Shipping Weight | 290 lbs. |
