Atlas Platinum PTC600 + PWB50 Tire Changer & Wheel Balancer Combo Package

Description

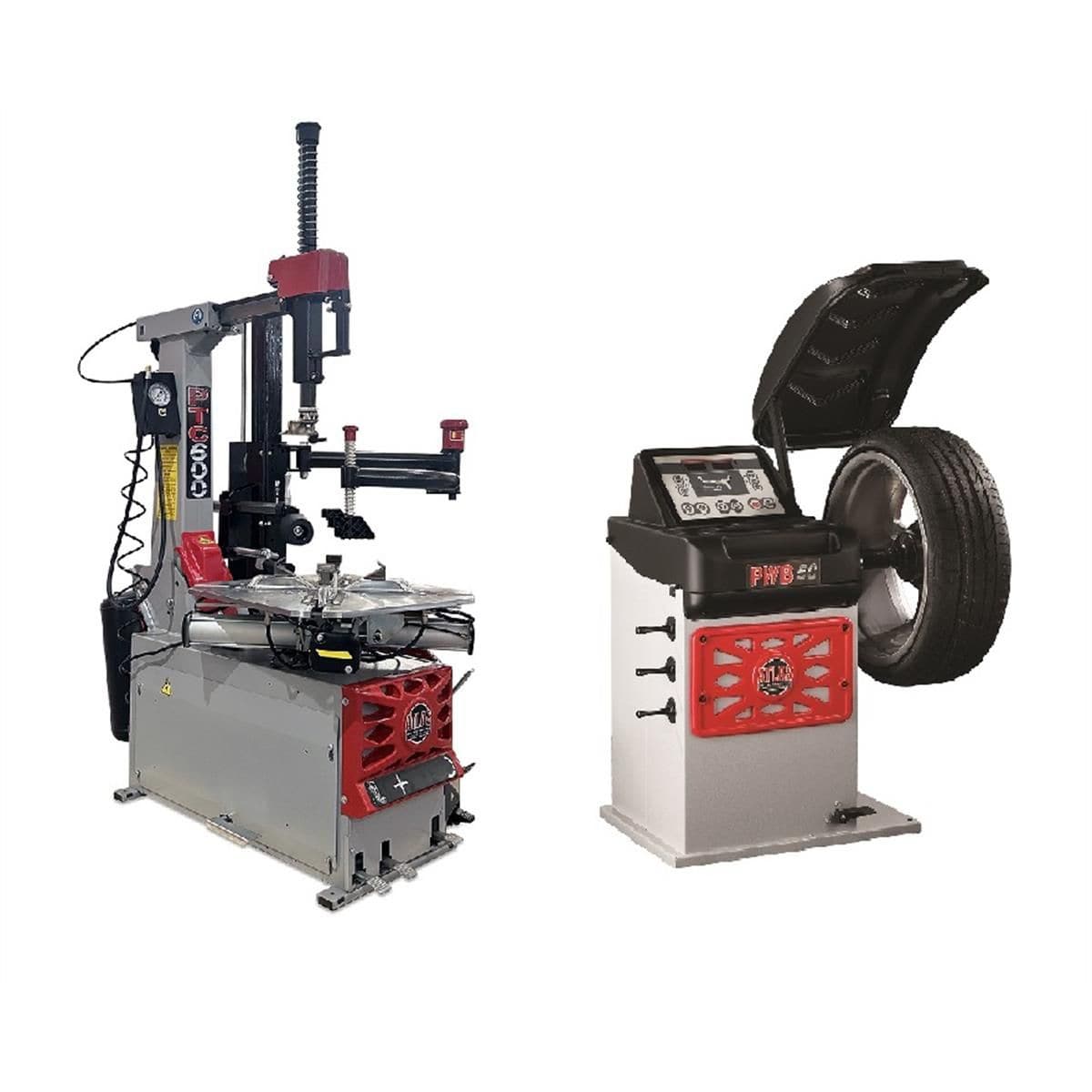

The Atlas® Platinum PTC600 + PWB50 Combo Package pairs a tilt-back swing-arm tire changer with a computer-controlled spin balancer for a complete two-station wheel service setup. Both machines run on 110V single-phase power and are built around Italian-designed components, intended for the professional tire dealer or large car dealership.

The PTC600 ships standard with a right-hand bead pressing and bead rolling assist arm, a pneumatic locking mount/demount head, an anodized aluminum bead breaker cylinder, and an integrated bead blast system. Clamping reaches 27 inches externally (10"–27") and 29 inches internally (12"–29"), with a 43-inch maximum tire diameter and bead-breaker wheel width up to 16 inches.

The PWB50 reads to 1-gram accuracy at 130 rpm, balances rims 10" to 30" up to 165 lb, and uses Automatic 2D Data Entry through a single gauge. OPTIMATCH match-mounting, FES split-weight, OPF opposite-position, and the full ALU-S program suite are built in. The display switches between grams/ounces and millimeters/inches, and the unit self-diagnoses and self-calibrates.

The PTC600 requires some assembly after delivery. Both machines carry a 2-year parts-only warranty and are also available individually.

Features

Atlas Platinum PTC600 Tire Changer

• Tilt-back design with pneumatic locking mount/demount head
• Right-hand bead pressing and bead rolling assist arm (standard)
• 110V high-torque electric turntable
• Anodized aluminum bead breaker cylinder
• Integrated bead blast system
• Air-operated jaws and bead breaker (external air supply required)
• Metal mount/demount head with replaceable plastic inserts
• Column-mounted inflator box with gauge
• Filter, regulator, and lubricator included
• External clamping 10"–27"; internal clamping 12"–29"
• Maximum tire diameter 43"; bead-breaker wheel width up to 16"
• Replacement parts and wear items kept in stock

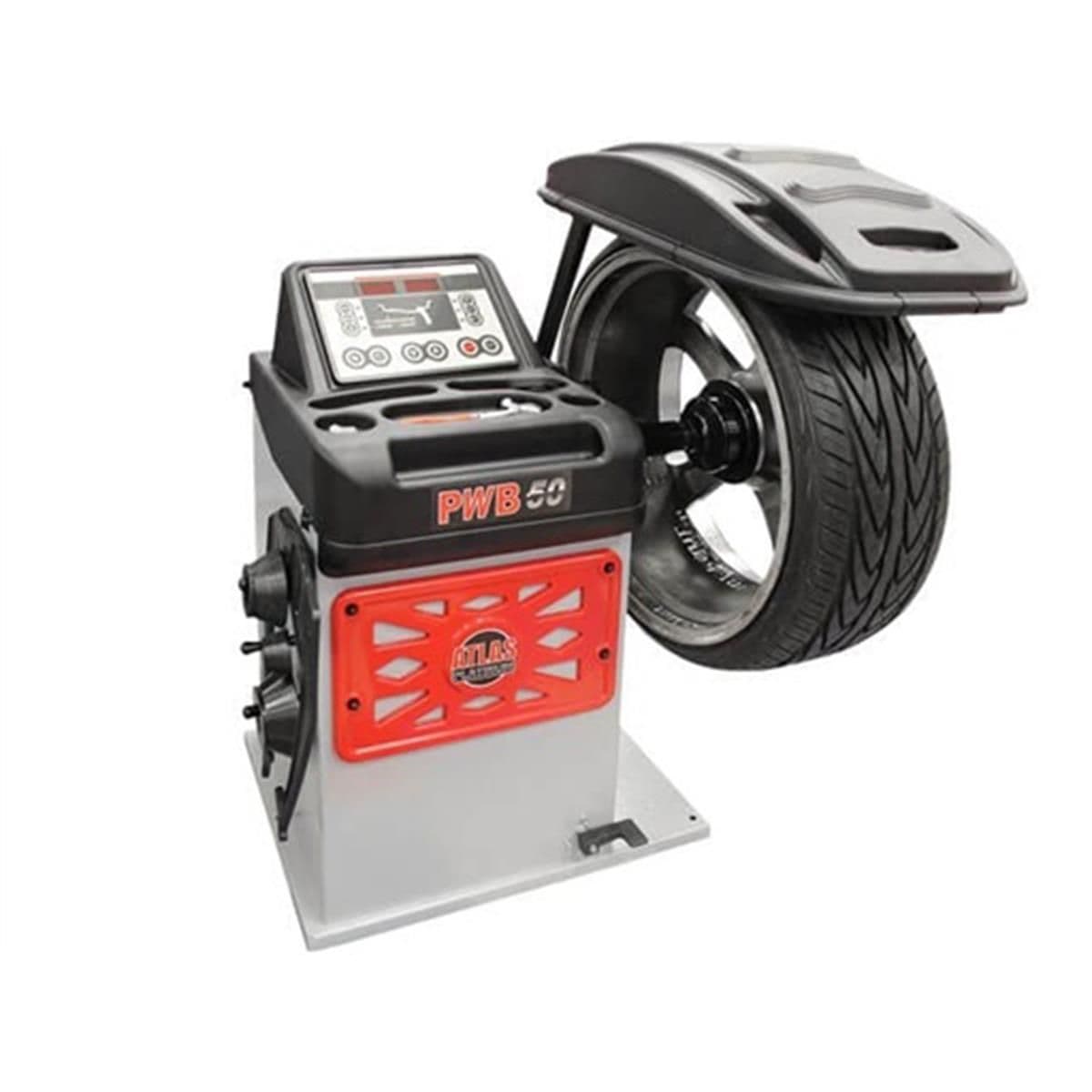

Atlas Platinum PWB50 Wheel Balancer

• Computer-controlled motorized spin balancer with Italian engineering and components
• Automatic and pedal-controlled brake
• Hood with automatic start/stop when raised or lowered
• Static and dynamic balancing modes
• OPTIMATCH match-mounting, FES split, and OPF opposite-position functions
• Special ALU-S and additional ALU programs
• Automatic 2D Data Entry via single gauge
• NWN (No Wheel Needed) calibration system
• Self-diagnosing and self-calibrating
• USB hub for firmware updates via PC or notebook
• Display switches between grams/ounces and millimeters/inches
• No anchor-down installation required
• Includes plastic quick-release nut, four centering cones, wheel-weight pliers, and measuring calipers
• Replacement parts and wear items kept in stock

Specifications

Shipping & Logistics

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck. The PTC600 ships at 795 lbs and the PWB50 ships at 230 lbs, both palletized via standard freight.

Documents

• PWB50 Product Manual (PDF)

PTC600 manual and additional documentation available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
