Atlas Platinum PTC600 Tire Changer & PWB90XL Wheel Balancer Combo Package

Description

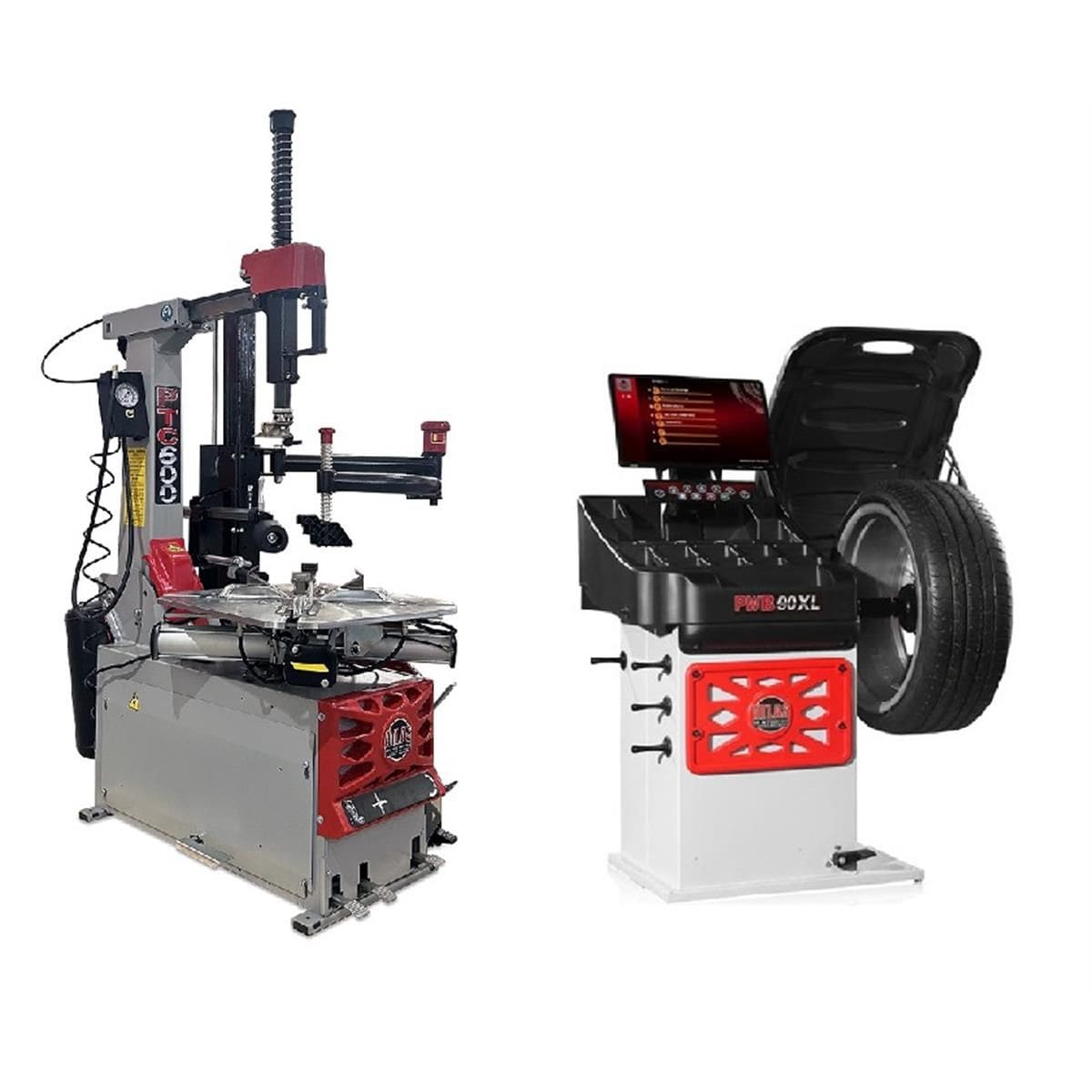

The Atlas Platinum PTC600 + PWB90XL Combo Package pairs a tilt-back, swing-arm tire changer with a 3D video motorized wheel balancer in a single tire-service workstation built for professional tire dealers and large car dealerships. Both machines use Italian-engineered components and run on standard 110V power.

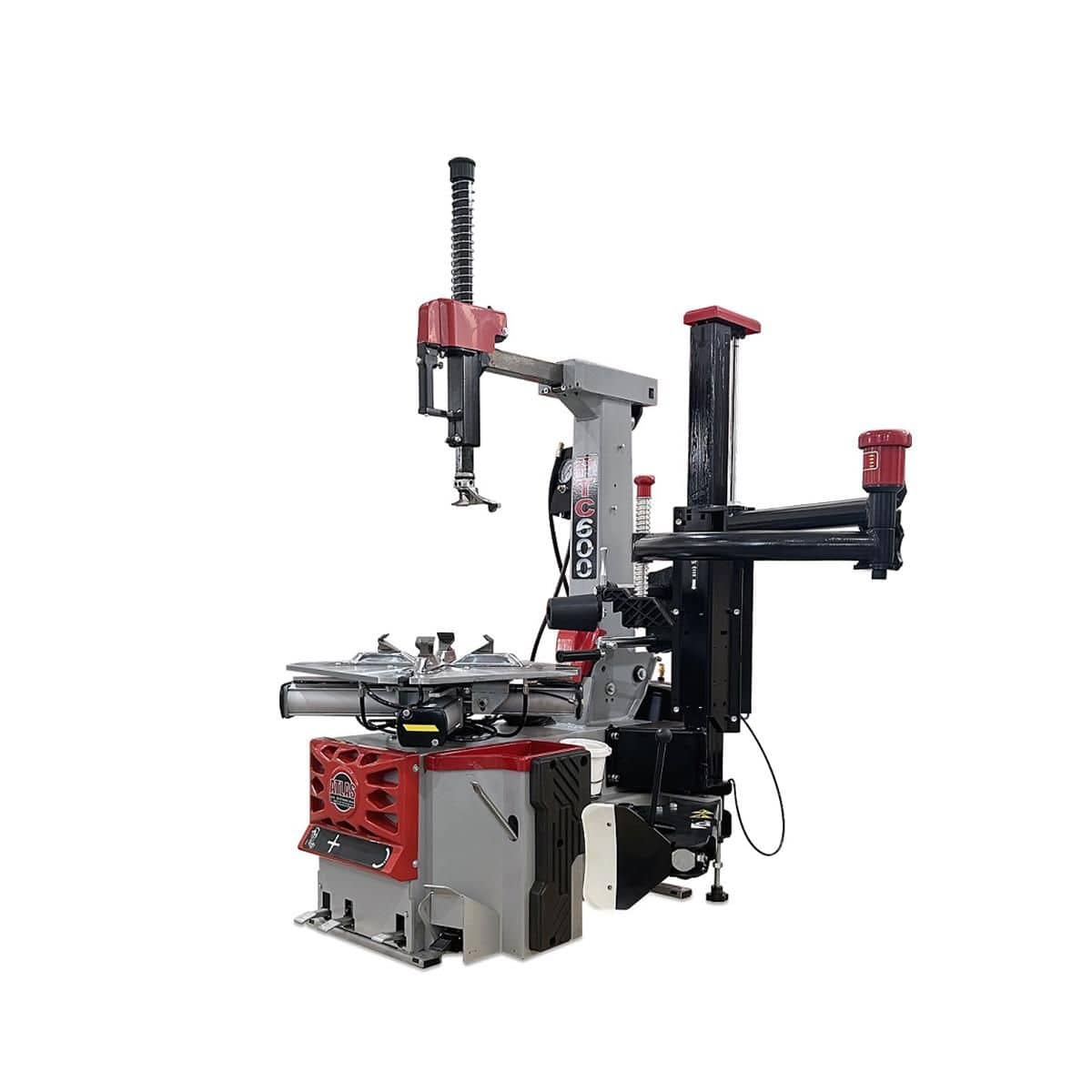

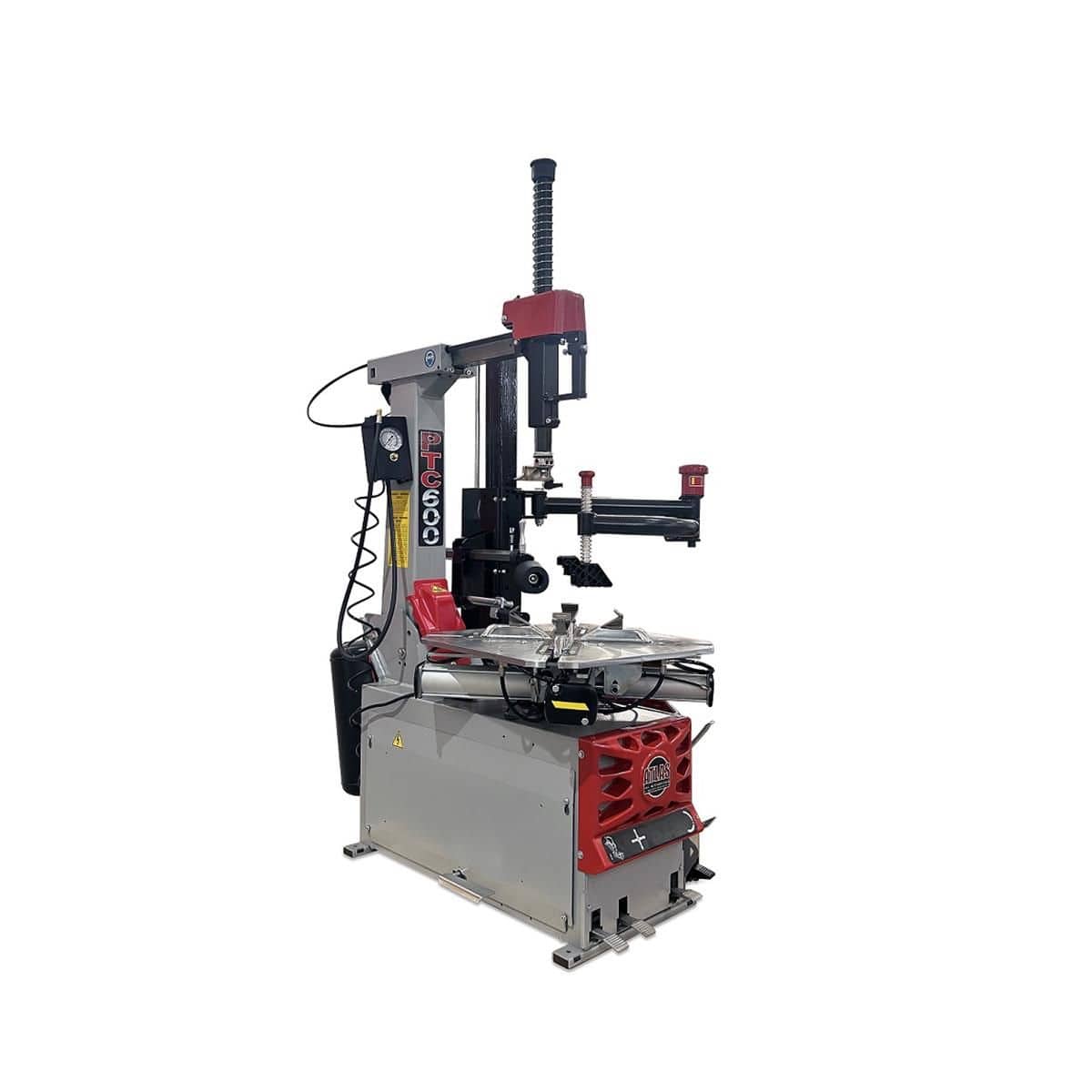

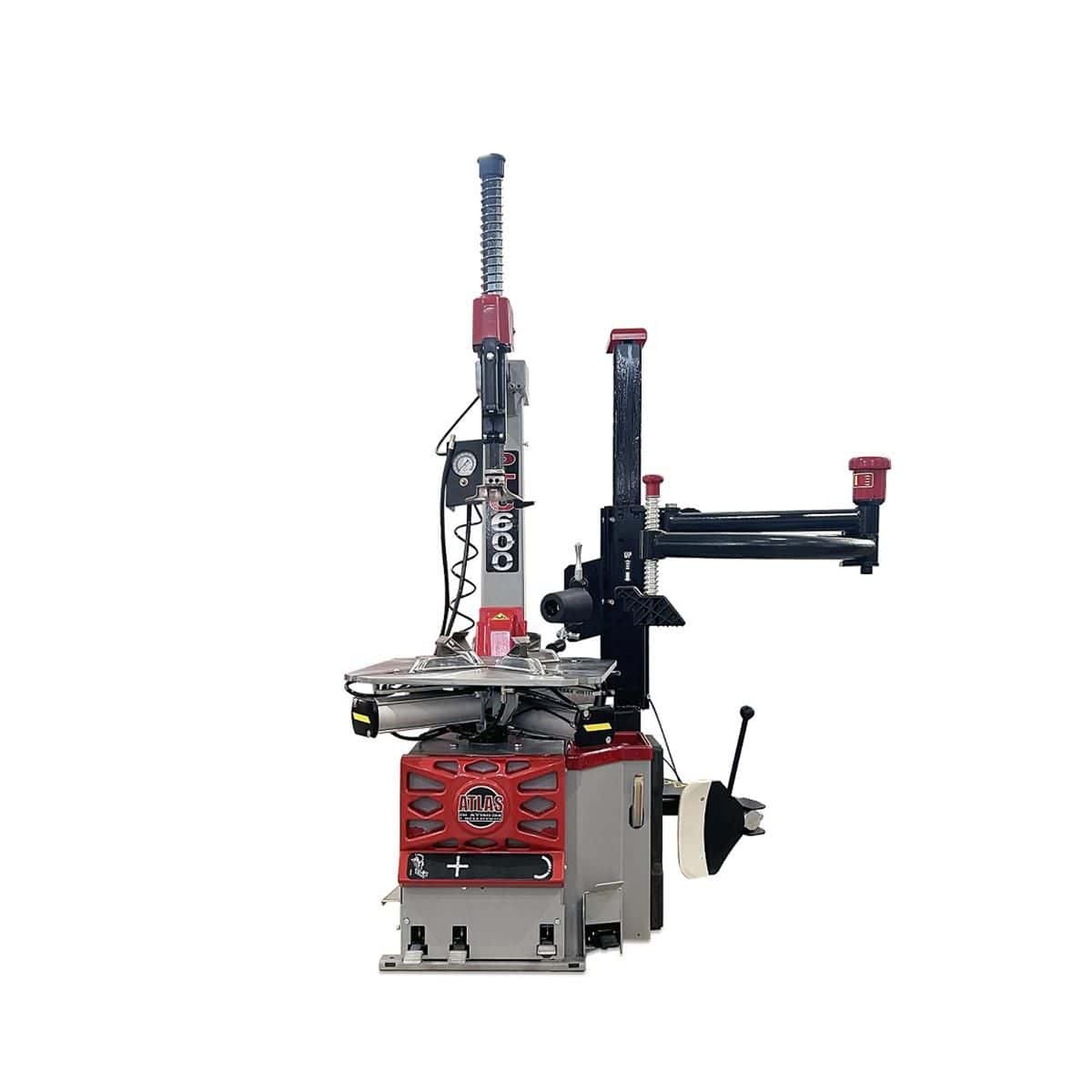

The PTC600 is a tilt-back tire changer with a pneumatic locking mount/demount head — the column tilts back and locks, lowering the risk of head movement during use. A right-hand assist arm handles bead pressing and bead rolling, the jaws and bead breaker are air-operated, and an integrated bead-blast system seats stubborn beads. External clamping reaches 27 inches and internal clamping reaches 29 inches, with a 43-inch maximum tire diameter, a 16-inch maximum wheel width at the bead breaker, and 6,924 lbs of bead-breaker force. The 110V electric turntable runs at 7 RPM. Air supply requirement is 120–145 PSI from an external compressor.

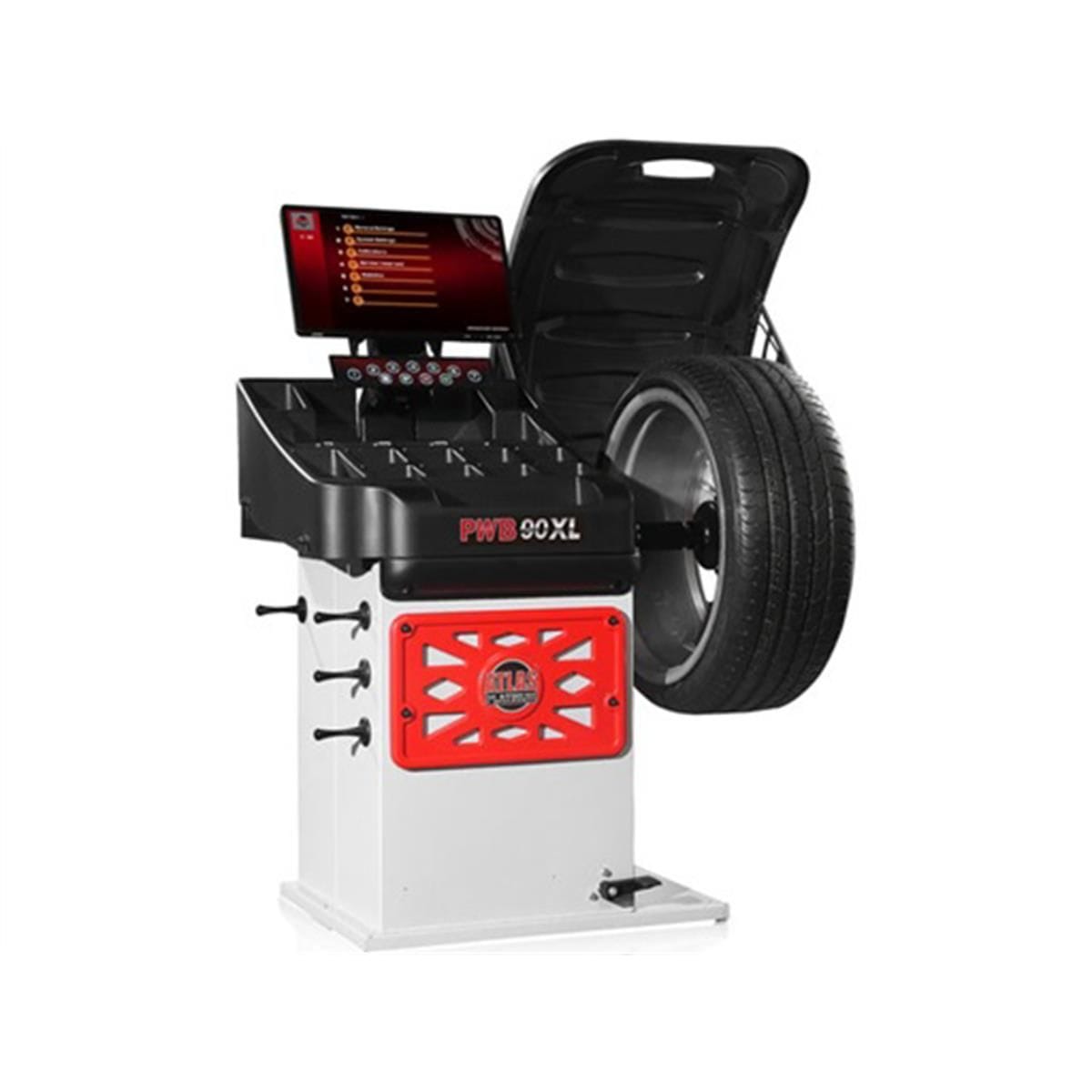

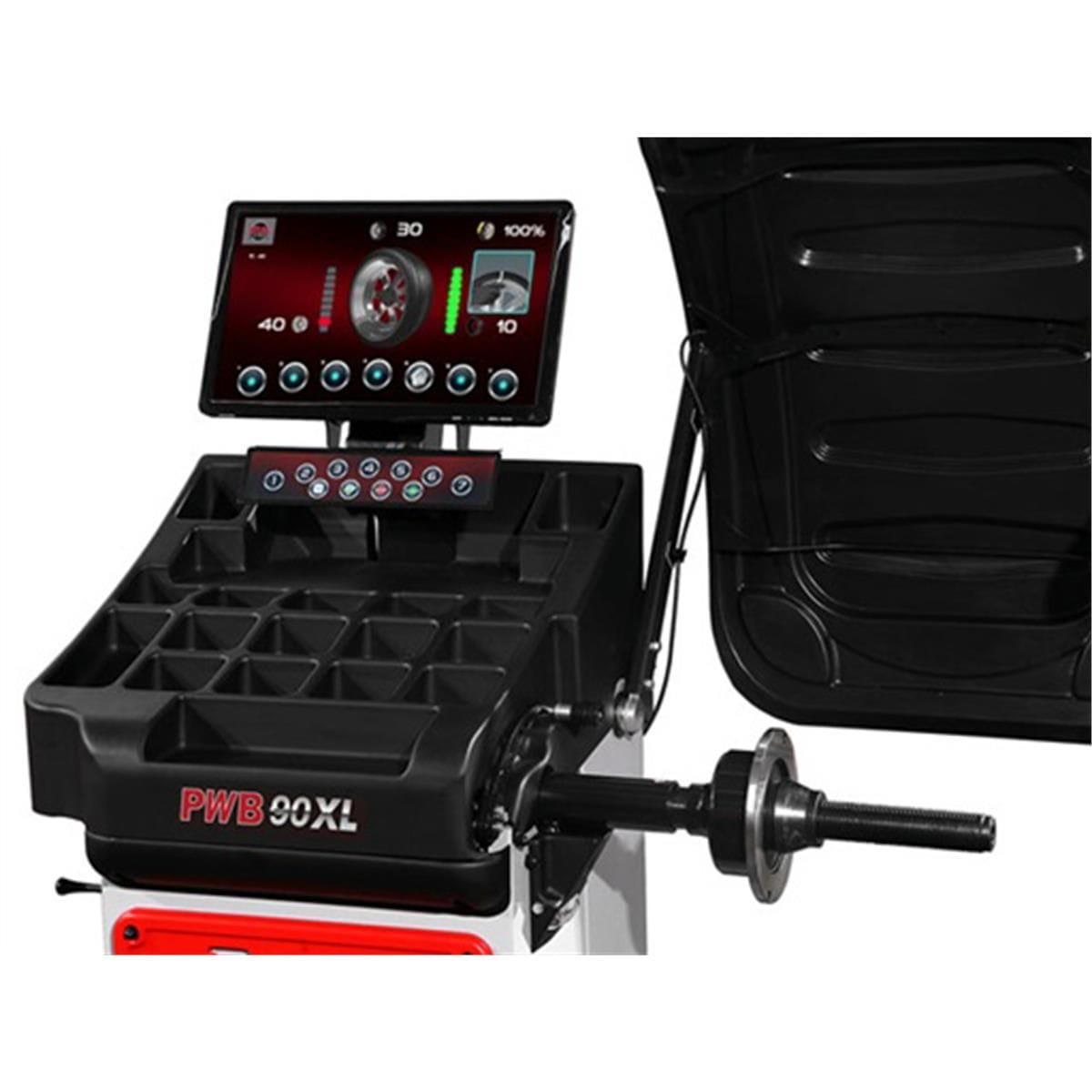

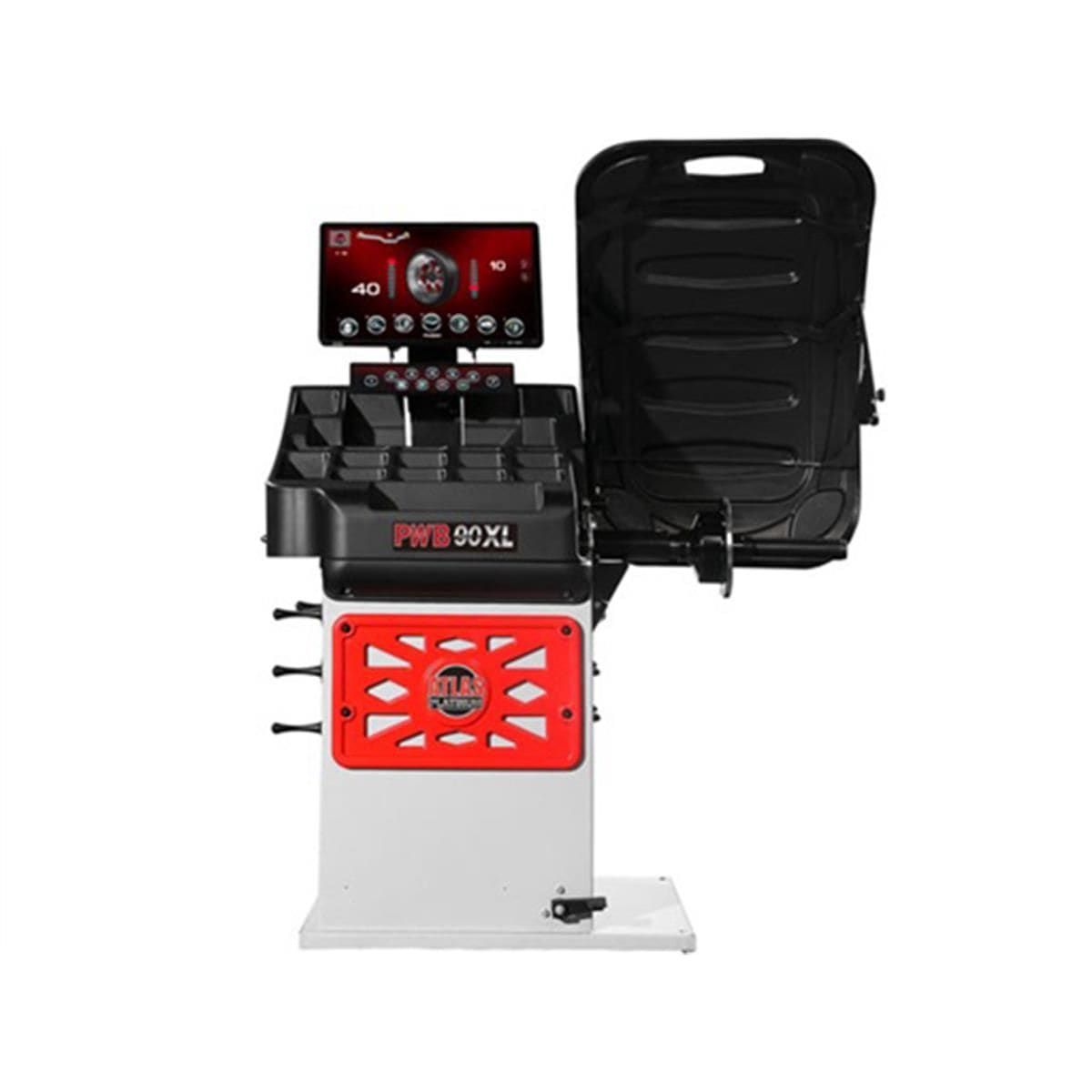

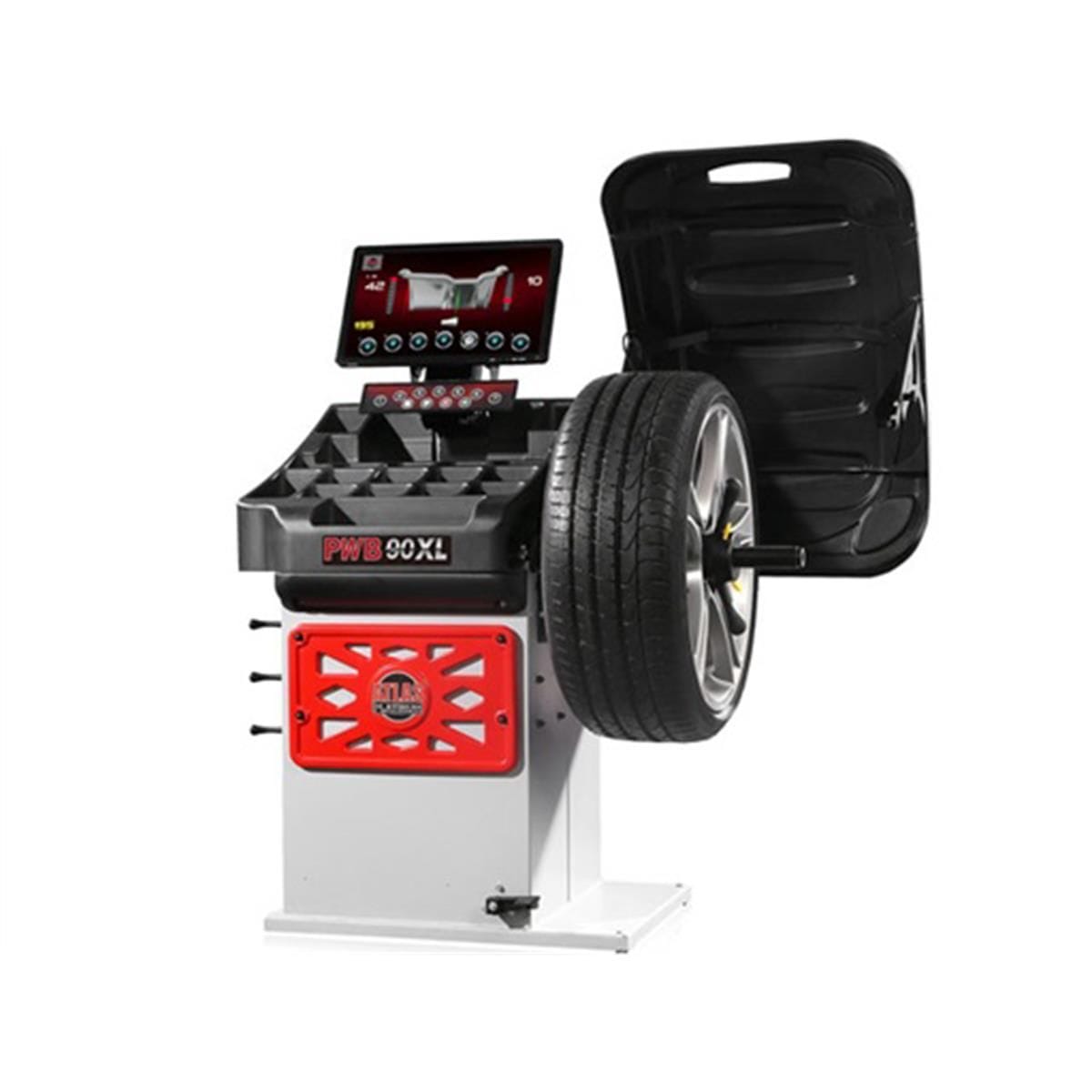

The PWB90XL uses Super Automatic 3D data entry — a single gauge captures rim offset and diameter, and touchless sonar measures rim width with no manual measuring arm. After the spin cycle, a laser line guides the operator back to the exact weight-application location, eliminating placement guesswork. Static and dynamic balancing modes are joined by Optimatch match-mounting, the FES split function for hiding adhesive weights behind spokes, OPF/OWF opposite-position weight placement, and ALU-S plus other ALU programs for alloy wheels. The high-resolution video monitor displays results in grams or ounces and millimeters or inches, with 1-gram accuracy and 1.4-degree weight-position resolution. An LED illuminates the wheel interior; the NWN (No Wheel Needed) system enables operation without a wheel mounted for diagnostic and calibration tasks.

Both machines carry a 2-year parts-only warranty. The PTC600 ships at 795 lbs and requires some assembly after delivery; the PWB90XL ships at 290 lbs and requires no anchor-down installation.

Features

Atlas Platinum PTC600 Tire Changer

• Tilt-back rim clamp design with pneumatic locking mount/demount head
• Right-hand bead-pressing and bead-rolling assist arm
• Air-operated jaws and bead breaker (external air supply required)
• High-torque 110V electric turntable
• Metal mount/demount head with replaceable plastic inserts
• Anodized aluminum bead-breaker cylinder
• Column-mounted inflator box with pressure gauge
• Integrated bead-blast system for fast bead seating
• Filter, regulator, and lubricator (FRL) included
• Tire tool, lube bucket, and brush included
• Large plastic jaw protectors and bead-breaker shovel cover included
• Replacement plastic inserts included; replacement parts always in stock

Atlas Platinum PWB90XL Wheel Balancer

• 3D video motorized spin balancer with high-resolution monitor
• Super Automatic 3D data entry with touchless sonar for rim width
• Laser line for precise weight placement after the spin cycle
• LED illumination of the wheel interior
• Static and dynamic balancing modes
• Optimatch (match mounting), FES (split), and OPF/OWF (opposite position) functions
• ALU-S and multiple ALU balancing programs for alloy wheels
• NWN (No Wheel Needed) system
• Self-diagnosing and self-calibrating
• USB hub for firmware updates from a PC or laptop
• Display in grams or ounces and millimeters or inches
• No anchor-down installation required
• Includes plastic quick-release nut, four centering cones, wheel-weight pliers, and measuring calipers
• Replacement parts and wear items always in stock
• Optional truck adapter set sold separately

Specifications

Documents

PWB90XL Wheel Balancer Product Manual (PDF)

The PTC600 tire changer manual is available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
