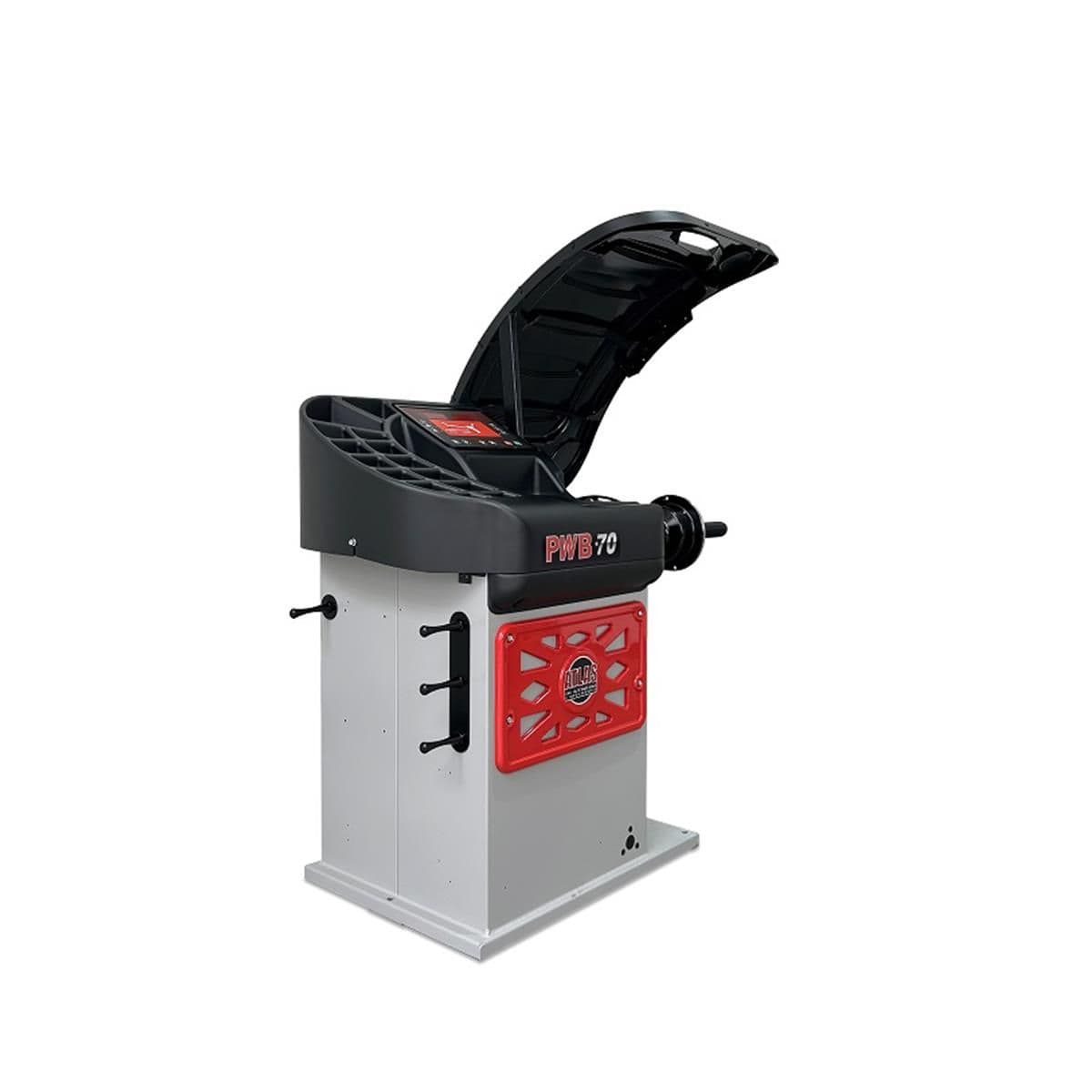

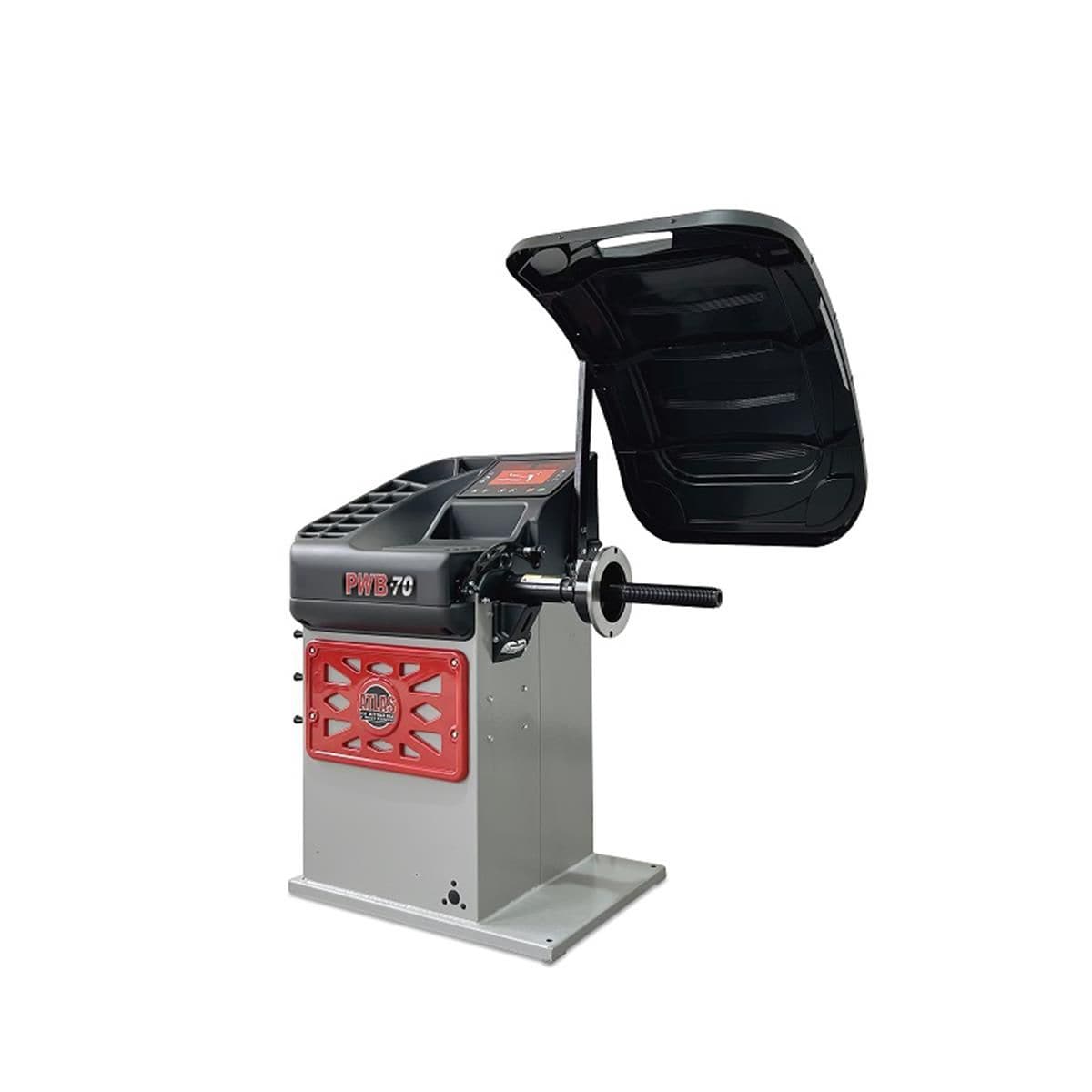

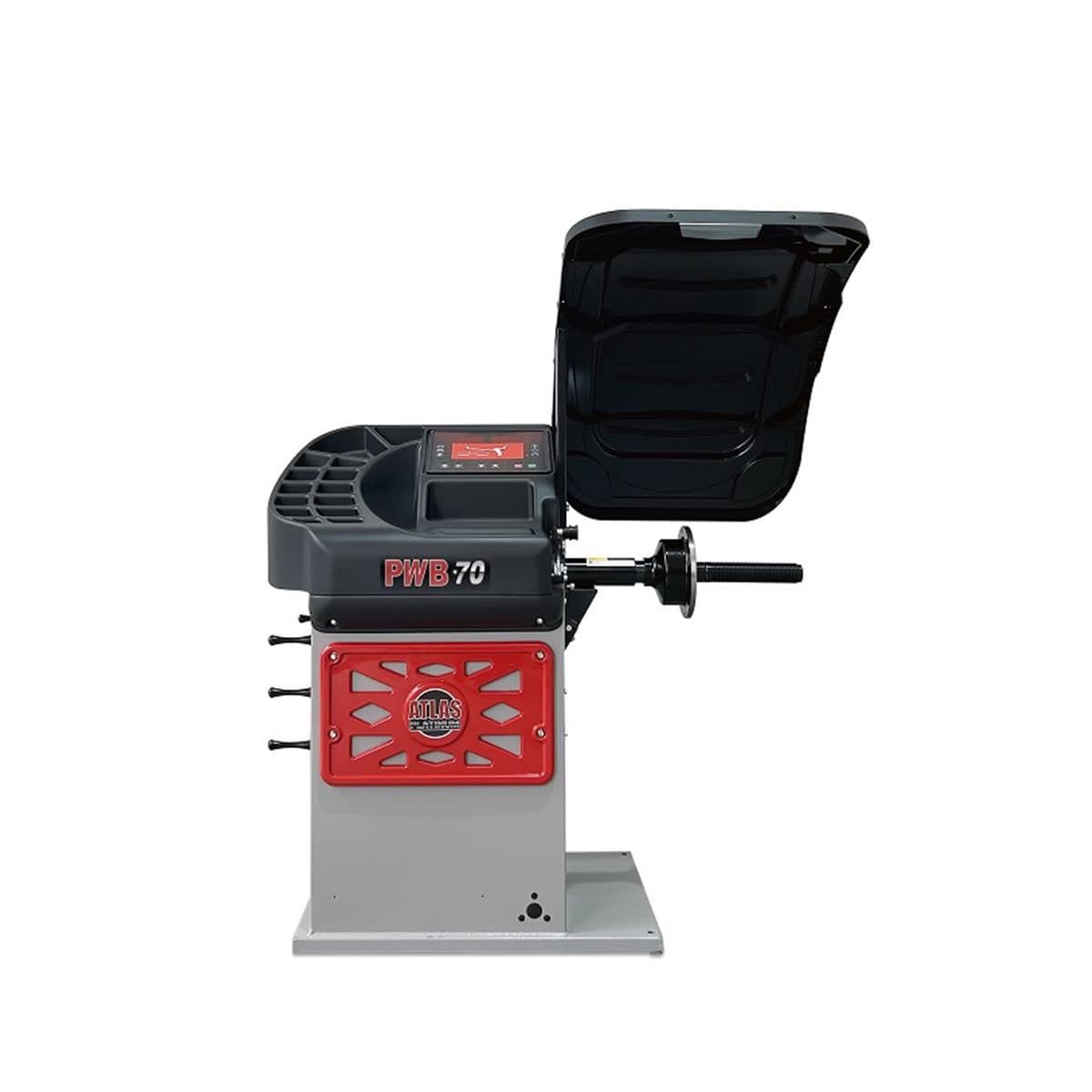

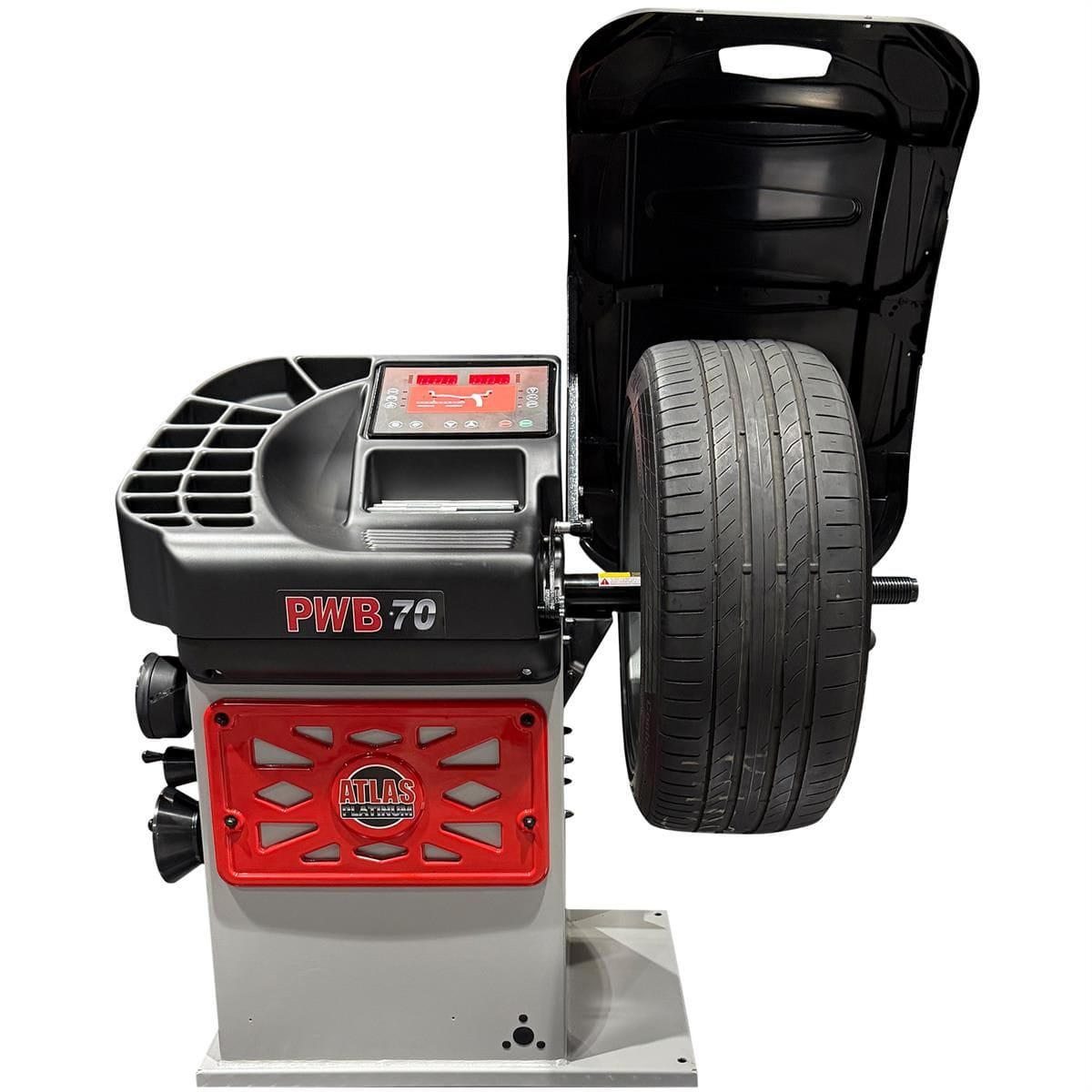

Atlas Platinum PWB70 Motorized Spin Wheel Balancer with Laser & 2D Data Entry

Description

The Atlas Platinum PWB70 is a motorized, computer-controlled spin wheel balancer built for tire shops and service bays running steady passenger and light-truck volume. Italian-engineered components drive a 7-second cycle with 1-gram accuracy and 1.4° weight-position resolution; the upgrades over the prior PWB50 are concentrated where they matter day-to-day — a brighter LED light inside the wheel, a laser line that marks the exact 12-o'clock weight position, a larger weight tray, and an oversized hood that clears wider assemblies.

An automatic 2D data-entry gauge captures rim diameter and offset in a single pass; the operator doesn't keypunch values. Static, dynamic, ALU, and ALU-S modes cover steel and alloy wheels, and OPTIMATCH handles match-mounting for assemblies that won't balance to spec on the first cycle. The Fast & Easy Split (FES) function hides adhesive weights behind alloy spokes, and the Opposite Weight Function (OWF) swings the application position from 12 o'clock to 6 o'clock for shops where the back of the wheel is easier to reach than the front.

An electric brake with a smart-approach feature parks the wheel at the correct weight position so the operator isn't hunting for it. Automatic start/stop ties cycle initiation to the hood, the unit self-diagnoses and self-calibrates, and a USB hub on the cabinet handles firmware updates from a notebook PC. No anchor-down installation is required — the PWB70 sits on its footprint and is ready to balance.

The PWB70 ships with a plastic quick-release nut, four centering cones, wheel-weight pliers, and measuring calipers. Power is 110V single-phase. Warranty is 2 years parts only.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

Features

• Computer-controlled, motorized spin balancer
• Italian engineering and components
• Laser line for precise weight placement
• LED light illuminates wheel interior
• Automatic 2D data entry (single-gauge)
• Static and dynamic balancing modes
• ALU and ALU-S programs for alloy wheels
• OPTIMATCH match-mounting
• FES (Fast & Easy Split) — adhesive weights hidden behind spokes
• OWF / OPF (Opposite Weight Function) — switch weight position from 12 to 6 o'clock
• NWN (No Wheel Need) system
• Electric brake with smart approach
• Automatic start/stop with hood movement
• Self-diagnosing and self-calibrating
• USB hub for PC/notebook firmware updates
• Display in grams or ounces, mm or inches
• Large wheel-weight tray
• Oversized hood for larger assemblies
• No anchor-down installation required
• Includes plastic quick-release nut, 4 centering cones, wheel-weight pliers, measuring calipers
• 2-year parts-only warranty

Specifications

What's Included

• Plastic quick-release nut
• 4 centering cones
• Wheel-weight pliers
• Measuring calipers

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
