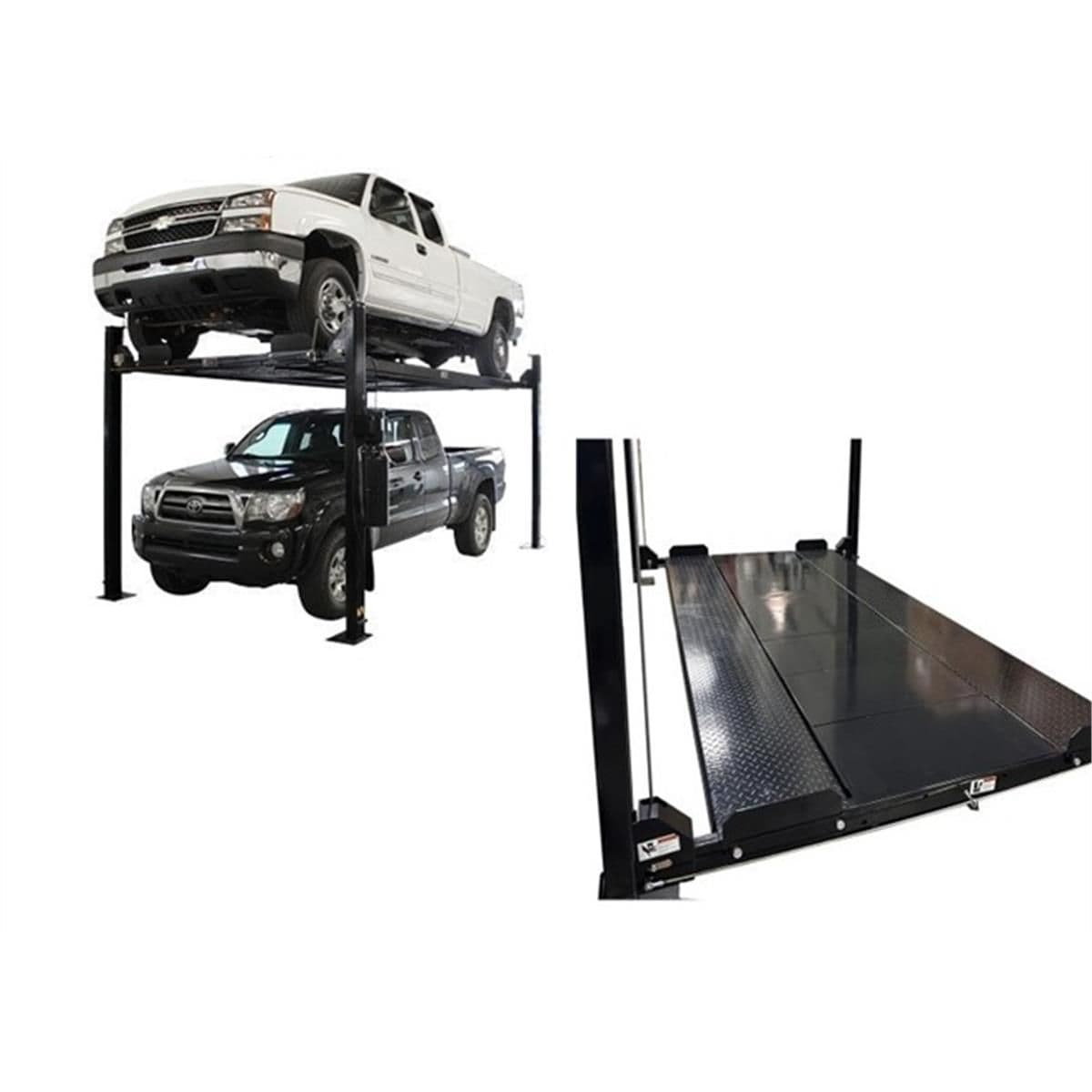

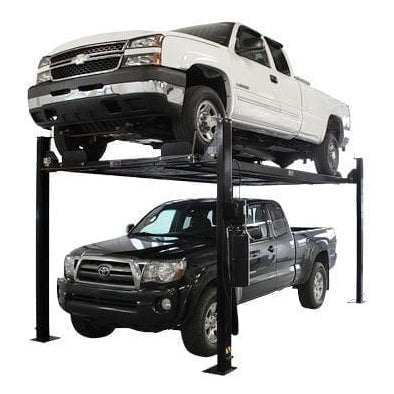

The Atlas Garage PRO8000EXT-L is the extra-tall, extra-long version of the Atlas 4-post storage and service lift, bundled with the 8-piece Atlas Pro-Floor panel set. Compared to the standard Garage PRO8000, the EXT-L runs 20 inches longer, 3 inches wider, and 14 inches taller at the columns, with the extra lifting height of the PRO8000EXT carried over. The longer runways accommodate most extended-cab and long-bed pickup trucks, with one exception: dually rear axles are too wide to clear the column lock assemblies. For dually-width vehicles, the Atlas Garage PRO9000 is the right lift.
The 8,000 lb capacity free-standing 4-post platform is designed for homeowners and restoration shops — applications where the lift cycles a few times per day for storage, detailing, or extended service. It is not engineered for the duty cycle of a commercial repair bay raising and lowering vehicles all day. If a higher-cycle commercial 4-post is the better fit, contact MGS at 307-381-1810 for an alternative.
The Pro-Floor 8-panel set closes the gap between the runways once the lift is raised, turning the platform into a continuous work and storage surface above the parked vehicle. Six middle panels and two end pieces, each rated 400 lb per section, dimensioned 37 1/4" wide × 19 1/2" deep × 4" tall.
Features
4-Post Lift (Garage PRO8000EXT-L)
- 8,000 lb lifting capacity
- Free-standing, portable design
- Extra-tall columns and extra-long runways
- Diamond-plated runways

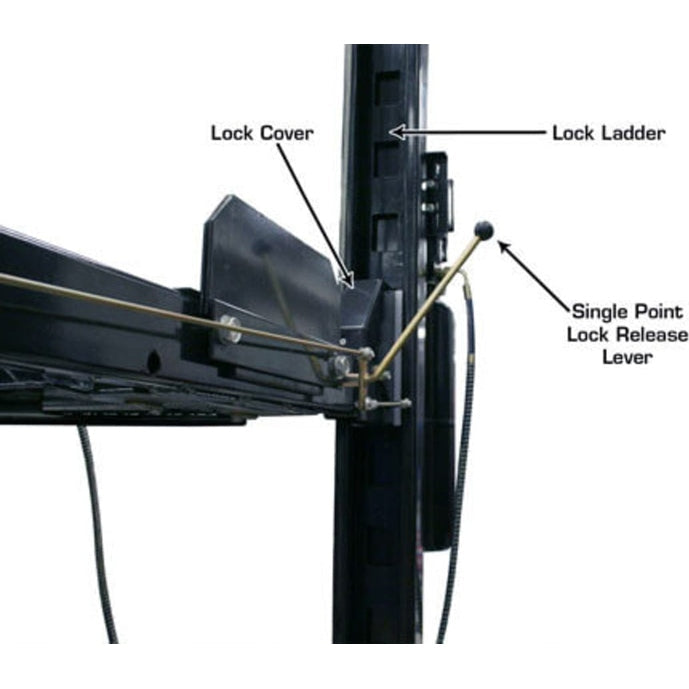

- Single-point lock release

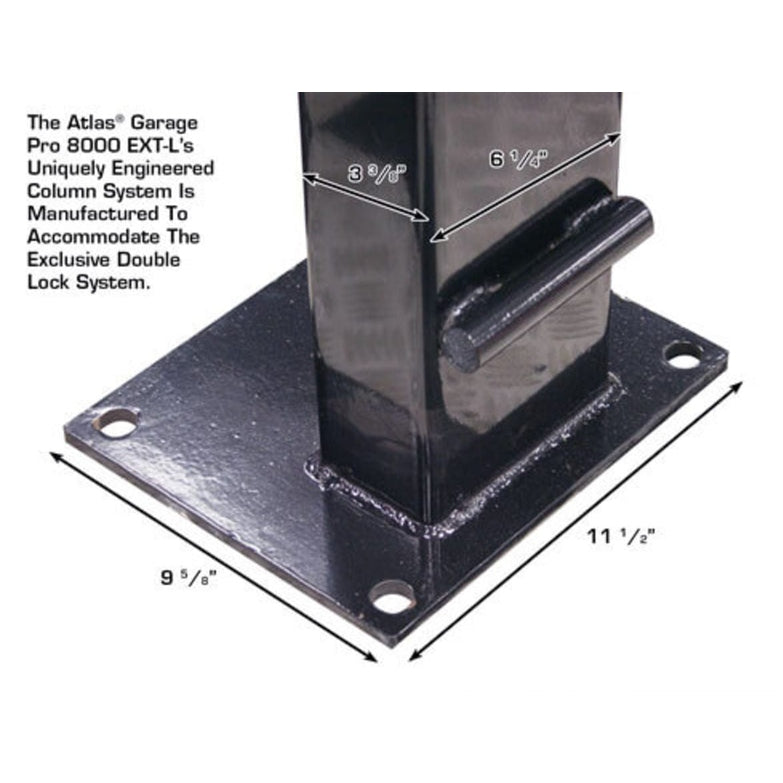

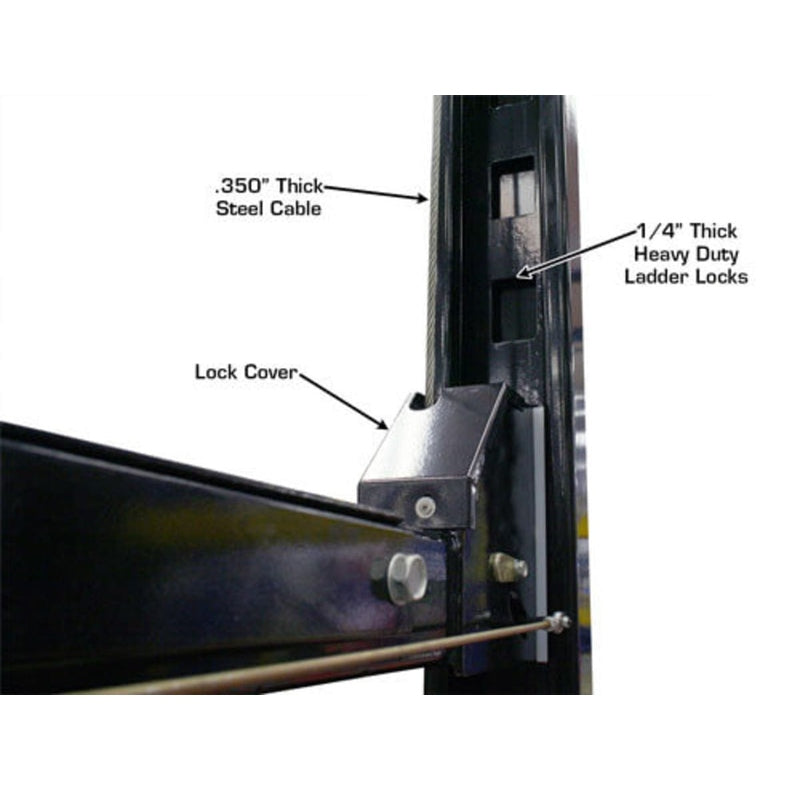

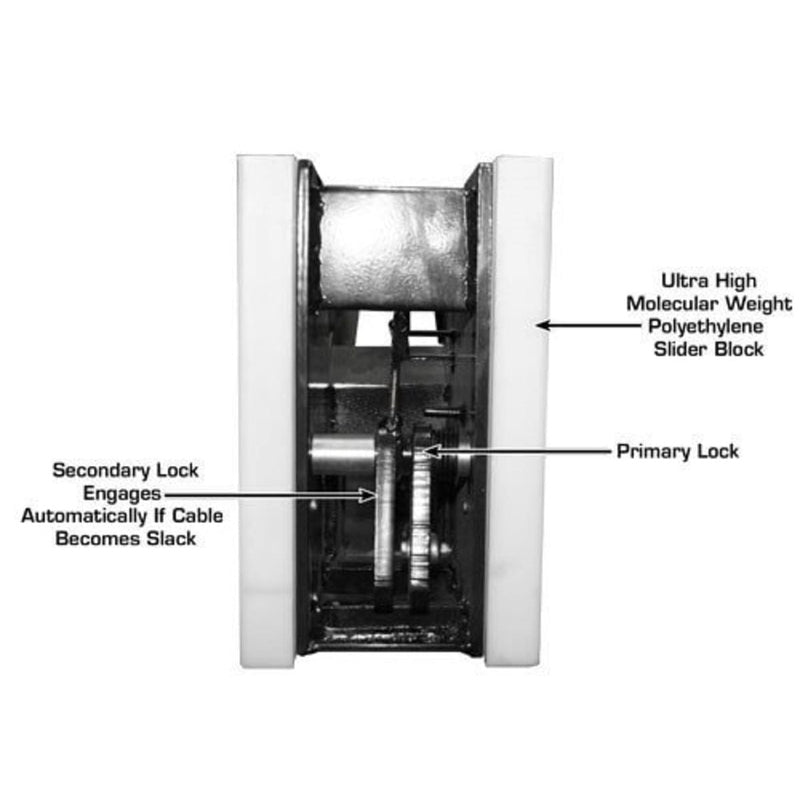

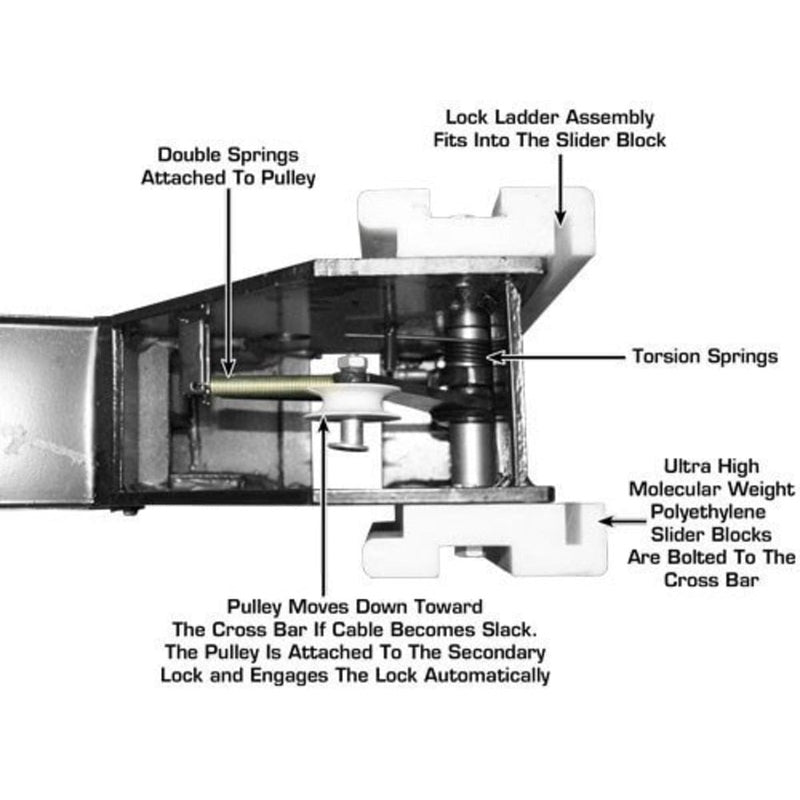

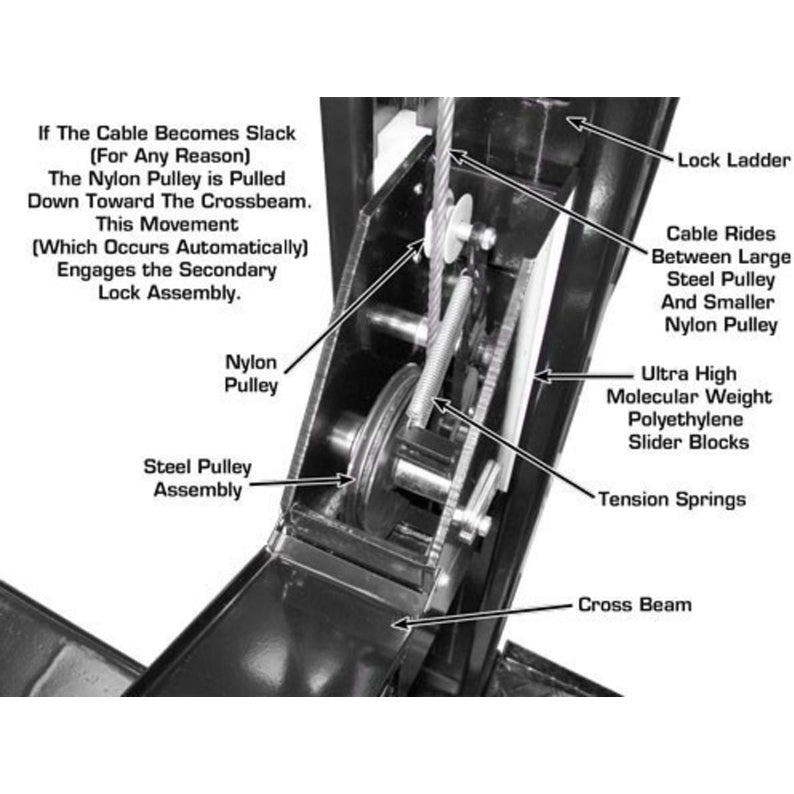

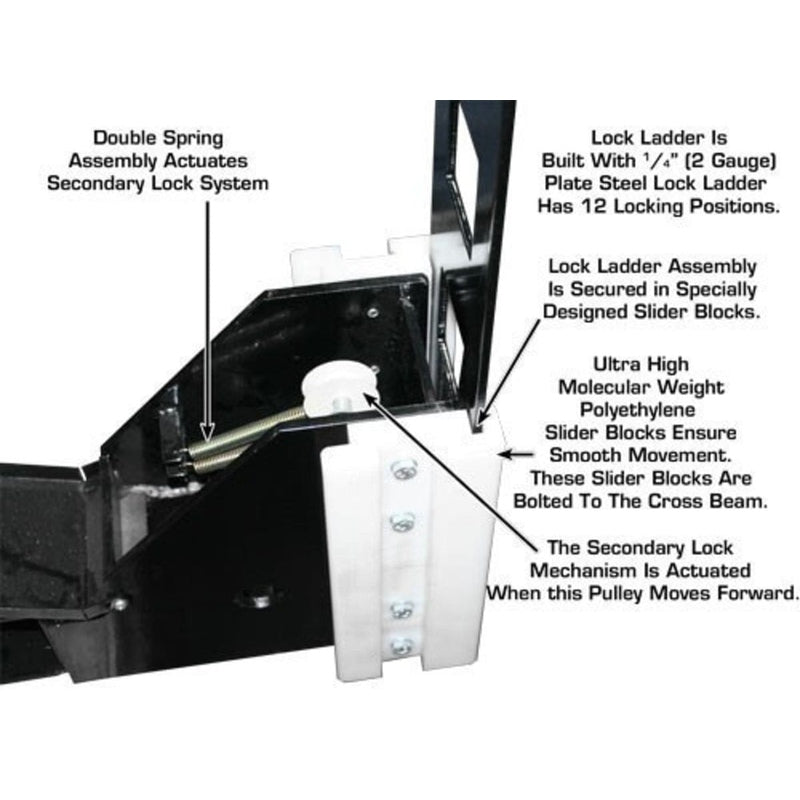

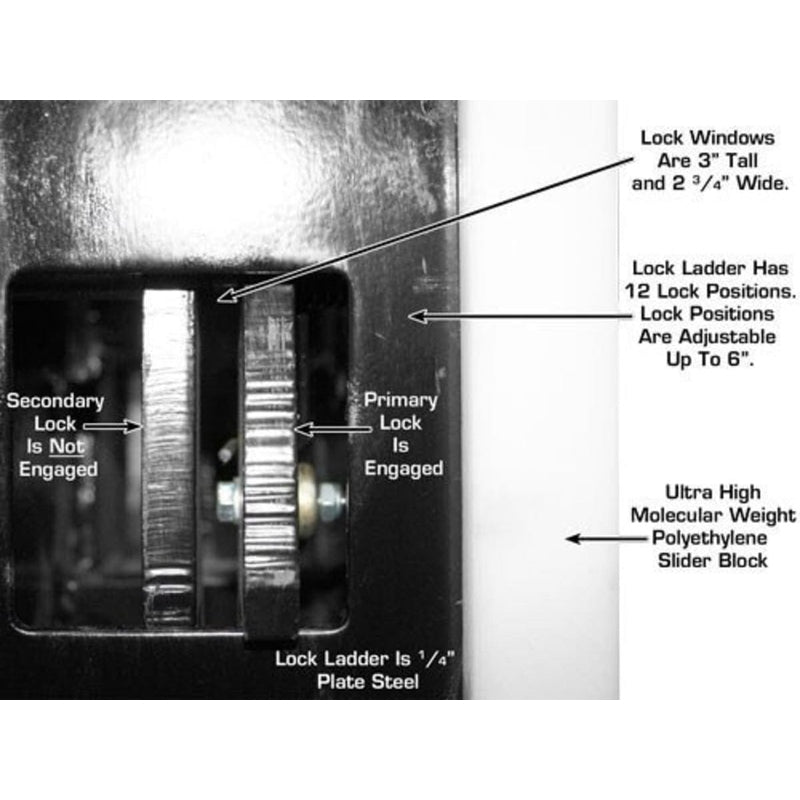

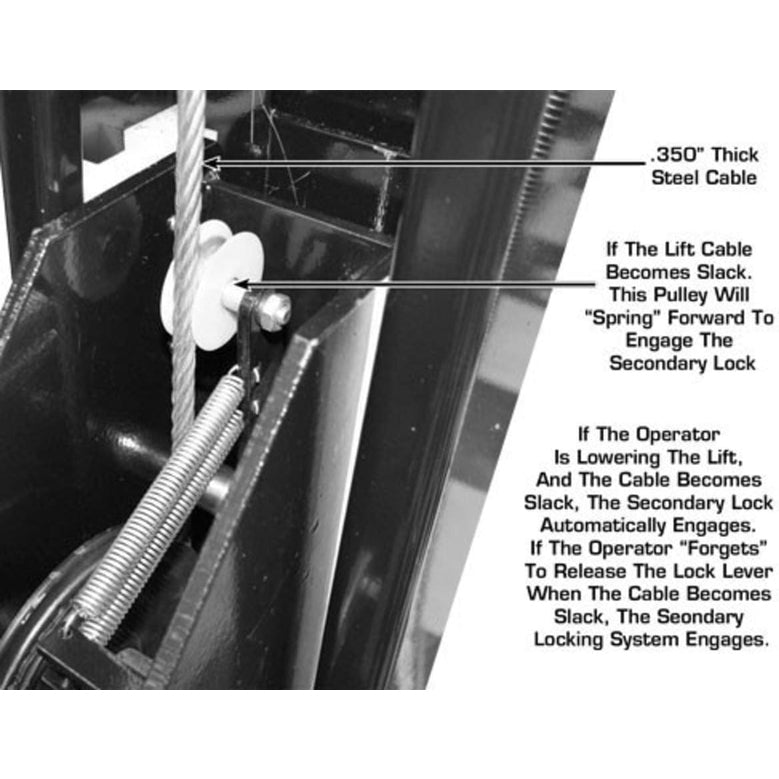

- Lock-ladder design with double-lock safety system

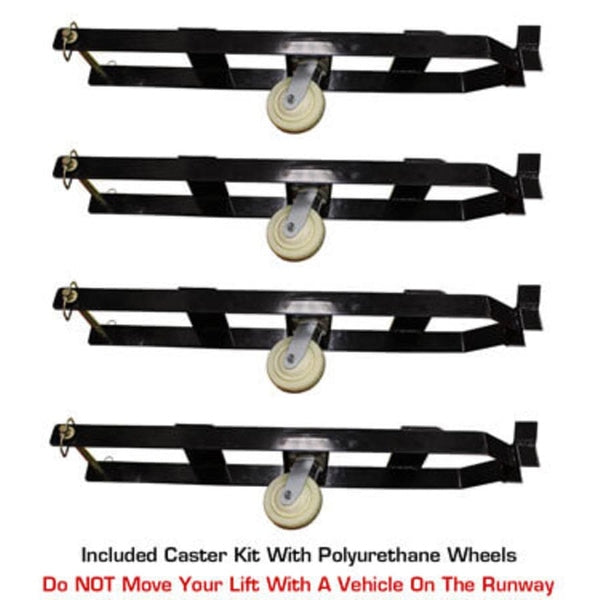

- Caster kit with polyurethane wheels included — installs or removes in minutes for moving the lift between bays or outside

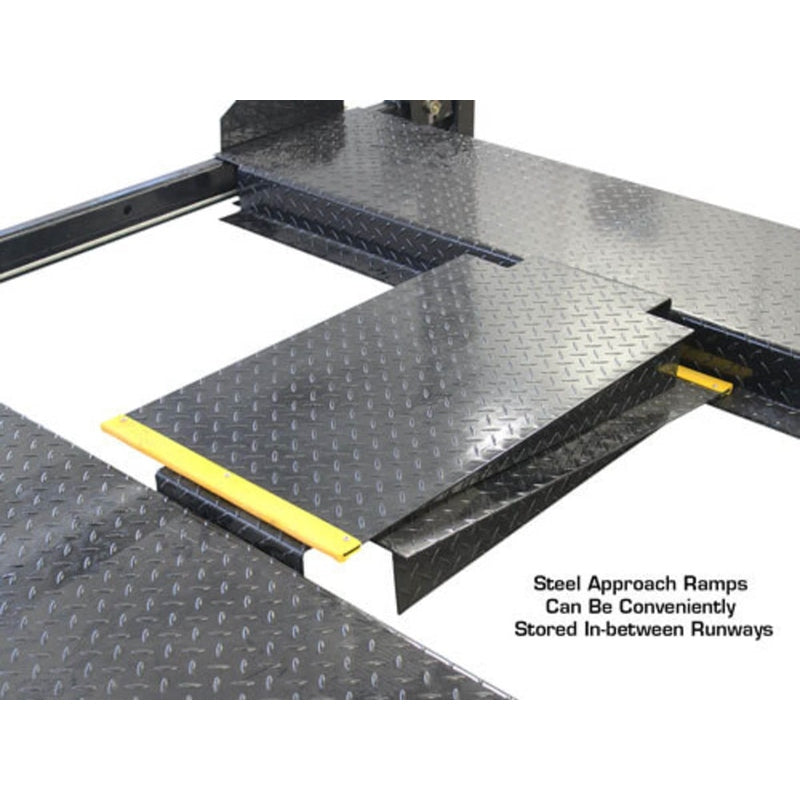

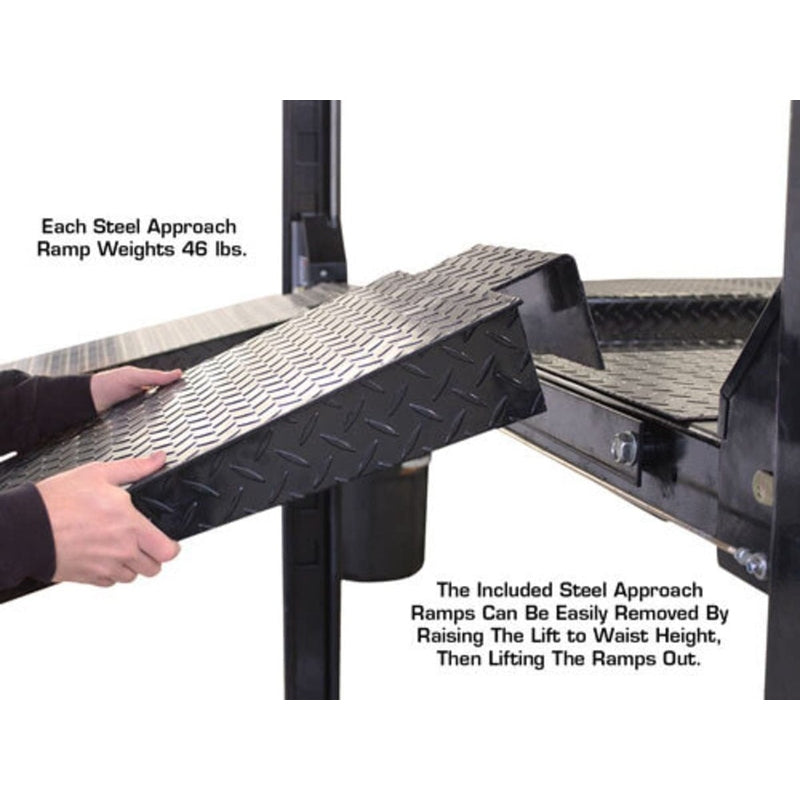

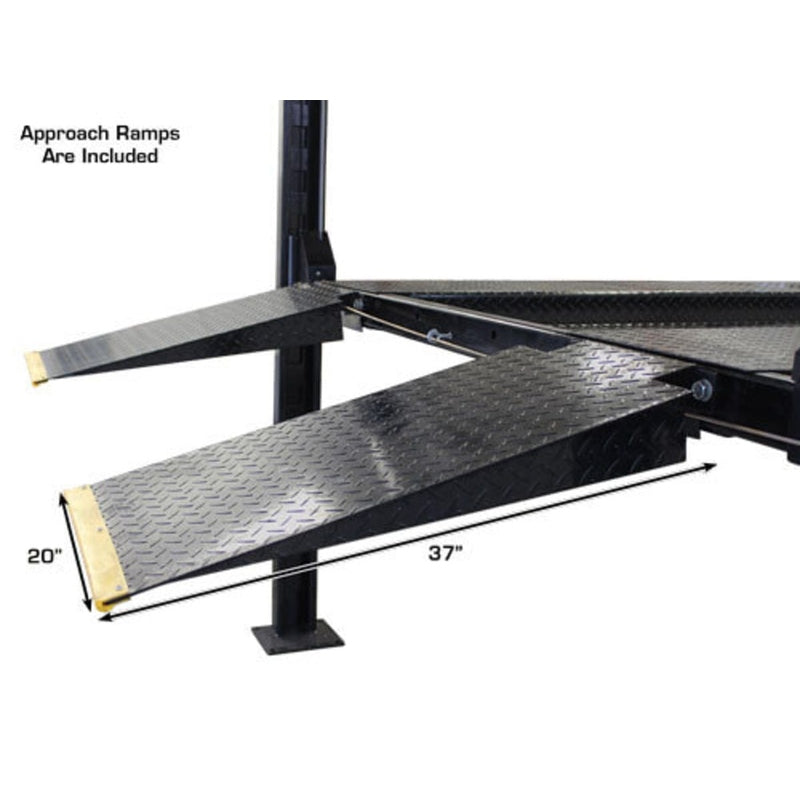

- Steel approach ramps included

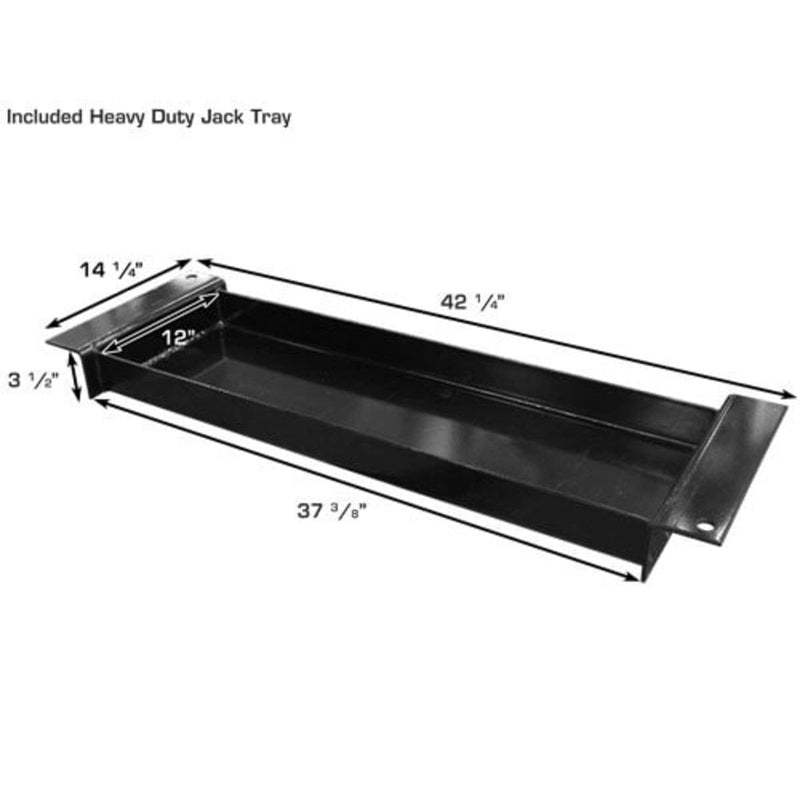

- Steel jack tray included

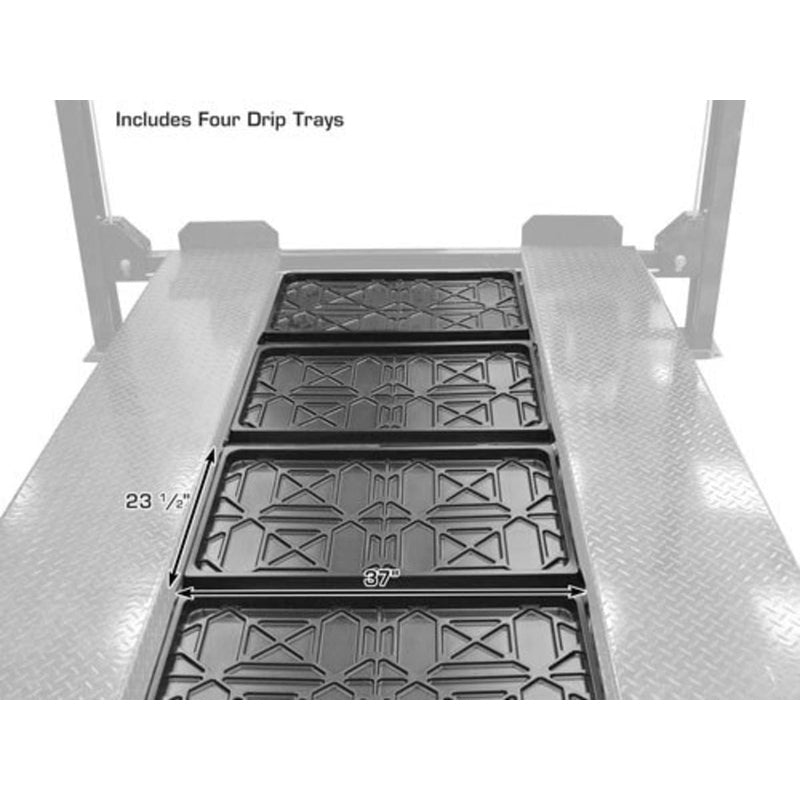

- 4 plastic drip trays included
- 4 wheel stops included

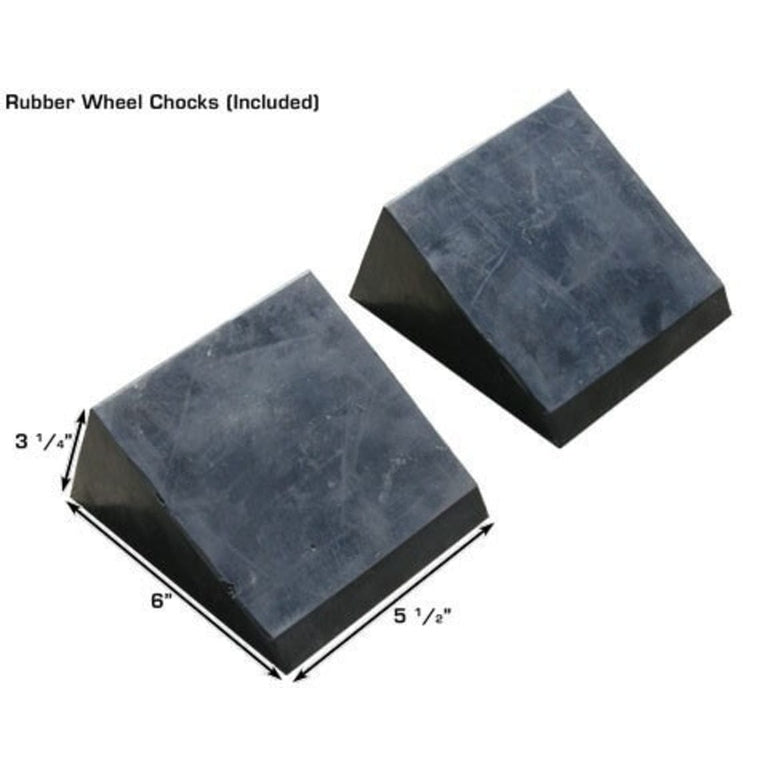

- 2 rubber wheel chocks included
- 110V electric operation (30-amp breaker required)
- Shipping weight 1,900 lbs
- 2-year structural / 1-year hydraulic warranty, parts only
Pro-Floor 8-Panel Set
- Complete 8-piece floor panel set: 6 middle panels and 2 end pieces
- 400 lb capacity per section
- Lightweight design
- Per-panel dimensions: 37 1/4" wide × 19 1/2" deep × 4" tall
- Closes the runway gap to add a continuous storage and work surface above the parked vehicle
Specifications
| Atlas Garage PRO8000EXT-L Specifications | |
|---|---|
| Capacity | 8,000 lb |

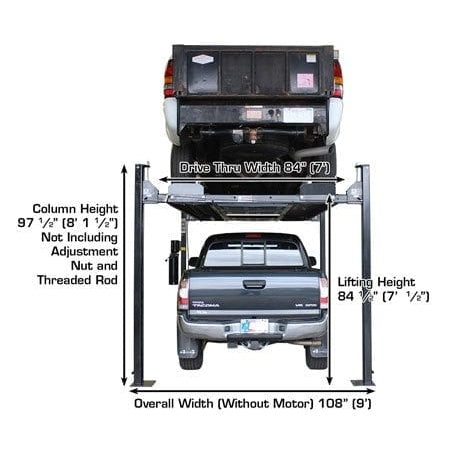

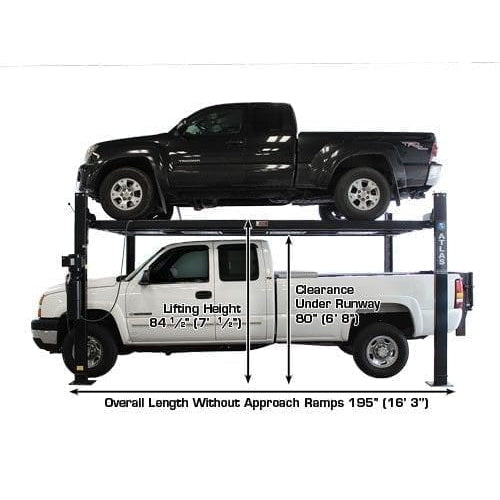

| Lifting Height to Top of Runway | 84" (7') |
| Clearance Under Runways | 78 1/2" (6' 6 1/2") |

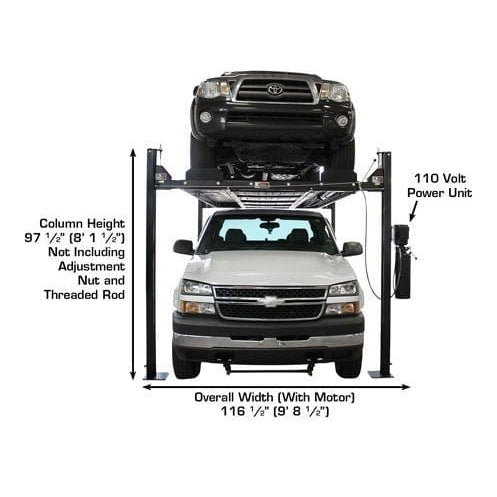

| Height of Columns | 98 1/2" (8' 2 1/2") |
| Overall Width (Without Motor) | 108" (9') |
| Overall Width (With Motor) | 116 1/2" (9' 8 1/2") |
| Overall Length with Approach Ramp | 222" (18' 6") |
| Approach Ramp | 37" (3' 1") |

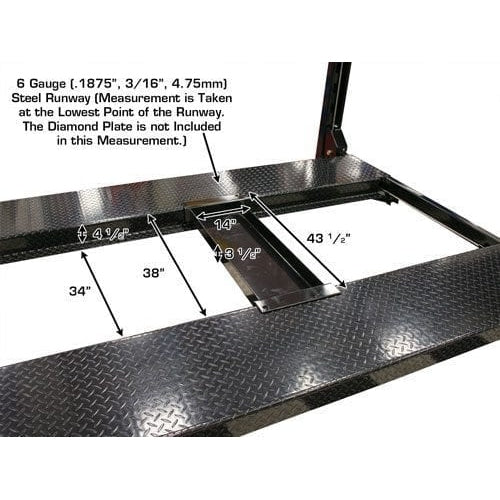

| Runway Width | 22" with rails / 18 3/4" driving surface |

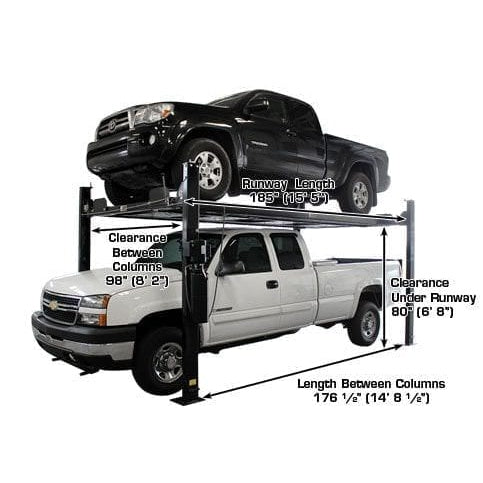

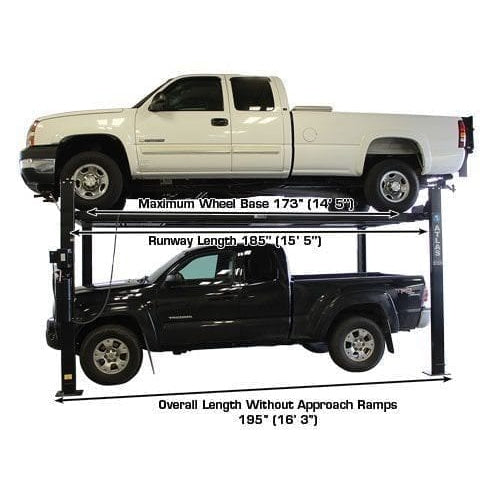

| Runway Length | 185" (15' 5") |
| Runway Thickness | 4 1/2" |
| Width Between Runways | 38" (3' 2") |
| Width Between Runway Rails | 34" (2' 10") |
| Outside Runway to Outside Runway | 77 3/4" (6' 5 3/4") |

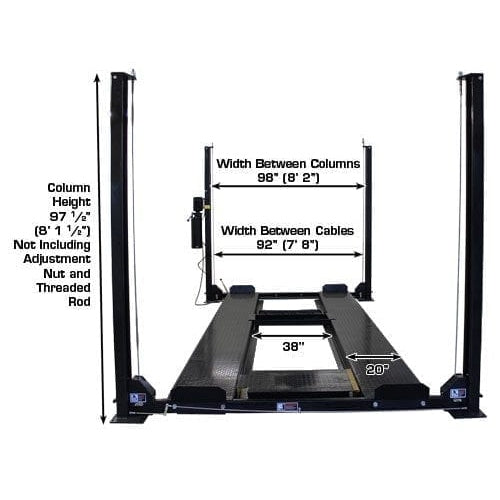

| Clearance Between Columns | 98" (8' 2") |

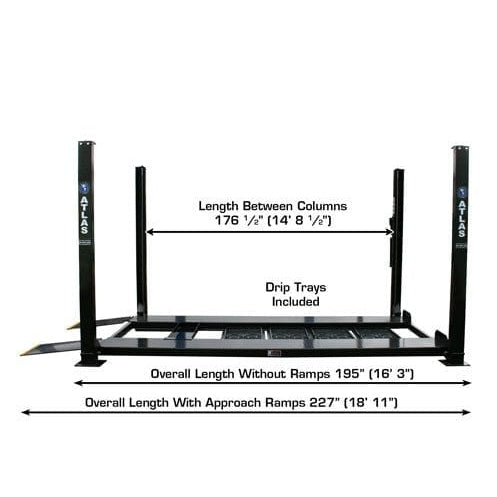

| Length Between Columns | 176 1/2" (14' 8 1/2") |
| Maximum Wheel Base | 173" (14' 5") |
| Drive-Thru (Outside of Tire to Outside of Tire) | 84" (7') |

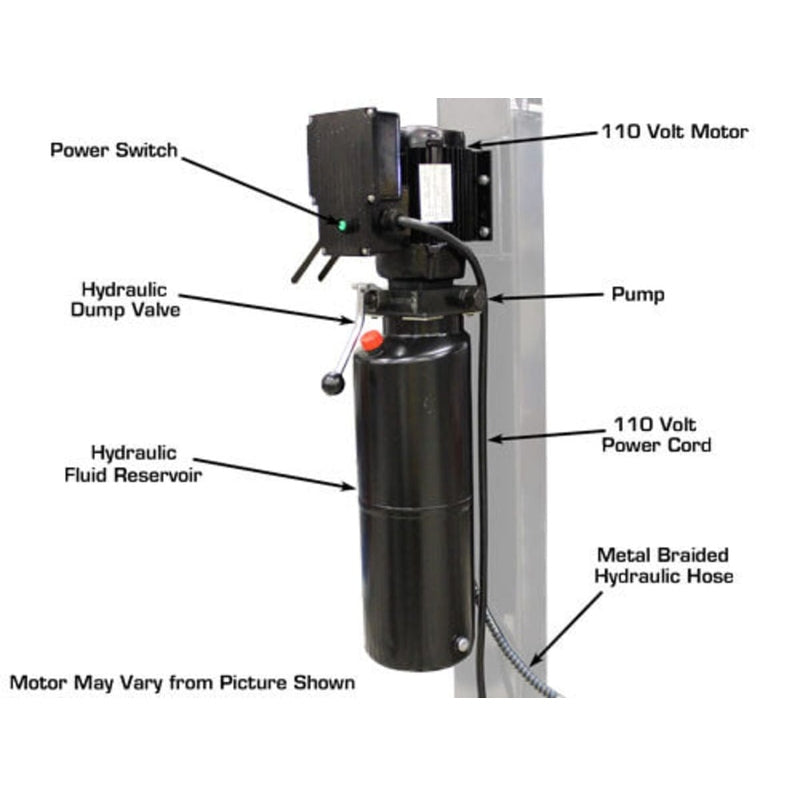

| Motor / Electrical | 110V, 30-amp breaker required |

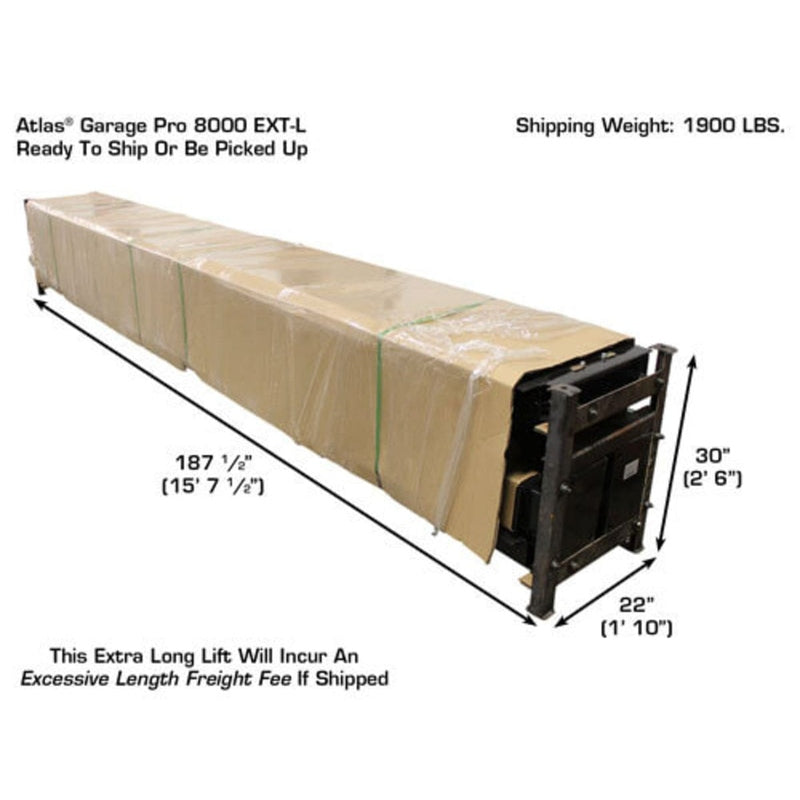

| Shipping Weight | 1,900 lb |
| Warranty: 2-year structural, 1-year hydraulic, parts only. | |
What's Included
- Atlas Garage PRO8000EXT-L 4-post lift
- Caster kit with polyurethane wheels
- Steel approach ramps
- Steel jack tray
- 4 plastic drip trays
- 4 wheel stops
- 2 rubber wheel chocks
- Pro-Floor 8-piece panel set (6 middle pieces + 2 end pieces)
Shipping & Logistics
This product ships via freight.
