Atlas Automotive Equipment | SKU: ATEXH-PRO9-COMBO3

Atlas Garage PRO9000 9,000-lb 4-Post Lift + 2 RJ-45A 4,500-lb Bridge Jacks Combo Package

Name: Atlas Garage PRO9000 9,000-lb 4-Post Lift + 2 RJ-45A 4,500-lb Bridge Jacks Combo Package
Brand: Atlas Automotive Equipment
SKU: ATEXH-PRO9-COMBO3
Price: 7999.00 USD
Availability: InStock

$7,999.00

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Financing Options

Price Match Guarantee

Some products may require large equipment to take delivery. Contact us if you are unsure.

- Need items in bulk? Contact us for a custom quote or invoice.
- Save additional 3% paying with an ACH/Wire transfer.

Description

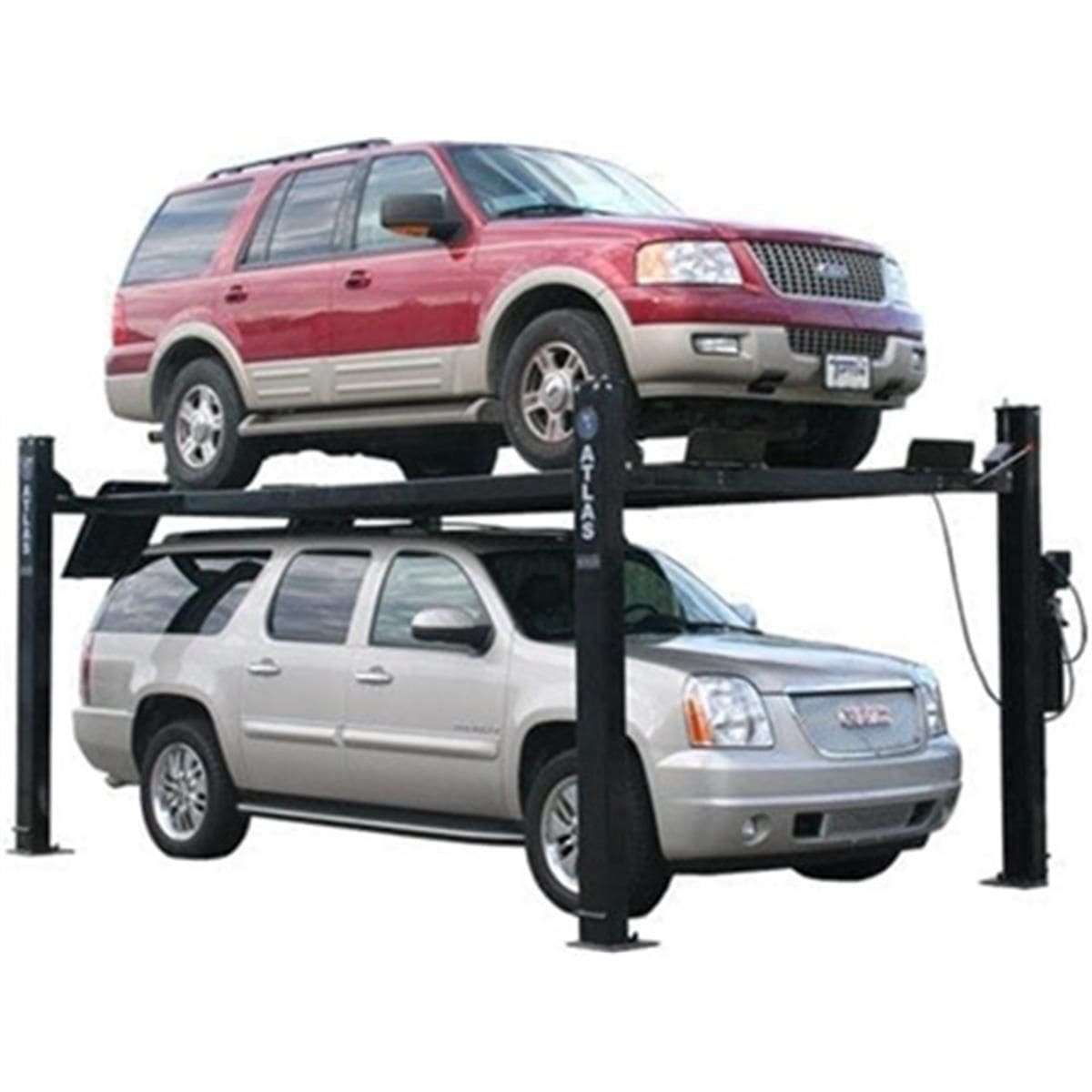

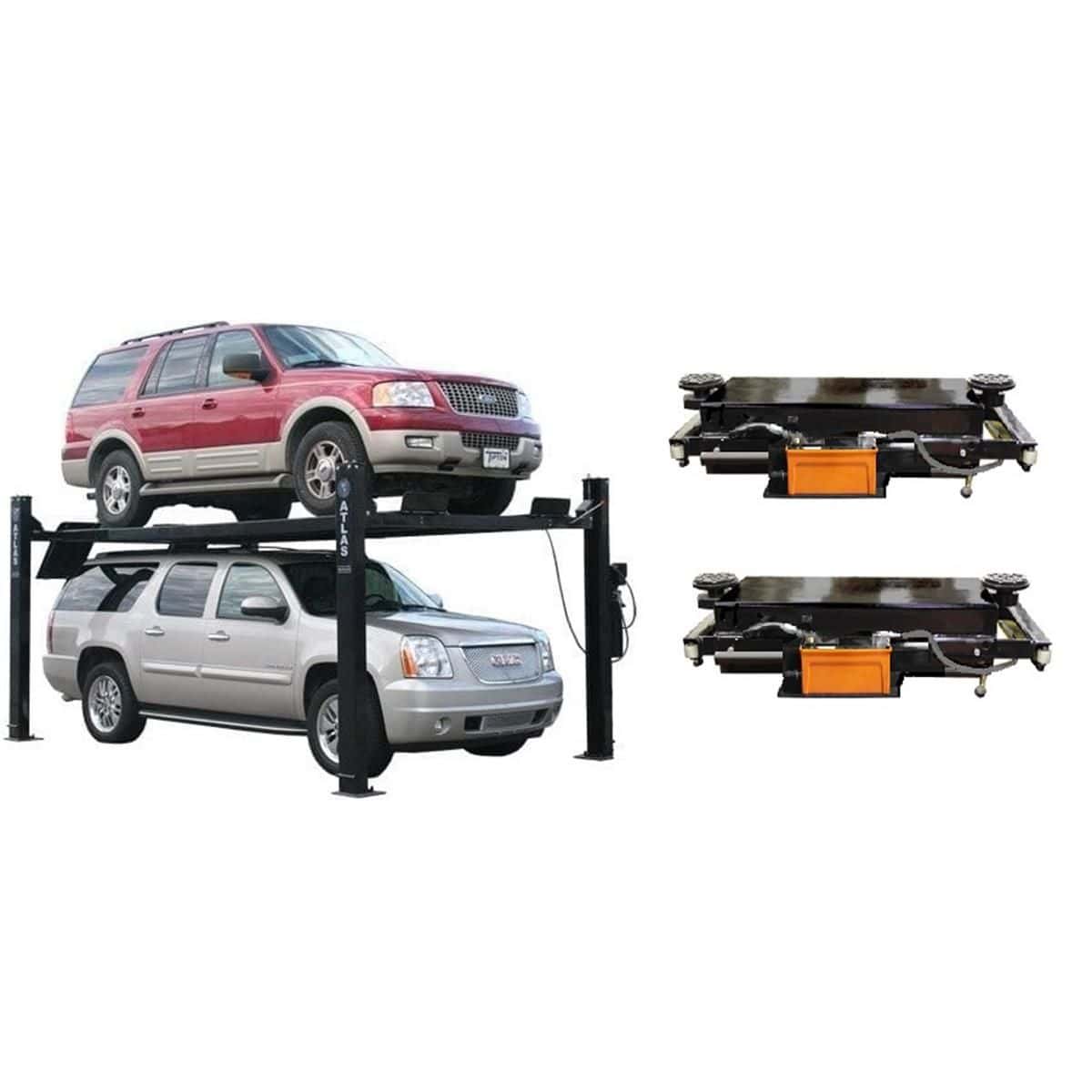

The Atlas Garage PRO9000 combo pairs the highest-capacity lift in the Atlas Garage PRO series with two RJ-45A rolling bridge jacks — turning a portable storage and service four-post into a rolling wheel-and-brake station. The lift is rated 9,000 lbs; each RJ-45A jack is rated 4,500 lbs. Together they handle everything from a Smart Car to a diesel dually.

The PRO9000 runs on standard 110V power (30-amp breaker required), is free-standing — no anchoring required — and rolls on an included caster kit so it can move when the floor plan changes. The runways are extra-long to fit longer-wheelbase vehicles, and extra-wide so full-size duallys can drive on without their tires riding the runway edges. Extra column height makes it possible to park anything from a Smart Car to a dually both below and on the runways.

Atlas Garage PRO9000 four-post lift with extra-long 204-inch runways shown without approach ramps — Extra-long 17-foot runways (18'11½" with approach ramps).

The two RJ-45A bridge jacks ride on the runways and span the gap between them. Air/hydraulic operation lets a tech raise a vehicle's wheels off the runway for tire and brake service on the same lift the car is already parked on. Adjustable support arms fit lifts with 35" to 54½" between runways, so the jacks aren't tied to the PRO9000 — they work across most four-post platforms in that runway range.

Features

Atlas Garage PRO9000 four-post lift

9,000-lb lifting capacity
Free-standing, portable design — no anchoring required
Extra-tall, extra-wide, and extra-long runways
Single-point lock release
Lock ladder design with double-lock safety system
Caster kit with polyurethane wheels included
Steel approach ramps included
Steel jack tray included
Four plastic drip trays included
Two rubber wheel chocks included
110V electric operation (30-amp breaker required)
2-year structural / 1-year hydraulic parts-only warranty

Atlas PRO9000 lock ladder, single-point lock release, power unit, and metal-braided hydraulic hose detail — Lock ladder, single-point lock release, and metal-braided hydraulic hose.

Atlas PRO9000 nylon roller and steel wheel detail showing the runway carriage assembly — Nylon rollers for smooth movement; steel wheel for durability.

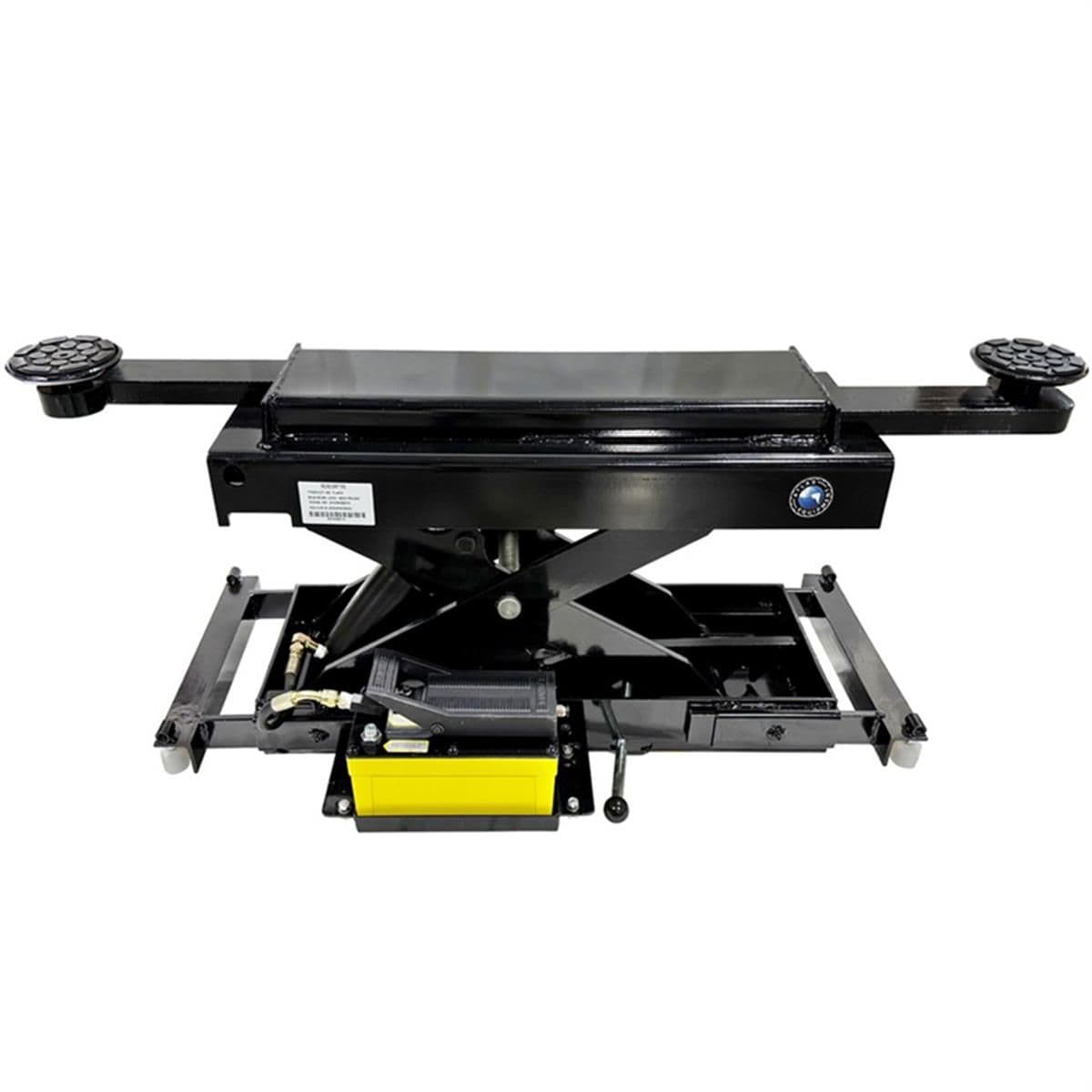

RJ-45A rolling bridge jacks (×2 included)

4,500-lb lifting capacity per jack
Air/hydraulic operation (external air supply not included)
Two locking heights: 7⅜" and 10½"
Max lifting height with adapters: 18½" (may vary by lift)
Min height above runway: 3¾" (may vary by lift)
Arm adjustment: 39½" to 64¾"
Fits lifts with 35" to 54½" between runways
Height adapters and rubber lift pads included

Atlas RJ-45A rolling bridge jack with adapters extended showing 18.5-inch max lifting height and lock release — Max lifting height with adapters: 18½". Two locking positions.

Atlas RJ-45A bridge jack with included 4-piece truck adapter set and nylon rollers — Includes a 4-piece truck adapter set with on-board holder.

Atlas RJ-45A height adapters: 4.75-inch rubber pad, two 1.375-inch lift pads, two 1.25-inch adapters, two 5-inch adapters — Adapter kit: 4¾" rubber pad, two 1⅜" lift pads, two 1¼" adapters, two 5" adapters.

What's Included

(1) Atlas Garage PRO9000 four-post lift with 110V power unit
(2) RJ-45A rolling bridge jacks with adapter kits
Caster kit with polyurethane wheels (lift)
Steel approach ramps
Steel jack tray
4 plastic drip trays
2 rubber wheel chocks

Atlas PRO9000 included caster kit with polyurethane wheels, four casters shown — Included caster kit. Do not move the lift with a vehicle on the runway.

Atlas PRO9000 steel diamond-plate approach ramps included, 31 by 31.5 inches — Diamond-plate steel approach ramps (31" × 31½" × 19⅞").

Atlas PRO9000 four plastic drip trays installed between runways, 39 by 24 inches each — Four plastic drip trays sit between the runways (39" × 24" each).

Atlas PRO9000 included rubber wheel chocks, two pieces, 6 by 5.5 by 3.25 inches — Rubber wheel chocks (6" × 5½" × 3¼"), two included.

Specifications

Atlas Garage PRO9000 Four-Post Lift Specifications
Lifting capacity	9,000 lbs
Power	110V (30-amp breaker required)
Column height	95¾" (7'11¾"), ±2" depending on thread adjustment and floor pitch
Top of runway	85" (7'1")
Clearance under runways	80½" (6'8½")

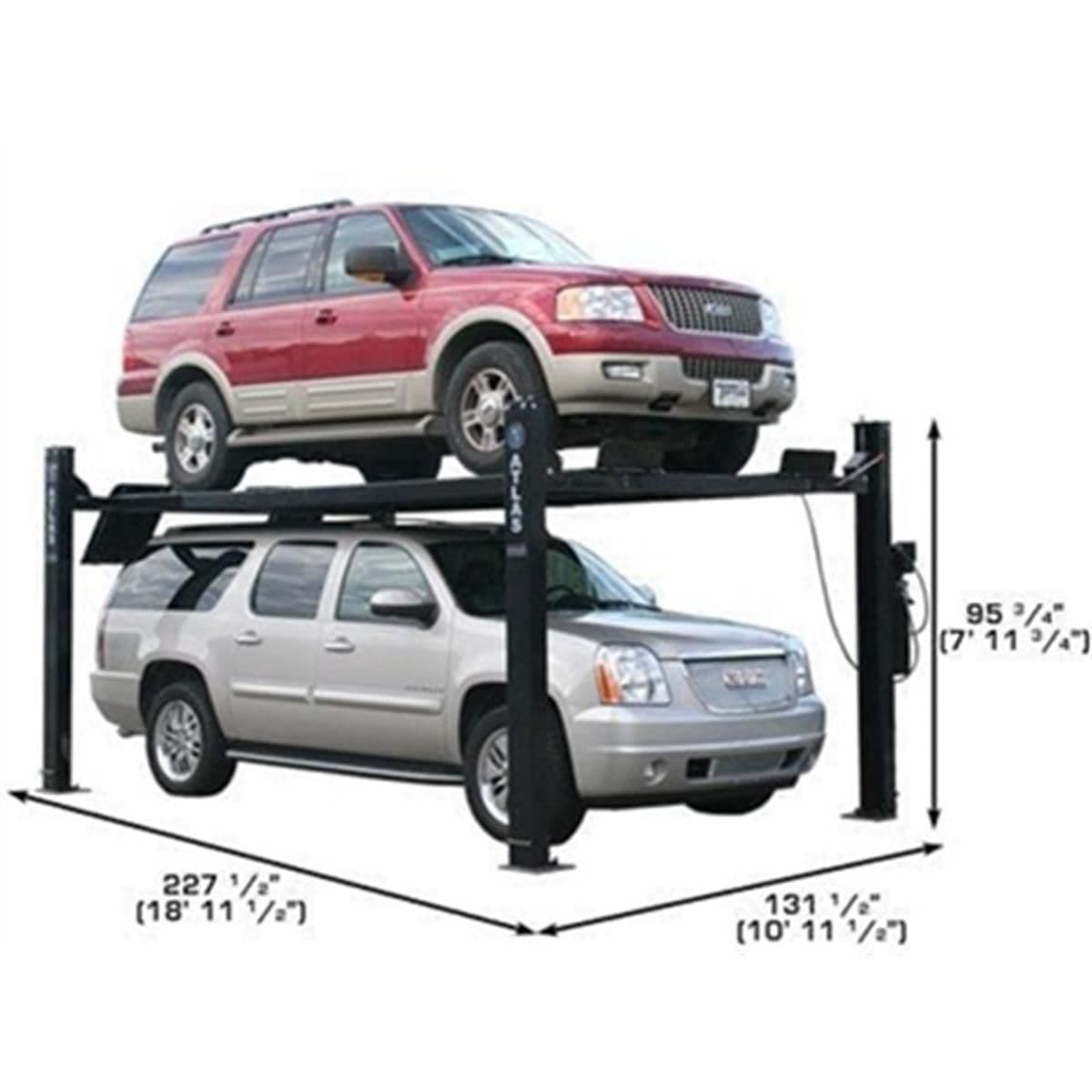

Overall length with approach ramps	227½" (18'11½")
Overall length without ramps	204" (17')
Length between columns	184½" (15'4½")
Overall width with motor	131½" (10'11½")
Overall width without motor	123½" (10'3½")
Width between columns	110½" (9'2½")
Drive-through width	79" (6'7")
Runway width (inner)	19⅞"
Distance between runways (center-to-center)	35½"
Runway thickness	4¾"
Runway gauge	5 gauge (.2" / 1/5" / 5mm) steel
Column footprint	11½" × 11½" base plate; 7½" × 4½" column
Approach ramp	31" × 31½" × 19⅞"
Drip tray	39" × 24", four included
Wheel chock	6" × 5½" × 3¼", two included
Shipping crate	202¼" × 28¼" × 21½"
Shipping weight	2,300 lbs
Warranty	2-year structural / 1-year hydraulic, parts only

Atlas RJ-45A Rolling Bridge Jack Specifications (×2 included)
Lifting capacity (each)	4,500 lbs
Operation	Air/hydraulic (external air supply not included)
Max lifting height with adapters	18½"
Min height above runway	3¾"
Locking heights	7⅜" and 10½"
Arm adjustment range	39½" to 64¾"
Compatible runway spacing	35" to 54½" between runways
Shipping crate (each)	39½" × 23½" × 12½"
Shipping weight (each)	380 lbs
Heights may vary by lift.
