Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package
Description
Description
Description
This combination package includes the Atlas® TC229 rim-clamp swing arm tire changer & the Atlas® Platinum PWB50 computerized spin balancer. This combination is perfect for a commercial shop looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and the Atlas® TC229 carries a 1 year parts only warranty and the Atlas® Platinum PWB50 carries an extended 2 year parts only warranty.
Features

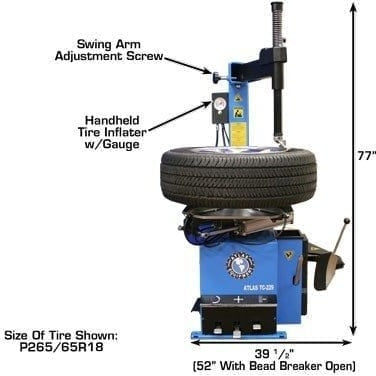

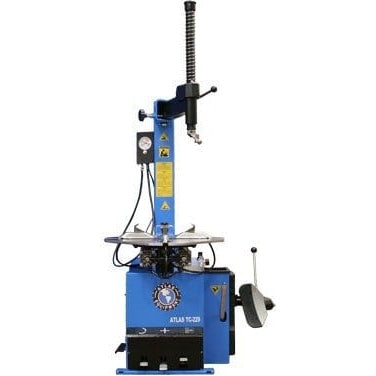

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

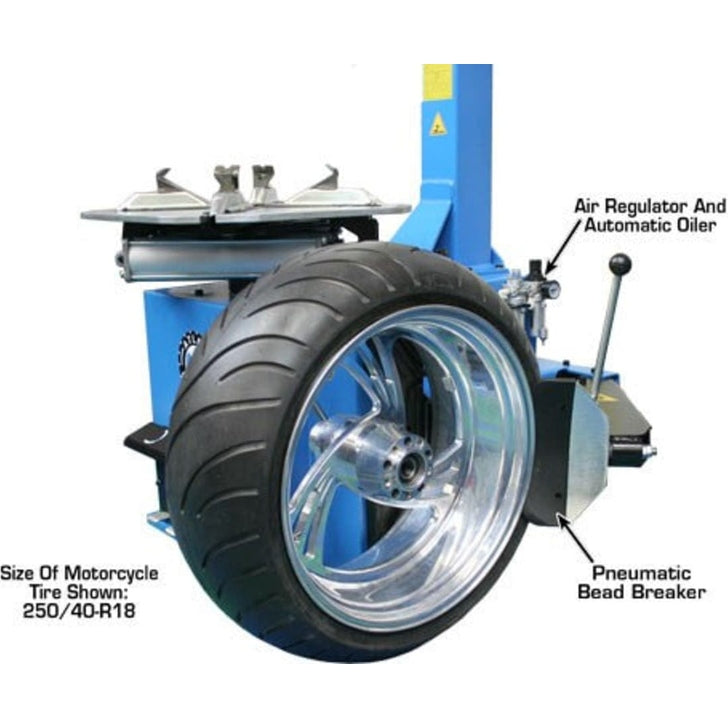

- Air operated jaws & bead breaker (external air supply required)

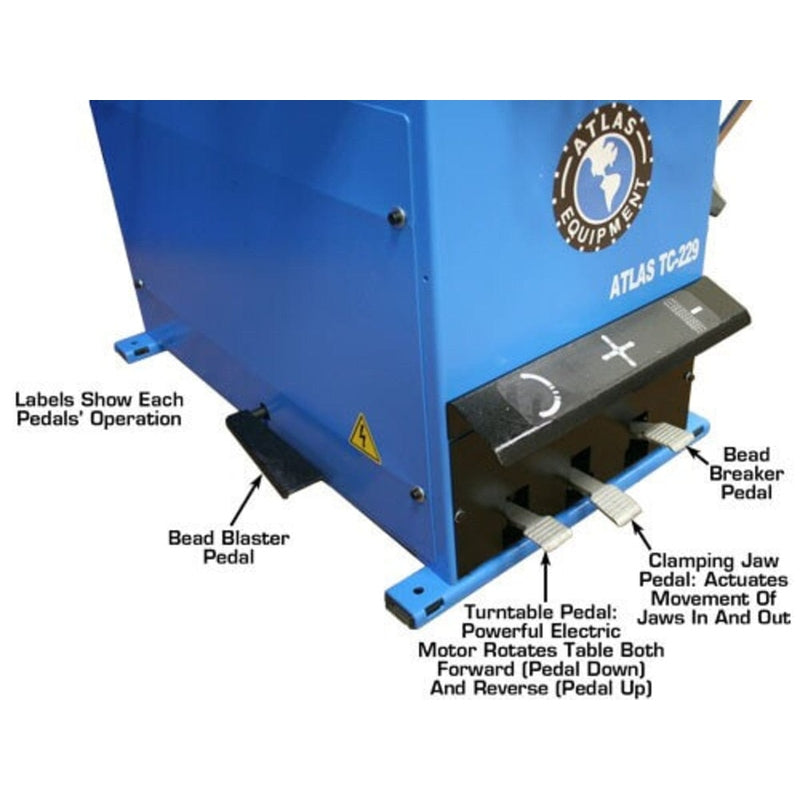

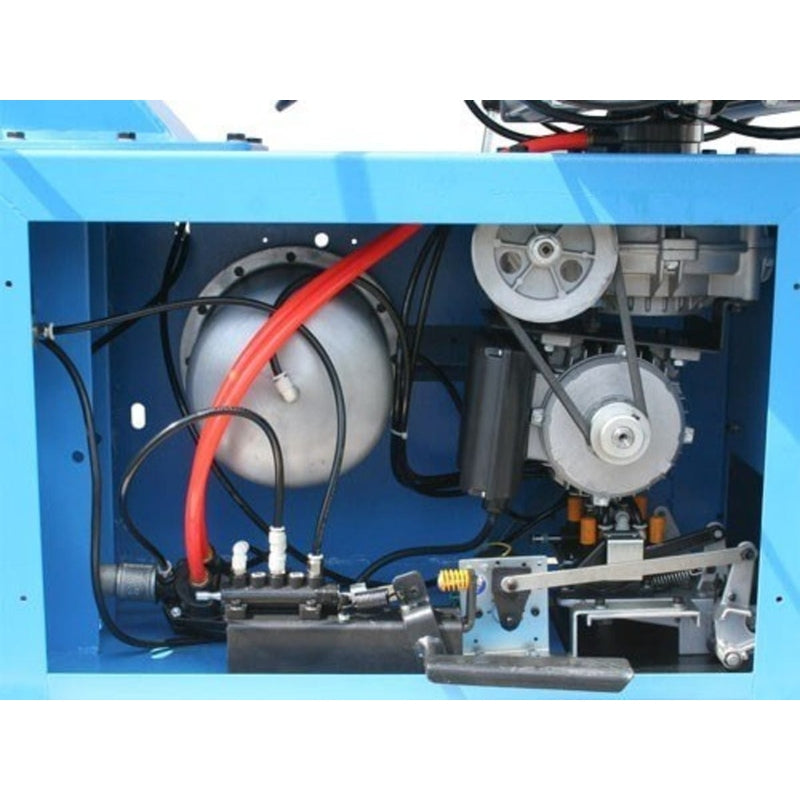

- Electric turntable
- Adjustable jaws, three mounting positions

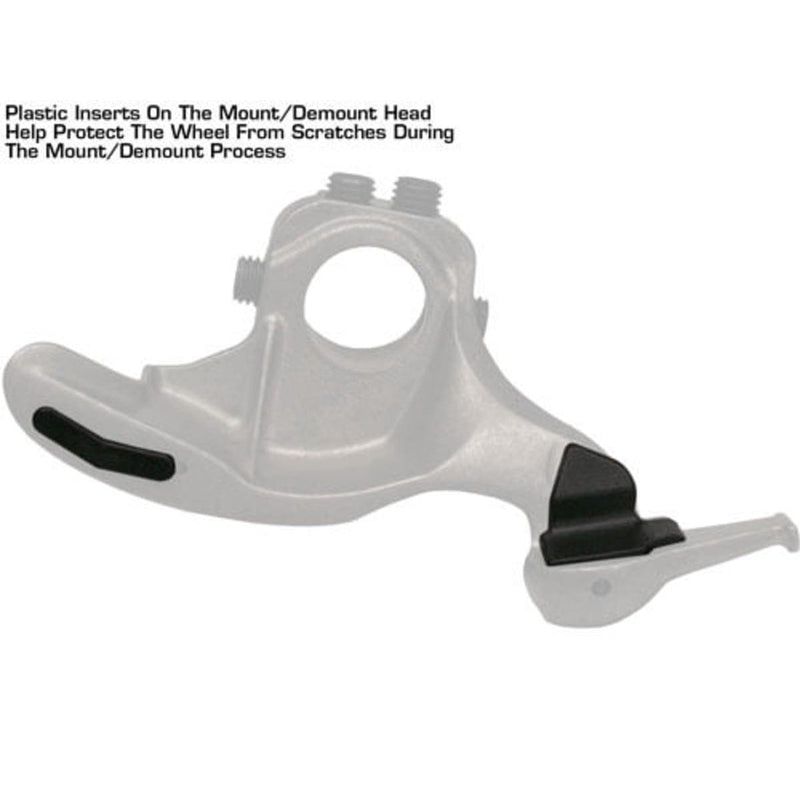

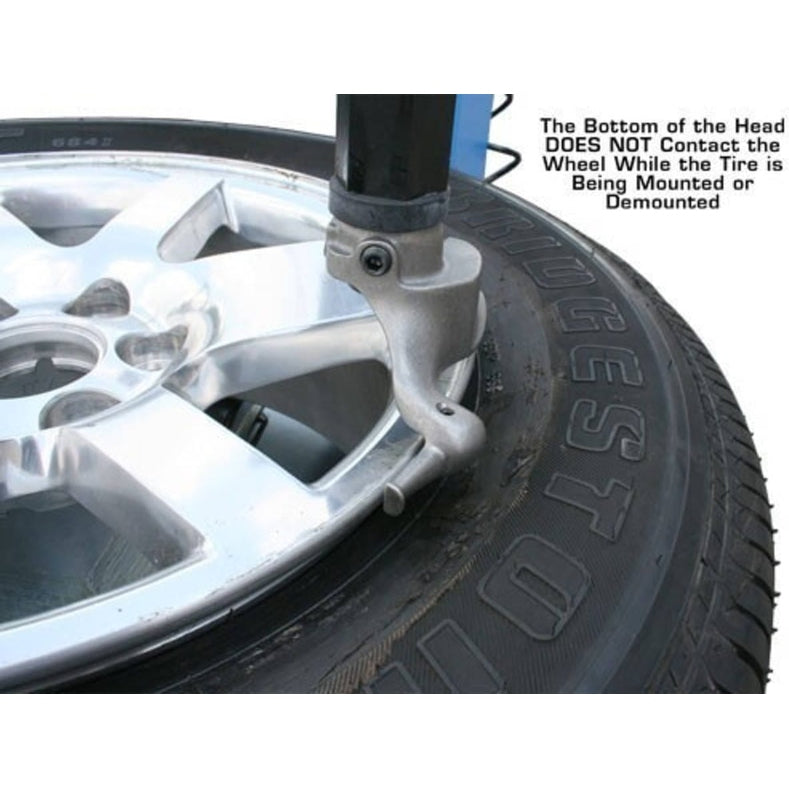

- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included

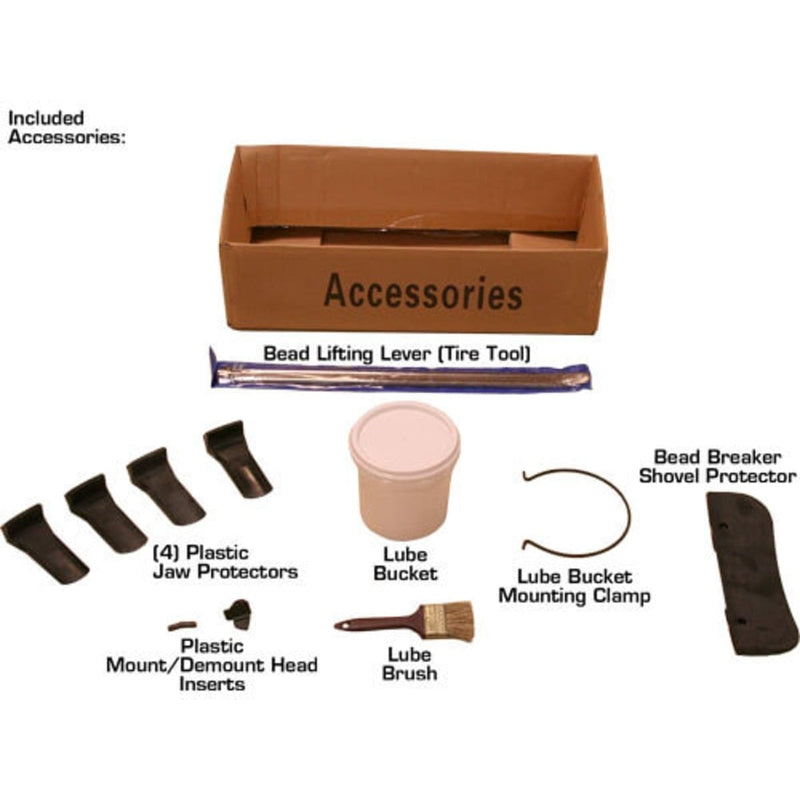

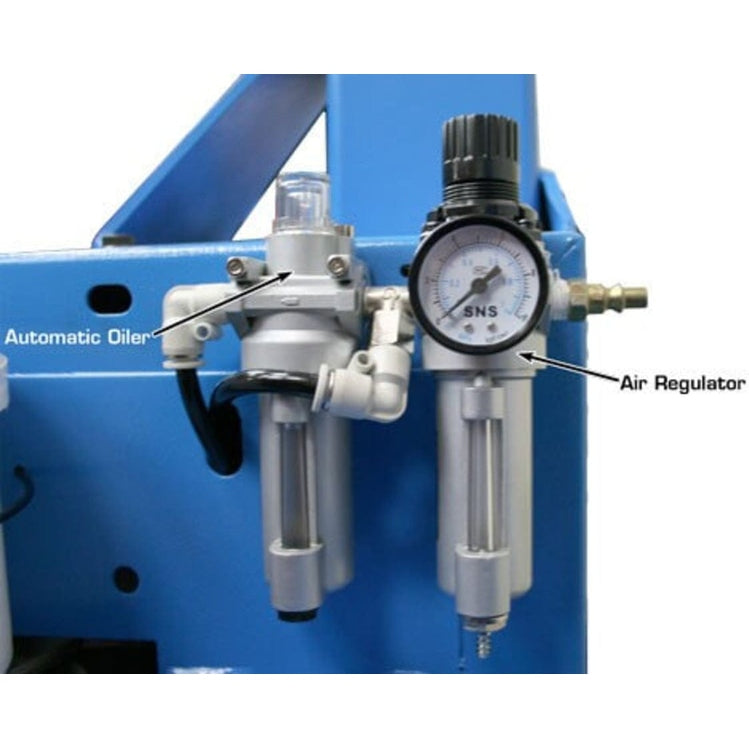

- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included

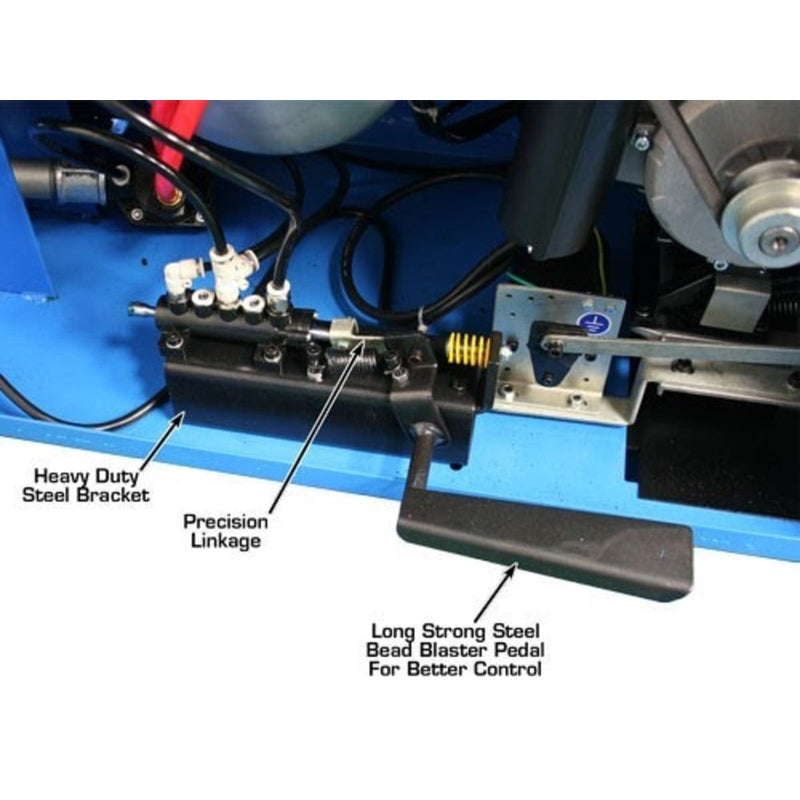

- Built in “Beadblaster”
- Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

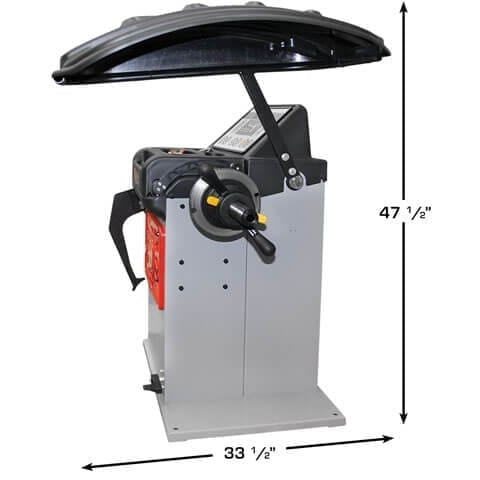

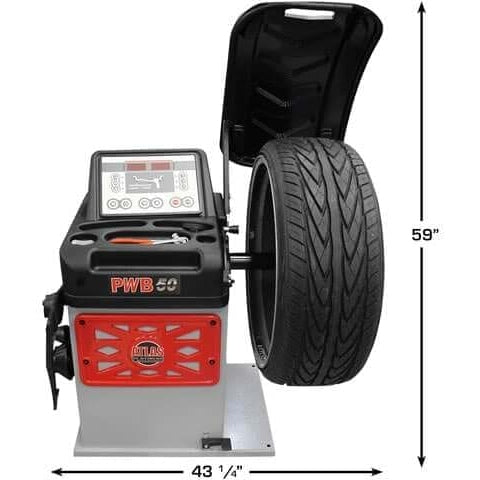

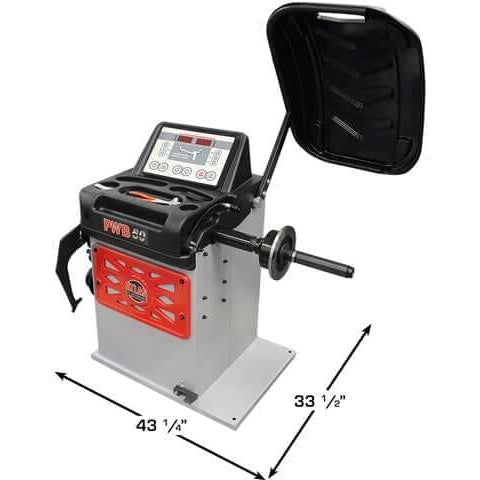

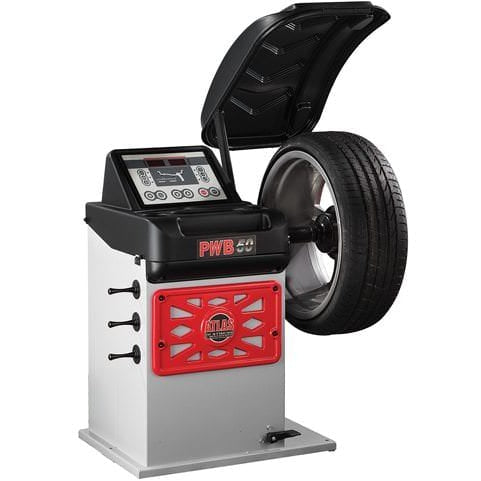

PWB50 Wheel Balancer
- Platinum Computer Controlled Motorized Spin Balancer
- Italian Engineering and Components

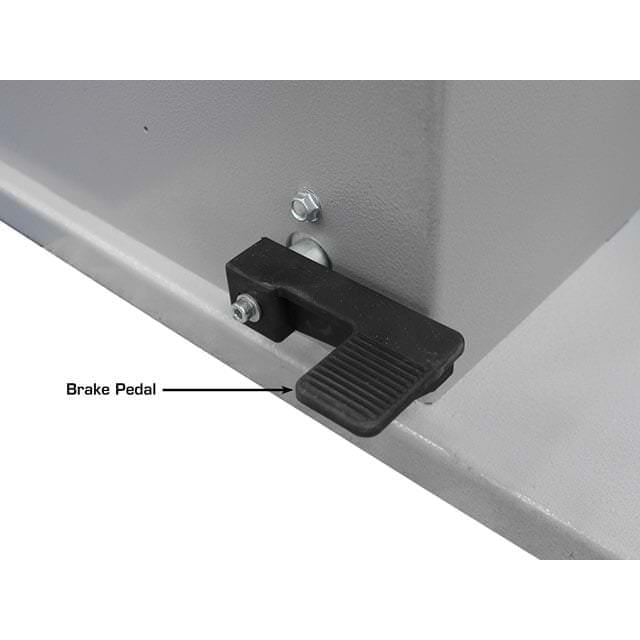

- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Special ALU-S and other ALU Programs
- Automatic 2D Data Entry
- NWN (no wheel need) System
- Self-Diagnosing and Self-calibrating
- USB hub for firmware update through PC/Notebook
- Exceptional stability in reading the unbalance between planes.

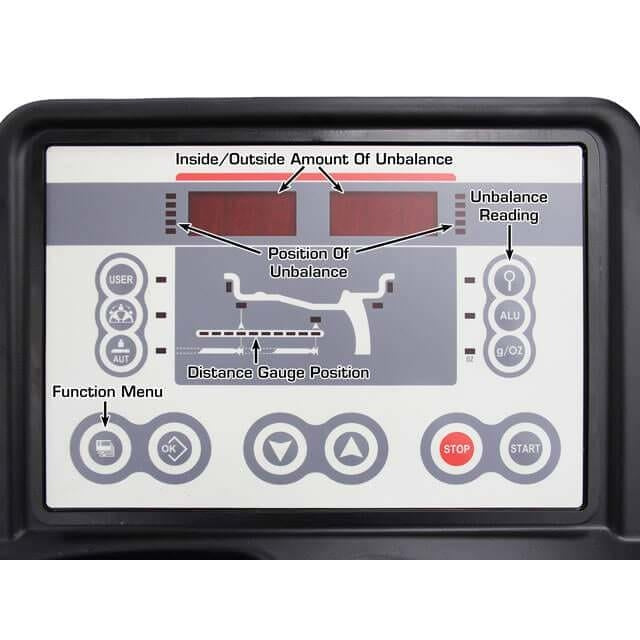

- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed

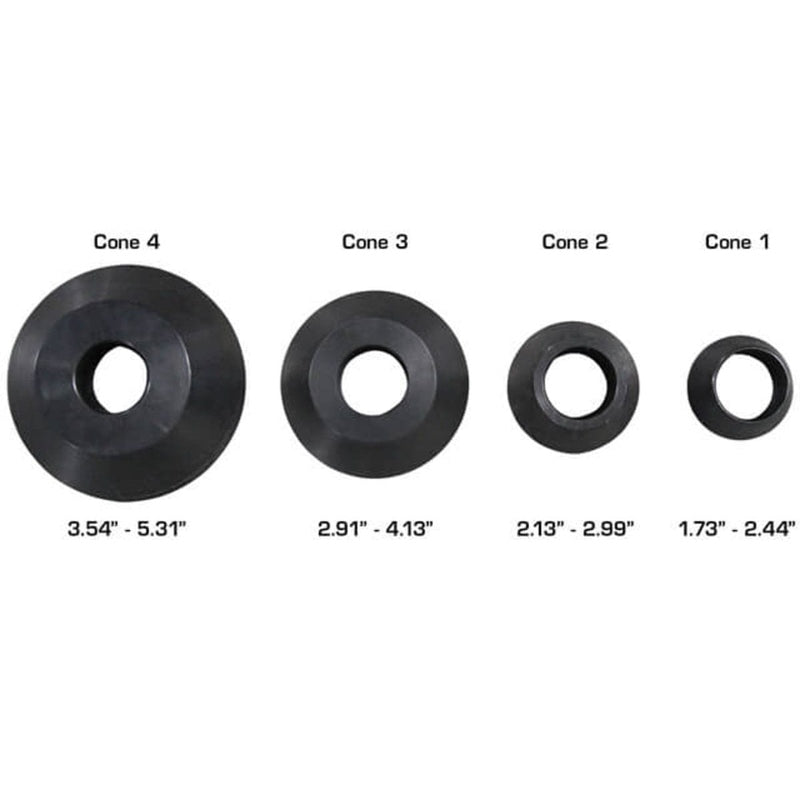

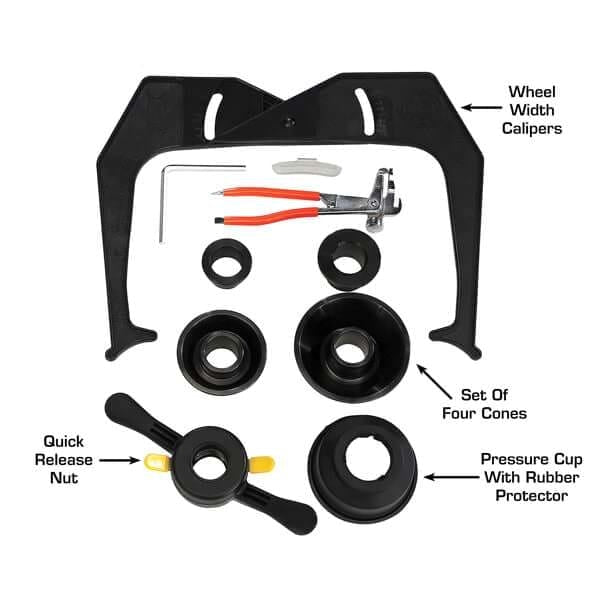

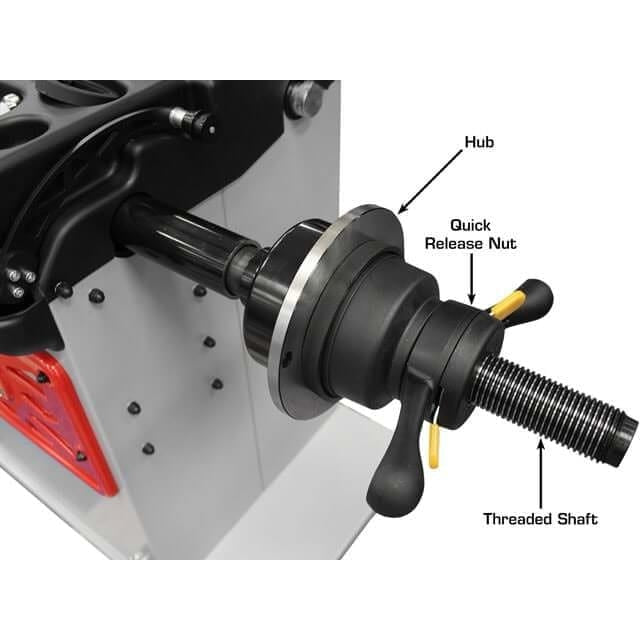

- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
Atlas® TC229 Specifications
| Rims | Steel, Aluminum, Alloy |

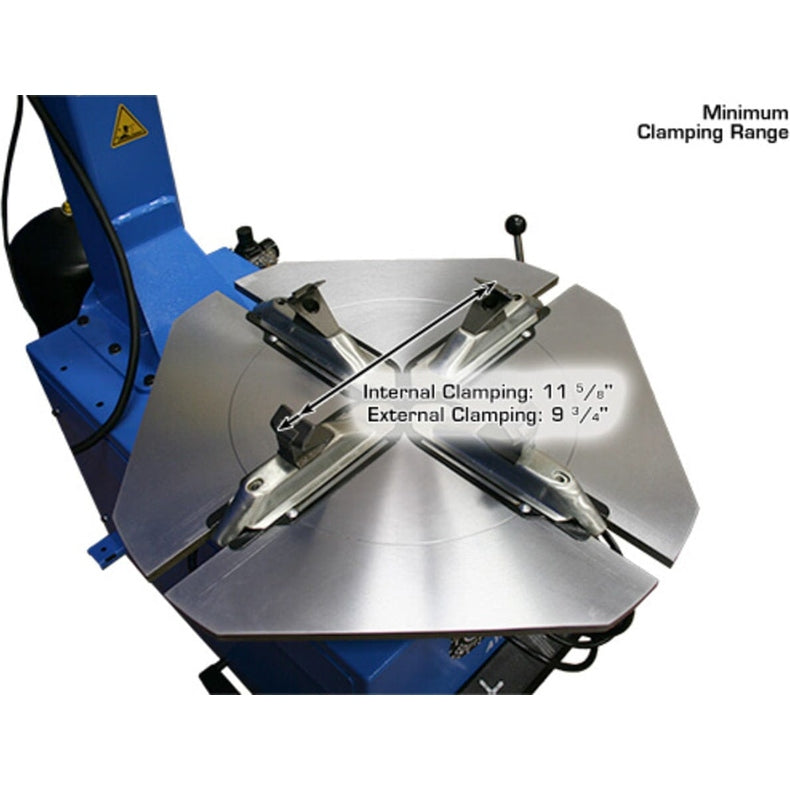

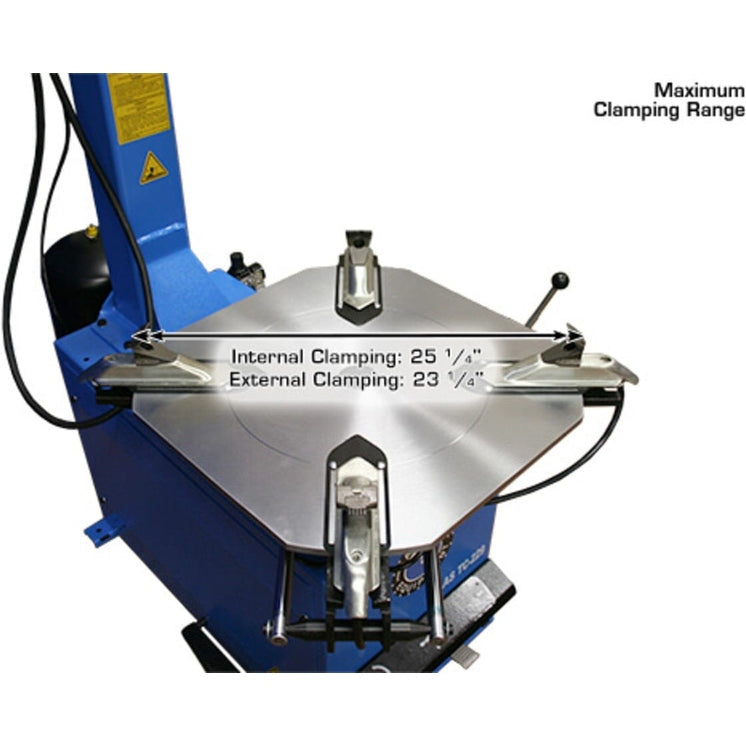

| External Locking Rim Dimension (3 Positions) |
1) 9 3/4" - 21 5/8" 2) 10 3/4" - 22 1/2" 3) 11 5/8" - 23 1/4" |
| Internal Locking Rim Dimension (3 Positions) |
1) 11 5/8" - 23 1/4" 2) 12 5/8" - 24 1/4" 3) 13 1/2" - 25 1/4" |
| Maximum Tire Diameter | 39" |
| Maximum Wheel Width (Bead Breaker) | 13" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110volt |

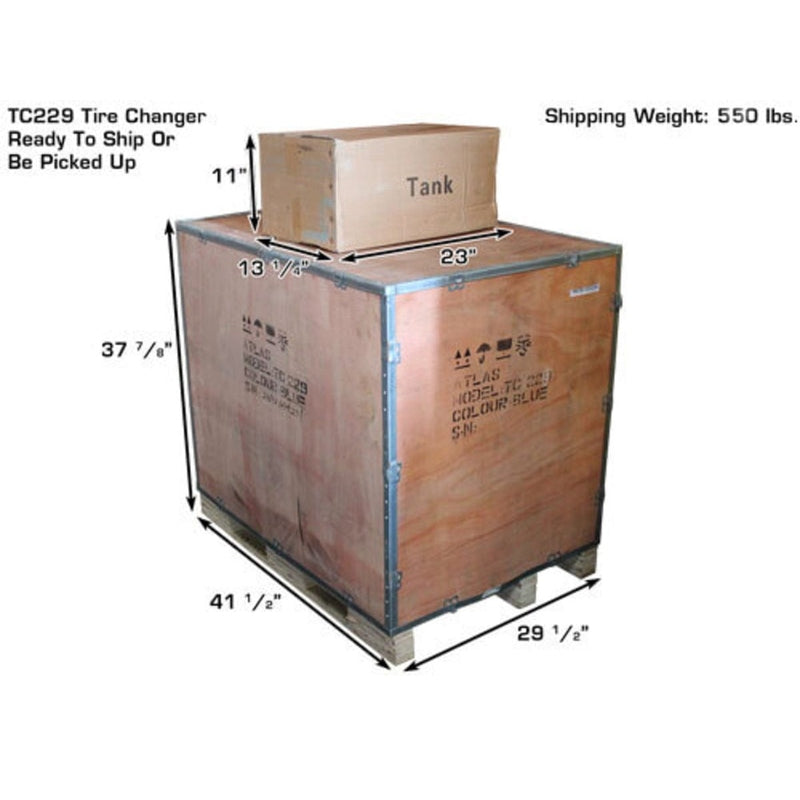

| Shipping Weight | 550 lbs. |
Atlas® Platinum PWB50 Specifications
| Max Tire Diameter | 43" |
| Rim Sizes (Cars And Light Trucks) | 10"-30" |
| Rim Width | 1 1/2"-20" |

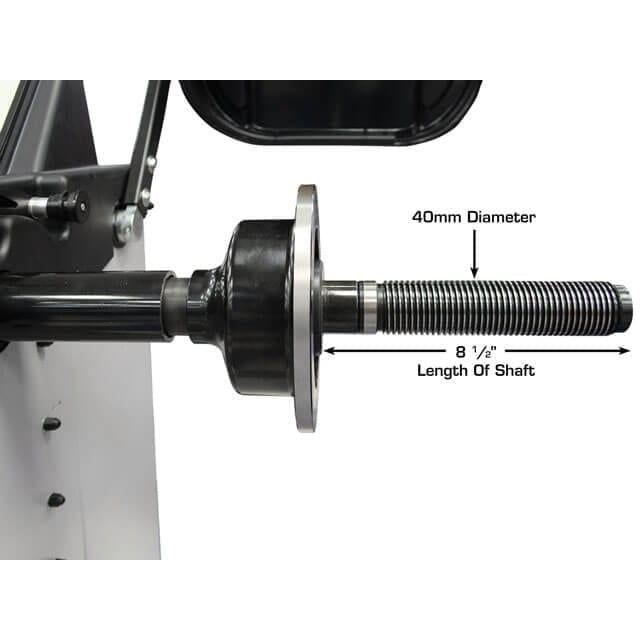

| Shaft Size | 40mm |
| Max. Wheel Weight | 165 lbs. |
| Balancing Speed | 130 rpm |
| Data Entry | Automatic 2D |
| Measurements | Standard Or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110volt |
| Shipping Weight | 230 lbs. |
