Atlas TC755EZ Tire Changer + WB49-2-PRO Wheel Balancer Combo Package
Description
Description
Description

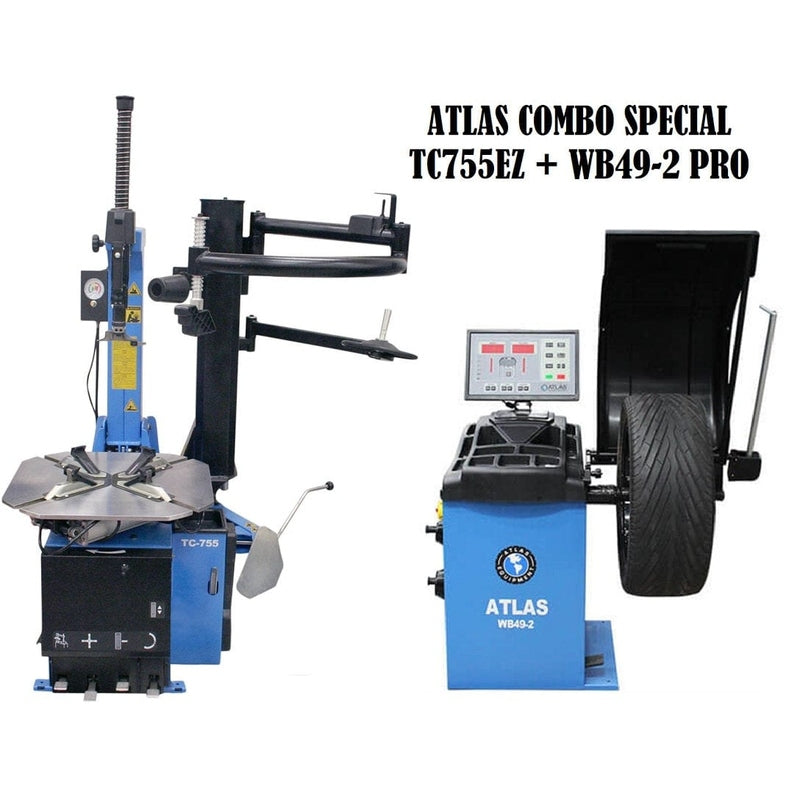

This combination package includes the Atlas® TC755 rim-clamp tilt-back column tire changer with the added EZ complete assist arm & the Atlas® WB49-2 premium computerized spin balancer with the width measuring gauge. This combination is perfect for commercial car repair shops and high volume tire shops. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Features

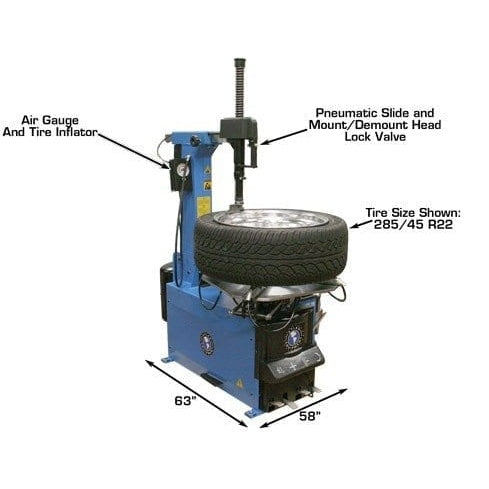

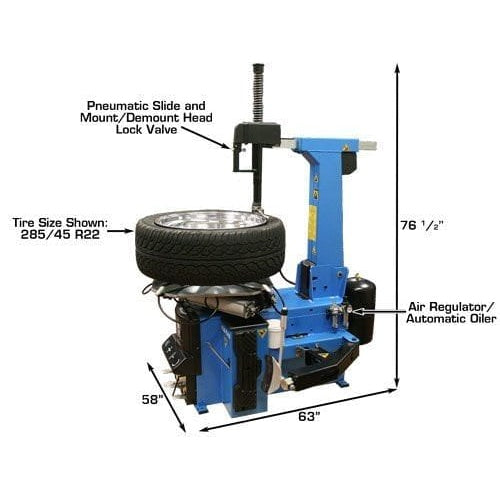

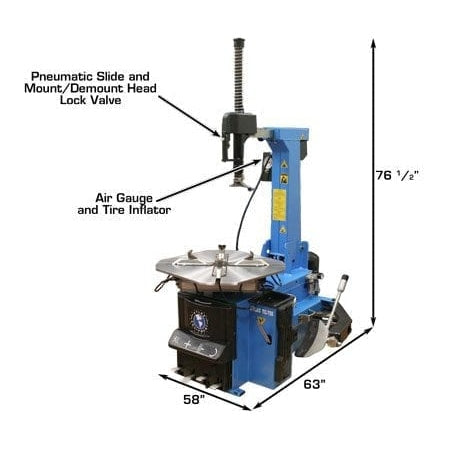

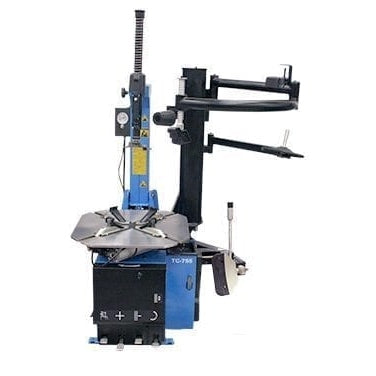

TC755 Tire Changer

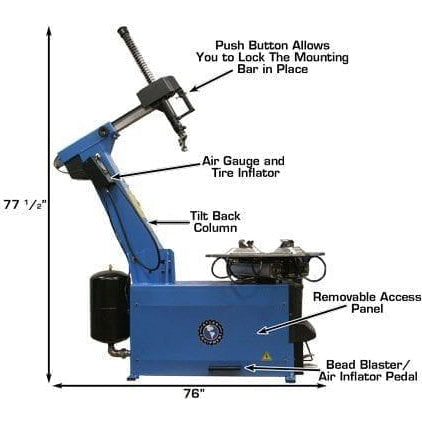

- Tilt-Back Column Tire Changer
- Rim-Clamp Style

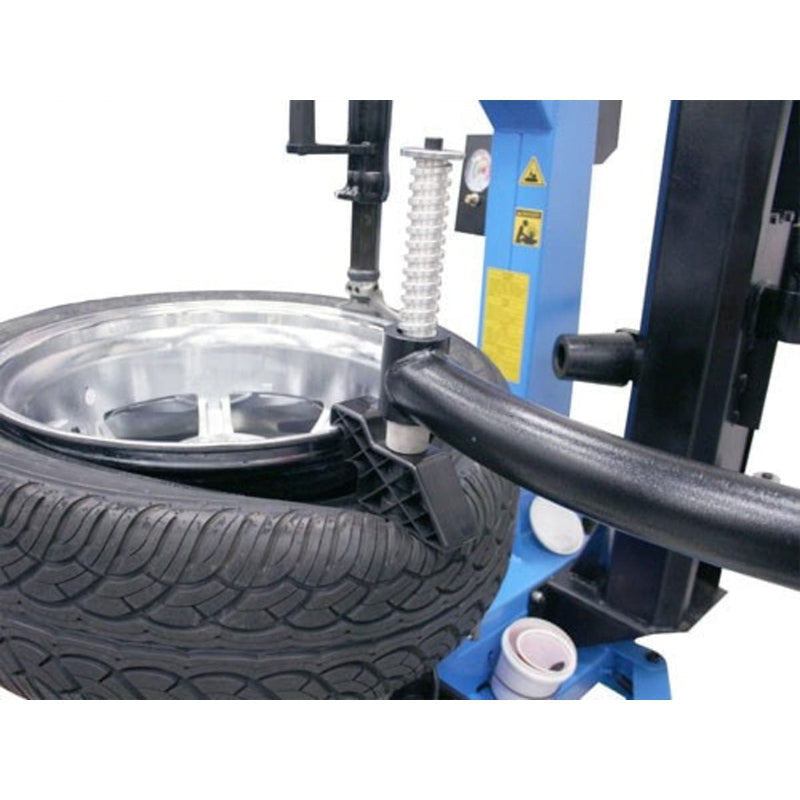

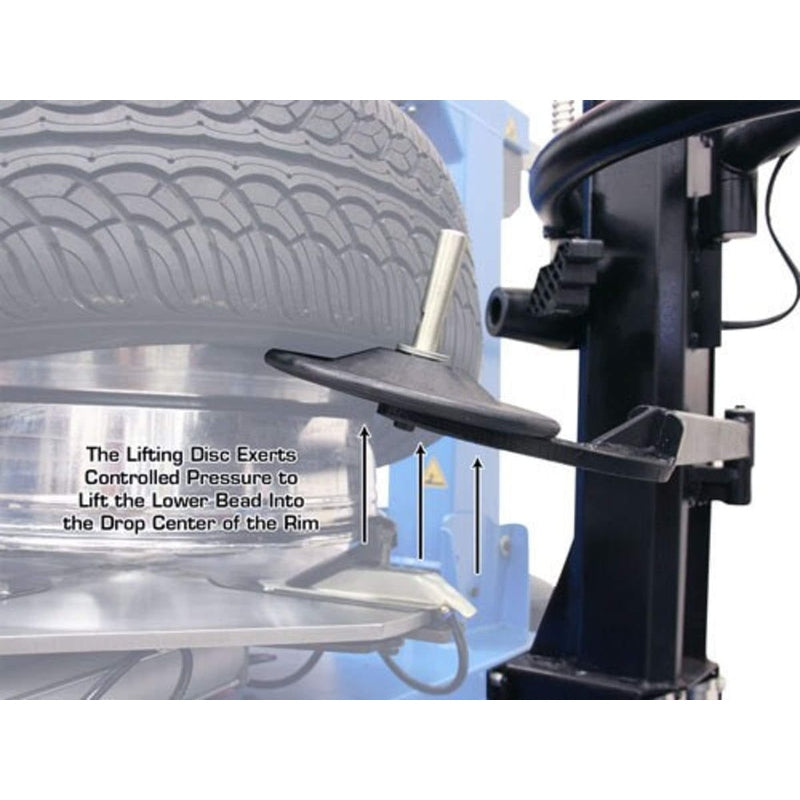

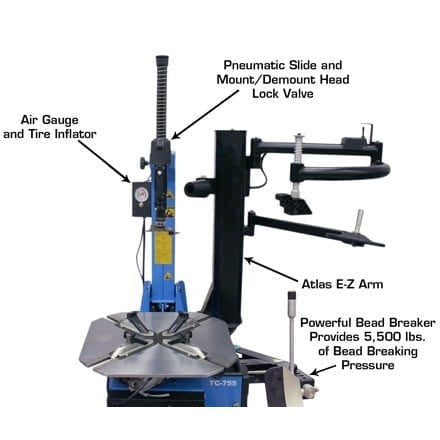

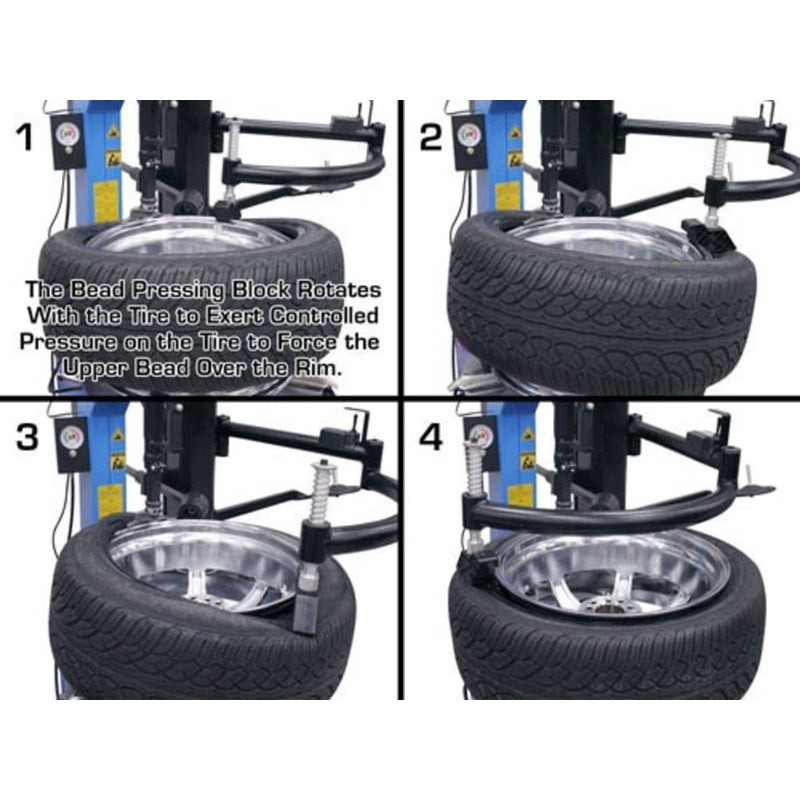

- EZ Assist Arm Included
- Extra-Large turntable, more clearance
- Air operated jaws & bead breaker (external air supply required)

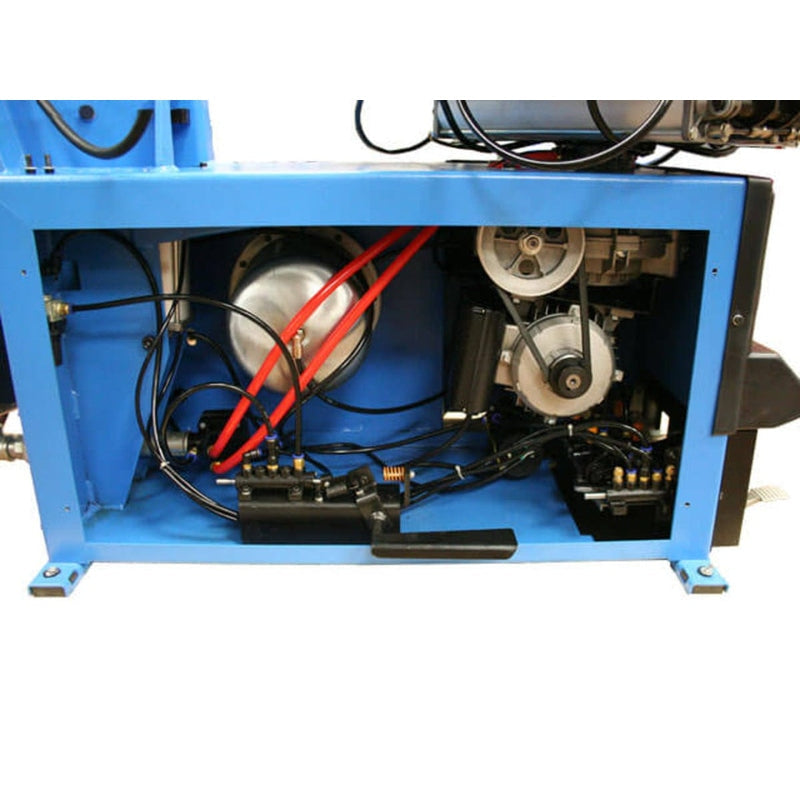

- Electric turntable

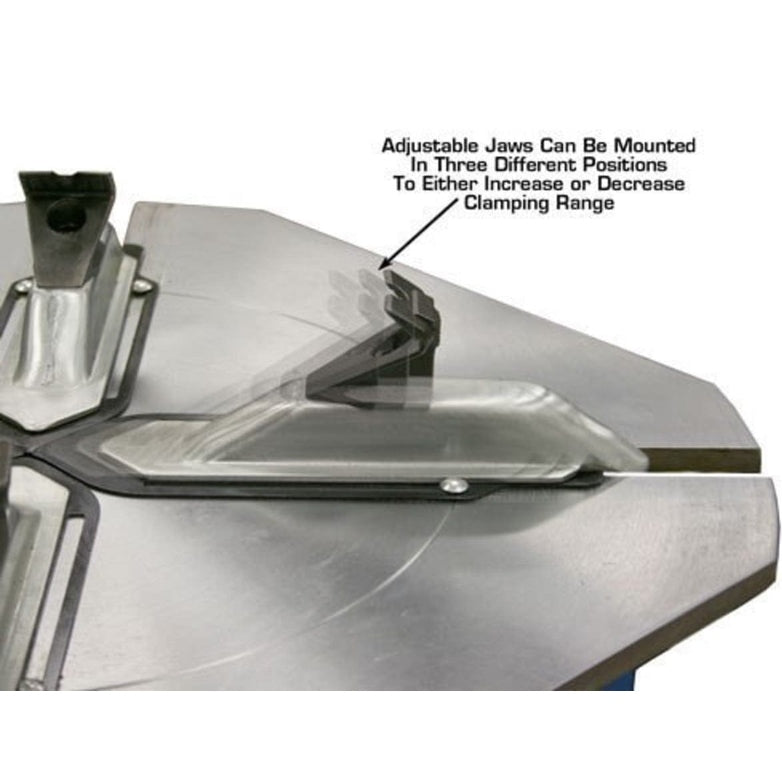

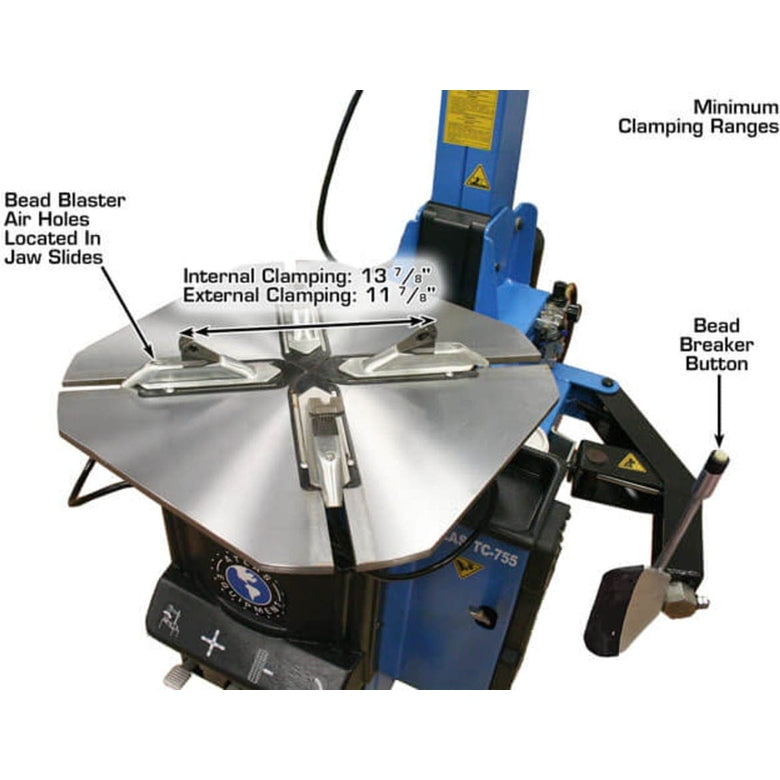

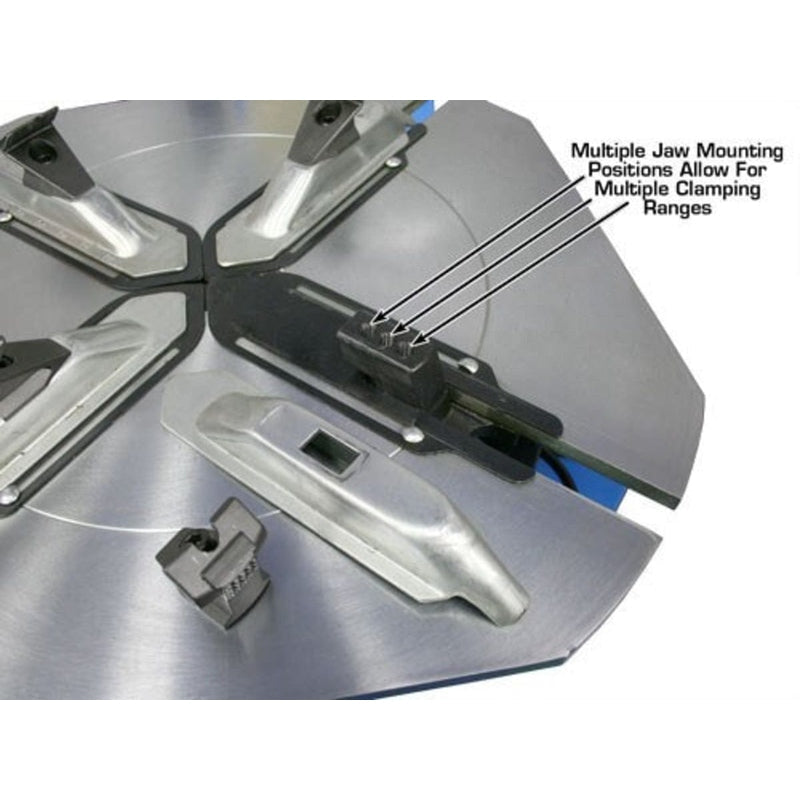

- Adjustable jaws, three mounting positions

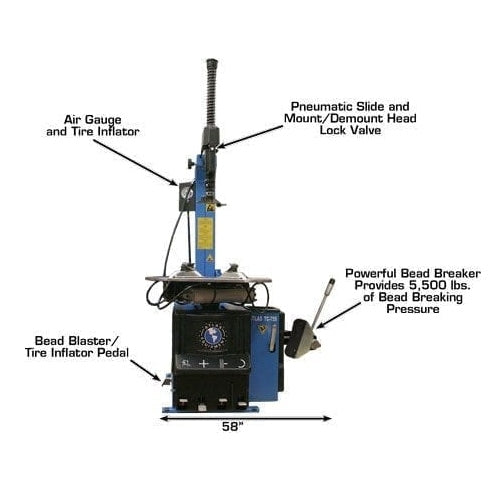

- Button-Controlled Bead Breaker (operated at blade)

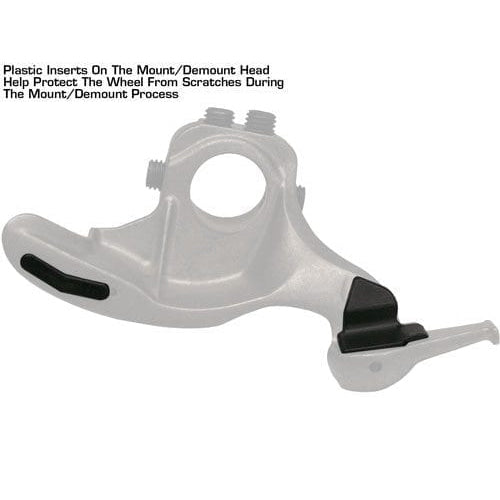

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

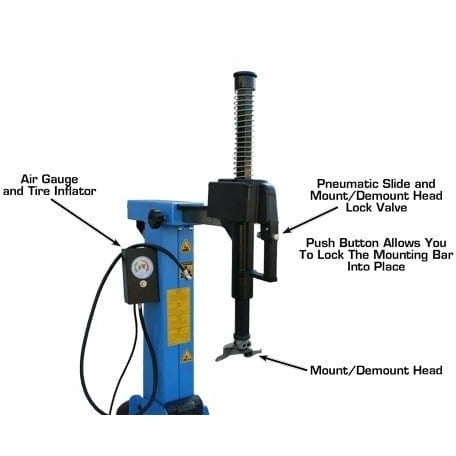

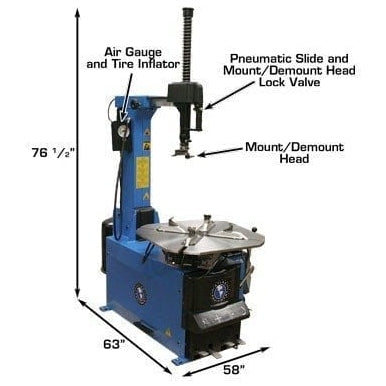

- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in “Beadblaster”

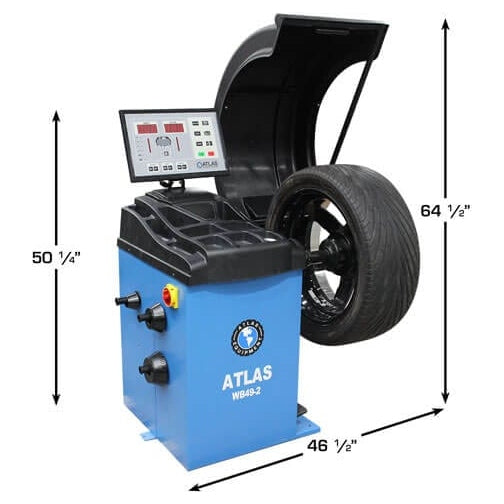

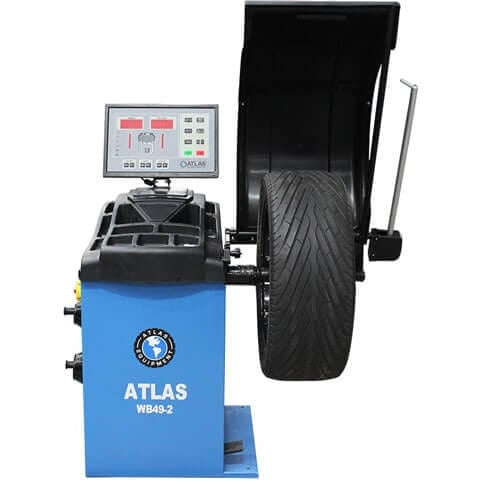

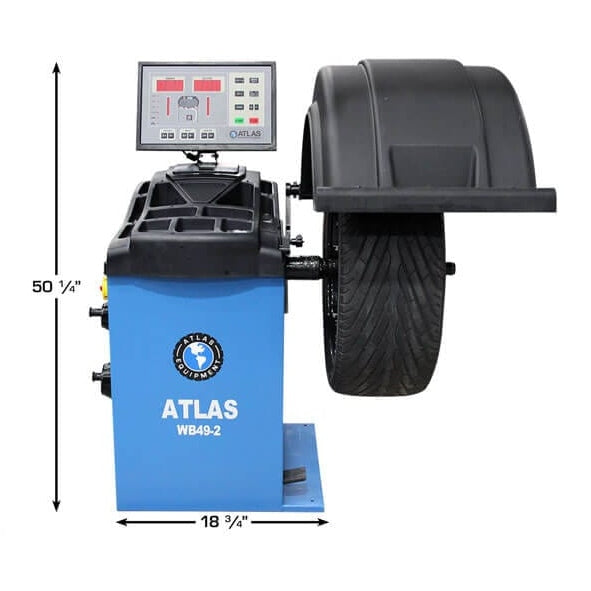

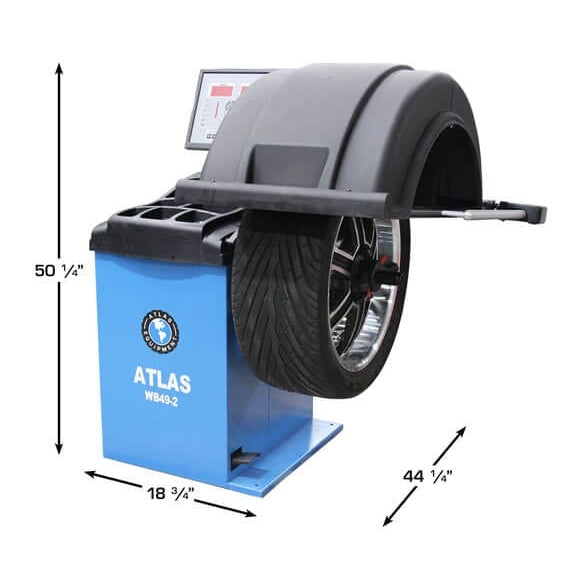

WB49-2 Wheel Balancer
- Computer Controlled Motorized Spin Balancer

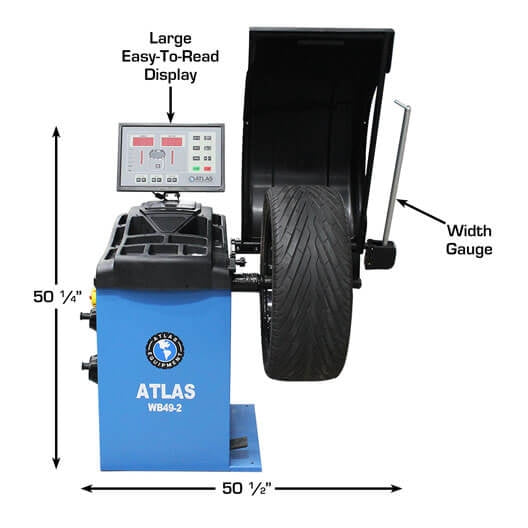

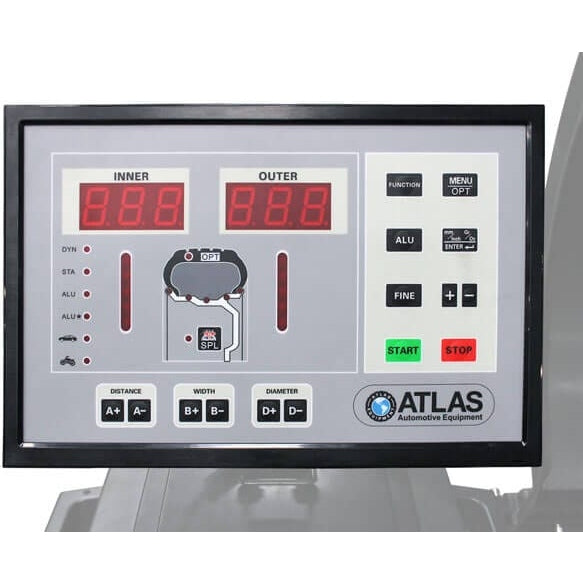

- Raised, Easy to Read Display
- Large Wheel Weight Tray

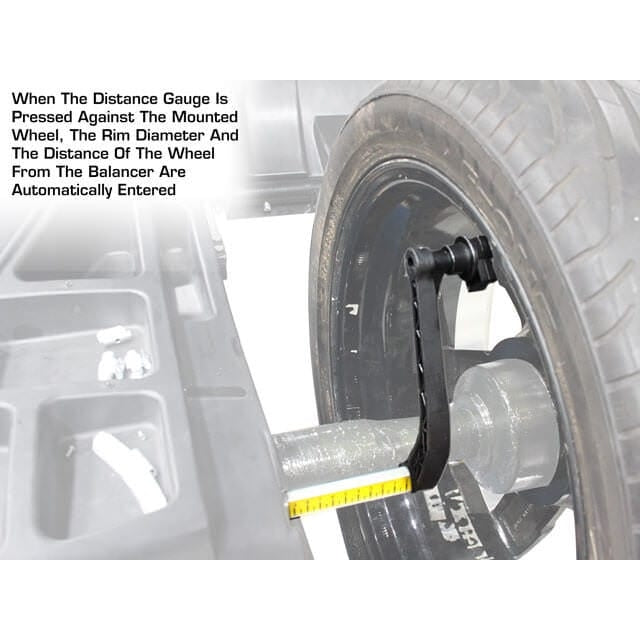

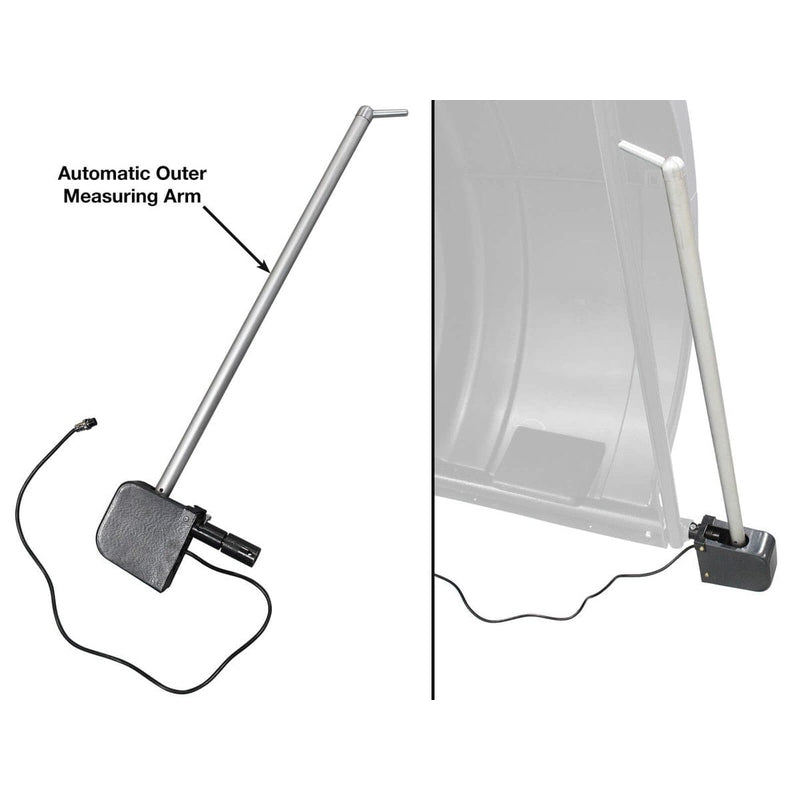

- Automatic 3D Data Entry
- Split-Weight Function for hiding weights behind spokes
- Automatic LED Light
- Auto-Positioning

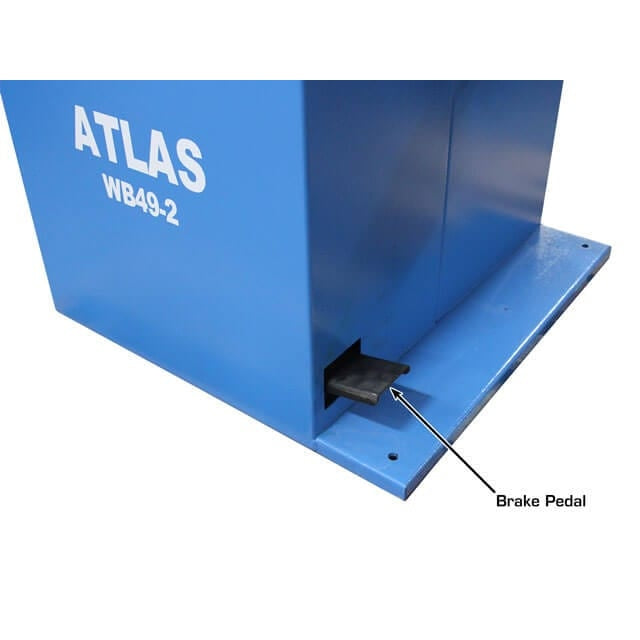

- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed

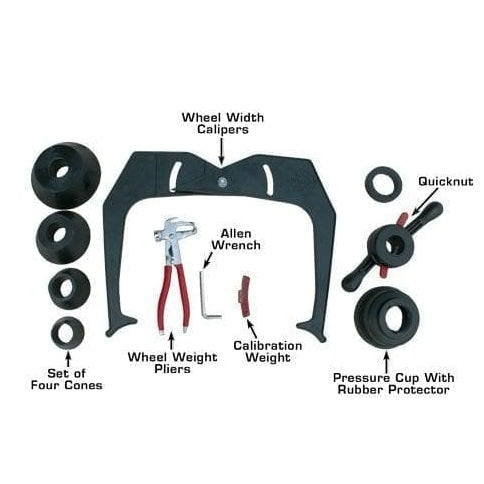

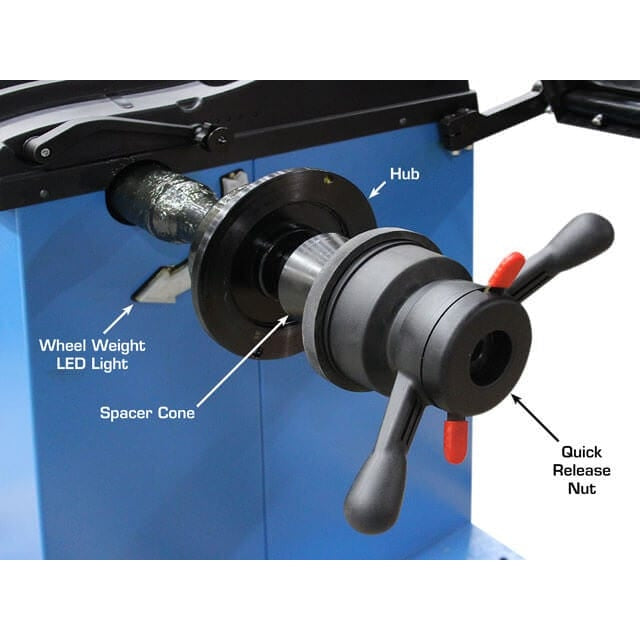

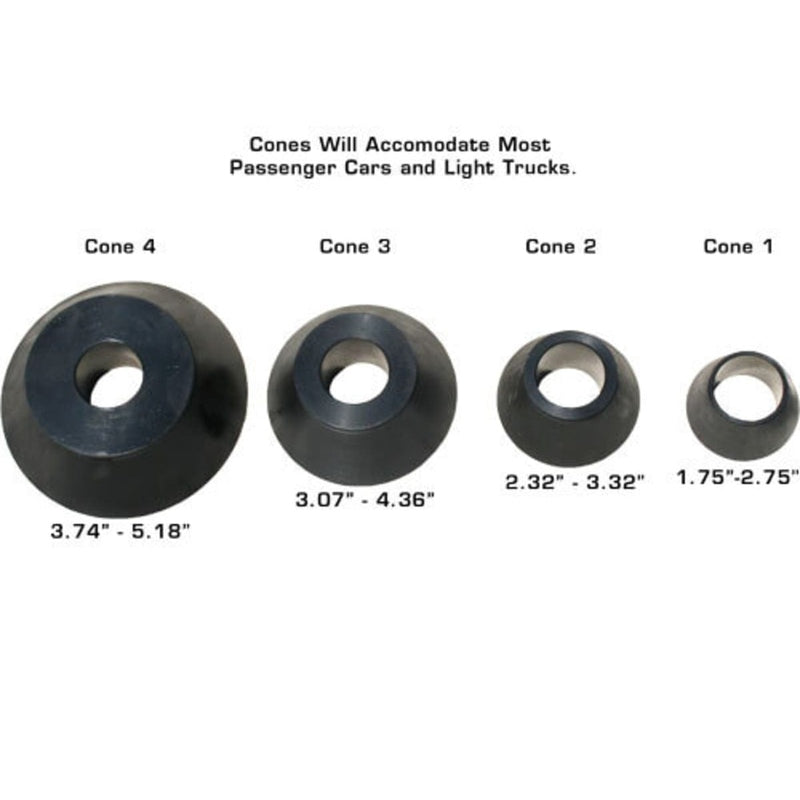

- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
Atlas® TC755 Specifications
| Rims | Steel, Aluminum, Alloy |

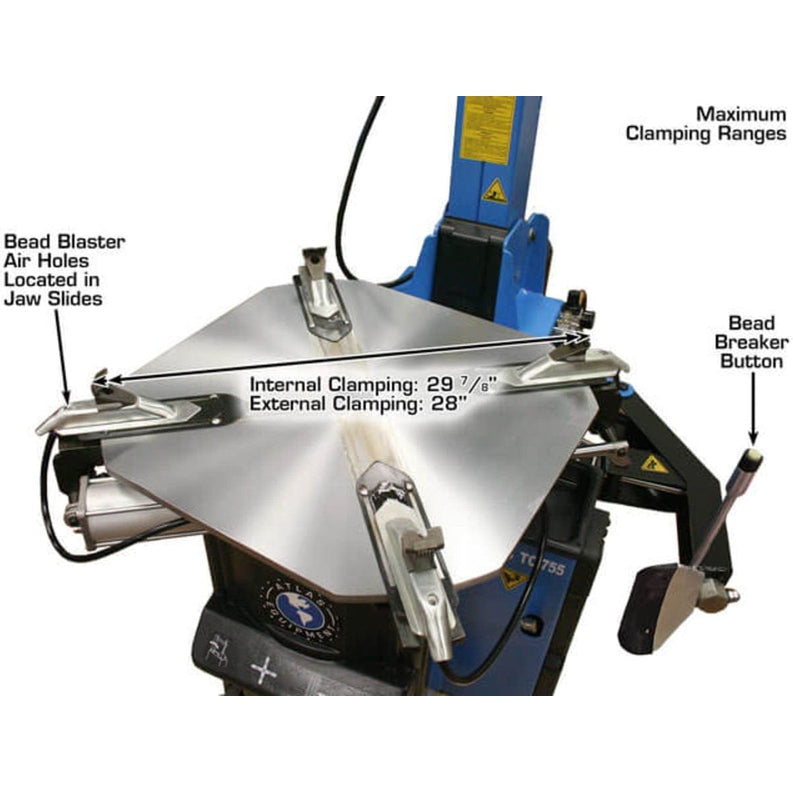

| External Locking Rim Dimension (3 Positions) |
1) 11 7/8" - 26" 2) 12 7/8" - 27" 3) 13 3/4" - 28" |
| Internal Locking Rim Dimension (3 Positions) |
1) 13 7/8" - 27 7/8" 2) 14 5/8" - 28 7/8" 3) 15 5/8" - 29 7/8" |
| Maximum Tire Diameter | 47" |

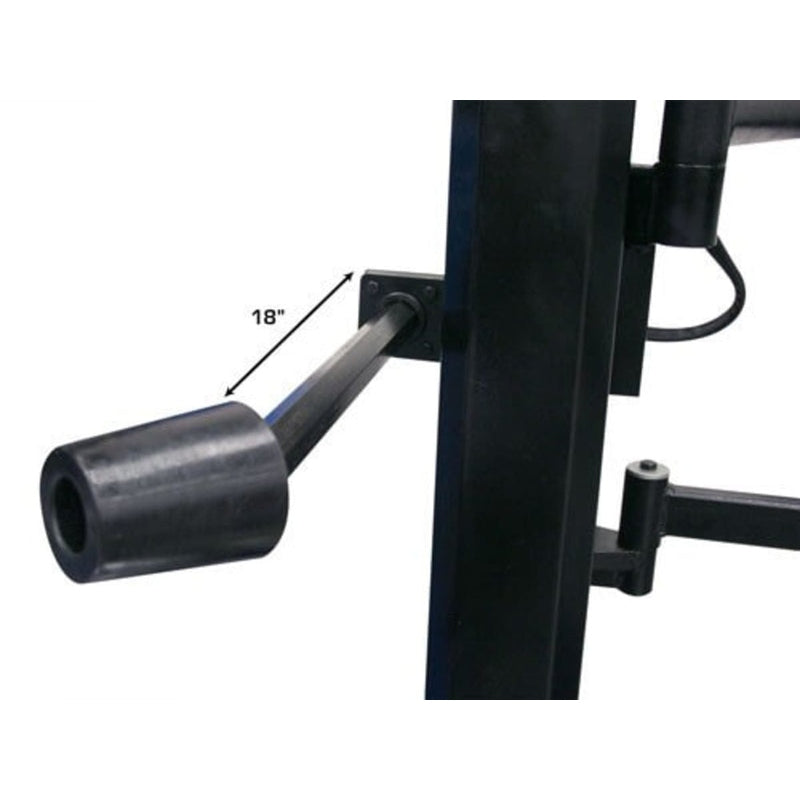

| Maximum Wheel Width (Bead Breaker) | 18" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |

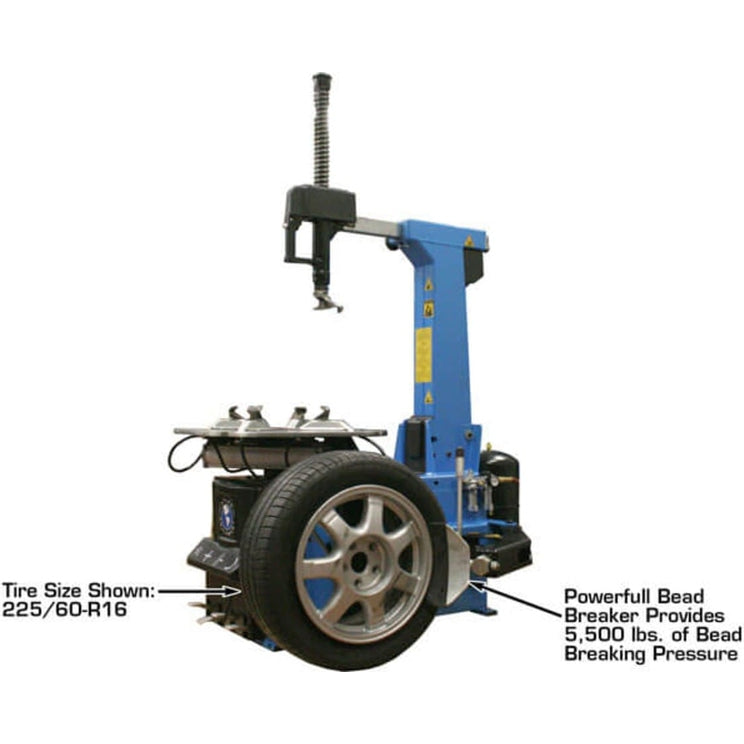

| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110volt |

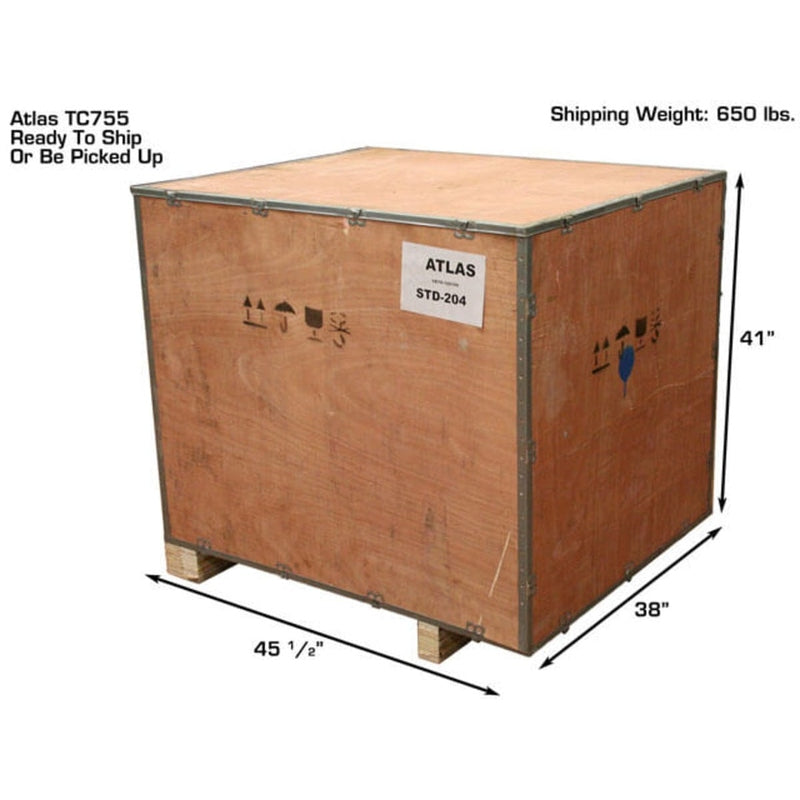

| Shipping Weight | 650 lbs. |
Atlas® WB49-2 Specifications
| Max Tire Diameter | 39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) | 10"-32" |
| Rim Width | 1 1/2"-20" |

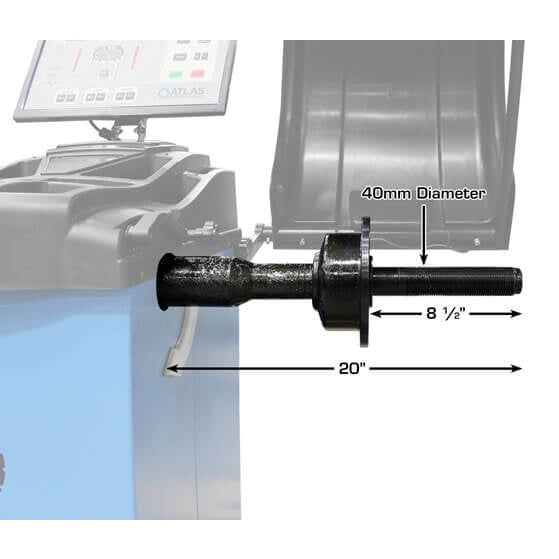

| Shaft Size | 40mm |
| Max. Wheel Weight | 150 lbs. |
| Balancing Speed | 150 rpm |
| Data Entry | Automatic 3D |
| Measurements | Standard Or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110volt |
| Shipping Weight | 400 lbs. |
