Atlas TD6000CNA Ravaglioli Spirit Heavy-Duty Truck Wheel Alignment System
Atlas TD6000CNA Ravaglioli Spirit Heavy-Duty Truck Wheel Alignment System is backordered and will ship as soon as it is back in stock.
Product Features
- 8-CCD Wireless Heads
- No-Roll-Back
- Turntables + Clamps Incl.
- Two-Head Steer Mode
- Teq-Link Reporting
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Atlas TD6000CNA Ravaglioli Spirit Heavy-Duty Truck Wheel Alignment ...
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

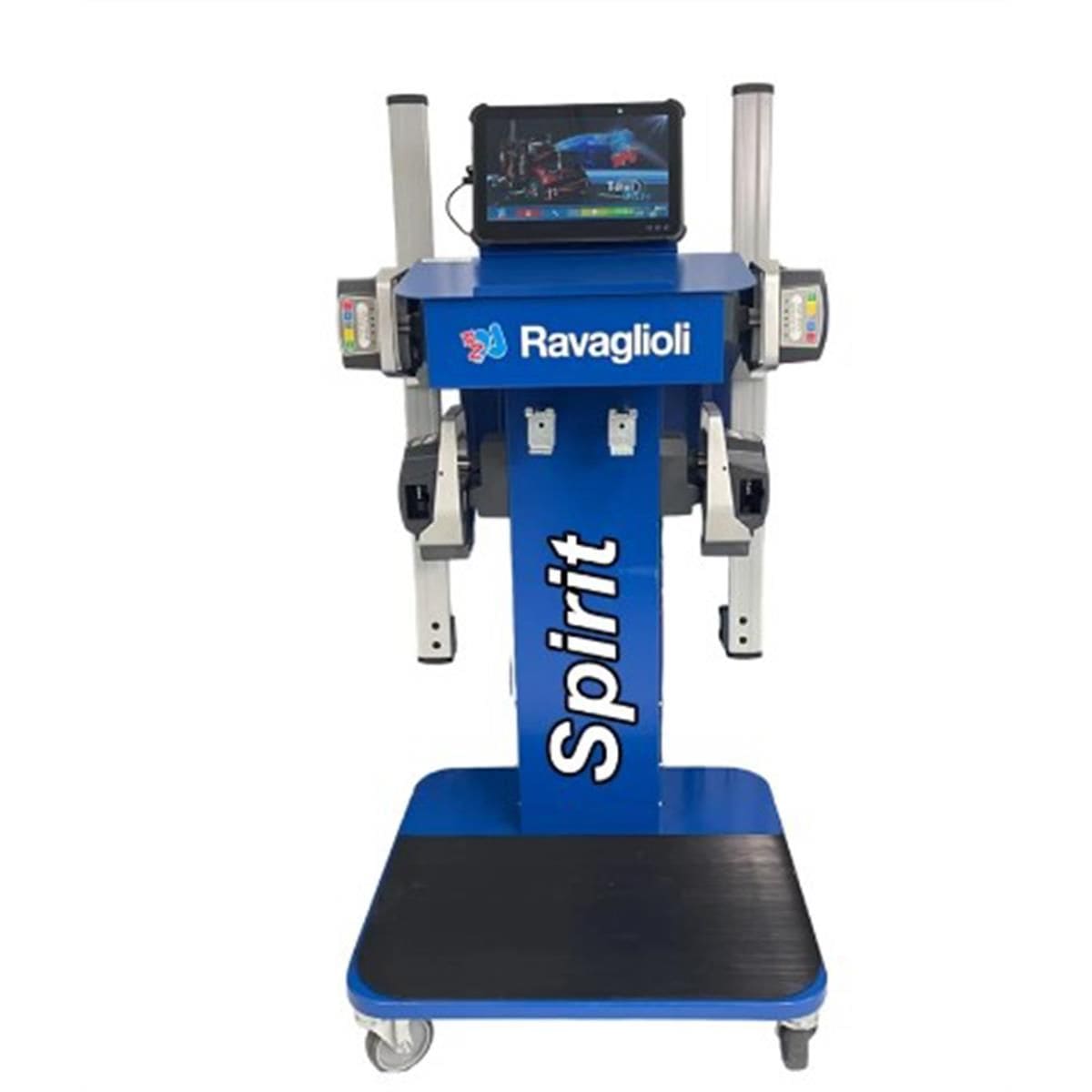

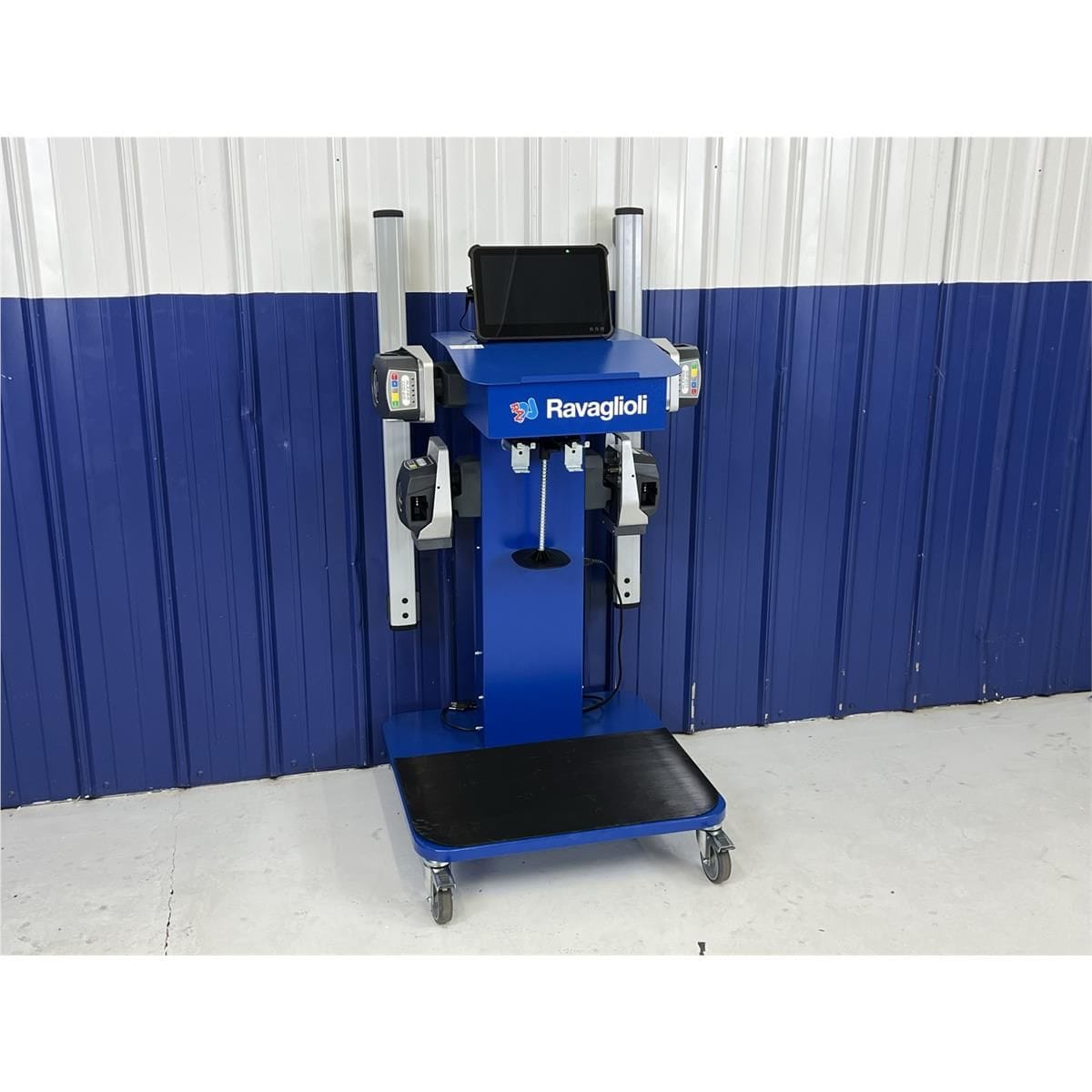

The Atlas TD6000CNA is the Ravaglioli “Spirit” heavy-duty truck wheel alignment system, a portable, no-roll-back aligner built for trucks, trailers, coaches, buses, and multi-axle vehicles. Manufactured by Ravaglioli, one of Europe’s longest-established alignment manufacturers, and supported in the United States by Atlas Automotive Equipment, it is sold as a complete kit: trolley cart, four 8-CCD Bluetooth wireless sensor heads, magnetically backed Windows 10 tablet, calibration package, trailer alignment package, and a full set of clamps and turntables.
Each of the four sensor heads operates as a fully functional remote control, and together they establish a measuring path on all four sides of the vehicle. That four-sided geometry is what enables collision measurements and calibration tracking in addition to standard alignment work. Wireless data transmission and the magnetically docked tablet keep the technician at the wheel rather than walking back to a console between adjustments.
Heavy-duty truck alignments traditionally require pulling the vehicle forward and back to compensate sensor positions. The “Spirit” system is no-roll-back, the vehicle stays in place through the entire procedure. Combined with the Two Head Steer Axle Mode, that shaves significant time per alignment in a busy commercial bay.
The Teq-Link app exports printouts and receives workflow reports, so shop owners can hand finished alignment records to fleet customers without rerunning paperwork.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53’ truck.
Features
- Heavy-duty truck, trailer, coach, bus, and multi-axle wheel alignment
- No-roll-back design, vehicle remains stationary throughout the alignment
- Portable trolley cart for movement between bays and alignment locations
- Four 8-CCD Bluetooth wireless sensor heads, each functioning as a remote control
- Magnetically backed PC tablet running Windows 10
- Teq-Link app for printout export and workflow report transfer
- Two Head Steer Axle Mode for faster steer-axle alignments
- Wi-Fi operation with Bluetooth data transmission
- Vast vehicle database with free software updates (vehicle specification updates sold separately)
- U.S.-based service team with remote technical support

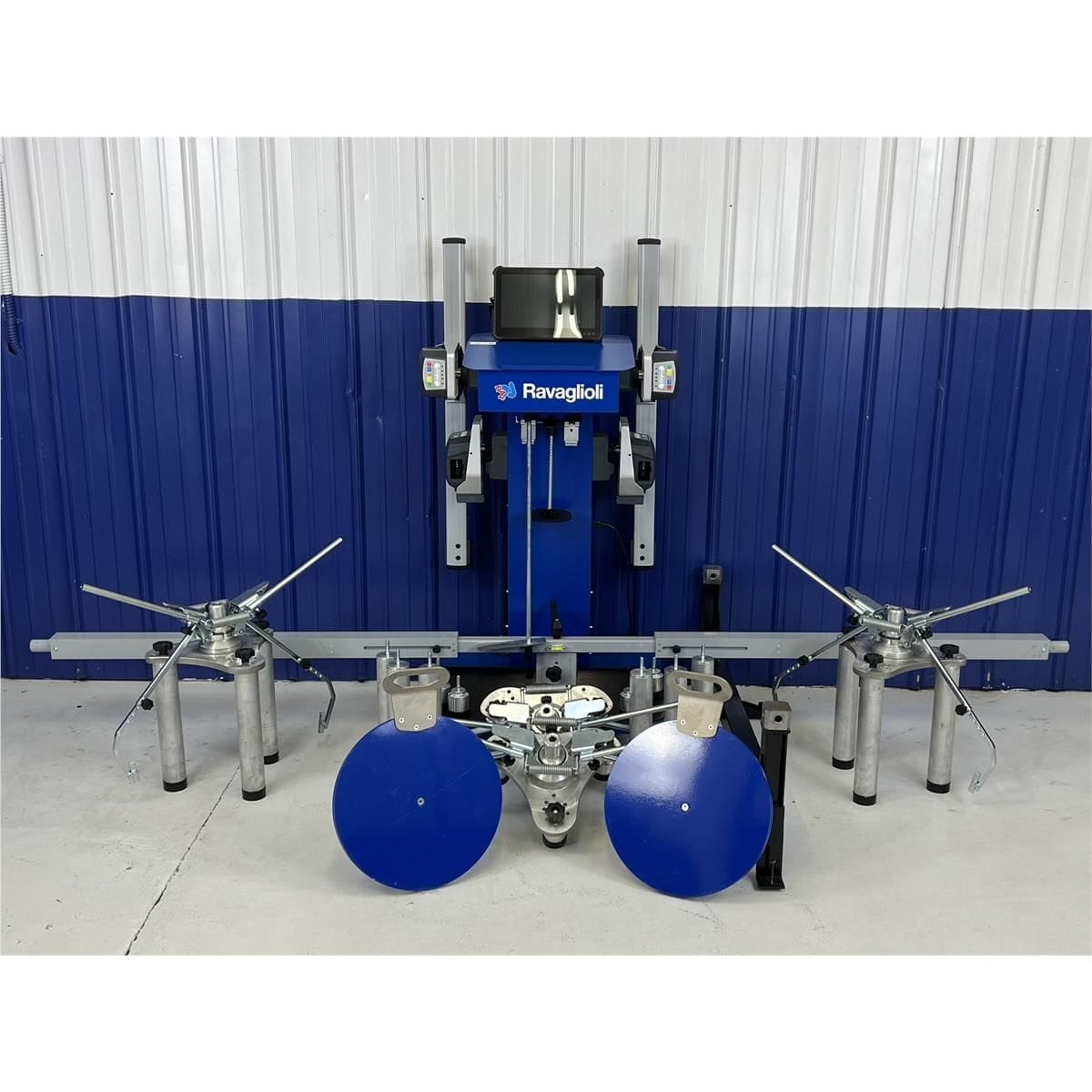

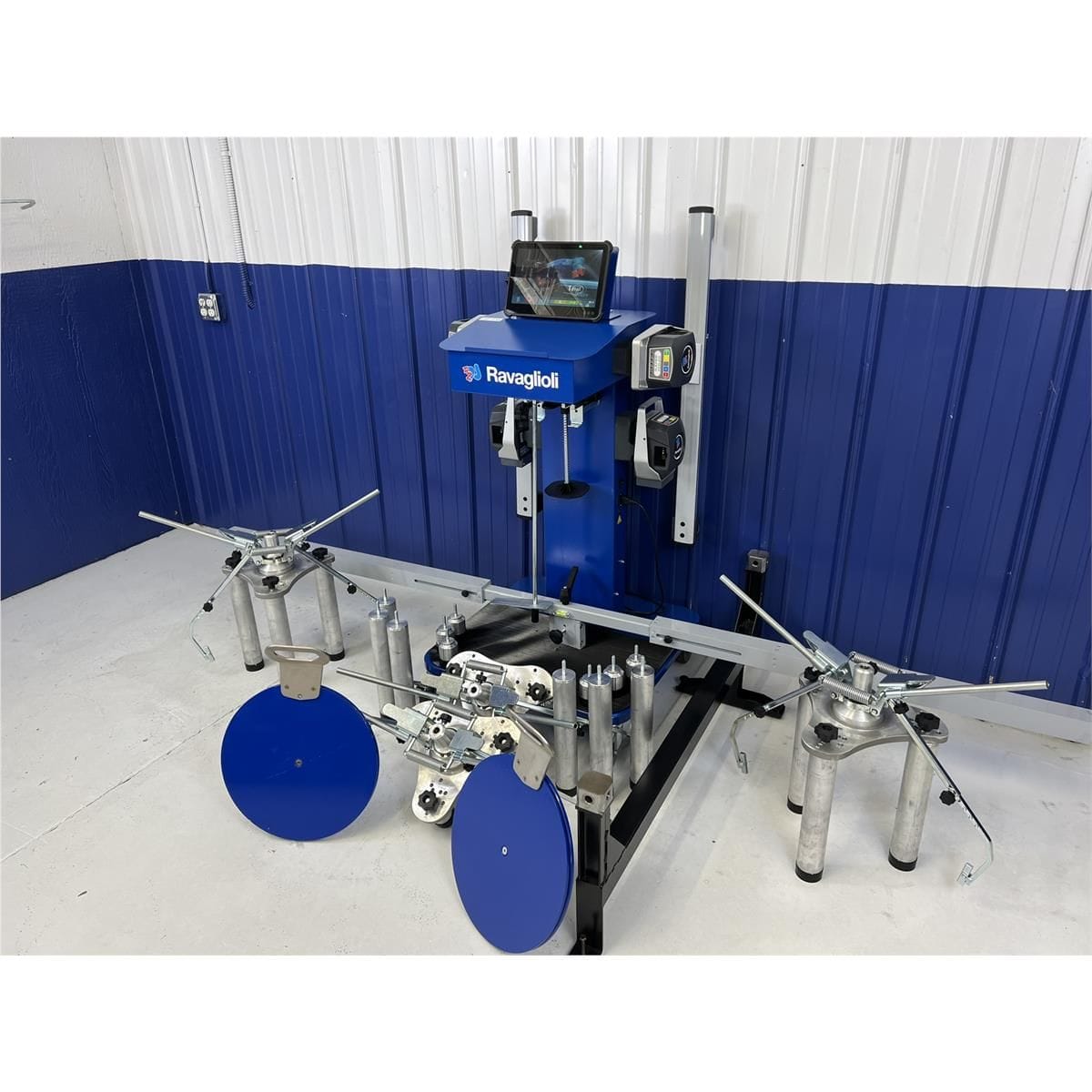

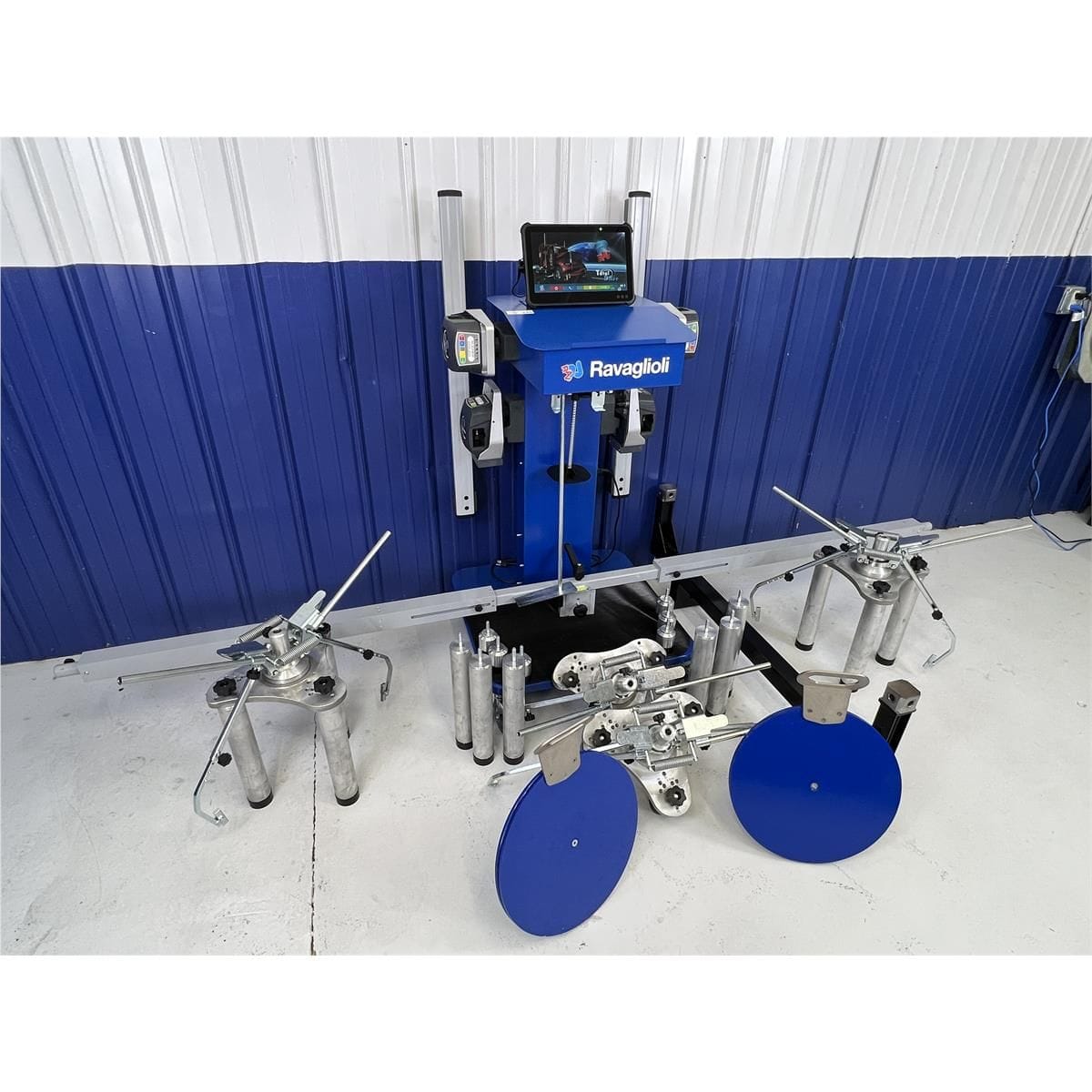

What’s Included
- Ravaglioli “Spirit” heavy-duty truck alignment cart with magnetically backed Windows 10 PC tablet
- Four 8-CCD Bluetooth wireless sensor heads
- Four wheel clamps (touchless or fast-clamp)
- Pair of superlight alloy turntables
- Calibration package
- Trailer alignment package
- One brake pedal depressor
- One steering wheel lock
- Extra set of six long and six short adapters
Specifications
| Atlas TD6000CNA Specifications | |
|---|---|
| Manufacturer | Ravaglioli (sold and supported by Atlas Automotive Equipment) |
| Model | TD6000CNA “Spirit” |
| Vehicle types | Trucks, trailers, coaches, buses, multi-axle |
| Sensor heads | 4 heads, 8 CCDs total, Bluetooth wireless |
| Operating system | Windows 10 (PC tablet) |
| Tablet mounting | Magnetic backing |
| Connectivity | Wi-Fi operation, Bluetooth data transmission |
| Steering modes | Two Head Steer Axle Mode |
| Mobility | Portable trolley cart |
| Weight | 400 lbs |
| Free software updates included; vehicle specification database updates sold separately. | |
Warranty & Support
The TD6000CNA carries a 2-year limited parts warranty. The warranty does not cover damage from abuse or neglect, wear items, consumables, or onsite service visits. Remote technical support is provided by the U.S.-based Atlas service team. Free software updates are included for the life of the system; vehicle specification database updates are sold separately.
Documents
Manuals and technical documents are available on request, contact support@projectfoundry.co or call 331-272-5655.
