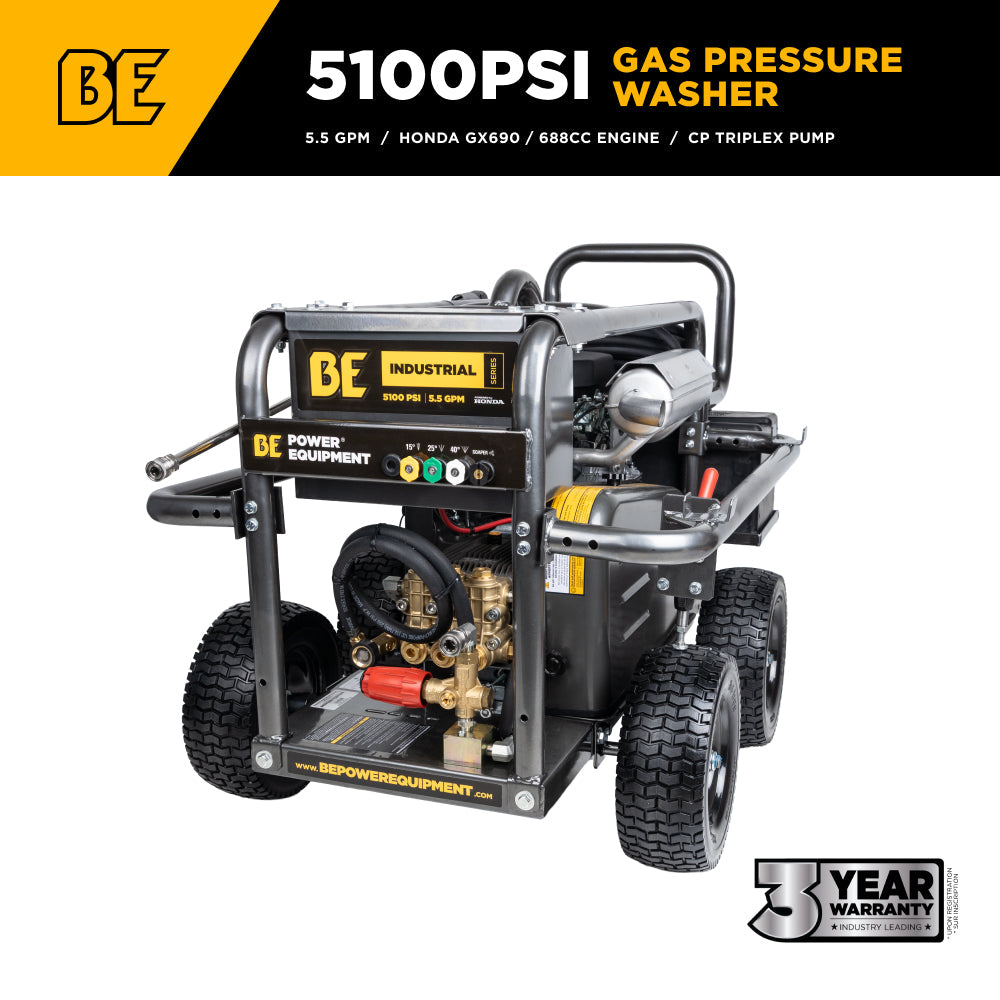

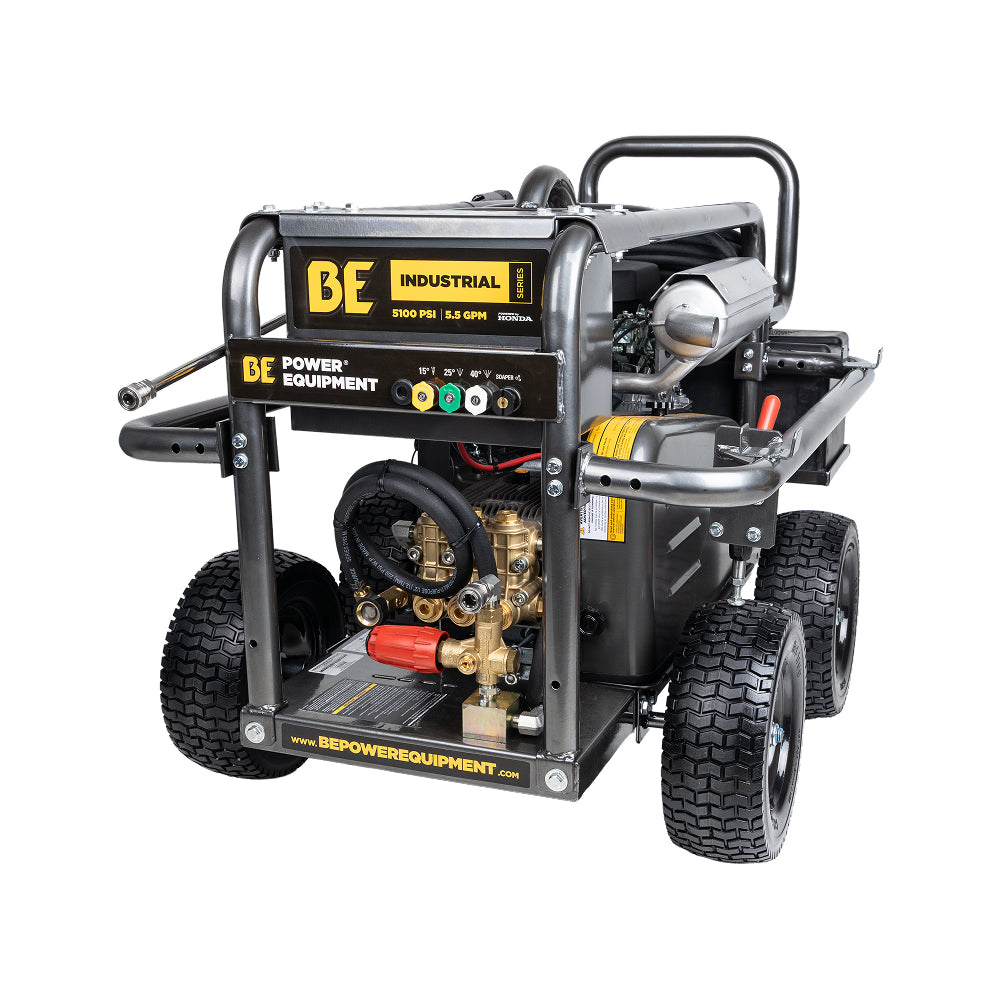

5,100 PSI 5.5 GPM Cold Water Gas Pressure Washer with Honda GX690 Electric Start Engine and CP Belt Drive Triplex Pump on Roll Cage Frame - B5024HEBAS

5,100 PSI 5.5 GPM Cold Water Gas Pressure Washer with Honda GX690 Electric Start Engine and CP Belt Drive Triplex Pump on Roll Cage Frame

The BE Power Equipment B5024HEBAS is an industrial-grade cold water gas pressure washer delivering 5,100 PSI at 5.5 GPM, built for the most demanding commercial and industrial cleaning applications where extreme pressure, durability, and long-run reliability are non-negotiable. Powered by a Honda GX690 688cc V-twin electric start engine and paired with an industrial-grade CP CTB3S P11 class belt-driven triplex pump running at 1,450 RPM, the B5024HEBAS is engineered for continuous heavy-duty operation.

Built on the 204 4-Wheel Roll Cage Contractor Frame, this unit features a powder-coated steel roll cage designed to protect critical components on rough job sites, a built-in lift point for safe loading and positioning, and an anti-roll brake to keep the 406 lb unit securely in place during operation. The electric start system is powered by an included 55AH AGM deep cycle battery — purpose-sized for reliable, repeated industrial use. The 22.7 L / 6 GAL fuel tank supports extended all-day operation without refueling.

Whether you're cleaning industrial equipment, heavy machinery, concrete surfaces, or preparing sites for coating or repair, the B5024HEBAS delivers consistent, industrial-grade performance day after day.

Built for Serious Commercial and Industrial Cleaning

The B5024HEBAS is designed to handle the most demanding cleaning applications without compromise. Built for commercial and industrial environments, it is ideal for:

• Industrial facility and plant maintenance
• Heavy equipment and machinery cleaning
• Concrete, asphalt, and hard surface preparation
• Construction and jobsite cleanup
• Fleet, transport, and agricultural equipment washing

With 5,100 PSI and 5.5 GPM, this pressure washer excels at removing stubborn dirt, grease, oil residue, and buildup from hard surfaces where maximum cleaning force is required.

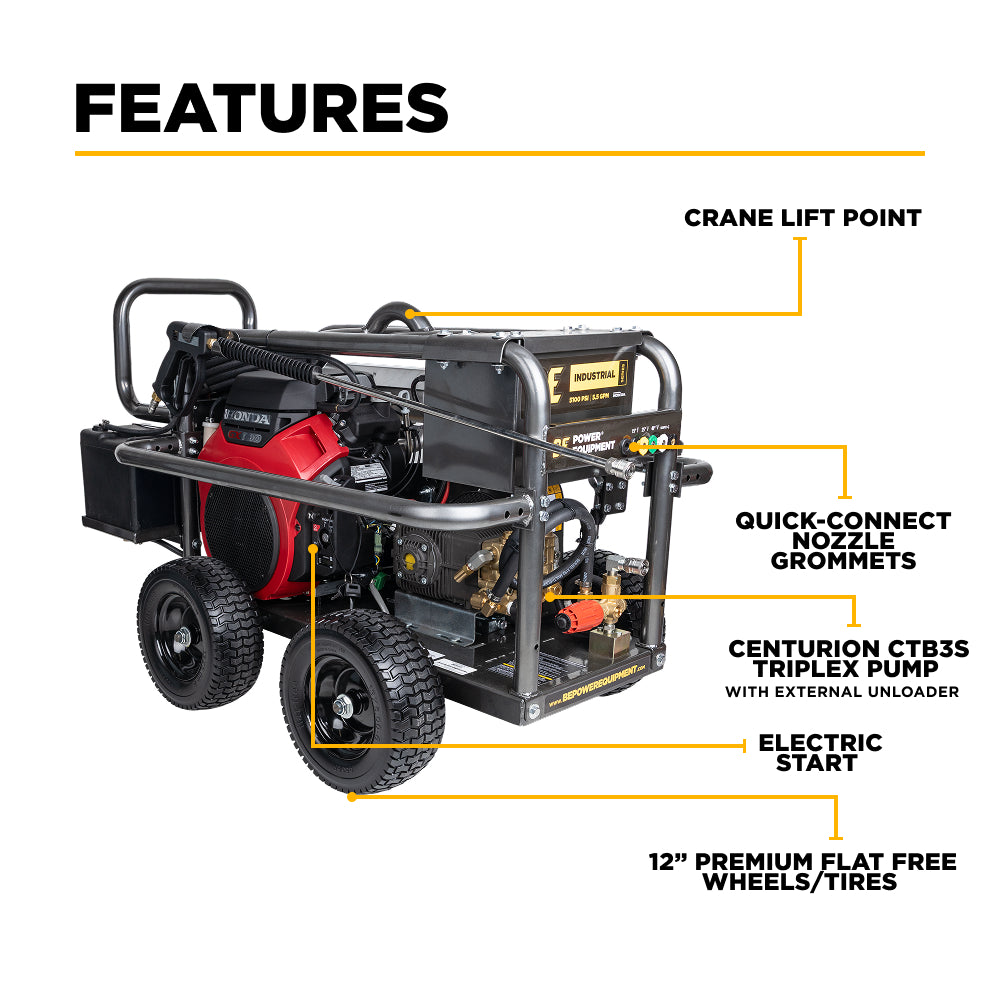

Features

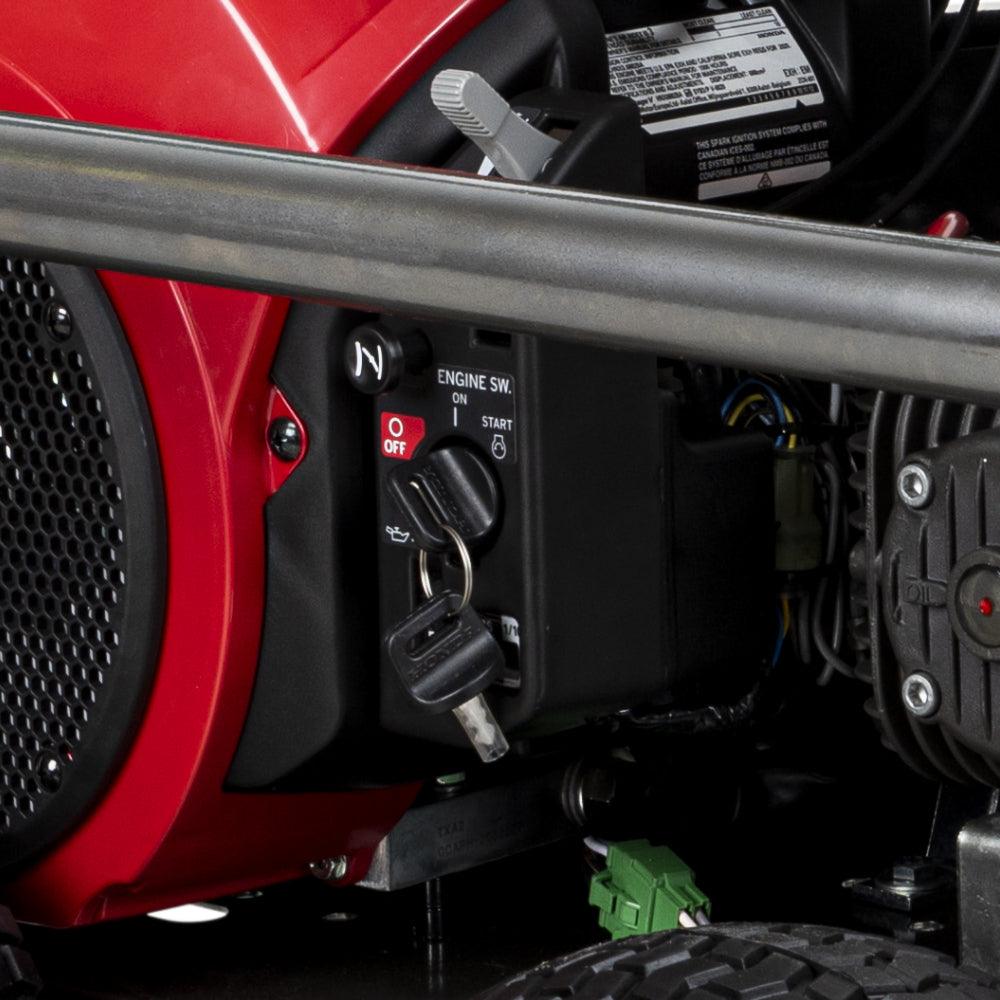

Honda GX690 V-Twin Electric Start Engine

At the core of the B5024HEBAS is the Honda GX690 688cc V-twin electric start engine, a commercial-grade engine known for exceptional power, durability, and long service life. The high-torque V-twin configuration delivers the sustained output required to drive a P11 class belt-driven pump through extended all-day operation. Key engine features include:

• Electric start powered by an included 55AH AGM deep cycle battery
• High-torque V-twin OHV design for sustained heavy-duty output
• Automatic low-oil shutdown to protect the engine
• Fuel-efficient design for continuous commercial use
• 22.7 L / 6 GAL fuel tank for all-day operation without refueling

The Honda GX690 engine is covered under Honda's separate engine warranty program.

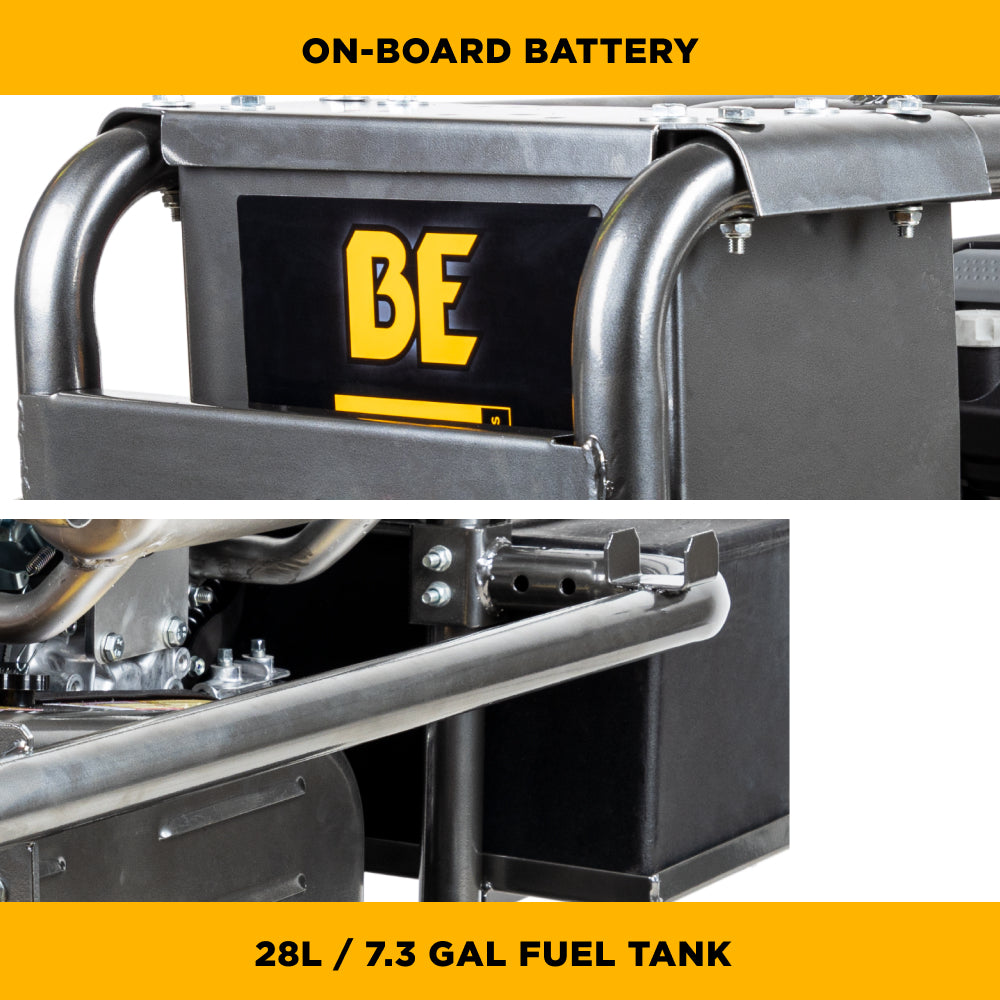

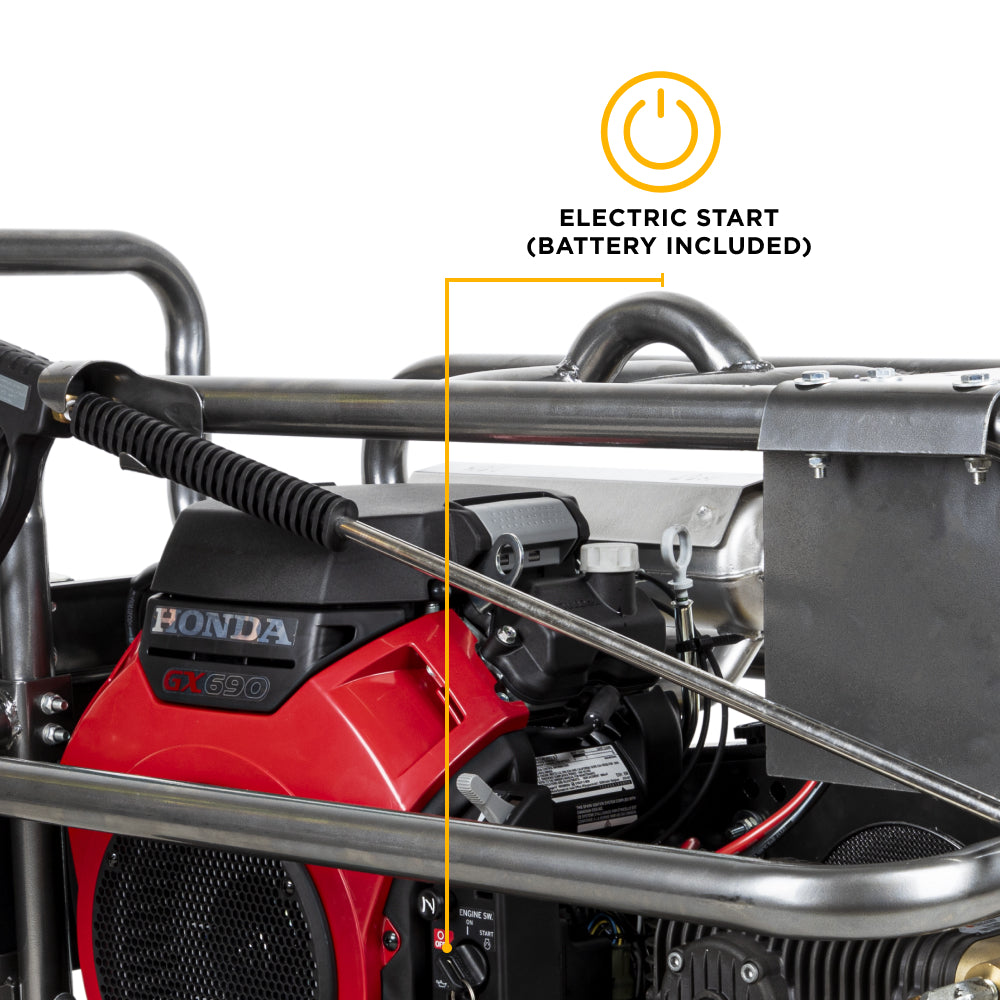

55AH AGM Deep Cycle Battery

The B5024HEBAS includes a 55AH AGM deep cycle battery to power the electric start system. This is a purpose-sized industrial battery designed for reliable repeated startups in heavy-use environments — significantly larger than the lithium-ion batteries used on standard frame electric start models in this range. The AGM design is maintenance-free, spill-proof, and suited for the vibration and demands of industrial job site use.

Belt Drive System for Extended Pump Life

The B5024HEBAS uses a gas belt drive system to power the CP triplex pump at 1,450 RPM — significantly lower than direct drive configurations. This reduced operating speed delivers meaningful advantages for continuous industrial use:

• Reduced heat buildup during extended operation
• Lower pump wear for extended service life
• Smoother, more consistent pressure output at 5,100 PSI
• Improved reliability for high-frequency industrial use

Industrial-Grade CP CTB3S Triplex Pump with External Unloader

Paired with the Honda engine via the belt drive system is an industrial-grade CP CTB3S P11 class triplex pump with external unloader and adjustable injector. At P11 class, this is the highest pump classification in the BE cold water gas pressure washer range. Key pump features include:

• P11 industrial pump class for the most demanding high-pressure applications
• Belt drive operation at 1,450 RPM for reduced wear and extended service life
• Thermal relief valve to prevent overheating during extended bypass operation
• Dump-to-ground bypass capability for maximum pump cooling during extended operation
• Adjustable injector for variable detergent concentration across different surfaces

204 4-Wheel Roll Cage Contractor Frame

The B5024HEBAS is built on the 204 4-Wheel Roll Cage Contractor Frame — a powder-coated steel roll cage structure designed for use in rugged industrial and commercial environments. Key frame features include:

• Full perimeter roll cage protection for the engine and pump assembly
• Four-wheel configuration for stable positioning on all terrain
• Anti-roll brake to secure the unit on slopes and uneven surfaces during operation
• Integrated lift point for safe crane or forklift loading and positioning
• Integrated hose and wand storage for organized, accessible accessories

50-Foot x 3/8" Steel Braided High-Pressure Hose

The included 50' x 3/8" QC single wire braided rubber hose provides durability and extended reach for cleaning large industrial areas. The 3/8" diameter supports the full 5.5 GPM flow rate of this unit.

36" Insulated Spray Wand and Trigger Gun

A 36" QC insulated spray wand provides added reach and control for heavy-duty cleaning tasks. The insulated design reduces heat transfer during prolonged use, and the quick-connect system makes nozzle changes fast and straightforward.

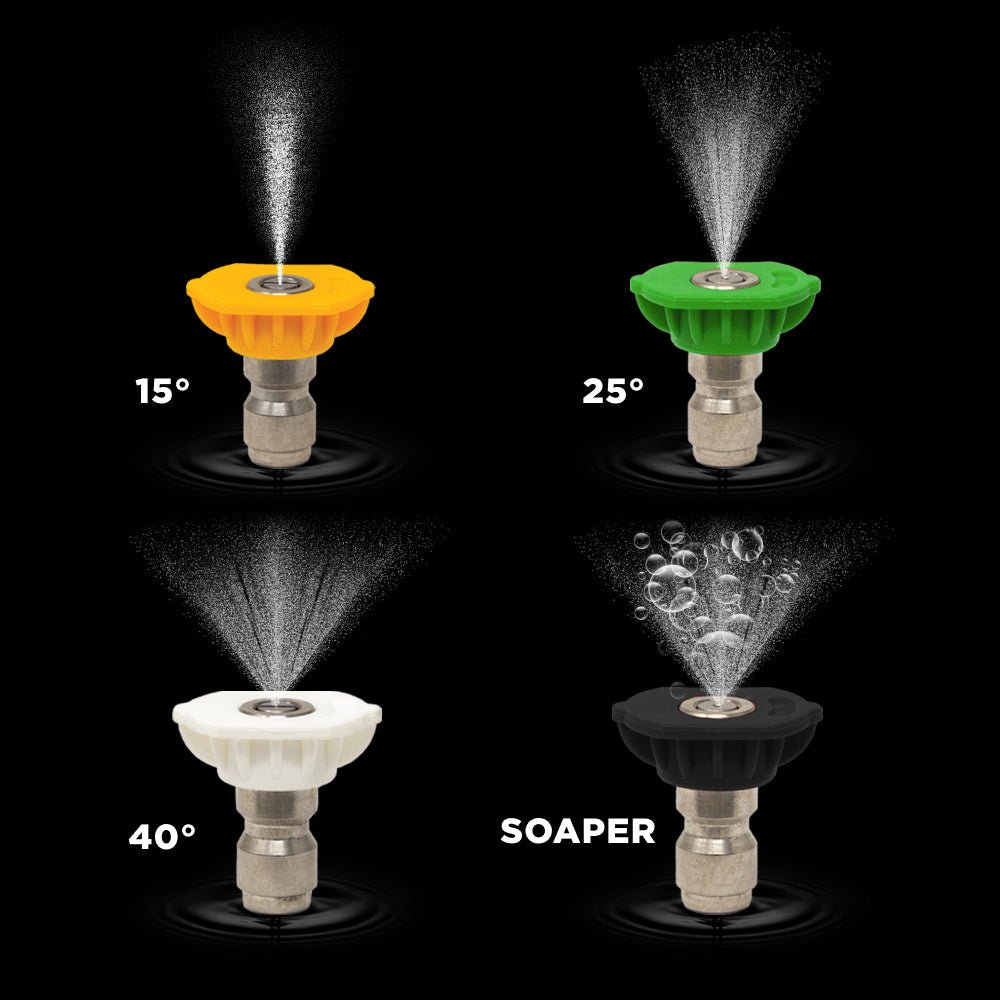

4 Quick-Connect Spray Nozzles

Four quick-connect nozzles cover the full range of industrial cleaning applications:

• 15°: Heavy-duty cleaning and surface stripping
• 25°: General-purpose washing
• 40°: Rinsing or cleaning delicate surfaces
• Soap: Applying detergents and degreasers through the adjustable injector

Safety Features

• Automatic low-oil shutdown: Turns off the engine if oil drops below a safe operating level
• Thermal relief valve: Releases built-up heat from the pump during extended idle or bypass operation
• Anti-roll brake: Secures the unit against unintended movement during operation on slopes or uneven surfaces

Warranty and Factory Testing

The B5024HEBAS is backed by a 3-year limited warranty from BE Power Equipment. The Honda GX690 engine is covered separately under Honda's manufacturer warranty program.

Each unit is functionally tested at the factory before shipping. Units may contain minimal residual oil or fuel odor, confirming that the machine has passed quality inspections and is ready for operation.

Product Specifications

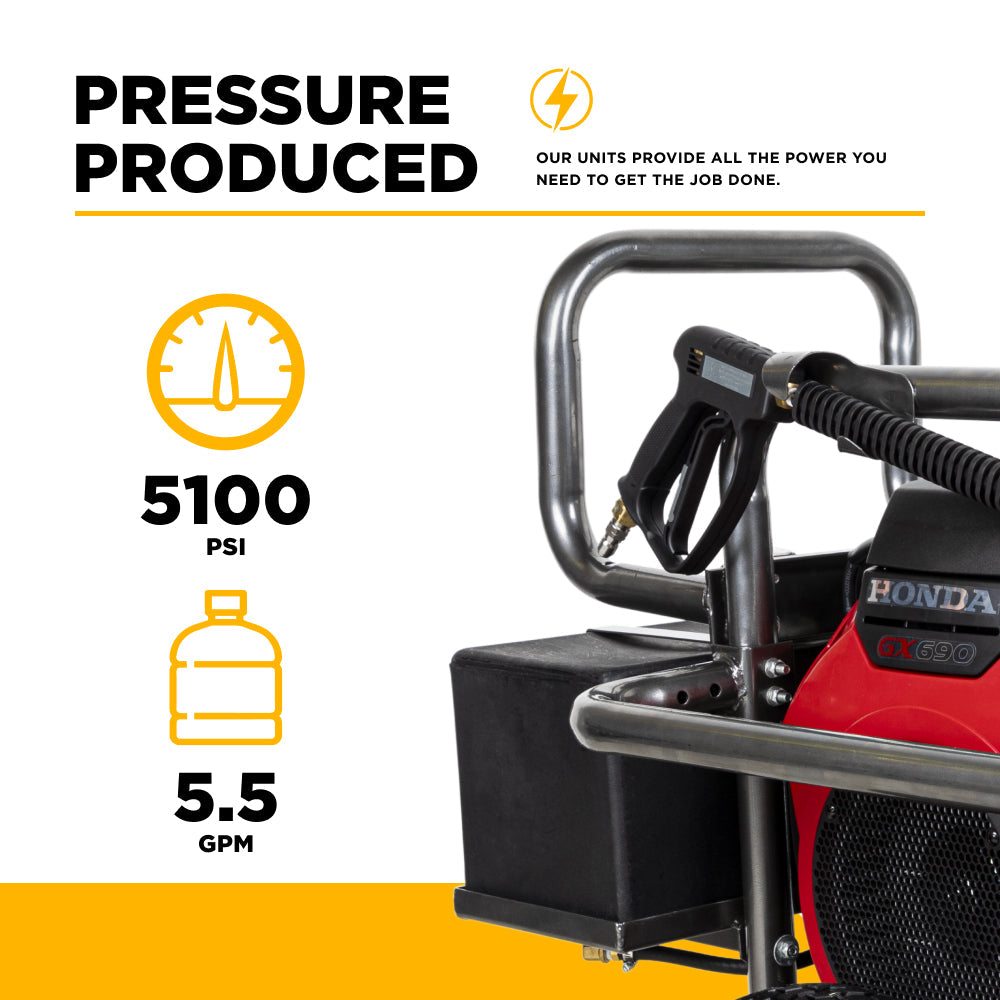

• Pressure: 5,100 PSI
• Flow Rate: 5.5 GPM
• Engine: Honda GX690 688cc V-Twin OHV, Electric Start
• Battery: 55AH AGM Deep Cycle Battery (for electric start)
• Pump: CP CTB3S Triplex, P11 Class, External Unloader, Adjustable Injector
• Drive Type: Gas Belt Drive
• RPM: 1,450
• Frame: 204 4-Wheel Roll Cage Contractor Frame, Powder-Coated Steel, Anti-Roll Brake, Integrated Lift Point, Hose and Wand Storage
• Hose: 50' x 3/8" QC Single Wire Braided Rubber Hose
• Spray Wand: 36" QC Insulated Gun/Wand Assembly
• Nozzles: 4 Quick-Connect, 15°, 25°, 40°, and Soap
• Fuel Tank: 22.7 L / 6 GAL
• Engine Oil Type: 10W-30
• Pump Oil Type: 30W Non-Detergent
• Unit Weight: 406 lbs / 184.2 kg

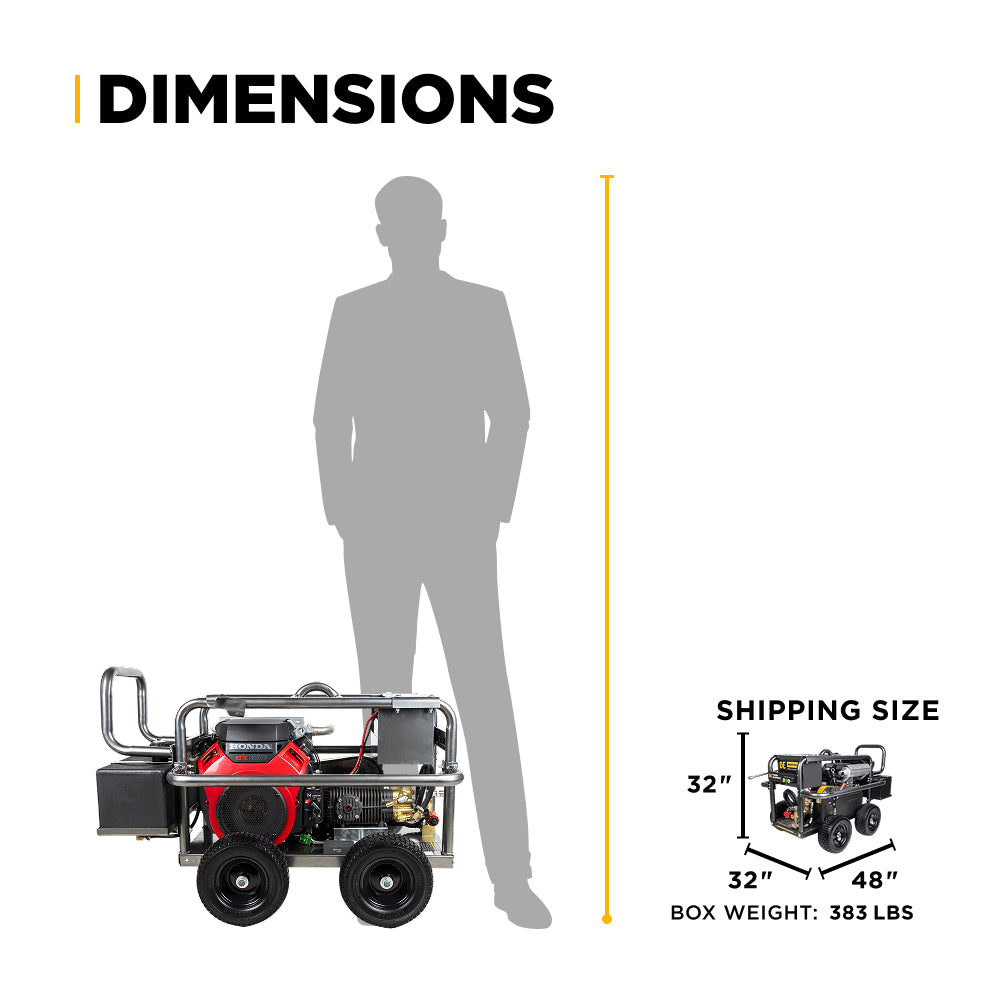

• Unit Dimensions: 48.0" x 32.0" x 34.0"
• Series: Industrial
• Safety Features: Automatic low-oil shutdown, thermal relief valve, anti-roll brake
• Warranty: 3-year limited (Honda GX690 engine covered separately by Honda)
• Factory Testing: Each unit is functionally tested before shipment. Minimal residual oil or fuel odor upon delivery is normal and confirms quality testing has been completed.

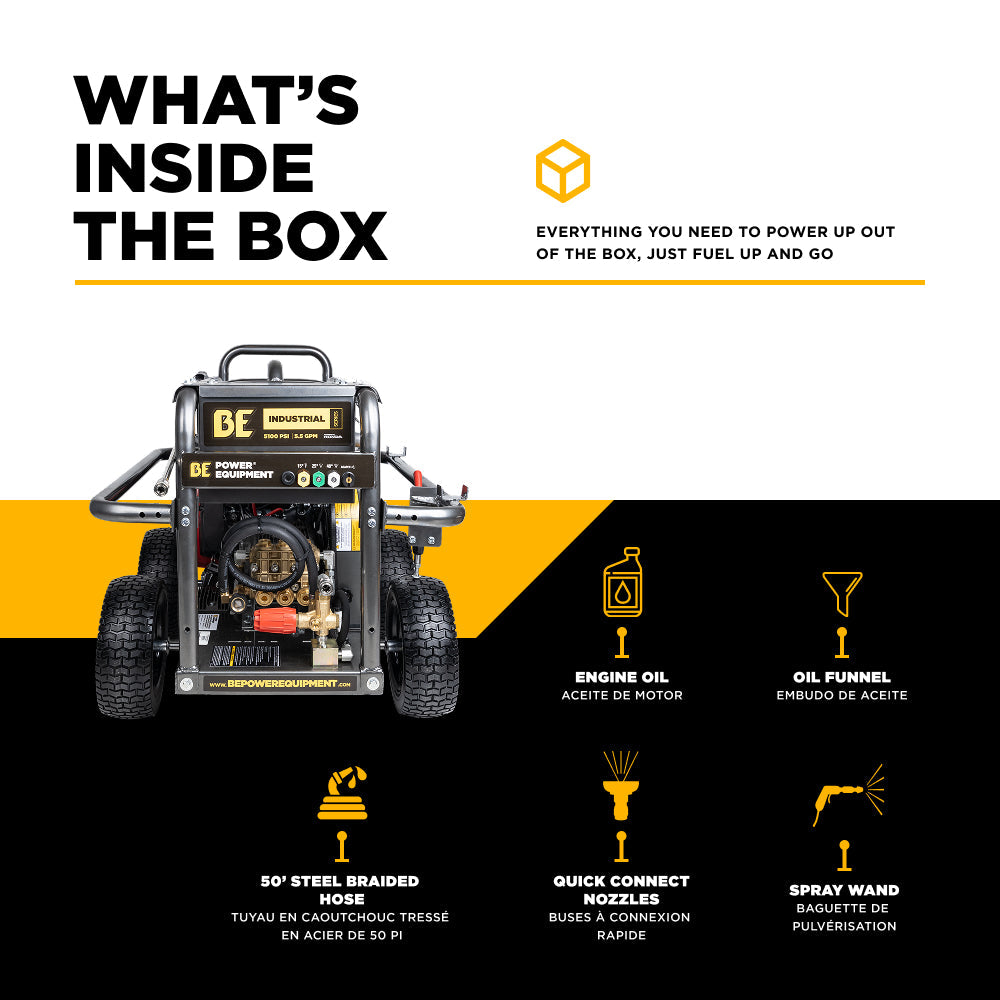

Included in the Box

• 50' x 3/8" QC Single Wire Braided Rubber Hose
• 36" QC Insulated Gun/Wand Assembly
• 15°, 25°, 40°, and Soaper QC Nozzles
• Engine Oil, Funnel, and Spark Plug Wrench

Built to Last — Trusted by Professionals

The BE Power Equipment B5024HEBAS delivers 5,100 PSI of industrial cleaning performance through a belt drive system engineered for sustained continuous operation. With a Honda GX690 688cc V-twin electric start engine backed by a 55AH AGM battery, a CP CTB3S P11 industrial triplex pump running at 1,450 RPM, a 22.7 L fuel tank for all-day operation, and an anti-roll brake on the 204 4-Wheel Roll Cage Contractor Frame, this unit is built to perform in the toughest industrial environments — day after day, job after job.

B5024HEBAS — 5,100 PSI 5.5 GPM Cold Water Gas Pressure Washer with Honda GX690 Electric Start Engine and CP Belt Drive Triplex Pump on Roll Cage Frame.
