Electric Order Picker | 2200 lbs. Capacity | Lift Height 196''| EKKO EOP70
Electric Order Picker | 2200 lbs. Capacity | Lift Height 196''| EKKO EOP70 is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description

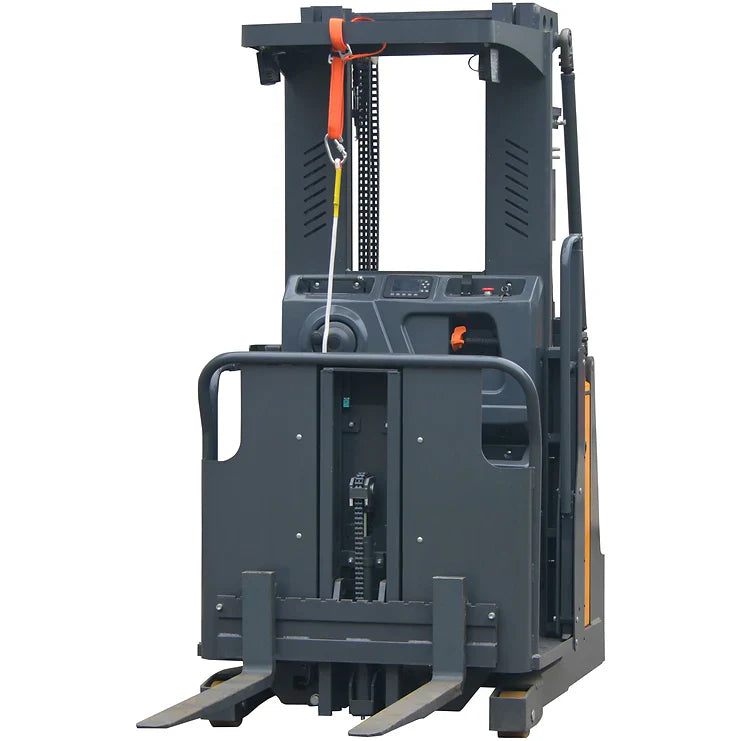

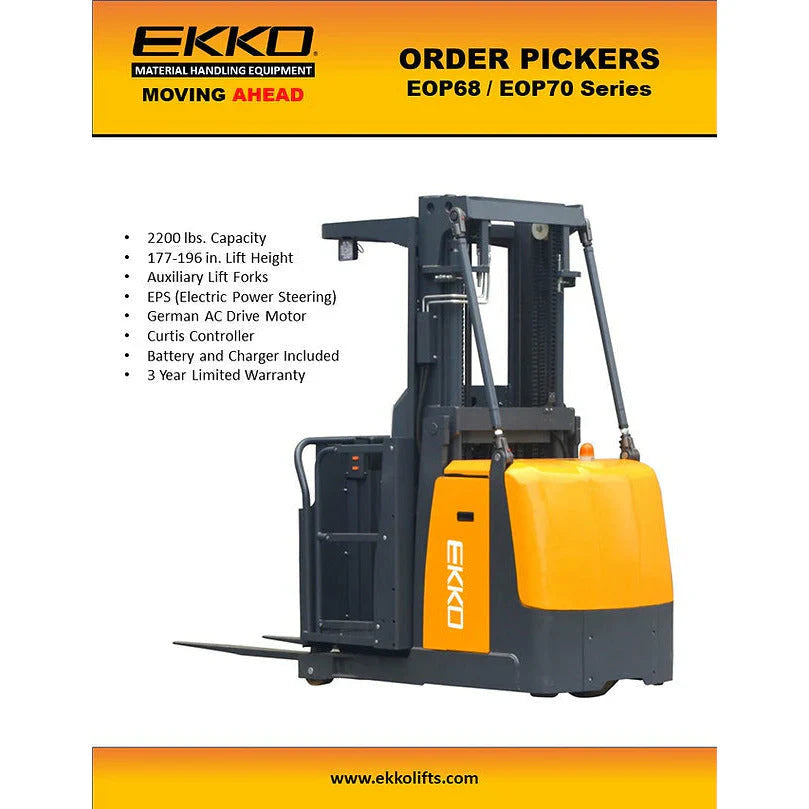

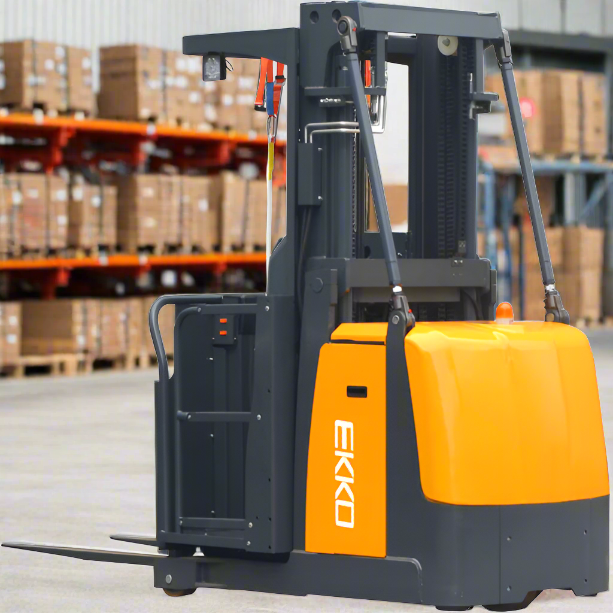

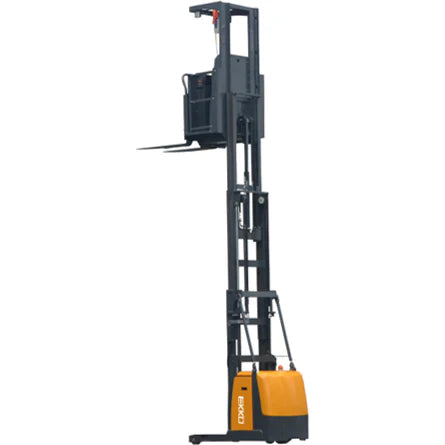

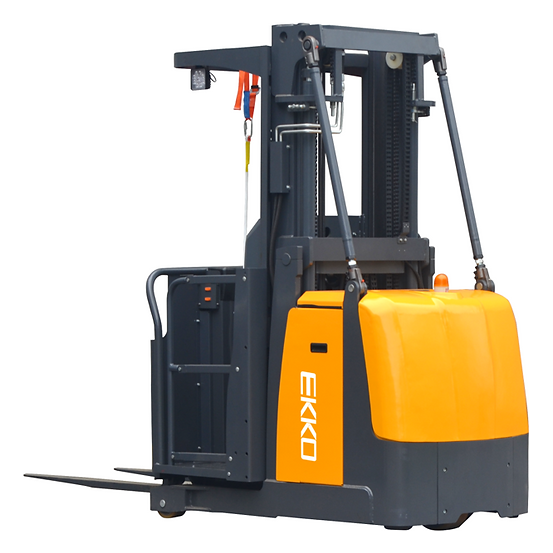

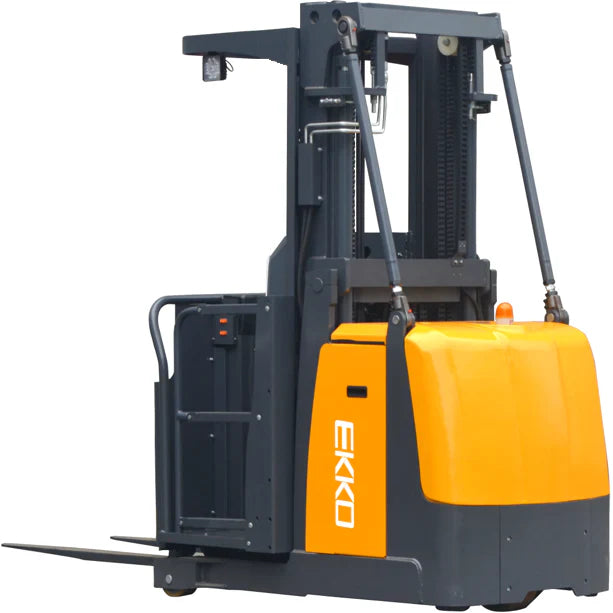

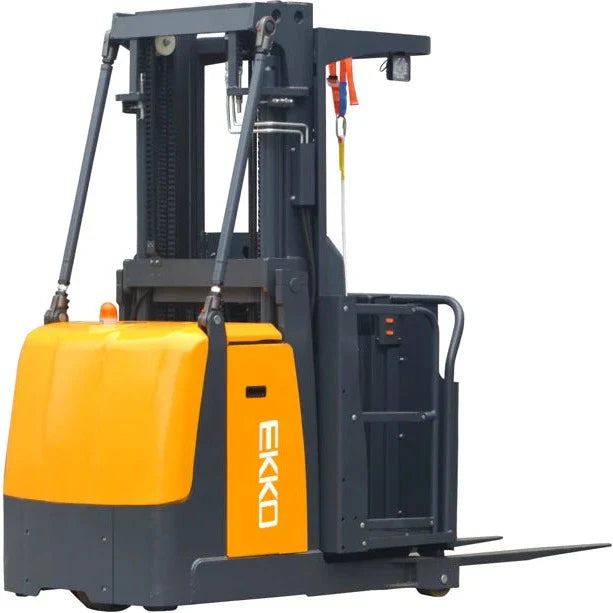

EKKO EOP70 Electric Order Picker 2,200 lbs Capacity - 196" Height
Product Description
The EKKO EOP70 Electic Mid-Level Order Picker is designed it's sole purpose to pick your ordersfrom your racking and storage facility rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 2200 lb
- Raised Height 196" (16.33 ft.)
- Adjustable Forks
- Auxiliary Fork
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery 24V/350Ah
- 24V/50A
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
About EKKO Lifts
Specification
|
Model |
EOP70 |
|
Power Unit |
Electric |
|
Operation |
Stand on |
|
Rated Loading Capacity (Q) |
2200 lbs |
|
Load Centre (c) |
19.68 in |
|
Wheelbase (y) |
53.46 in |
|
Service Weight with Battery |
6600 lbs |
|
Wheels Type |
PU (Polyurethane) |
|
Driving Wheel Size |
Φ9.84×5 in |
|
Bearing Wheel Size |
Φ5.9×3.23 in |
|
Wheels, Number Front/Rear (x = driven) |
1/2 |
|
Track Width (b11) |
37.8 in |
|
Lowered Mast Height (h1) |
93.11 in |
|
Lifting Height (h3) |
196 inc |
|
Extended Mast Height (h4) |
285 in |
|
Height of Overhead Guard (Cabin) (h6) |
89.48 in |
|
Height of Seat/Stand-on Platform (h7) |
10.67 in |
|
Additional Lift Height (h9) |
30.71 in |
|
Total Lift Height (h10) |
227 in |
|
Platform Lifting Height (h12) |
206.873 in |
|
Lowered Fork Height (h13) |
1.97 in |
|
Picking Height (h15) |
258.01 in |
|
Overall Length (l1) |
111.41 in |
|
Body Length (l2) |
69.29 in |
|
Overall Width (b1/ b2) |
39.37/145.28 in |
|
Fork Size (s/e/l) |
1.37/3.93/42.13 in |
|
Width of Fork Fixing Frame (b3) |
35.83 in |
|
Outside Fork Width (b5) |
34.33 in |
|
Min. Ground Clearance (m2) |
1.97 in |
|
Aisle Width for Pallets 39.37*47.24 Crossways (Ast) |
122.24 in |
