Olympic Equipment 15,000 lb Open-Front 4-Post Alignment Lift 4PHDXLA-15
Olympic Equipment 15,000 lb Open-Front 4-Post Alignment Lift 4PHDXLA-15 is backordered and will ship as soon as it is back in stock.
Product Features
- Turntables + Slip Plates
- Air Lock Release
- Cable Anti-Failure System
- Italian Oil Seals
- 10-Year Warranty
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Olympic Equipment 15,000 lb Open-Front 4-Post Alignment Lift 4PHDXL...
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description

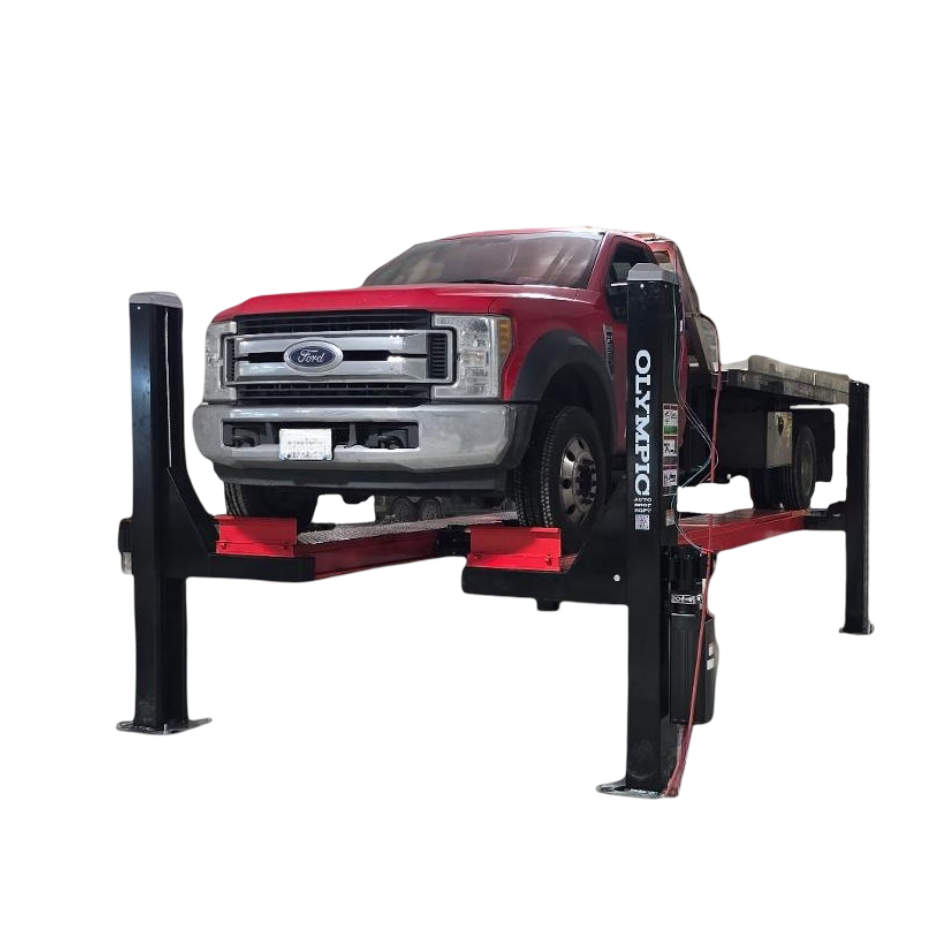

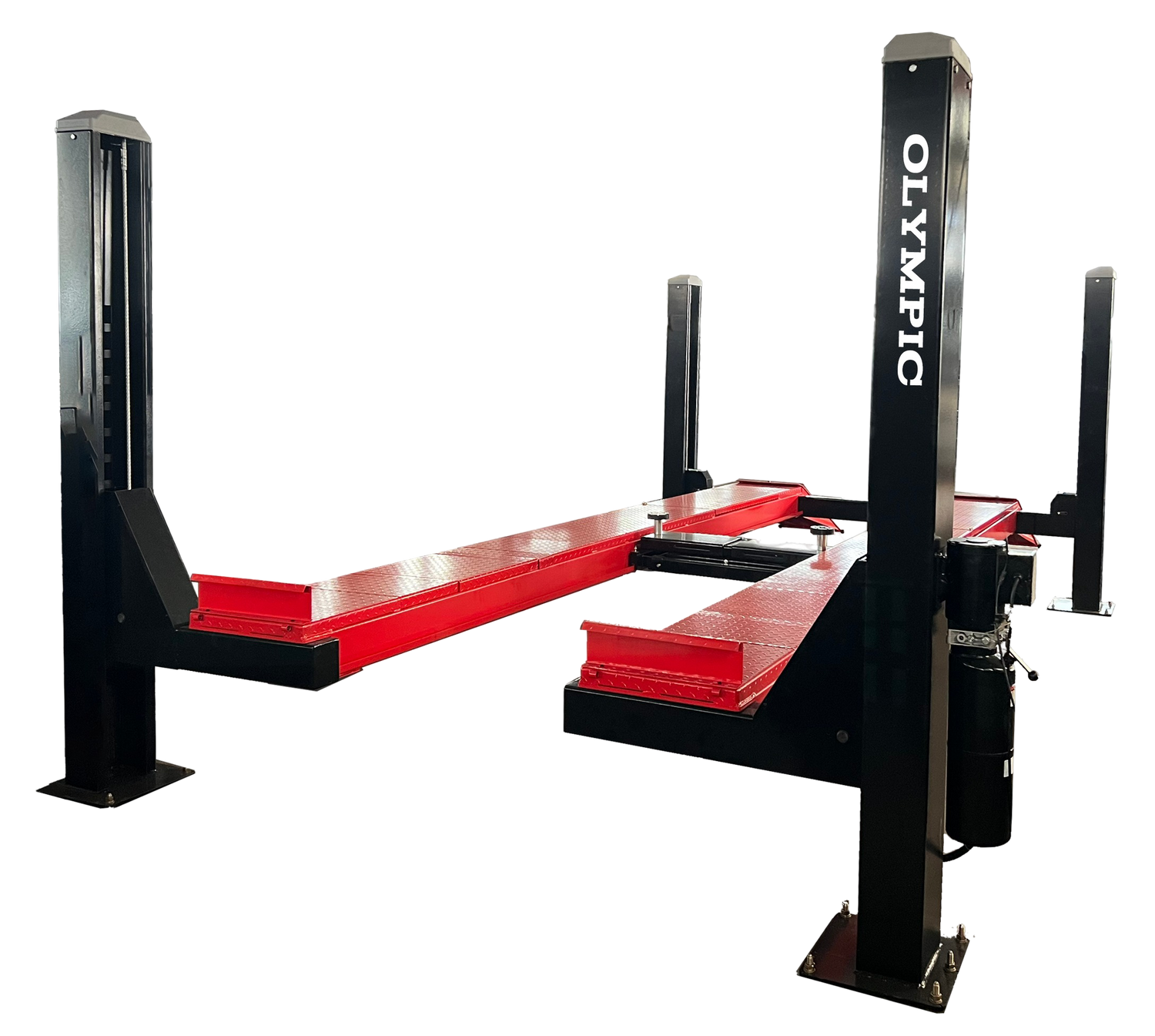

Olympic 4PHDXLA-15 / 15,000 lb. Open Front Alignment Lift
Heavy-duty open-front alignment and maintenance lift for large trucks.
The Olympic Open Front Alignment 15,000 lb. capacity lift doubles as both a vehicle maintenance platform and part of an advanced wheel-alignment system. Built to handle the toughest vehicles, this is the bulletproof backbone of any professional service center. The open-front design enhances technician access and workflow efficiency—your team will love it!
Integrated heavy-duty slip plates and turntables are built directly into the runways, allowing wheels to move freely for ultra-precise alignments. Longer approach ramps attached to the runways ensure effortless loading and unloading for even the largest vehicles.
The open-front design supports a variety of automotive services, including precision four-wheel alignments, inspections, repairs, and maintenance. Heavy-duty cable sheaves, spring-loaded ladder locks, and aircraft-grade cables rated at 16,000 lbs. deliver unmatched safety and dependability. Compare Hunter—Olympic outperforms in quality, features, and price.
Optional Equipment
7,000 lb. Bridge Jack (4PHDA-RJ) — Lifts the front or rear portion of the vehicle off the runways for wheel and brake service. Two jacks allow the entire vehicle to be raised off the deck. Each jack features telescoping arms, contact pads, stackable adapters, and built-in safety locks for flexible operation. Order your bridge jacks at checkout.
Operating & Power Requirements
- Power requirement: 220V 60Hz 2.2KW or 3KW 1-phase
- Operating temperature: 5°C to 40°C
- Ambient humidity: 30% to 95% (at 40°C)
- Installation altitude: 5,500 feet/1675m above sea level
- Storage/transport temperature: -25°C to 55°C
Key Features
- Industry Best 10-Year Warranty
- High-quality Q235 structural steel
- Load capacity: 15,000 lbs
- Includes turntables and slip-plates
- Max lift height: 70.9″
- Air lock release system
- 21.6″ runway width
- Cable-driven lifting system
- Adjustable lock system — locks at any height
- Cable anti-failure system for enhanced safety
- Italian oil seals
- Durable powder-coated finish
- Optional 7,000 lb. Bridge Jack (Part No. YZ-4PHDA-RJ)
- Includes heavy-duty 220 V power unit (HPU2204 — 4 HP, 3 KW, 60 Hz, 1 PH)
- Internationally certified & tested to perform flawlessly at 150% of rated capacity

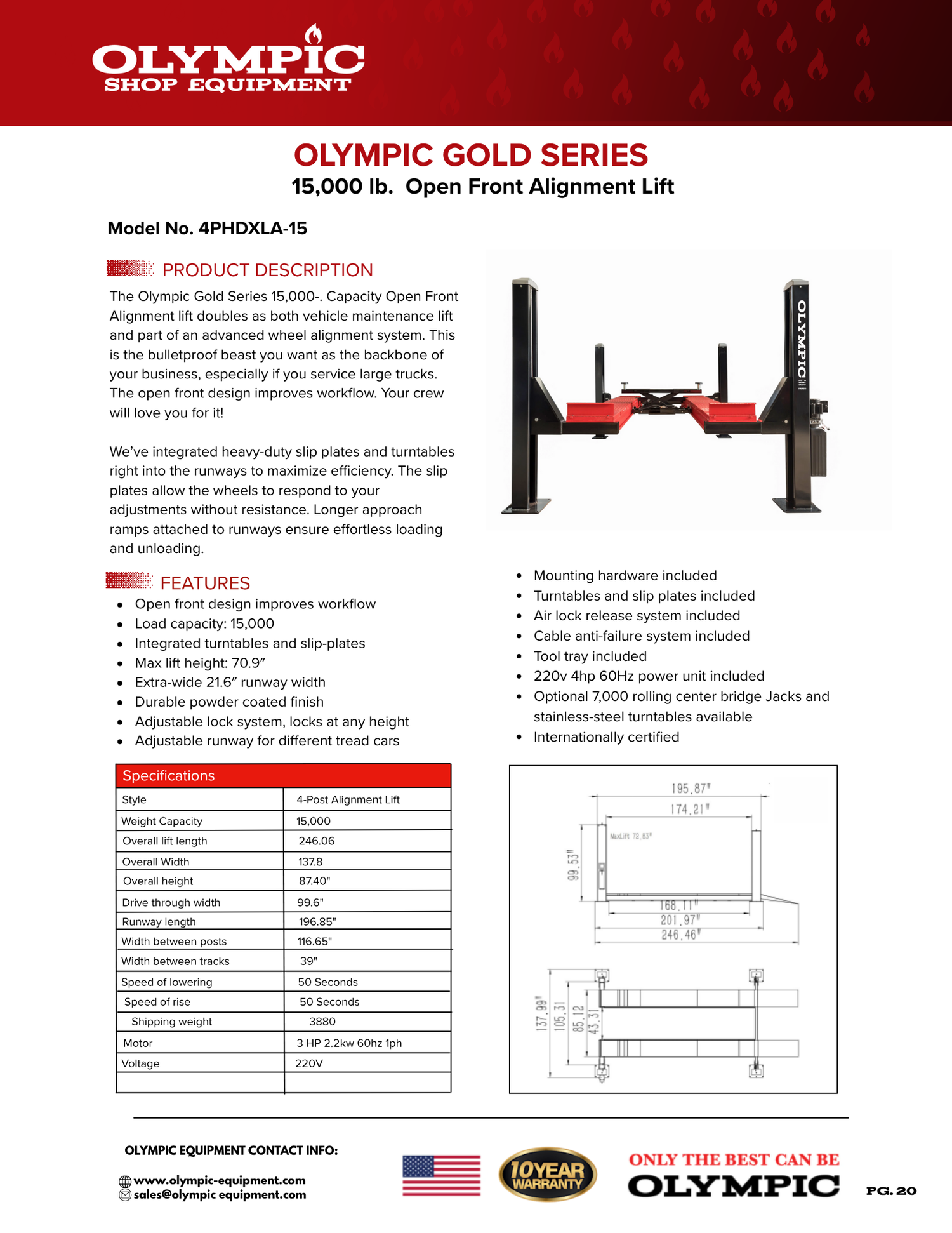

Specifications
| Overall Width | 137.8″ |
|---|---|
| Drive Through Width | 99.60″ |
| Overall Height | 87.40″ |
| Width Between Posts | 116.65″ |
| Runway Width | 21.65″ |
| Width Between Tracks | 39″ |
| Lifting Height | 70.86″ |
| Overall Length | 246.06″ |
| Runway Length | 196.85″ |
| Shipping Weight | 3,880 lbs |
| Load Capacity | 15,000 lbs |
Why Choose an Olympic Lift?
When it comes to power, performance, and precision, Olympic lifts lead the industry. Each lift is engineered with premium materials, tested to 150% of its rated capacity, and backed by an industry-best 10-year warranty. Olympic delivers lasting value, unbeatable safety, and the quality your business deserves.
