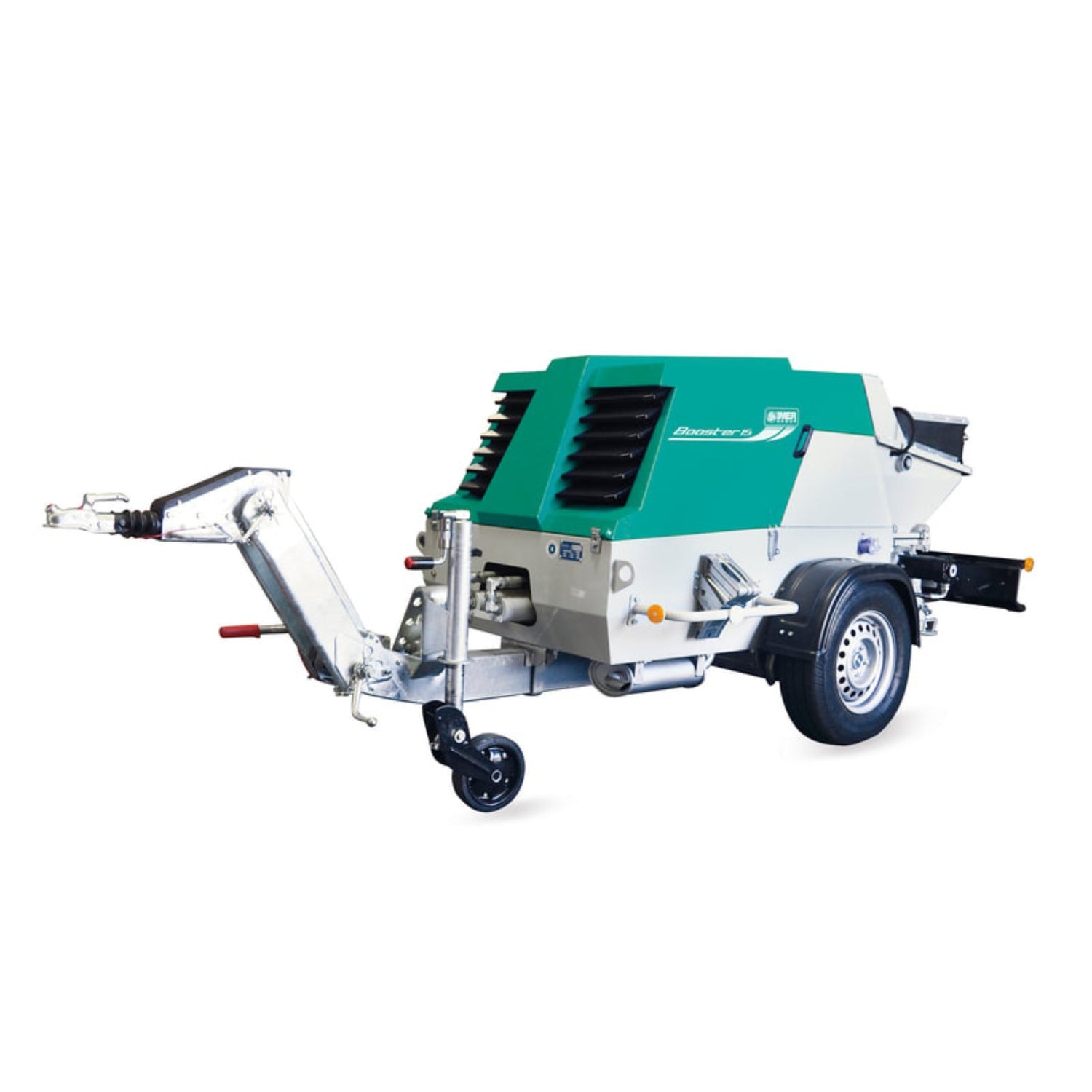

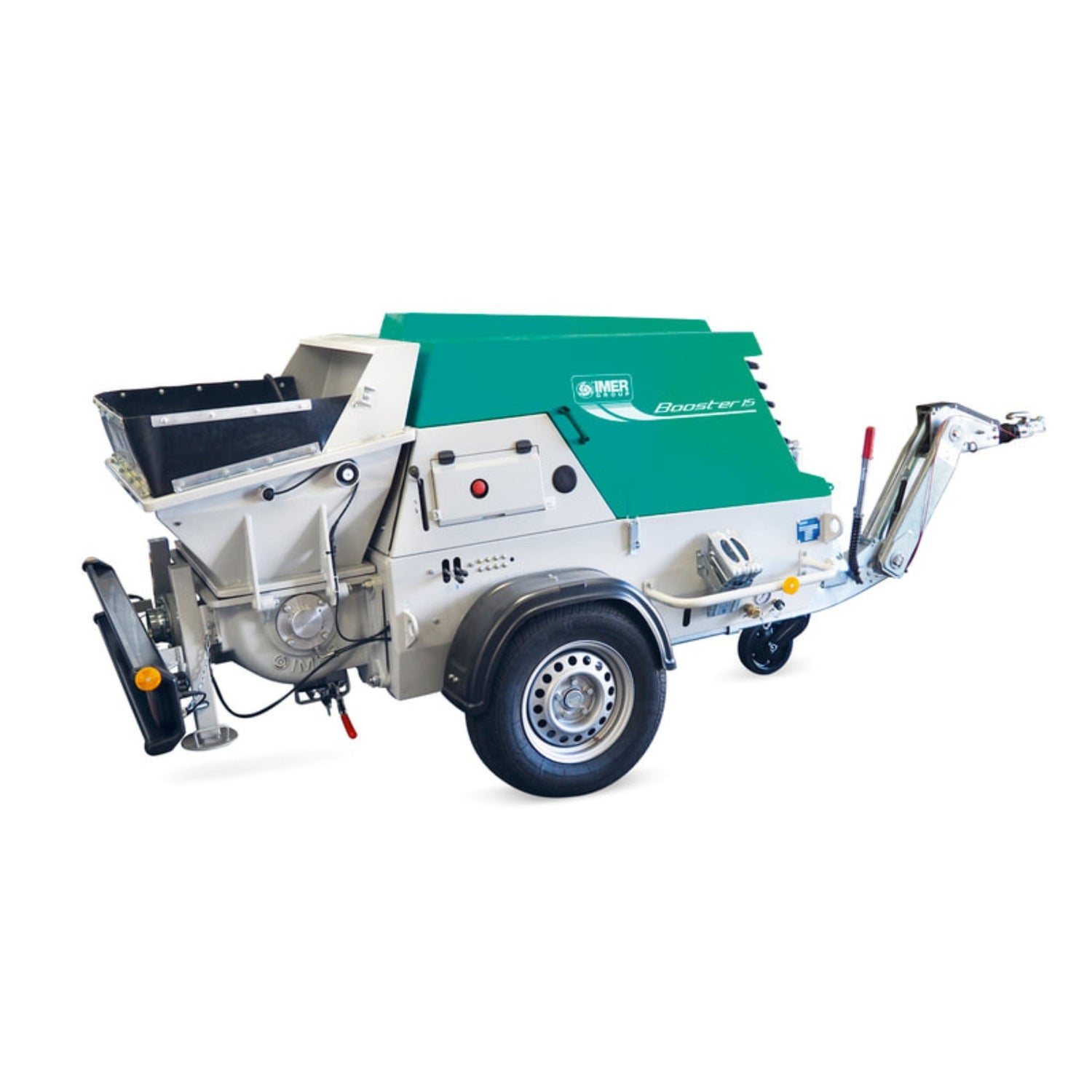

IMER Booster 20 Towable Hydraulic S Valve Concrete Pump
The IMER Booster 20 is a powerful, compact, towable concrete pump built for demanding job sites where space is limited. Its high-performance output handles concrete, shotcrete, and high-strength grouts, delivering up to 20 cubic yards per hour, making it well suited to construction, repair, and renovation work requiring precise placement in tight areas where larger pumps of similar capability won't fit.

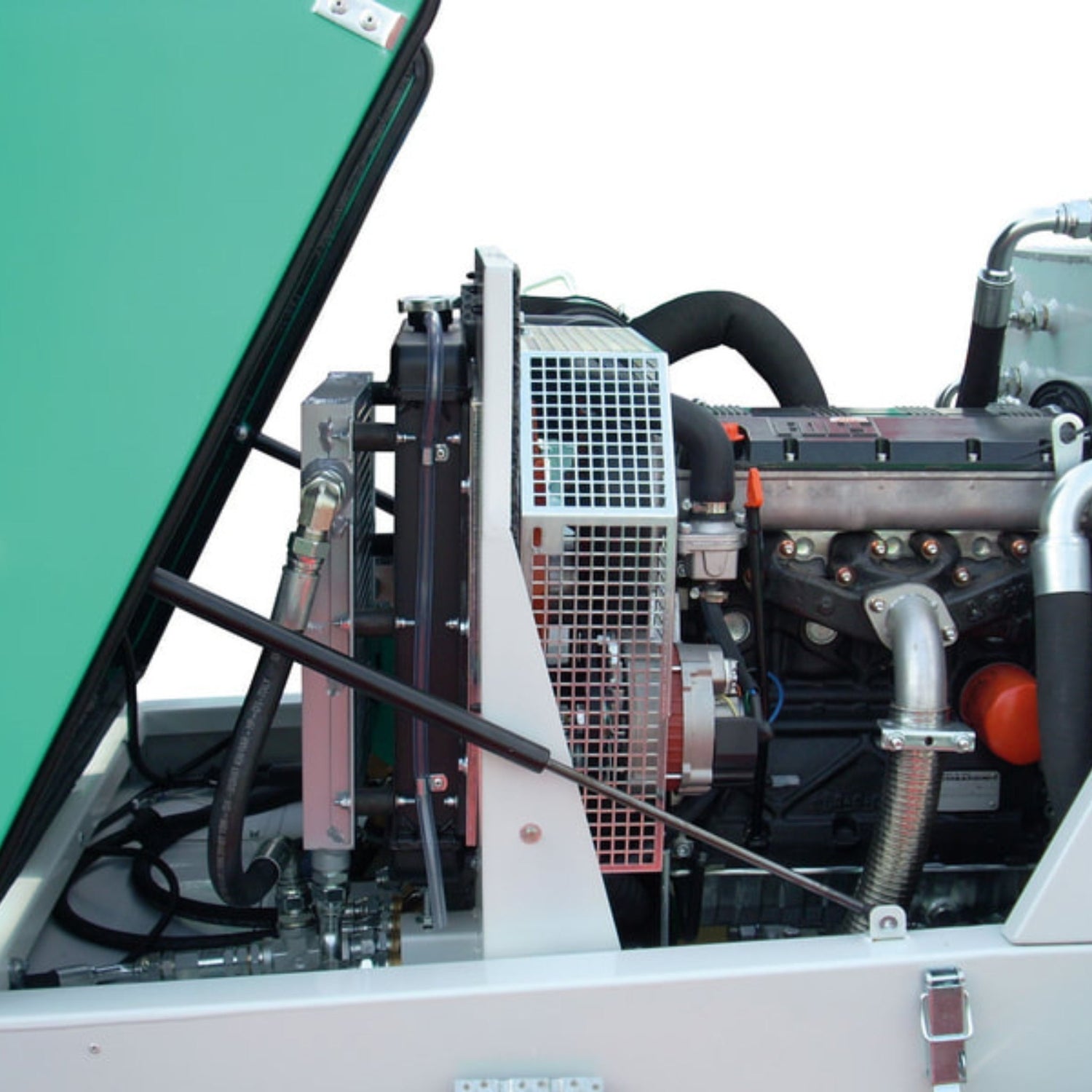

A 3-cylinder, liquid-cooled, 28 HP YANMAR diesel engine provides consistent power and reliability, while an S-valve pumping unit delivers smooth operation with automatic compensation for clearance and wear to reduce downtime. A hydraulic reverse system quickly clears blockages, and an automatic greasing system with centralized grease ports lowers maintenance.

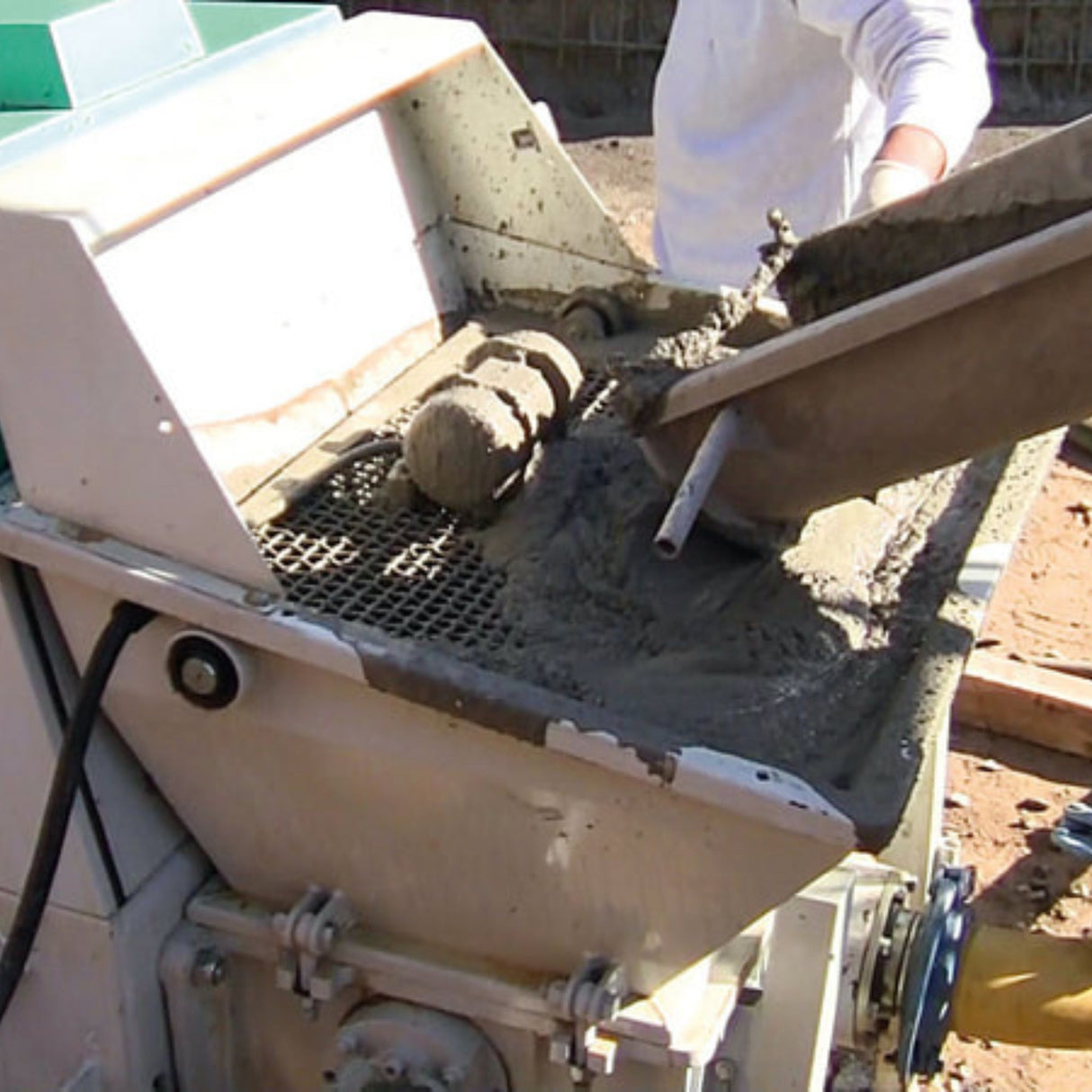

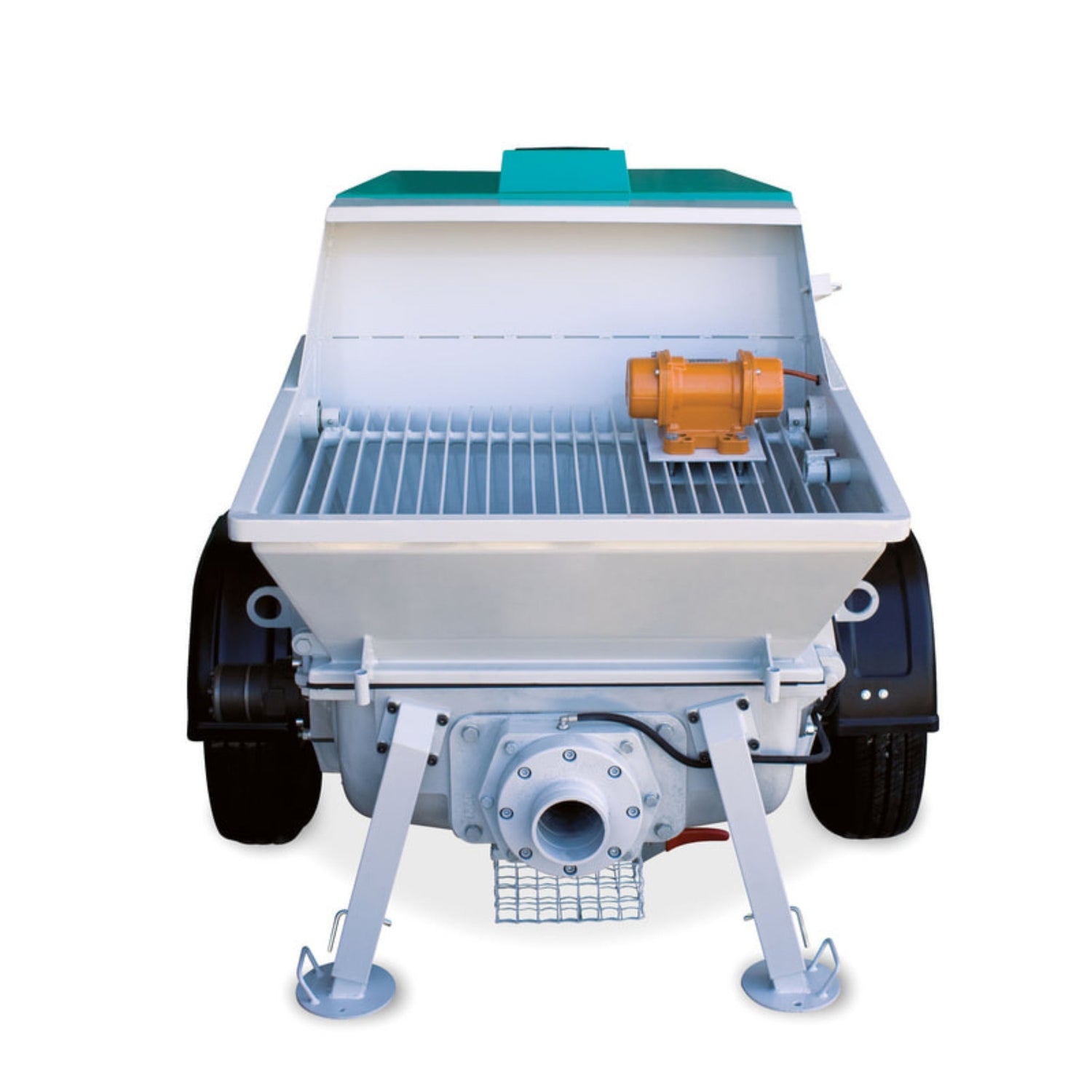

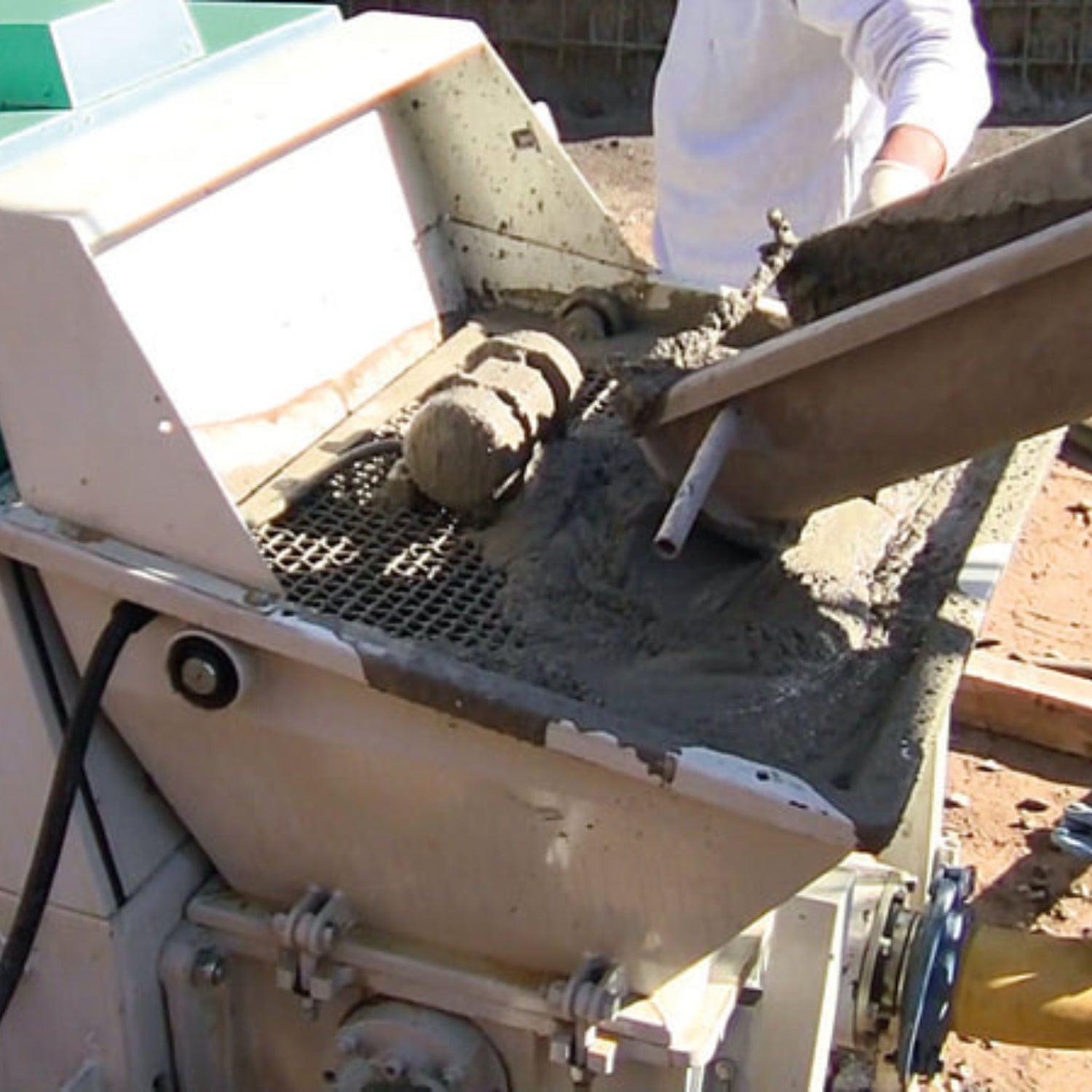

A concrete hopper with agitator and 12V vibrating grid keep material flowing, and a heavy-duty 4" delivery manifold ensures consistent output. A highway tow package and electromechanical control panel round out the design.
Features
- Up to 20 cu yd/hr of concrete, shotcrete, and high-strength grout
- 3-cylinder, liquid-cooled, 28 HP YANMAR diesel engine
- S-valve pumping unit with automatic clearance/wear compensation
- Hydraulic reverse system; automatic greasing with centralized ports
- Concrete hopper with agitator; 12V vibrating grid; 4" delivery manifold
- Towable with heavy-duty highway tow package
Specifications
| GENERAL | |
|---|---|
| Brand Name | IMER |
| Model # | 1106427 |
| ENGINE | |
| Engine | Yanmar 3TNV80F-SMIMI, 3-Cylinder Diesel |
| Installed Power | 28 HP |
| PERFORMANCE | |
| Pumping System | 2-Cylinder with Hydraulic Control |
| Flow Rate | 3 to 20 cu yd/hr |
| Pumping Pressure | 1,000 psi |
| Max Aggregate Size | 1" |
| Pipe Outlet | 4" Heavy Duty |
| Hopper Capacity | 7 cu ft |
| Loading Height | 42.5" |
| DIMENSIONS & WEIGHT | |
| Dimensions | 161" L × 58" W × 60" H |
| Weight | 3,100 lbs |
What's Included
- (1) IMER Booster 20 Concrete Pump
- (1) Automatic Greasing System
- (1) Concrete Hopper with Agitator
- (1) 12V Vibrating Grid
- (1) Hydraulic System with Reverse
- (1) S-Valve Pumping Unit (automatic clearance/wear compensation)
- (1) 4" Heavy-Duty Delivery Manifold

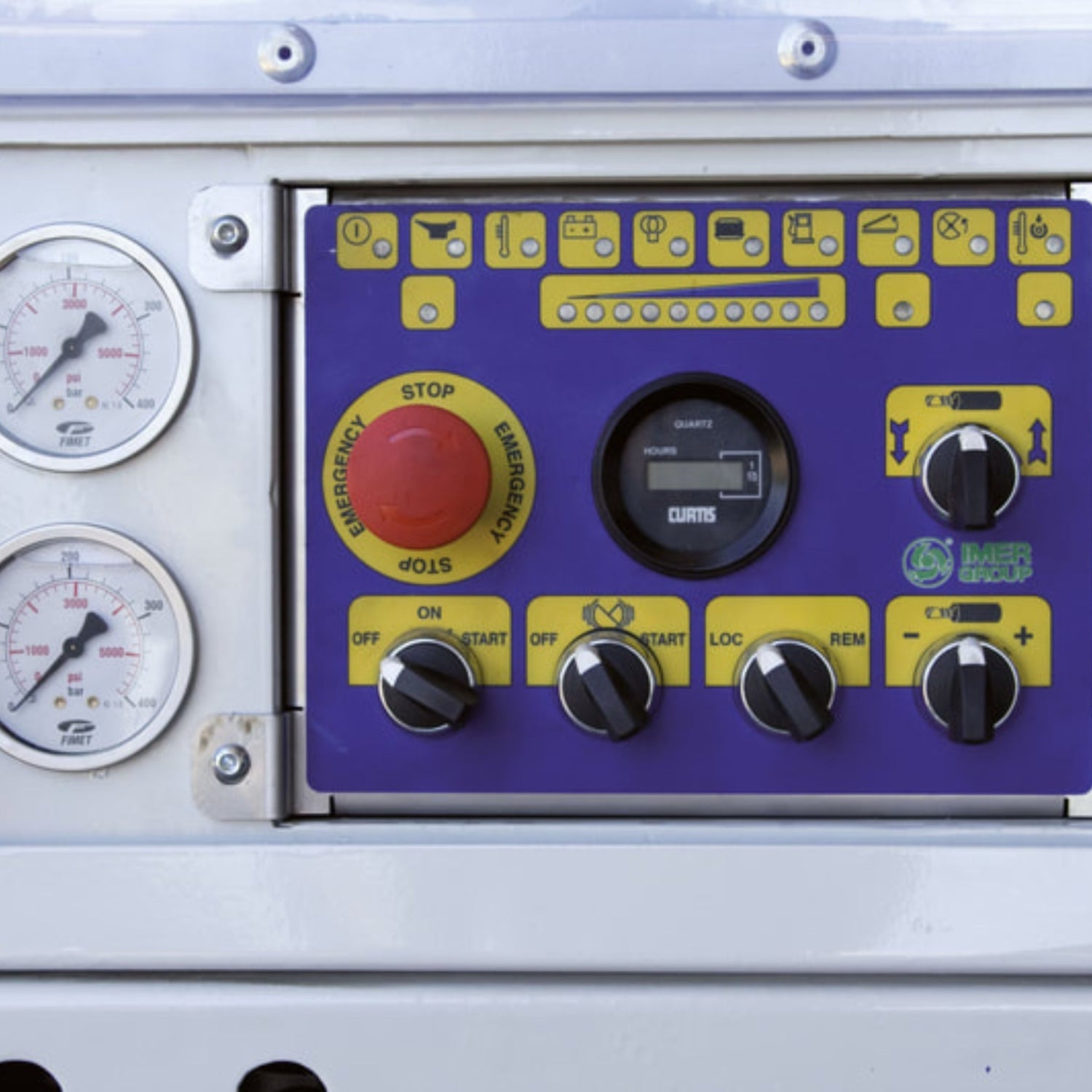

- (1) Electromechanical Control Panel
- (1) Piston Head Installation and Extraction Tool Kit
- (1) Heavy-Duty Highway Tow Package
- (1) Accessory Box with Grease Pump
- (1) Set of 4" Cleaning Balls
