Katool KT-4M110PA 11,000 lb 4-Post Alignment Lift with 7,000 lb Rolling Jack
Katool KT-4M110PA 11,000 lb 4-Post Alignment Lift with 7,000 lb Rolling Jack - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Katool KT-4M110PA 11,000 lb 4-Post Alignment Lift with 7,000 lb Rol...
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

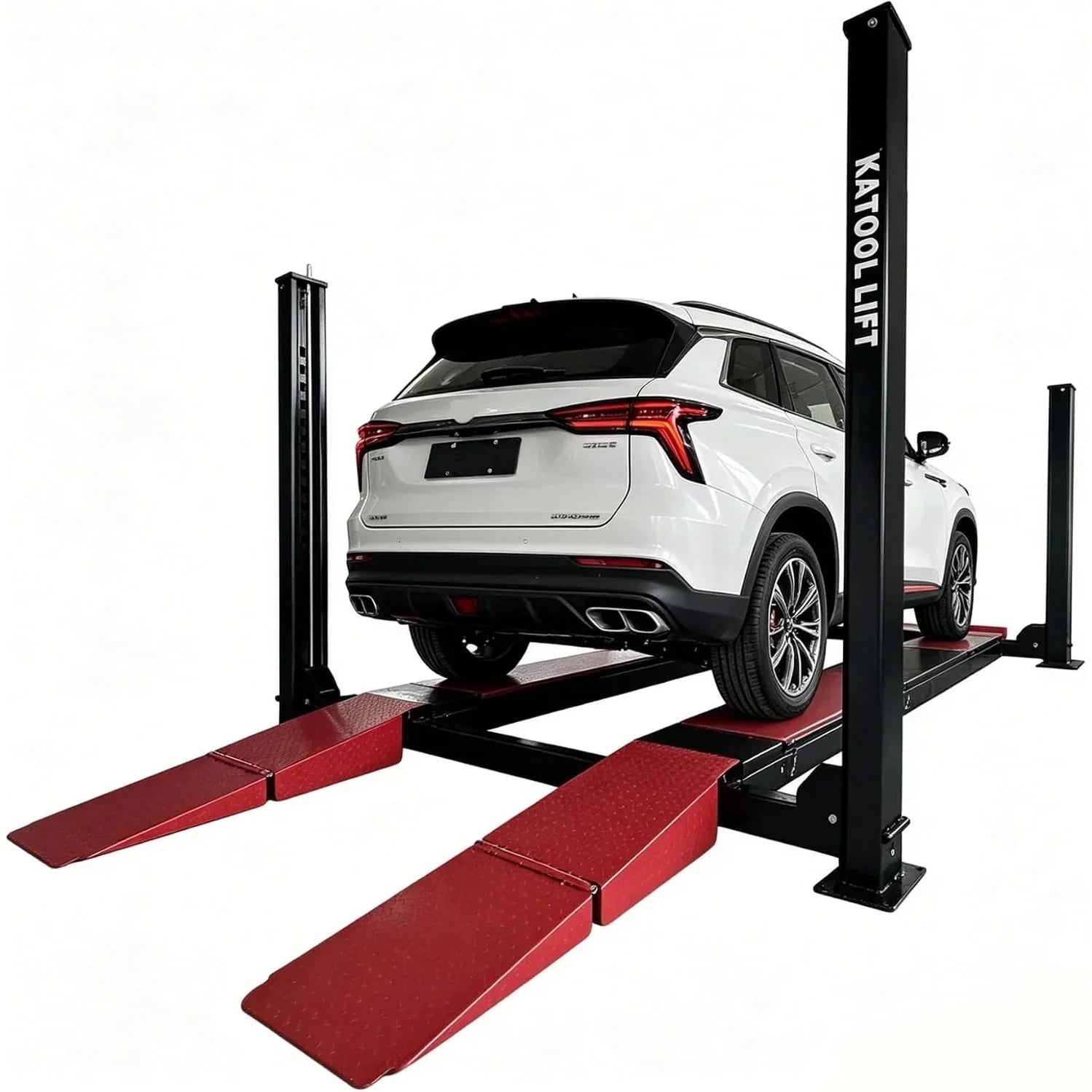

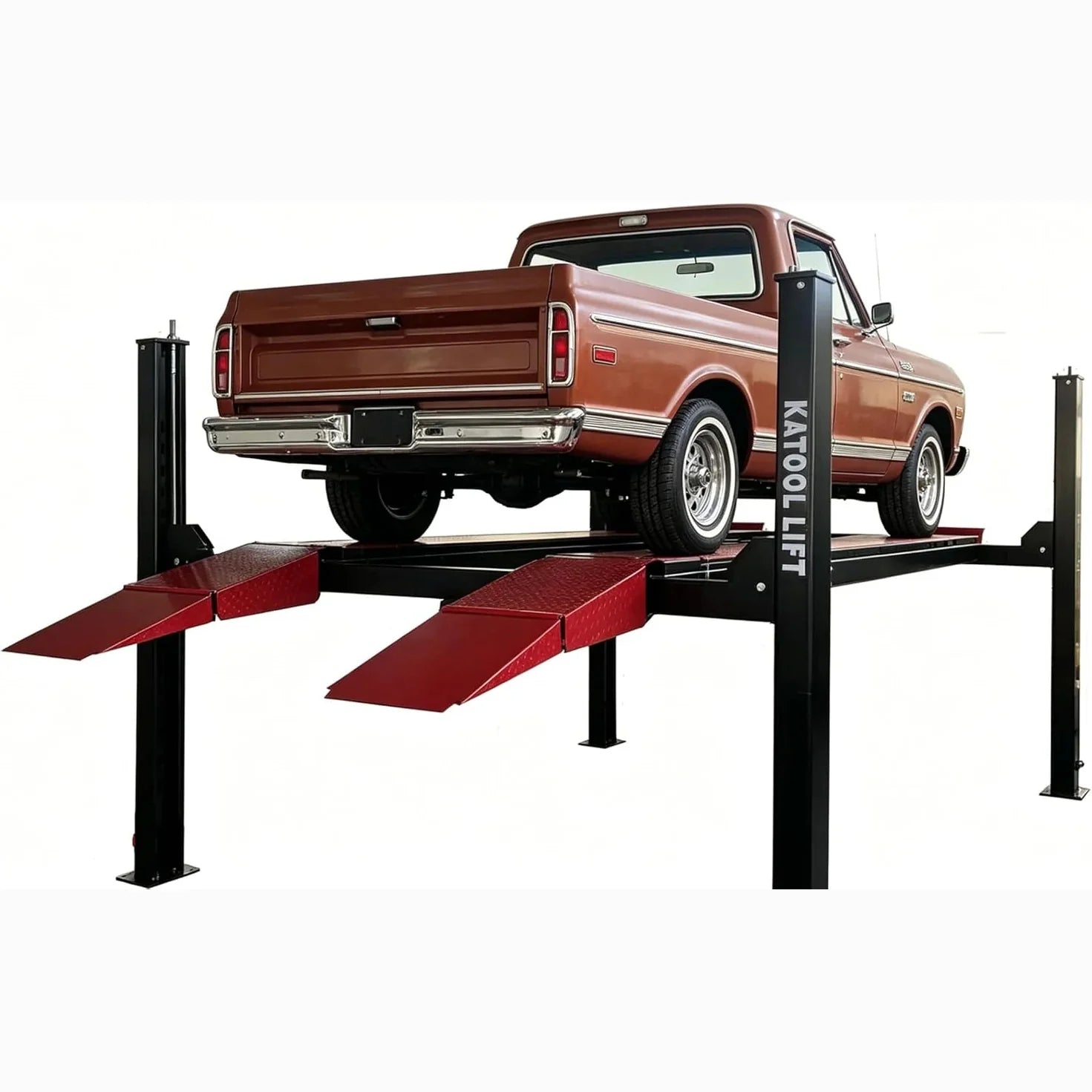

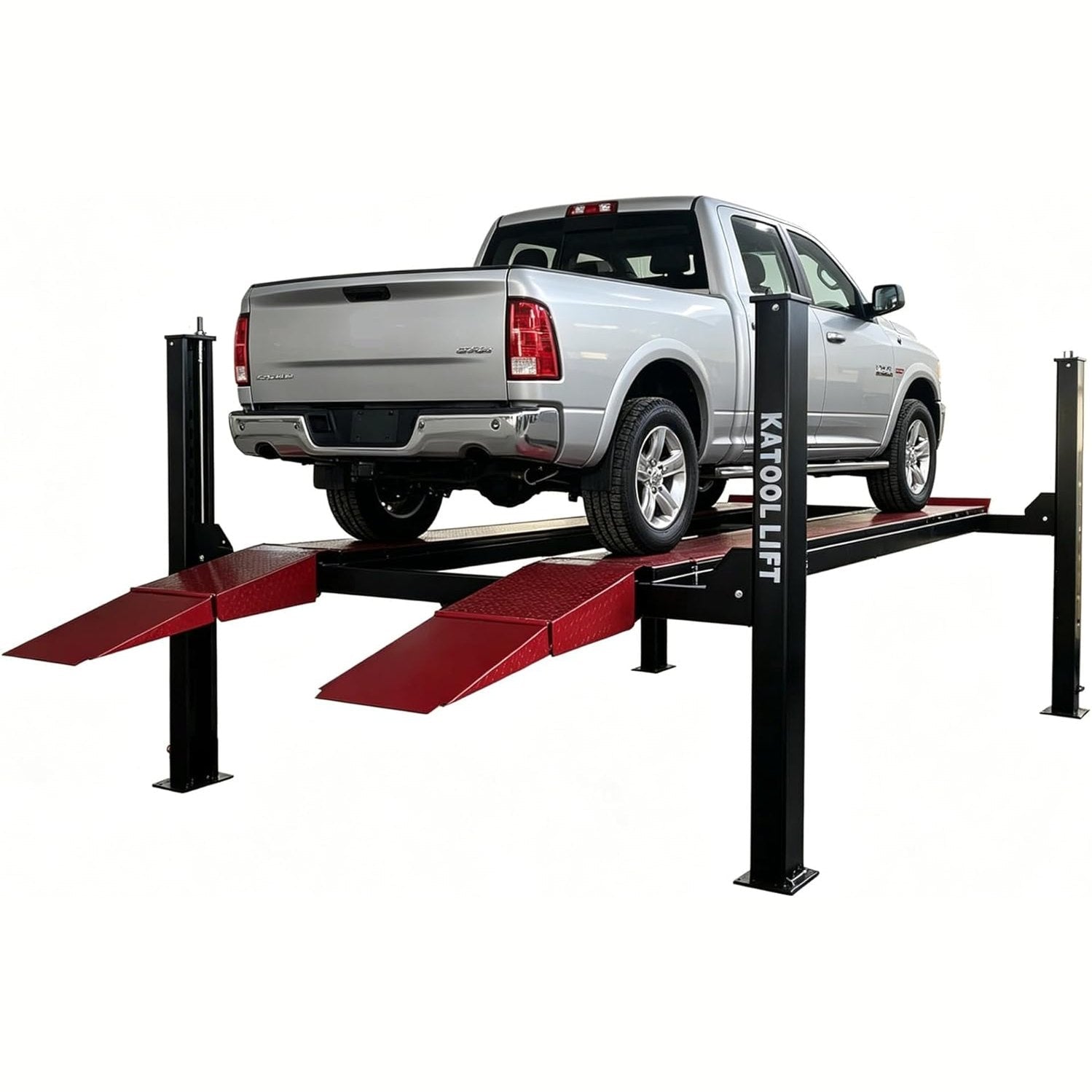

The Katool KT-4M110PA is a four-post alignment lift built for shops and home garages that raise cars, trucks, and SUVs and keep them steady for real work underneath. It carries an 11,000-lb lifting capacity on reinforced heavy-duty steel runways and reaches a maximum height of 84.5 inches, giving most technicians full stand-up clearance for inspections, alignments, maintenance, and detailing.

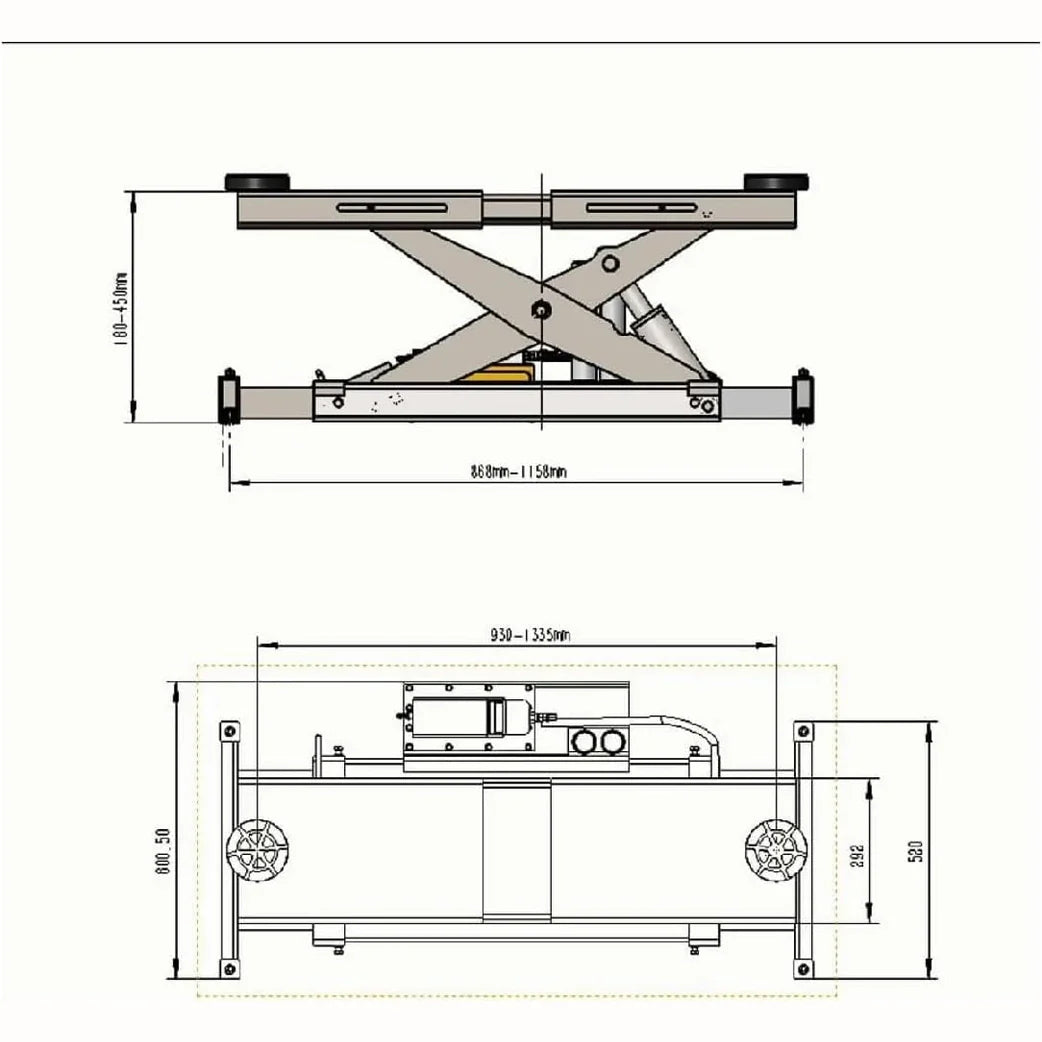

It arrives as a working package rather than a bare lift. A 7,000-lb rolling bridge jack rides between the runways so you can lift wheels off the platform for brake, tire, and suspension service, and lightweight aluminum approach ramps make drive-on loading straightforward. The lift reaches full height in about 50 seconds, so there is less waiting between jobs. It runs on standard 110V or 220V single-phase power, so it fits a home garage or a professional shop without a special circuit.
The KT-4M110PA ships by freight. Arrange unloading before it arrives — a forklift on site is required, or you can pick the shipment up at your local freight terminal. Inspect everything at delivery: if any part arrives damaged, photograph it, note the damage on the delivery receipt, and contact MGS at sales@mygaragesupplies.com or 307-381-1810 so we can make it right.
Features
- 11,000-lb lifting capacity — reinforced heavy-duty steel runways hold cars, trucks, and SUVs with stable, even support.
- 84.5-inch maximum lift height — generous stand-up clearance for inspections, alignments, repairs, and detailing.
- Included 7,000-lb rolling jack — raise wheels off the runways for brake, tire, and suspension work without leaving the platform.
- Pneumatic lock release — air-actuated unlocking replaces manual lock release for smoother, quicker lowering.
- 110V or 220V power — the single-phase power unit sets up for either supply, fitting a home garage or a professional shop.
- About 50 seconds to full height — a rapid rise that keeps jobs moving.
- Lightweight aluminum approach ramps — easy drive-on loading and simple to reposition.
What's Included
- Katool KT-4M110PA four-post alignment lift
- 7,000-lb rolling bridge jack
- 3 drip trays
- 1 lift tray
- Aluminum approach ramps

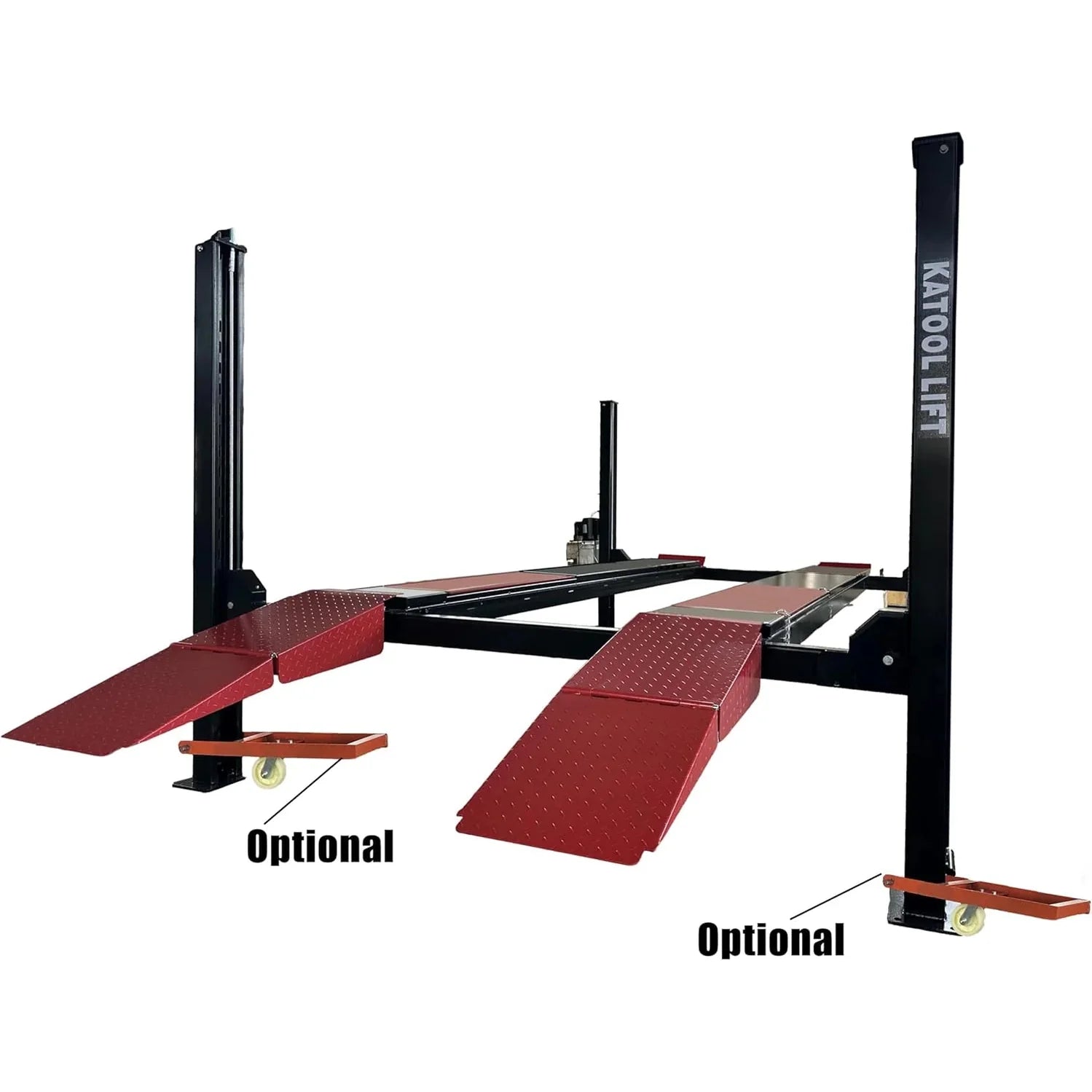

A rolling caster kit for repositioning the lift is available separately and is not part of the standard package.
Specifications
| Katool KT-4M110PA Specifications | |
|---|---|
| Model | KT-4M110PA |
| Lift Type | 4-Post Alignment Lift |
| Lifting Capacity | 11,000 lbs |
| Rolling Jack Capacity | 7,000 lbs |
| Maximum Lift Height | 84.5" |
| Power Requirement | 110V or 220V, single-phase |
| Full Rise Time | Approx. 50 seconds |
| Lock Release | Pneumatic unlocking |
| Runway Construction | Reinforced heavy-duty steel |
FAQ
What vehicles can it lift?
The KT-4M110PA is rated for 11,000 lbs and is built for cars, trucks, and SUVs. Confirm your heaviest vehicle stays within the rated capacity before lifting.
How much clearance do I get underneath?
Maximum lift height is 84.5 inches, enough room for most technicians to work standing.
Does it come with a rolling jack?
Yes. A 7,000-lb rolling bridge jack is included, along with three drip trays, one lift tray, and aluminum approach ramps.
What power does it need?
The single-phase power unit can be set up for either 110V or 220V, so it works in a home garage or a professional shop without a special circuit.
How fast does it raise a vehicle?
It reaches full lifting height in about 50 seconds.
Documents
Manual and technical documents available on request.
