Katool KT-H105 10,000lbs Two Post Lift
Katool KT-H105 10,000lbs Two Post Lift - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Ships fast. Enter your ZIP for a delivery date.
Save $150 Today
Up To15% OffUp to 15% off sitewide. Get an additional $150 off any order over $3,000 with code PF150 at checkout.
Katool KT-H105 10,000lbs Two Post Lift
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

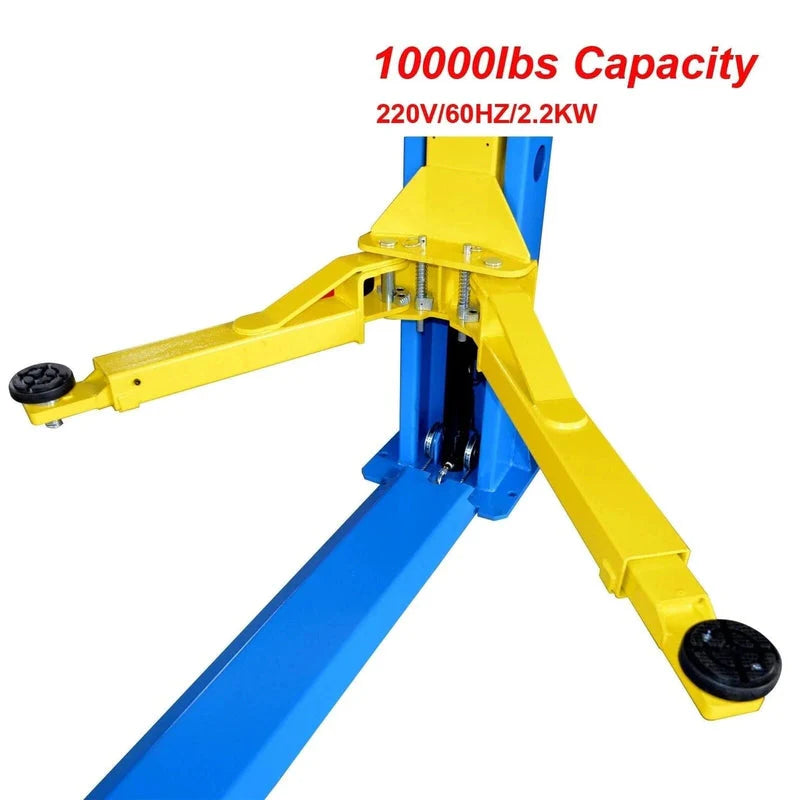

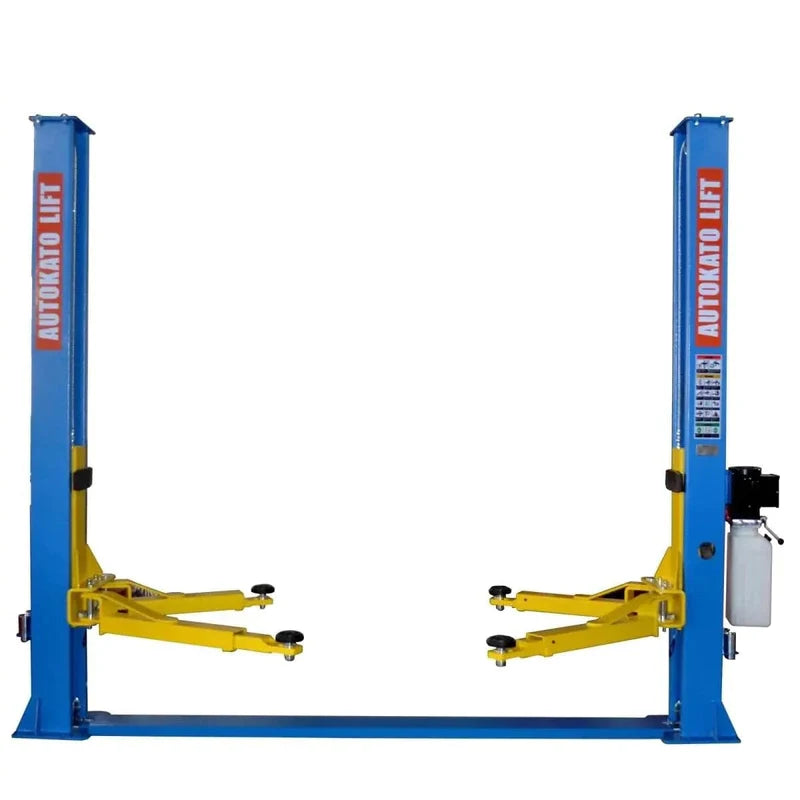

The Katool KT-H105 packs 10,000 lbs of lifting capacity into a base plate two-post design that fits standard garages and professional shops alike. What sets this lift apart from everything else in its price range: it comes equipped with a Bucher Hydraulics power unit — a Swiss-engineered, ISO 9001 certified hydraulic system trusted by commercial and industrial operations worldwide. You won't find Bucher Hydraulics on any other lift at this price point.
Dual hydraulic chain-drive cylinders ensure both arms rise in sync, while the dual-side manual safety lock release lets you work underneath with confidence at any height. Base plate design means easier installation, no overhead beam, and simpler delivery day unloading.
1-year parts + 3-year structural warranty | CE certified (150% static load tested)
Will It Fit Your Garage?
Before you buy any two-post lift, check your ceiling and floor. The KT-H105 requires:
- Ceiling Height: 11 ft minimum (110.9" overall height)
- Floor Width: 12 ft minimum (140.4" overall width)
- Drive-Through Clearance: 98.4" (fits full-size trucks and SUVs)
- Concrete Thickness: 5.9" (150mm) minimum with a 3,000 PSI rating
Important: Concrete thickness must be at least 5.9" (150mm) with a 3,000 PSI rating. It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
Need more lifting capacity? Check out the Katool H115Z (11,000 lbs).
Bucher Hydraulics Power Unit
Most two-post lifts in this price range ship with no-name hydraulic power units from unknown manufacturers. The KT-H105 comes standard with a Bucher Hydraulics power unit — a Swiss-made, ISO 9001 certified system built to commercial and industrial standards.
Bucher Hydraulics has been manufacturing precision hydraulic systems since 1923. Their power units are used in construction equipment, agricultural machinery, and industrial applications around the world. On the KT-H105, this translates to smoother lifting, quieter operation, and a hydraulic system that's built to last far longer than the generic alternatives.
What's in the Box
Every KT-H105 ships complete and ready to install:
- 2x lift columns with integrated base plates
- 4x adjustable lift arms (2-stage front and rear)

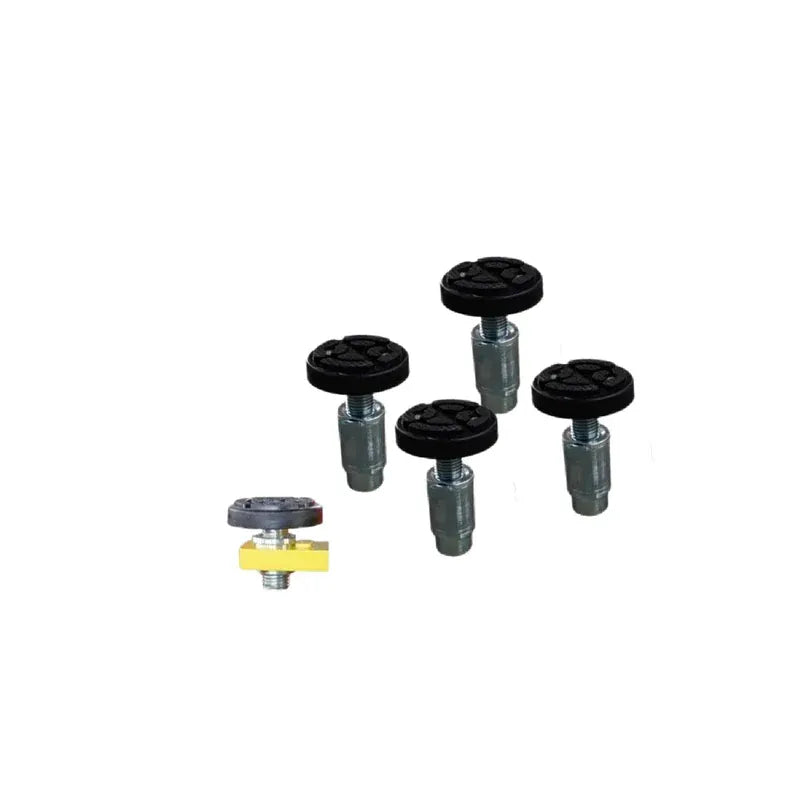

- 4x screw-on rubber lift pads with +100mm (3.9") extension adaptors
- 1x Bucher Hydraulics power unit (220V / 60Hz / 1-Phase / 2.2KW motor)
- Rubber door guards included
- All mounting hardware and anchor bolts
Perfect For

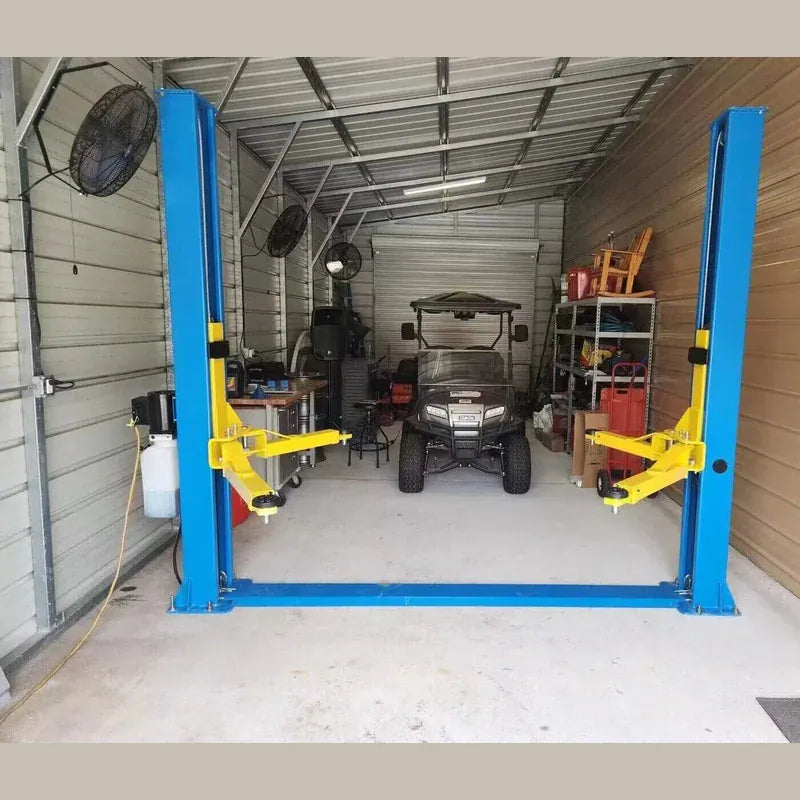

- Home garages & hobby shops — base plate design makes DIY installation manageable, and real customers are running these in metal buildings and standard 2-car garages
- Professional auto repair shops — 10,000 lbs handles cars, crossovers, SUVs, and most light trucks
- Dealerships & body shops — Bucher Hydraulics unit delivers the reliability you need for daily commercial use
- Fleet maintenance facilities — built for high-volume daily operation with a 3-year structural warranty

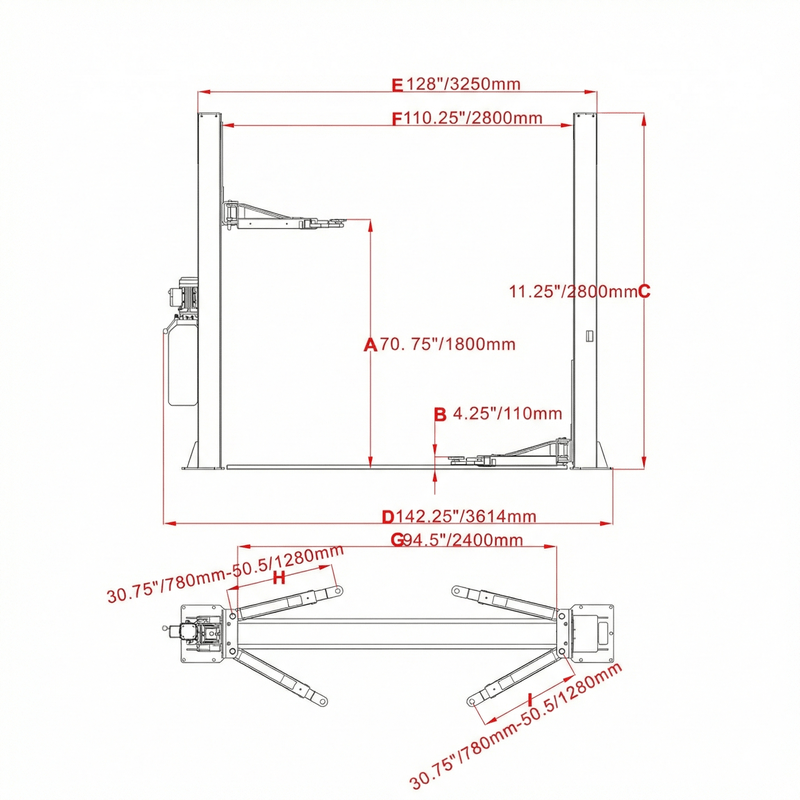

Specifications
| Lifting Capacity | 10,000 lbs (4,500 kg) |
| Max Lifting Height | 70.8" (1,800mm) |
| Minimum Height | 3.9" (100mm) |
| Overall Height | 110.9" (2,818mm) |
| Overall Width | 140.4" (3,565mm) |
| Outside Column Width | 124.8" (3,170mm) |
| Inside Column Width | 110.2" (2,800mm) |
| Drive-Through Clearance | 98.4" (2,500mm) |
| Front Arm Reach | 29.5" – 46" (2-stage adjustable) |
| Rear Arm Reach | 35.4" – 58.2" (2-stage adjustable) |
| Motor | 220VAC / 60Hz / 1-Phase / 2.2KW |
| Net Weight | 1,256 lbs (570 kg) |
| Design | Base Plate (no overhead beam) |
| Safety Lock Release | Manual (dual-side) |
| Hydraulic System | Bucher Hydraulics — dual chain-drive cylinders |
| Extension Adaptors | Screw-on pads with +100mm adaptors (included) |
| Rubber Door Guards | Included |
| Certification | CE Approved (115% dynamic / 150% static tested) |
| Concrete Requirement | 5.9" (150mm) minimum, 3,000 PSI |
Warranty
Katool stands behind the KT-H105 with coverage that goes beyond the industry standard:
- 1-Year Full Parts Warranty — Covers cylinders, power unit, motor, and all electronics. Replacement parts shipped free.
- 3-Year Structural Warranty — Covers columns, arms, and base plates against structural defects.
- Optional 2-Year Extended Warranty — Available for purchase for additional peace of mind.
All warranty claims include free replacement parts and free shipping on those parts. Labor is the responsibility of the installer/owner. Claims are reviewed by Katool's service department and may require supporting photos or video of the defect. Do not disassemble any equipment before the issue is reviewed — doing so may void the warranty.
Shipping & Delivery
Please keep the following in mind when planning for delivery:
- Freight shipping only — delivered via LTL carrier on a pallet
- The buyer is responsible for unloading from the truck — consider having forklift access or a loading dock available
- The buyer is responsible for any re-delivery charges if delivery is missed
- Inspect the product carefully before signing the Bill of Lading or delivery receipt — buyer satisfaction is assumed if no damages are noted at time of delivery
Base plate design means simpler unloading, no overhead beam to wrestle with.
Resources
For detailed installation instructions and operating guidelines:
