Katool KT-P2700 6,600 lb Two-Post Parking Lift
Have Questions?
Talk to an Expert
Our U.S.-based team can help you spec the right equipment or put together a custom quote.
Description
Description
Description

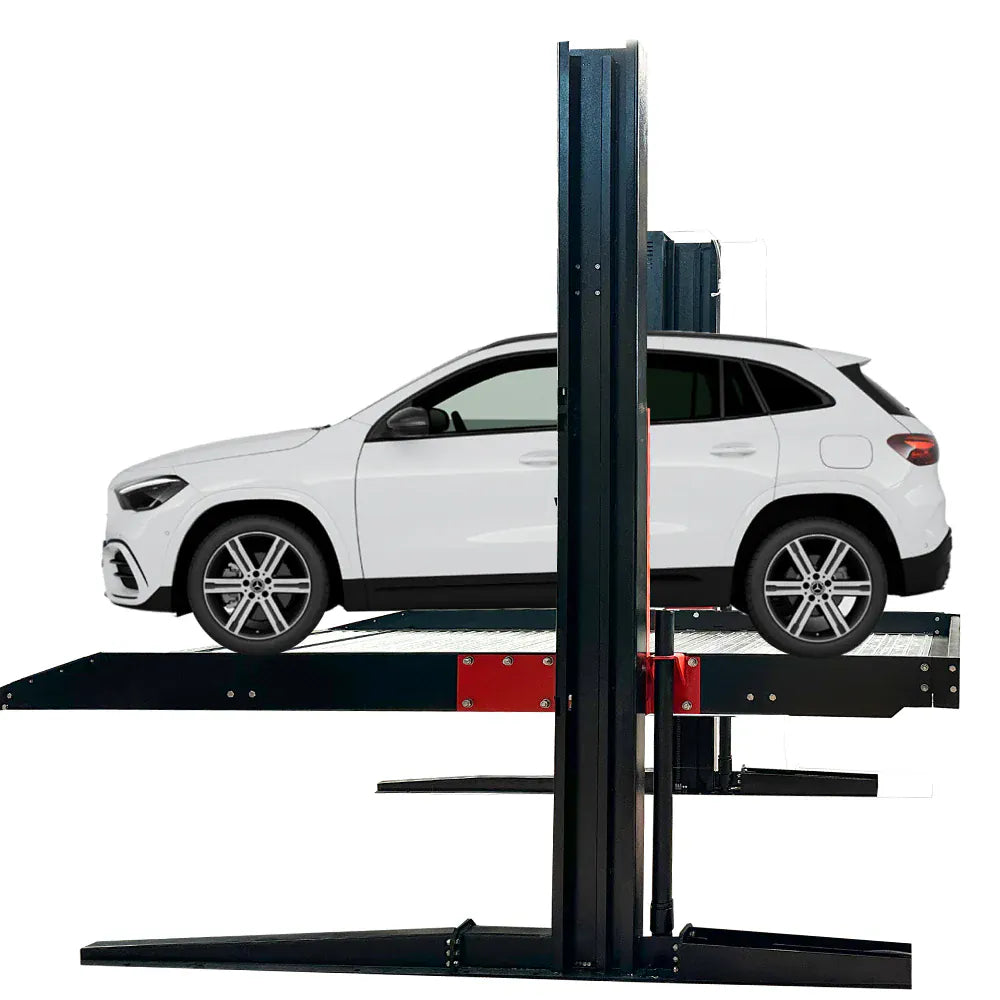

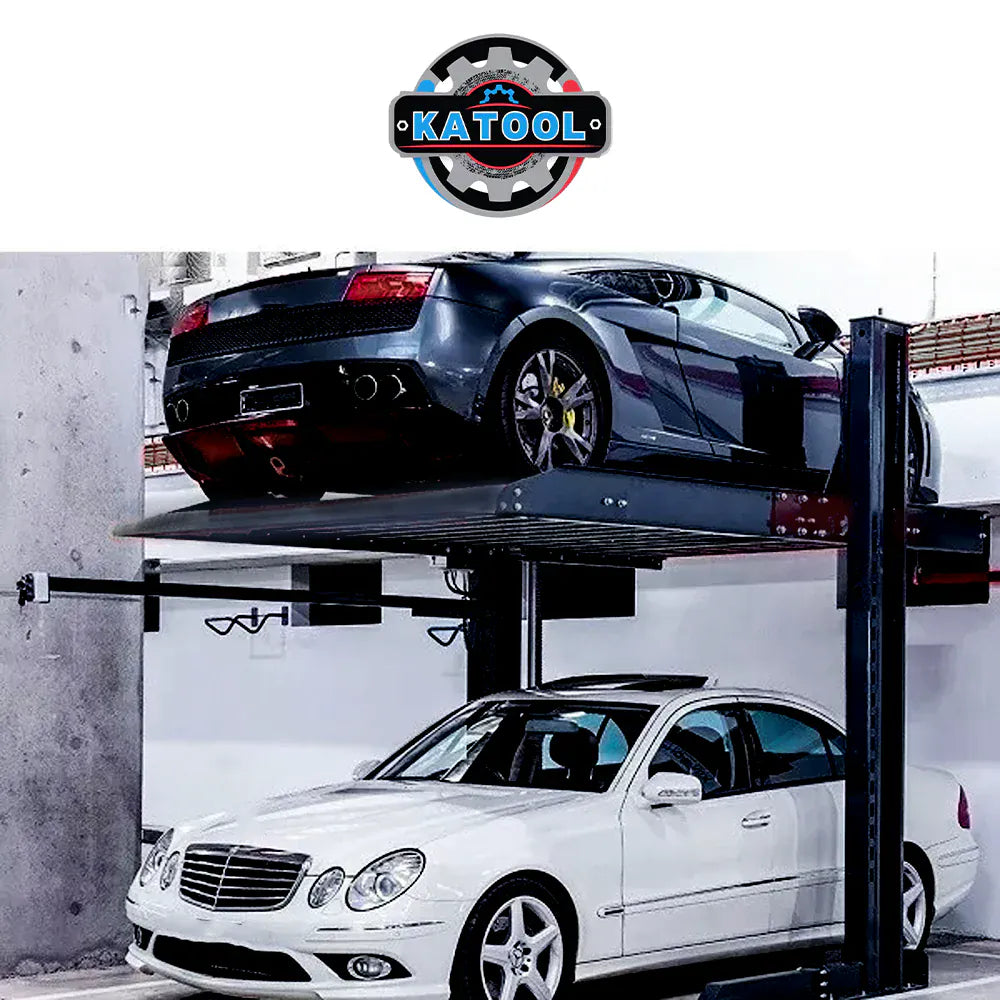

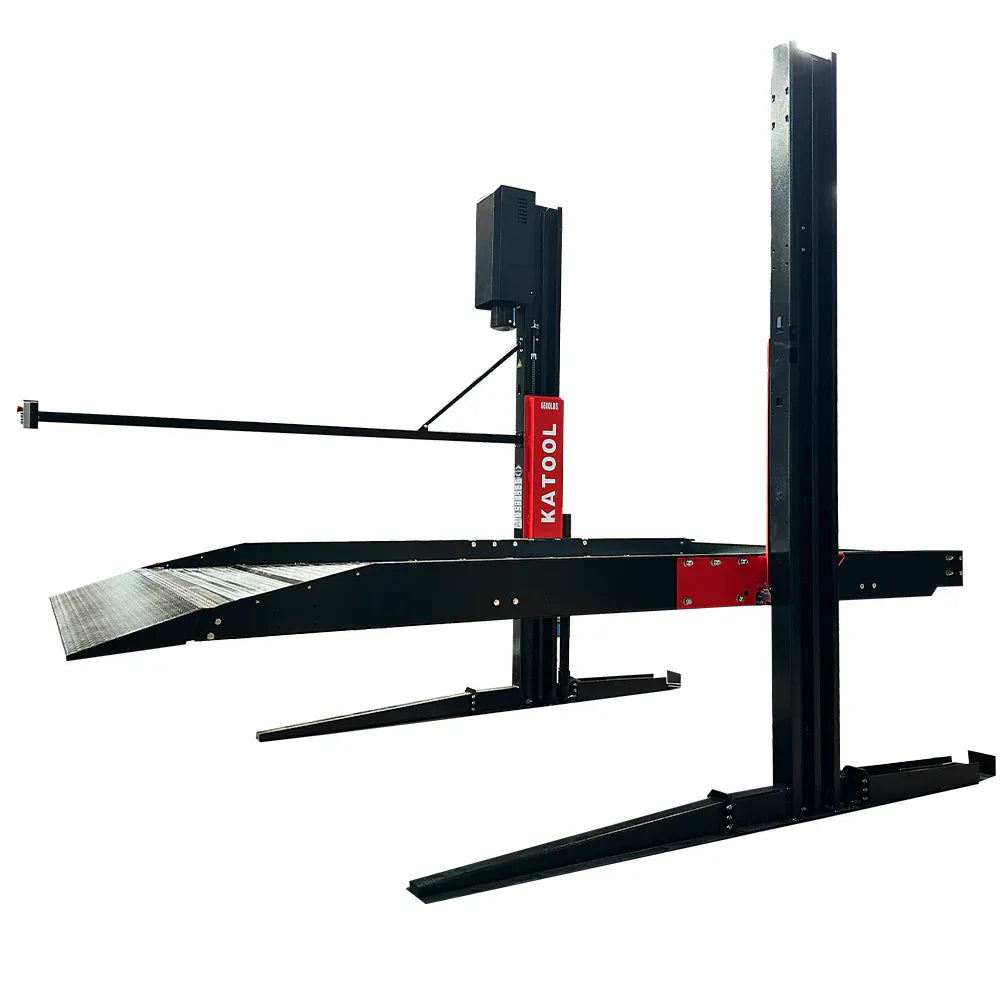

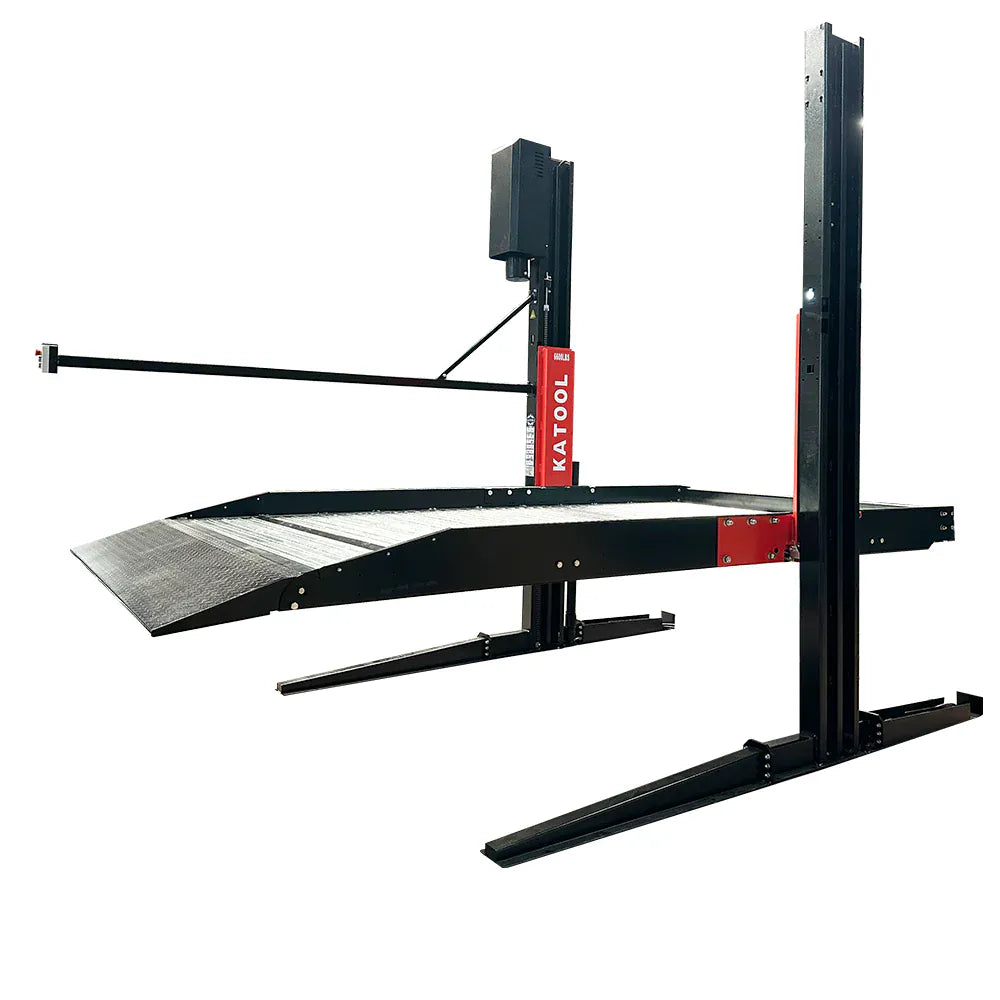

The Katool KT-P2700 is a hydraulic two-post parking lift rated to 6,600 lb, designed to double garage and shop floor space by storing one vehicle above another. The platform raises to a maximum height of 82.68 in (2,100 mm), lowers to a clearance of just 3.94 in, and is sized for sedans, sport coupes, and most light SUVs and pickups.
It runs on either 110V or 220V single-phase service at 50/60 Hz, so the same lift fits a residential garage circuit or a commercial bay without a power-unit swap. A full lift cycle takes 60–80 seconds; lowering takes 40–60 seconds.
Features
- 6,600 lb lifting capacity for sedans, light SUVs, and most half-ton pickups
- Two-post hydraulic design with a single drive cylinder and equalizing chain
- 110V / 220V dual-voltage motor (50/60 Hz) — fits residential or commercial single-phase service
- Mechanical multi-grade locking bar for parked-vehicle holding
- 24V low-voltage push-button control with key-switch and emergency stop
- Photo-sensor on the platform for obstruction detection during descent
- Angle-adjusted drive-on ramp for low approach angle
- Minimum height of 3.94 in (100 mm) for low-clearance loading
- Maximum lifted height of 82.68 in (2,100 mm) — clears most overhead garage doors
- Multi-unit linkage option — stations can be lined up side-by-side for valet, dealership, and storage rows
Multi-unit configurations
A single KT-P2700 station occupies 2,657 mm (about 8 ft 8 in) across. Stations can be linked end-to-end without independent end columns, so adding a second station only adds 2,492 mm of width — useful for car dealerships, valet operations, and high-density residential storage.
Specifications
| Katool KT-P2700 Two-Post Parking Lift Specifications | |
|---|---|
| Lifting Capacity | 6,600 lb (3,000 kg) |
| Maximum Lifting Height | 82.68 in (2,100 mm) |
| Minimum Height | 3.94 in (100 mm) |
| Stroke | 82.68 in (2,100 mm) |
| Lifting Time | 60–80 seconds |
| Lowering Time | 40–60 seconds |
| Power Supply | 110V or 220V single-phase, 50/60 Hz |
| Minimum Hydraulic Pressure | 2,844 psi (200 kg/cm²) |
| Device Length | 173.4 in (4,405 mm) |
| Platform Length | 168.8 in (4,288 mm) |
| Device Width | 103.1 in (2,619 mm) |
| Platform Width | 85.6 in (2,174 mm) |
| Drive-On Width Between Carriages | 86.6 in (2,199 mm) |
| Maximum Device Height | 137.8 in (3,500 mm) |
| Optional Lower Device Height | 120.3 in (3,055 mm) |
| Gross Weight | 2,557 lb (1,160 kg) |
| All dimensions per Katool factory drawing. Imperial values are converted from millimeters and rounded to one decimal. | |
Power unit and controls
The motor and hydraulic power unit sit at the top of the drive column. The operator works from a separate 24V control box mounted on the column with up, down, and emergency-stop buttons plus a key switch.
